ZhongTuo Made‑in‑China PPGI Color Steel IBR Roof Wall Panel Roll Forming Machine CE Certified Customizable

Key Attributes
Type	Roll Forming Machine	Tile Type	Galvanized Steel
Feeding Width	1000/1200mm (as per profile drawing)	Rolling Thickness	0.3-0.6mm (customizable)
Voltage	380V, 50Hz, 3-Phase (customizable)	Core Components	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Application	Roofing	Warranty	1 Year
Video Outgoing Inspection	Provided	Machinery Test Report	Provided
Key Selling Points	Automatic Operation	Place of Origin	Hebei, China
Weight	6500 kg	Brand Name	ZTRFM
Dimensions (L*W*H)	Approx. 6.5m x 1.6m x 1.5m	Product Name	PPGI/GI Roof and Wall Panel Roll Forming Machine
Raw Material Width	1000/1200mm (as per profile drawing)	Delivery Time	Approx. 45 working days
Control System	PLC (Siemens Brand)	Automation Level	Fully Automatic
Cutting Blade Material	Cr12 (Quenched)	Cutting Type	Hydraulic Cutting
Forming Speed	0-20 m/min	Remote Control Function	Yes
After-Sales Service	One-year warranty with lifetime technical support
Packaging and Delivery
Selling Units	Single Item	Single Volume	0 cm³
Single Gross Weight	0.0 kg

Product Title: PPGI IBR Corrugated Tile Roof and Wall Panel Roll Forming Machine (Made in China, CE Certified)

Product Description:

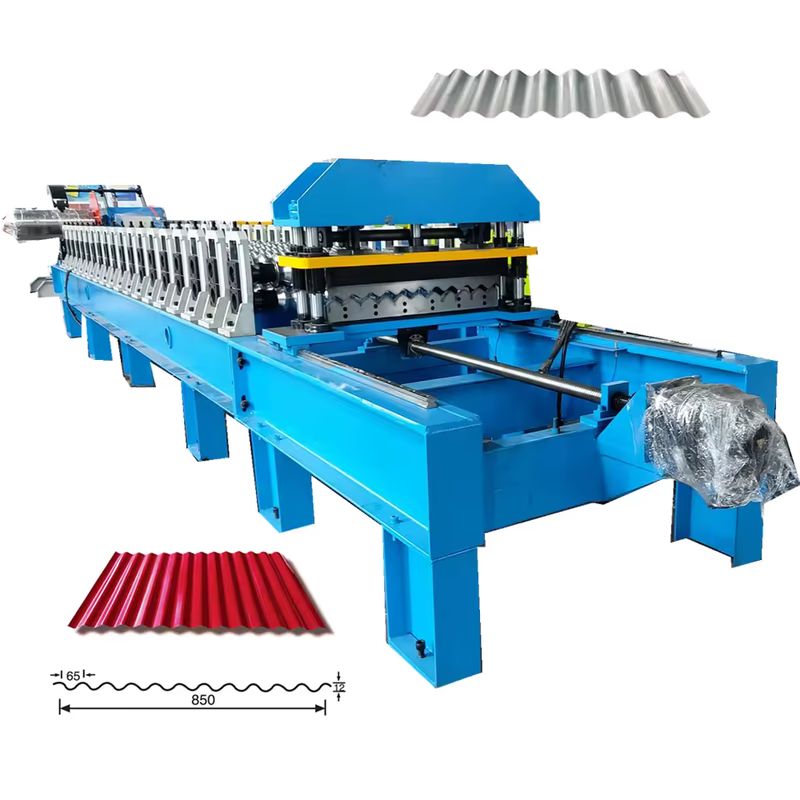

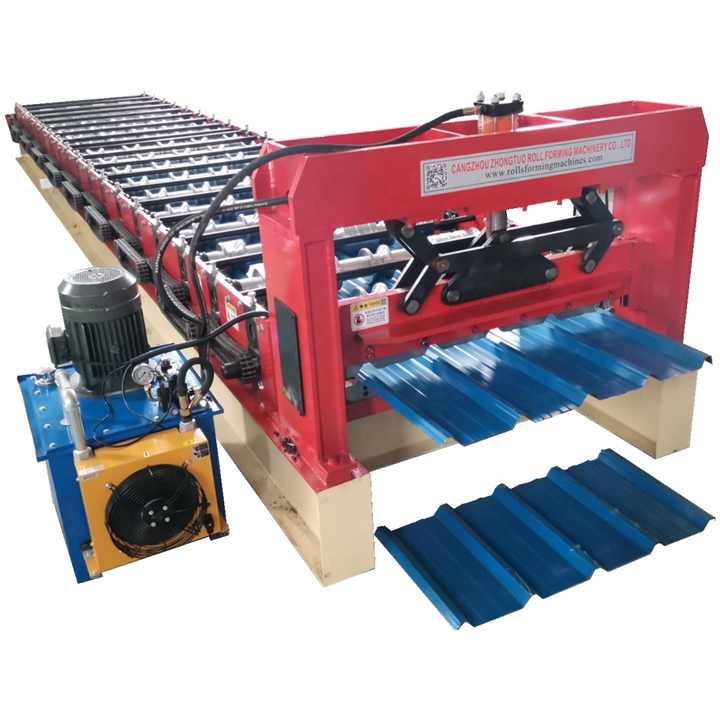

This PPGI IBR Corrugated Step Tile Metal Roofing Sheet and Wall Panel Roll Forming Machine is designed for high-efficiency production. ZTRFM manufactures a wide range of roll forming solutions, including PPGI sheet roll forming machines, 2-in-1 automatic systems, hydraulic and electric roll forming machines, and steel sheet processing equipment.

Key Features:

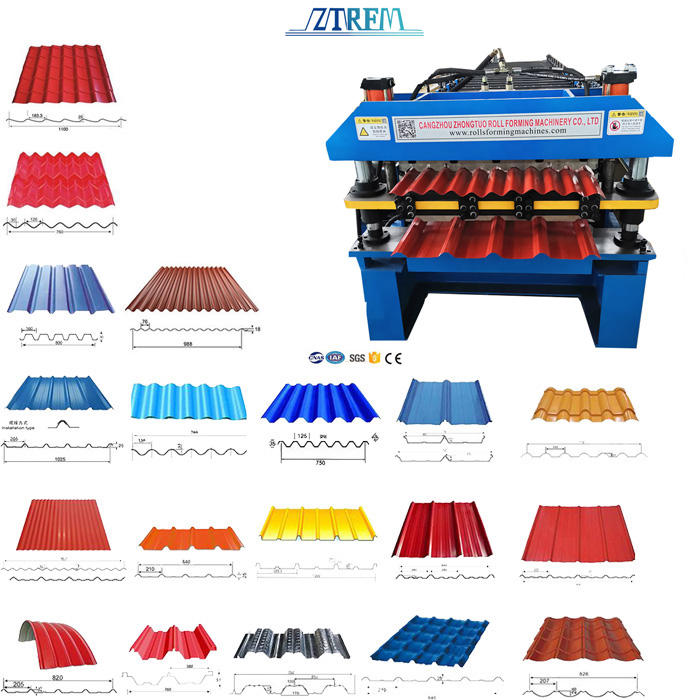

1. Customization: Capable of producing various roof sheet profiles based on customer requirements.
2. User-Friendly Design: Updated structure ensures easy installation and operation.
3. Full Automation: Reduces labor costs through automated processes.
4. Precision Rollers: Equipped with internal bearings to eliminate linear velocity inconsistency, ensuring high-quality final products.
5. Advanced Control: Portable PLC control system with customizable language support.

Technical Specifications:

1. Formed Material: PPGI, PPGL, Aluminum, etc.
   Material Thickness: 0.3-0.8mm
2. Decoiler: Hydraulic decoiler (optional); Manual decoiler (included as standard).
3. Main Body & Rollers:
   - Roller Stations: Customized based on profile requirements.
   - Shaft Diameter: Optimized for stability.
   - Roller Material: High-grade 45# Forged Steel with hard chrome plating (Chrome thickness: 0.05mm).
   - Frame & Transmission: Robust machine body frame with drive gear and double chain transmission (gearbox transmission optional).
   - Dimensions & Weight: Varies by design configuration.
4. Cutter: Automatic cutting system using Cr12MoV material, ensuring no scratches or deformation.
5. Power:
   - Motor Power: 5.5kW (standard)
   - Hydraulic System Power: 5.5kW
6. Voltage: Customizable according to client requirements.
7. Control System:
   - Electric Box: Customized with famous brand components.
   - Language: Supports multiple languages.
   - PLC Functionality: Fully automatic production control; allows setting of batch size, length, quantity, etc.
8. Forming Speed: 0-80 m/min (Customizable options available).

Why Choose Our Machine?
We offer reliable performance, precision engineering, and comprehensive support. Explore our recommended products and frequently bought together items below.
