Light Steel Framing Machine CNC Light Gauge Steel Roll Forming Machine Up to 30 m/min

The growing demand for prefabricated and modular construction has increased the need for efficient equipment capable of producing accurate structural steel components. Light steel framing machines provide manufacturers with an automated way to transform galvanized steel coils into C and U-shaped framing members for modern building systems.

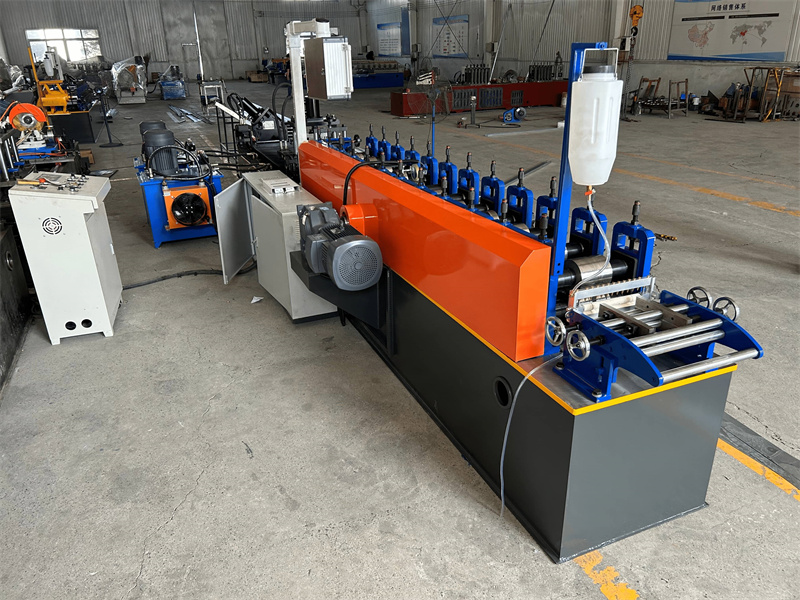

Zhongtuo’s Light Steel Framing Machine combines decoiling, material guiding, automatic punching, progressive roll forming, secondary processing, cutting, and finished-profile output in one production line. With CNC-controlled operation and servo-driven forming technology, the system is designed for manufacturers that require consistent dimensions, flexible profile production, and reduced manual processing.

What Is a Light Steel Framing Machine?

A Light Steel Framing Machine, also known as a Light Gauge Steel Framing Machine or LGS Roll Forming Machine, is an automated manufacturing system for producing structural steel framing members from galvanized steel coils.

During production, the flat steel strip passes through a sequence of forming rollers. Each forming station gradually changes the shape of the material until the required C or U profile is achieved. Before, during, or after forming, integrated punching equipment can create holes and notches required for assembly, utilities, connections, and structural applications.

Zhongtuo can configure the production line for different framing specifications. One available configuration supports six web sizes:

• C profile: 89/100/150/200/250/300 × 50 × 15 mm

• U profile: 89/100/150/200/250/300 × 50 mm

The equipment is designed for high-tensile galvanized steel such as G350–G550, with material thicknesses generally ranging from 1.0 to 2.5 mm, depending on the required profile and production configuration.

This flexibility allows one production system to serve different light steel framing applications instead of requiring separate machines for every profile size.

Technical Specifications

Specification	Zhongtuo Light Steel Framing Machine
Raw Material	High-tensile galvanized steel G350–G550
Material Thickness	1.0–2.5 mm, configurable
Profile Type	C and U structural profiles
C Profile	89/100/150/200/250/300 × 50 × 15 mm
U Profile	89/100/150/200/250/300 × 50 mm
Available Web Sizes	6 sizes
Maximum Forming Speed	Up to 30 m/min
Control	CNC control
Forming Drive	Servo motor + individual reduction gear
Forming Stations	Approximately 12–13
Roller Material	SKD11 alloy steel
Roller Treatment	Vacuum heat treatment
Punching Functions	Holes, notches, lip cuts, truss holes, dimples, swages, crimping, etc.

The actual configuration can be adjusted according to the customer's profile drawings, material specifications, punching patterns, and required production capacity.

Automated Punching and Profile Processing

One important feature of a modern light gauge steel framing machine is its ability to combine roll forming with automatic punching.

Instead of producing a plain C or U profile first and then sending it to another machine for additional processing, the Zhongtuo system can perform multiple operations within the same production line.

Depending on the framing design, the punching system can create:

• Service holes

• Web holes

• Truss holes

• Anchor holes

• Bolt holes

The punching configuration is customized according to the required framing design. This makes the machine suitable for structural components that need connection holes, utility openings, or assembly features at predetermined positions.

How the Light Steel Framing Machine Produces C and U Profiles

The complete production process is designed around continuous automated processing.

1. Coil Loading

The galvanized steel coil is placed onto the automatic uncoiler. The uncoiler releases the strip at a controlled speed and feeds it toward the forming line.

A typical configuration can support a coil loading capacity of approximately 2,200 kg, depending on the selected machine design.

2. Material Guiding

An entry guide and counter-wheel system help keep the steel strip correctly aligned before it enters the punching and forming sections.

Proper alignment is particularly important when the profile contains multiple punching patterns because even small deviations can affect hole positioning.

3. Pre-Punching

The first punching section processes the steel strip before roll forming. Depending on the framing design, this stage can include holes, notches, lip cuts, truss openings, and other structural features.

4. Progressive Roll Forming

The strip then enters approximately 12–13 forming stations.

Rather than bending the steel into its final shape in one operation, each roller station performs a small forming step. The gradual forming process helps maintain dimensional stability while reducing excessive deformation of the material.

Servo-driven transmission and individual reduction gears provide synchronized movement between the forming stands.

5. Secondary Processing

After the basic C or U shape has been formed, additional punching or profile processing can be carried out. This may include oval holes, notches, swaging, crimping, or other customized features.

6. Automatic Cutting

The completed profile is cut according to the programmed length. The finished pieces can then be transferred to the run-out area for collection or further handling.

The overall production sequence can be summarized as:

Steel Coil → Decoiling → Guiding → Pre-Punching → Roll Forming → Secondary Punching → Crimping/Processing → Cutting → Finished C/U Profile

Servo-Driven Roll Forming System

The forming section is an important part of the machine because light gauge steel profiles must maintain consistent dimensions throughout continuous production.

Zhongtuo uses a servo motor and individual reduction gear transmission for the forming system. The forming stands operate in synchronization to provide controlled material movement through the machine.

The forming rollers can be manufactured from SKD11 alloy steel and treated with vacuum heat treatment. This improves the wear resistance of the tooling and supports stable operation when processing high-strength galvanized steel.

The shafts are also processed to provide the necessary strength and precision for continuous forming.

CNC Control and Digital Production

The light steel framing machine uses CNC-based control to coordinate forming, punching, cutting, and profile production.

Operators can enter production information through the industrial computer and touch-screen interface. Depending on the machine configuration, design software can also support C + C and C + U framing layouts.

For manufacturers using digital building design workflows, CAD information can be converted into production data. This helps connect the design stage with automated profile manufacturing.

The result is a more integrated production process in which the machine can follow programmed profile dimensions, hole locations, cutting lengths, and other manufacturing requirements.

Applications of Light Gauge Steel Framing Machines

The versatility of C and U steel framing profiles makes this equipment suitable for many construction applications.

Prefabricated Houses

In prefabricated housing production, standardized steel framing components can be manufactured in advance and assembled at the construction site. Automated punching helps prepare connection and utility openings during production.

Modular Buildings

Modular construction requires structural components with consistent dimensions because individual modules need to connect accurately. CNC-controlled production can help manufacturers maintain repeatable profile dimensions and hole positions.

Commercial and Industrial Buildings

The machine can produce structural framing members for warehouses, workshops, offices, logistics facilities, and other commercial or industrial buildings.

Agricultural Structures

Light steel framing is also used for barns, agricultural buildings, greenhouses, and related structures where standardized steel profiles are required.

Wall, Roof, and Floor Systems

Depending on the structural design, C and U profiles can be used in wall framing, roof structures, floor systems, partition systems, and other prefabricated steel construction components.

Why Use an Automated Light Steel Framing Production Line?

Traditional production may require several separate machines to complete punching, forming, cutting, and secondary processing. This can increase material handling and require additional labor between production stages.

An integrated Light Steel Framing Machine brings multiple operations together in one continuous production line.

The main production benefits include:

Integrated processing: Punching, roll forming, secondary processing, and cutting can be coordinated within one line.

Consistent production: CNC control helps maintain programmed dimensions and processing positions.

Reduced manual handling: Finished profiles can be produced directly from the steel coil without repeated transfer between independent machines.

Flexible profile production: Different C and U profile dimensions can be configured according to project requirements.

High-strength material capability: The system can be designed for high-tensile galvanized steel such as G350–G550.

Efficient continuous production: Forming speeds can reach approximately 30 m/min under suitable material, profile, and punching conditions.

Conclusion

An automated Light Steel Framing Machine provides an integrated method for manufacturing accurate C and U structural profiles from high-strength galvanized steel coils. By combining automatic punching, progressive roll forming, CNC control, servo transmission, secondary processing, and cutting, the production line can reduce manual intervention while supporting consistent profile production.

With approximately 12–13 forming stations, SKD11 forming tooling, G350–G550 material capability, and production speeds of up to 30 m/min, Zhongtuo’s light gauge steel framing equipment can be configured for a wide range of prefabricated and modular construction applications.

Frequently Asked Questions

1. What does a light steel framing machine produce?

A light steel framing machine produces structural C and U steel profiles from galvanized steel coils. These profiles are commonly used in prefabricated houses, modular buildings, walls, roofs, floors, warehouses, and other light steel structures.

2. What steel can the machine process?

The machine can be designed for high-tensile galvanized steel such as G350–G550. A typical material thickness range is approximately 1.0–2.5 mm, although the final range depends on the profile and machine configuration.

3. Can one machine produce different C and U profiles?

Yes. Zhongtuo can configure the production line for multiple profile sizes. A six-size configuration, for example, can produce C profiles with web sizes of 89, 100, 150, 200, 250, and 300 mm, together with corresponding U profiles.

4. Does the machine punch holes automatically?

Yes. Automatic punching can be integrated into the production line. The available punching functions may include service holes, truss holes, anchor holes, bolt holes, notches, lip cuts, oval holes, dimples, swages, and crimping features.

5. What is the production speed?

The maximum forming speed can reach approximately 30 m/min in suitable configurations. Actual production speed depends on material thickness, profile geometry, punching requirements, cutting length, and other production conditions.
