Laminated R Panel Terrazzo PE Foam Metal Steel Roofing Sheet Composite Thermal Insulation Tiles Making Roll Forming Machine ZTRFM-N01+7.5kw

Name: Laminated R Panel Terrazzo PE Foam Metal Steel Roofing Sheet Composite Thermal Insulation Tiles Making Roll Forming Machine ZTRFM-N01+7.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT80117551

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTRFM-N01

Power(W):

7.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel PPGI or composite material
Use
ROOF
Voltage
380V 50HZ 3P(Or customized)
Rolling Thinckness
0.3-0.8mm(customized)
Feeding Width
1250mm(customzied)

Product Description

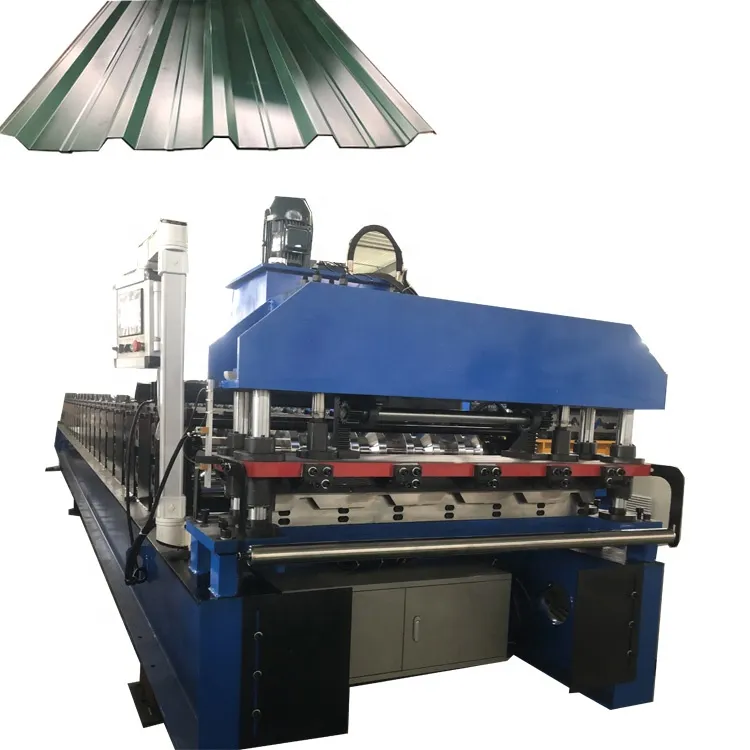

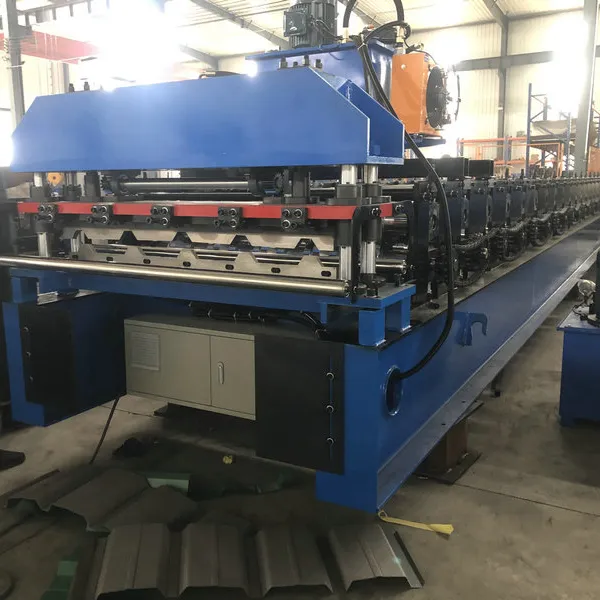

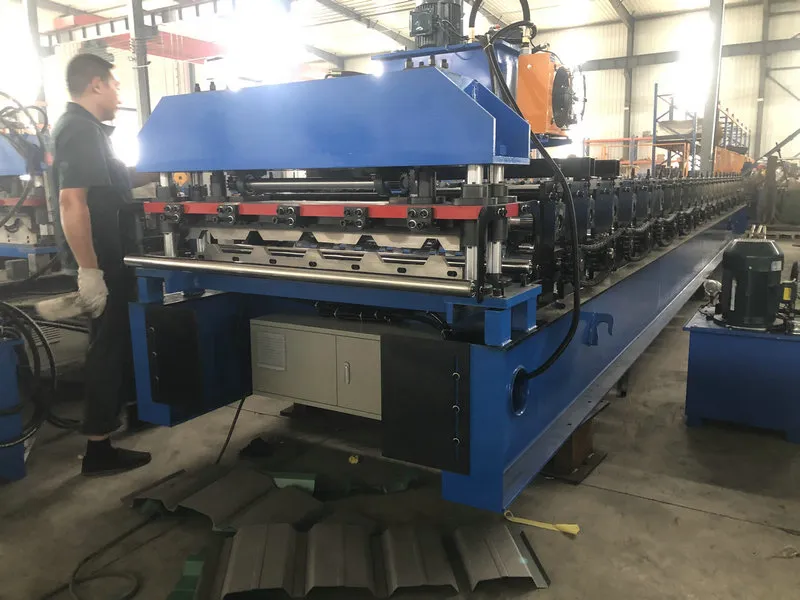

Laminated R Panel Terrazzo PE Foam Metal Steel Roofing Sheet Composite Thermal Insulation Tiles Making Roll Forming Machine

Our Laminated R Panel Terrazzo PE Foam Metal Steel Roofing Sheet Composite Thermal Insulation Tiles Making Roll Forming Machine for different models based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

Laminated R Panel Terrazzo PE Foam Metal Steel Roofing Sheet Composite Thermal Insulation Tiles Making Roll Forming Machine

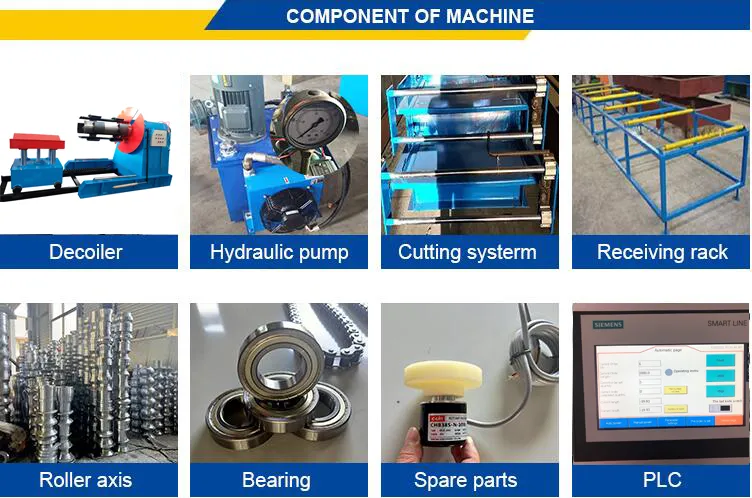

1.Formed Material	PPGI,GI,AI and ZTRFM new design composite material		Thickness:0.3-1.0mm Width:1000mm/1250mm(customized)
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		20 rows(Due to your profile drawing design)

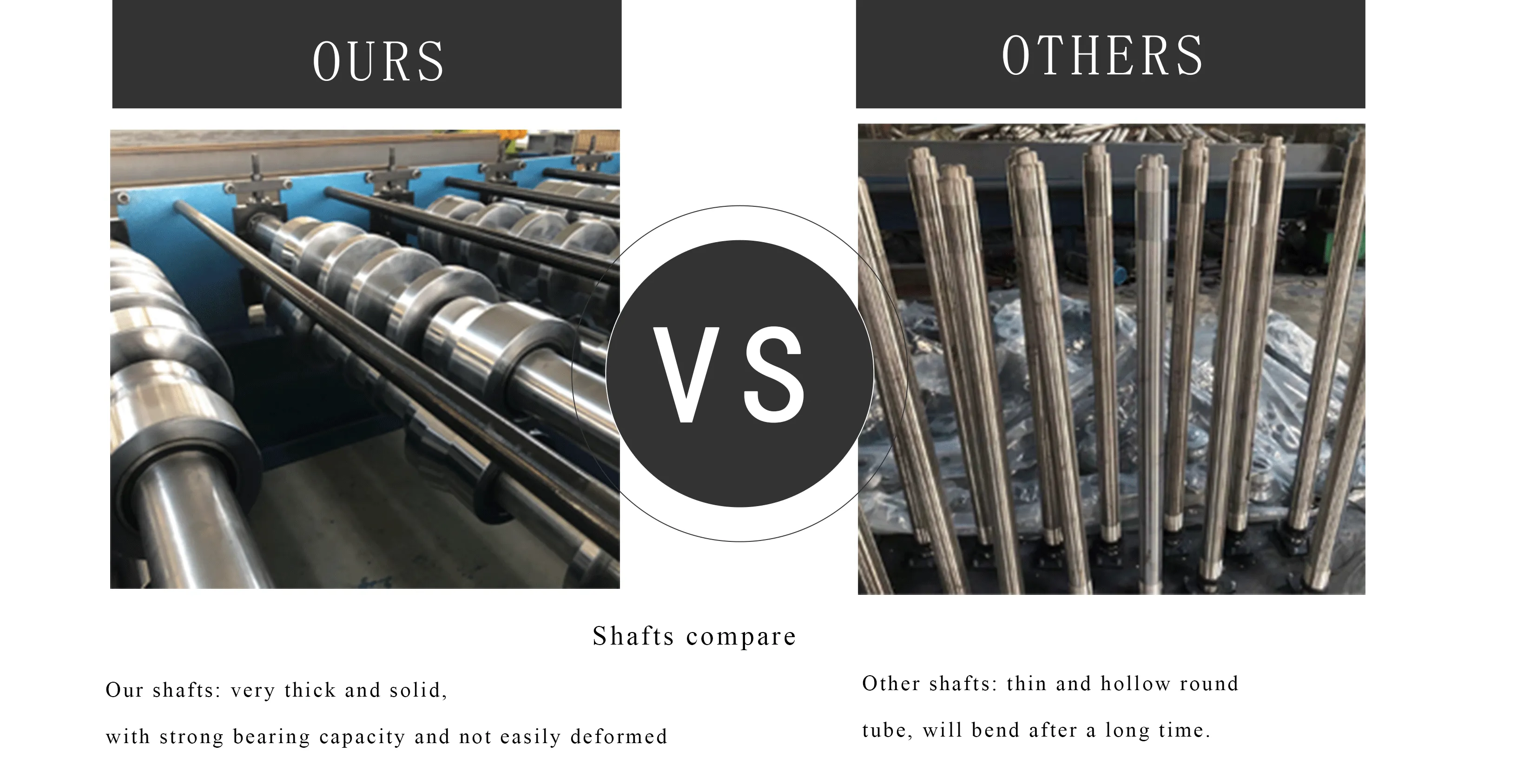

		Diameter of shaft		80mm solid shaft

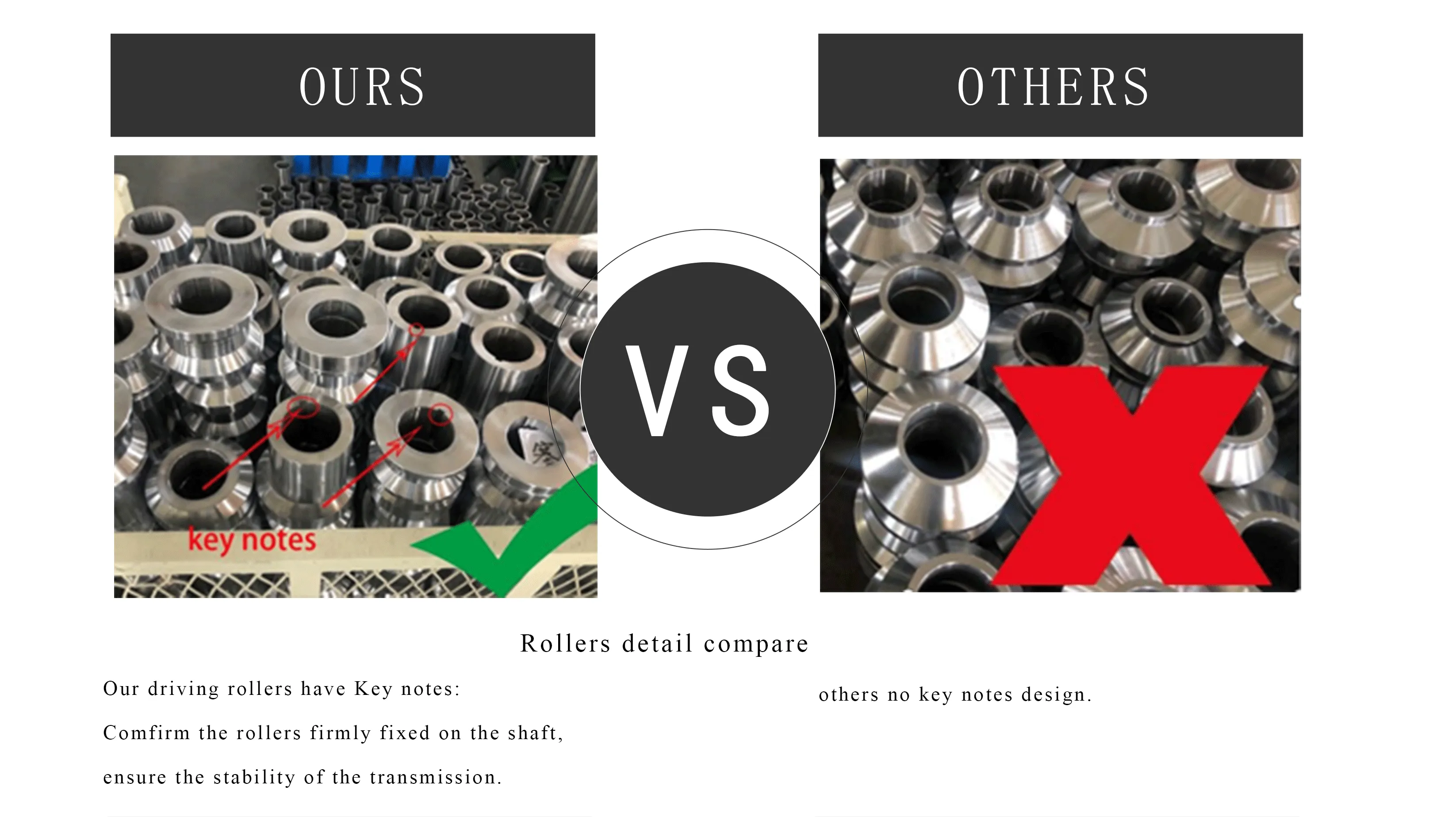

		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		400 H steel
		Drive		Gearbox transmission
		Dimension(LWH)		1500018001600(customize)
		Weight		18T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5KW*2 sets,Siemens brand
		Hydraulic system power		7.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	15-80m/min		The speed is adjustable

Machine Advantage:

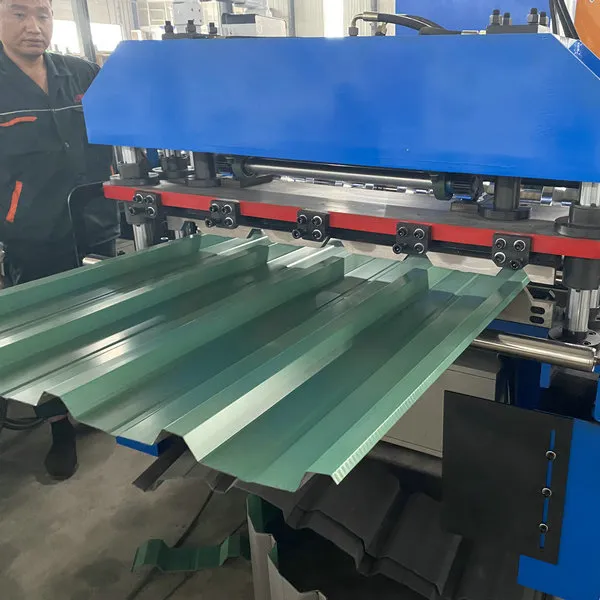

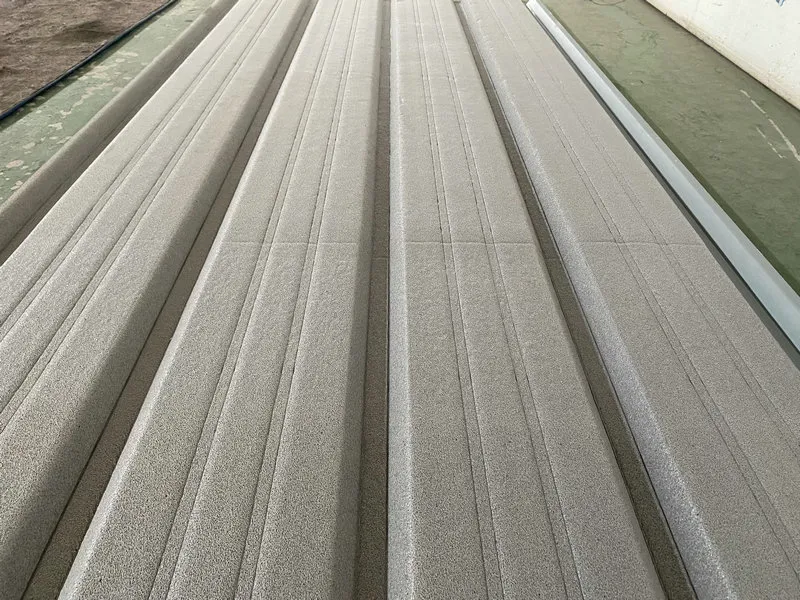

Suit for normal PPGI metal steel materials also our brand mini laminated composite material.This laminated composite material can laminated different layers and materials,with different function.Here laminated PE poam roof sheet showing for you.

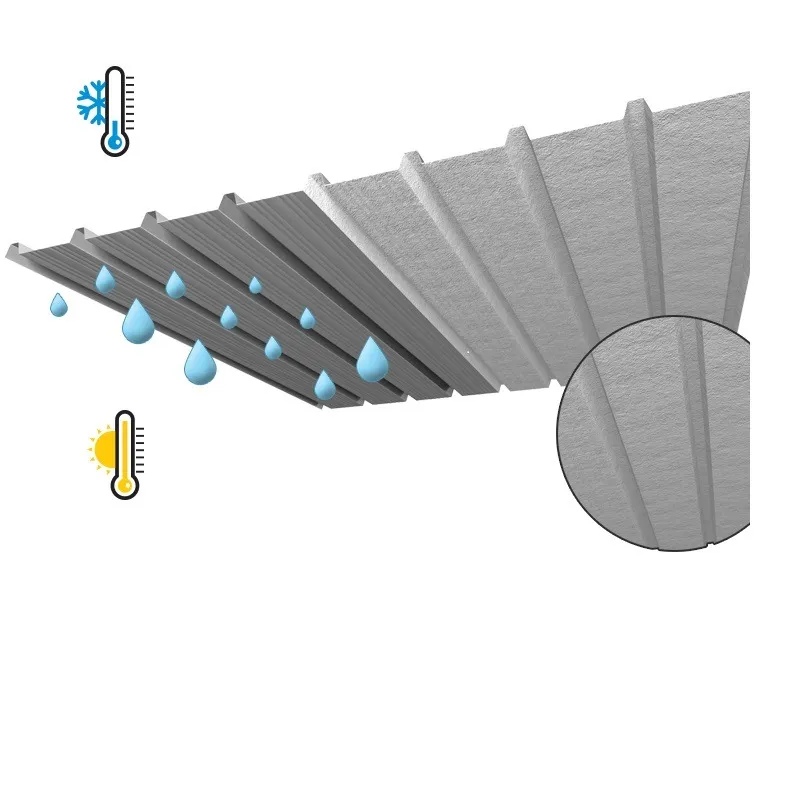

Why produce this roof sheet?

With the function of thermal insulation,sound insulation,waterproof and anti condensation.Good application for factory,farm,house and storehouse.

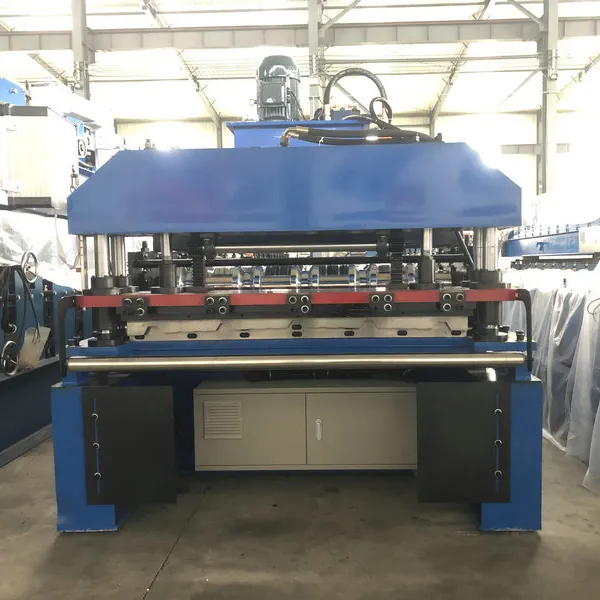

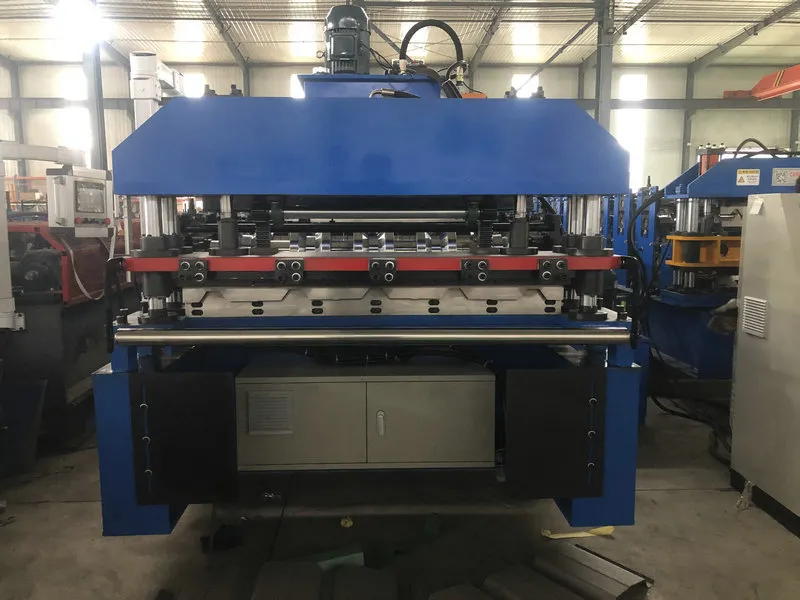

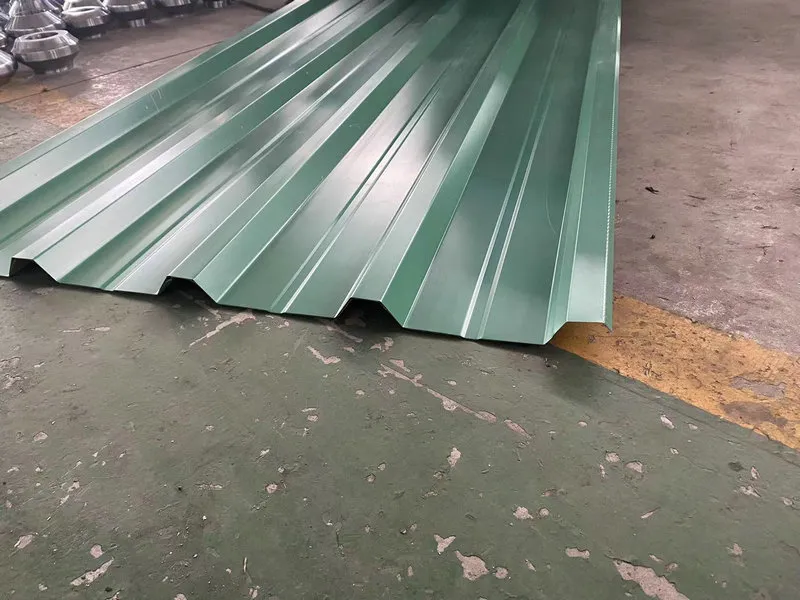

Products Display

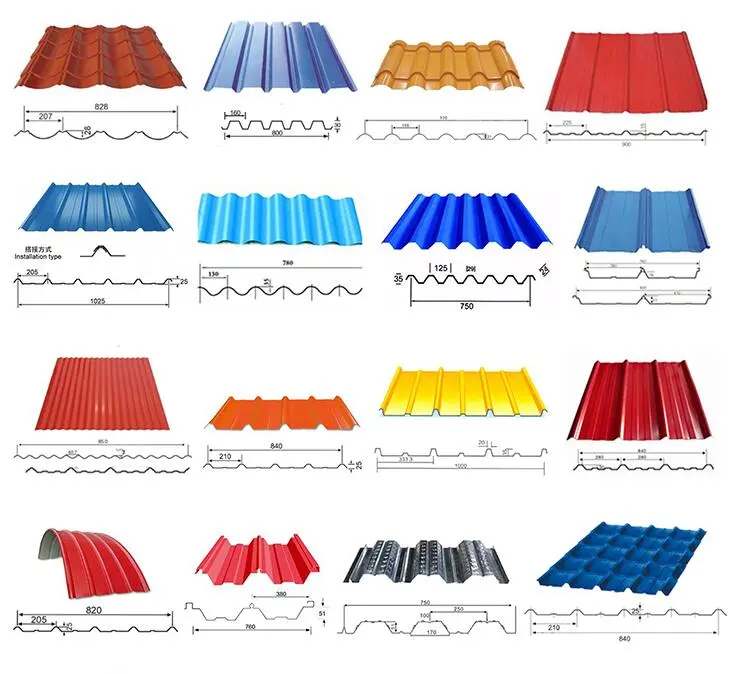

Machines are customized as your drawing,here hot sale drawing profiles for your reference.
