LED Light Channel Roll Forming Machine with Punching Hole LED Light Channel Roll Forming Machine

General Industry Tech Hebei Developing Co.,Ltd

LED Light Channel Roll Forming Machine with Punching Hole LED Light Channel Roll Forming Machine

Name: LED Light Channel Roll Forming Machine with Punching Hole LED Light Channel Roll Forming Machine
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT120787003

Machine TypeLED light channel roll forming machine

Key Selling PointsEasy to operate; fully automatic

Cutting Blade MaterialCr12 steel

Protection MeasuresAdded an automatic oiling device

Weight5000 kg

WarrantyMore than 5 years

CertificationCE, BV, STV, ISO

Core ComponentsPLC, motor, bearing, gearbox, gear, servo motor, hydraulic, cutter

After-Sales ServiceMachinery test report and video outgoing inspection provided

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Type:

LED Light Channel Roll Forming Machine

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Machine Type
LED light channel roll forming machine
Key Selling Points
Easy to operate; fully automatic
Cutting Blade Material
Cr12 steel
Protection Measures
Added an automatic oiling device
Weight
5000 kg
Warranty
More than 5 years
Certification
CE, BV, STV, ISO
Core Components
PLC, motor, bearing, gearbox, gear, servo motor, hydraulic, cutter
After-Sales Service
Machinery test report and video outgoing inspection provided
Working Speed
15 m/min
Working Material
Aluminum strips
Roller Material
Cr12 (GB Cr12 hardened)
Shaft Material
45# steel, outer diameter 80 mm
Cutting Type
Servo tracking cutting
Punching
Hydraulic post punching
Control System
PLC (imported Siemens / Delta brand)
Power
7.5 kW
Voltage
380 V or customized

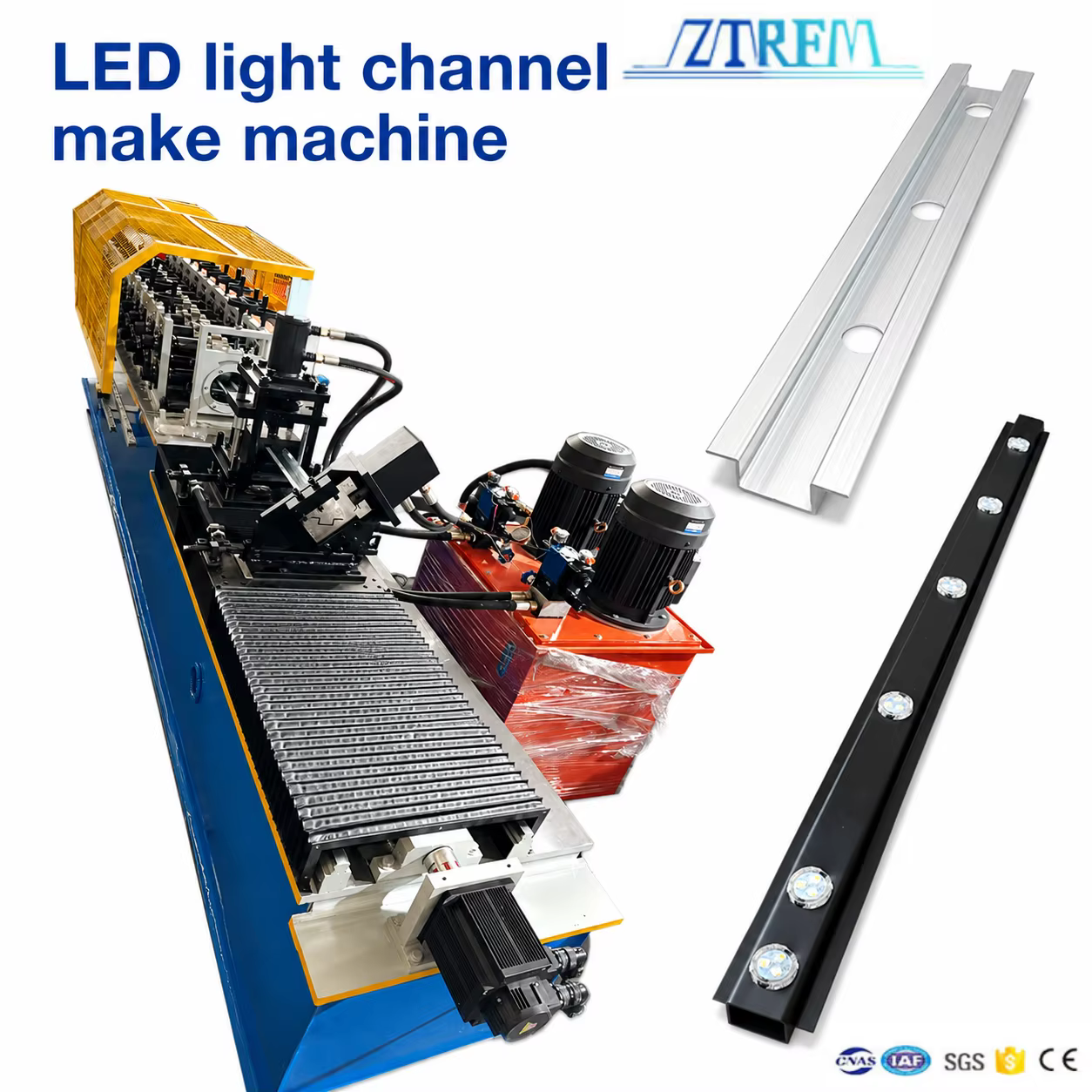

LED light channel roll forming machine with punched aluminum LED channel samples

Product Overview

The LED light channel roll forming machine produces aluminum LED channels for ceiling lights with punching holes. Fully automatic operation at 15 m/min, running aluminum strips through Cr12 rollers with servo tracking cutting and hydraulic post punching - ideal for LED aluminum profile production, LED strip channel manufacturing and linear lighting profile roll forming.

Fully automatic LED light channel making machine with punching hole
Working material: aluminum strips; speed 15 m/min
Servo tracking cutting + hydraulic post punching in one line
Cr12 rollers, 45# steel shaft (80 mm outer diameter), Cr12 steel blades
PLC control (imported Siemens / Delta brand); automatic oiling device included
CE, BV, STV, ISO certified

Product Highlights

High-Accuracy: Ensures precise and consistent cuts for optimal light distribution.
Easy Operation: Fully automatic design reduces manual intervention and enhances efficiency.
Customized Solutions: Accommodates various project requirements with flexible settings.
Reliable Warranty: Extends up to 5 years, providing peace of mind for long-term use.
CE Certified: Meets international safety standards for safe and reliable performance.

Key Features

High Precision GB Cr12 Rollers & Stable Gear Drive: Features premium GB Cr12 hardened rollers for superior forming accuracy, excellent wear resistance, and extended service life. The chain and gear transmission system provides stable, high-torque power delivery, reducing vibration and ensuring smooth operation. This advanced design effectively prevents scratches on aluminum LED profiles, making it ideal for LED aluminum profile production, LED strip channel manufacturing, and linear lighting profile roll forming with high efficiency and consistent quality.
High-Speed Servo Punching & Flying Cutting: Equipped with an advanced servo punching and flying cutting system, the machine performs high-speed punching and cutting without interrupting the production process. This ensures precise hole positioning, clean cutting edges, higher production efficiency, and consistent product quality, making it ideal for large-volume orders.
Protection Measures: Added an automatic oiling device keeps the line running smoothly with less maintenance.

Technical Specifications

Item	Specification
Machine type	LED light channel roll forming machine (with punching hole)
Working speed	15 m/min
Working material	Aluminum strips
Roller material	Cr12 (GB Cr12 hardened)
Shaft material	45# steel, outer diameter 80 mm
Cutting blade material	Cr12 steel
Cutting type	Servo tracking cutting (flying cutting)
Punching	Hydraulic post punching
Control system	PLC (imported Siemens / Delta brand)
Core components	PLC, engine, bearing, gearbox, motor, gear, servo motor, hydraulic, cutter
Power	7.5 kW
Voltage	380 V or customized
Work pressure	Customized
Weight	5000 kg
Protection measures	Added automatic oiling device
Warranty	More than 5 years
Certification	CE, BV, STV, ISO
Place of origin	China

Machine Scenes

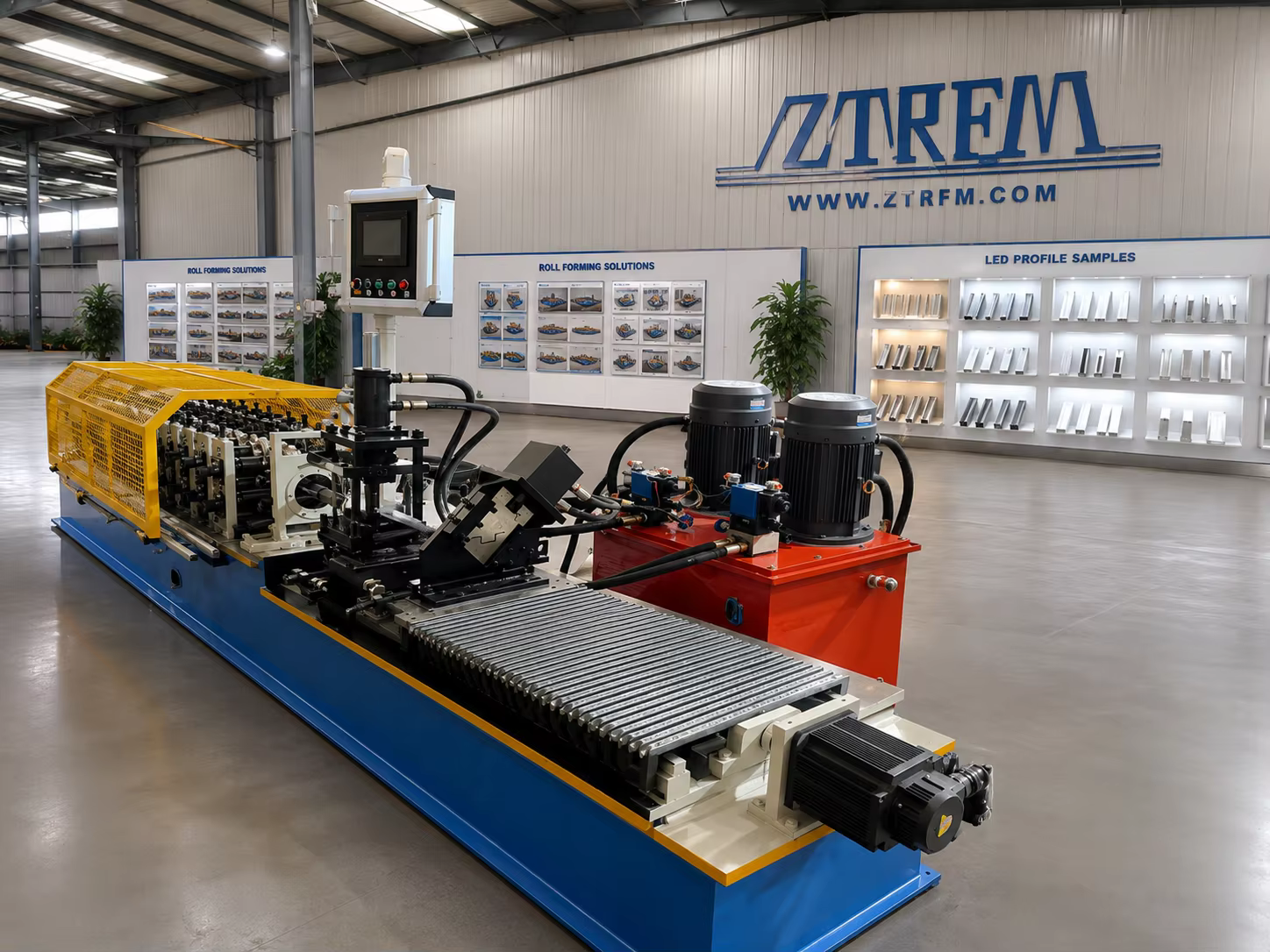

LED channel machine in showroom with LED profile samples

The machine in the ZTRFM showroom with LED profile sample boards and roll forming solutions display.

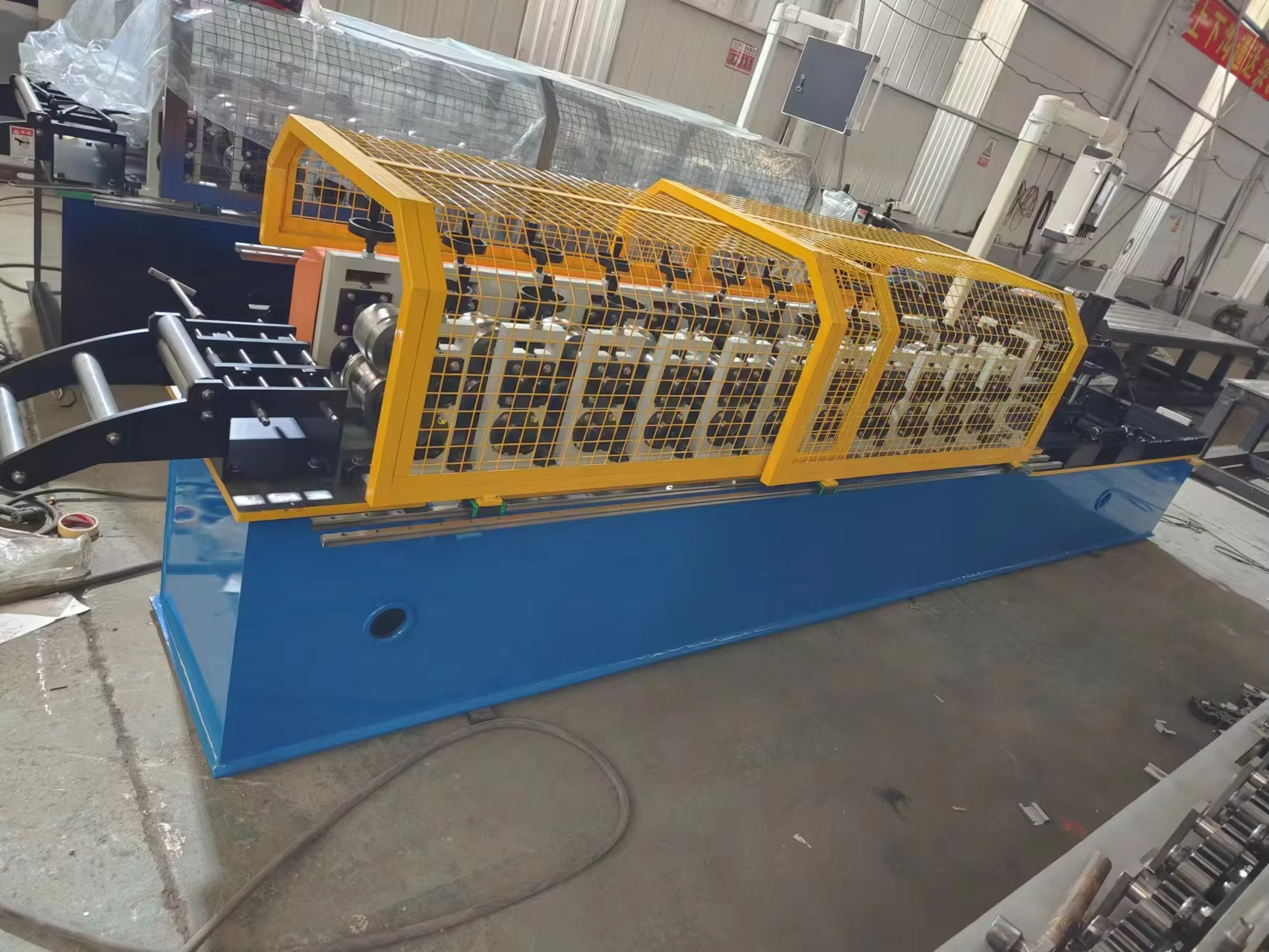

Machine entry end feeding aluminum strip with automatic oiling device

Workshop view of the LED channel forming line

Component Details

Cr12 forming rollers forming aluminum U channel profile

Precision GB Cr12 hardened rollers form the aluminum strip into the LED channel profile without scratching the surface.

Finished Product

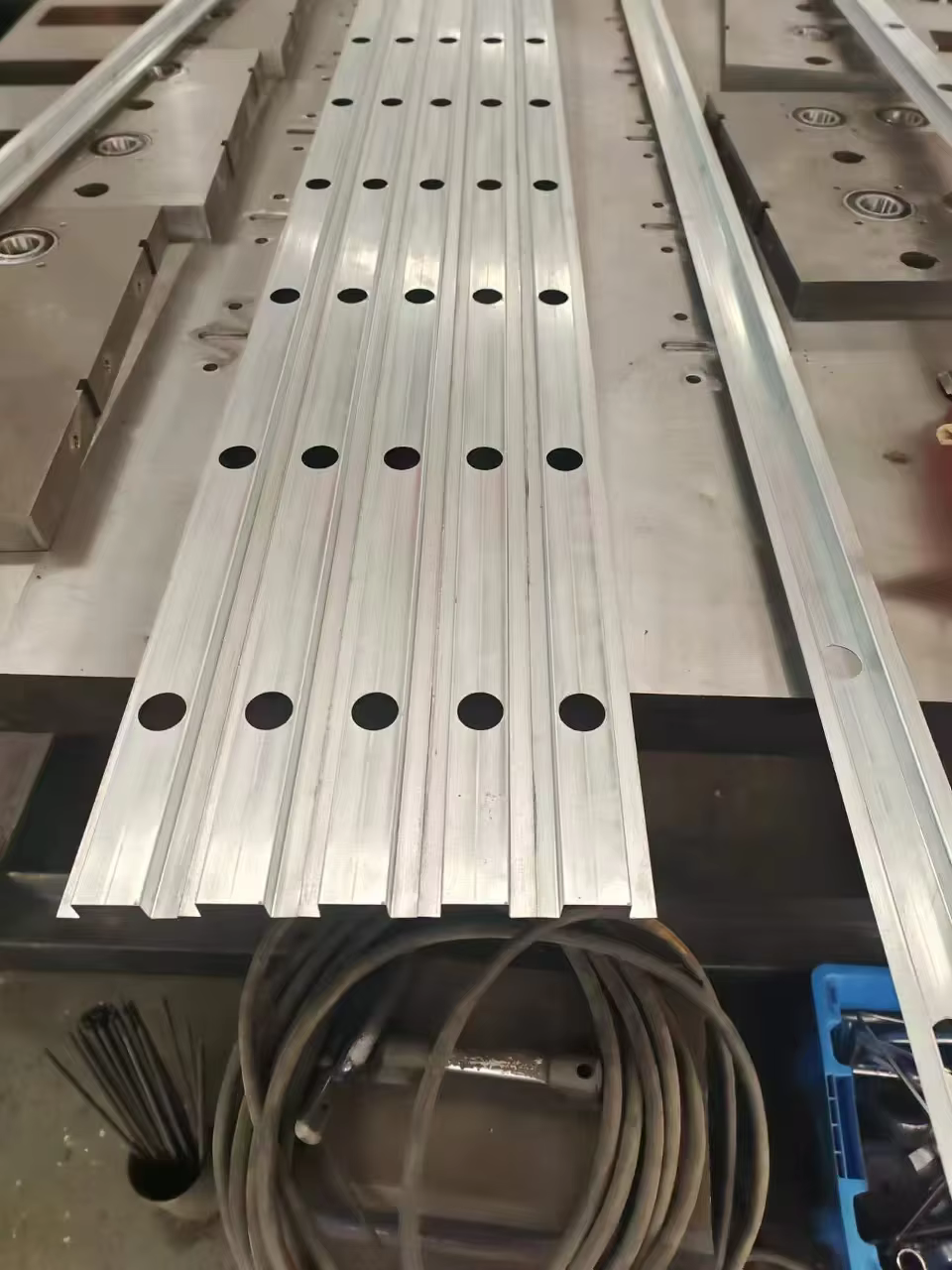

Finished LED channel profile with punched mounting holes

Finished LED light channel profiles with precisely punched mounting holes, cleanly cut by the servo flying cutting system and ready for LED module installation.

Certifications

CE, BV, STV and ISO certified
Quality certifications: CNAS, IAF, SGS accredited

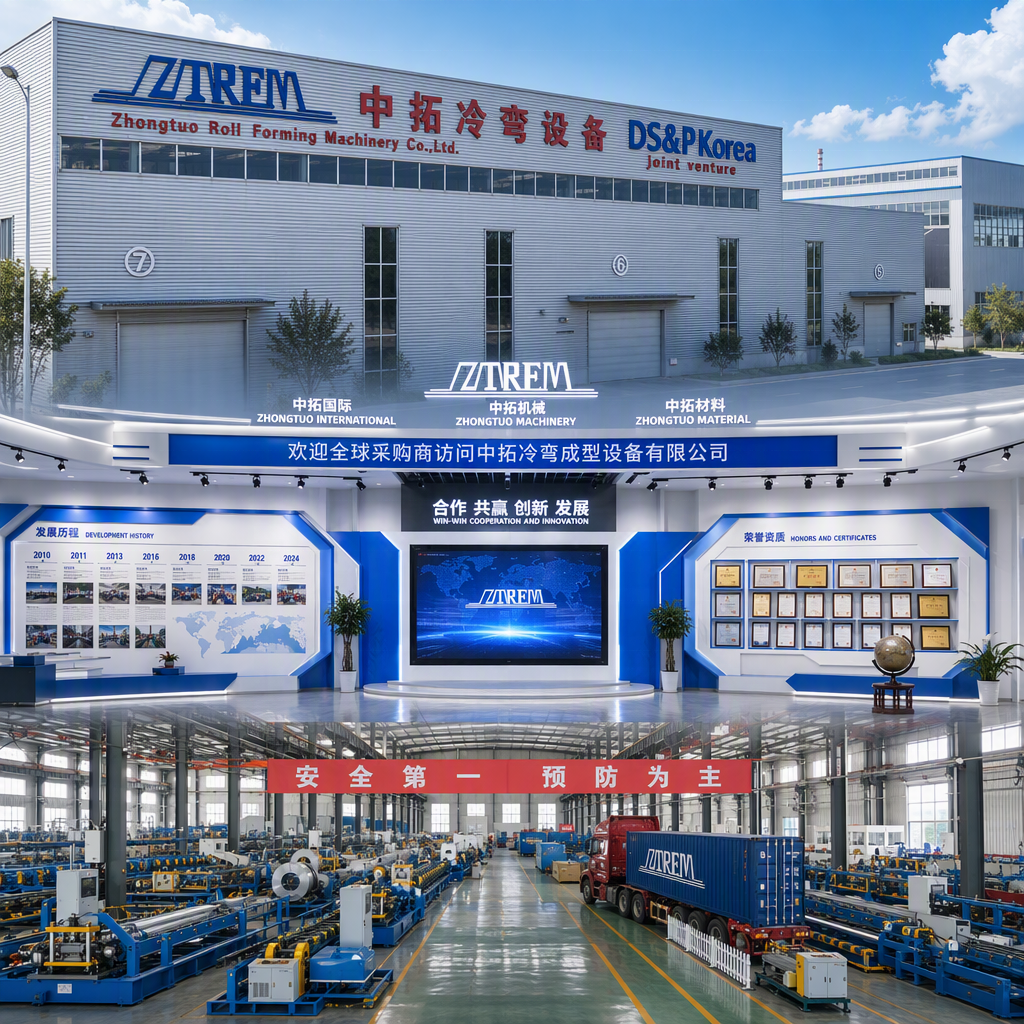

Company Profile

Packing & Shipping

Package size: 500 x 100 x 150 cm; machine weight: 5000 kg; general cargo
Lead time: 45 days for 1 set, 60 days for 2 sets
Machinery test report and video outgoing inspection provided
