KR24 Standing Seam Roll Forming Machine | Automatic Adjustable Metal Roof Panel Production Line 15 m/min

KR24 Standing Seam Roll Forming Machine | Automatic Adjustable Metal Roof Panel Production Line

The KR24 Standing Seam Roll Forming Machine is specially designed for manufacturing high-quality standing seam roofing panels. With automatic width adjustment, precise forming technology, and a reliable PLC control system, this machine provides an efficient solution for metal roofing manufacturers, contractors, and construction companies.

The machine can process various metal materials including color-coated steel, galvanized steel, aluminum, zinc, and other roofing materials. It is widely used for residential, commercial, and industrial roofing applications.

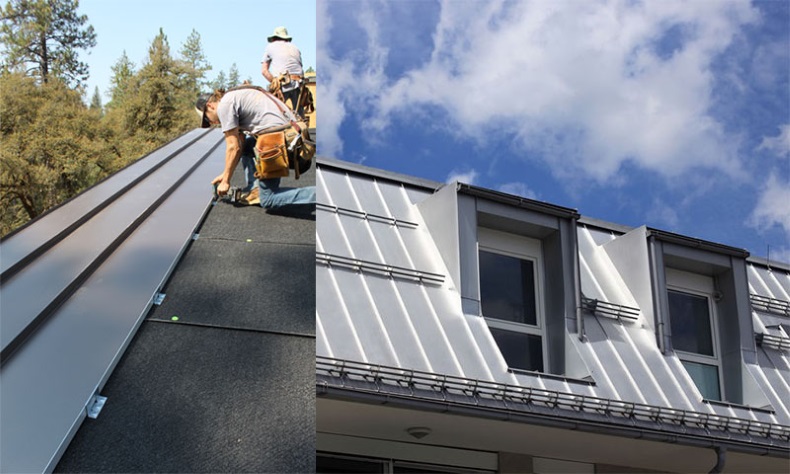

The trapezoidal roof panels produced by this machine are widely used in:

✅ Industrial Buildings
✅ Warehouses
✅ Commercial Buildings
✅ Steel Structure Workshops
✅ Agricultural Buildings
✅ Residential Roofing Systems

Machine Technical Parameters

Machine Model	KR24 Standing Seam Machine
Working Speed	15 m/min
Material Thickness	1.0mm
Material Strength	Max 345Mpa
Automatic Adjustment	Yes （motor drive）
PLC system brand	Delta (Taiwan)
Forming Stations	7 Rows
Shaft Diameter	45mm
Shaft Material	45# Steel
Main Motor Power	2.2KW
Voltage	380V 3 Phase 50Hz
Machine Size	2500×1200×1400mm
Machine Weight	Approx. 1.5 Ton

Customized Panel Production

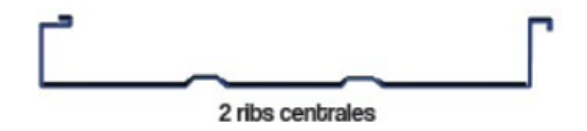

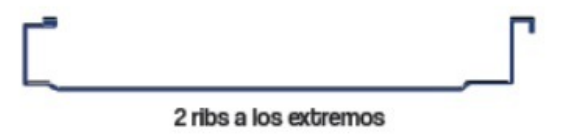

According to different project requirements, the machine can manufacture various stand seam roof panel designs, including:

Panel width, height, hole pattern, and profile shape can be customized based on customer drawings.

1.Manual Decoiler

Work type: passive type

usage：To support the coil and make the uncoiling

Loading capacity: 3- 4 tons

Inner diameter: 450-550mm (manual adjustment)

Coil width: 750mm

Brake system: manual brake

2.  High Precision Roll Forming System

The optimized roller design ensures smooth forming and high-quality finished panels.

7 forming roller stations
45# steel solid shafts
High hardness forming rollers
Composite roller design protects coating surface

The machine avoids scratches and deformation during forming, ensuring excellent roofing panel quality.

3. Automatic Width Adjustment System

The machine adopts motor-driven automatic size adjustment.

Operators only need to input the required panel width through the PLC touch screen, and the rollers automatically adjust to the target size.

Adjustable working width: 320mm - 625mm

This greatly improves production efficiency and reduces manual adjustment time.

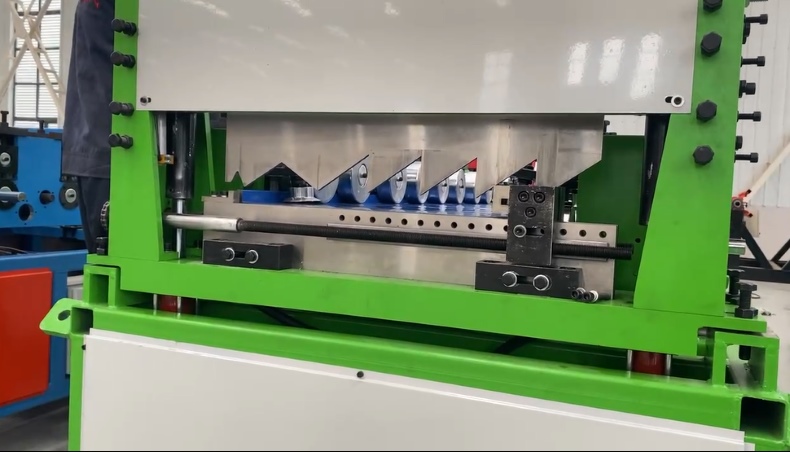

 4. Hydraulic Cutting System

The machine is equipped with a movable and adjustable knife holder, which ensures stable cutting and prevents three-dimensional deformation on both sides of the roofing panel.

It adopts a hydraulic cutting system with high-strength Cr12 cutting blades

The cutting length tolerance can be controlled within ±1mm per 3 meters, ensuring high accuracy of finished panels.

The fixed blade holder securely supports the cutting blade, improving cutting stability and extending service life.

This system delivers clean and smooth cutting edges without damaging the surface coating or shape of the roofing panel.

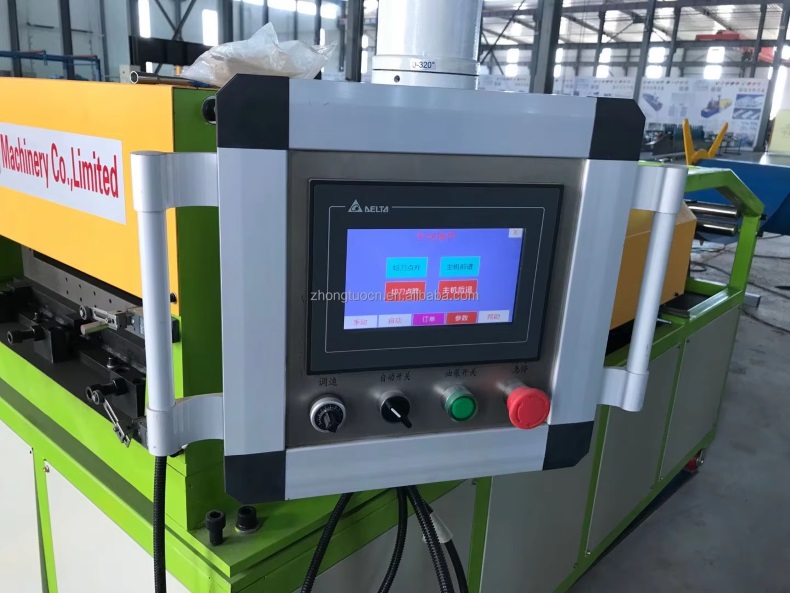

 6.  PLC Control System

The electrical system adopts internationally recognized components:

PLC Brand: Delta (Taiwan)
Touch screen operation
Encoder: Omron
Electrical components: Schneider

The control system can automatically control:

✔ Production length
✔ Running speed
✔ Cutting operation
✔ Machine parameter adjustment

English, Chinese, and customized languages are available.

7.Hydraulic Station

The hydraulic station provides stable power for the cutting system.

Features:

Hydraulic motor Power:2.2 KW
Hydraulic oil:46#

Components:

The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes.

Valves:

They are all large valves, and the meters are also high-quality meters, which are more durable.



Finished Product

 Why Choose Zhongtuo KR24 Standing Seam Machine?

✔ Automatic width adjustment
✔ High-speed continuous production
✔ Stable forming quality
✔ PLC intelligent control
✔ Low maintenance cost
✔ Suitable for multiple metal materials
✔ Long service life and reliable performance
