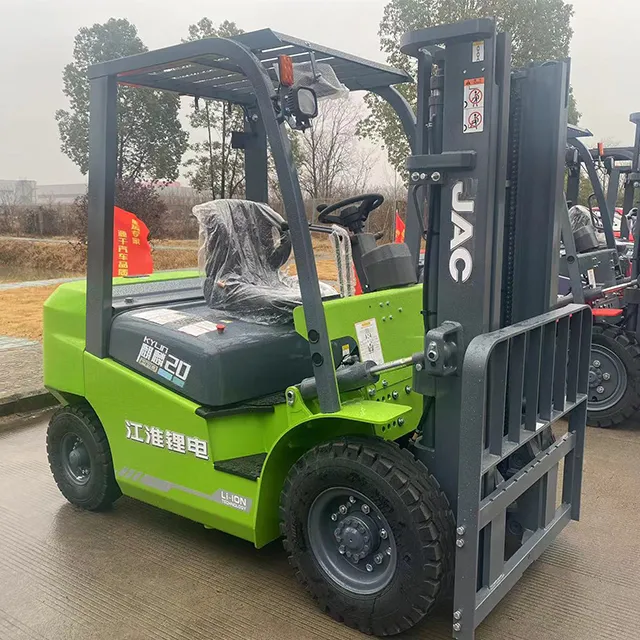

Jac Manufacturer 80 Volts Lithium Ion 3 5 Ton Electric Forklift Battery Charger Prices Mini Montacargas Eléctrico Automatico 1.5 Ton+Counterbalance Forklift+4500 mm

Hebei Fanbang Mechanical Equipment Co., L

Jac Manufacturer 80 Volts Lithium Ion 3 5 Ton Electric Forklift Battery Charger Prices Mini Montacargas Eléctrico Automatico 1.5 Ton+Counterbalance Forklift+4500 mm

Name: Jac Manufacturer 80 Volts Lithium Ion 3 5 Ton Electric Forklift Battery Charger Prices Mini Montacargas Eléctrico Automatico 1.5 Ton+Counterbalance Forklift+4500 mm
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT85082325

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Rated Loading Capacity:

1.5 Ton

Truck Type:

Counterbalance Forklift

Max. Lifting Height:

4500 mm

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Condition
New
Forklift Battery Type
Lithium

Product Description

We are professional in forklift

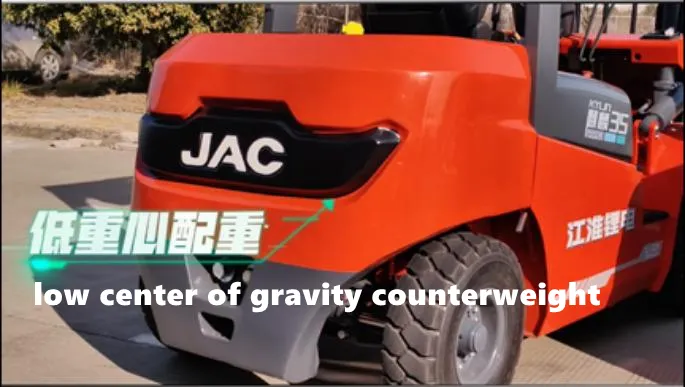

Low center of gravity counterweight, stability reaches 1.53;

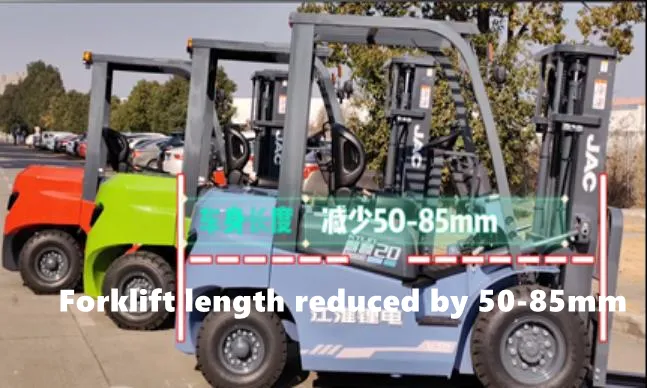

The length of the forklift is reduced by 50-85mm, and the turning radius is smaller.

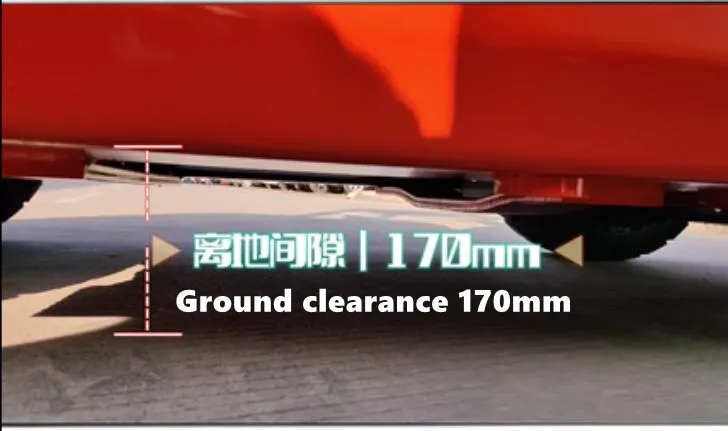

The ground clearance is increased to 170mm for better passability

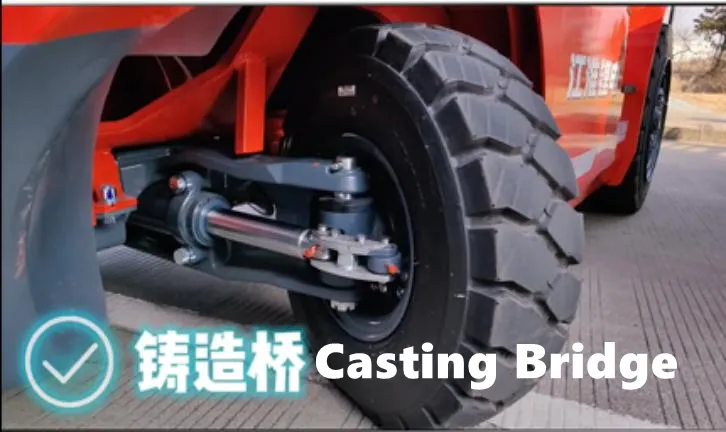

The combination of large-angle integrally cast steering axle, tapered roller bearings and large tires is suitable for high-intensity working conditions.

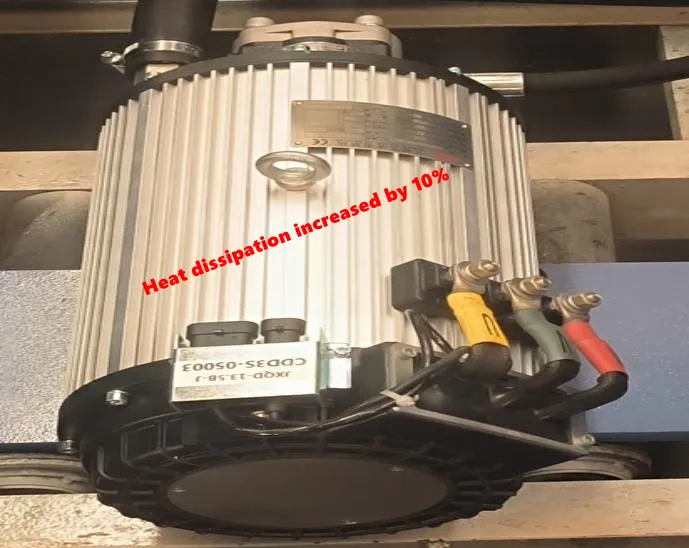

AC asynchronous aluminum shell motor, heat dissipation performance improved by 10%;

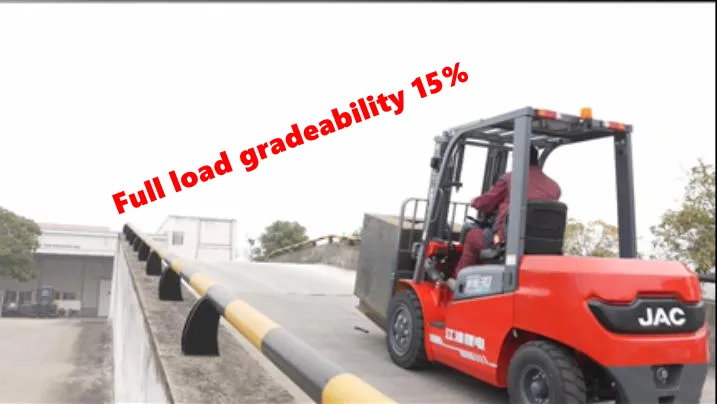

Large speed ratio reduction gearbox, the driving speed is increased by 15%, the full load lifting speed is increased by 6%, and the gradeability is 15%.

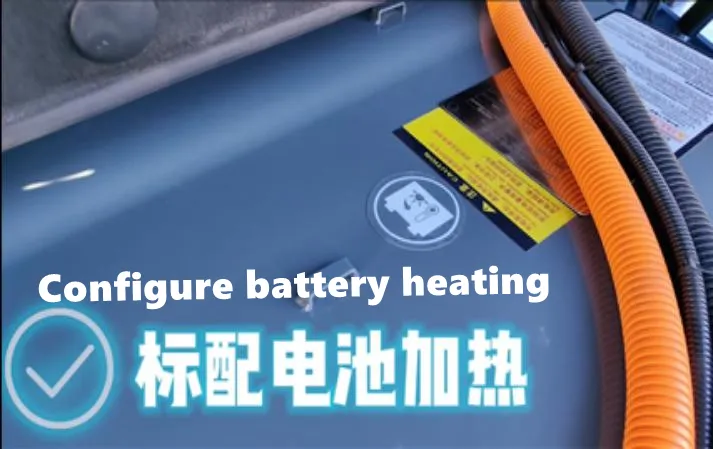

All series are equipped with battery heating as standard, making it worry-free to use in cold weather

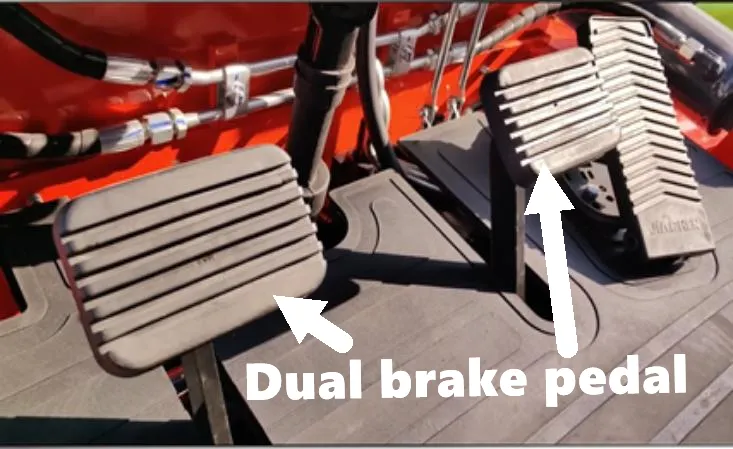

The standard dual pedals are more in line with traditional driving habits.

Specification

		CPD20	CPD25	CPD30	CPD35
Power type		lithium battery	lithium battery	lithium battery	lithium battery
Rated load	kg	2000	2500	3000	3500
Lifting height	mm	3000-6000	3000-6000	3000-6000	3000-6000
Fork size	mm	1070×125×45	1070×125×45	1220×125×45	1070×125×45
Min turning radius	mm	2500	2500	2680	2680
Min right angle stacking channel width	mm	3965	3965	4150	4150
Min right angle channel width	mm	2700	2700	2880	2880
Height of roof protection frame	mm	2060	2060	2090	2090
Seat to roof frame height	mm	1010	1010	1010	1010
overall length（No fork）	mm	2540	2540	2709	2724
Full width	mm	1160	1160	1210	1210
Standard gantry height	mm	1995	1995	2075	2075
tyre（front wheel）		7.00-12-12PR	7.00-12-12PR	28×9-15-14PR	28×9-15-14PR
tyre（rear wheel）		6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
self weight	kg	3360	3730	4360	4760
lithium battery	Voltage	80/115/156V	80/115/156V	80/115/156V	80/115/156V
lithium battery	battery capacity	150AH-350AH	150AH-350AH	230AH-350AH	230AH-350AH

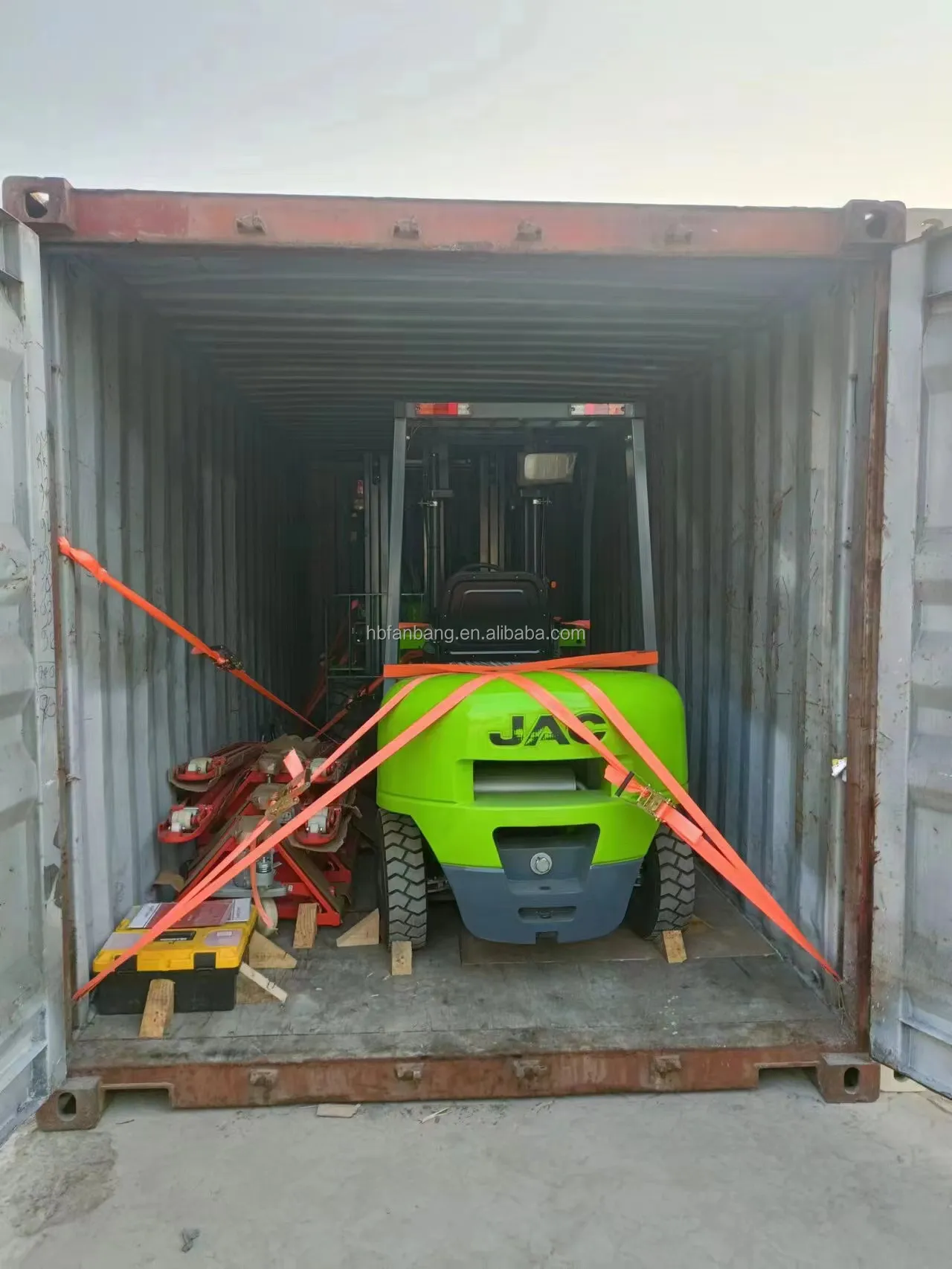

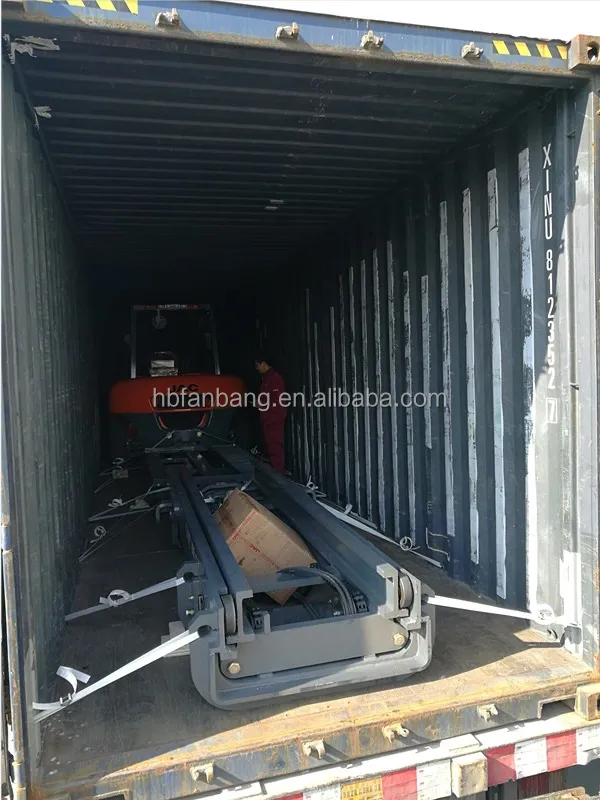

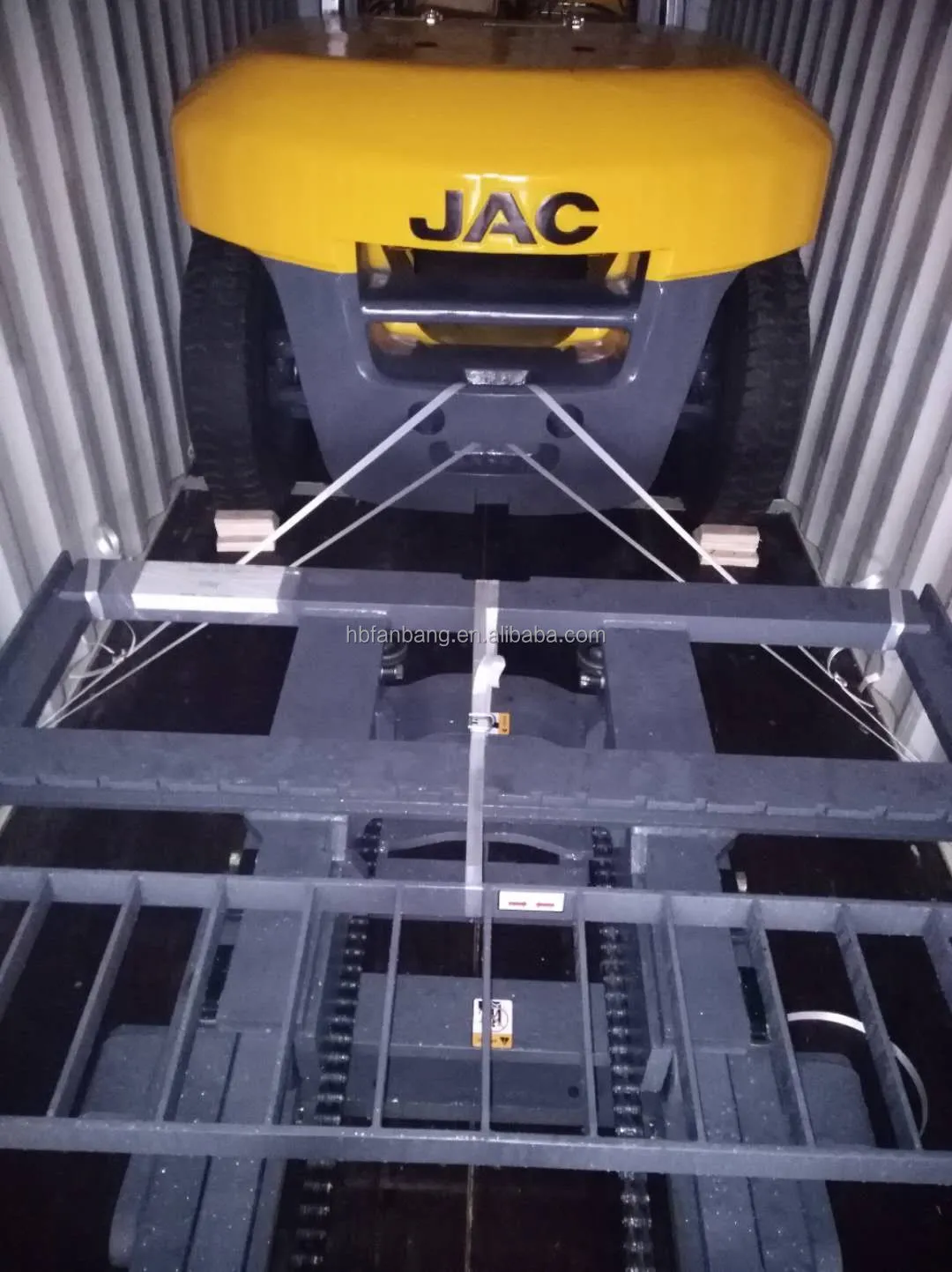

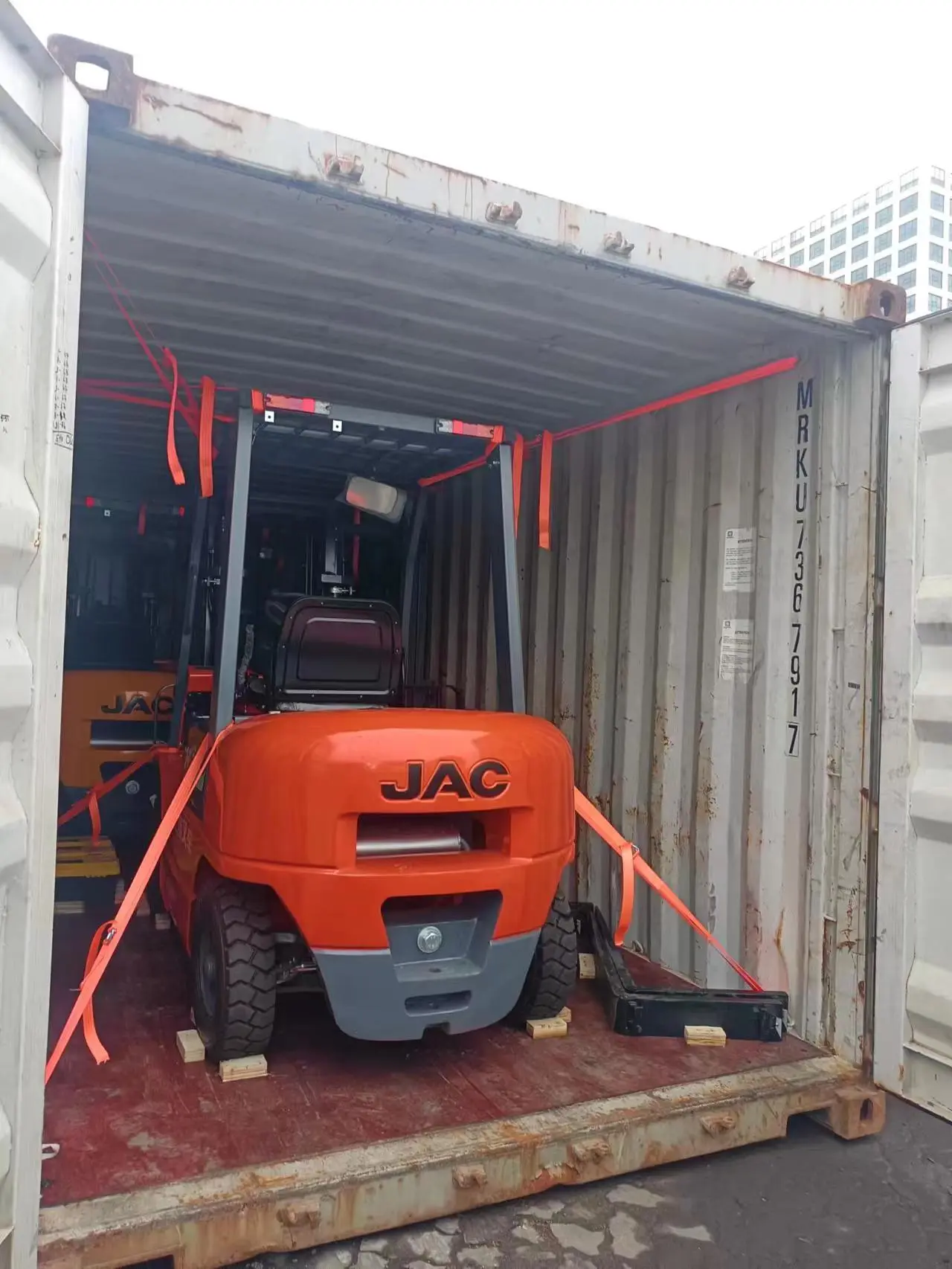

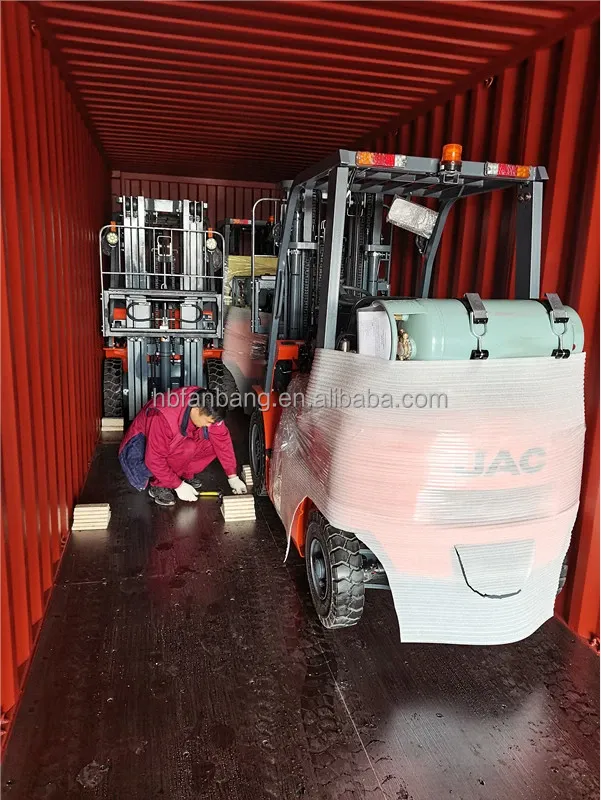

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

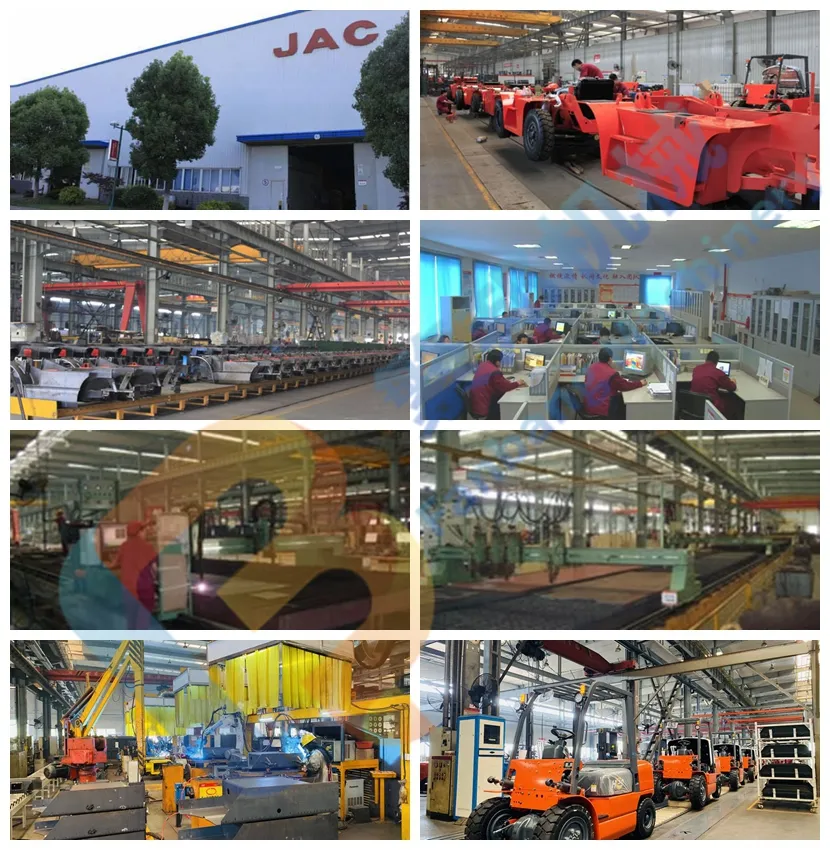

Company Profile

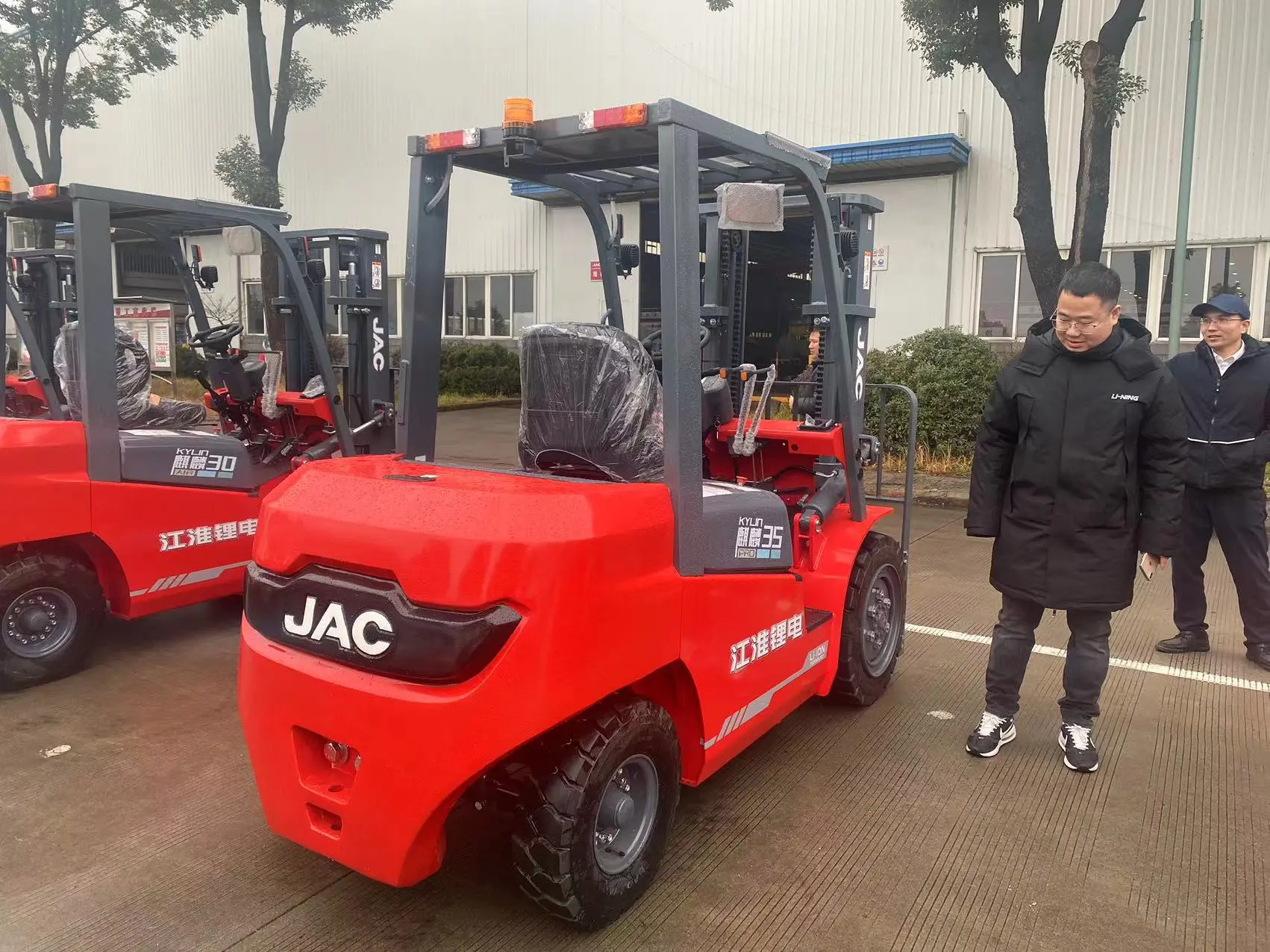

Customer Photos

Five year old customers have been using JAC.\uD83D\uDC4D

FAQ

1.What Certificate do you have?
All of our products with CE certificate. Some of our products meets the EPA requirements.

2.How long is the warranty of your products?
1 year or 2000 hours for the whole vehicle. Battery 5 years or 10000 hours from the date of B/L, which comes first.

3. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

4.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 10 days.

5.What can I get from cooperating ?
a. Unique products, with customized service, meet CE standard.
b. Timely production and delivery, time is money.
c. You can check the production progress on line at any time. We also provide you a loading video before shipment.

6.Can you customize and design as the clients' requirement?
We will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be
implemented safely and scientifically.The colors can be painted as client's need.
