Color Coated Steel System > Production Equipment > roof sheet making machine

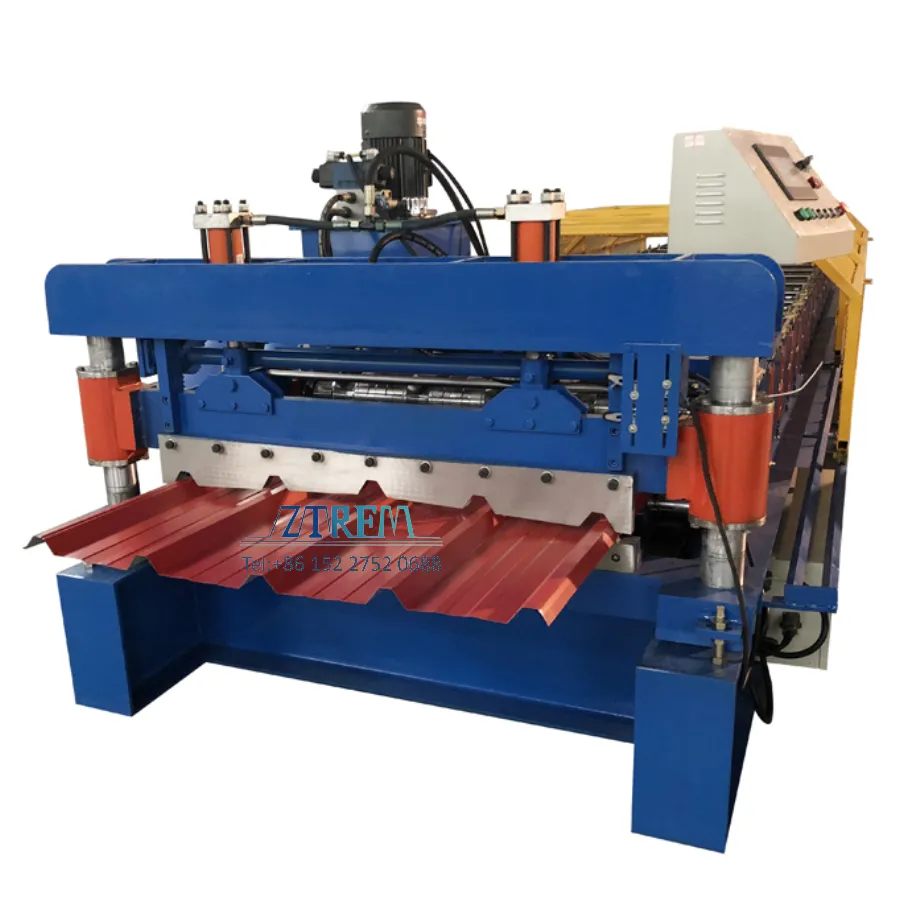

Iron IBR PBR Trapezoidal Roofing Sheet Tiles Building Material Roll Forming Machinery IBR+5.5kw+4kw

Cangzhou Zhongtuo International Trade Co., Ltd

Iron IBR PBR Trapezoidal Roofing Sheet Tiles Building Material Roll Forming Machinery IBR+5.5kw+4kw

Name: Iron IBR PBR Trapezoidal Roofing Sheet Tiles Building Material Roll Forming Machinery IBR+5.5kw+4kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT51331042

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

IBR

Power(W):

5.5kw+4kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
ROOF
Voltage
380V, 50Hz, 3Phase( or as your requirement)
Rolling Thinckness
0.3-0.6mm
Feeding Width
1200mm

Iron IBR PBR Trapezoidal roofing sheet tiles building Material Roll Forming Machinery

Stable Transmission: Double chain and gear drive,keynote rollers design.

Full Automatic Easy Operation:Whole producing line just need one person for operation.

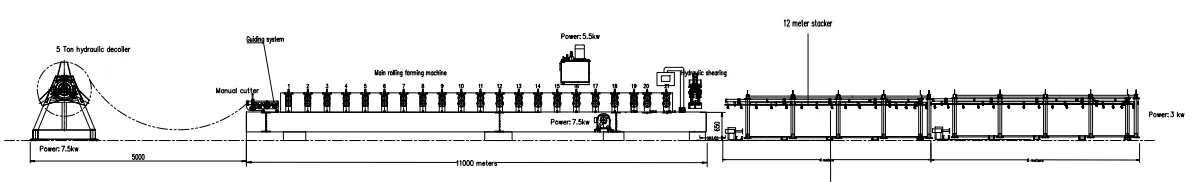

Processing Flow

Uncoiling → Feeding material into machine →Roll forming → Auto cutting →Products receiving
table

ZTRFM high-end Wall cladding panel machine wall panel make machine cold roll forming machine
Raw Material	PPGI,PPGL
Raw Material	Raw material	Material Thickness:24/26 Gauge （0.4-0.6 Mm)
Machine Frame	350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate.
Material Of Rollers	High Grade 45# Forged Steel
Material Of Rollers	Material Of Rollers	Chromed Treatment (Chrome Thickness:0.05 Mm), Make The Rollers Surface More Smoothly, Improve The Hardness And Prevent Abrasion,Anti Corrosion Increase Of Service Life
Forming Stations	Roller Stations :18 Rows
Forming Stations		Rolling Type: Separate Rolling Design Concept, It Can Release Internal Stress From The Sheets, Then The Sheet Will Be In Good Shape And High Precision.
Diameter Of Shafts	Φ80mm Solid
Material Of Shafts	High Grade 45#,With Heat Treatment
Forming Speed	15 M/Min
Voltage	380v/50hz/3p (As Requested)
Transmission Way	By 1 Inch Chain (Double Chains)
Main Motor	11 kw
Cutting Blade Material	Gcr12 quenched treatment
Cutting Type	hydraulic post cutting
Driving Method	By pillar type Cylinder

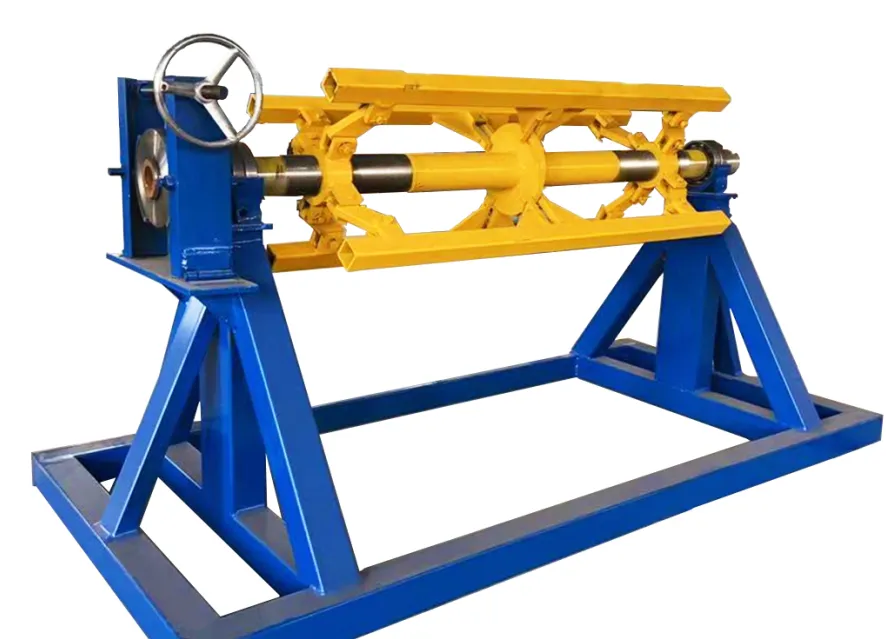

5T Manual Decolier For Free

Capacity:5 tons Coil inner diameter:450-550mm Feeding width: max 1220mm Structure: welded by the steel plates and profiled bar. The shrink and expand of core is manually, with manual brake,The coil moving forward or reverse is pulled by roll forming machine

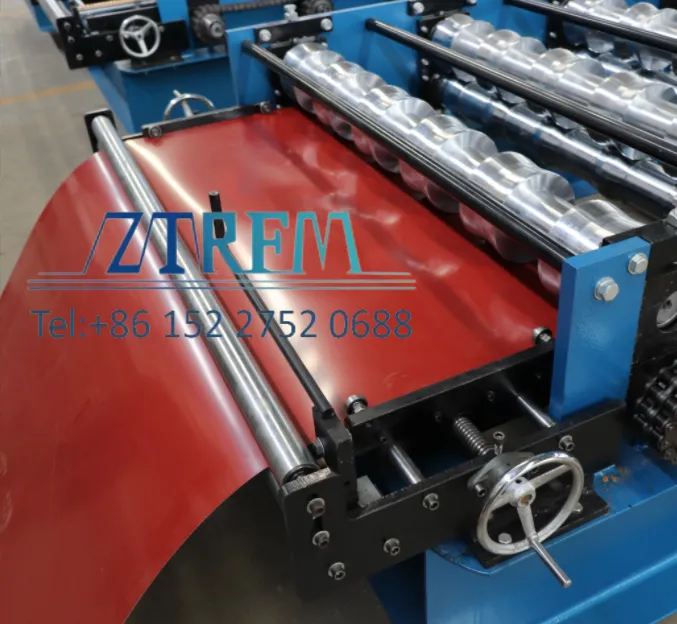

Feeding Device

1.Hand wheels on both sides can be used to adjust the feeding width. 2.Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface. 3.There are three rows of orange plastic rollers can make the steel coil go into the machine smoothly.

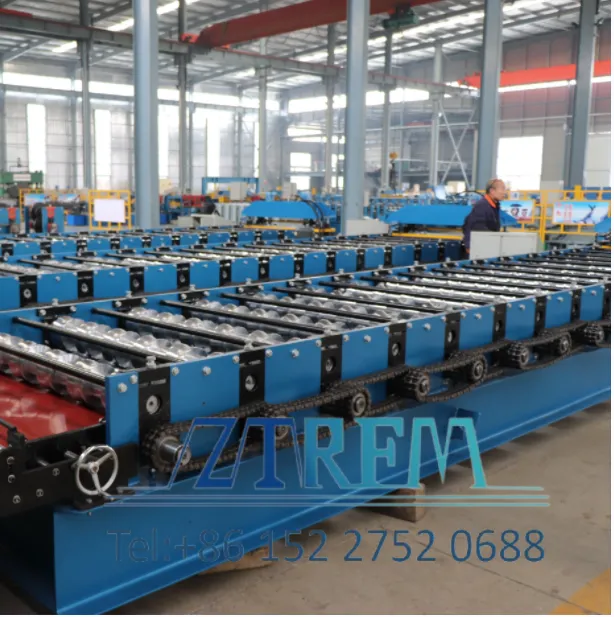

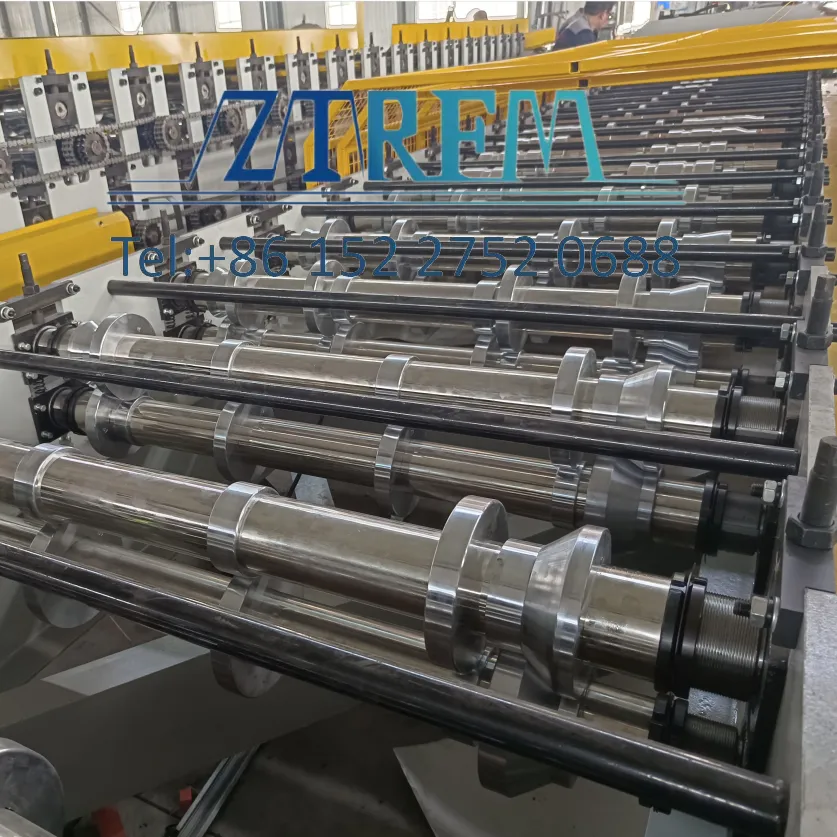

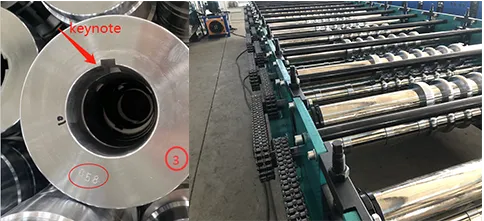

Roll Forming And Transmission Device

1.rollers thick chromed good hardness for long service time. 2. Each roller has number and with keynotes, it can fix on the shaft stablely 3.gear and double chain,stable

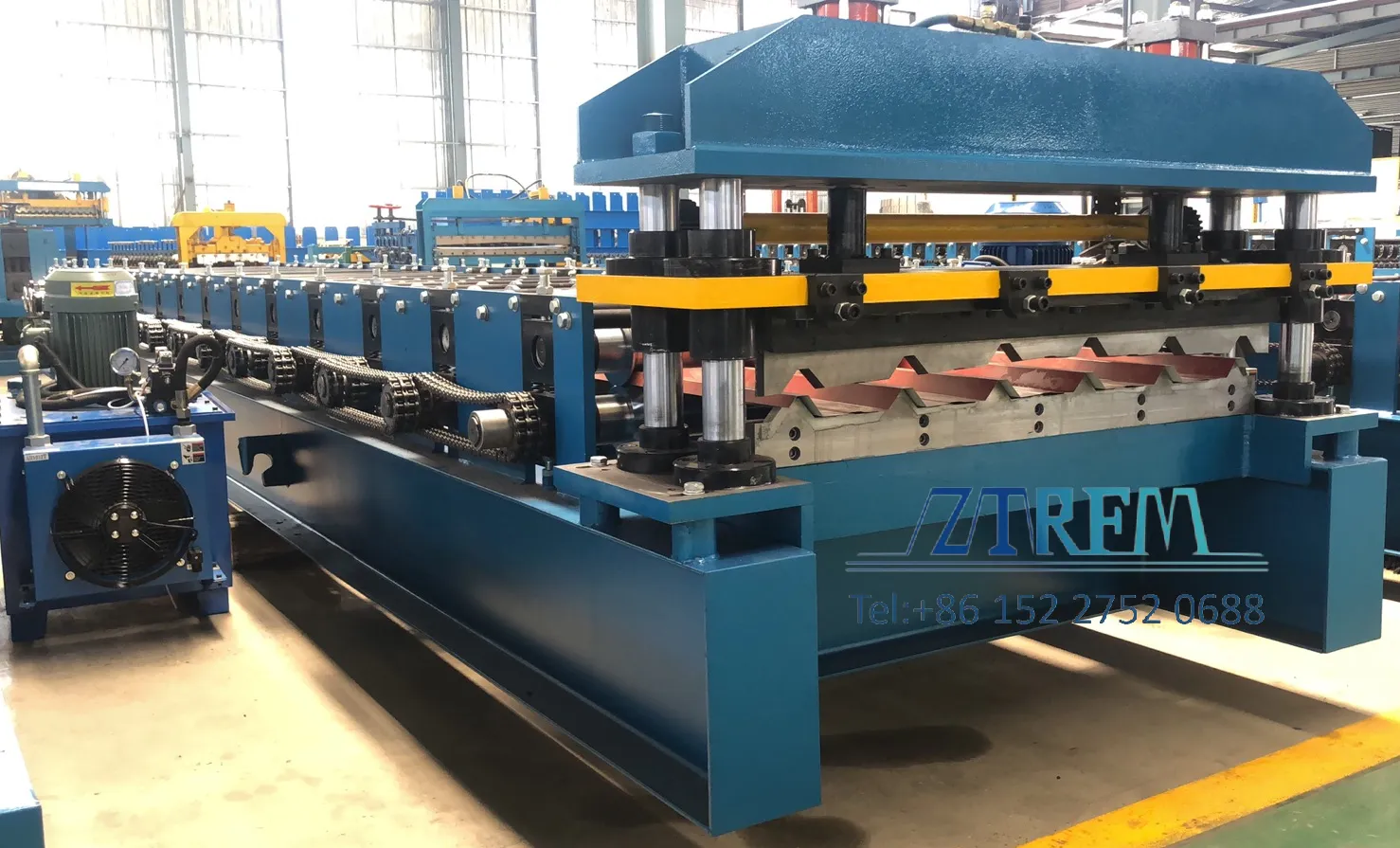

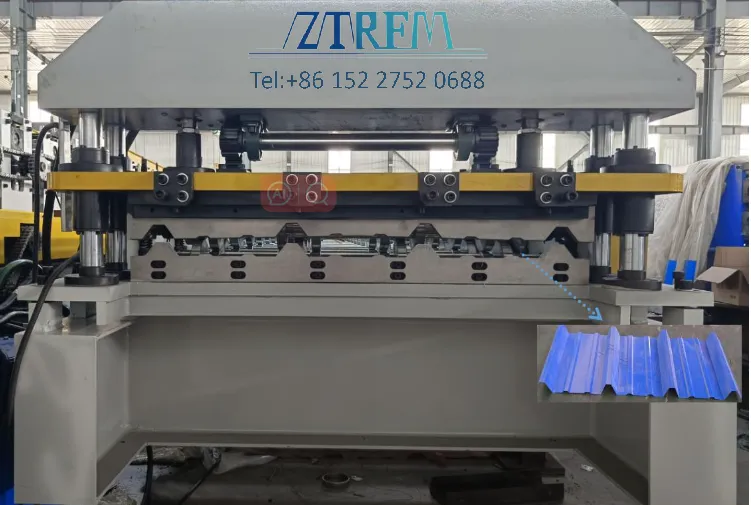

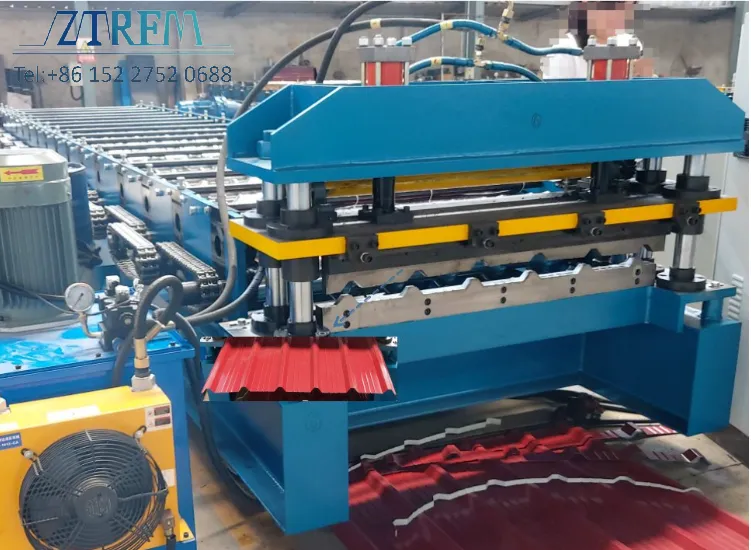

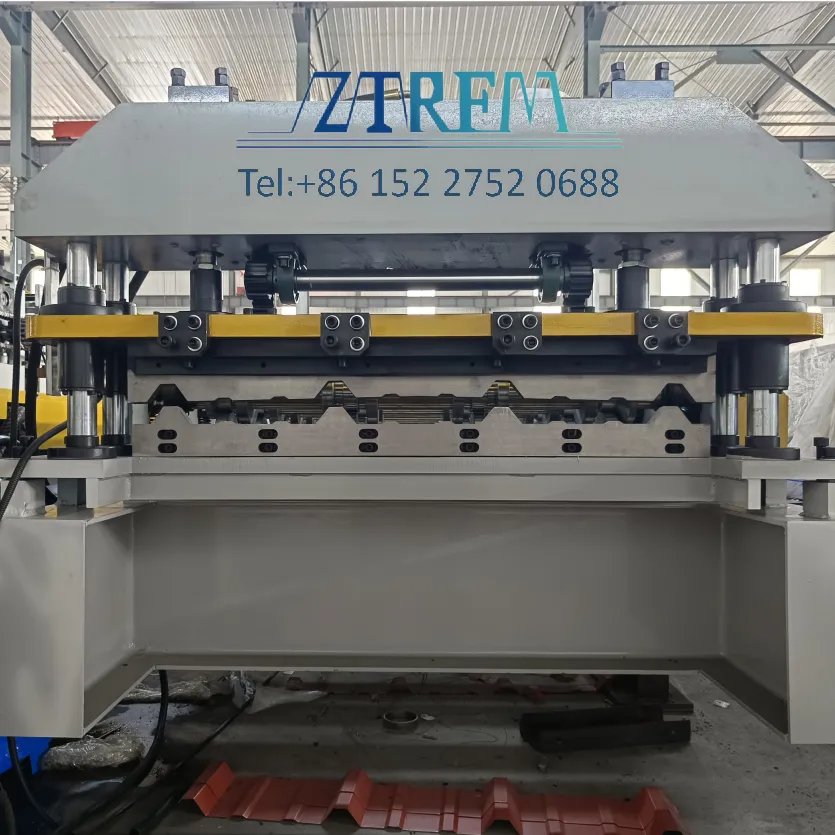

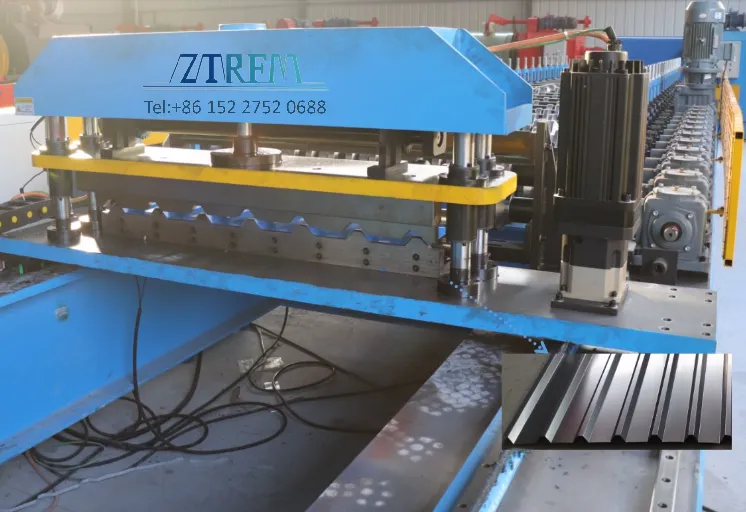

Hydraulic Cutting Device

We use four pillars cutting system structure, it can make sure the cutting stable

PLC control system

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen ● Encoder brand:Omron ● Electrical components:Schneider ●Operating language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

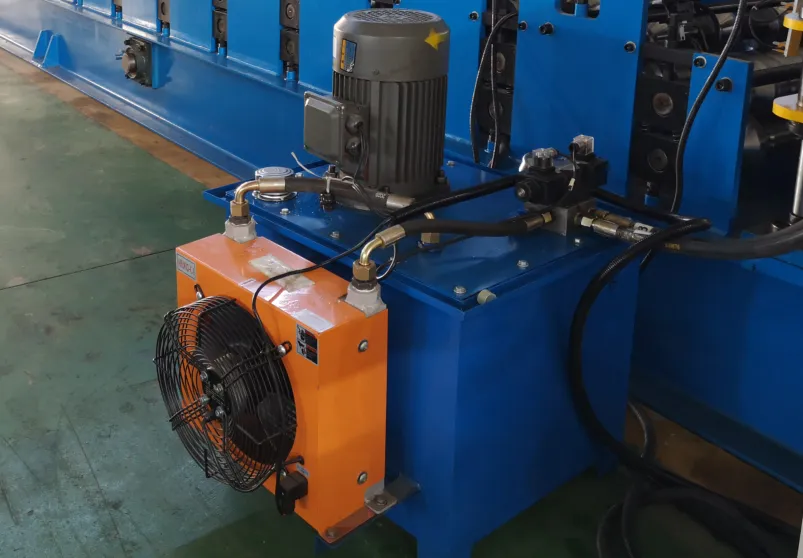

Hydraulic station

● Hydraulic station motor:5.5KW ● Hydraulic oil:46# hydraulic oil ● Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve

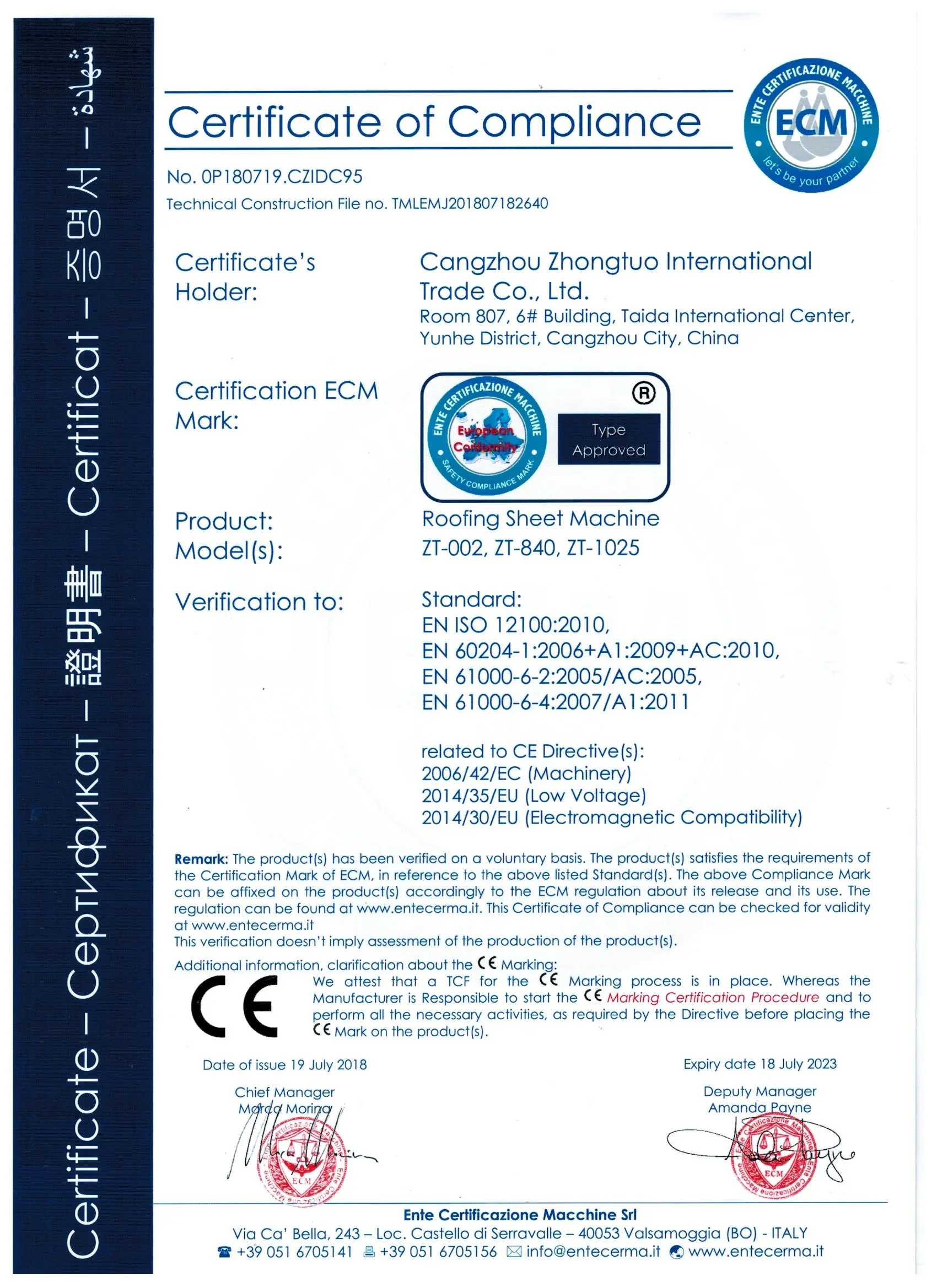

CE(NO.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
