Panel specs change, and the production line must change with them. A key concern when choosing equipment is a mismatch between the machine and the product. A shelf panels machine handles the full panel production flow from steel coil to finished product. The sections below cover panel applications and production needs, the production flow and control system, machine advantages, an actual example, and buying parameters. This helps you see how such a line matches different rack panel production needs.

Rack Panel Applications and Production Needs

A rack system back panel sits on the rear side of the rack. It does three jobs: rear support, shelf height adjustment, and structural reinforcement. Different applications need different panel widths, thicknesses, hole patterns, and load capacities. These differences directly decide how the production equipment is set up.

Storage Racks

Light, medium, and heavy duty storage racks for warehouses, logistics centers, and factories. These racks usually need punched panels for shelf height adjustment.

Supermarket Shelving

Display and storage in supermarkets and convenience stores. The panel handles both display and structural support.

Mezzanine Racks

Mezzanine systems that use vertical warehouse space. The panel needs specific profile shapes and load requirements.

Automated Storage

Rack structures in automated warehouses. The panel works with automated retrieval equipment, so hole position accuracy and size consistency matter a lot.

Different applications need different panel specs, and that changes the equipment setup. Rack panels differ by application, and a shelf rack forming machine handles these differences by matching the setup to the panel spec. This is the base for understanding the production flow and machine solution later.

Panel Production Flow from Steel Coil to Finished Product

Panel production is one continuous process. It starts with a steel coil and goes through decoiling, leveling, feeding, punching, roll forming, and cutting, then outputs the finished product. Each step matches a core machine module. A complete shelf rollforming machine links these modules together. They work in sync through a PLC control system.

Decoiling and Leveling

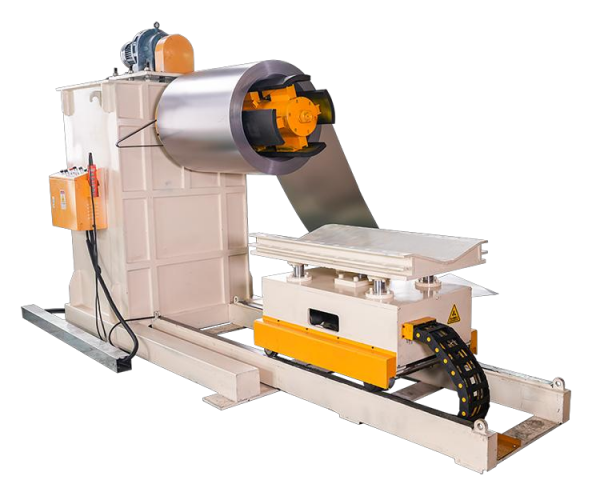

The decoiler opens the steel coil and feeds it into the line. It holds the coil and releases it steadily. Its setup usually relates to coil weight, inner diameter, and width.

Leveling removes bending and internal stress from coiling and transport. A multi roll leveler uses upper and lower rollers to keep the sheet flat before forming.

Feeding and Punching

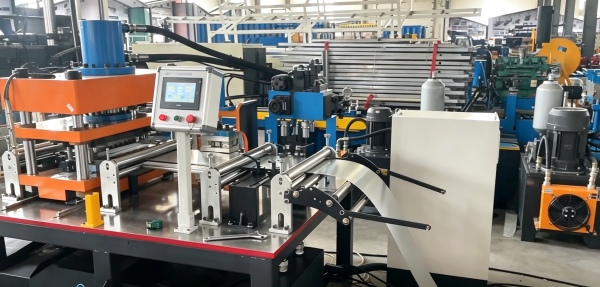

The servo feeder sends the sheet into the punching and forming stations at a set length and pace. Feed accuracy directly affects hole position and cut length.

Punching makes the functional holes, including shelf adjustment holes and mounting holes. Punching dies set the hole pattern. Different patterns need different die counts and types.

Roll Forming and Cutting

Roll forming is the core step. The sheet passes through multiple roller stations and gradually takes the needed profile, such as ribs or bent edges. The roller set handles this. Forming station count and roller layout depend on profile complexity.

Cutting divides the continuous output into fixed lengths with clean cuts. A hydraulic cutting system does this job.

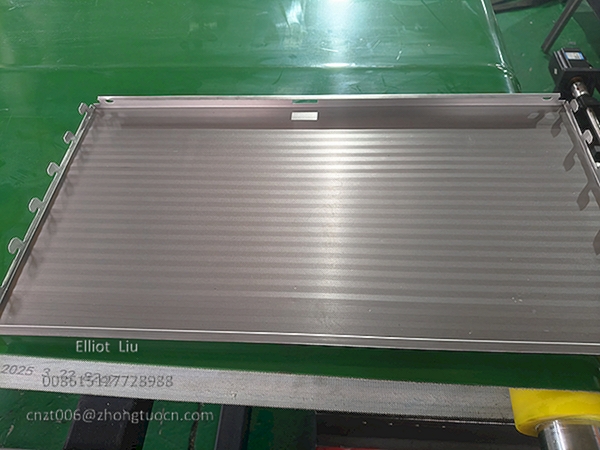

After these steps, the finished panel comes out at the output end.

How PLC Coordinates the Production Steps

These steps must work in sync. A PLC control system handles this. Its tasks include:

• Control the feed length and pace of the servo feeder

• Coordinate punching action with feeding action

• Control the start, stop, and speed of the main motor

• Coordinate cutting action with forming speed

• Collect and process status signals from each station

The PLC works with the servo feeder to set hole position and cut length. It works with the frequency converter to control main motor speed. It works with punching and cutting units to keep actions in order.

Panel production is continuous. Feeding, punching, forming, and cutting must stay in sync. If each step runs on its own, the pace can mismatch, hole position can shift, or cut length can be off. Central control lets one system schedule the whole line at the same pace.

PLC Control Needs in a Panel Line

To judge if a PLC control system fits a panel line, look at these points:

• Does it need to coordinate continuous actions like feeding, punching, forming, and cutting? If the line has these steps, the control system needs that ability.

• When product specs change, what parameter or program adjustment does the control system need? The more often you change over, the more important easy adjustment becomes.

• Do you need fault alarms and status monitoring? Alarms for material shortage, jams, emergency stop, and counting directly affect how fast you handle production issues.

• The actual PLC brand and setup follow the quotation. Different solutions may use different brands and setups, matched to the line functions.

A shelf forming machine relies on this control to keep steps in sync and handle alarms. Note that actual production flow and equipment setup may vary with the panel product. It depends on the product drawing and production needs.

Machine Advantages in Panel Production

After the production flow and control system, look at the real production value these modules bring. Each advantage below uses a machine structure or setup and its meaning for the customer's production.

Integrated Production Logic

A shelf panels machine integrates decoiling, leveling, feeding, punching, roll forming, and cutting in one continuous line. This structure cuts handling and waiting between steps. The panel goes from coil to finished product directly.

Continuous Production

The line feeds, forms, and cuts at a steady pace. This working method suits long runs of the same panel spec.

Multi Spec Adaptation

The series can match different setups to different panel widths, thicknesses, hole patterns, and profiles. This setup logic fits multi product needs, not just one spec.

Changeover and Adjustment

The quotation says you need to change dies when the width changes. Some solutions use combo dies for easier changeover. This setup gives changeover a clear path.

Custom Build to Product Needs

The quotation says dies and rollers can be custom made from customer drawings. This ability lets the machine fit the actual product, instead of forcing the product to fit a fixed machine.

One Actual Solution Example

The following is an actual configuration example for a shelf panels machine. It can be matched to the customer's product needs. It does not stand for a fixed standard for the whole series.

This solution fits one panel product with a specific spec. If the panel width, thickness, hole pattern, or output differs, the setup changes as well.

Five Technical Parameters to Confirm When Buying

After the example, back to buying decisions. These five parameters are key when you buy a shelf panels machine.

Parameter 1: Material Thickness Range

Material thickness directly affects roller pressure, motor power, and cutting method. A thicker sheet needs more force to form and cut, so the setup changes.

Parameter 2: Forming Width Range

Forming width affects the forming rollers and decoiler setup. A wider product raises demands on rollers and the decoiler.

Parameter 3: Forming Stations and Profile Complexity

Forming station count depends on profile complexity. A more complex profile needs more stations.

Parameter 4: Punching Setup and Hole Pattern Match

The punching setup is set by hole pattern, hole size, and hole layout. Different patterns need different punching dies. A different layout also affects how feeding and punching work together.

Parameter 5: Control System and Automation Level

The control system affects operation, fault alarms, and interlock functions. You need to confirm if the control system setup meets your production management needs and if alarms cover material shortage, jams, emergency stop, and counting.

These five parameters affect each other and together decide the line setup.

Summary and Inquiry

A shelf panels machine follows one core logic: match the machine setup to the customer's product specs and output needs. From panel applications and production needs, to production flow and control system, to machine advantages, actual example, and buying parameters, every part follows this logic.

If you are planning a panel production line, send us your product drawing, hole pattern drawing, profile drawing, and spec needs. We will match a line solution to your actual needs.
