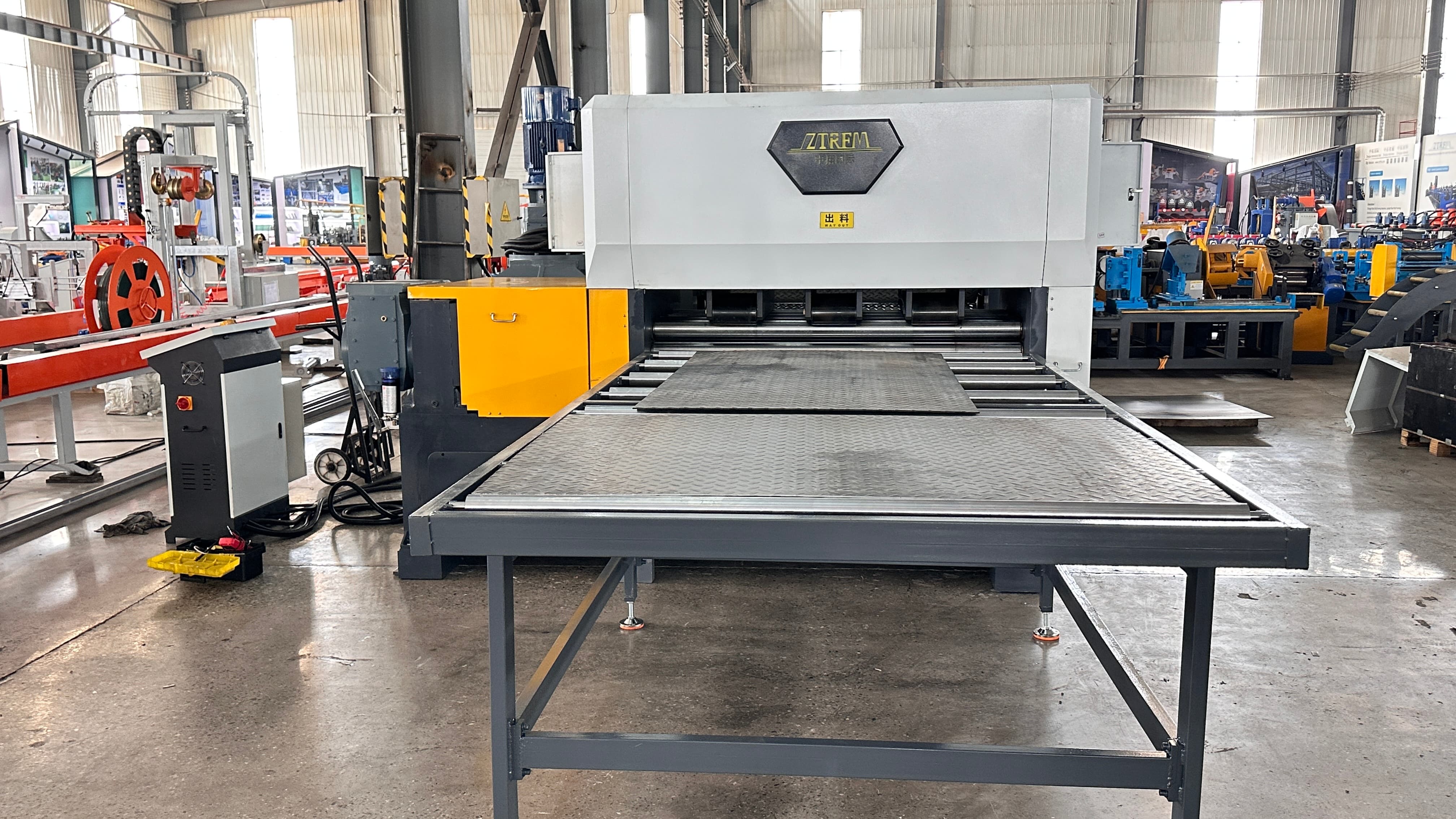

Industrial Metal Embossing Machine for 1-6mm Thickness Steel Plate 1-5mm

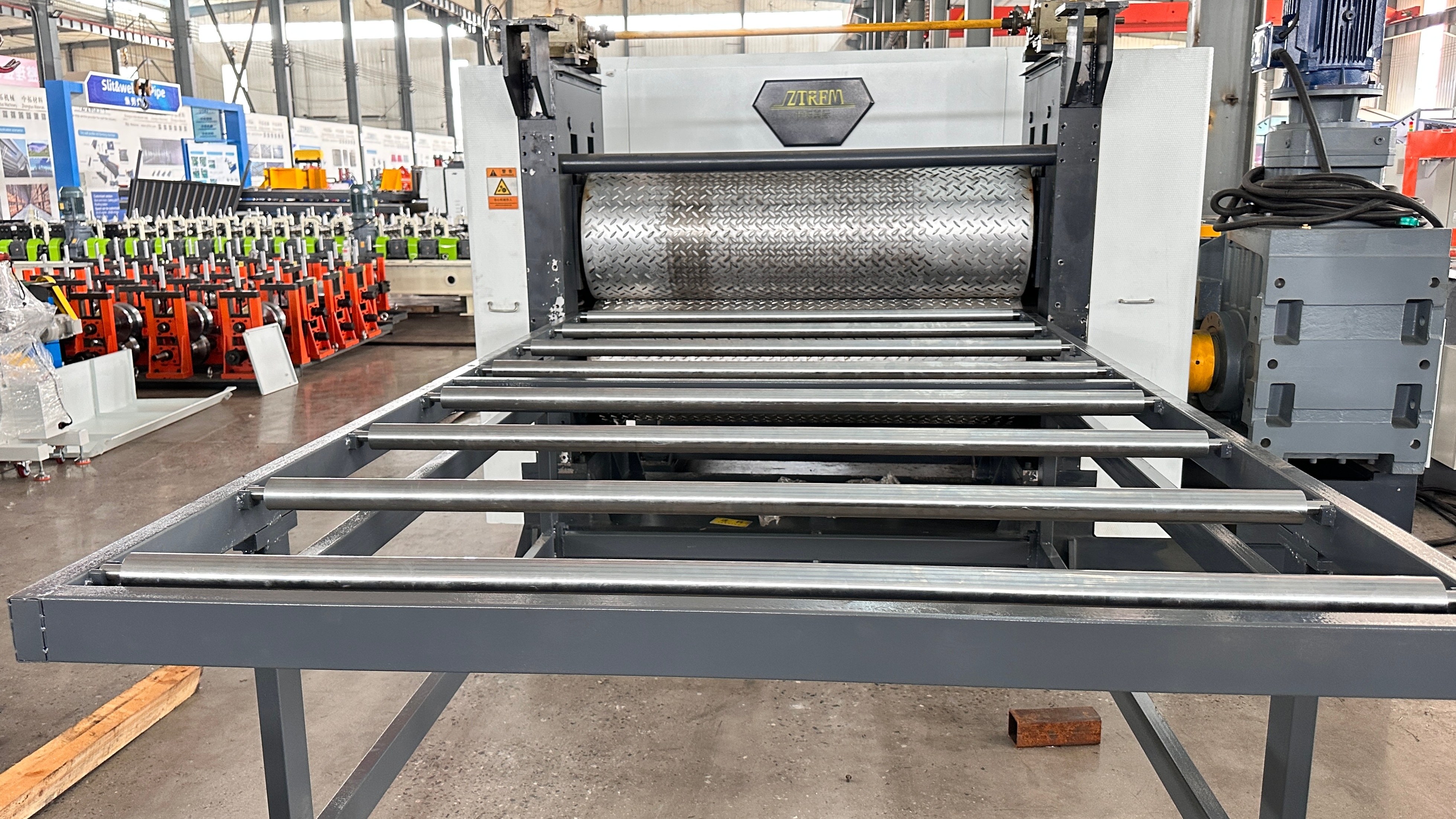

Description:1. The two rollers of the embossing machine are forged from solid 42CrMo alloy steel; they undergo heat treatment to achieve a surface hardness of HRC 53–58 and feature a chrome-plated finish.

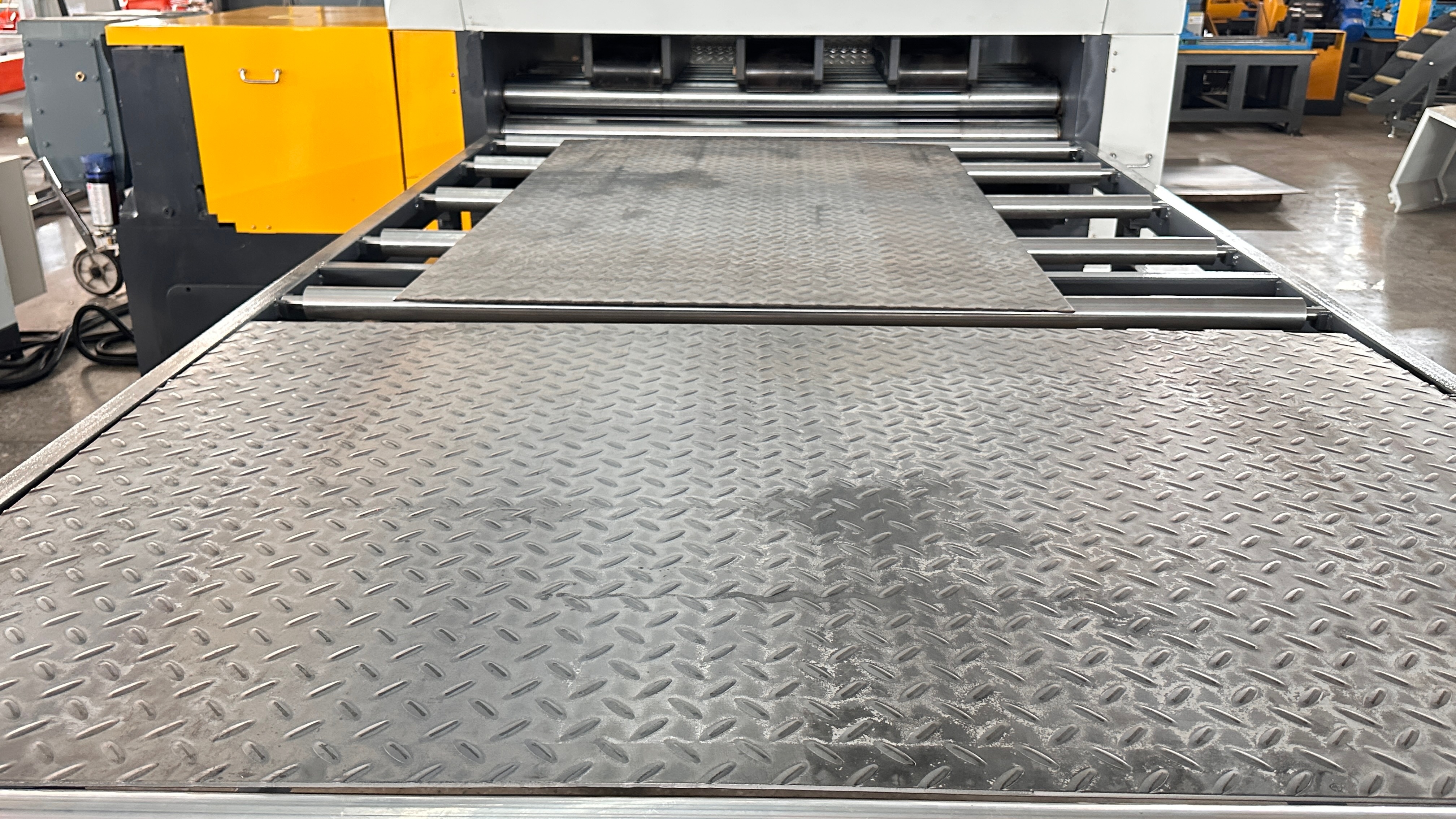

2. Embossing roller dimensions: Φ450mm × 1700mm; suitable for processing plates with a thickness of 1.2mm–5mm. The engraved pattern depth on the female (concave) roller is 3.5mm, while the relief height on the male (convex) roller is 2.5mm. Pattern type: Willow leaf (customizable). Maximum material width: 1520mm; compatible with 1.2–5mm mild carbon steel. When embossing 5mm stainless steel plate, the pattern depth is approximately 0.8mm.
3. The drive system utilizes a standard 15kW motor paired with a high-quality standard gearbox. Operating speed: 0–15 meters/minute (adjustable).

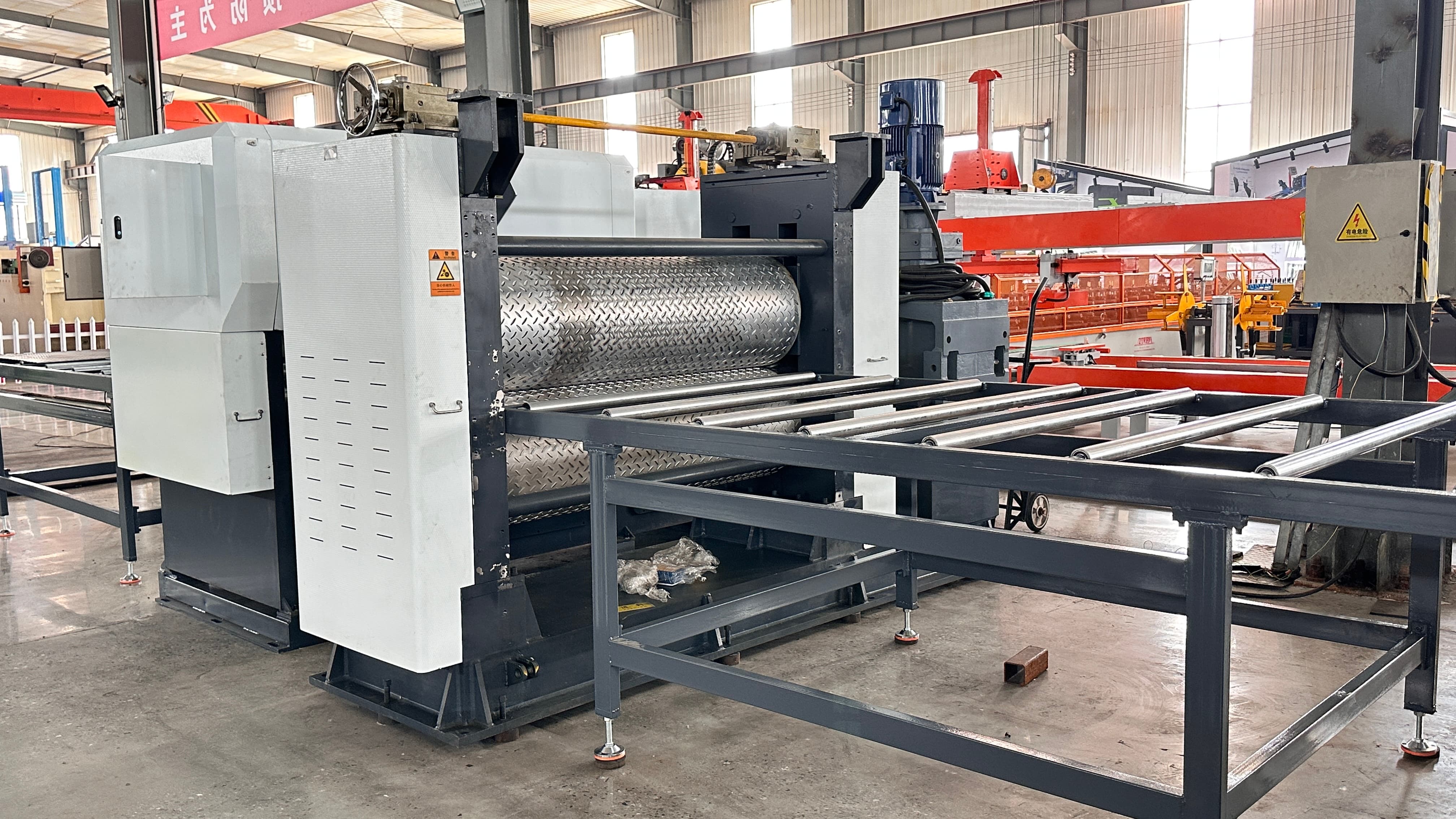

4. The machine features an integral frame design with a welded base structure. The main frame body is a single-piece unit, and the side walls are constructed from solid, integral material.
5. Roller pressure is adjusted vertically via a screw mechanism. The system employs worm gear transmission with independent manual adjustment for each side; the manual pressure adjustment mechanism includes a reference scale for precise setting.

Factory Strength & After-Sales Service

We are a professional manufacturer of roll forming equipment with more than 10 years of R&D and production experience, integrating R&D, production, sales and after-sales service. All equipment has passed CE, ISO, SGS international certifications, and supports factory direct sales, eliminating intermediate links to ensure customers get cost-effective products.

We provide one-stop foreign trade services: free equipment installation and commissioning guidance, professional operation training, long-term technical support, and 12-month warranty service. Spare parts are supplied globally, and after-sales problems are responded to within 24 hours, ensuring that overseas customers have no worries about equipment use. At the same time, we support OEM/ODM customization, flexible MOQ, and provide personalized production solutions according to customer's actual production scale and project needs.
