IBR Double Layer Roll Forming Machine Roof Sheet Making Machine IBR+corrugated

Name: IBR Double Layer Roll Forming Machine Roof Sheet Making Machine IBR+corrugated
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT120746103

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

IBR+corrugated

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Model Number
IBR+corrugated
Production Capacity
15 m/min; 25 m/min
Rolling Thickness
0.3-0.8 mm
Feeding Width
1250 mm
Power
7.5 kW
Voltage
230V/50HZ
Control System
PLC (imported brand - Delta/Siemens/Mitsubishi)
Roller Material
45# steel chrome plated
Shaft Material
45# steel, outer diameter 70 mm
Cutting Blade Material
Cr12 mould steel

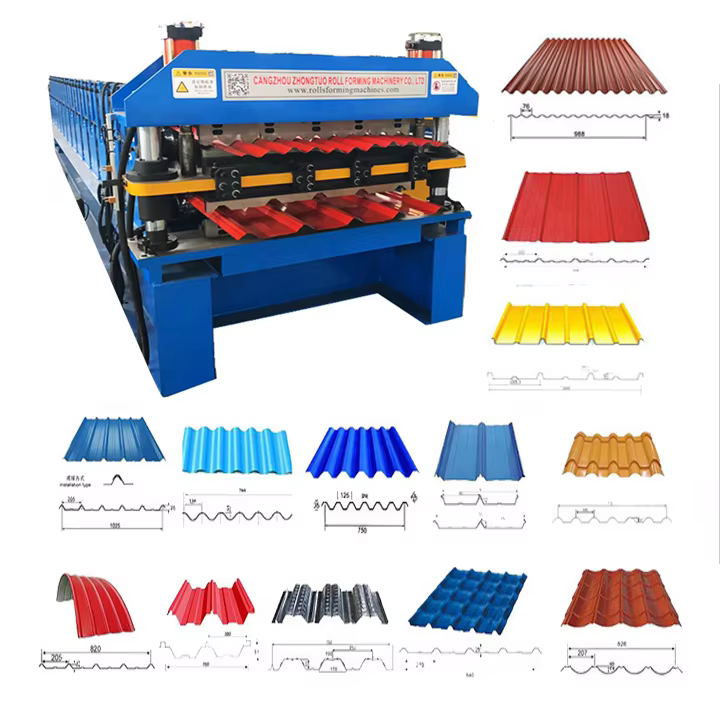

Double layer roll forming machine IBR corrugated with colored sheet samples

Product Overview

This double layer roll forming machine (model IBR+corrugated) produces two popular roofing profiles on one automatic production line: IBR trapezoidal roof sheet and corrugated roof sheet. One machine replaces two separate lines, saving floor space and investment while giving you the flexibility to switch roof sheet types for different market demands. Raw material: PPGI / PPGL / GI / GL color coated steel coil.

Double layer design: IBR trapezoidal profile + corrugated profile on one machine
Production capacity 15 m/min to 25 m/min
Rolling thickness 0.3-0.8 mm, feeding width 1250 mm
Imported PLC control (Delta / Siemens / Mitsubishi)
45# steel chrome plated rollers, Cr12 mould steel blades, 45# steel shaft (70 mm outer diameter)
CE and ISO certified, complies with EU standards

Product Highlights

Rolling Thickness Range: The machine can handle a rolling thickness range of 0.3-0.8mm, providing flexibility in material selection for various roofing needs.
High Production Capacity: With a production capacity of up to 25 meters per minute, the machine ensures efficient and rapid manufacturing, ideal for high-volume projects.
PLC Control System: Equipped with an imported PLC control system (Delta/Siemens/Mitsubishi), the machine offers precise and reliable operation, enhancing overall productivity and quality.
Double Layer Roll Forming: The ability to produce both trapezoidal and corrugated sheets on one machine increases versatility and reduces the need for additional equipment, saving space and costs.

Technical Specifications

Attribute	Value
Machine type	Tile forming machine / roof sheet forming machine (double layer)
Model number	IBR+corrugated
Tile type	Colored glaze steel
Use	ROOF
Production capacity	15 m/min (49.21 ft/min); 25 m/min (82.02 ft/min)
Rolling thickness	0.3-0.8 mm (0.01-0.03 in)
Feeding width	1250 mm (49.21 in)
Raw material	PPGI, PPGL, GI, GL
Roller material	45# steel chrome plated
Shaft material	45# steel, outer diameter 70 mm
Cutting blade material	Cr12 mould steel
Control system	PLC (imported brand - Delta / Siemens / Mitsubishi)
Power	7.5 kW (10.06 hp)
Voltage	230V/50HZ
Dimension (LWH)	9.5 m * 1.65 m * 1.5 m (31.17 ft * 5.41 ft * 4.92 ft)
Weight	11500 kg (25353.16 lb)
Core components	Motor, bearing, gear, pump, gearbox, engine, PLC, other
Brand name	ZTRFM
Warranty	2 years
Certification	CE, ISO; complies with EU standards
Machinery test report	Provided
Video outgoing inspection	Provided
Place of origin	Hebei, China

Machine Scenes

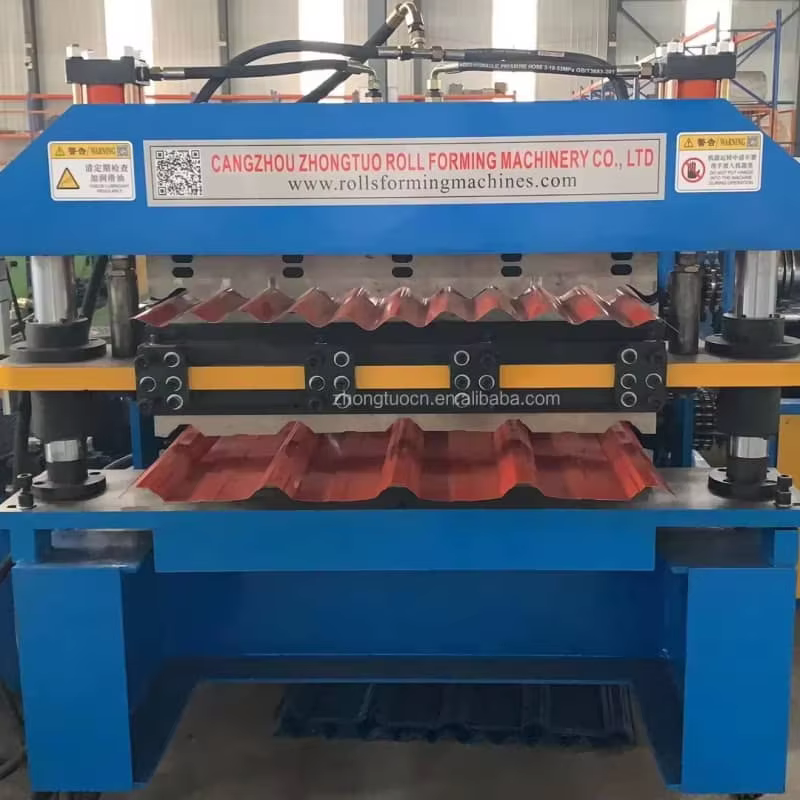

IBR double layer machine processing red corrugated sheet in workshop

Machine in the workshop processing pre-painted corrugated sheet in a fully automatic line.

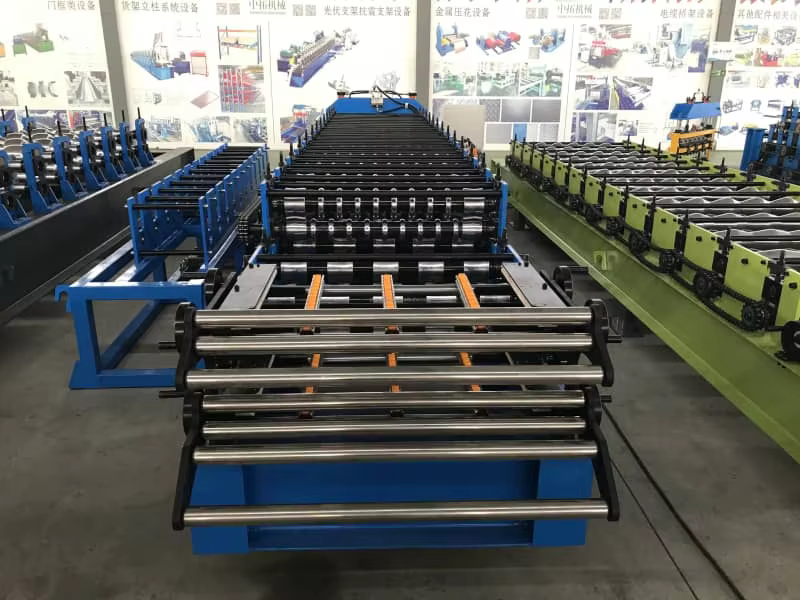

Double layer forming line with blue and green machine frames in showroom

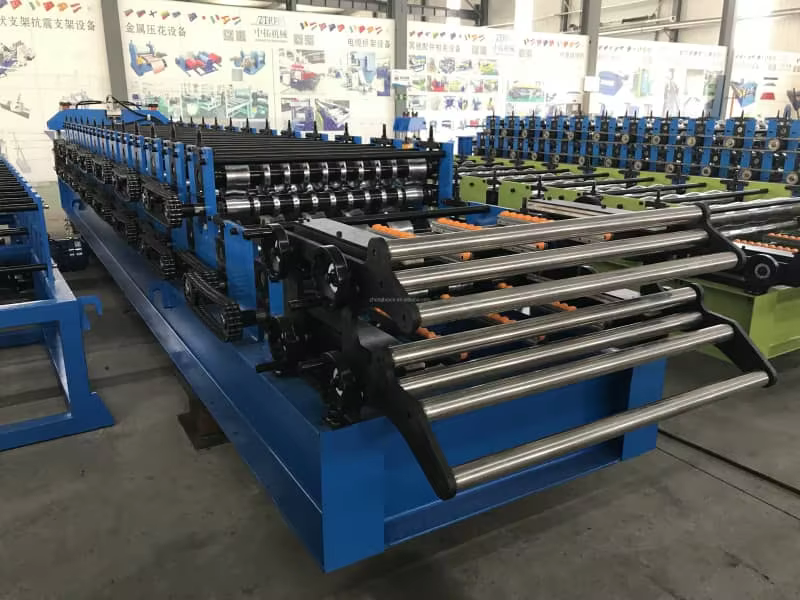

Machine front end with chrome rollers, handwheels and loading truck

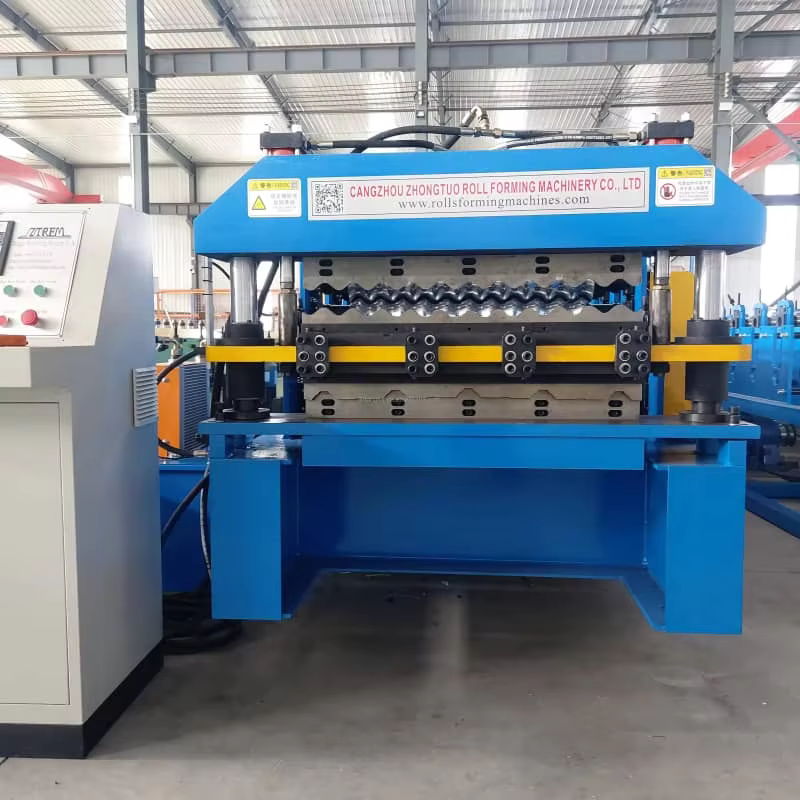

Machine control panel with ZTREM logo and hydraulic cylinders

Control panel and machine details - the double layer line is equipped with an imported PLC control system for stable, precise operation.

Factory floor with double layer roll forming machines

Service

Free replacement parts & online technical support
Custom design in 24 hours
Customization available: packaging, name plate (min. order 1 set); minor / drawing-based / sample-based / full customization

Packing & Shipping

Selling unit: single item (set)
Lead time: 60 days for 1 set; to be negotiated for more than 1 set
Machinery test report and video outgoing inspection provided
