Hydroponic Hanging Gutter Roll Forming Machine Greenhouse Gutter Making Machine for Hydroponic Growing Systems Up to 20 m/min

The rapid development of hydroponic agriculture has created increasing demand for efficient greenhouse cultivation infrastructure. In commercial growing operations, hydroponic gutters play an essential role by supporting crops and guiding water, fertilizer, and nutrient solutions through the growing system.

The Hydroponic Gutter Roll Forming Machine from Zhongtuo Machinery is specially developed for continuous production of galvanized steel gutters used in greenhouse and hydroponic cultivation. The machine converts steel coils into precisely formed gutter profiles with consistent dimensions and smooth surfaces.

Compared with conventional methods such as manual bending, welding, and sectional fabrication, roll forming provides a faster and more reliable way to manufacture long-length greenhouse gutters. It can be particularly valuable for large strawberry, tomato, cucumber, pepper, lettuce, and herb growing projects.

Continuous Production of High-Precision Hydroponic Gutters

Large-scale greenhouse projects may require several thousand meters of cultivation gutters. Producing these components manually can involve considerable labor and may result in dimensional inconsistencies between individual sections.

A hydroponic gutter roll forming machine solves this problem by continuously forming the required profile from galvanized steel coil.

The production process can integrate:

• Material feeding

• Roll forming

• Length measurement

• Hydraulic cutting

• Finished gutter collection

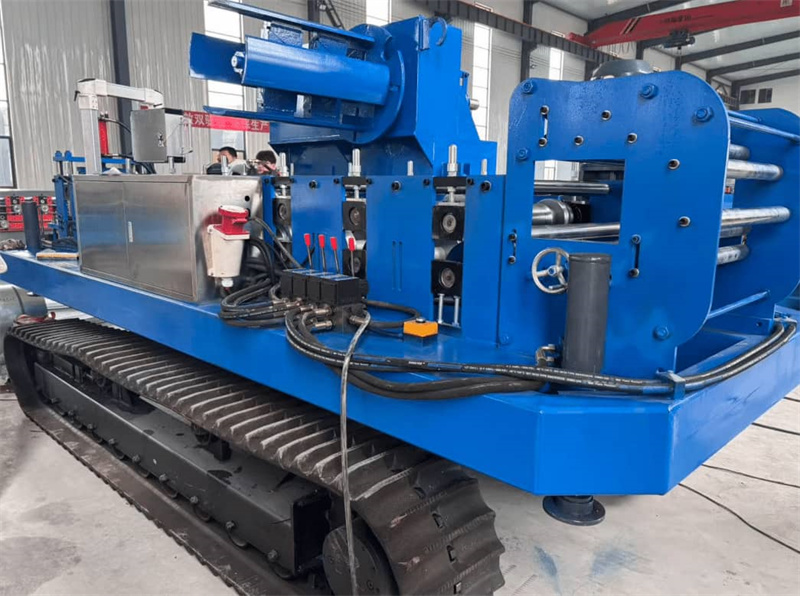

During forming, the steel strip passes through multiple precision forming stations. Each station gradually bends the material until the required gutter geometry is achieved.

This progressive forming process helps maintain stable dimensions and reduces the deformation that may occur during conventional bending.

The finished gutters can then be cut to the required length according to the greenhouse design.

Mobile Gutter Production Inside Greenhouses

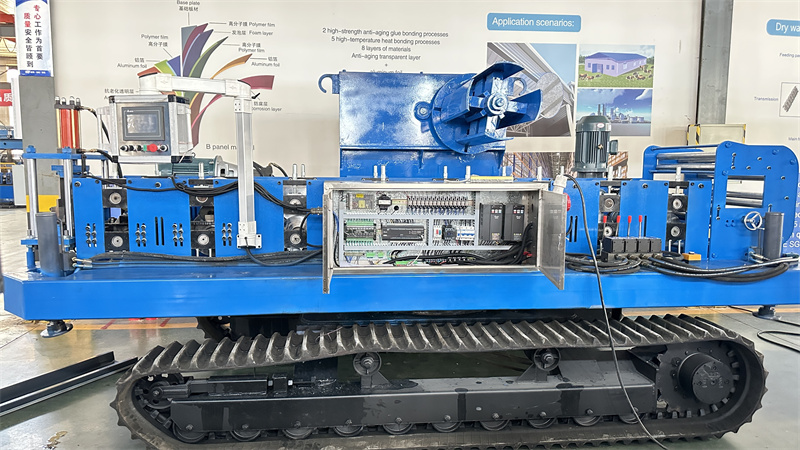

A major advantage of this particular equipment is its mobile crawler-type design.

Traditional production requires finished gutters to be manufactured at a factory and then transported to the greenhouse. Long and lightweight gutter sections can be difficult to handle, especially when a project involves large quantities or restricted access roads.

The mobile hydroponic gutter machine provides another solution.

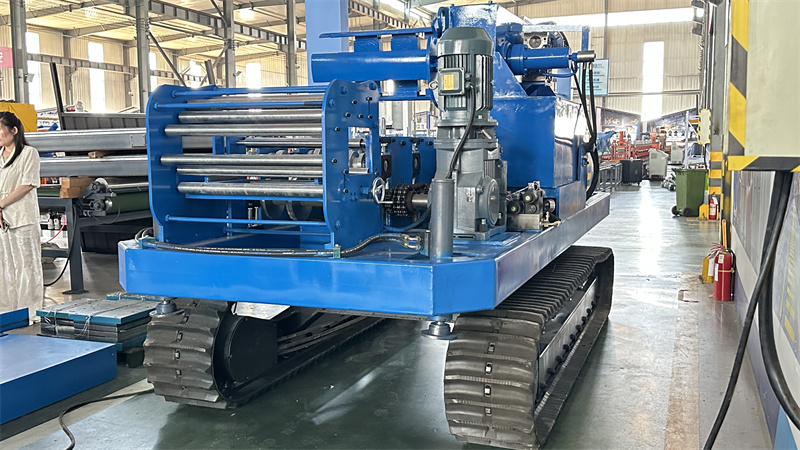

With its hydraulic crawler chassis, the equipment can move within the greenhouse and produce gutters close to the actual installation area. This reduces the need to transport extremely long finished products.

The machine is also equipped with a wireless control system, allowing operators to conveniently control movement and positioning.

Advantages of the mobile configuration

Machine Feature	Practical Advantage
Hydraulic crawler chassis	Convenient movement inside greenhouse facilities
360° steering	Flexible positioning in different working areas
Wireless control	Easier operation and positioning
Continuous roll forming	Suitable for long-length gutter production
Automatic cutting	Consistent finished gutter lengths
On-site production	Reduces transportation and handling requirements

For greenhouse contractors working on large agricultural projects, this configuration can simplify both manufacturing and installation.

Strong and Consistent Gutter Profiles

The performance of a hydroponic gutter depends heavily on dimensional accuracy and structural stability.

The roll forming machine uses multiple forming stations to gradually shape the steel strip. Instead of forcing the material into its final shape in one operation, the forming rollers distribute deformation across several stages.

This helps achieve:

• Consistent gutter dimensions

• Smooth profile surfaces

• Stable side walls

• Uniform forming quality

• Reduced production variation

• Reliable long-term operation

The rollers are manufactured from 42Cr alloy steel and finished with a chrome-coated surface for improved wear resistance. Precision-machined shafts provide stable support for the forming rollers during continuous production.

The hydraulic cutting system can cut the formed gutter according to preset lengths without requiring separate manual cutting operations.

Automatic Control for Efficient Production

The PLC control system coordinates the main production processes, including feeding, forming, measuring, and cutting.

Operators can input the required production parameters through the control interface, while the system automatically synchronizes the different sections of the line.

A typical configuration includes a Siemens PLC and Yaskawa inverter, providing reliable control of the production process.

The automatic control system offers several benefits:

• Accurate length control

• Stable forming speed

• Reduced manual operation

• Easy parameter adjustment

• Improved production consistency

• Lower dependence on operator experience

For manufacturers supplying gutters to commercial greenhouse projects, automation can help maintain consistent quality throughout long production runs.

Main Specifications of Hydroponic Gutter Roll Former

The equipment can be configured according to the customer's gutter profile, material and production requirements.

Parameter	Specification
Material Thickness	0.6–0.8 mm
Material	Pre-painted / Galvanized Steel
Gutter Width	210–310 mm
Gutter Height	100 mm
Forming Speed	Up to 20 m/min
Forming Stations	7–9 stations
Roller Material	Chrome-coated 42Cr
Shaft Diameter	75 mm
Main Motor	7.5 kW
Hydraulic Power	11 kW
Hydraulic Pressure	20 MPa
Decoiler Capacity	4 Tons
PLC	Siemens
Inverter	Yaskawa
Cutting Blade	CR12MOV
Machine Type	Hydraulic Crawler Type

The actual configuration can be adjusted depending on the required profile drawing, steel grade, thickness, gutter dimensions and production capacity.

Suitable for Strawberry and Vegetable Greenhouses

Hydroponic gutters are widely used in modern protected agriculture.

One of the most common applications is strawberry cultivation. Elevated gutters allow growers to position plants at a convenient working height while providing an organized path for irrigation and drainage.

The same principle can be applied to other commercial crops, including:

• Strawberries

• Tomatoes

• Cucumbers

• Peppers

• Lettuce

• Leafy vegetables

• Herbs

• Other greenhouse crops

The gutters can be incorporated into suspended growing systems, elevated cultivation systems, NFT hydroponic systems and customized greenhouse production layouts.

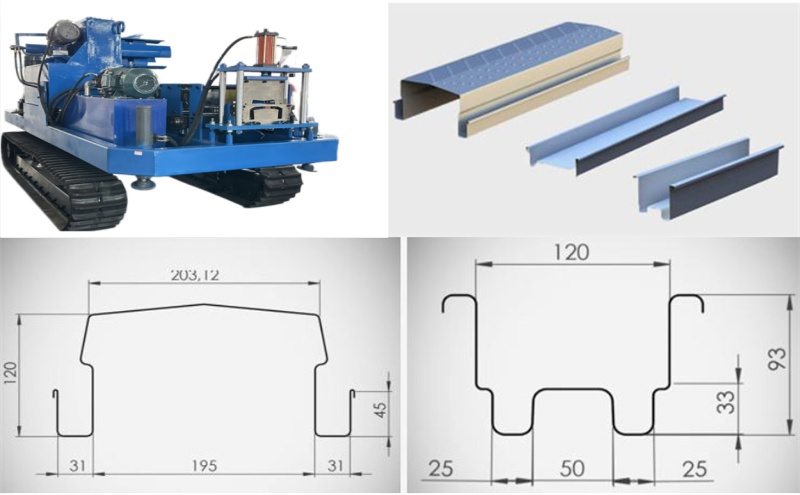

One Machine for Different Gutter Profiles

Different greenhouse projects often use different gutter dimensions and cross-sectional designs.

For this reason, the roll forming tooling can be customized according to the customer's drawings or physical samples.

Depending on the project, the machine can be engineered for different:

• Gutter widths

• Gutter heights

• Side-wall configurations

• Mounting structures

• Drainage designs

• Steel thicknesses

• Finished lengths

This flexibility allows greenhouse equipment manufacturers and agricultural system suppliers to develop customized gutter production solutions instead of relying exclusively on standard profiles.

Why Use Roll Forming for Greenhouse Gutter Production?

Traditional gutter manufacturing may involve several separate operations, such as cutting, bending, welding and assembly. Each additional operation increases labor requirements and can introduce dimensional variation.

Roll forming combines the shaping process into a continuous production line.

The main advantages include:

Higher production efficiency
Continuous forming is suitable for large quantities of greenhouse gutters.

Consistent dimensions
The fixed roller tooling helps maintain the same profile throughout production.

Reduced welding requirements
The gutter profile is formed directly from coil material, reducing the need for sectional fabrication.

Lower material handling requirements
Long-length gutters can be produced continuously and cut according to project requirements.

Better suitability for customized production
Roll tooling can be designed according to customer drawings and samples.

Reduced installation workload
Accurately produced gutter sections can make subsequent greenhouse installation more straightforward.

A Practical Solution for Large-Scale Hydroponic Agriculture

As commercial hydroponic farming becomes increasingly automated and intensive, reliable cultivation infrastructure is becoming just as important as the growing technology itself.

A well-designed gutter system helps organize plant cultivation, irrigation and drainage while making better use of greenhouse space.

The Hydroponic Gutter Roll Forming Machine provides greenhouse equipment manufacturers with an efficient way to produce these components in large quantities. Its combination of continuous roll forming, automatic cutting, customized tooling and mobile crawler operation makes it suitable for both standard manufacturing facilities and large greenhouse construction projects.

Zhongtuo Machinery can design the forming tooling and production line according to the customer's gutter profile, material thickness, dimensions, production speed and greenhouse application.

For projects requiring large-scale strawberry gutters, vegetable cultivation channels or customized hydroponic profiles, a dedicated roll forming solution can significantly simplify the manufacturing process and improve production efficiency.

Frequently Asked Questions

1. What material can be used to manufacture hydroponic gutters?
The machine is mainly designed for galvanized steel and pre-painted galvanized steel. The suitable thickness is generally around 0.6–0.8 mm, depending on the gutter design.

2. Can the gutter dimensions be customized?
Yes. The roller tooling can be customized according to the customer's profile drawing or sample.

3. Can the machine produce long gutters?
Yes. Continuous roll forming allows the machine to manufacture long-length gutters and cut them automatically according to the required length.

4. Is the machine suitable for strawberry cultivation?
Yes. Strawberry greenhouse projects are one of the major applications for hanging and elevated hydroponic gutters.

5. Can the machine work inside a greenhouse?
The crawler-type configuration is designed to improve mobility and can be used for on-site gutter production where project conditions permit.
