Hot Sale Heavy Duty Galvanized Steel Cable Ladder Grid Cable Tray Wire Mesh Cable Management Raceway for Data Center Electrical 3 m+50mm

Hot Sale Heavy Duty Galvanized Steel Cable Ladder Grid Cable Tray Wire Mesh Cable Management Raceway for Data Center Electrical 3 m+50mm

Name: Hot Sale Heavy Duty Galvanized Steel Cable Ladder Grid Cable Tray Wire Mesh Cable Management Raceway for Data Center Electrical 3 m+50mm
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:500 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥500Set

Order CodeZT101098457

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Length:

3 m

Width:

50mm

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Application
Network, Industrial, Construction, Managing Cables, Cable Support, Cable Laying, Cable Wiring
Material
Carbon Steel
Max. Working Load
150 kg, 250 kg
Side Rail Height
25mm, 41mm, 82mm, 62mm
Type
Wire Mesh

Detailed Images

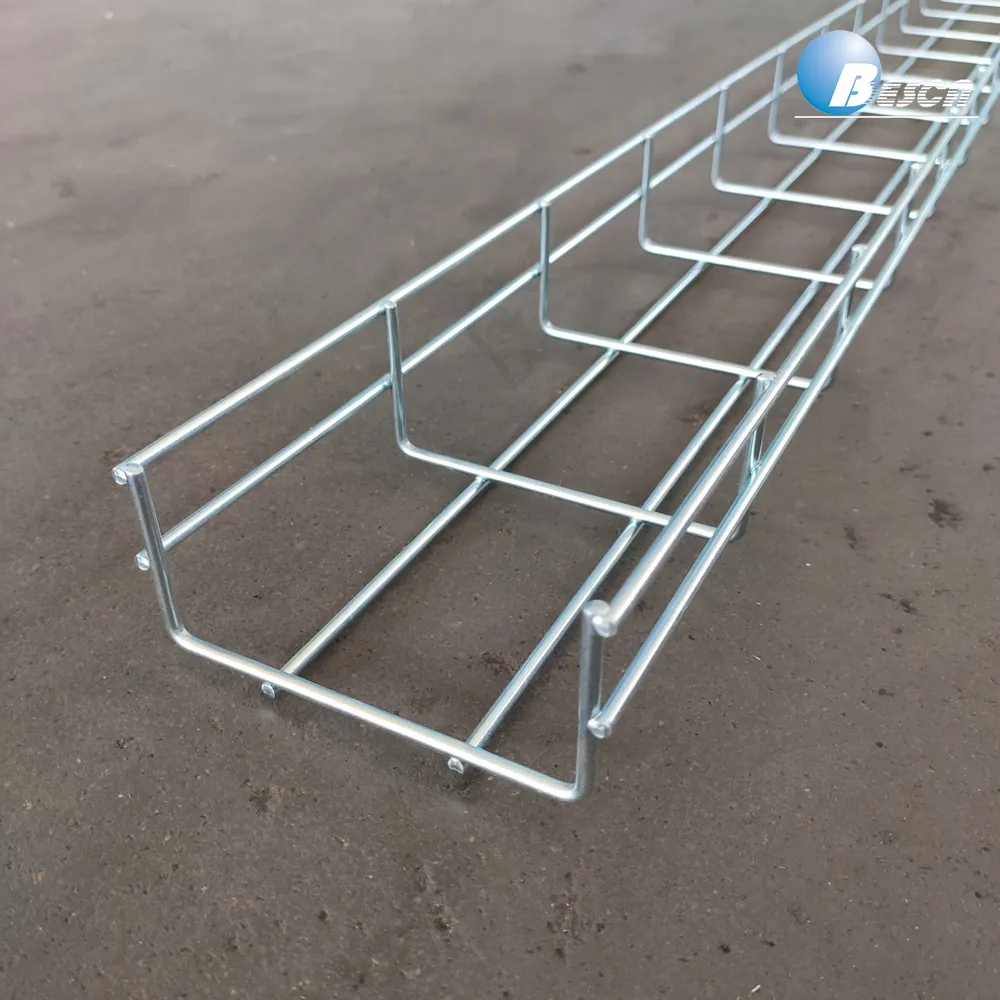

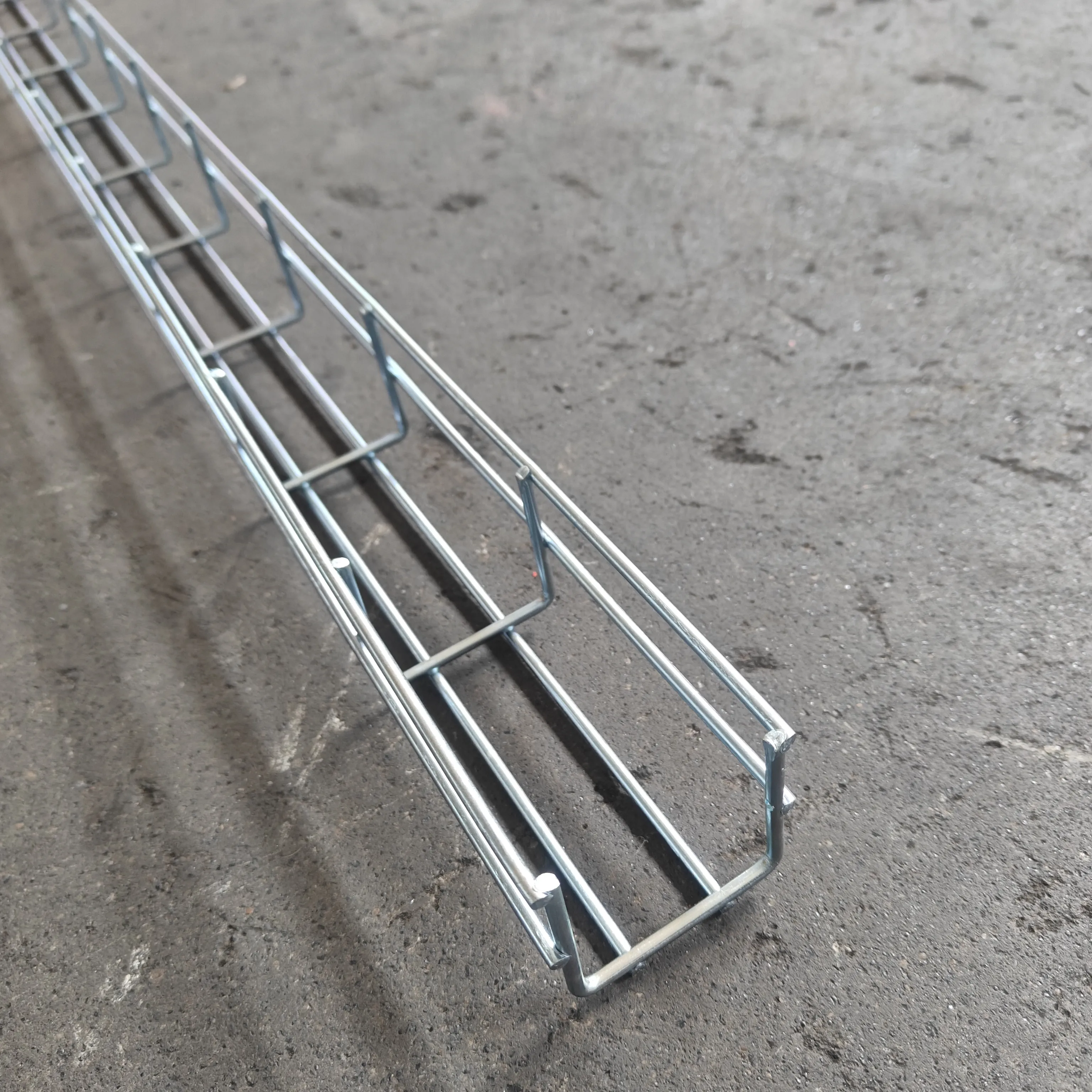

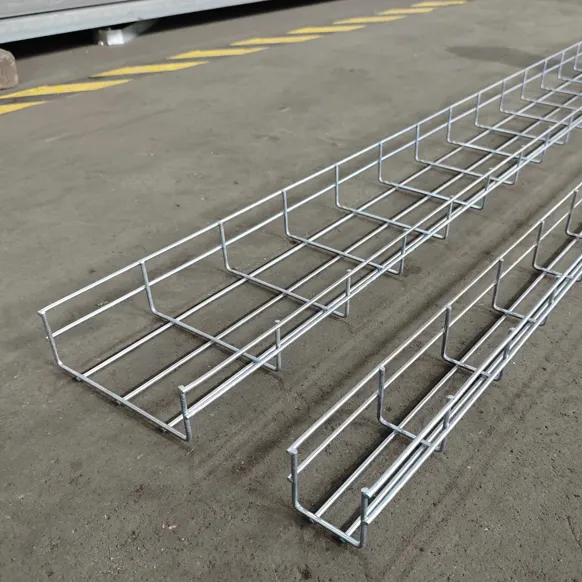

Besca Wire Mesh Cable Tray provides premium performance in commercial and light industrial applications.
Strong, versatile, and easy to install, Besca Wire Mesh Cable Tray is complimented with all the accessories you need.
With no need for separate bends, risers, tees and crosses, Besca Wire Mesh Cable Tray lengths can be fabricated to suit the application on site. Tested to NEMA Standard VE1-2002.
Besca Wire Mesh Cable Tray is available in stainless steel against firm orders only. - Minimum production may quantities apply.

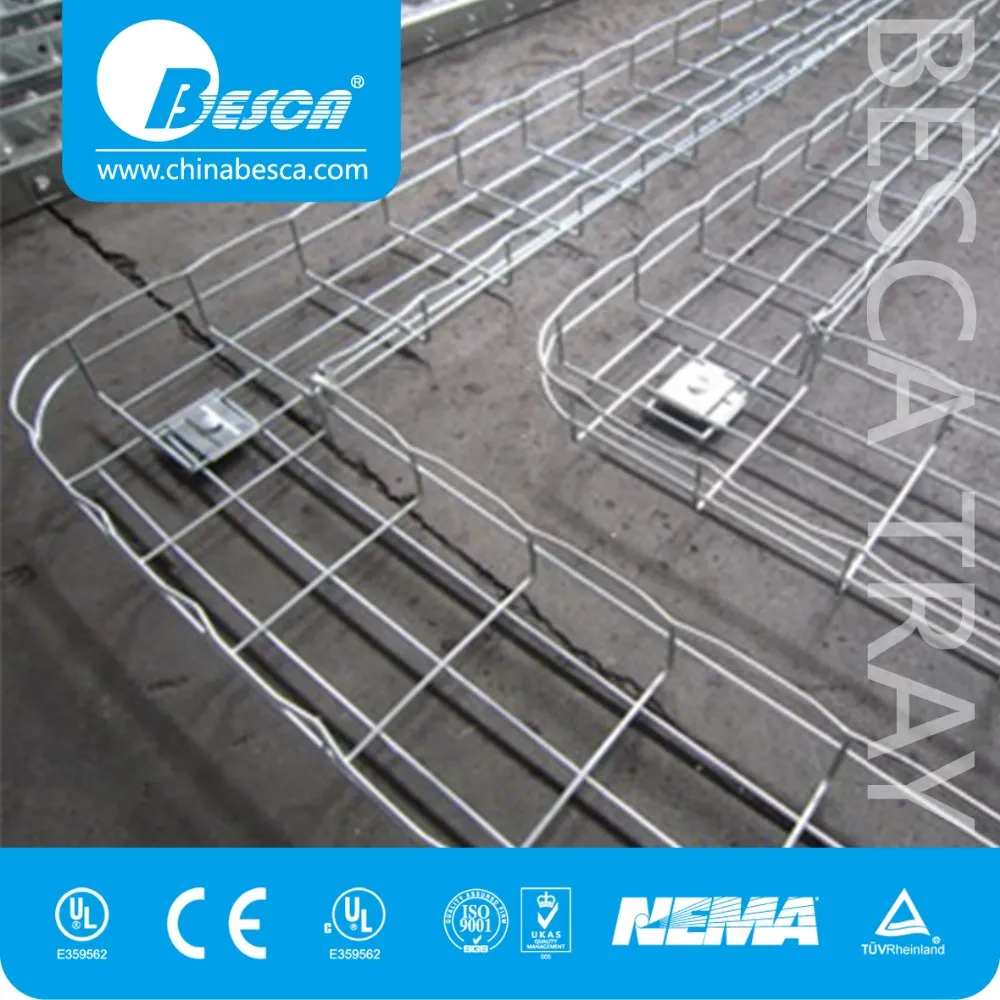

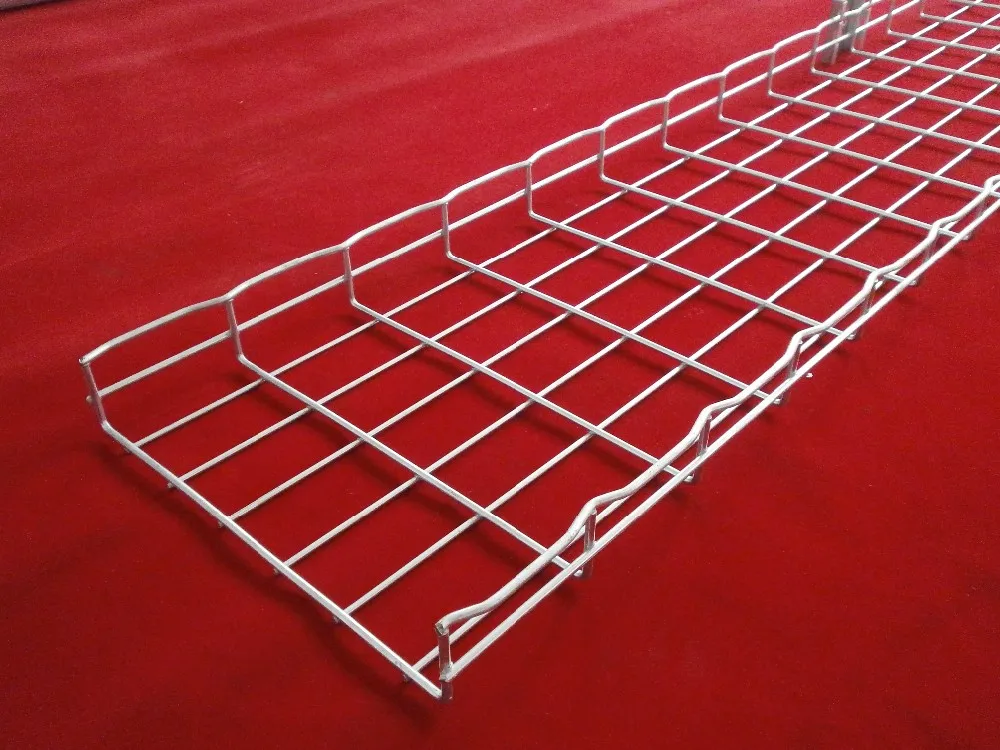

WAVE TYPE (CABLOFIL TYPE)

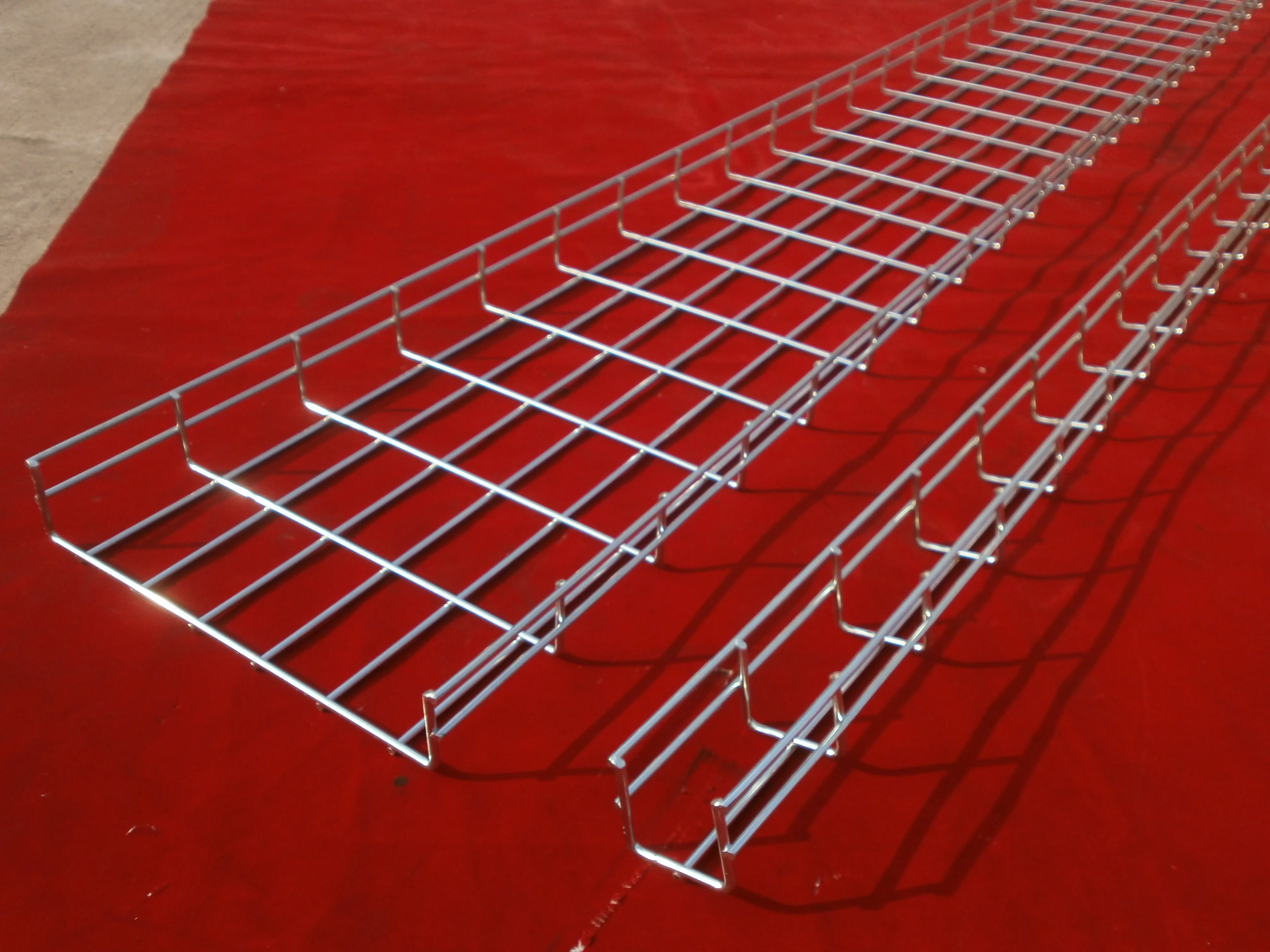

STRAIGHT TYPE

Installation Instructions

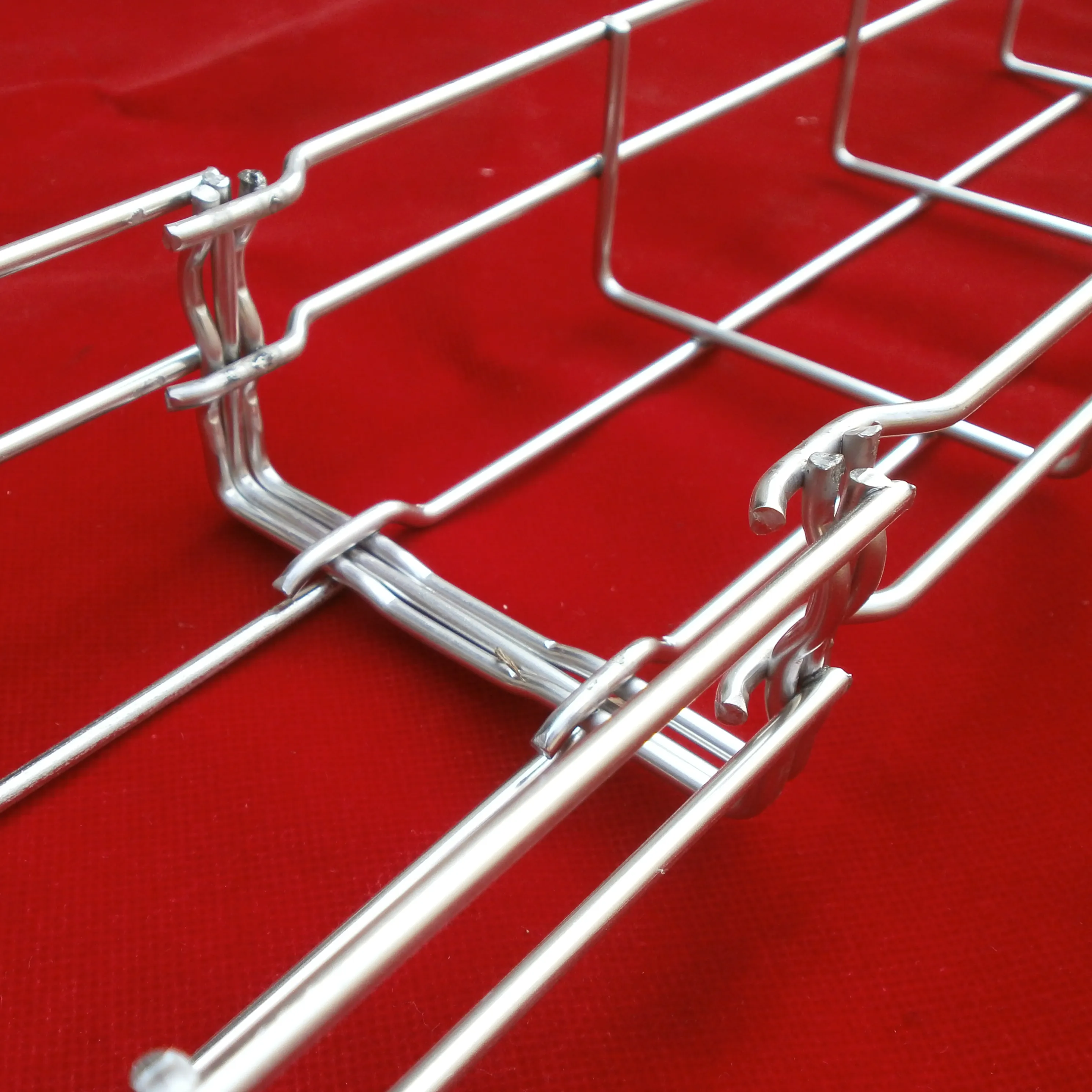

BESCA Wire Mesh Cable Tray

Besca Wire Mesh Cable Tray systems are produced from ASTM A510 high strength steel wires. A fully automated welding process produces continuous wire mesh, which is formed into our Wire Mesh Cable Tray system.

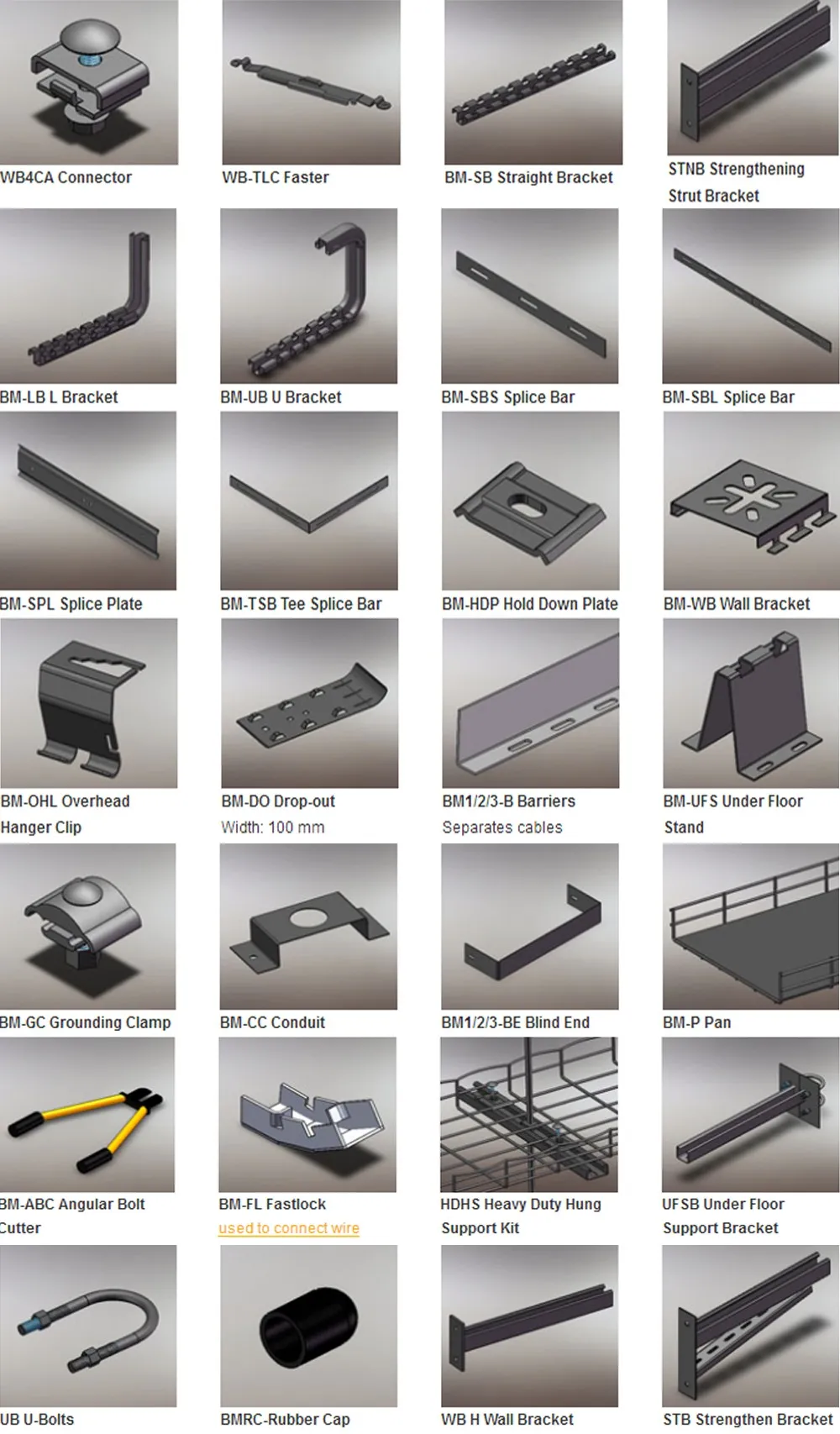

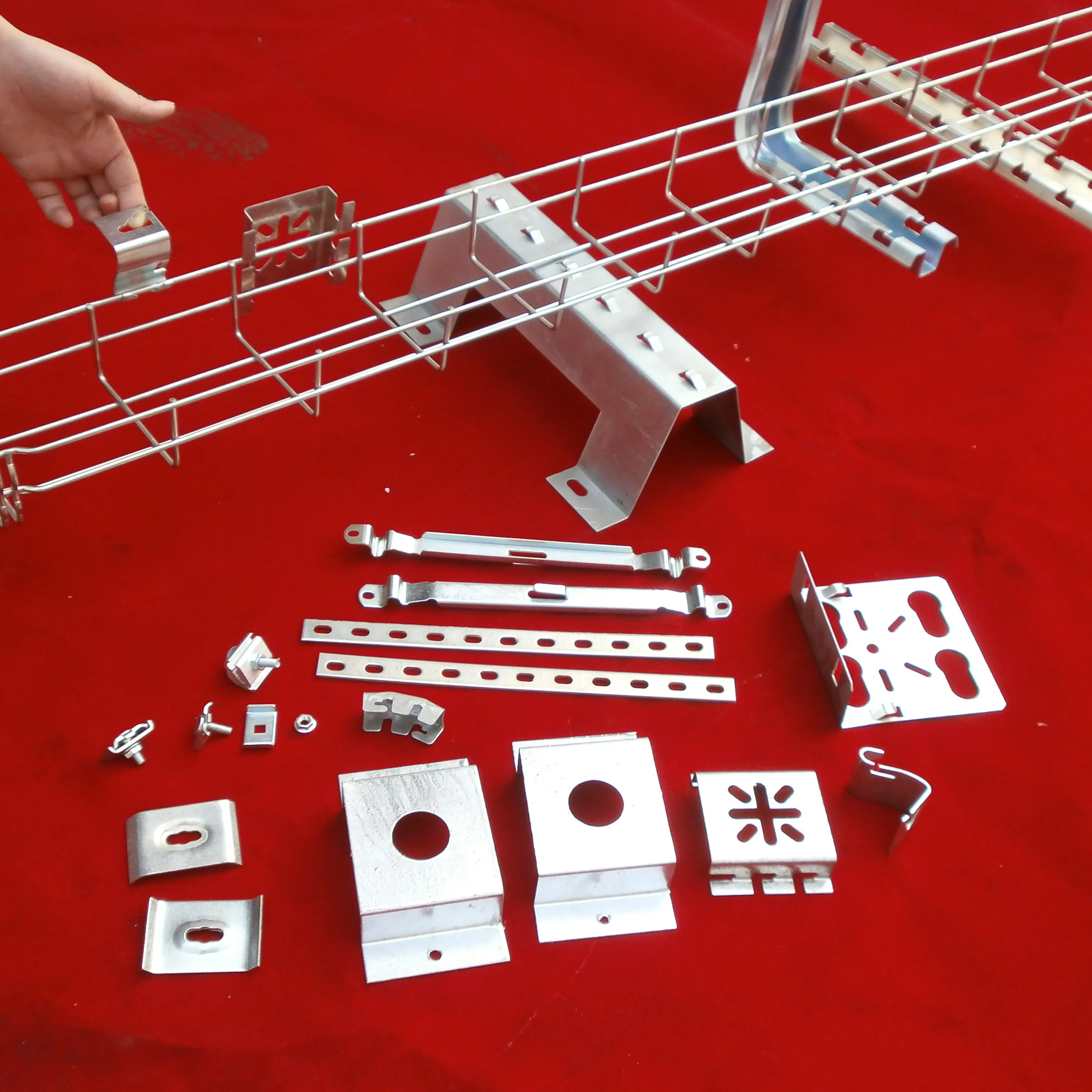

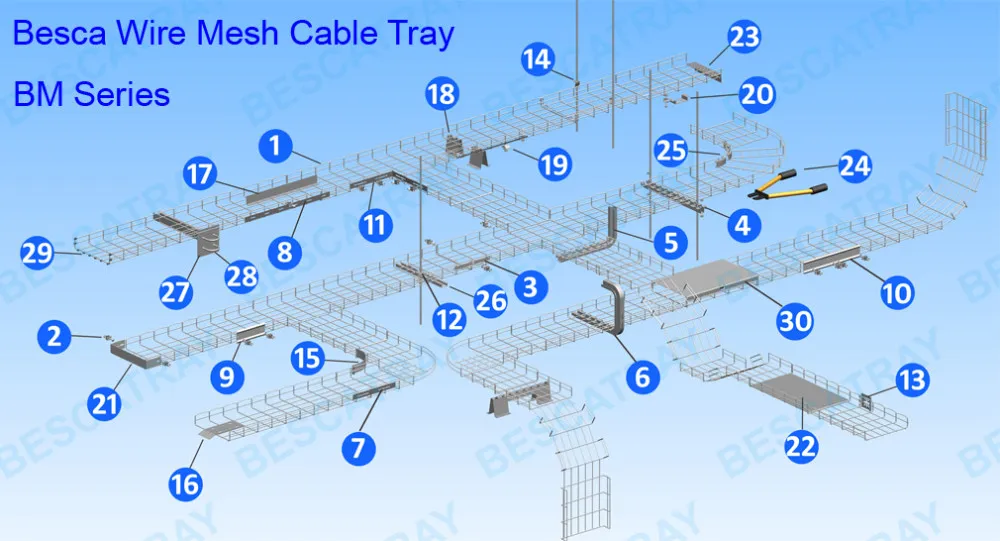

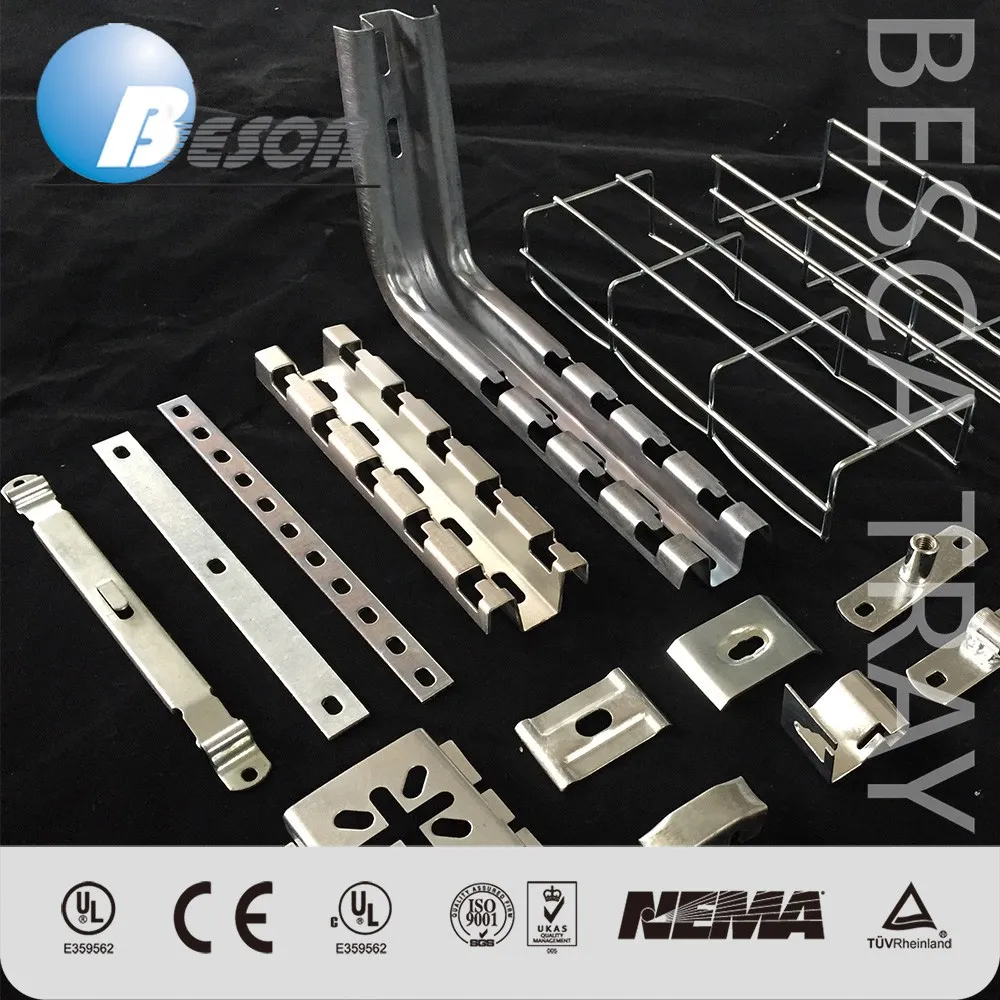

Accessories for Wire Mesh Cable Tray for choosing.
Connect Assembly, brackets, Splice, Faster Connector, Hold Down Plate , Over head clip, Drop Out, Separator, Grouding Clamp, Under floor stand, etc..

1. Wire meshcable tray straight(BM*)	2. Connector assembly(WB4CA)	3. Faster connector(WB-TCL)	4. Straight bracket(BM*-SB)	5. L Bracket(BM-LB)
6. U Bracket(BM-UB)	7. Splice bar(short)(BM-SBS)	8. Splice bar(long)(BM-SBL)	9. Splice plate(short)(BM-SPS)	10. Splice plate(long)(BM-SPL)
11. Tee splice bar(BM-TSB)	12. Hold dowm plate(BM-HDP)	13. Wall bracket(BM-WB)	14. Overhead hanger clip(BM-OHL)	15. Radius shield(BM*-RS)
16. Drop-out(BM-DO)	17. Barriers(BM*-B)	18. Under floor stand(BM-UFS)	19. Grounding clamp(BM-GC)	20. Conduit connector(BM-CC)
21. Blind end(BM*-BE)	22. Pan(BM-P)	23. Wall termination kit(BM-WTK)	24. Angular bolt cutter(BM-ABC)	25. Fastlock(BM-FL)

Dimension

Ordering Code	W(mm)	H(mm)	L(mm)
BM1-50H	50	35	3000
BM2-50H	50	50	3000
BM3-50H	50	100	3000
BM1-100H	100	35	3000
BM2-100H	100	50	3000
BM3-100H	100	100	3000
BM1-150H	150	35	3000
BM2-150H	150	50	3000
BM3-150H	150	100	3000
BM1-200H	200	35	3000
BM2-200H	200	50	3000
BM3-200H	200	100	3000
BM1-300H	300	35	3000
BM2-300H	300	50	3000
BM3-300H	300	100	3000
BM1-400H	400	35	3000
BM2-400H	400	50	3000
BM3-400H	400	100	3000
BM1-450H	450	35	3000
BM2-450H	450	50	3000
BM3-450H	450	100	3000
BM1-600H	600	35	3000
BM2-600H	600	50	3000
BM3-600H	600	100	3000

All other dimensions are available.

Width - no more than 900mm

Height - no more than 200mm

Length - should be 3 meters for each.

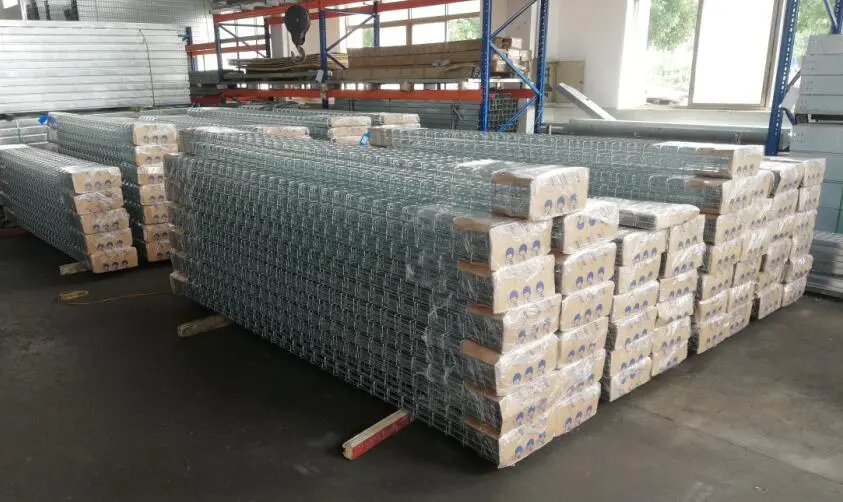

Packing & Delivery

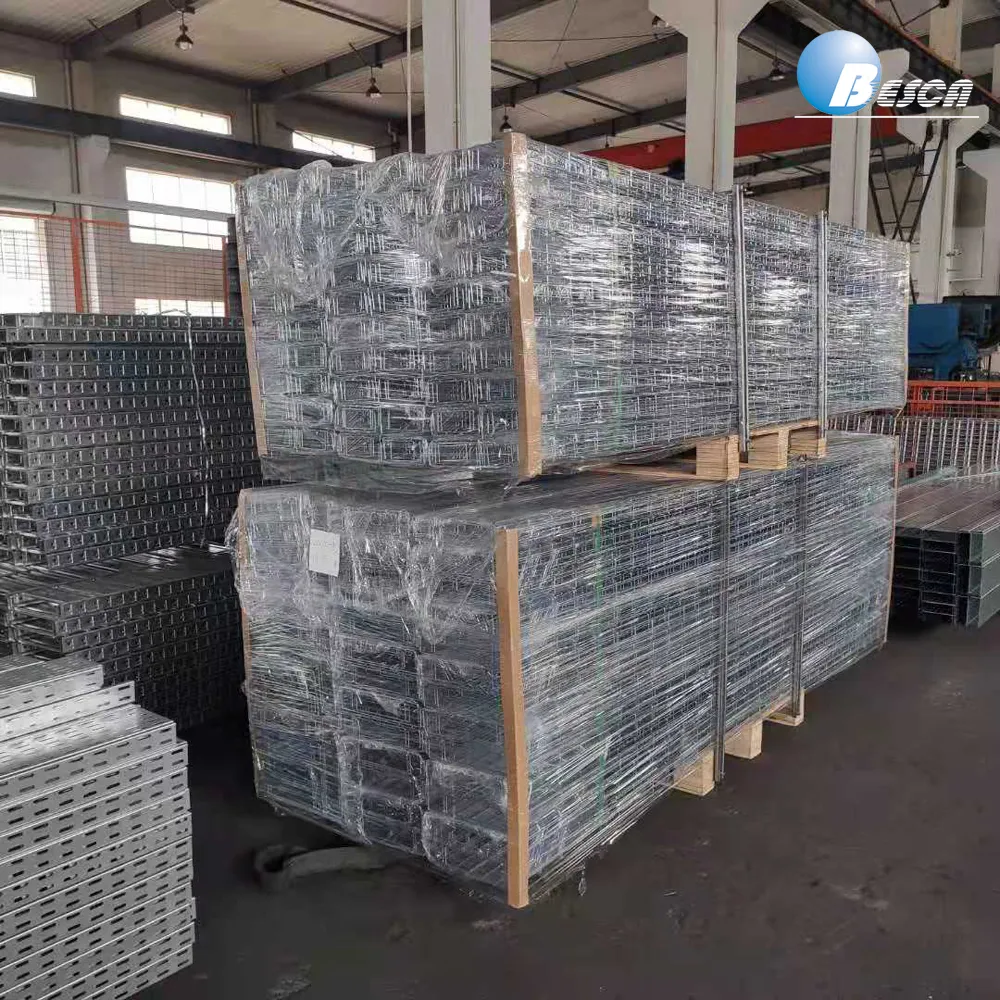

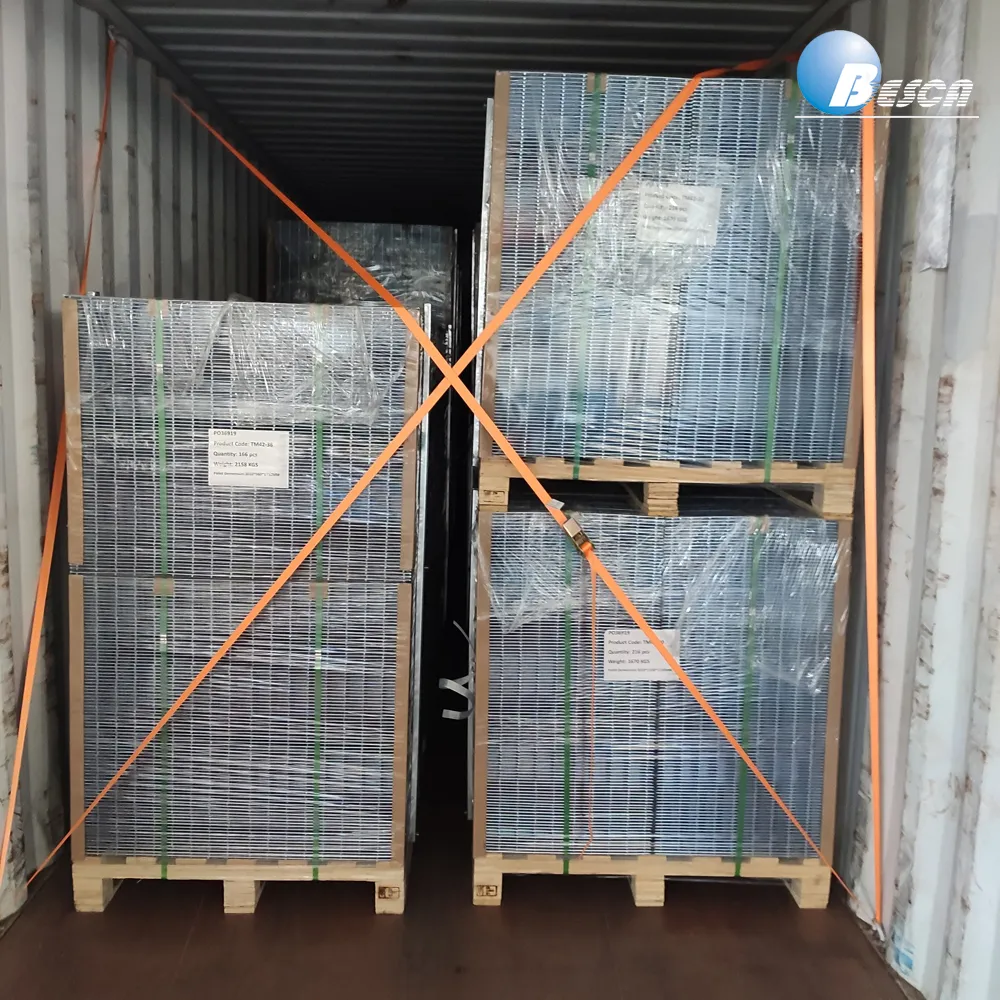

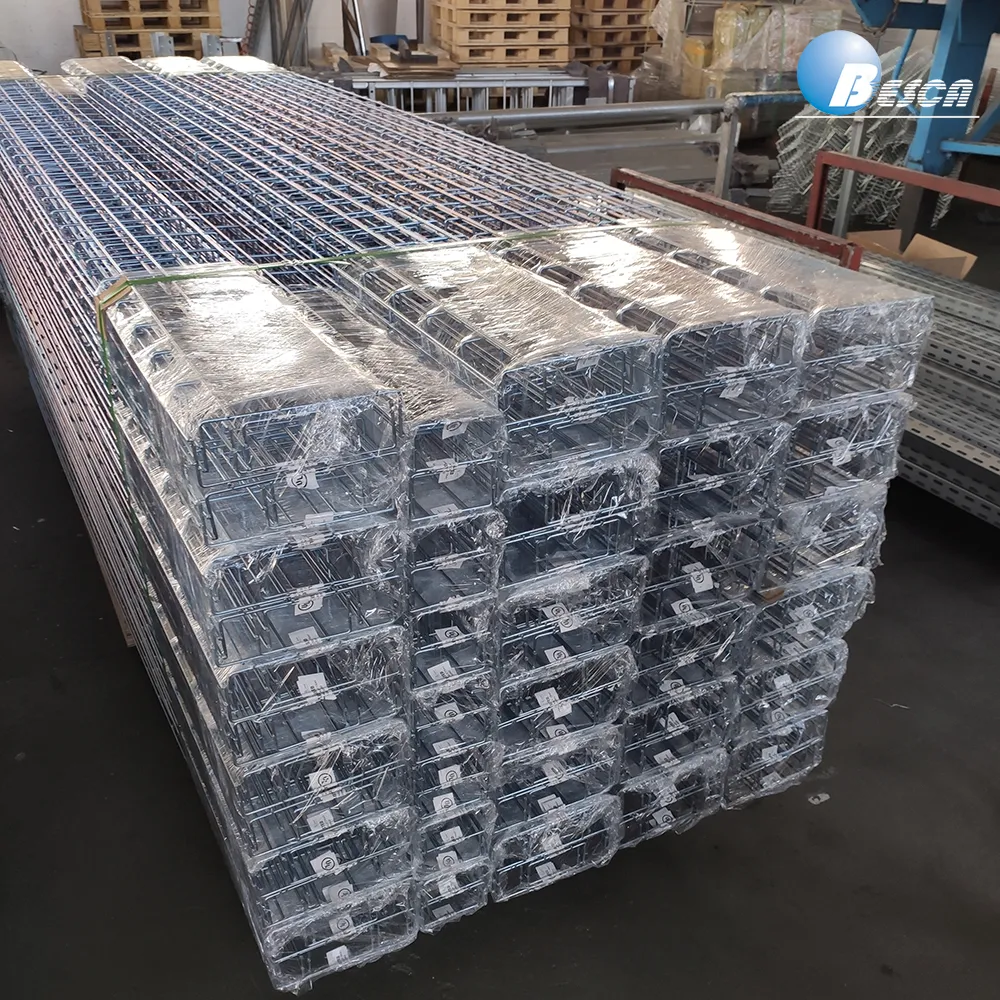

Wire Mesh Cable Tray Besca Standard Packages

We have our standard packages, but if you have any other special package requirements, we can also meet your demand.

Usually, all the orders can be completed production less than 30 days after receiving deposit payment.

We also can sell wire mesh cable tray in flat to save much space in container.

Related Products

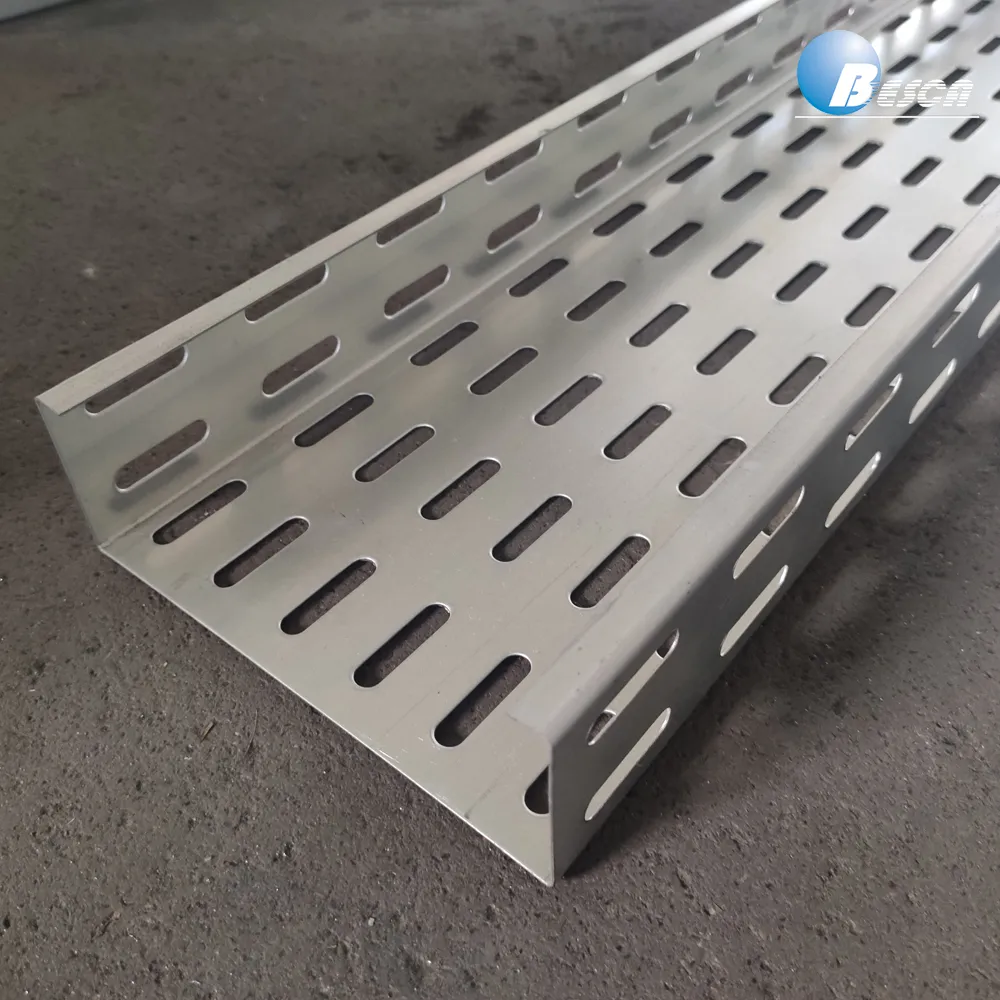

BC4 Aus Cable Tray Perforated Cable Tray

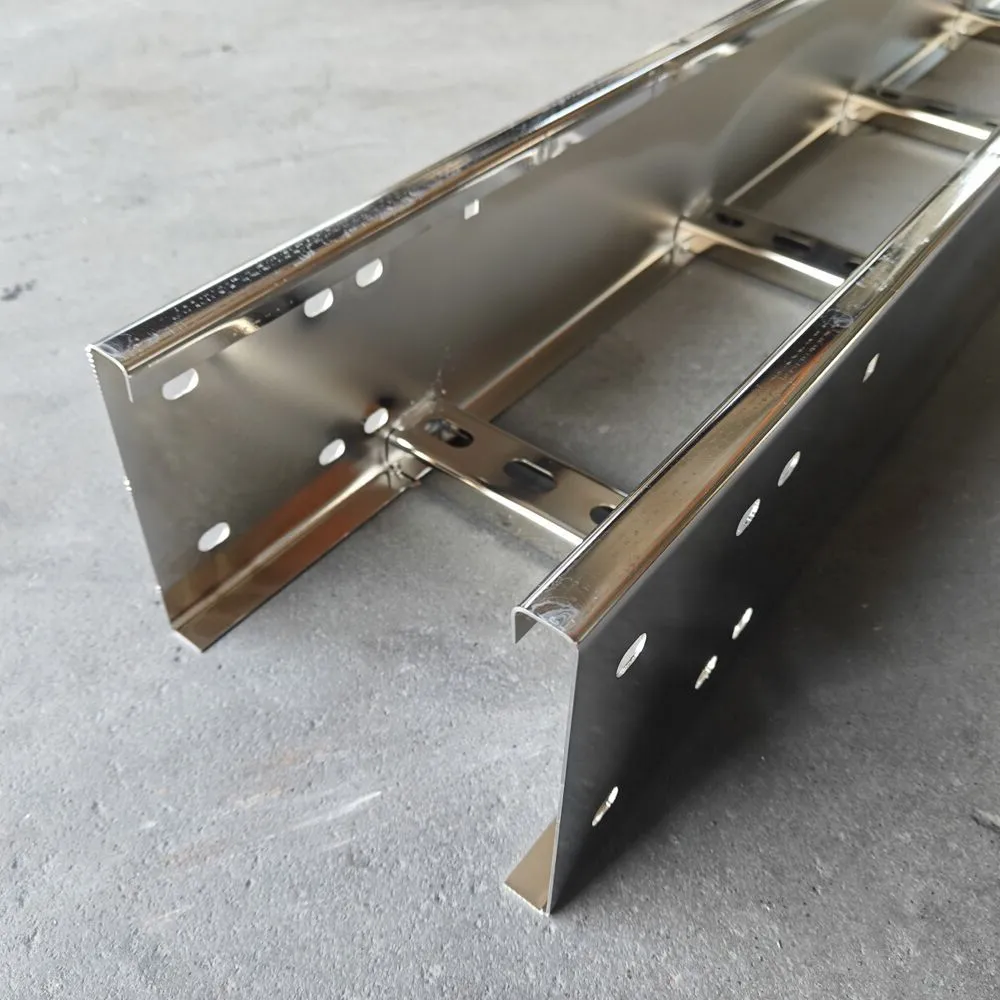

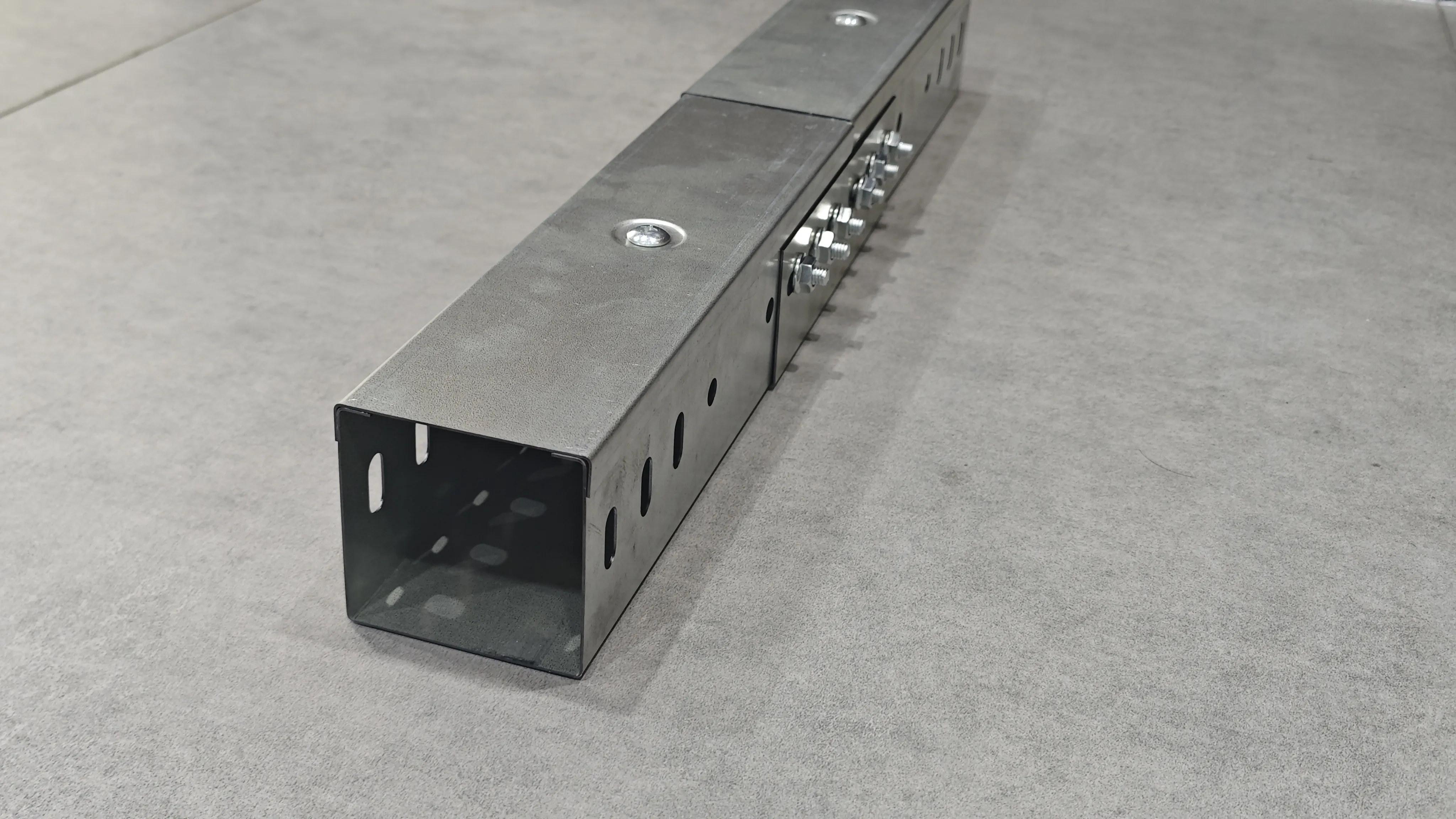

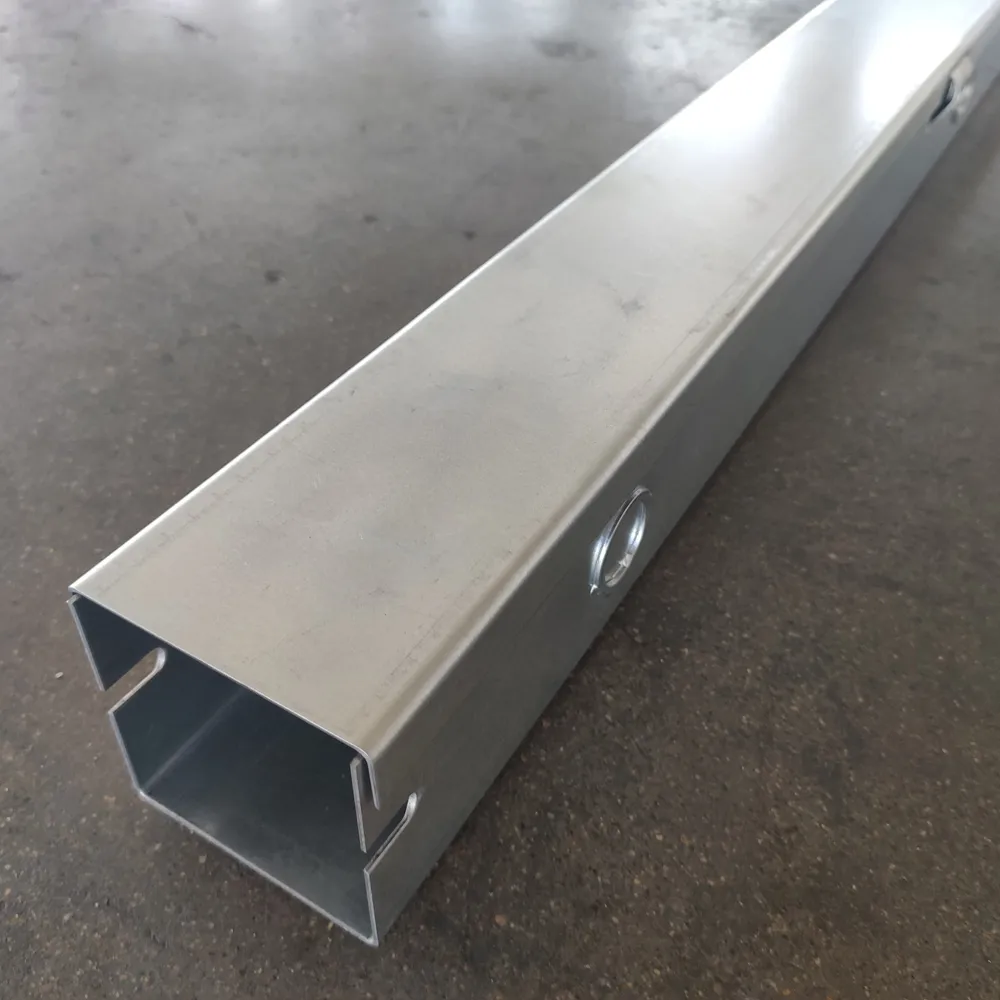

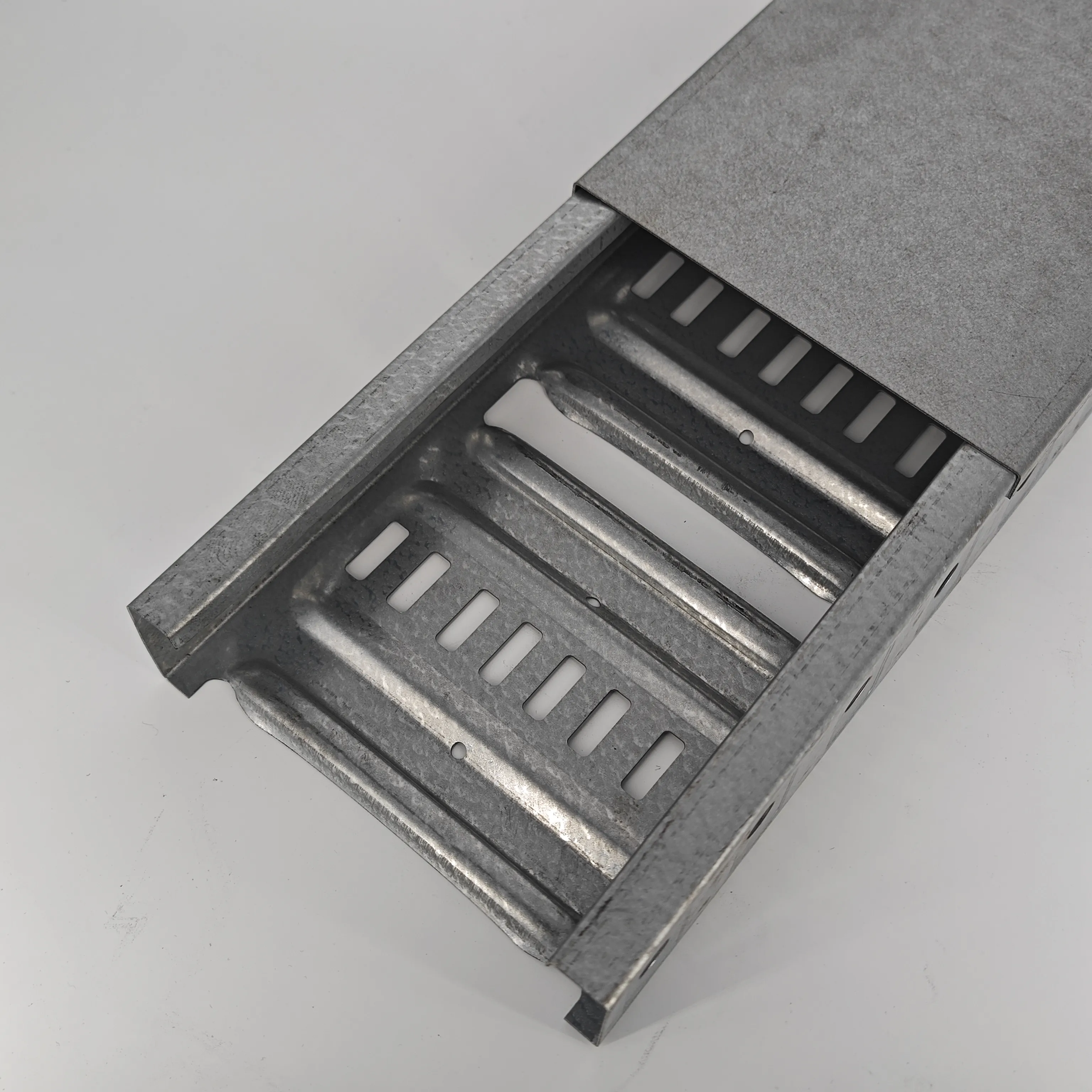

Cable Ladder Cable Trunking

Wire Mesh Cable Tray Wireway

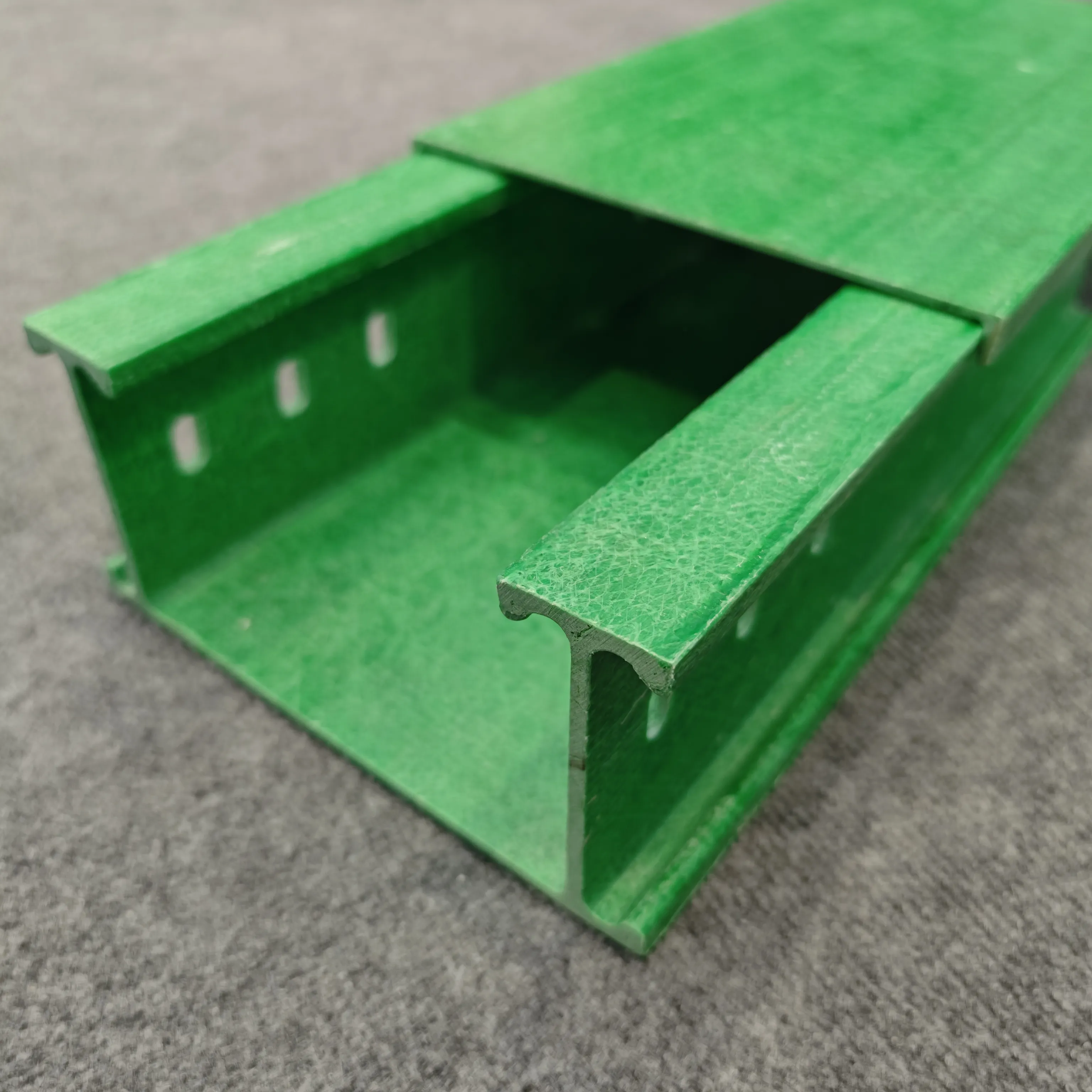

Strut Channel FRP GRP Cable Tray

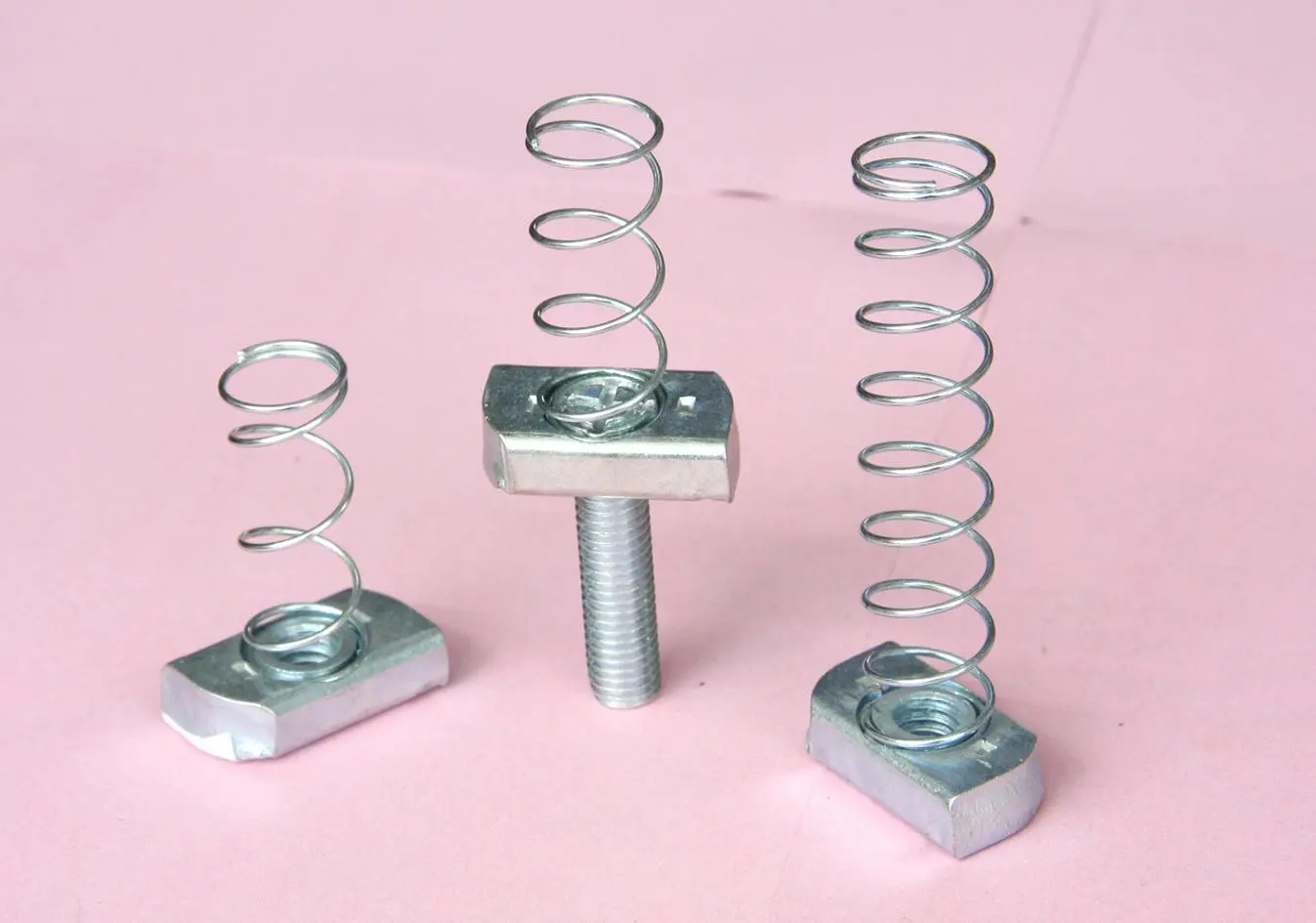

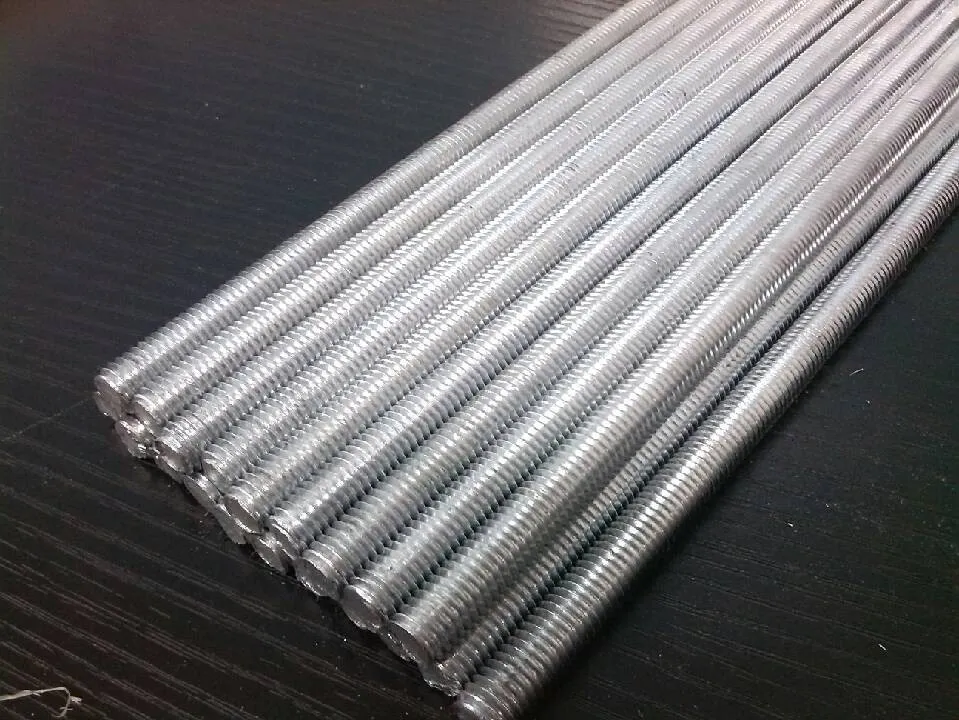

Threaded Rod Nut & Bolt

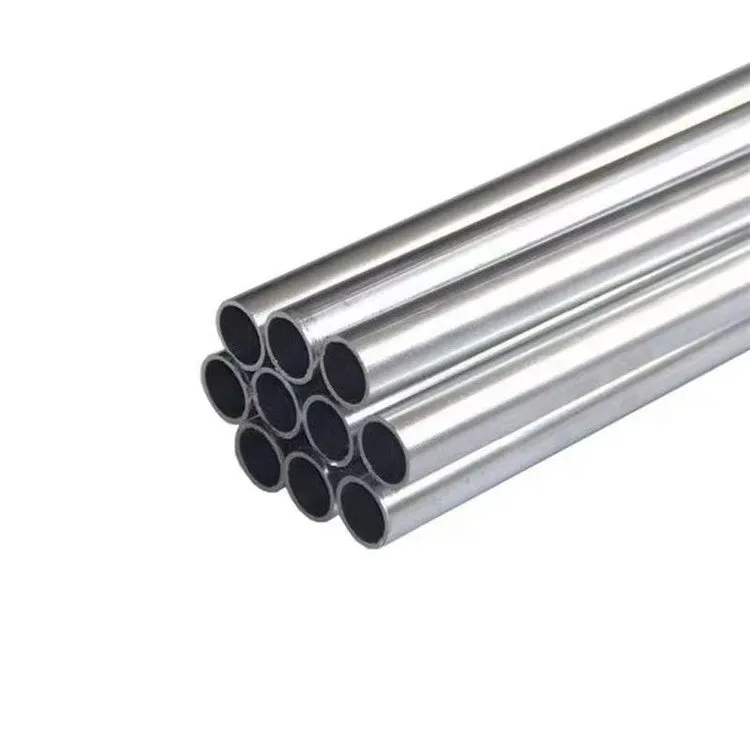

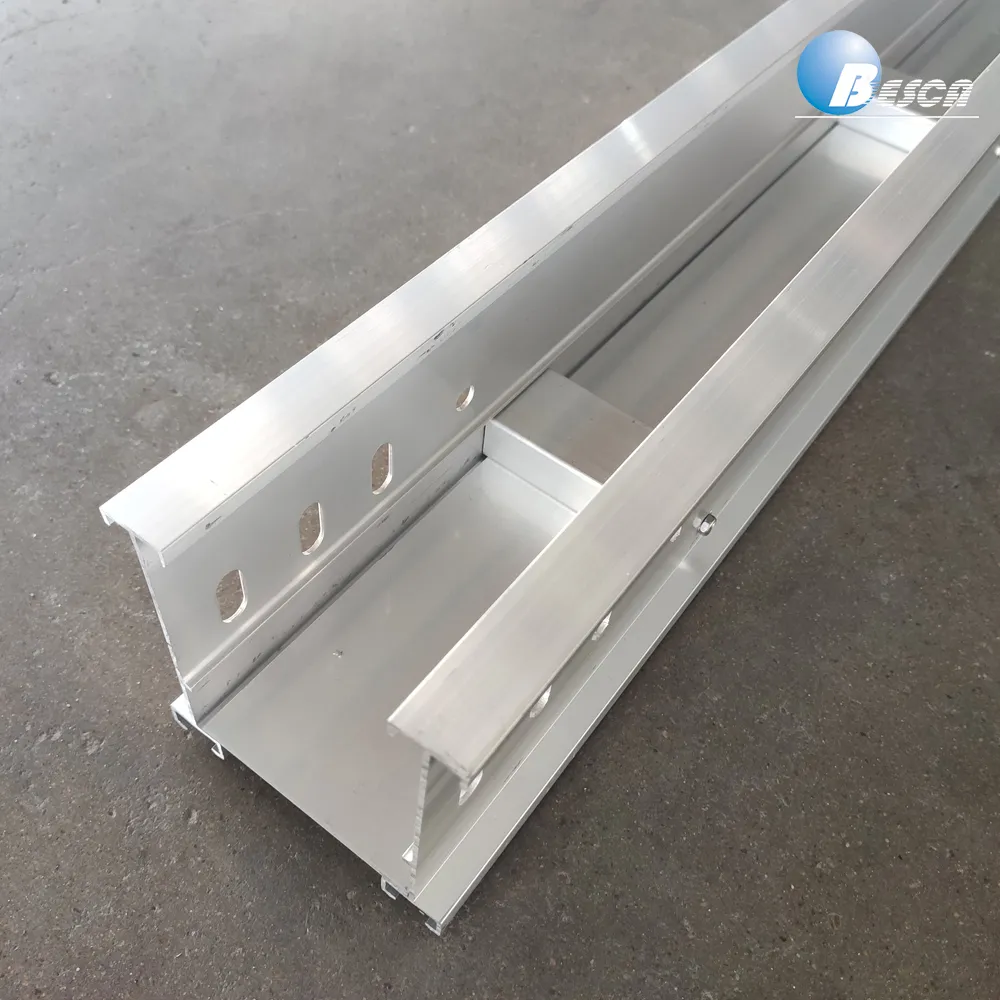

Conduit Aluminum Cable Tray

Certifications

We passed the ISO 9001 quality management system certification, UL Certificate (U.S.A.), and CE Certificate (E.U.).

Besca has achieved one of the “Best Sellers” in cable tray industry with renowned plant scale, product quality, and warmly service.

UL, CUL, NEMA VE1, CE, IEC61537, IEC61084, ISO9001, TUV, SGS

FAQ

1: Are you trading company or manufacturer ?
A: We are manufacturer, we have own factory in Jiangsu province, near Shanghai.

2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to purchase quantity.
3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4: What is your terms of payment ?
A: Payment<=US 1000 dollars, 100% in advance. Payment>=US 1000 dollars, 40% T/T in advance ,balance before shippment.

5.What is the trade term?

A: FOB, EXW，CIF, CFR (Shanghai Port or customized)

6.What is your products advantages: A:a.Reduce installation costs and time b.Easy for changing, adding and moving c.Bright surface means good material and quality d.Our electrical and network cabling equipment have the same quality as the international famous brand.

If you still have any question, please feel free to contact me.

English or Spanish are both available.

Material & Surface

Material & FinishDifferent material and surface finish

Aluminum to AS/NZS1866
Other Material & Finish available:
Pre-Galvanized / PG / GI – for indoor use to AS1397
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Stainless Steel SS304 / SS316
Powder Coated - for indoor use to JG/T3045
Fiberglass Reinforced Plastics / FRP /GRP
Fire Rated to AS3013:2005
Electrolytic Polishing – for Stainless Steel use
Mill / Mild /Plain Steel to ISO 4995

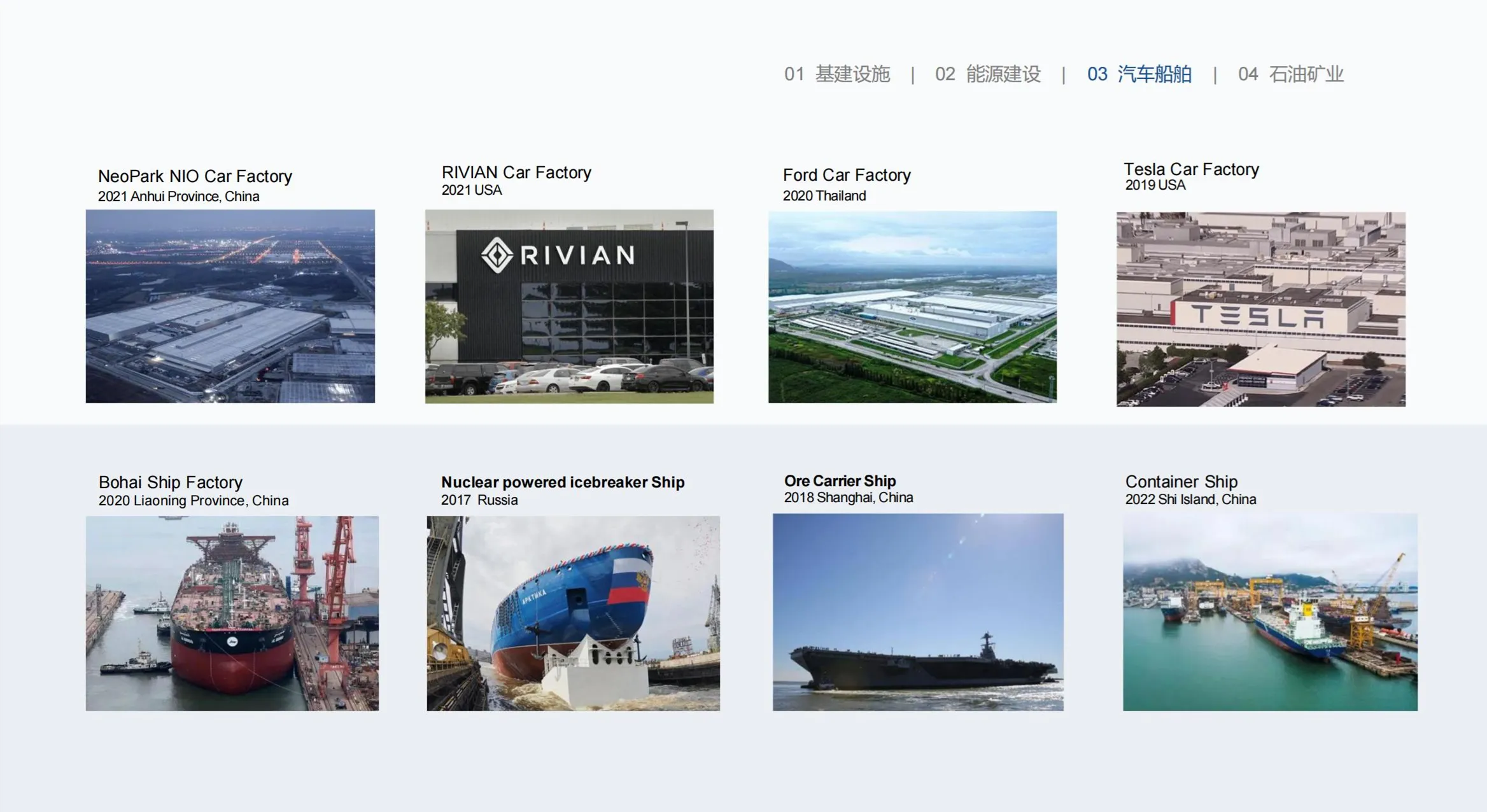

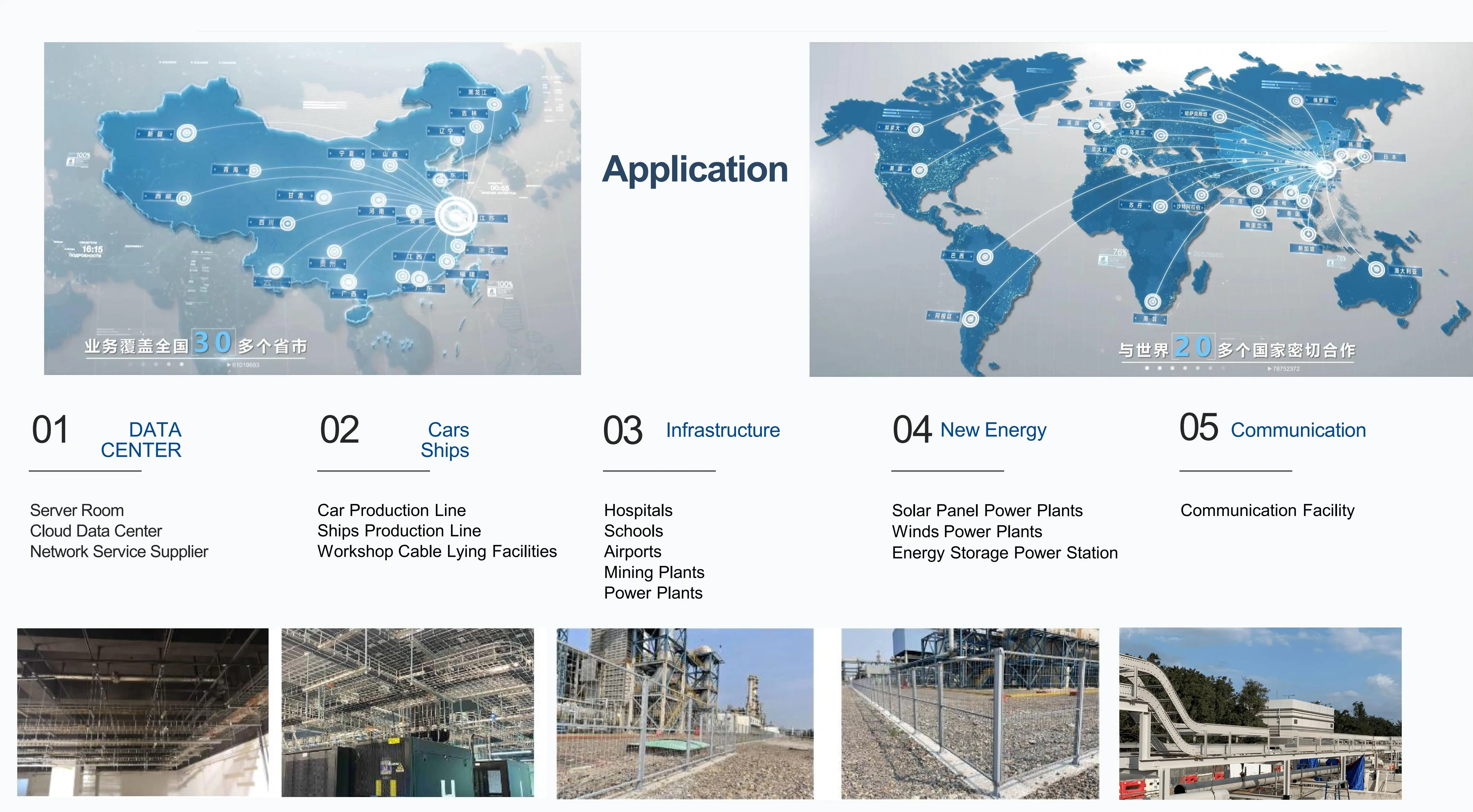

Application

BESCA CABLE TRAY SUPPORT SYSTEM HAS BEEN APPLIED IN LOTS OF AREA.

BELOW IS REFERENCE.
