Hoop Iron Punching Machine Roofing Hoop Iron Rotary Punching Machine ZT hoop iron punching machine+5.5KW

 Hoop iron punching machine roofing hoop iron rotary punching machine

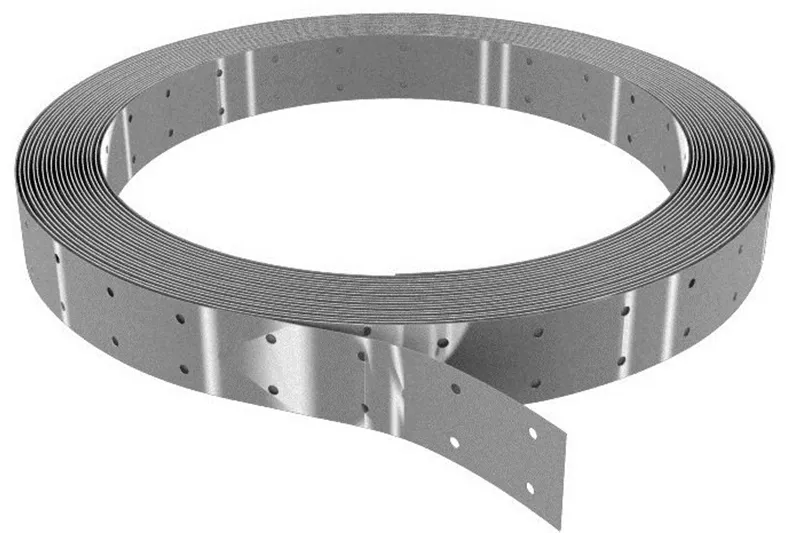

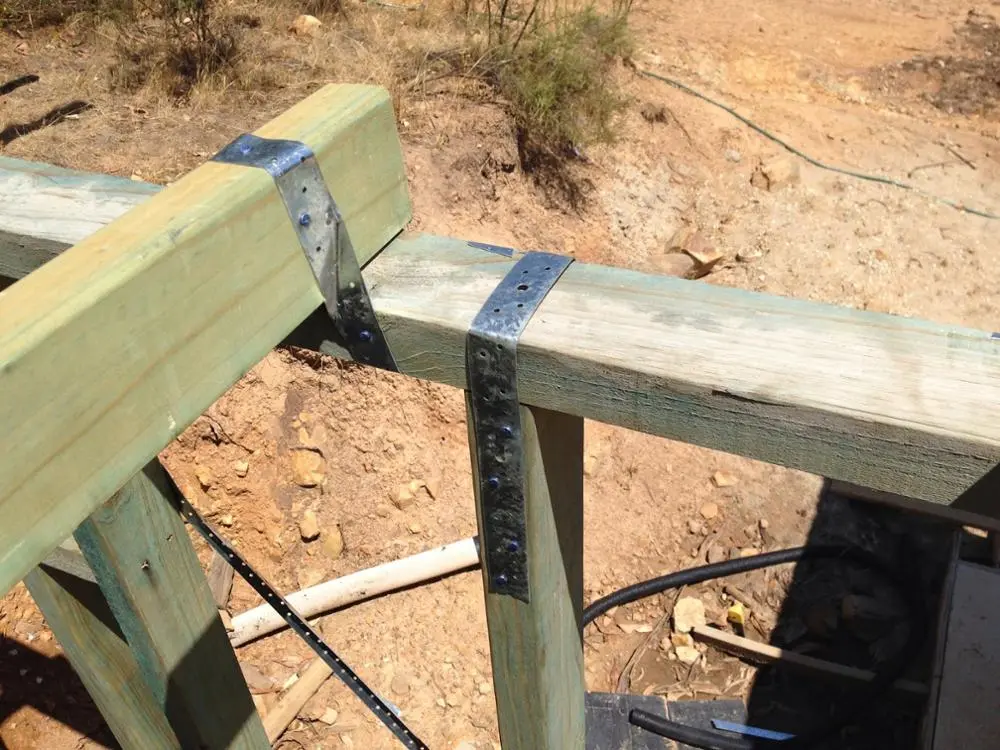

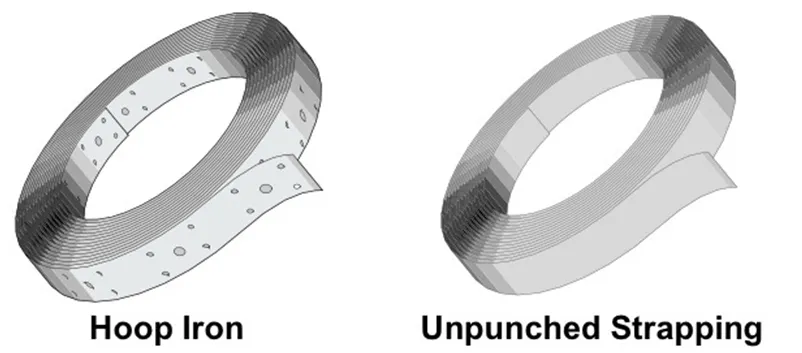

The  hoop iron punching machine roofing hoop iron rotary punching machine is used to make the hoop iron which is used to hold the roofing or the purlines in the wood or the steel structural.

Below are some pictures for your reference:



Our factory is professional make the rotary punching machine system. General press punching is too slow for this project. For the hoop rion making, the rotary punching system is the best choice. The speed is as high as 45 meters/min. So it can achieve the big capacity for the hoop irons.

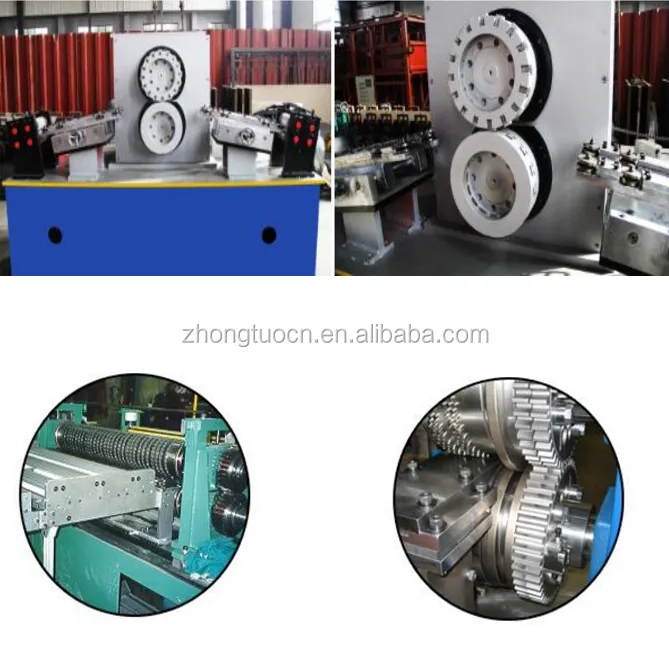

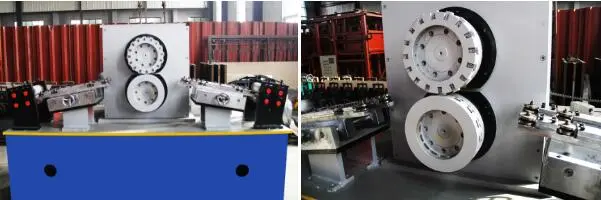

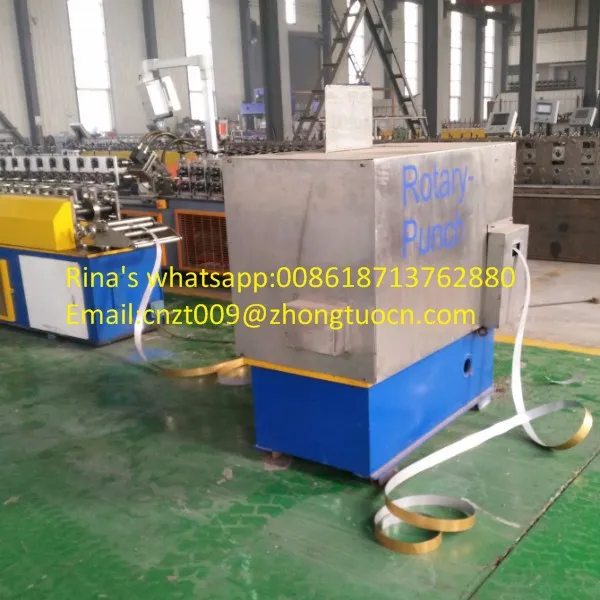

Below are some pictures for the machine running:



The machine need two mold to produce different size. And we also improve the machine with no stop cutting,the totally speed will be 45m/min.

Also the High speed Rotary punching L corner bead  wall angle L trim roll forming machine main machine body is with a servo power, so that to make tsure the speed of the machin running.



This rotary unit is at the entry end of a combination "accessory" (corner bead/j-trim/v-trim) roll forming line with a rotary punching unit and a servo-driven rotary shear to pre-cut the strip before it enters the roll forming operation. This is a quick-change line with rolls pre-mounted to run up to four (4) accessory shapes for metal building trim. The rotary unit is fixed with the roll former adjusting front to back to run each profile.

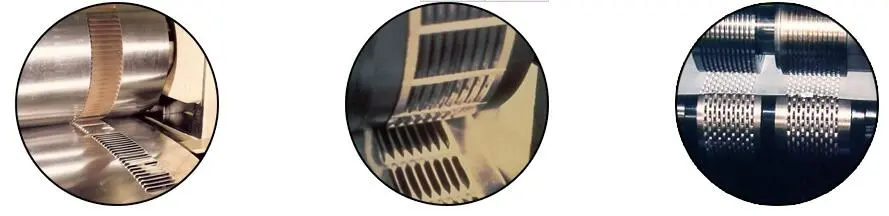

Rotary units can punch "cross louvers" which are louvers that are 90 degrees to the material flow (shown here), and also standard louver patterns for eve vents and ridge vents which are shown below.

Shown here is high speed rotary unit producing a standard louvering pattern used to produce eve vents, ridge vents and a multitude of other parts.
For normal-style soffits, the venting openings are usually "lanced loops" done in a stand-alone powered rotary unit or basic pull-through unit which is either stand-alone or takes the place of a forming station in the roll former. These options do not limit the roll former's speed at all.

"Passive Solar" Panels: This high speed rotary unit shear-forms "loops" in 60″ wide steel building siding panels. This unit can take the place of a slow press/feed operation and can run at speeds up to 60 (+) fpm! This design is much less risky, much faster with less maintenance than punching dense patterns of small holes to achieve the same air flow.



This is only one example of a corner bead rotary punching pattern. There are a great variety of patterns for corner bead, and they can all be run in rotary units identical to this one. This unit can run at speeds of up to 60 fpm. This can be a stand-alone powered unit or stand-alone and simply pulled through by a roll former.













Below is some specifications of the main roll forming section:

1  machineForming steps9 stations

2  Shaft diameter40mm

3  Design typeMemorial arch frame type

4  roller materialGCr12MoV

5  shaft material45# steel

6  Work speed10-25m/min

7  TransportBy gear

8  Power of main machine3 kw

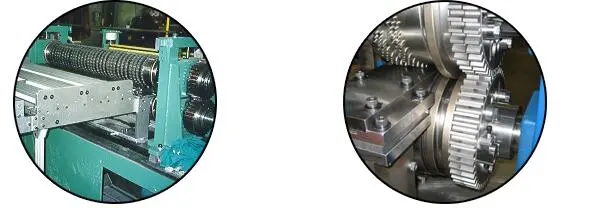

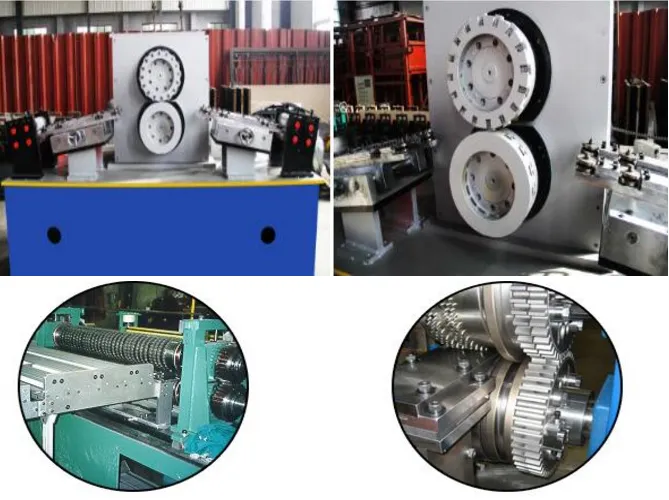

Below are some machine detail picture for you:



The hoop iron production line is formed by several parts , including below parts: the decoiler, the servo feeding, the rotary punching system, the levelling system, and the recoiling system.

If you want to know more about the more about the rotary puching machine for making the iron hoop.

i will send more infromation to your Email, the pictures and the videos and our designing solutions.



And now there is a rotary pucching machine for the hoop iron is beening production, and we will soon finished.

welcome to our factory to see the machine running:

Our city is in Cangzhou City, near Beijing, the capital city in China.





 Any questions about the machine, please kindly feel free contact me by below information:
