Highway Guardrail Rolling Forming Machine CNZT-LZ0917+80mm



 Highway guardrail rolling forming machine

Highway anti-collision guardrail is the main form of semi-rigid guardrail. It is a continuous structure with corrugated steel guardrail panels spliced with each other and supported by the main column. It uses the deformation of soil foundations, columns, and beams to absorb collision energy, and forces out-of-control vehicles to change directions and return to normal driving directions, to prevent vehicles from rushing out of the road, to protect vehicles and passengers, and reduce losses caused by accidents. The corrugated beam guardrail is both steel and flexible, has a strong ability to absorb collision energy, has a good line of sight guidance function, can be coordinated with the road line, and has a beautiful appearance. It can be used on small radius bends, and the damaged place is easy to replace. The combined wave beam guardrail can be used on the narrow central divider.

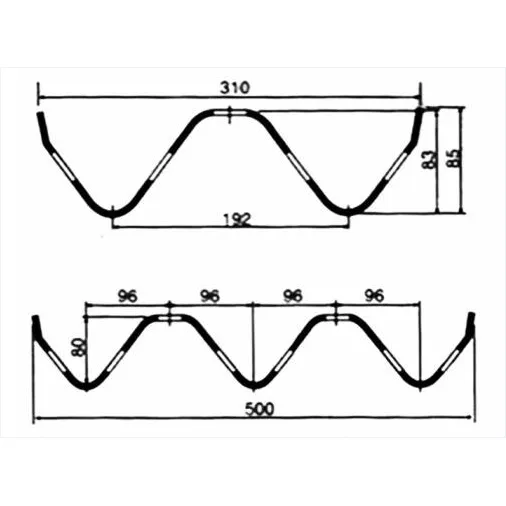

For the Highway guardrail is has three way and two waves, here are some drawing profiles for your reference:

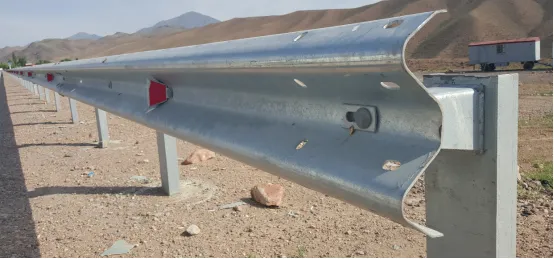

Highway guardrail finished product pictures for your reference:



Highway guardrail rolling forming machine design we have the following options for your reference:

Option A	Economic design using the middle plate frame and chain transmission
Option B	Strong version using gearbox transmission and molding frame

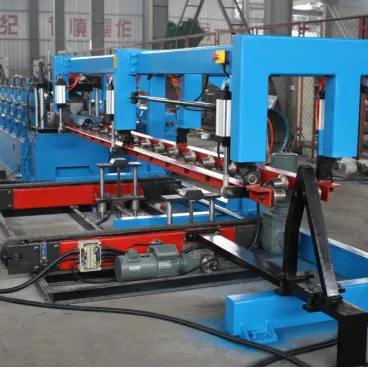

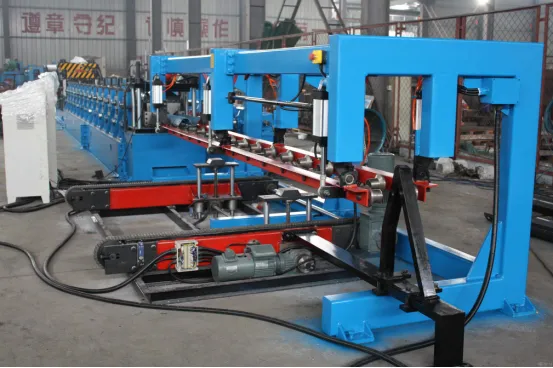

Option C	High speed using the flying tracking shearing design

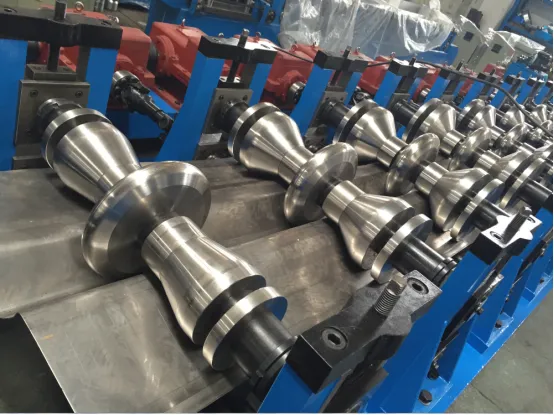

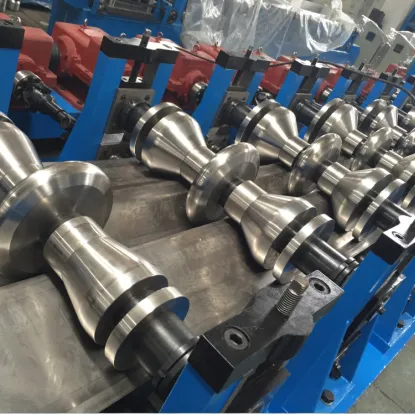

Take the highest speed Highway guardrail rolling forming machine for example:

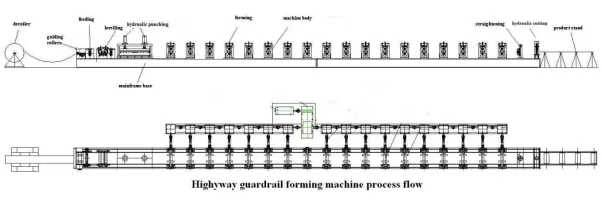

Machine working flow:



Highway guardrail rolling forming machine Parameters for your reference:







Highway guardrail rolling forming machine, we also have many other types design, we will share one by one on our website. Please pay more attention to us.







Zhongtuo cold rolling forming  machines we give the following before and after sale service:

1. Once we receive your drawing, we will give you some feedback according to our experience.If there is some mistake in the drawing, we can point it out at the first time.

2. In the production, you can watch the whole production by camera if you like.

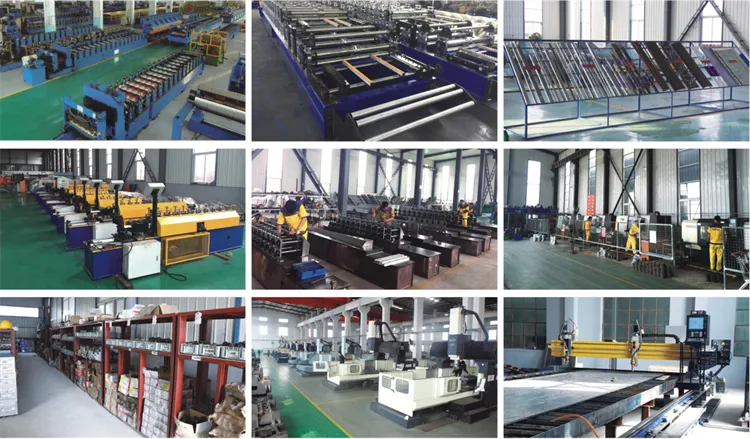

3. we give two year totally free after sale service and whole life tech support. For indian customer we give whole life free tech and engineering and free installation as we have warehouse and engineer there. Please know a little more about our factory.





 For the glazed tile making machine, we also make other type rolling forming machine:

1. Metal roofing sheet machine.

2. Round wave metal roofing sheet machine.

3. IBR metal roofing sheet machine.

4. Other sheet glazed tile making machine.

6. Hydraulic decoiler.

7. Hydraulic bending and shearing machine.

8. Hydraulic crimping machine.
