High-quality Highway Sound Barrier Panel Rolling Forming Machine 12 m/min+ZTRFM+45KW

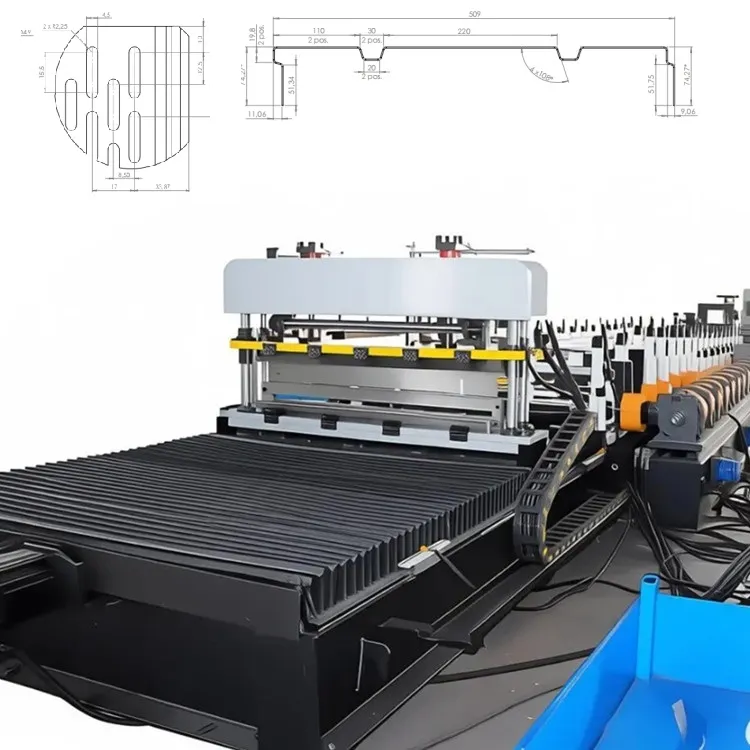

Name: High-quality Highway Sound Barrier Panel Rolling Forming Machine 12 m/min+ZTRFM+45KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT115863864

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

12 m/min

Model Number:

ZTRFM

Power(W):

45KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Type
Panel Forming Machine
Tile Type
Steel
Use
Highway
Voltage
380V (Also can satisfy Customer's require)
Rolling Thinckness
0.8 to 1.0
Feeding Width
Other

High-quality Highway Sound Barrier Panel rolling forming machine

Product Description

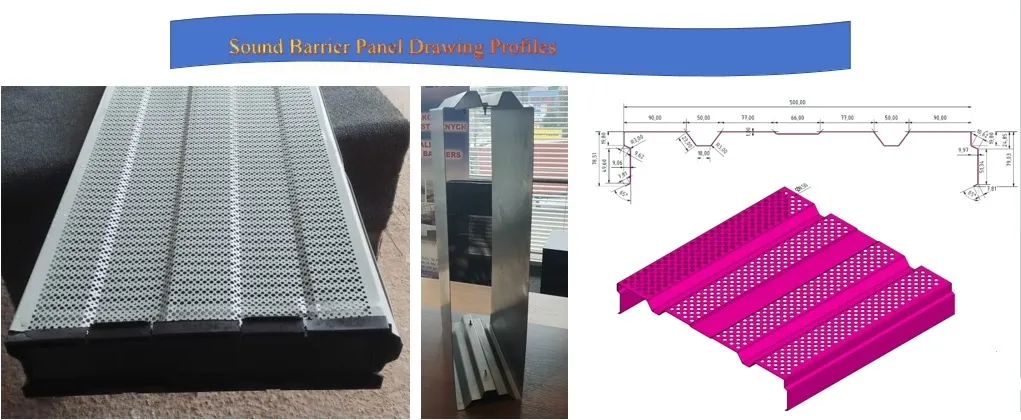

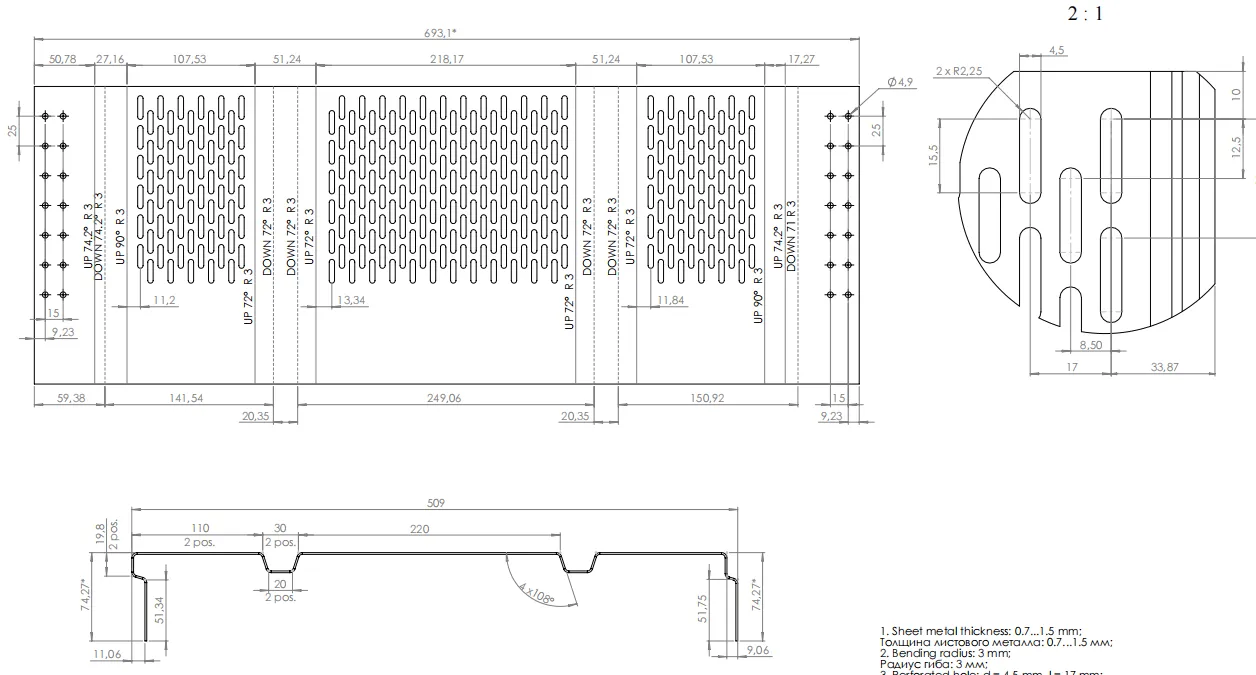

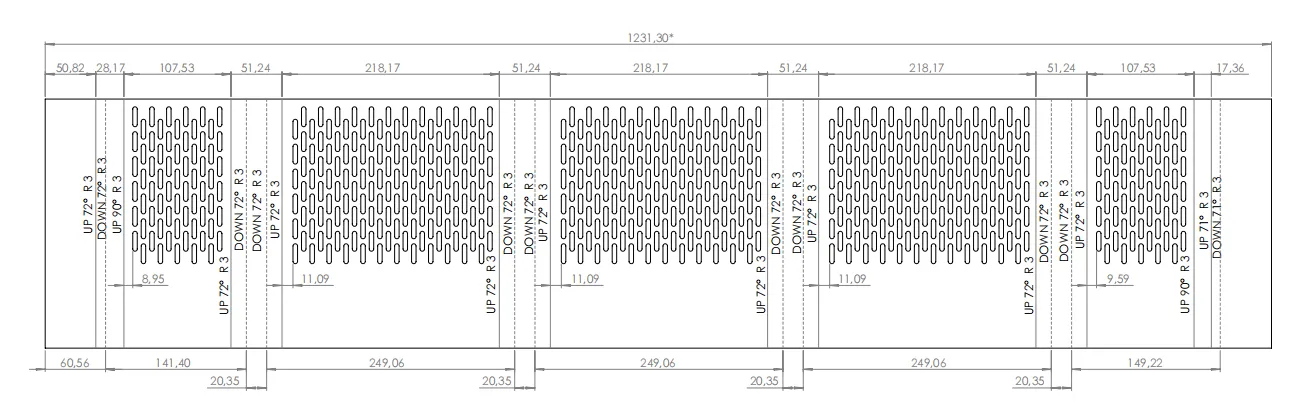

High-quality Highway Sound Barrier Panel rolling forming machine is designed to make the sound proof panel in batch fully automatically. Acoustic Sound Barrier Sheet normally will be embedded with polyamide threads has stronger impact resistance, which not only avoids debris falling backwards and secondary injury in the impact event, but also stops the little birds from knocking down the entirely transparent sound barrier and saves their lives. It is widely used in high-way noise barriers because it has great features. Sound proof panels for highway noise barriers are the best application for this product. In the market, there are many types, here we list some popular drawing profiles for your reference:

High-quality Highway Sound Barrier Panel rolling forming machine design:

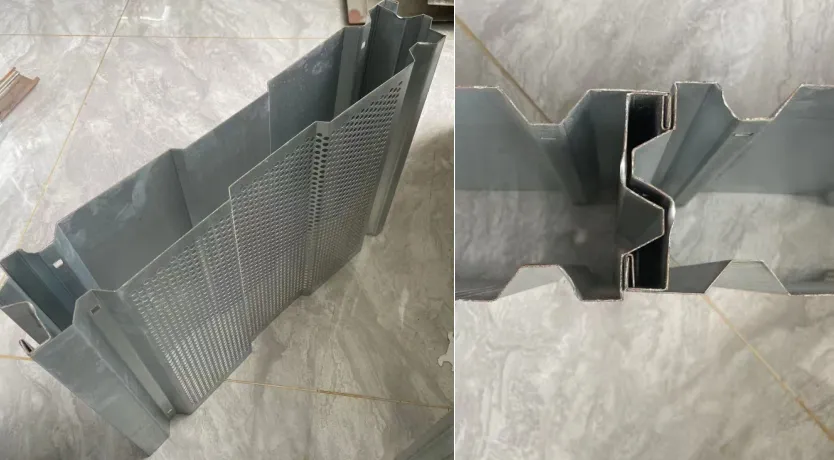

This is the sound barrier panel machine

To make this profile, first you need do the punching and then do the rolling forming machine.

But you can either choose to do the punching and rolling forming at the same time.

For the Sound Proof Panels Making Machine or sound barrier panel making machine, actually it is composed by the two elements. First line: it is the punching production line. Most of the sound barrier panel is designed with one side with punching and anther size without and the sound could proofed outside. Second Line: Sound Proof Panels rolling forming machine. The rolling forming machine normally will make two types: one side is without punching for bottom and another side is for cover. If those two sides connected by nail and then no need. Or else maybe you need another cover rolling forming machine.

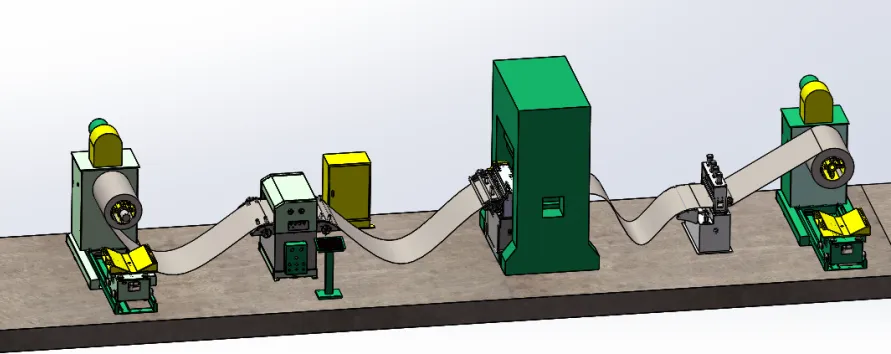

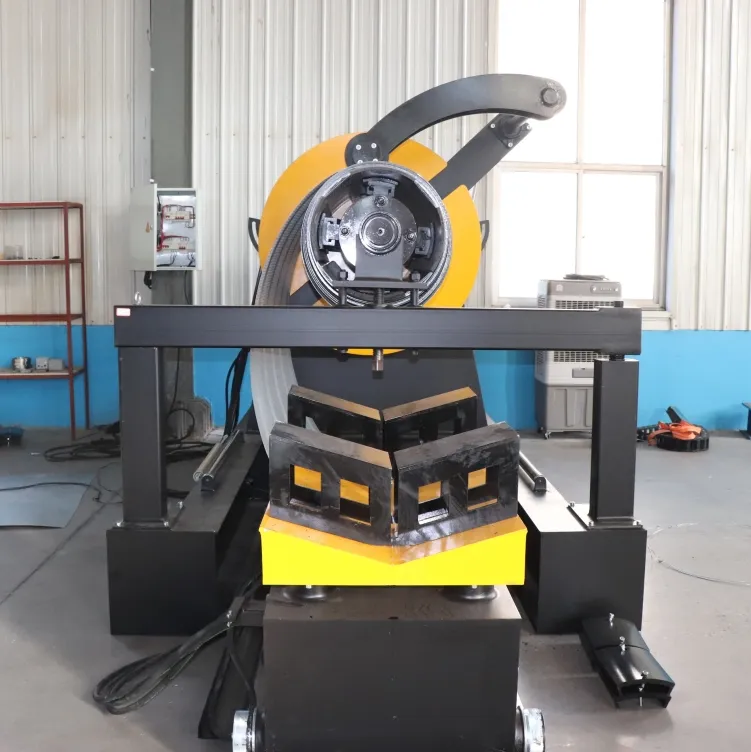

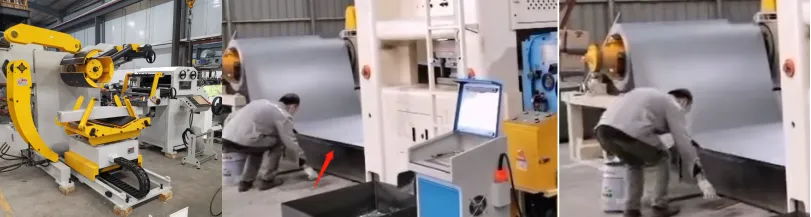

Step 1: Punching Production Line: Hydraulic decoiler with NC coil feeder leveling --> Punching Machine- recoiler with damping system

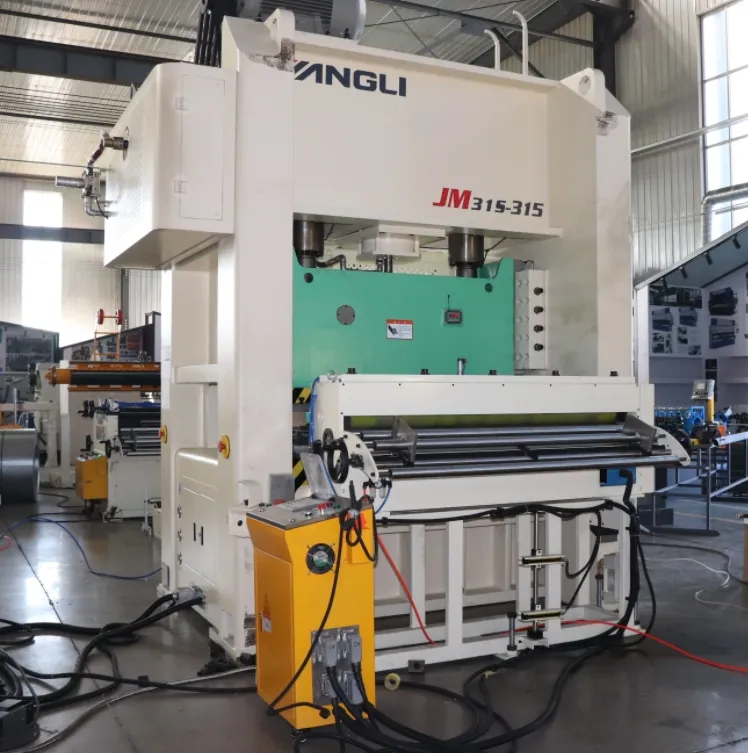

Options of punching line: for the decoiler and recoiler better you use hydraulic and then it can feed the coil more accurately. But the for the punching machine, you can choose normal one or the world famous brand. We can either to choose high speed or normal speed. All designed will be made according to customer requirements. For the punching molds, it is also super important: Stamped steel: X12F (Russia) or similar to Germany (DC53) Punch: Special grinding punch (as shown below) with push rod, located at different heights to reduce pressure. We also design with cooling system. Question: about the speed and punching rows: As to how many rows to punch and how much speed it can reach, depends on the coil width and thickness. Our engineer will count according to your options.

Products Display

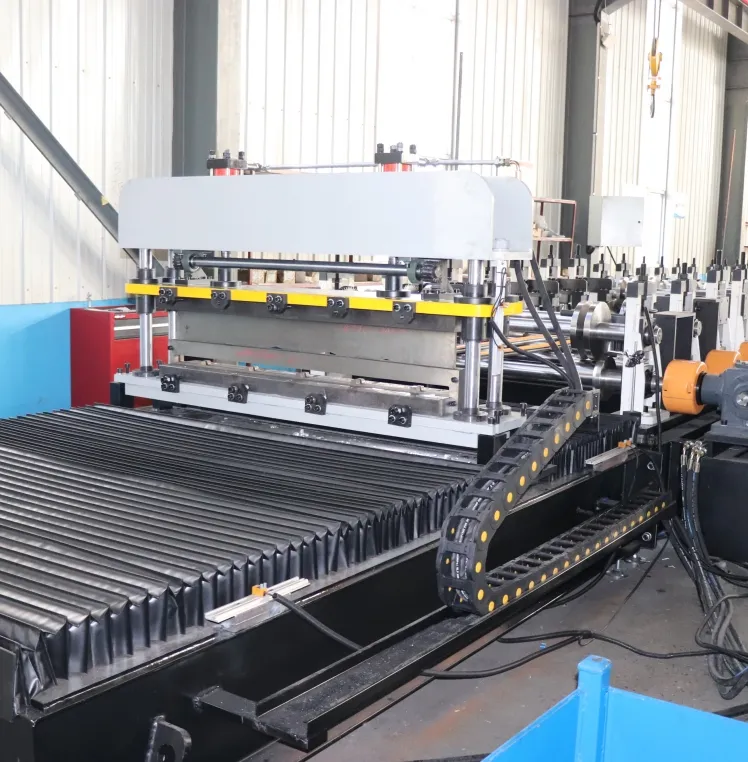

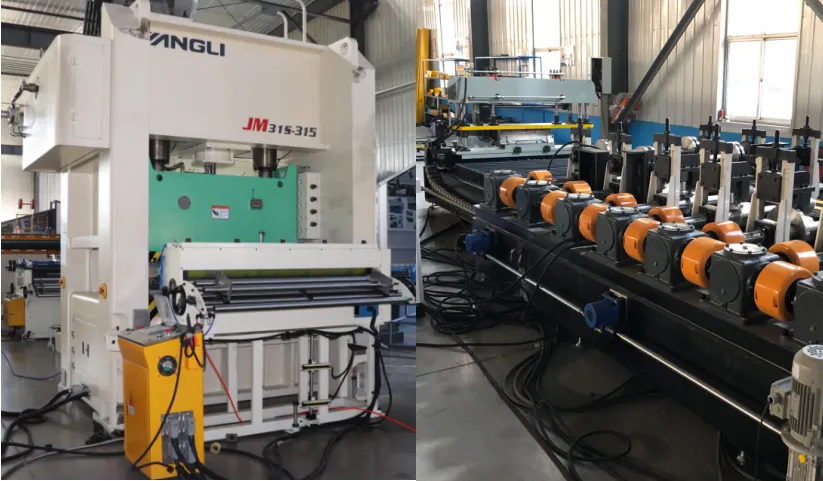

High way Sound Proof Panels Making Machine
Formed Material	Alumum		Thickness:0.8 to 1.2mm (standard)
2.profile	size		(it can be adjusted automatically )
		Profile		changed by manual or Automatically
3.Voltage	380V 50Hz 3Phase		As your requirement
4.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.CAD drawing input
5.Forming Speed	15-20m/min		The speed depends on the shape of the tile and the thickness of the material.

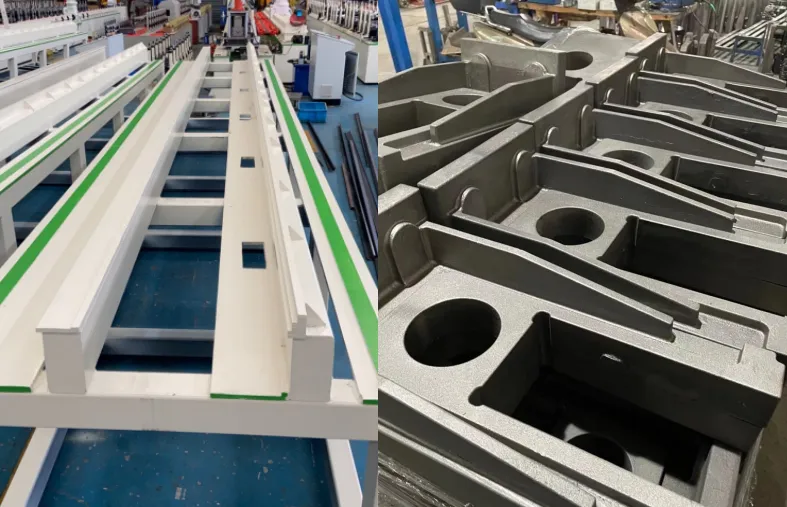

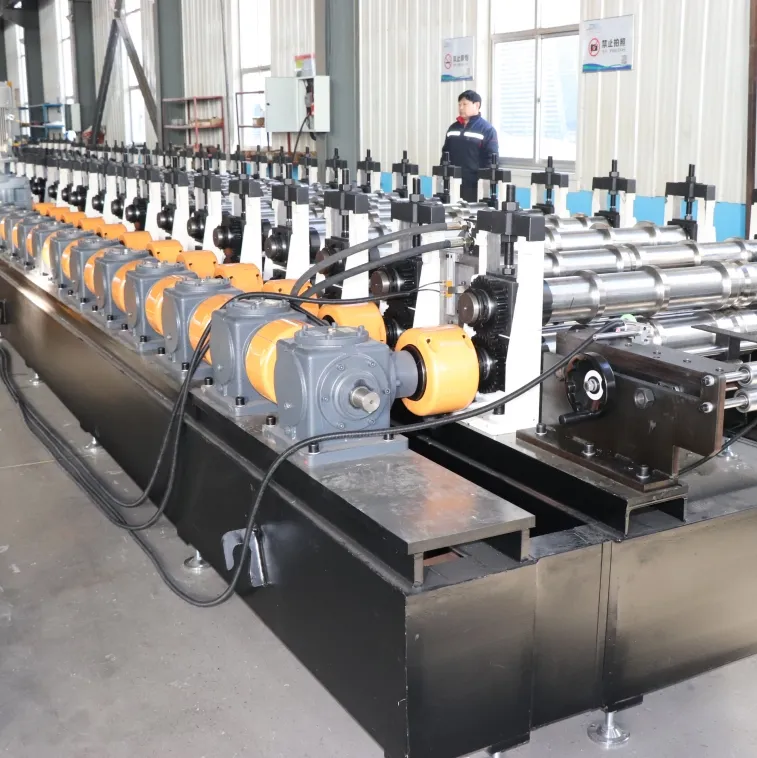

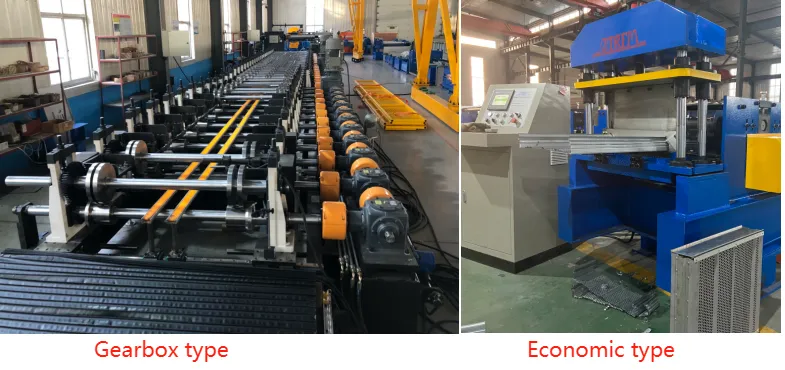

As rolling forming machine, we can fully design based on the customer requirements and budget. For example if you like super high quality, we can use the gearbox type with molding frame. But if you want to design with more economic type, we can use middle plate with chain transmission. Here are some pictures you can compare:

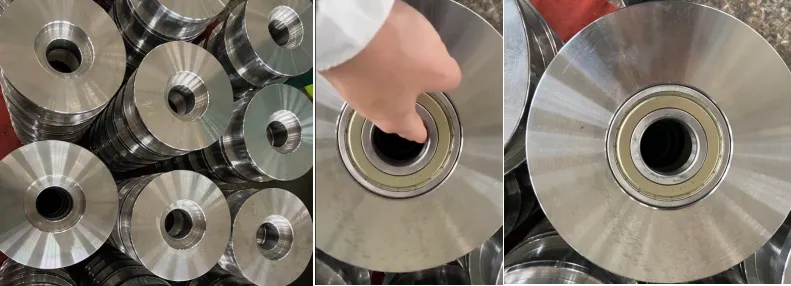

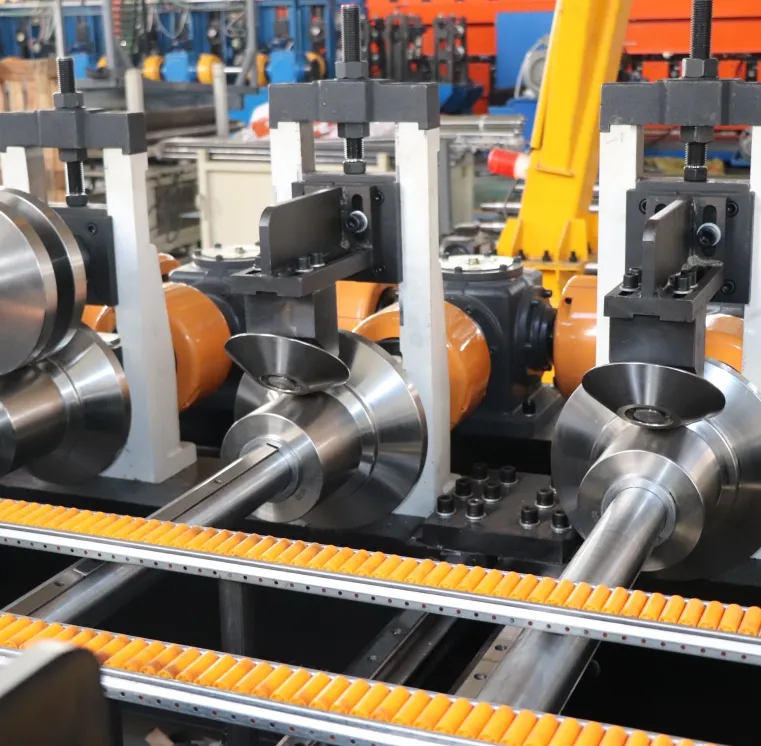

Advantage of Zhongtuo sound barrier panel making machine : 1.For all of our rollers, spacers and shafts, we all mark numbers on it, it’s very convenient for you to maintenance the machine in the future. There is ball bearings inside the rollers, to make all the rollers run at same speed when machine is run. 3. Because the rollers inside with ball bearings, our rollers is bigger than others, so work speed is faster. 4. With the bearing inside and then it can enhance the machine working speed. Meanwhile it will not damage the surface of the coil.

5.We make grooves to inset two nuts and cushion on the shaft. To avoid shafts loosing when machine works. Due to this design, shafts will be fixed more and more firm when it is working.
