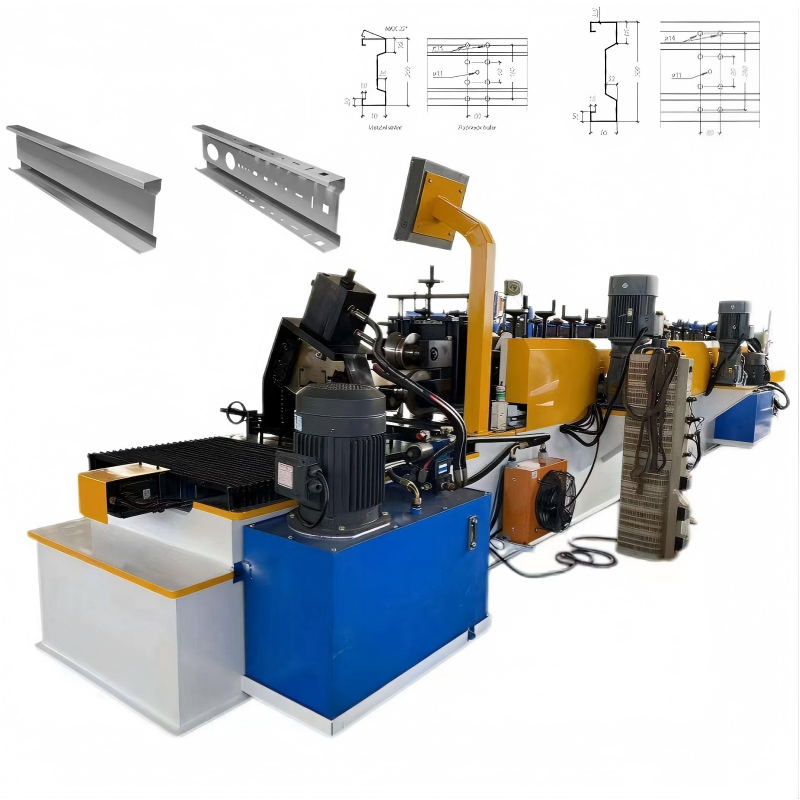

High-Strength M Purlin Roll Forming Machine for Solar Projects High Percision

M Purlin Roll Forming Machine: High-Strength M-Section Steel Profile Production for Solar & Industrial Projects

Description:The M purlin roll forming machine​ is a specialized cold roll forming line engineered to produce M-shaped steel profiles — also known as M-section purlins, M-channel steel, omega profiles with deep webs, or hat-shaped structural channels depending on regional terminology. Unlike standard C or Z purlins, the M section features a distinctive double-flange or multi-ribbed cross-section that delivers superior bending resistance, torsion stiffness and load distribution in demanding structural applications. This machine serves steel fabricators, solar mounting system manufacturers, industrial racking producers and metal building contractors who require a profile that outperforms conventional C and Z sections in specific engineering scenarios.

In export markets, the equipment is searched under various names: M section roll forming machine, M channel forming machine, M shape purlin machine, M profile steel roll former, hat section forming machine, omega purlin machine​ (for lighter gauges), and M type steel channel production line. Understanding these search terms helps international buyers locate the right equipment for their production needs.

Why the M Purlin Profile Is Gaining Global Demand

The M section is not a new profile, but its adoption has accelerated in recent years due to three major market drivers: solar energy expansion, high-bay warehouse construction, and the push for lighter yet stronger steel framing systems.

In solar ground-mount and carport structures, M profiles serve as primary rails and support beams. The double-flange geometry provides excellent resistance to wind uplift and snow load — critical for large-scale PV installations in harsh climates. The central web creates a natural channel for drainage and cable management, while the dual flanges offer multiple connection points for module clamps and bracing.

In industrial steel buildings, M purlins are specified for long-span roofs where C or Z sections would require heavier gauge or closer spacing. The M section's closed-rib design distributes load more evenly across the roof plane, reducing deflection and improving overall structural efficiency.

For racking and shelving systems, heavy-duty M channels provide the vertical and horizontal frame members that support high-load storage in warehouses and distribution centers.

Key production advantages of investing in an M purlin machine include:

Superior structural performance​ – the M section's geometry delivers higher section modulus and torsional rigidity than open C or Z profiles of equivalent weight.

Material efficiency​ – engineers can specify thinner gauge M purlins to achieve the same load capacity as heavier C/Z sections, reducing steel consumption and shipping cost.

Multi-industry application​ – one profile serves solar, construction, racking and general fabrication markets.

Growing specification rate​ – more engineering firms are specifying M sections as structural software libraries expand to include the profile.

Less competition, higher margin​ – compared to commoditized C/Z purlins, M profile production has fewer suppliers in most regions, supporting better pricing for finished products.

How the M Purlin Roll Forming Machine Works

The production sequence begins with a steel coil positioned on the decoiler. The strip feeds through the entry guide system, which centers the material before it enters the leveling unit. The leveler removes coil memory, camber and crossbow to ensure the strip tracks straight through the forming stations.

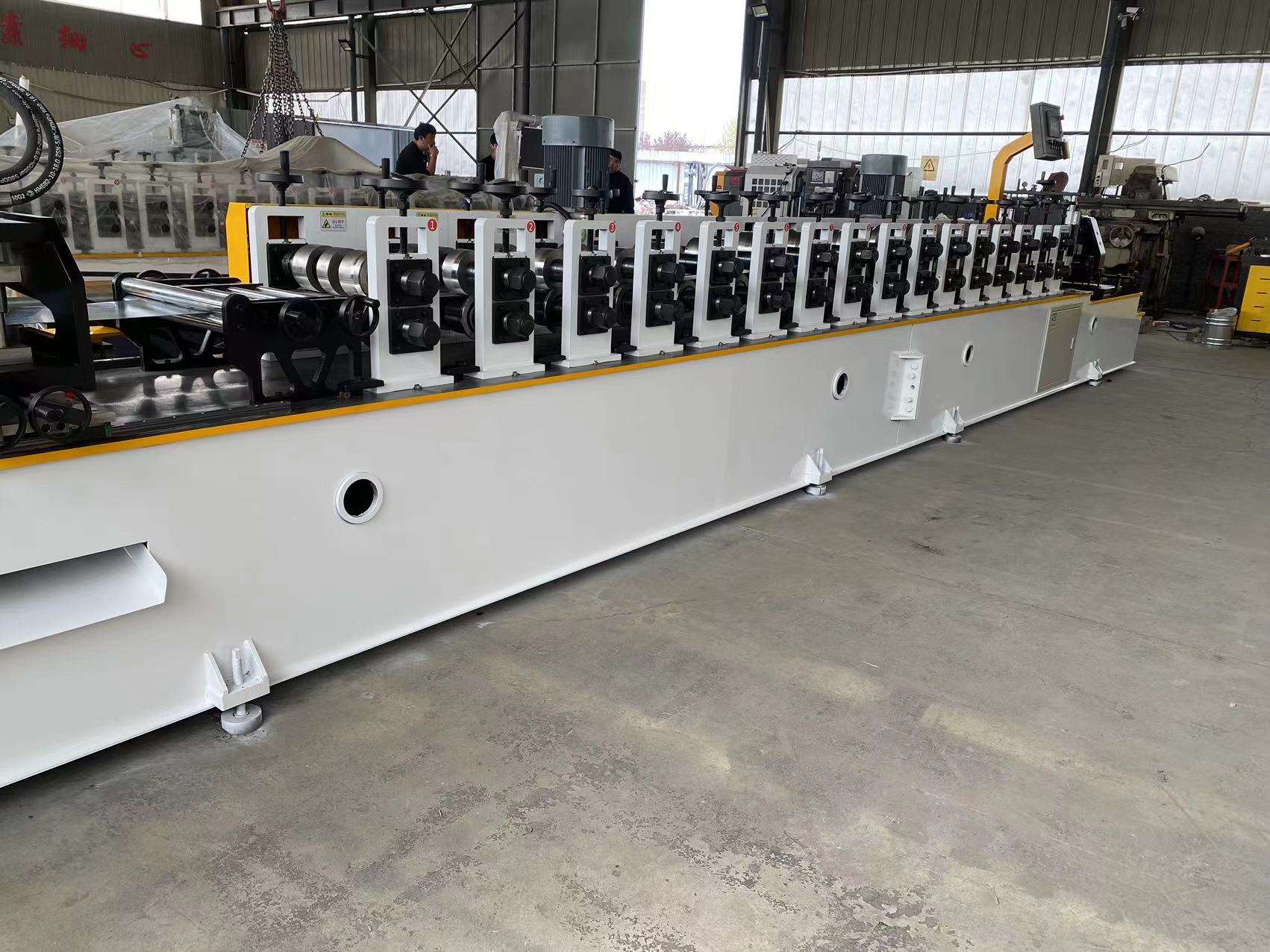

The roll forming stage is where the M profile takes shape. Unlike C or Z sections that form through relatively straightforward progressive bending, the M profile requires a more complex pass design. The strip first forms into a shallow U or channel shape, then the side ribs are raised, and finally the dual flanges are folded and calibrated. Some M profile designs include intermediate embossing or ribbing stations within the forming sequence to add stiffness.

The number of forming stations is typically higher than for C purlins of similar width because the M geometry demands more gradual bending to prevent material thinning at the rib corners. Station count commonly ranges from 18 to 26, depending on profile depth, material thickness and whether intermediate ribs or embossing are required.

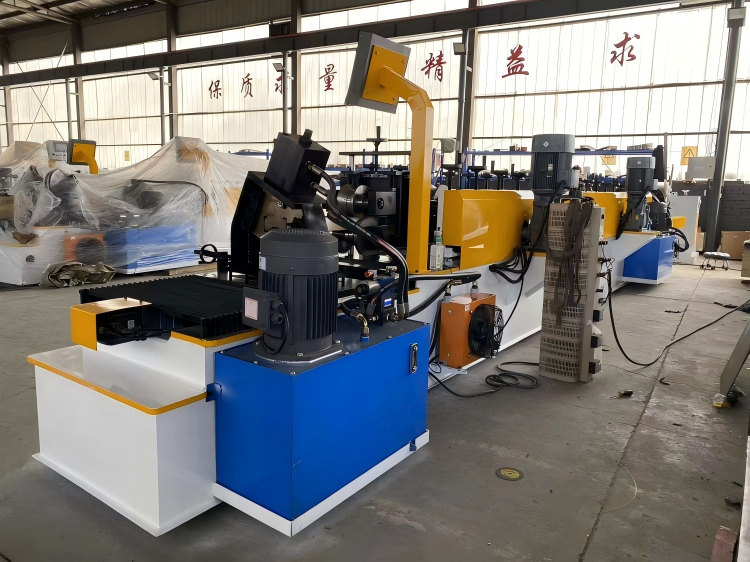

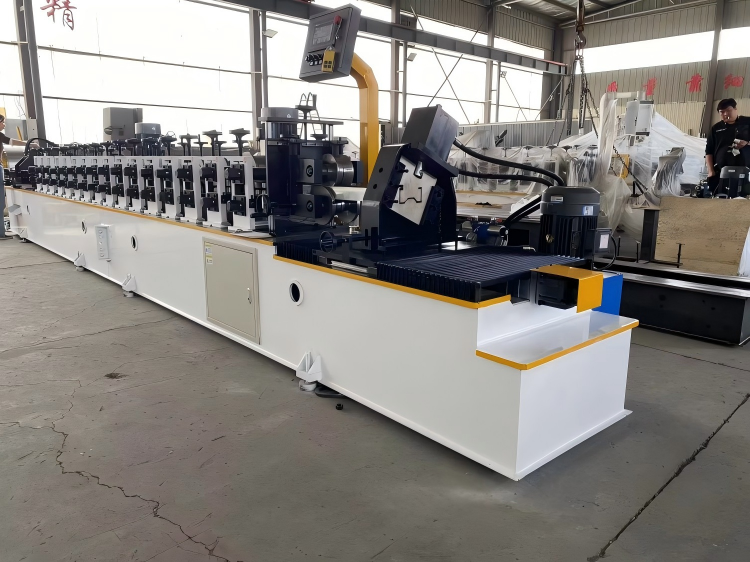

After forming, the profile reaches the punching and cutting section. Punching stations create bolt holes, connection slots, drainage holes or mounting holes as specified by the customer's engineering drawings. The cutting unit shears the profile to length. Finished M purlins discharge to the run-out table or automatic stacker.

Process flow: decoiler → strip guiding → precision leveling → servo feeding → multi-stage roll forming → embossing/ribbing (optional) → hydraulic/servo punching → flying or stop cutting → discharge → stacking.



Machine Configuration and Engineering Standards

The M purlin roll forming machine is built to heavy industrial standards. The main frame uses thick-plate welded steel construction with stress-relief treatment. Because M profile tooling exerts higher lateral forces than simple C or Z forming, frame rigidity is critical to maintaining profile accuracy over long production runs.

Rollers are manufactured from high-grade alloy steel such as GCr15, SUJ2 or 45# steel with forged blank preparation. Each roller undergoes CNC turning, heat treatment to 58–62 HRC, and hard chrome plating. The chrome layer — typically 0.05–0.08 mm — protects against wear and prevents zinc or paint coating damage on pre-finished strips.

Shafts are solid forged alloy steel, quenched and tempered, precision-ground to tight tolerance. They run in tapered roller bearings housed in cast iron or heavy steel plate stands. The bearing selection is oversized relative to calculated load to extend service life under continuous operation.

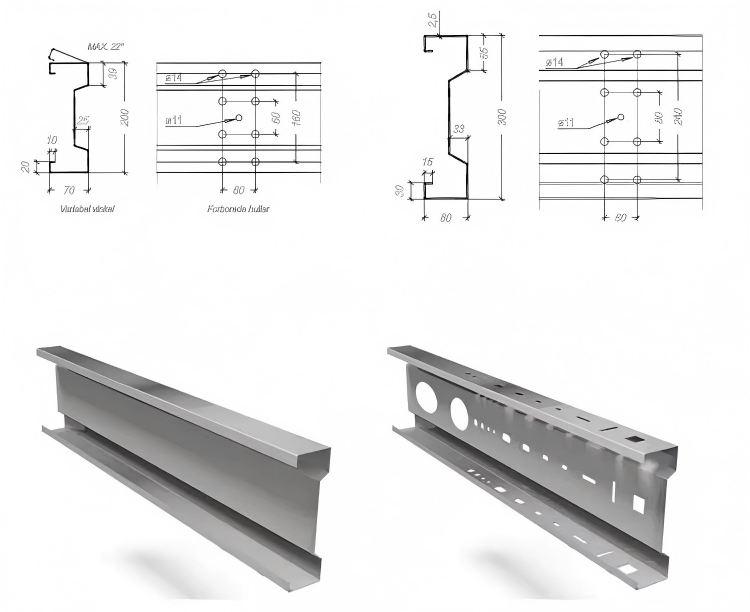

The punching system deserves special attention. M profiles often require asymmetric hole patterns — web holes on one side, flange holes on the other, or staggered patterns along the double ribs. The punch unit uses guided die sets with hardened punch and die inserts. Servo positioning ensures hole-to-hole pitch accuracy within ±0.5 mm across production lengths up to 12 meters or more.

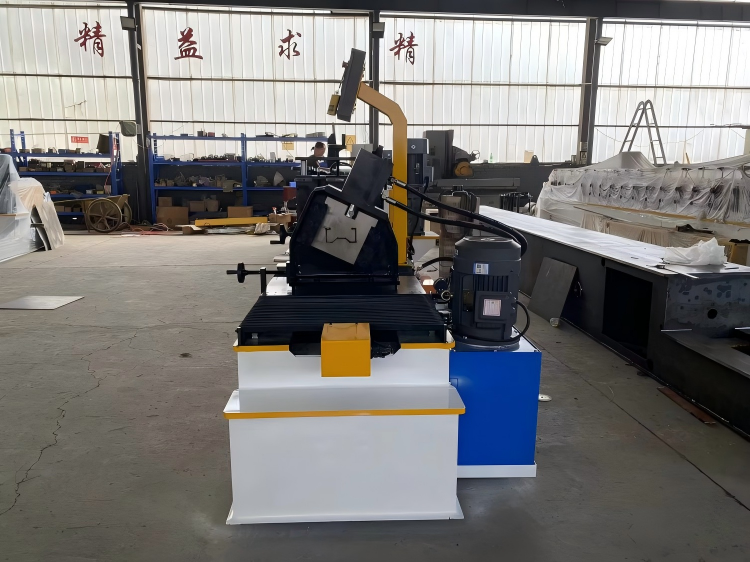

Cutting employs Cr12MoV or SKD11 tool steel blades, hardened and ground. For high-speed lines, flying shear cutting eliminates the stop-start cycle, allowing continuous forming while the blade moves synchronously with the profile during the cut.

The PLC control system coordinates every machine function: decoiler speed, feeder length, punch position, cutter timing and stacker operation. Operators work through a color touchscreen HMI, selecting from stored recipes or entering new profile parameters. Advanced systems support remote access for diagnostics and production monitoring.



Technical Parameters for Export Buyers

M purlin machines are custom-engineered to the buyer's profile drawings. Standard configurable range includes:

Material types:​ galvanized steel (GI), galvalume (GL), cold-rolled steel (CR), hot-rolled steel (HR), PPGI/PPGL, high-tensile steel grades

Thickness range:​ 1.5–4.0 mm standard; light-gauge versions 1.0–2.5 mm; heavy structural versions up to 5.0 mm

Profile depth (web height):​ 100–400 mm depending on model

Flange width:​ 50–120 mm per flange

Rib height and spacing:​ customized per profile drawing

Yield strength:​ up to 345 MPa standard; high-tensile versions up to 550 MPa

Roller stations:​ 18–26 stations, model-dependent

Forming speed:​ 8–18 m/min standard; high-speed versions 20–35 m/min

Main motor:​ 15–30 kW depending on profile size and thickness

Cutting mode:​ hydraulic stop cut or flying shear

Punching stations:​ 1–3 stations configurable for holes, slots, notches

Control:​ PLC + HMI, encoder feedback, recipe memory

Power supply:​ 380V/50Hz/3PH standard; customizable

Line length:​ 12–18 m forming section plus auxiliary equipment

Every parameter should be verified against actual profile drawings, material certificates and production volume requirements before finalizing the machine specification.



Applications of M Profile Steel Sections

The M purlin's unique geometry serves a wide range of industries:

Solar PV mounting systems​ – primary rails for ground-mount arrays, solar carport main beams, tracker support channels, fixed-tilt structures

Industrial roofing​ – long-span roof purlins for factories, warehouses, logistics centers where deflection control is critical

High-bay warehouses​ – roof and wall structural members in buildings exceeding 10 meters eave height

Cold storage facilities​ – structural framing where thermal bridging considerations favor the M section's geometry

Agricultural buildings​ – large-span farm structures, equipment sheds, grain storage facilities

Racking and storage systems​ – heavy-duty pallet racking frames, cantilever rack uprights, drive-in rack structures

Infrastructure projects​ – bridge deck support channels, tunnel lining segments, sound barrier support frames

Commercial steel buildings​ – exhibition halls, sports complexes, airport hangars with wide roof spans

The M profile's ability to handle higher loads with less material makes it especially attractive in markets where steel prices fluctuate or where shipping weight directly impacts project economics.



Customization for Different Markets

Export buyers often need market-specific adaptations:

Profile variation:​ shallow M (hat section), deep M (structural purlin), M with intermediate ribs, M with embossed stiffeners

Punching patterns:​ solar mounting holes (staggered rows), bolt hole patterns per regional steel standards, drainage slots, connection notches

Material compatibility:​ standard galvanized, G550 high-tensile, aluminized steel, pre-painted coils

Cutting options:​ standard hydraulic shear, flying shear for high throughput, cold saw cutting for burr-free ends

Automation level:​ manual coil loading to fully automatic coil handling with coil car and strapping

Compliance:​ CE marking, ISO documentation, third-party inspection (SGS, BV, TUV), local electrical standards

Language and support:​ HMI in English, Spanish, French, Arabic, Russian, Portuguese; manuals and training videos in buyer's language
