High-Speed U Channel Metal Stud and Track Roll Forming Machine

High-Speed U Channel Metal Stud and Track Roll Forming Machine is not a simple roller press, but a highly integrated automated molding production line. It is mainly composed of the following units connected in series:

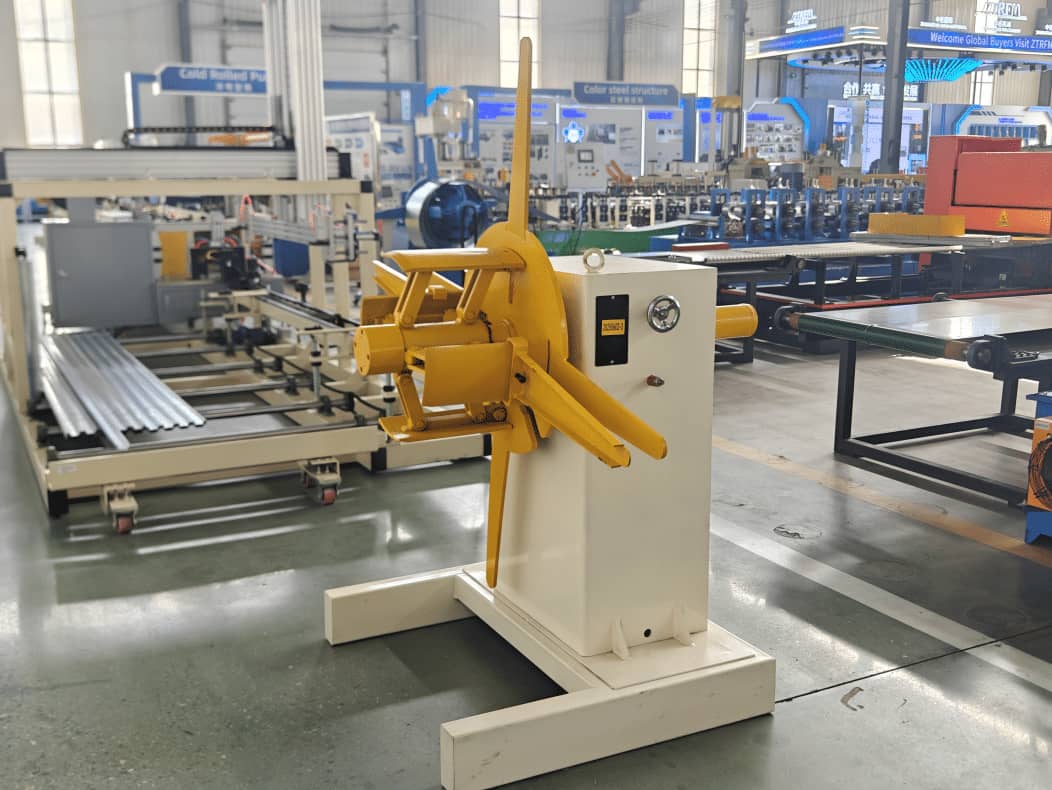

1.Hydraulic unwinding machine

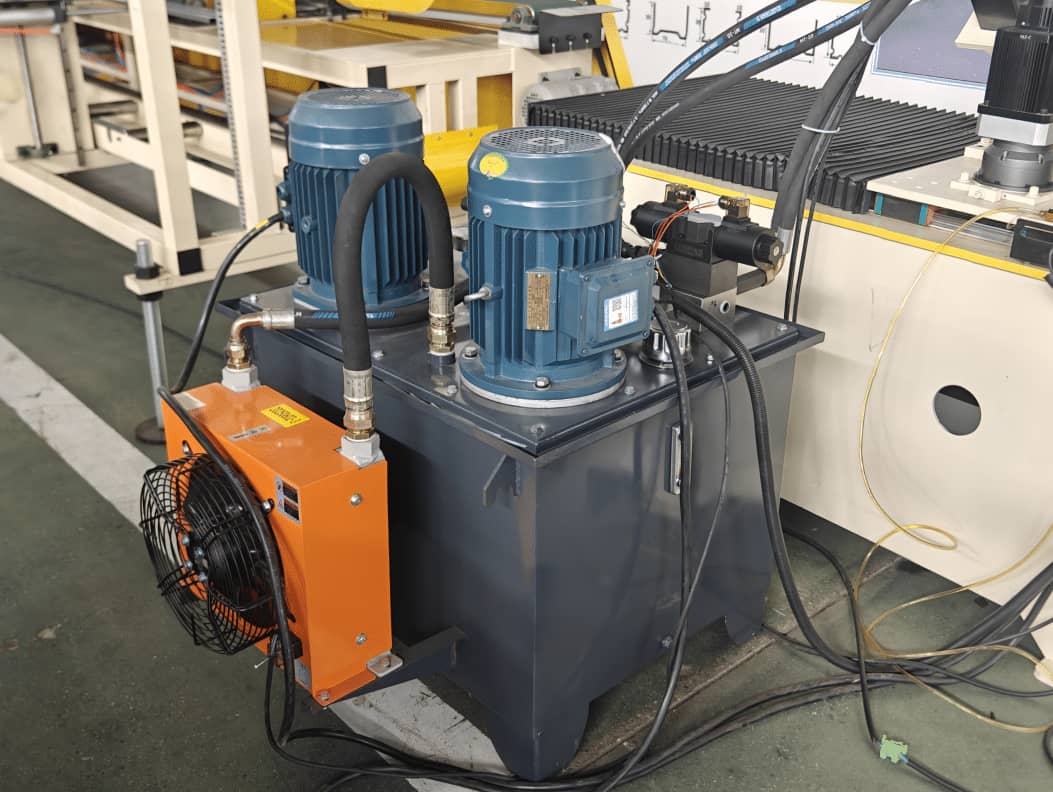

2.Servo feeding and hydraulic punching system
3.Multi pass cold bending forming host
4.Hydraulic follow-up cutting system
5.Automatic material receiving platform


Core feature:

1.One machine dual-use, U-rail and C-screw can be switched freely
2.Online punching, cutting and installation
3.High speed and precision, ultra-low material loss
4.Intelligent control, one person managing the front line
5.Cold bending strengthening, lighter and stronger


Application scenario:

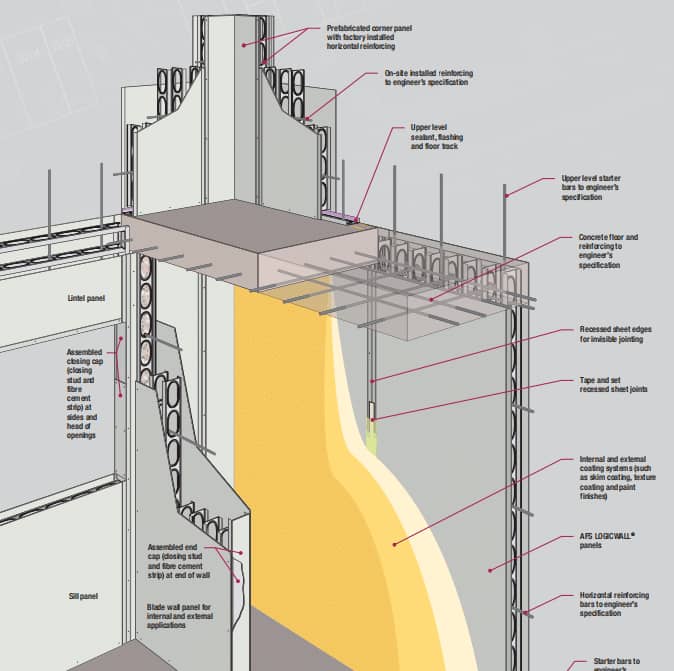

• Non load bearing indoor partition walls:
office buildings, shopping malls, hotel rooms, and residential partition walls require a large number of U-shaped and C-shaped vertical keels of different lengths, and flexible production perfectly matches diverse needs.

• Suspended ceiling system:
Various main and auxiliary keels and corners of the suspended ceiling, with complex cross-sections, can be flexibly handled by the molding machine to ensure flatness and installation accuracy.

• Light steel villas and modular houses:
wall frame, floor beam, roof beam, cold-formed light steel keel is the main load-bearing or enclosure structural component, with extremely high requirements for strength, accuracy, and batch punching. The advantage of online integrated molding is obvious.

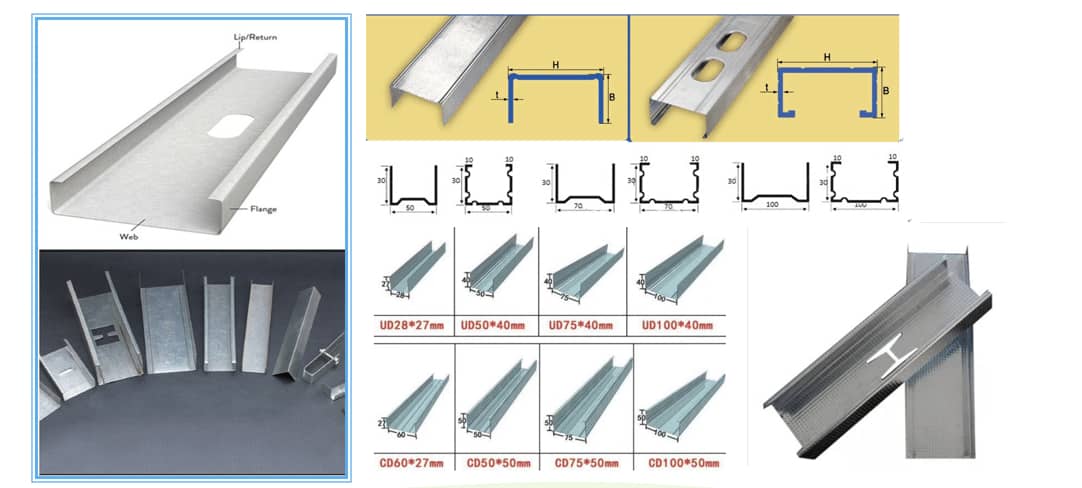

Pattern diagram：


Product Attributes :

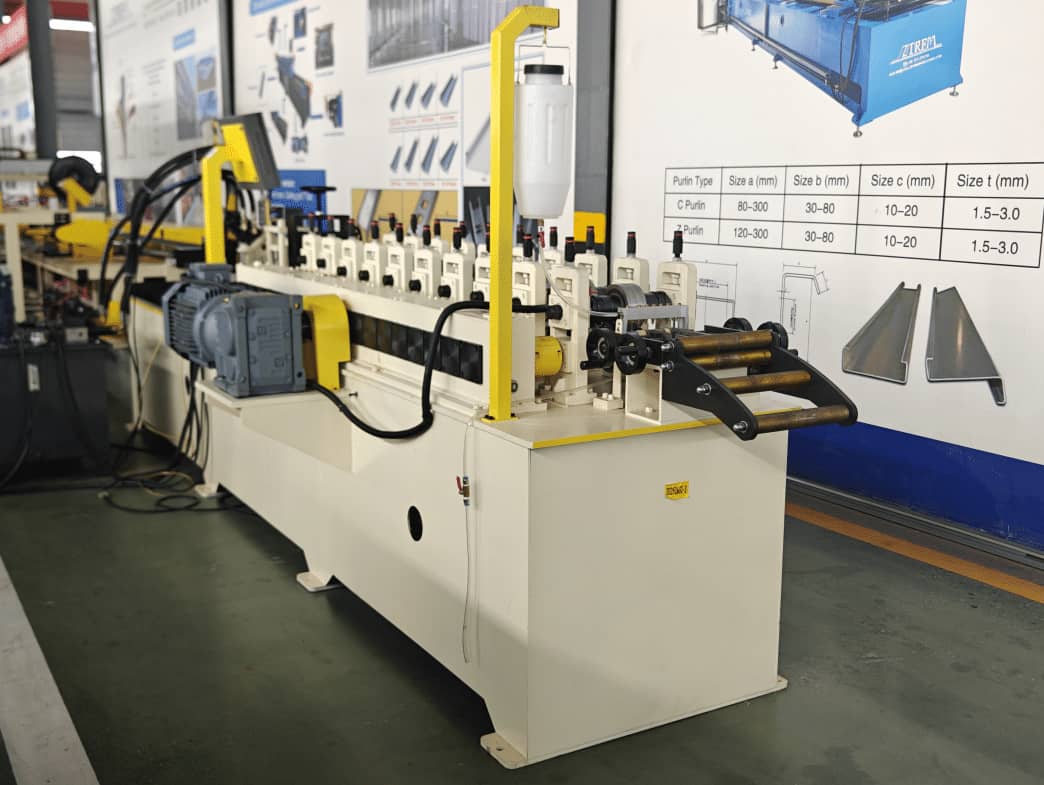

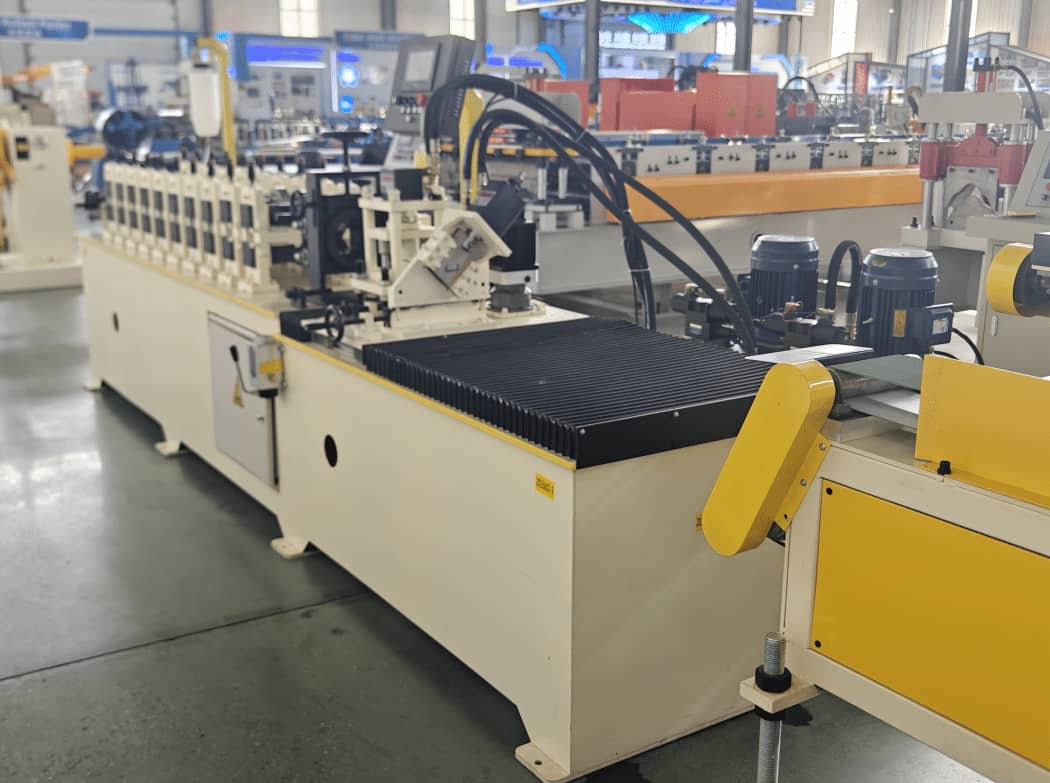

Machine image:

Contact Us：

Contact us immediately for customized molding solutions and investment return analysis. Let your dragon bone production line be one step ahead from now on!
