High Speed Solar C/Z/U Strut Channel Roll Forming Machine 10–15 m/min

As the global demand for renewable energy continues to grow, Unistrut channels have become one of the most important structural components in solar mounting systems. These channels provide reliable support for photovoltaic (PV) panels, ensuring long-term stability, safety, and efficient energy generation. A Unistrut Channel Roll Forming Machine is specifically designed to manufacture high-precision solar strut channels with high production efficiency, consistent quality, and low operating costs.

Whether used for rooftop solar systems, ground-mounted solar farms, agricultural PV projects, or industrial installations, accurately formed Unistrut channels play a critical role in the performance and durability of photovoltaic structures.

What Is a Unistrut Channel and Why Is It Important?

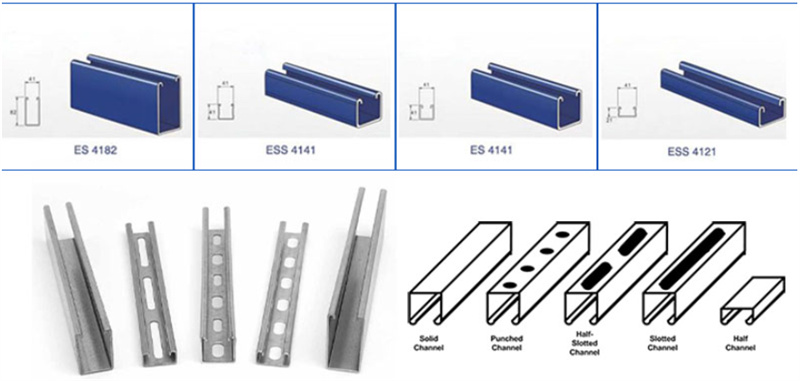

A Unistrut channel, also known as a solar strut channel or slotted strut channel, is a cold roll formed steel profile used to support and secure solar panels. Manufacturers typically produce these channels from hot-dip galvanized steel or zinc-aluminum-magnesium steel, giving them excellent corrosion resistance and long service life.

Unlike ordinary steel supports, Unistrut channels provide a flexible mounting solution through their slotted design, allowing installers to easily adjust component positions during installation. As a result, they reduce labor costs while improving installation efficiency.

The main functions of Unistrut channels include:

• Supporting photovoltaic modules securely under various weather conditions
• Optimizing panel positioning to maximize solar energy collection
• Protecting solar panels and electrical wiring from vibration and external impact
• Extending the service life of complete photovoltaic systems
• Providing durable structural support in harsh outdoor environments

Because of these advantages, solar mounting systems around the world rely heavily on high-quality Unistrut channels.

Applications of Solar Mounting Strut Channels

Unistrut channels are widely used in modern renewable energy projects because they provide strong structural support and excellent environmental resistance. Their versatility allows them to be installed in numerous application scenarios.

Common applications include:

• Residential rooftop solar systems
• Commercial and industrial rooftop installations
• Ground-mounted photovoltaic power stations
• Utility-scale solar farms

Thanks to their outstanding strength and corrosion resistance, these channels continue to perform reliably even after decades of outdoor exposure.

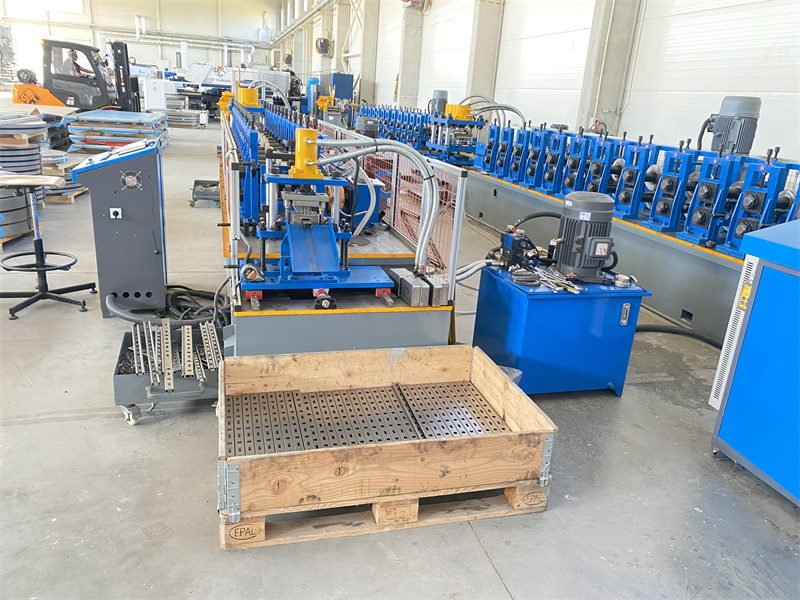

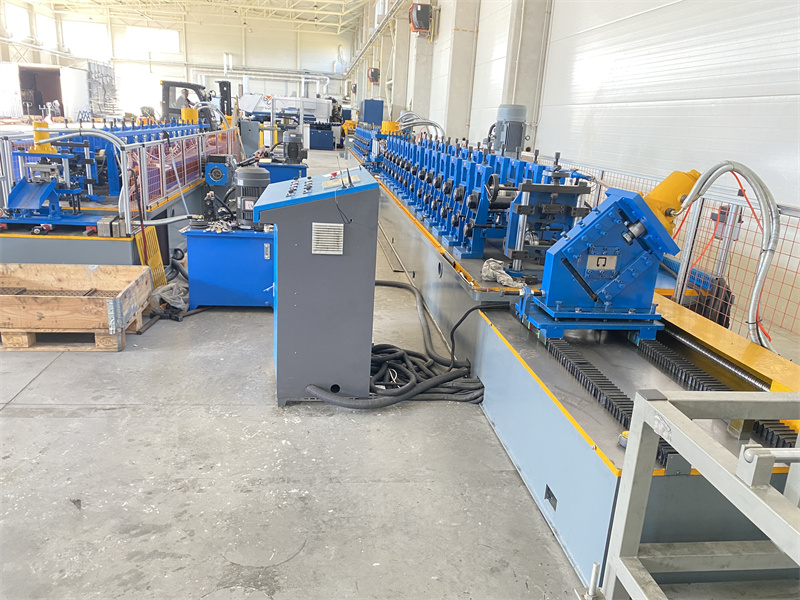

Working Process of the Solar Channel Roll Forming Machine

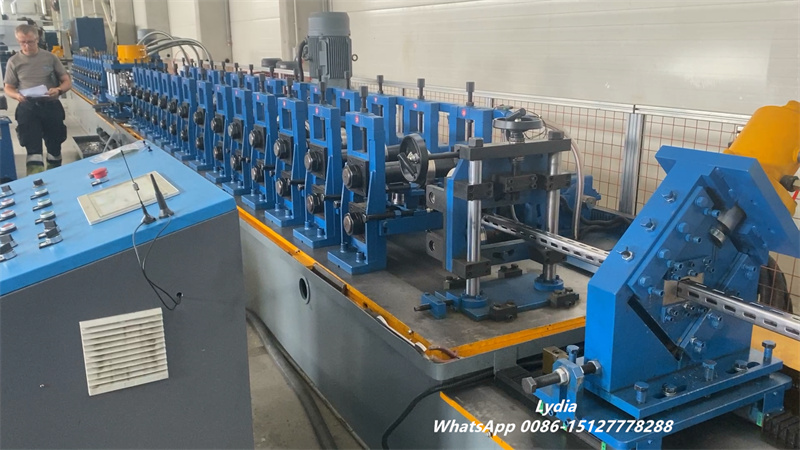

The production line operates automatically from coil loading to finished product collection. Each stage is precisely controlled to ensure consistent product quality and efficient production.

The complete manufacturing process includes:

Decoiling → Leveling → Servo Feeding → Punching → Roll Forming → Hydraulic Cutting → Automatic Receiving

First, the decoiler feeds the steel coil into the leveling unit, which removes internal stress and improves material flatness. Next, the servo feeding system accurately delivers the material to the punching station, where customized holes and slots are created according to project requirements.

After punching, multiple precision forming rollers gradually shape the steel strip into the required PV mounting channel profile. Finally, the hydraulic cutting system cuts each finished product to the preset length before the automatic receiving system stacks the finished channels for packaging.

This fully automated workflow significantly improves production efficiency while reducing labor costs and material waste.

How Does a Unistrut Channel Roll Forming Machine Work?

A modern solar strut channel roll forming machine completes the entire manufacturing process automatically. Each production stage is carefully designed to maintain dimensional accuracy and production efficiency.

Production Process	Function
Decoiling	Unwinds the steel coil smoothly into the production line
Leveling	Eliminates material deformation to ensure flat feeding
Servo Feeding	Controls feeding length with high precision

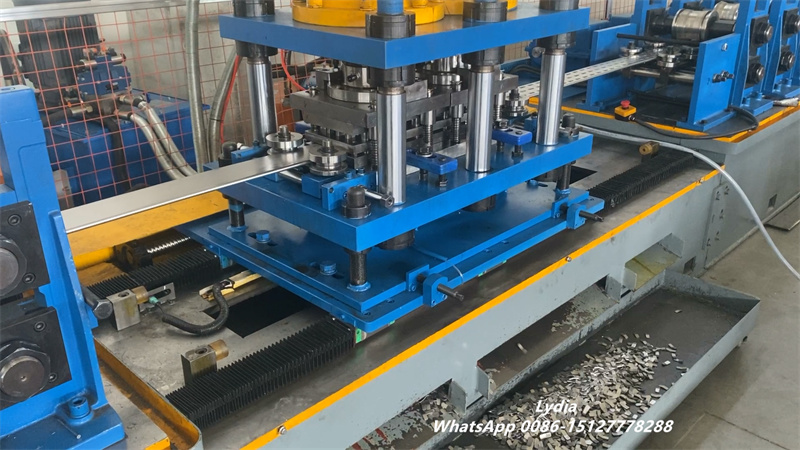

Punching	Creates mounting holes and slots according to customer drawings
Roll Forming	Gradually shapes the steel strip into the required channel profile

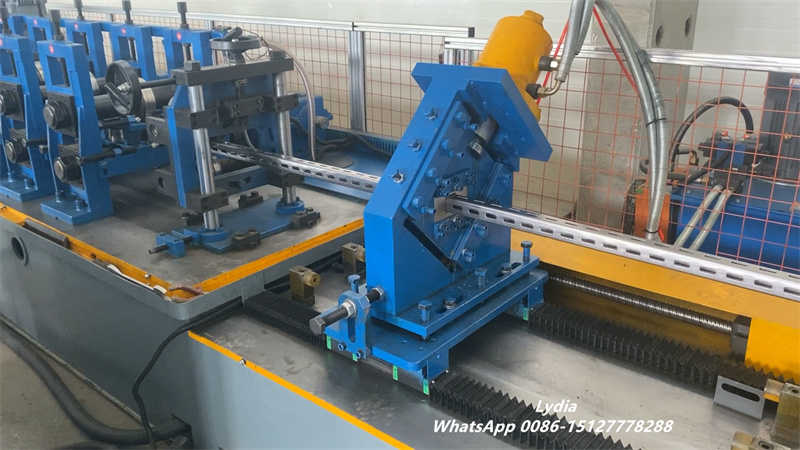

Hydraulic Cutting	Cuts finished products to preset lengths without deformation
Automatic Receiving	Collects finished channels for packaging and transportation

This fully automated production line minimizes manual operation while ensuring every finished channel maintains excellent dimensional consistency.

Advantages of the Unistrut Channel Roll Forming Machine

A professional roll forming machine offers significant advantages over traditional fabrication methods. First, continuous roll forming greatly increases production capacity while maintaining stable quality throughout long production runs.

Secondly, the machine supports customized punching patterns, allowing manufacturers to produce various slotted or non-slotted profiles according to project requirements. This flexibility enables one production line to serve multiple markets.

Additional advantages include:

• High-speed continuous production
• Excellent dimensional accuracy
• Stable punching precision
• Low material waste
• Fully automatic PLC control

Furthermore, the machine can be customized for different profile sizes, helping manufacturers expand their product range without investing in multiple production lines.

Technical Specifications of the PV Support Bracket Production Line

The production line is designed for stable, continuous operation and high-volume manufacturing. The following technical parameters provide an overview of the machine configuration.

Why Choose Our Solar Strut Channel Roll Forming Machine?

Our Unistrut Channel Roll Forming Machine combines advanced roll forming technology with intelligent automation to help manufacturers improve productivity while reducing operating costs. Every machine is engineered for stable performance, precision manufacturing, and long-term reliability.

From machine design and mold development to installation, operator training, and after-sales support, our experienced engineering team provides complete technical assistance throughout your project.

If you are looking to expand your solar mounting equipment business or establish a new photovoltaic support production line, our customized roll forming solutions can help you achieve higher efficiency, consistent product quality, and stronger market competitiveness.
