High Speed Ridge Cap Roll Former for Metal Roofing Sheet Machine 0-20m/min

High Speed Ridge Cap Roll Former for Metal Roofing Sheet Machine

In today's rapidly developing metal roofing system, ridge tiles serve as the first line of defense for roof waterproofing, and their quality directly affects the overall sealing and durability of the building. The Ridge Cap Roll Forming Machine, as the core equipment for producing metal roof tiles, is helping global roofing material manufacturers achieve dual improvement in production capacity and quality with its high-precision molding, fully automated production, and excellent stability.

What is Ridge Cap Roll Forming Machine?

The Ridge Cap Roll Forming Machine is a high-precision cold bending equipment designed to gradually roll metal coils through multiple precision arranged rollers to form the ridge tile components required for roof ridges. The equipment continuously cold bends metal coils at room temperature without the need for high temperature heating, effectively avoiding the impact of thermal deformation on material coatings and structural strength.

The standard production process is: uncoiling → feeding → roll forming → hydraulic punching → cutting to length → finished product output. The entire production line is coordinated by a PLC control system, and operators can set parameters such as board length and production quantity through a touch screen, achieving intelligent production management.

Application Scenario:

• Waterproof sealing:
The ridge tile is installed at the intersection of the roof slope (ridge), and through its concave or L-shaped section design, it effectively guides the flow of rainwater and avoids leakage caused by flowing along the ridge. ‌‌

• Structural support and durability:
The roof ridge tile not only plays a sealing role, but also participates in the sharing of wind pressure and other external forces to improve the roof’s resistance to wind exposure. The selection of materials such as metal, asphalt cellulose or composite materials affects the durability. The metal roof ridge tile is suitable for long-term exposure, and the asphalt immersion design can enhance the anti-aging performance. ‌


Main components：

Product Attributes :

Pattern diagram:

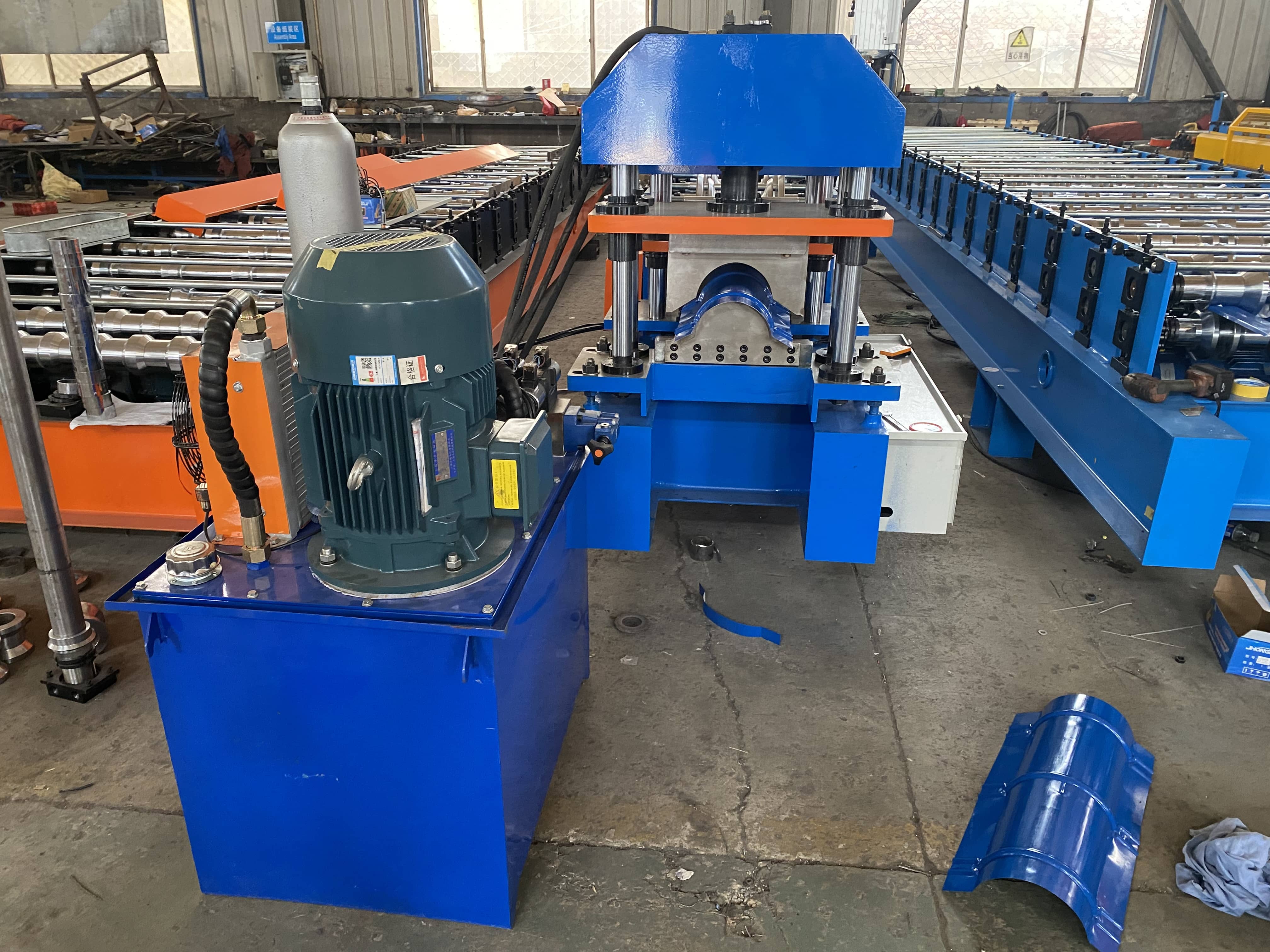

Machine image:

Frequently Asked Questions (FAQ)：

Q1: What types of ridge tiles can be produced by the ridge tile forming machine?

The equipment can produce various cross-sectional specifications such as V-shaped spine tiles, trapezoidal spine tiles, semi-circular (curved) spine tiles, etc. We can also customize and produce special accessories such as ventilation spine tiles, end caps, corner tiles, etc. according to customer needs. We can design customized rolling mill molds for customers by providing plate drawings or samples.

Q2: Can this device produce ridge tiles with different roof slopes?

Okay. By replacing or adjusting the rolling mill molds, the equipment can produce ridge tiles that are compatible with different roof slopes. Typical equipment can cover a slope range of 1:12 to 4:12, and can also customize molding solutions with larger angle ranges according to customer needs.

Q3: How to ensure the forming accuracy of the equipment?

Precision assurance comes from three levels: precision machining and quenching treatment of the rolling mill to ensure accurate forming contours; Real time monitoring and adjustment of production parameters by PLC closed-loop control system; The hydraulic shearing system, in conjunction with the sizing device, achieves a cutting tolerance of ± 1mm. The finished ridge tiles have good consistency in size and can be quickly assembled.


Contact Us：

From roof waterproofing in industrial plants to ridge tile decoration in residential buildings, from sealing components in logistics warehouses to supporting installation in light steel villas, ridge tiles are serving an increasing number of construction projects worldwide with their excellent waterproof performance and beautiful decorative effects. A roof tile cold bending machine with reliable performance and stable accuracy is the core equipment for roof material manufacturers to seize market opportunities and enhance competitiveness. If you need equipment solutions and quotations tailored to your specific needs, please feel free to contact us at any time.
