High-Efficiency Roll Forming | PLC Automatic Control | Customized Z Beam Profiles

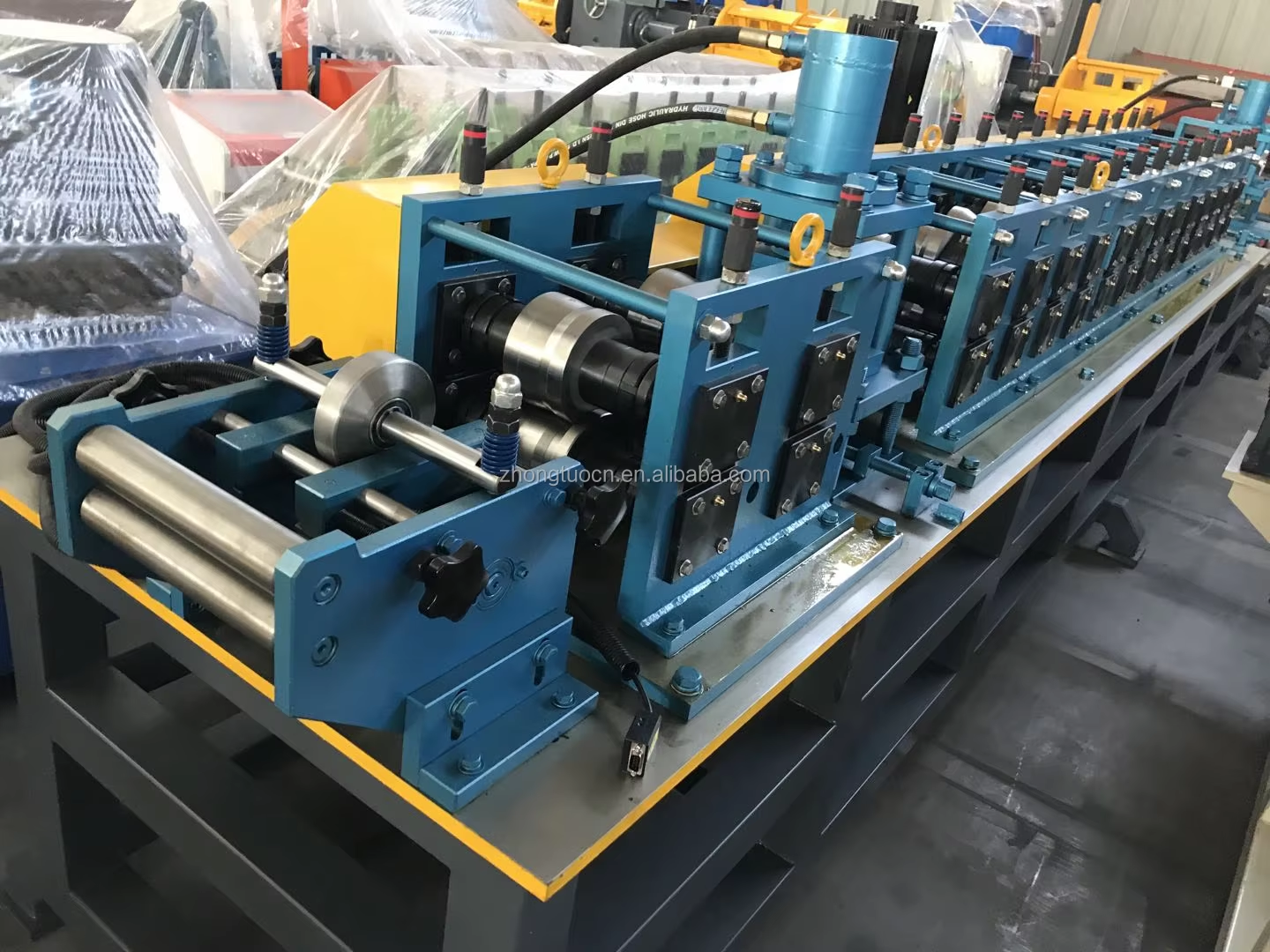

The Supermarket Storage Shelf Z Beam Roll Forming Machine is designed for the continuous production of metal beam profiles used in warehouse storage racks, supermarket shelving and industrial racking systems.
The machine processes compatible pre-painted galvanized steel (PPGI), galvanized steel (GI) and other suitable coil materials through a series of precision forming rollers. According to the approved profile design, the production line can integrate automatic feeding, roll forming, punching and cutting to produce shelf beam components with consistent dimensions.
Equipped with a PLC control system, operators can set production parameters such as profile length, batch quantity and other supported operating functions. The machine can be customized according to customer drawings, material thickness, hole patterns and production requirements.
Zhongtuo provides customized roll forming equipment solutions for manufacturers of warehouse racks, supermarket shelves and industrial storage systems.
Continuous roll forming and automated production functions help improve manufacturing efficiency for Z beam profiles.
The PLC control system supports production parameter settings, including cutting length and batch quantity, according to the configured machine functions.
Precision-machined rollers and a solid shaft structure help maintain profile consistency and stable forming performance.
The automatic cutting system produces profiles at the required length. Cutting configuration can be selected according to production needs.
Roller stations, profile dimensions, punching patterns and electrical specifications can be customized according to customer requirements.
The compact equipment design helps optimize workshop space while supporting efficient material processing.
The following specifications are reference values. Final parameters should be confirmed according to the machine configuration and approved technical agreement.
| Machine Name | Supermarket Storage Shelf Z Beam Roll Forming Machine |
| Formed Material | PPGI, GI and compatible metal coils |
| Material Thickness | 0.5–1.2 mm, or customized |
| Decoiler | Manual decoiler included; hydraulic automatic decoiler optional |
| Roller Stations | 12 stations, customizable |
| Shaft Diameter | 50 mm solid shaft |
| Roller Material | 45# steel with hard chrome-plated surface |
| Machine Frame | Welded steel structure |
| Transmission | Gear transmission |
| Machine Dimensions | Approx. 4500 × 800 × 1200 mm; customizable |
| Machine Weight | Approx. 2.5 tons |
| Main Motor Power | 5.5 kW |
| Hydraulic System Power | 5.5 kW |
| Cutting System | Automatic hydraulic cutting; Cr12MoV cutter material as specified |
| Forming Speed | 15–20 m/min, customizable according to profile and material |
| Voltage | 380 V, 50 Hz, 3-phase; customizable |
| Control System | PLC automatic control with electrical cabinet |
| Operating Language | English and other customized languages |

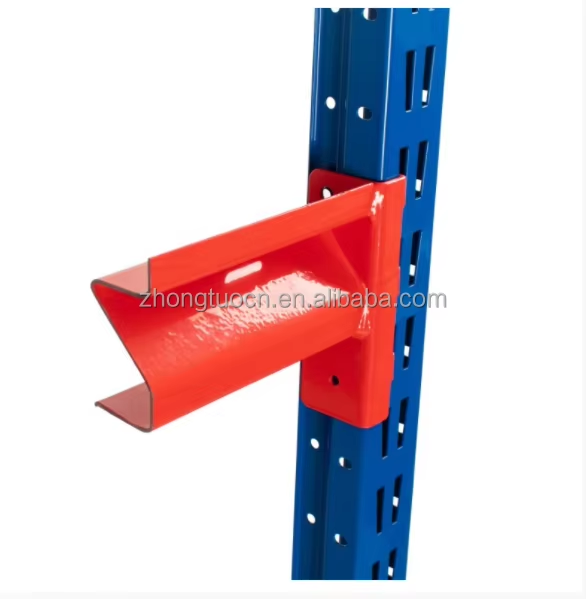

The finished profiles are designed for compatible storage rack structures and shelving systems. Actual load-bearing performance depends on profile geometry, steel grade, thickness, connections and structural design.
Zhongtuo can design and manufacture storage rack upright roll forming machines according to customer drawings and production requirements.
To receive an accurate quotation, please provide your profile drawings, material grade, thickness, required production speed and local power supply.
The machine is designed for compatible PPGI and GI coils, with a reference thickness range of 0.5–1.2 mm. Other materials should be confirmed according to their mechanical properties and the profile design.
Yes. Roller tooling and the forming configuration can be designed according to approved customer drawings and technical requirements.
The reference forming speed is 15–20 m/min. The actual achievable speed depends on profile geometry, material thickness, punching requirements and cutting configuration.
Yes. Voltage, frequency, control components and operating language can be specified according to the customer's requirements.
Send your profile drawing, material specifications, required output and electrical requirements to receive a customized machine proposal.
