High Speed Punching Production Line From Decoiler to Recoiler Metal Punching Machine 1500

Design Idea:

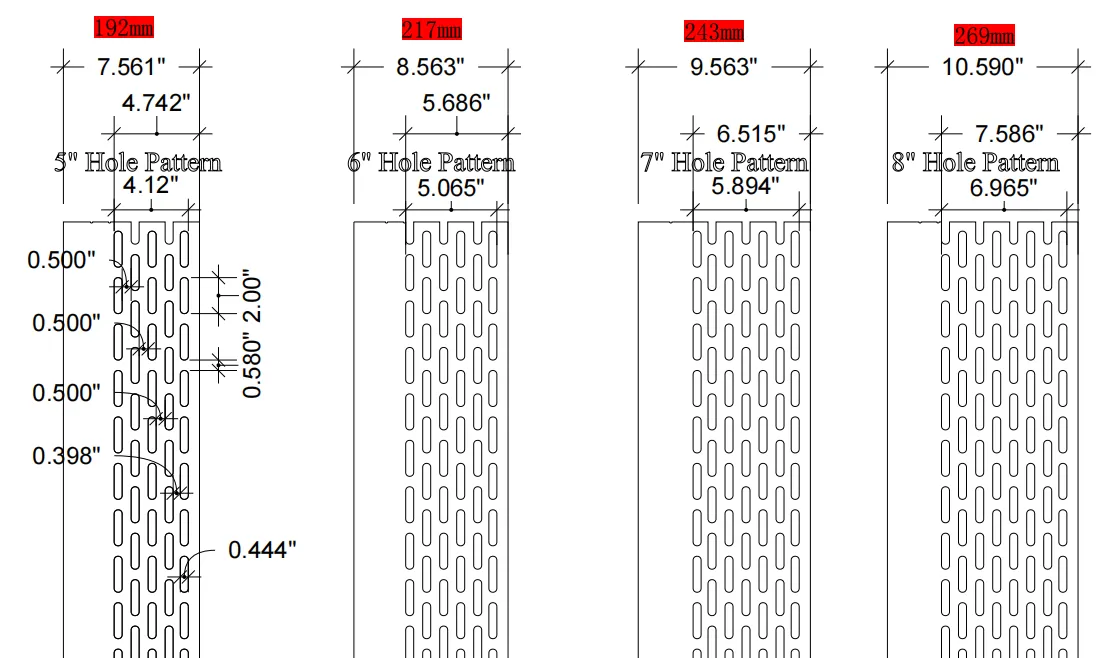

All those 4 sizes could be made by one set of the punching die, it is adjustable. When you do not need, simple remove it. When you it, simple install it like the following pictures.

Take the max size for example, so each time we can design mold to punch 2 rows, 8 holes Max. And the punching machine normal speed, it can punch 60 times per minute, so we can count the speed, it is around  8 to 10 meter per minute, is that okay ?

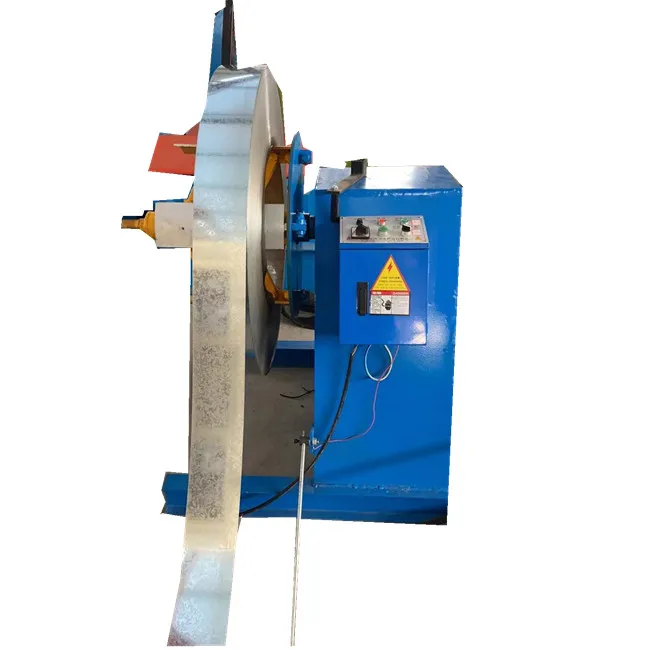

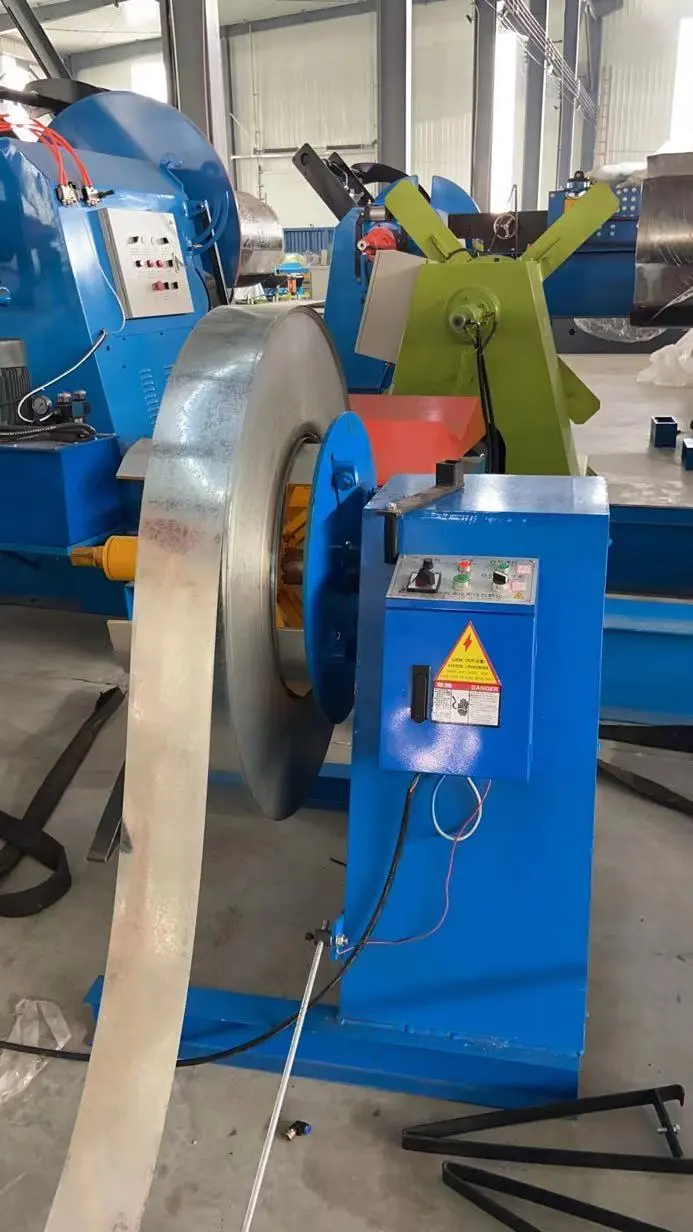

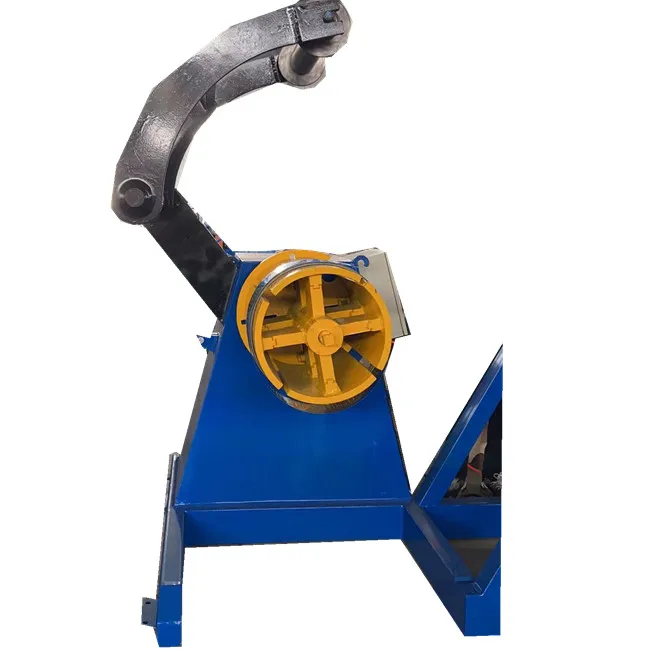

Decoiler

Type : electric

Motor power:0.75kw

Inner diameter:450-550mm(as required)

Capacity: 1.5T

Decoiler dimension: 1000*1000*1200mm

Decoiler weight: about 200kgs

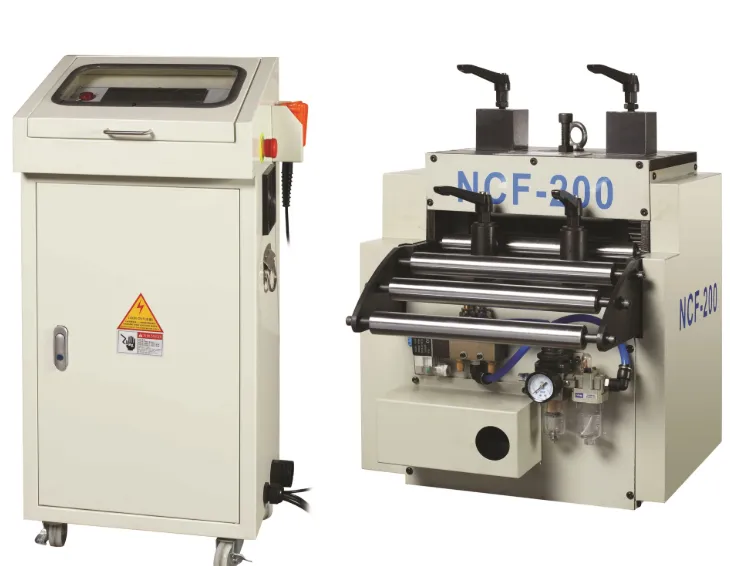

Servo feeder

Type: model -200

Servo motor power:1.5kw

Control system: by PLC

Feature: high precision, high speed

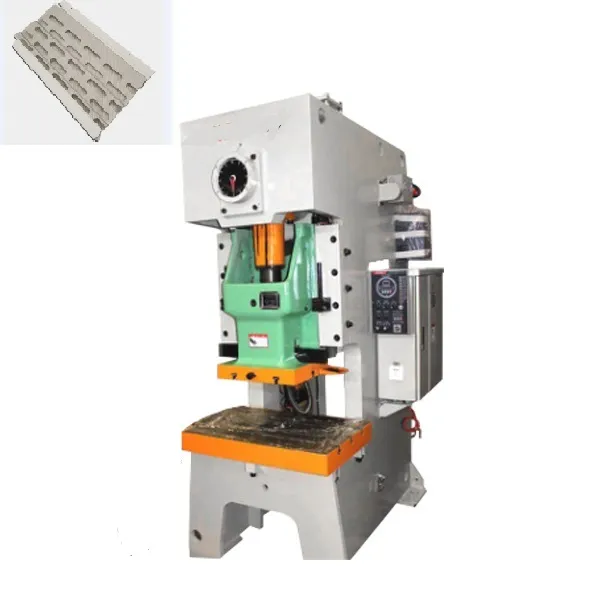

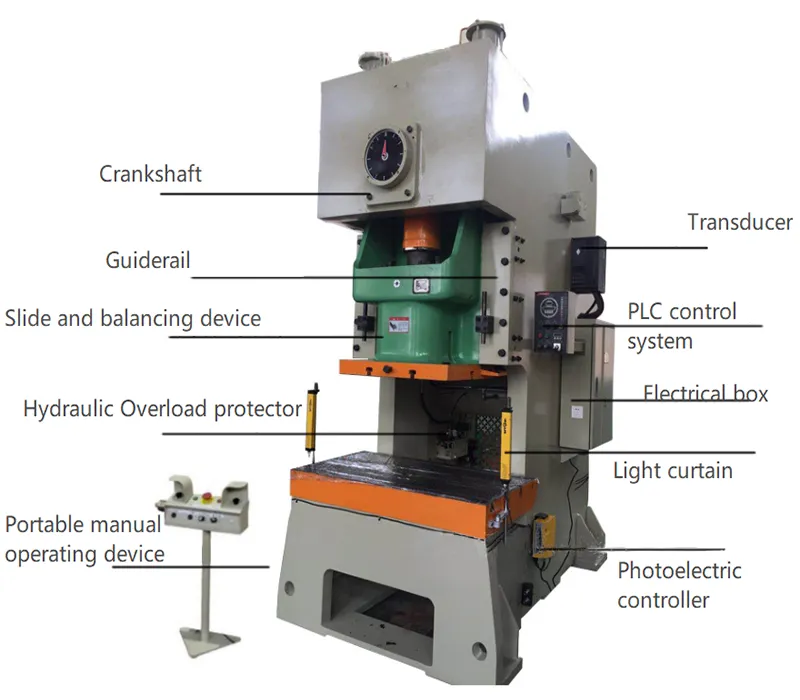

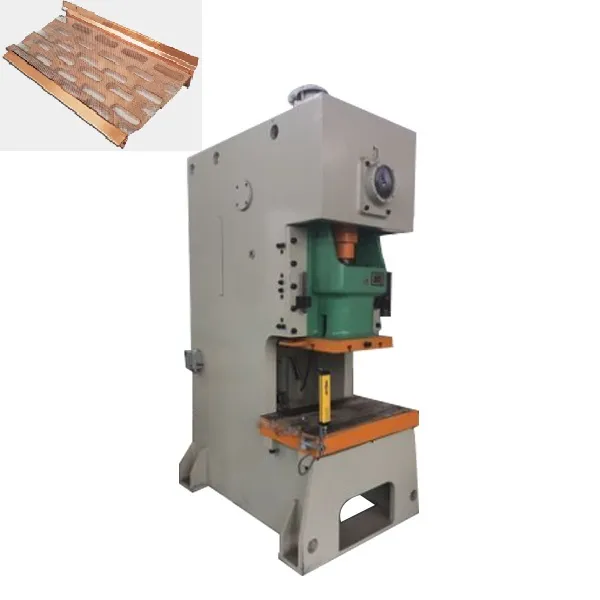

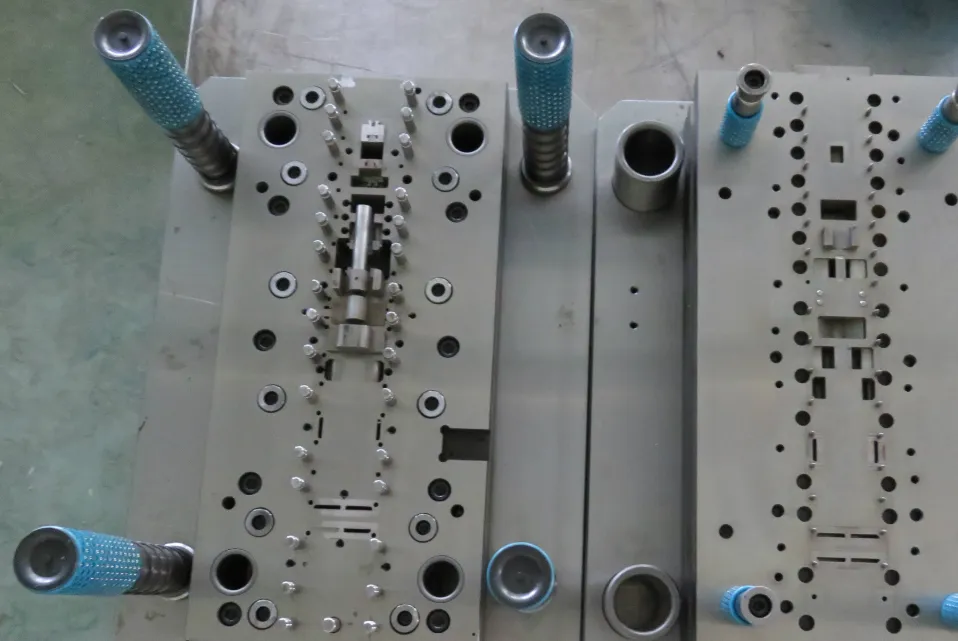

Punching machine & punching dies

Punching machine model: 80 TON
Punching machine pressure: 80 TON
Power : by pneumatic

Mold material: SKD11

Speed: 120 times/min

Include one set pneumatic pump

Type : electric

Motor power:0.75kw

Inner diameter:450-550mm(as required)

Capacity: 1.5T

 Zhongtuo cold rolling forming  machines we give the following before and after sale service:

1. Once we receive your drawing, we will give you some feedback according to our expereince.If there is some mistake in the drawing, we can point it out at the first time.

2. In the production, you can watch the whole prduction by camer if you like.

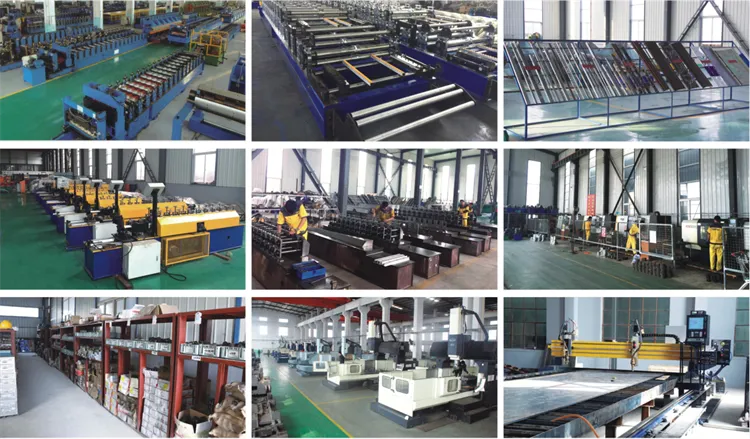

3. we give two year totally free after sale service and whole life tech support. For indian customer we give whole life free tech and engineering and free installation as we have warehouse and engineer there. Please know a little more about our factroy.

 For the glazed tile making machine, we also make other type rolling forming machine:

1. Metal roofing sheet machine.

2. Round wave metal roofing sheet machine.

3. IBR metal roofing sheet machine.

4. Other sheet glazed tile making machine.

6. Hydrailic decoiler.

7. Hydrailc bending and shearing machine.

8. Hydrailic crimping machine.

Contact way

We will attend for Conton fair each year two times, and we will also attend for Big Five in Dubai and Indian and others.

Weclome to contact us at any time.
