High Speed PLC Controlled Motor Bearing Slotted Metal Steel Stud Track Roll Forming Machine Hebei China for Drywall House 40m/ min+ZT50+100

Cangzhou Zhongtuo International Trade Co., Ltd

High Speed PLC Controlled Motor Bearing Slotted Metal Steel Stud Track Roll Forming Machine Hebei China for Drywall House 40m/ min+ZT50+100

Name: High Speed PLC Controlled Motor Bearing Slotted Metal Steel Stud Track Roll Forming Machine Hebei China for Drywall House 40m/ min+ZT50+100
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT73310246

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

40m/ min

Model Number:

ZT50

Max. Working Width:

100

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Work Pressure
380V 50Hz 3Phase(As your requirement)
Voltage
380V/50HZ 3Phase
Power(W)
7.5kw

High speed Light gauge slotted metal steel stud and track roll forming machine Mexico for drywall house framing

High Speed Omega Profile Cold Roll Forming Machine is used to produce the furring channels, the ceiling batten channel, the roofing batten channel for housees. Furring Channel, Roof Ceiling Batten Roll Forming Machine can work at the speed of 35 meters per minute, with servo motor tracking cutting.

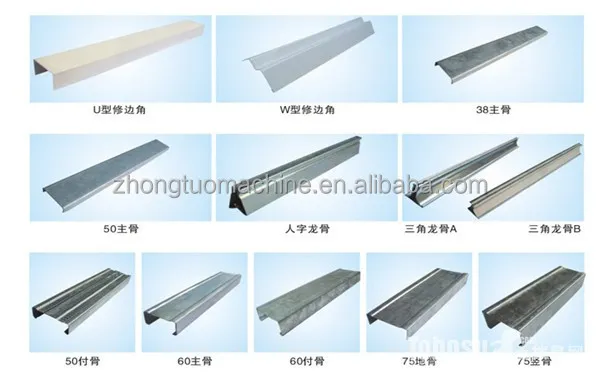

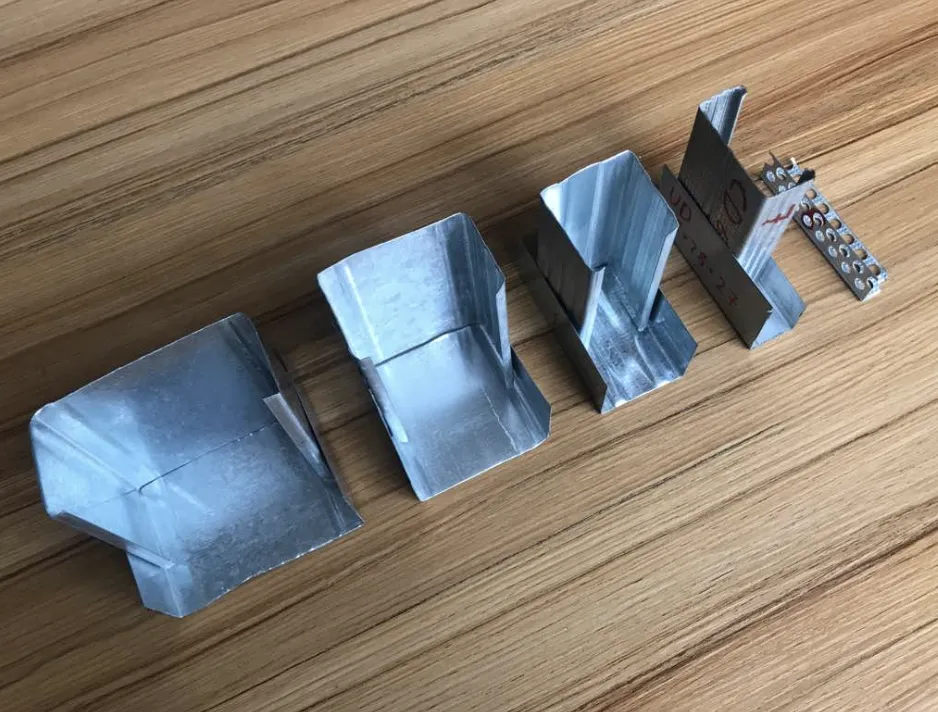

Furring Channel

The drywall furring channel is a versatile ‘hat-shaped’ section with a wide range of applications. It is primarily used to connect your finished wall material to the underlying framework, providing structural support. Furring is commonly attached perpendicularly to bridging channels and serves as the base to which drywall is subsequently secured. It’s the preferred method for constructing drywall ceilings as well. In scenarios involving concrete surfaces, furring is typically used to fasten drywall securely. Additionally, it finds application in situations such as metal siding, where it is horizontally affixed to the structure and then acts as a foundation for the siding material.

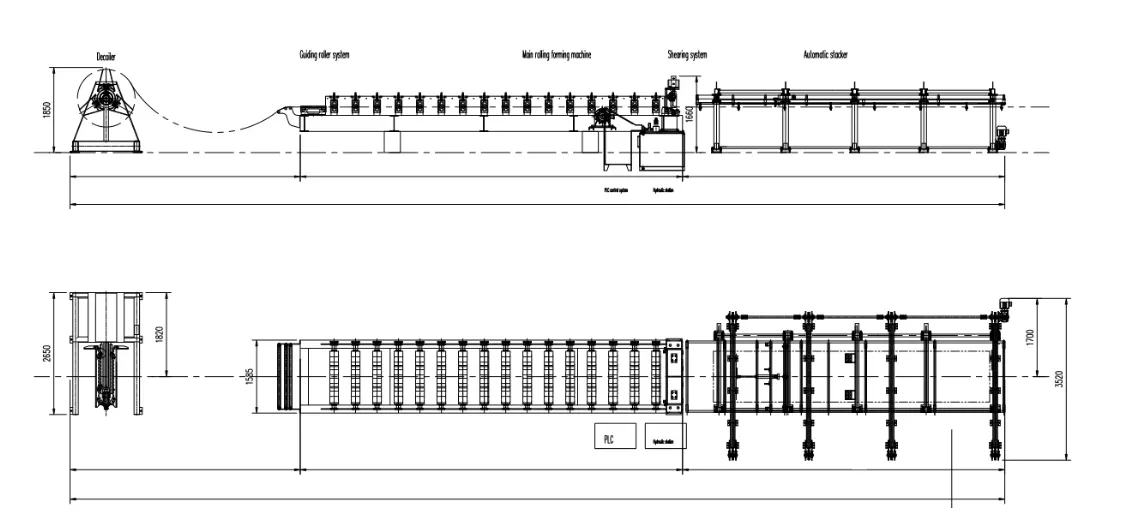

Working flow:

N/M	Name	Specifications
Manual decoiler	Carry weight	3000KG
		Equipment	Handwheel(contribute decoiling) and brake(avoid the deposition)
		Price	Free as gift
Main roll forming system	Machine dimension	33008001400mm
		Work voltage	380V-50HZ-3P
		Power	5.5KW
		Feeding thickness	Material thickness:0.3 mm-1mm
		Material of roller	45#steel,forging with surface hard chrome plating
		Roller shaft	Φmm solid
		Material	PPGI,PPGL
		Number of roller stations	10 stations
		Main frame	400mm H beam structure, with 20mm thickness welded steel middle support plate
Cutting device	Cutting blade	Cr12 quenched HRC58-62
		Cutting length tolerance	±1mm/3m
		Cutting type	Hydraulic cutting
PLC Control system	Brand	Delta
PLC Control system		Operation	Touch screen

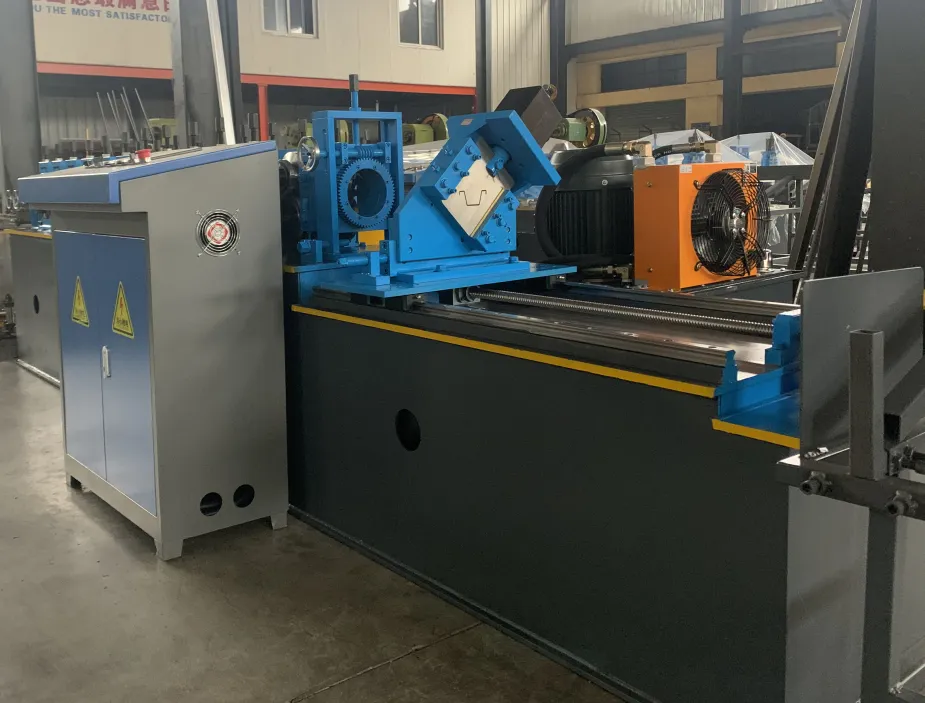

Hydraulic cutting

1.Material of blade: cr12mov material, no scratches, no deformation

2.Length measuring: automatic encoder measuring

3.Tolerance of length is 3000mm+- 1.0mm

4.Hydraulic cutting pressure:10-12Mpa

PLC Control system

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen

● Encoder brand:Omron

● Electrical components:Schneider

● Operating
language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is
really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

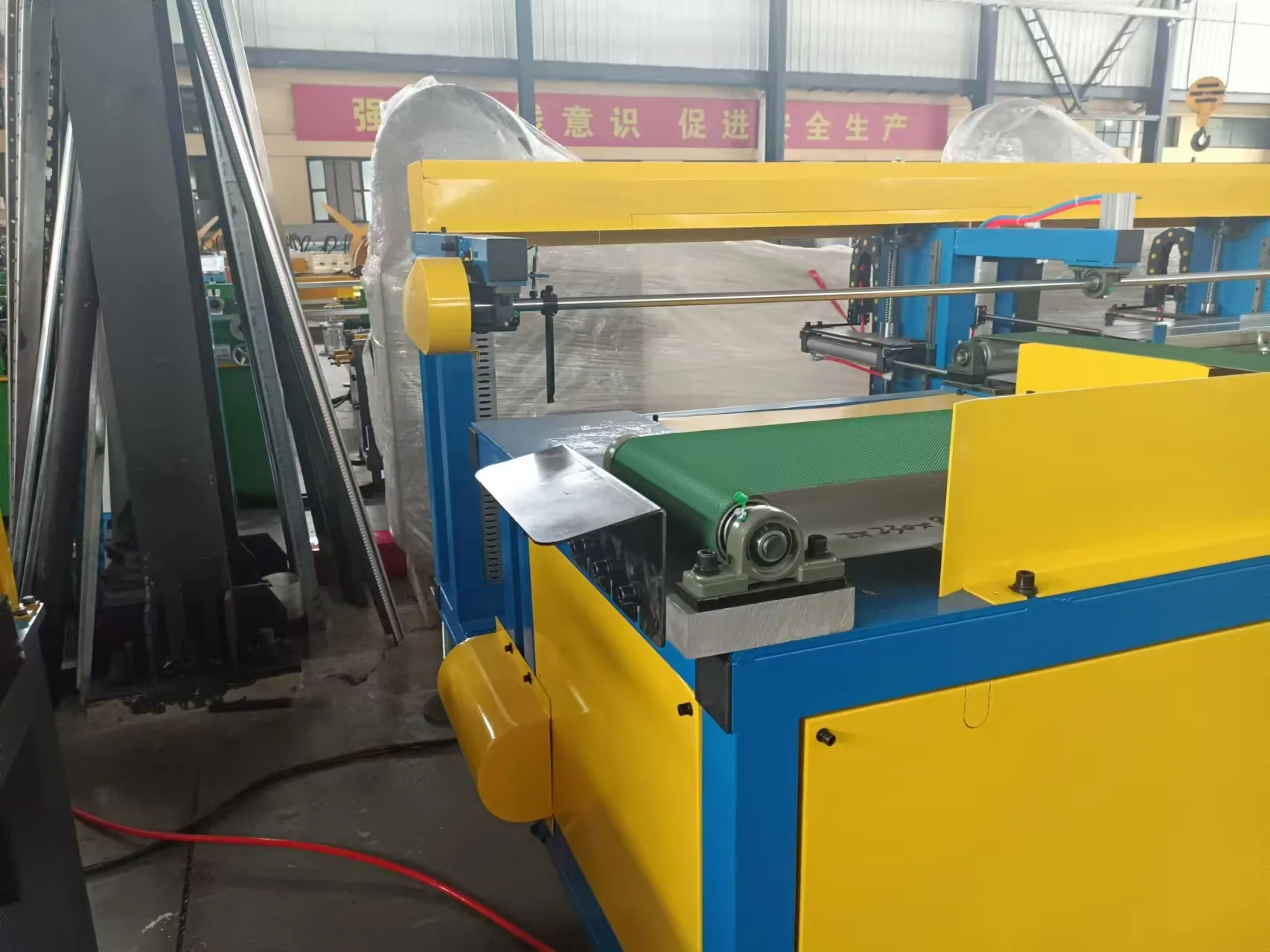

Feeding device

1.Hand wheels on both sides can be used to adjust the feeding width.

2.Stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface.

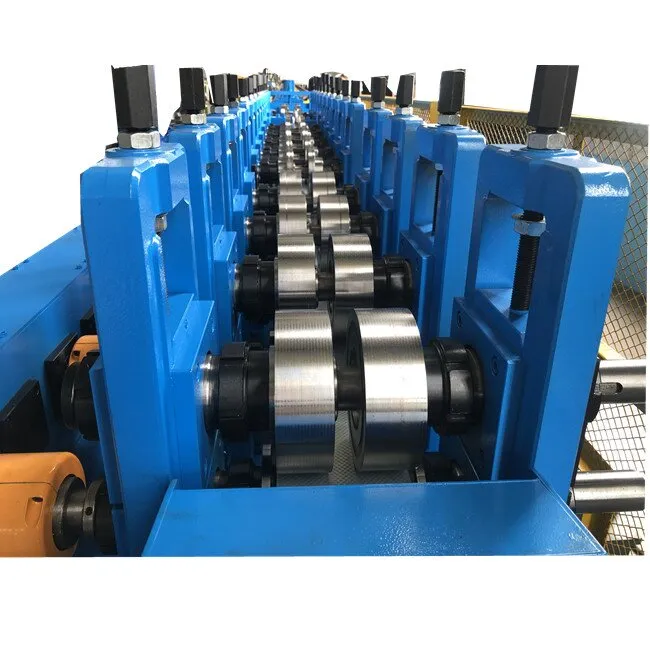

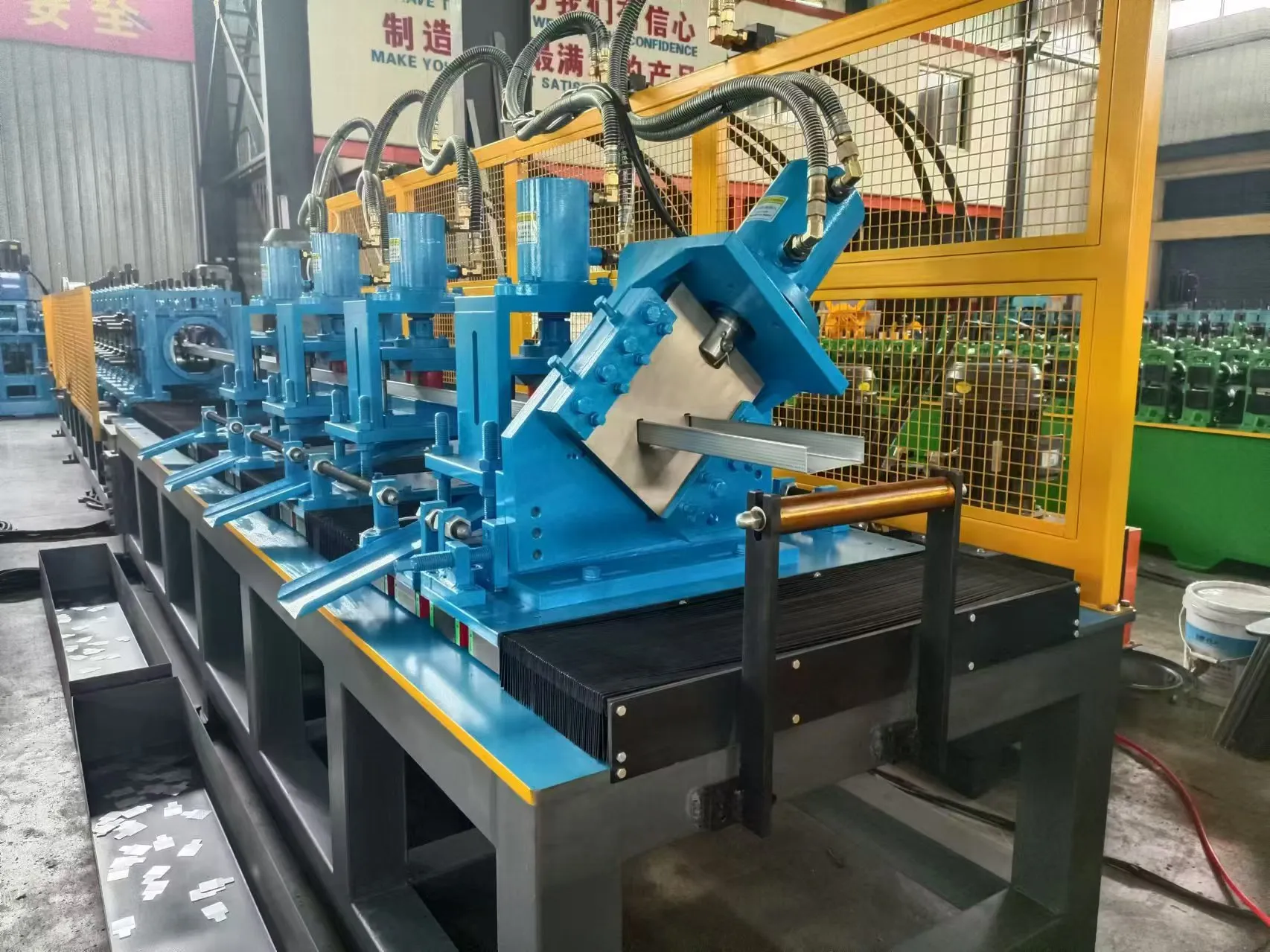

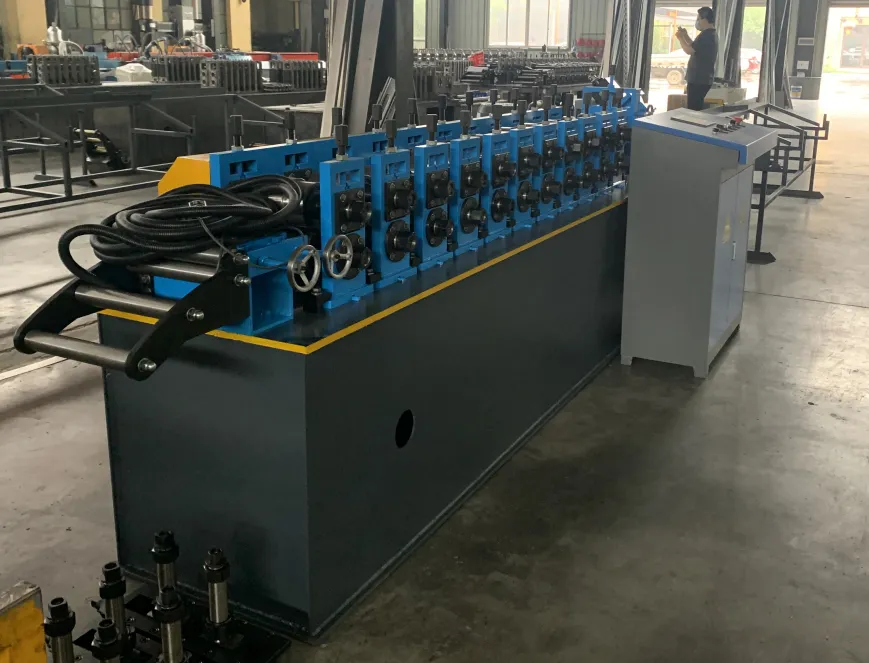

Roll Forming And Transmission Device

Rollers material: Cr12 CNC processing heat treatment to HRC: 58-60 ,finish turning

Roller stations: 24 rows

Shaft material:Shaft material: 40 Cr CNC processing HRC 28-32 ,finish turning and electroplate
Drive by Heavy duty chains: 1.5 inch

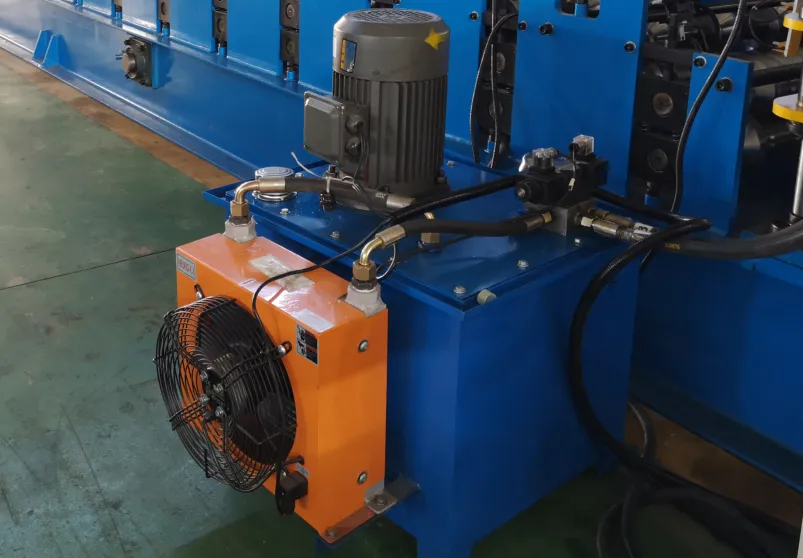

Hydraulic station

1.Hydraulic station motor:5.5KW 2.Hydraulic oil:46# hydraulic oil
3.Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic
pipes. And one of electromagnetism valve

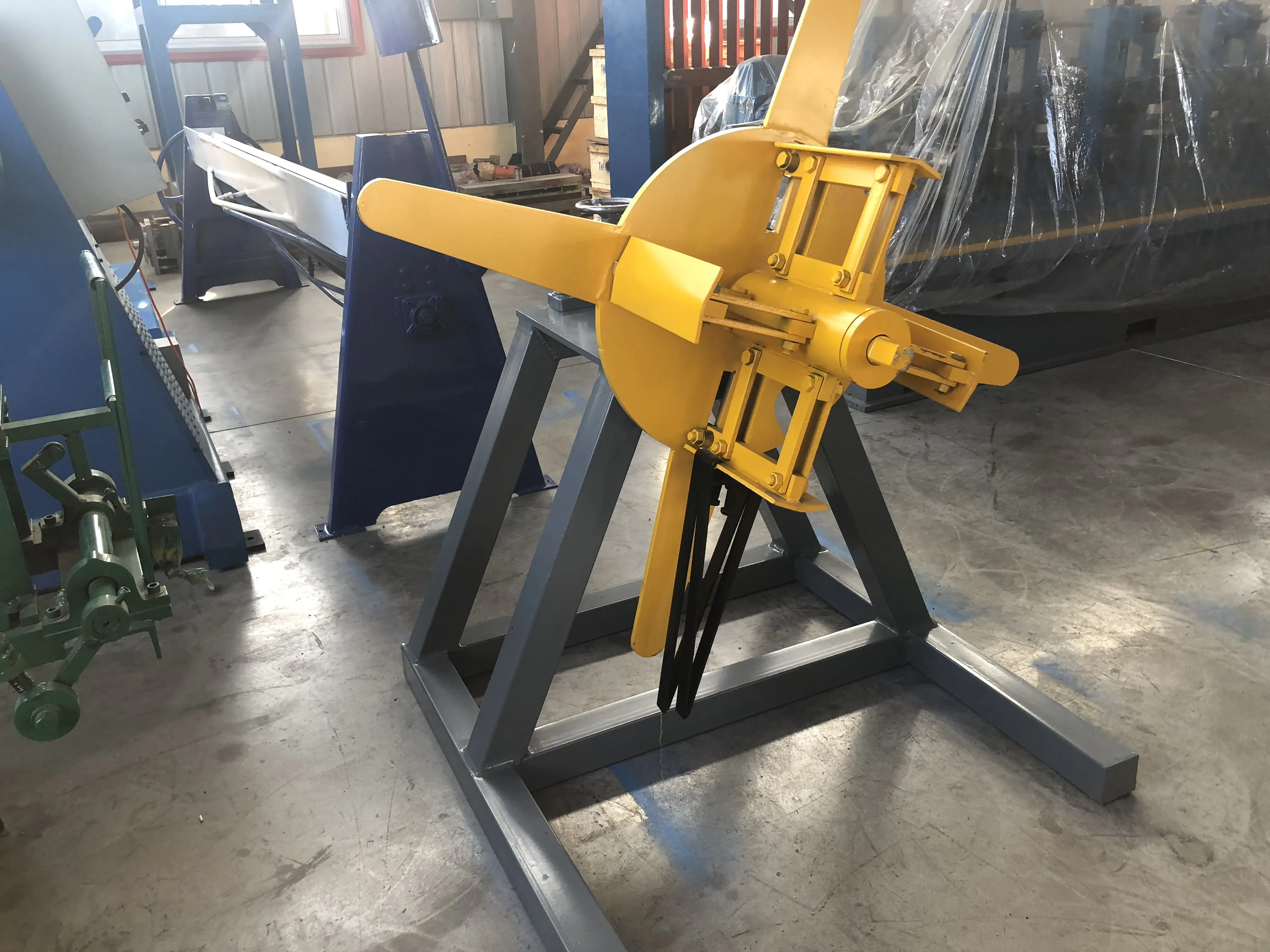

Manual decoiler

Capacity:3 tons Coil inner diameter:450-550mm Feeding width: max 500mm Structure: welded by the steel plates and profiled bar.

CE(NO.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
