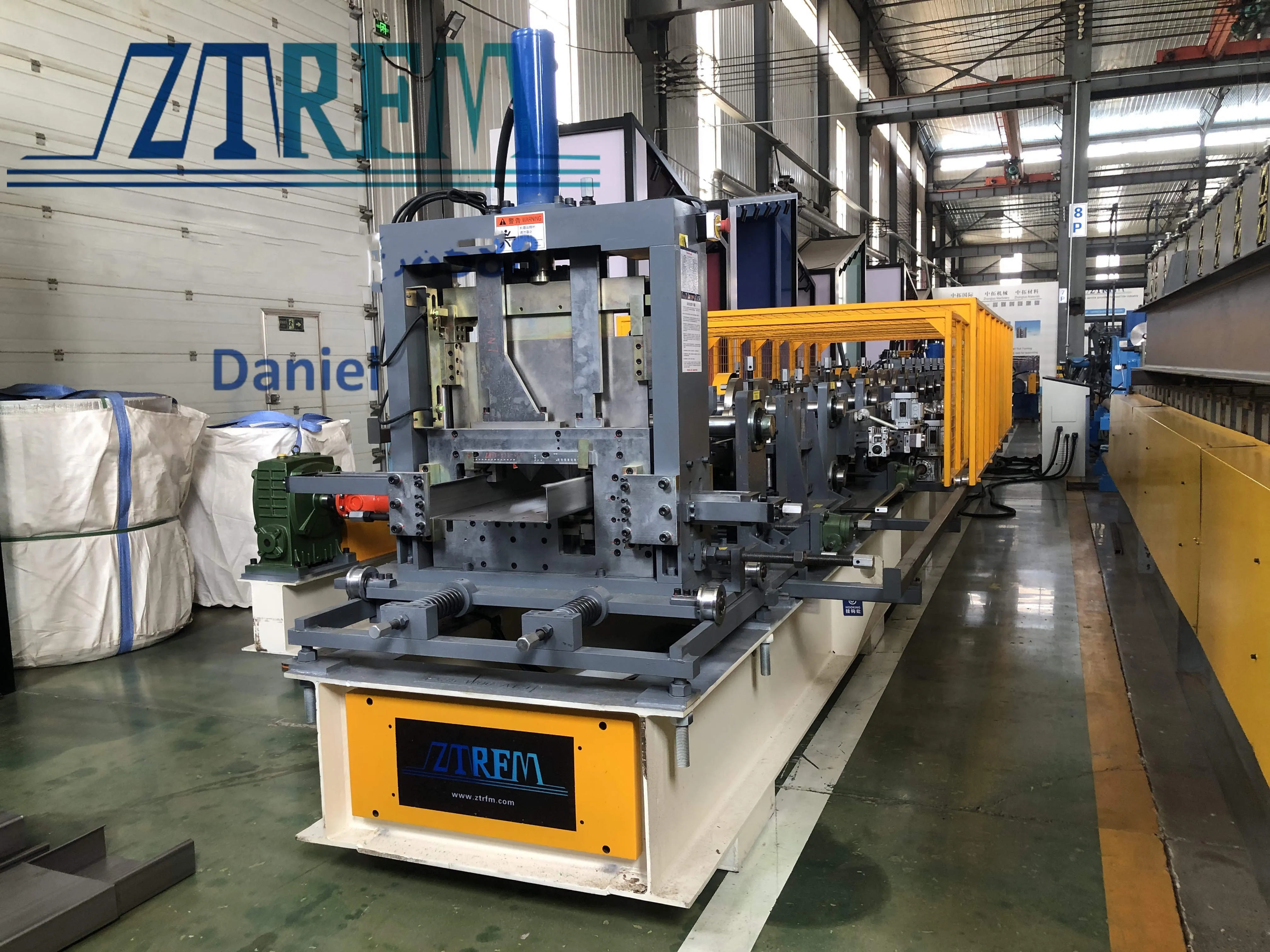

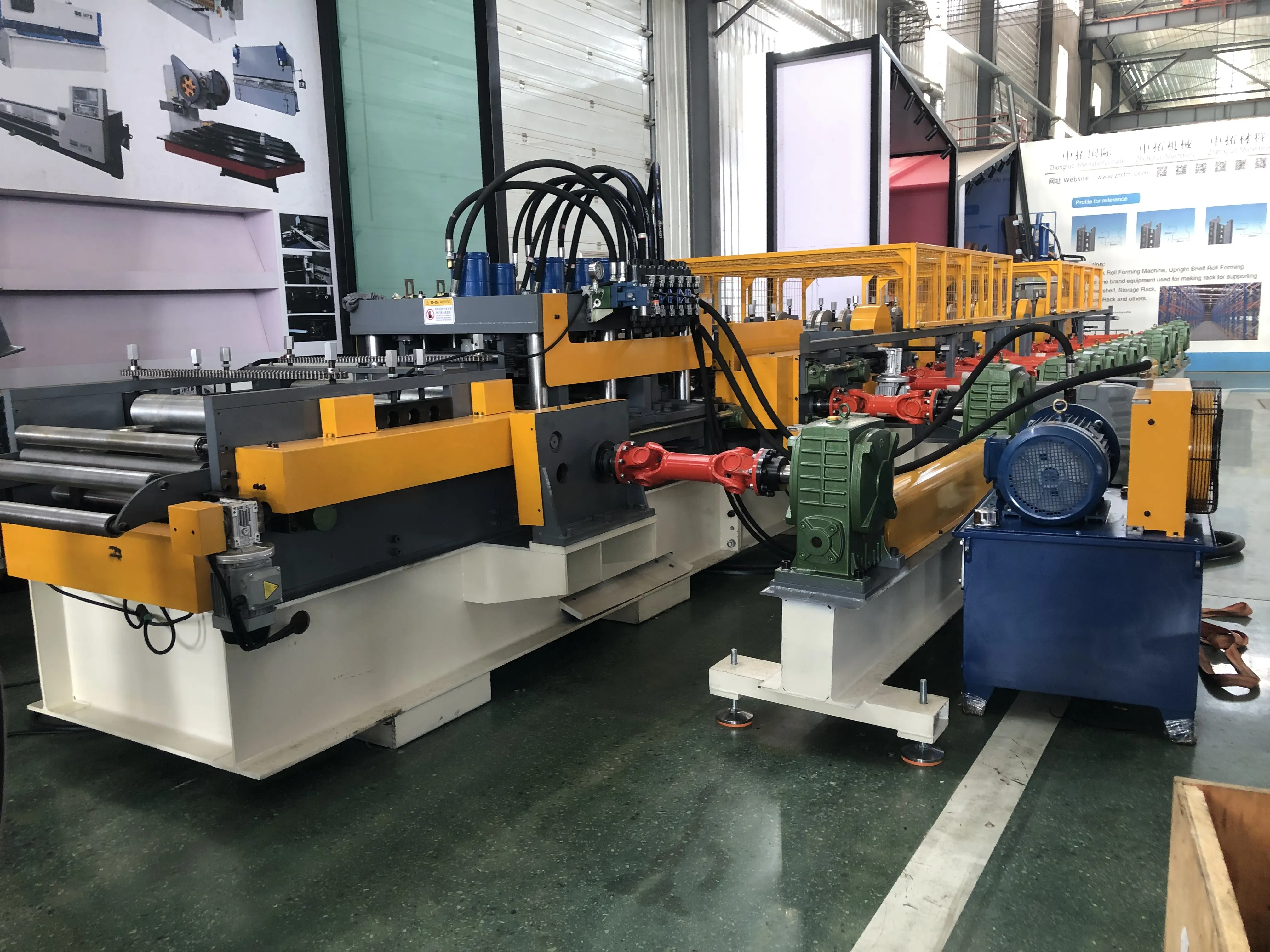

High speed CZ purlin roll forming machine

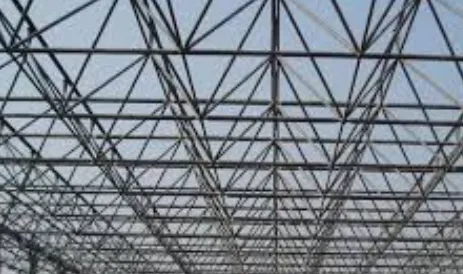

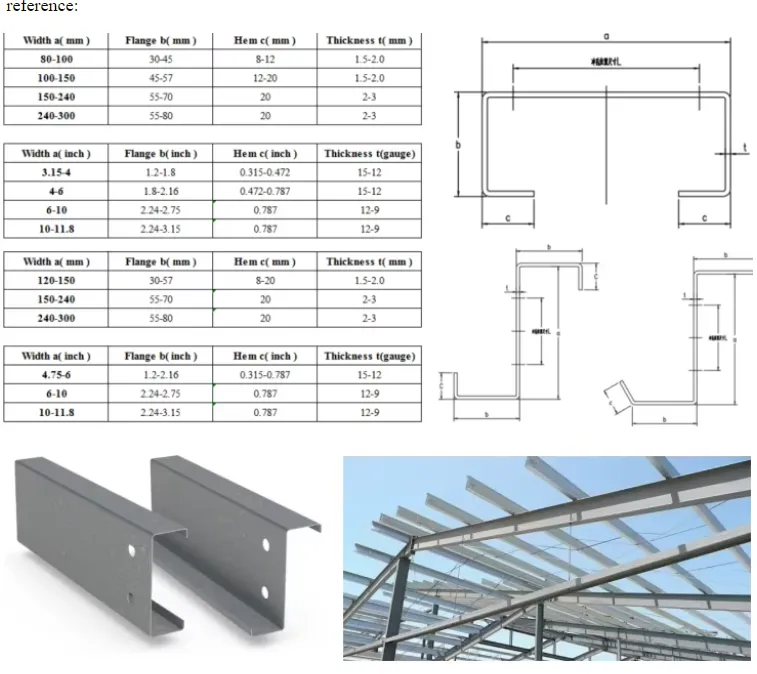

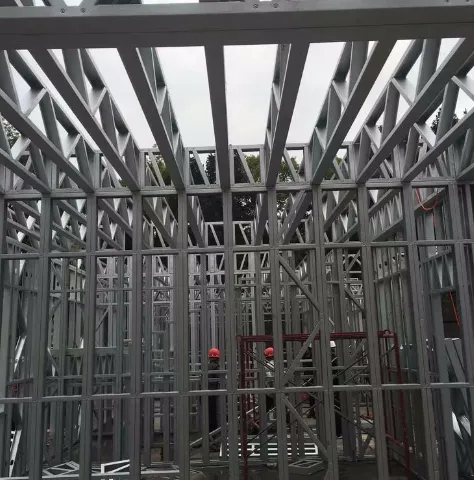

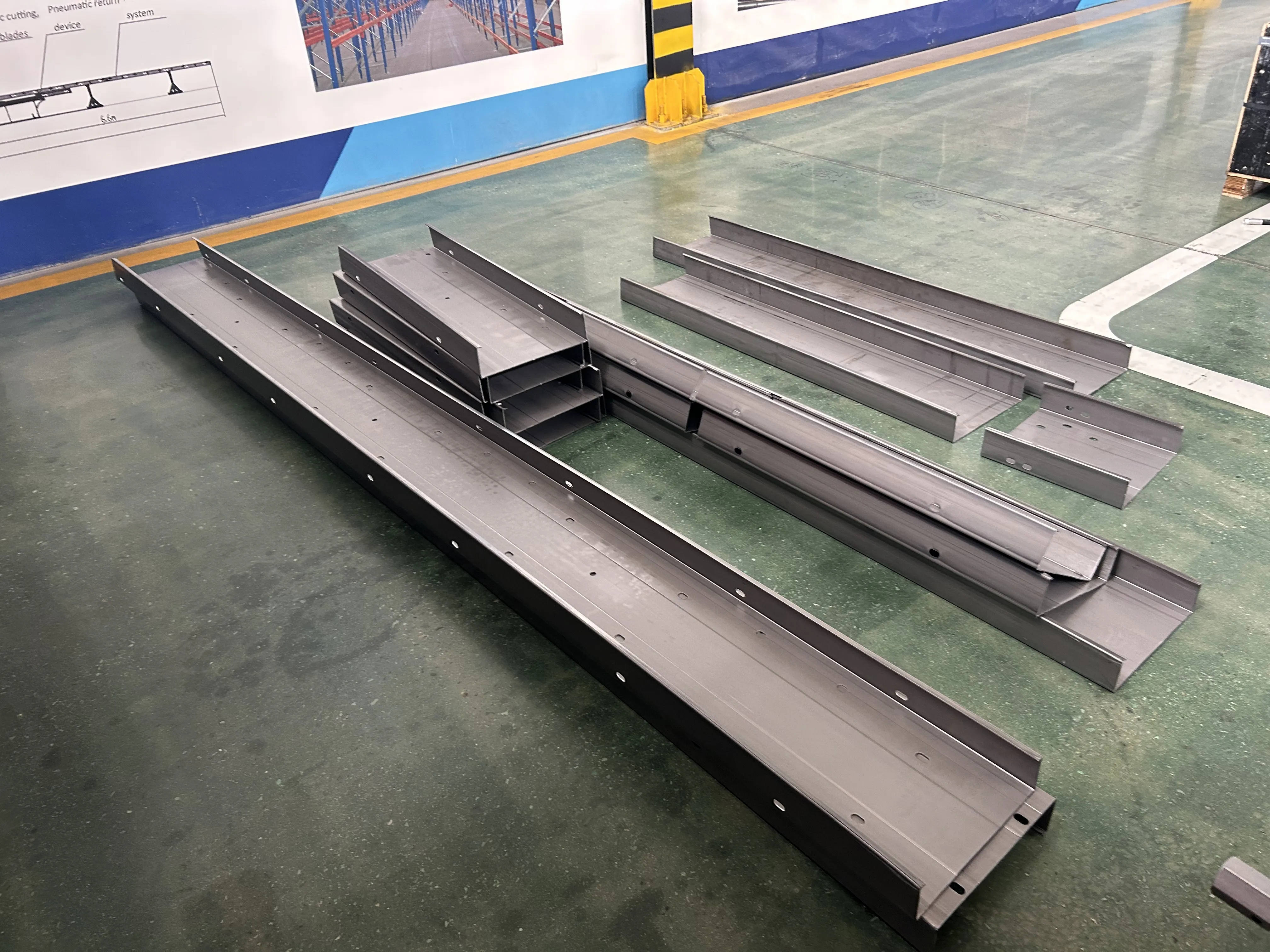

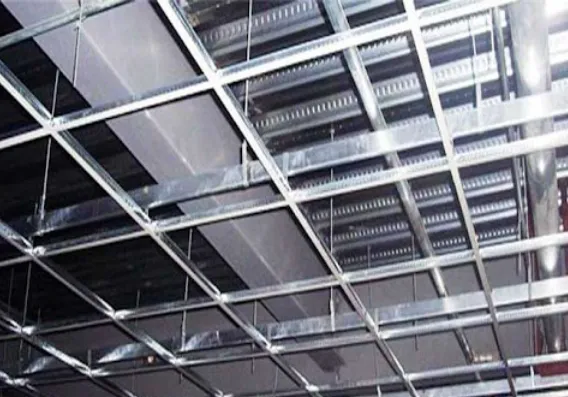

CZ steel can be used for building main structure, and after deep processing, it can well meet the design requirements of building structure, making the building structure more stable and reliable. C-shaped steel is mainly used on some wall beams and sandal wood strips in buildings, which can obtain a relatively sturdy building structure. Z-shaped steel is a common cold-formed steel that is commonly used in large steel structures, especially in buildings like factories, and has seismic resistance. Shelves, vegetable greenhouses, and furniture: CZ steel is also used in the production of shelves, vegetable greenhouses, and furniture.

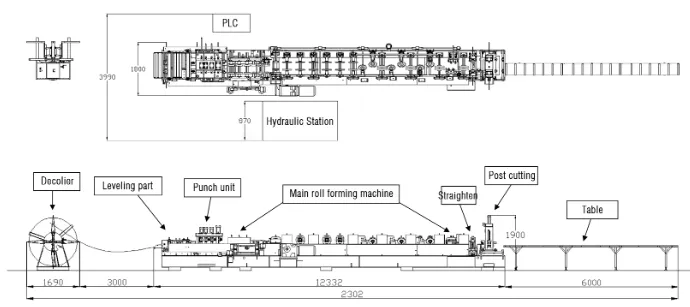

Muti Sizes In One Full Automatic Adjustable Steel Frame Purlin Machines C Z Purline Roll Forming Machine
1.Formed Material	PPGI,GI,AI		Thickness:1.5-4mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		24 rows(As your requirement)
		Diameter of shaft		90mm solid shaft
		Roller Materials		Cr12 CNC machining, heat treatment to HRC: 58-60, precision turningMaterial of rollers
		Machine body frame		Metal steel welded
		Drive		Chain transmission
		Dimension(LWH)		1200025001200(customize)
		Weight		About 8T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		40KW
		Hydraulic system power		15KW+cool system
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	40m/min(customized)		The speed depends on the shape of the tile and the thickness of the material.

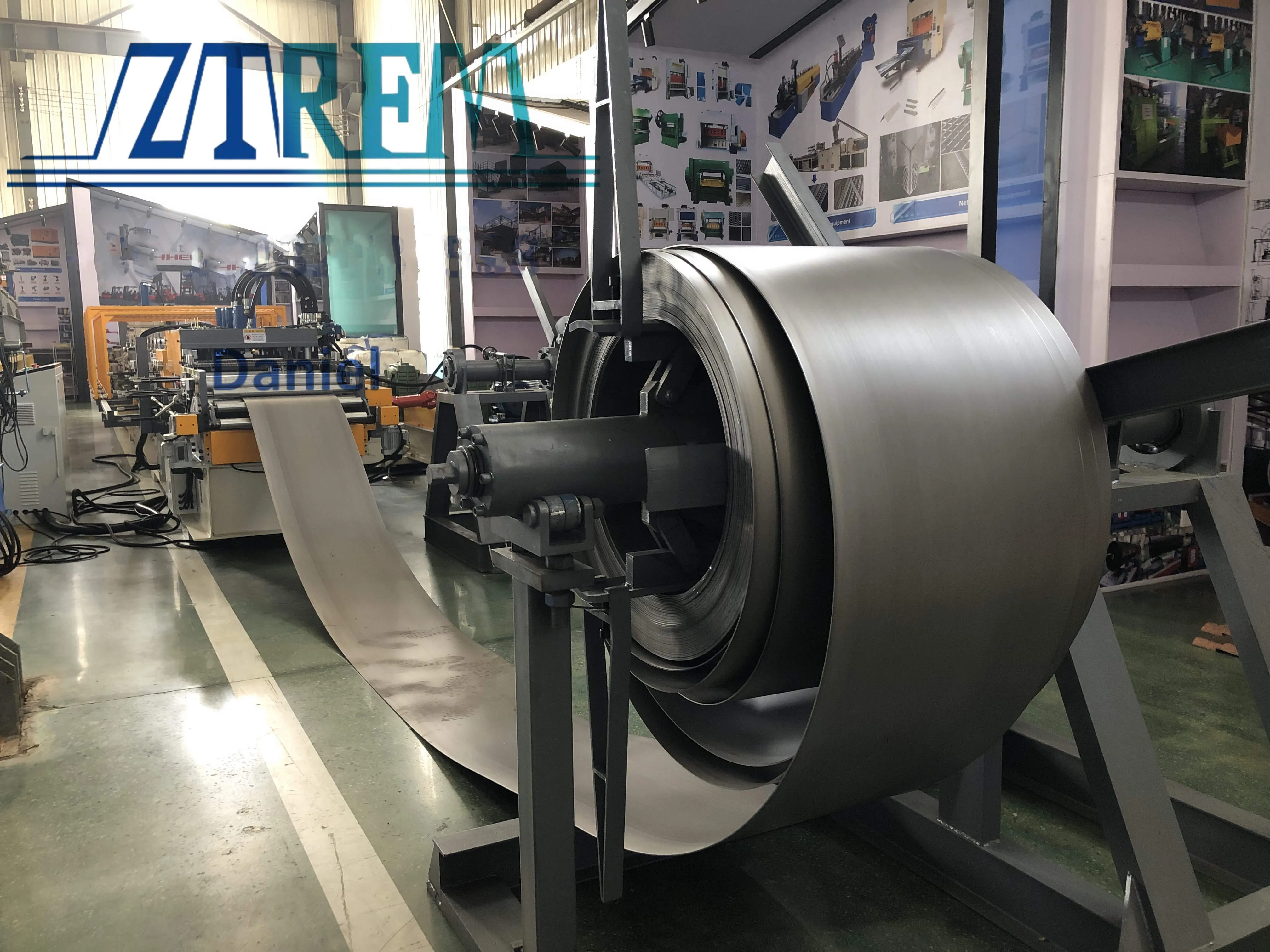

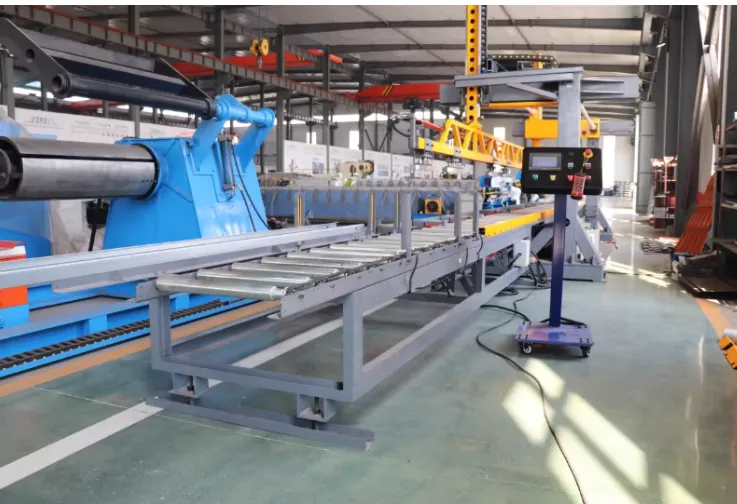

Manual Decoiler

1.Coil Inner Diameter: 450-550mm 2.Feed Width: Maximum 500mm 3.Structure: Manually operated coil expansion and contraction 4.Maximum Load Capacity: 8 tons

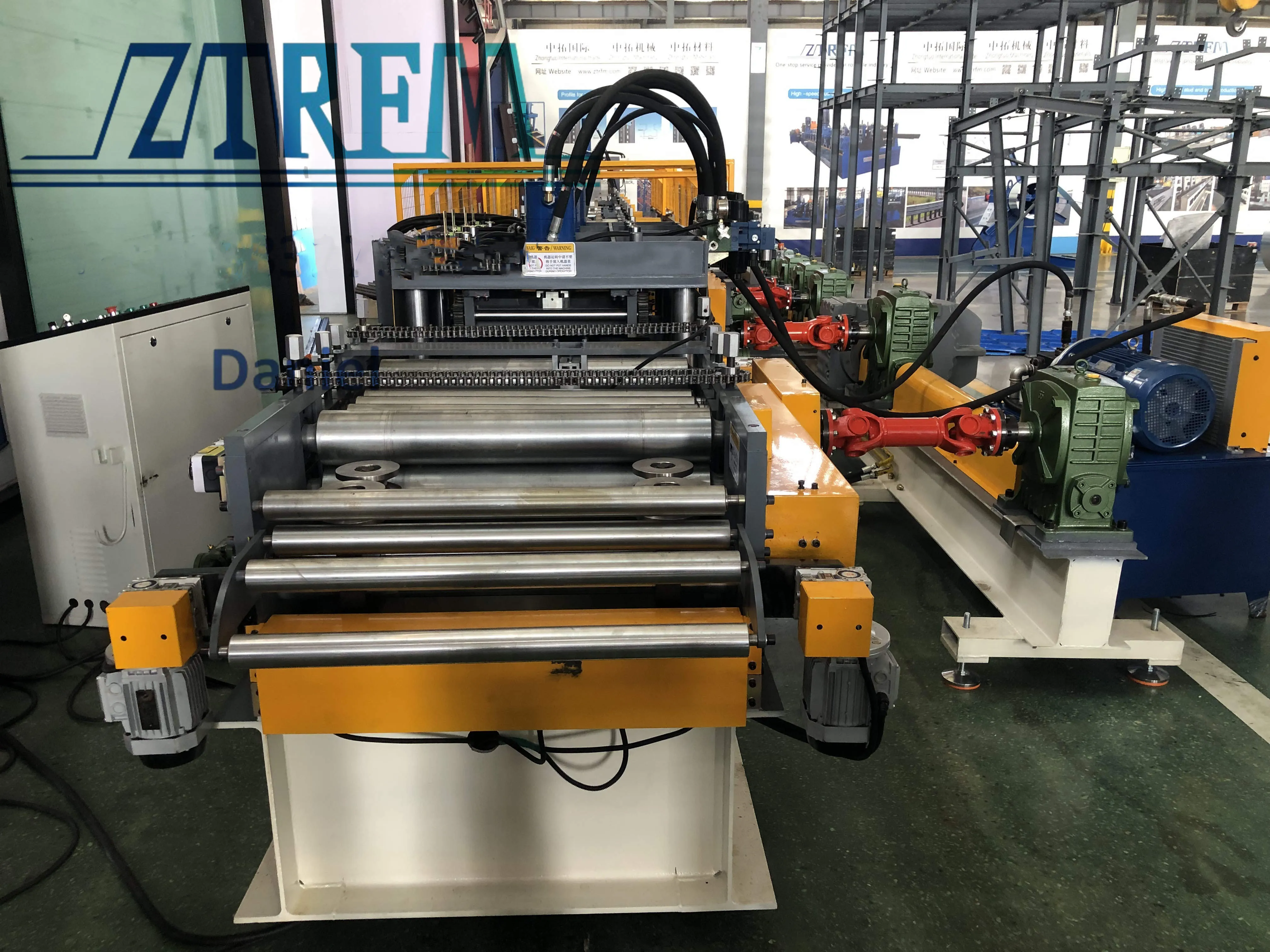

Feeding And Leveling Device

1.Has an electric button here, which can automatically adjust the feeding width 2.Leveling rollers: 3 up 4 down Roller material:
Cr15 Roller diameter: 75mm 3.Feeding width adjustment: automatic by button Make sure inputted steel sheet straight and neat and then roll forming process could be made accurate

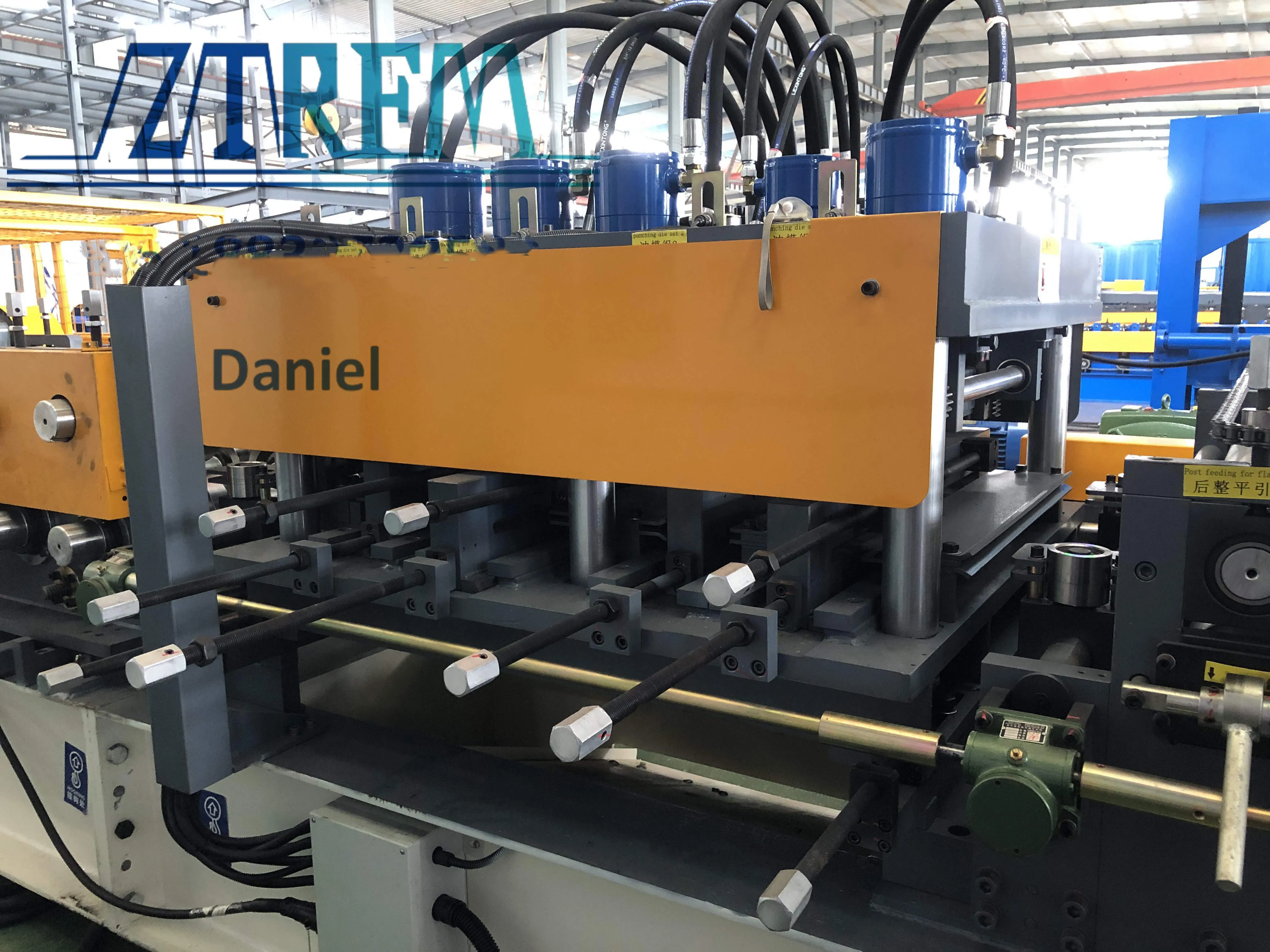

Puching Unit With Hydraulic System

Station 1: Pre-Hydraulic shearing

Station 2: Bottom center holes punching Station 3: Bottom double side holes punching Station 4: Each side flange holes punching

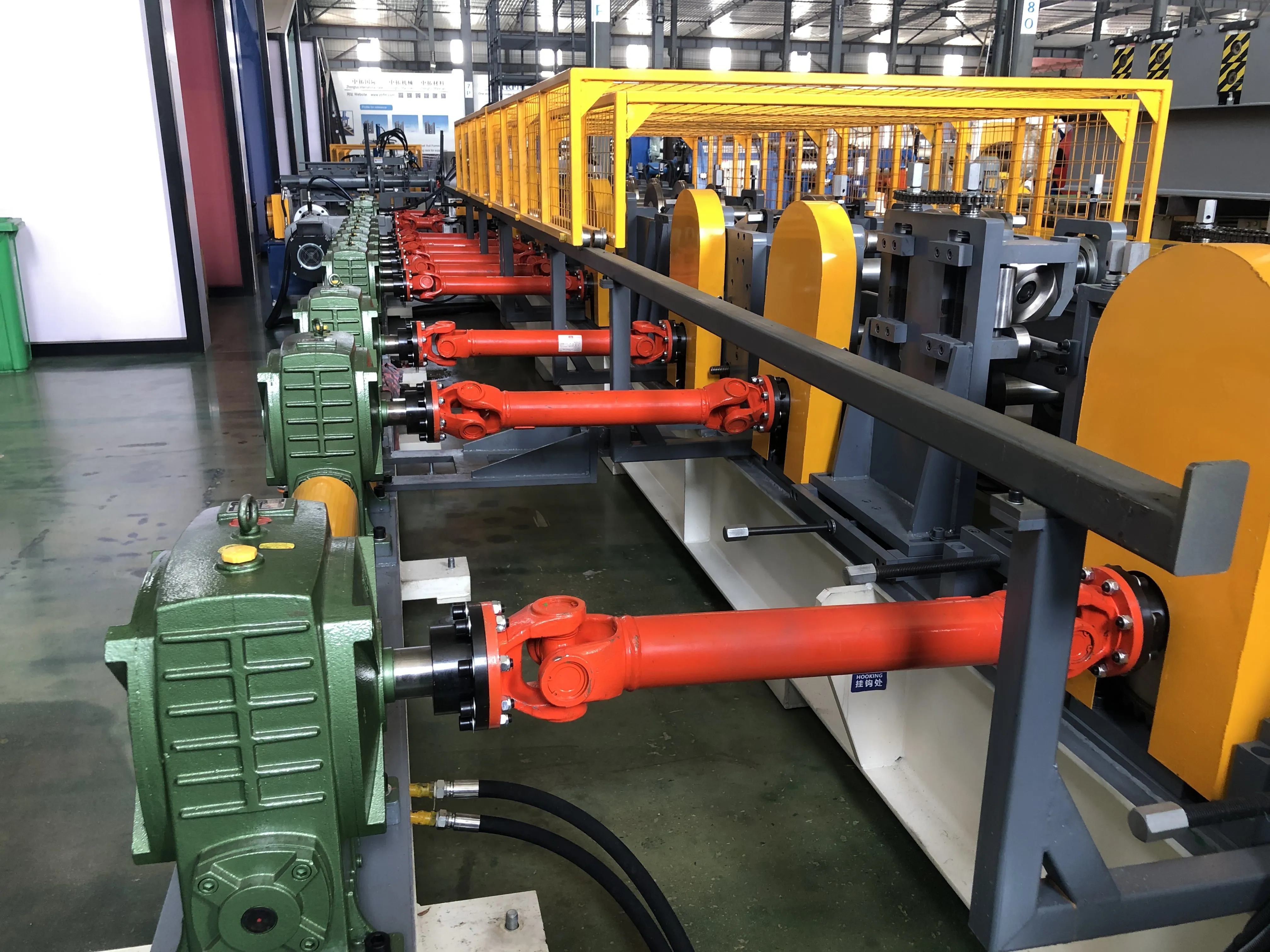

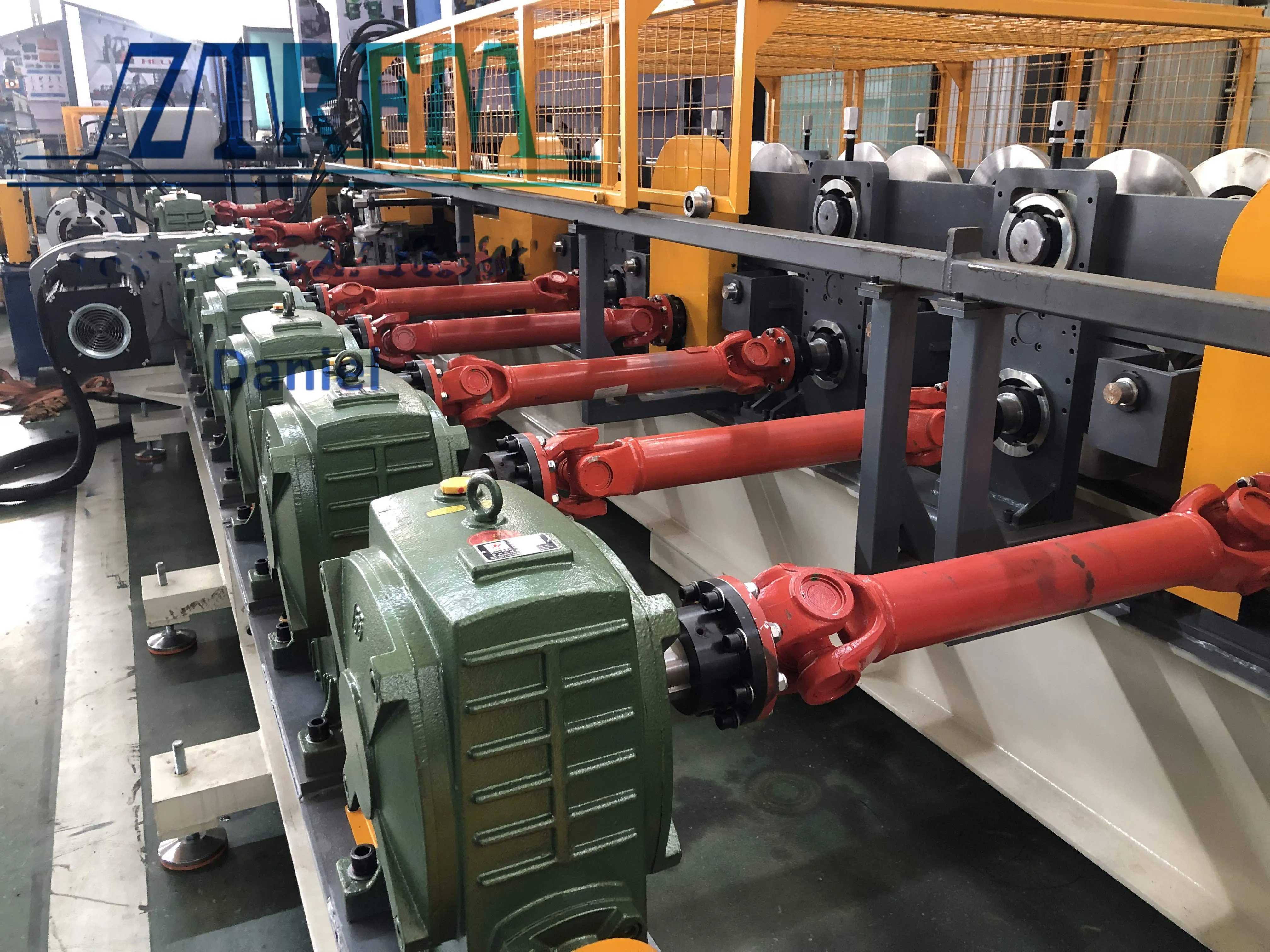

Gearbox Transportation

Servo motor drive, gear box transmission

The gear transmission ratio reaches 1:1, ensuring that the entire roller starts to transmit evenly when the machine starts.Ensure the high speed of the machine

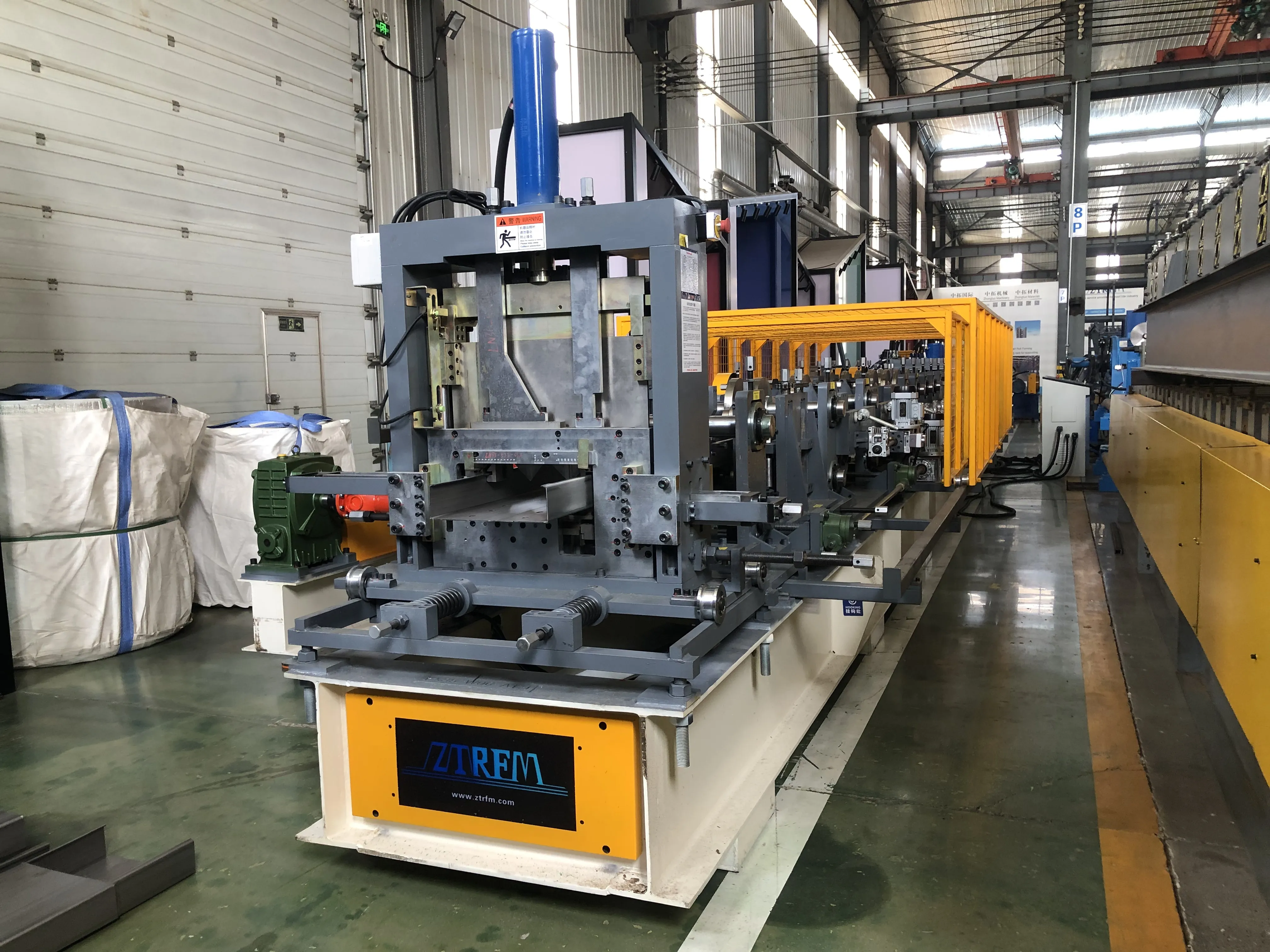

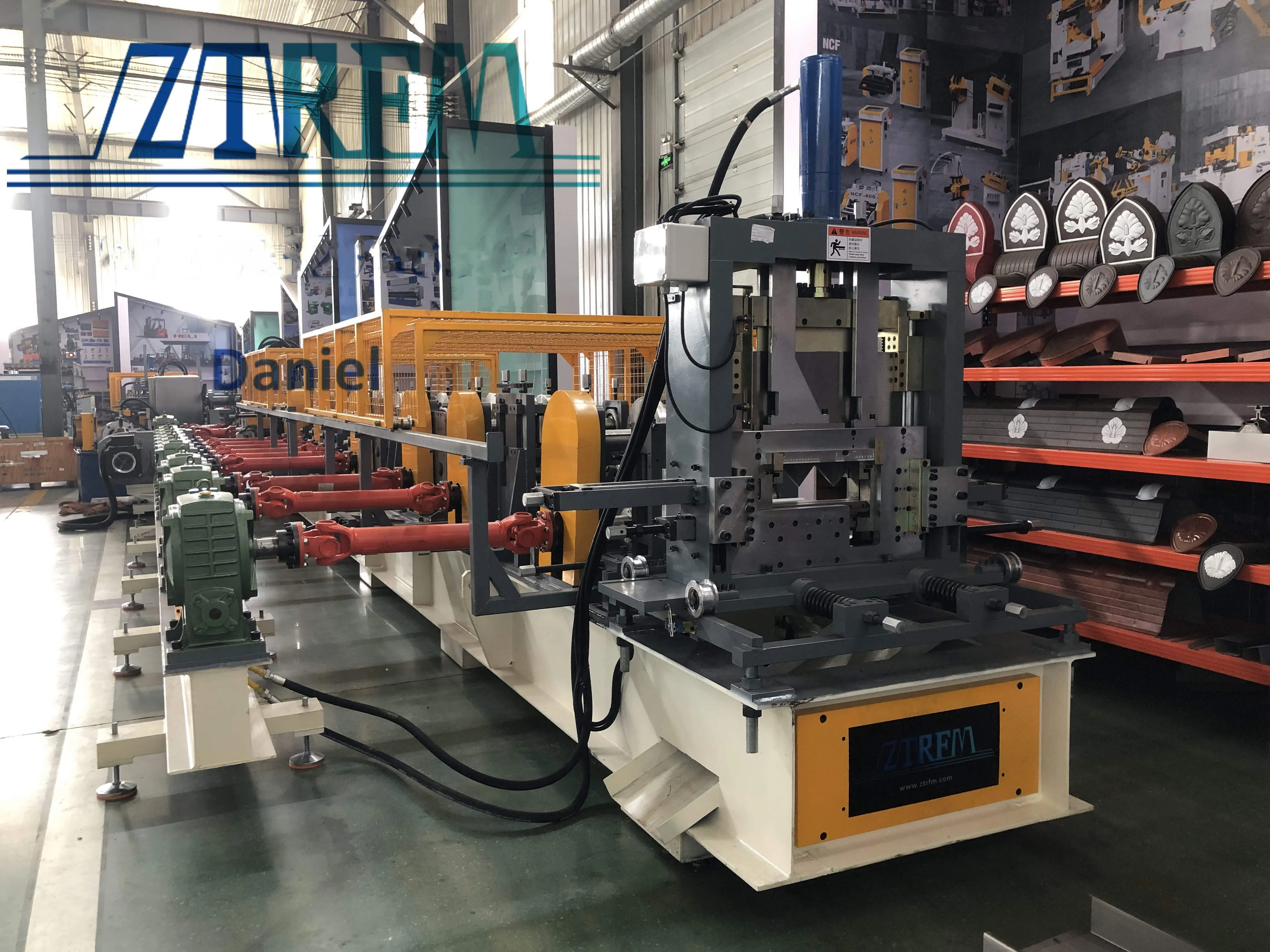

Main roll forming machine

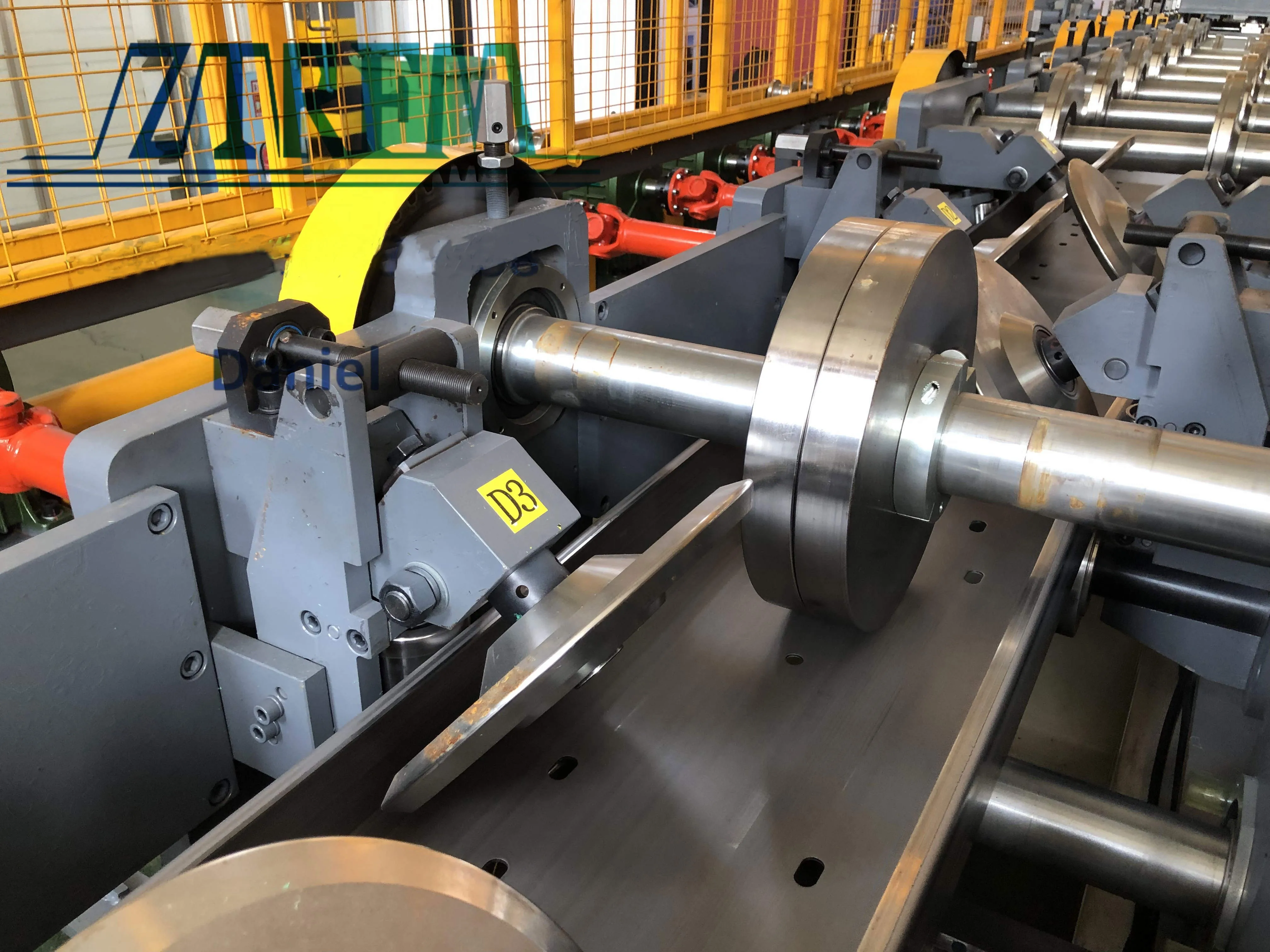

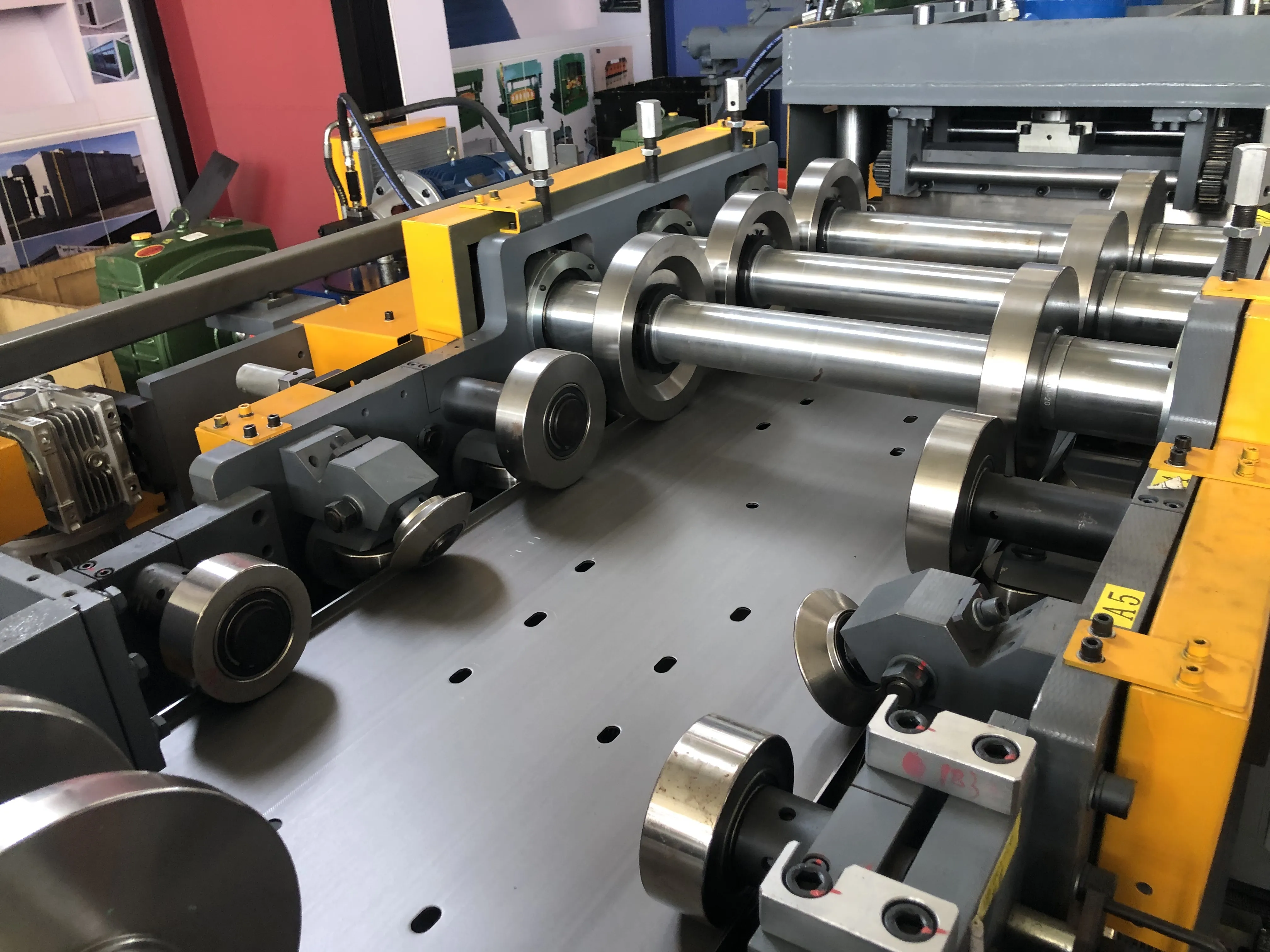

1. Rollers material:Cr12 CNC processing heat treatment to HRC: 58-60 ,finish turning Roller 2. stations: 21 rows , 12 unit roller
stations for C and Z changing.

3. Shaft material:Shaft material: 40 Cr CNC processing HRC28-32 ,finish turning and electroplate Drive

Hydraulic Cutting system

1.Fully automated knuckle pressing

2. Fully automated cut of products
3.No need change cutter-produce different sizes C Z purlin in one machine

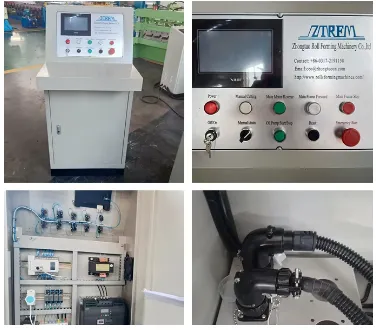

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation

4.Languages can be customized

Automatic Stacker

1. Saving manpower 2. Can improve productivity 3. Equipped with rubber wheels and nylon pads to better protect the finished product.

4.Length: 6 meters The frame body is welded with channel steel and angle steel, and the roller is installed on the surface.

5.Related suggestion: If the local labor cost is high, you can also choose automatic palatalizing ( Price:28000 USD )

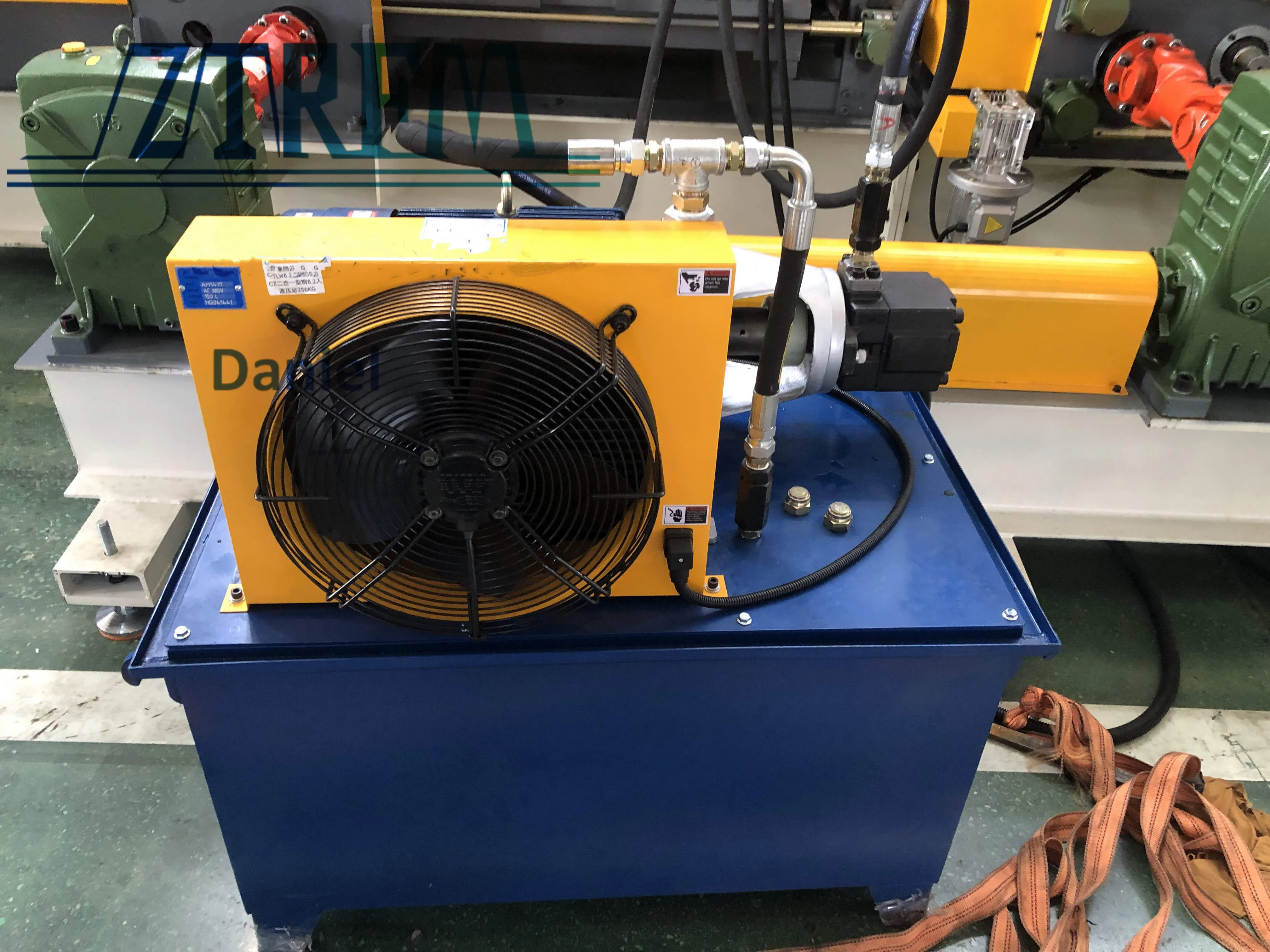

Hydraulic station

1.Updated type

2.Low noise
3.Cooling fan for long service time.

4. we add temperature ,the temperature of the hydraulic station can be measured in real time, more convenient and faster
