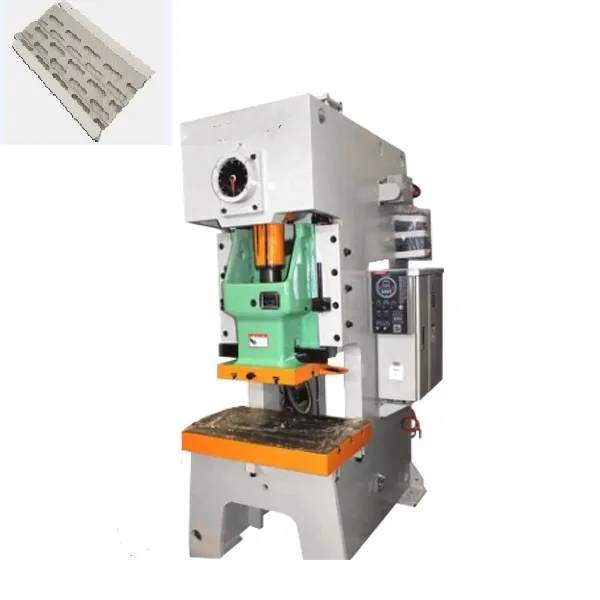

High Speed Micro Perforation Machine Steel Sheet Metal Hole Punching Machine Perforated Mesh Making Machines ZHONGTUO-PUNCHING

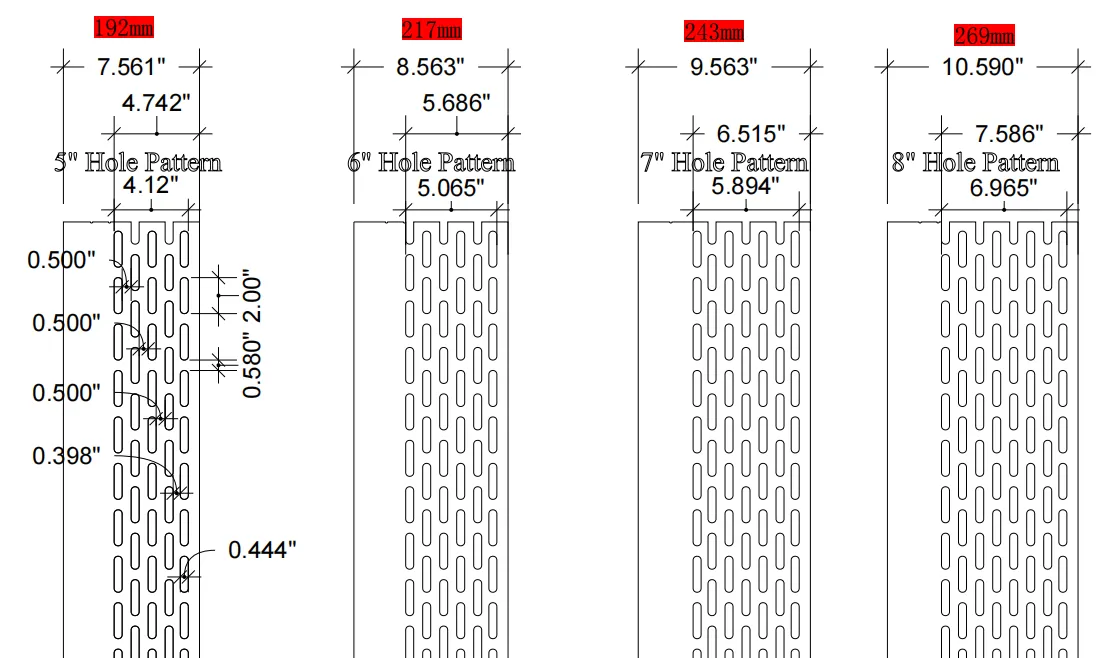

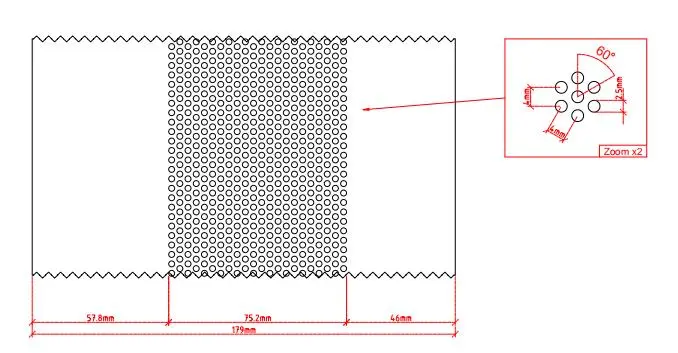

1. The required pattern :

Material thickness: 0.8mm

Raw material:

steel / galvanized / aluminum

2. The production line working process:

Electric decoiler -- Servo feeder -- Punching -- Damping device -- Recoiler

https://www.youtube.com/watch?v=6yFzlEi52w4

3. The complete production line packing list:

1

Electric decoiler

1 set

1.5 ton

2

Servo feeder

1 set

3

25 ton Punching machine

1 set

Pneumatic model, Yangli brand

4

Punching dies

1 set

Material: SKD11 with titanium plating

5

Damping device

1 set

6

Electric recoiler

1 set

1.5 ton

4. The specification for high speed punching line:

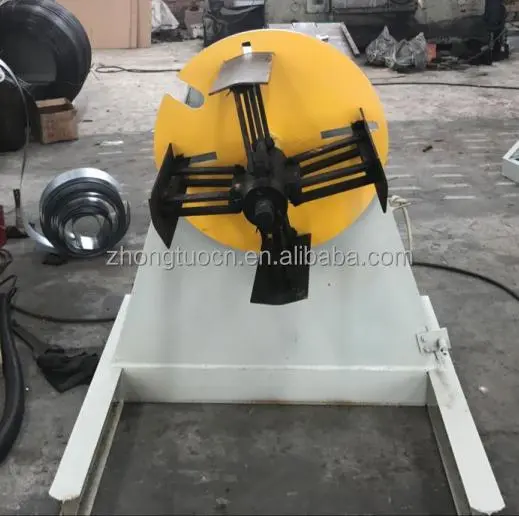

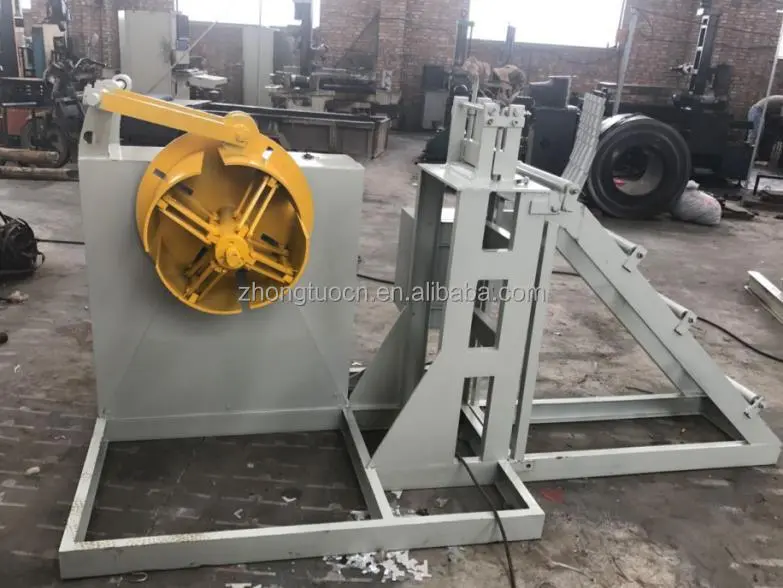

PART 1       Decoiler

Type : electric

Motor power:0.75kw

Inner diameter:450-550mm(as required)

Capacity: 1.5T

Decoiler dimension: 1000*1000*1200mm

Decoiler weight: about 200kgs

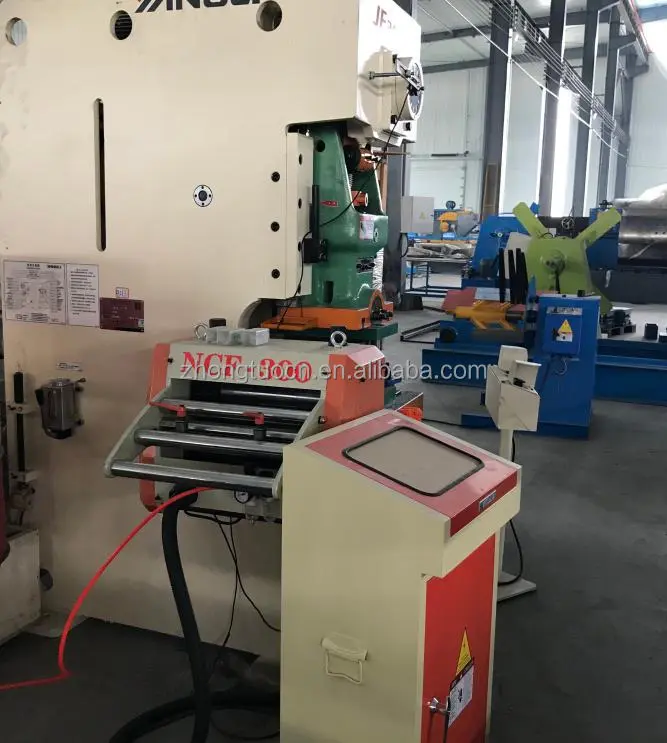

                          PART 2       Servo feeder

Type: model NCF-300

Servo motor power:1.5kw

Control system: by PLC

Feature: high precision, high speed

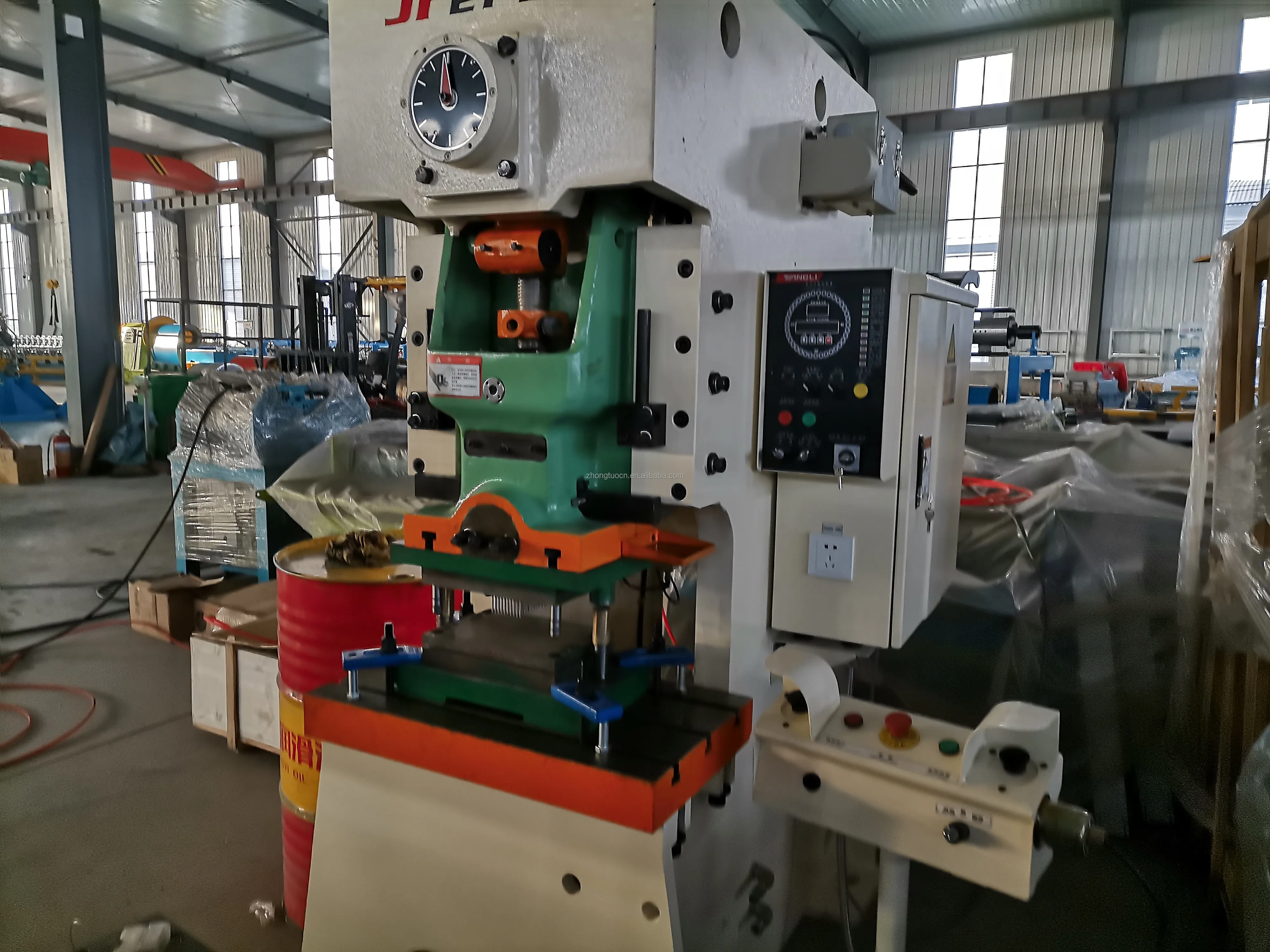

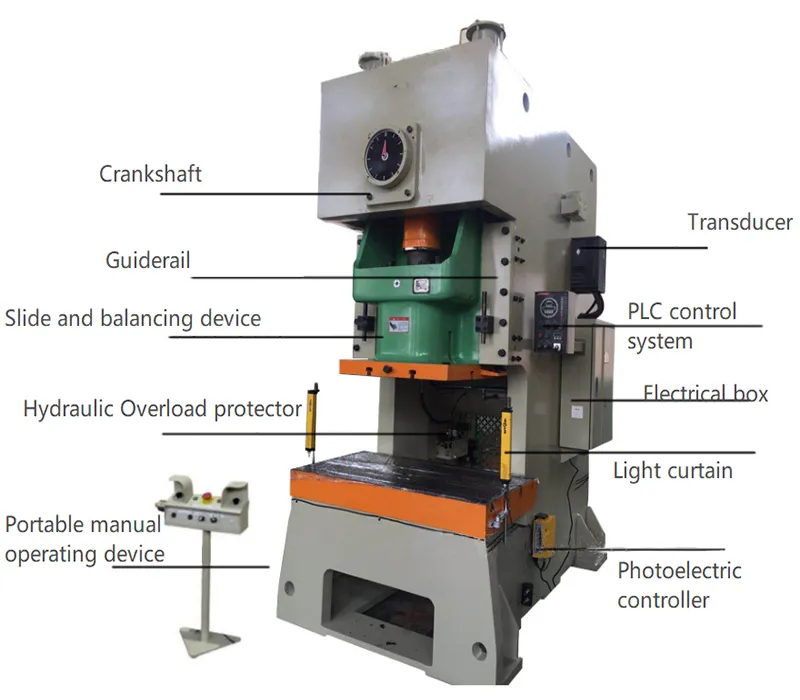

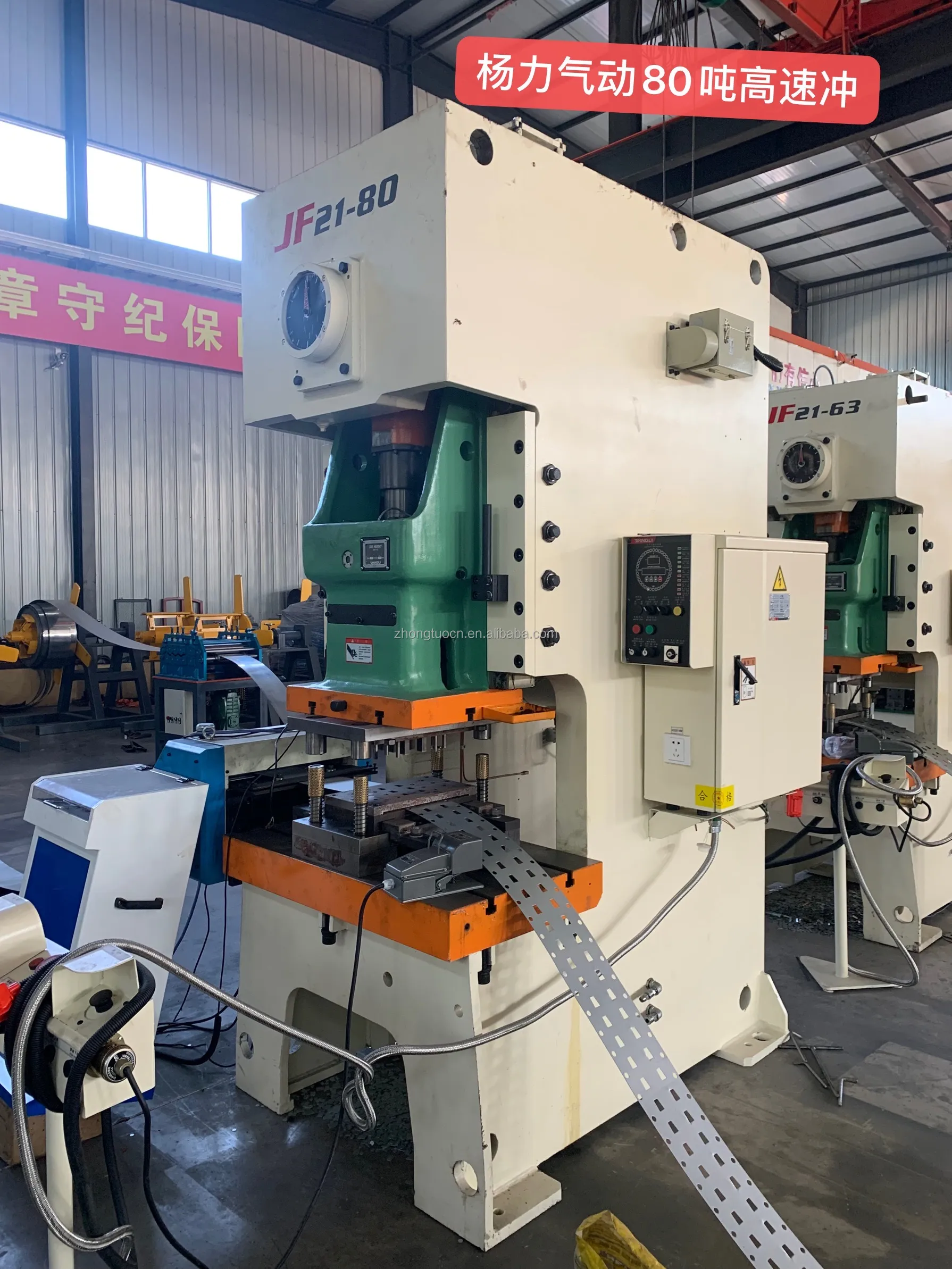

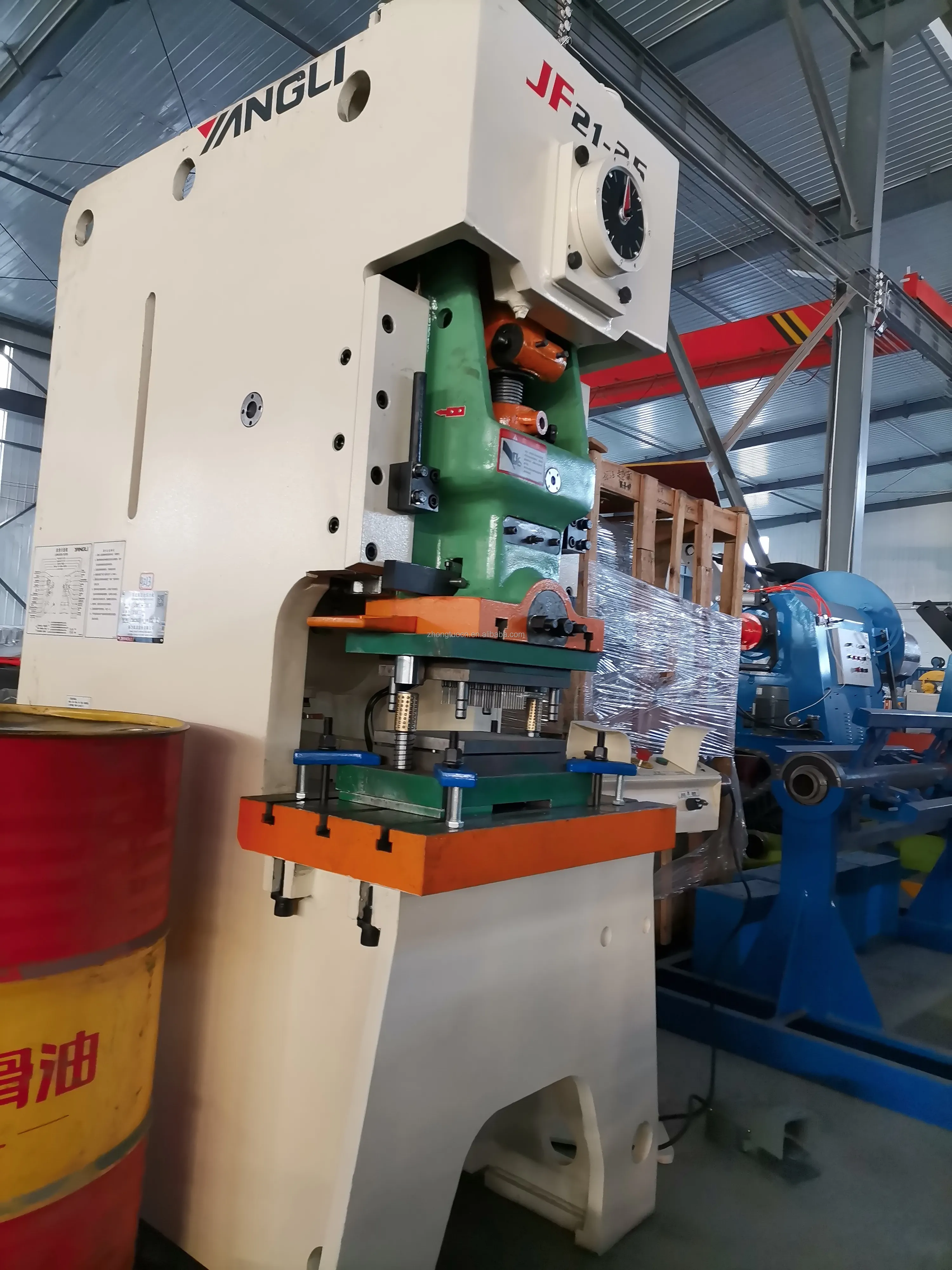

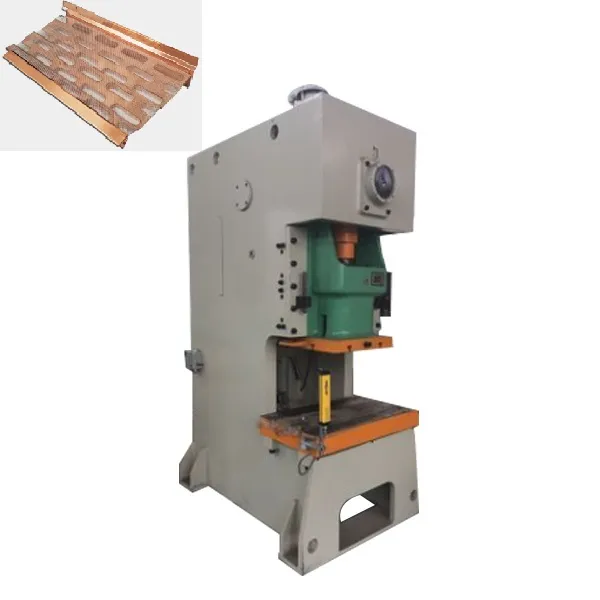

PART 3 & 4    Punching machine & punching dies

Punching machine model: JF21-25B (Yangli brand, famous brand)

Punching machine pressure: 25T

Power : by pneumatic

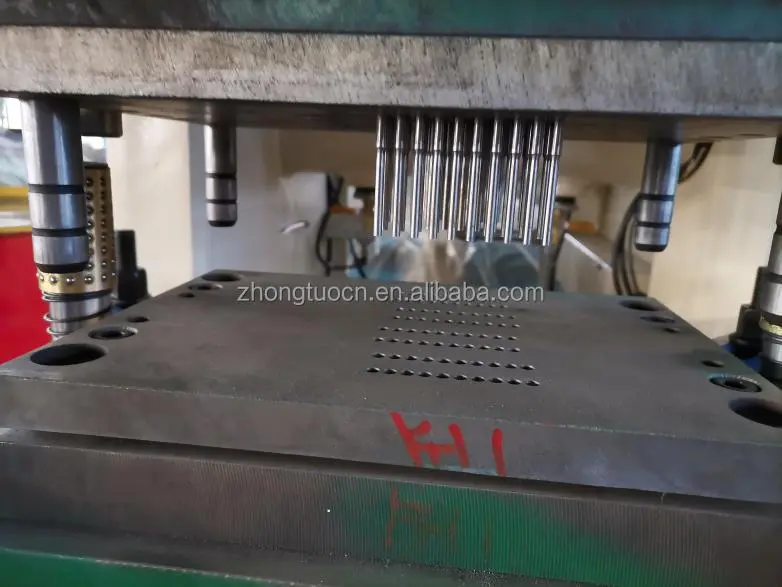

Mold material: SKD11 with titanium plating

Speed: 120 times/min

PART 5&6      Damping device & Recoiler

Type : electric

Motor power:0.75kw

Inner diameter:450-550mm(as required)

Capacity: 1.5T

Payment and warranty

1. Payment terms:

   -30% by TT for the advance payment at order

   - 70% will be paid after inspection before shipment

2. Delivery: 20 working days after the advance payment.

3. After-sales service

A: Warranty: One year, if any part is damaged with the normal use, we will give you the new for free to replace the broken one. And we will provide the technical support for the whole life.

B: Training and service: The buyer will arrange the transportation and accommodation for the technician, and daily salary is USD100 per person. Meanwhile, our technician will train the workers how to operate the machine and how to maintain the machine daily. Besides, need 2-3 workers to help our technician for installation and commissioning.

C: we will provide you the layout for installation in English, it will be much easier to prepare the space and install the machine according to the layout.
