Specification:

Production Capacity:

15 m/min

Model Number:

ZTRFM-R

Power(W):

7.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
380V
Rolling Thinckness
0.3-0.8mm
Feeding Width
1220mm or customized

Product Description

High Speed Metal Step Tile Making Machine Q Tile Cold Roof Tile Making Machine

Zhongtuo’s Innovative Design: Using the provided profile drawing as an example, our high-speed glazed tile machine demonstrates precision engineering with:  Robust Roll Forming System – Ensures consistent, high-quality tile shaping. Optimized Drive Mechanism – Delivers smooth operation at accelerated speeds. Durable Material Compatibility – Works with coated steel, aluminum, and other metals for long-lasting roofing solutions. Ideal for large-scale roofing production, this machine combines speed, stability, and automation to maximize output while maintaining superior product accuracy.

Features：
Stable Transmission: Gear box transmission

Strong structure: Casting iron brand structure
Full Automatic Easy Operation: Whole producing line just need one person for operation. PLC control system control the machine speed, length and quantity.

Will also give you a remote control for easy operate.
Hydraulic per cutter

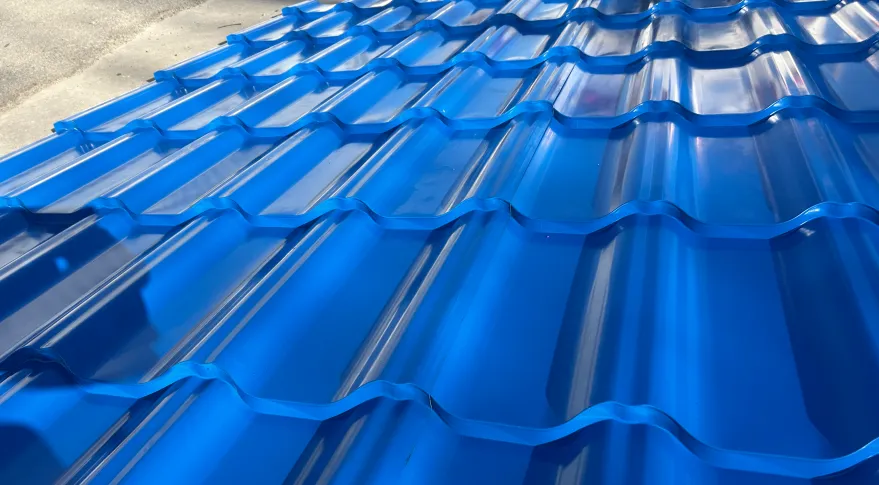

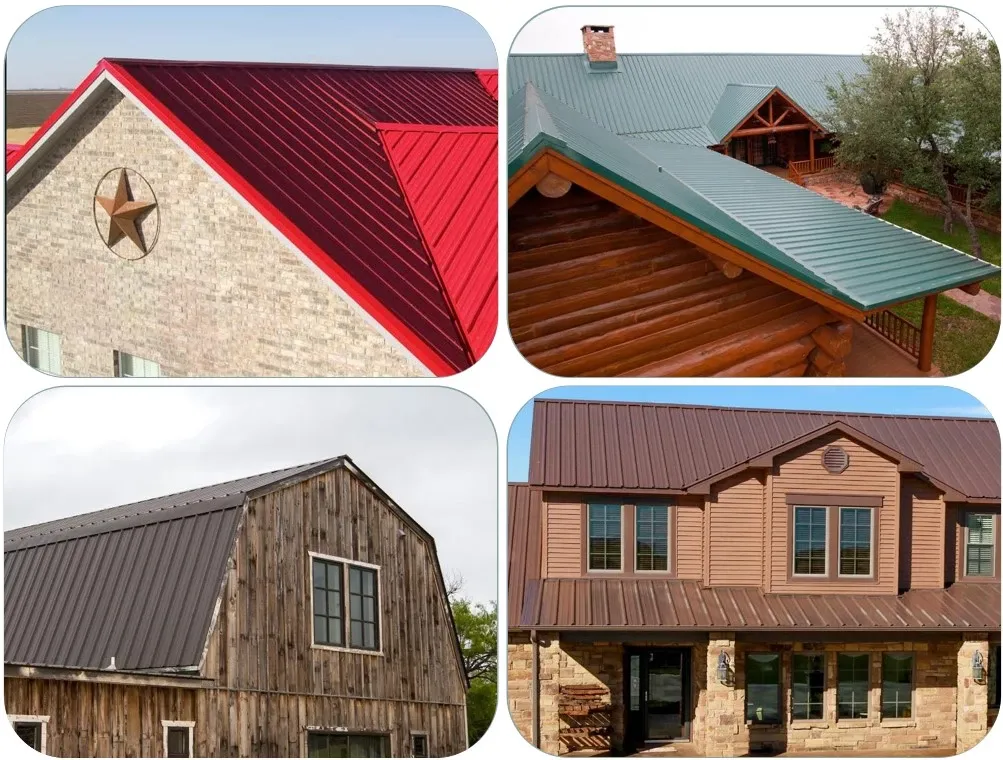

Application of the finished product showing

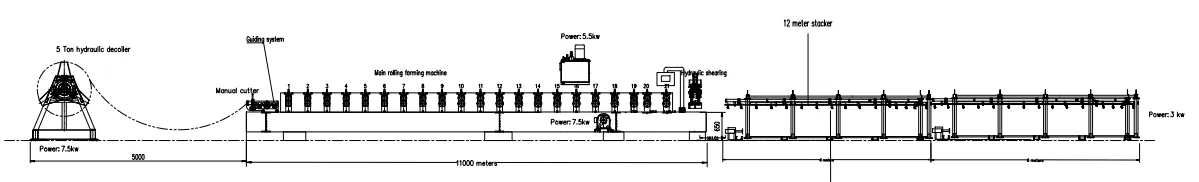

Processing Flow

Uncoiling → Feeding material into machine →Roll forming → Auto cutting →Products receiving table

USA popular PBR panel Roll Forming Machine R panel Roll Forming Machine roofing sheet making machine
1.Formed Material	PPGI,PPGL		Material Thickness:24/26 Gauge （0.3-0.6 mm) Width:43inch(1092mm)
2.Decoiler	Hydraulic decoiler(optional)		Manual decoiler(will give you as free）
3.Main body	Roller station		18 rows(As your requirement)
		Diameter of shaft		80mm solid shaft
		Material of rollers		High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
		Machine body frame		350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate.
		Drive		gear and Double Chain transmission
		Dimension(LWH)		9.5m1.65m1.5m
		Weight		7.5T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5KW
		Hydraulic system power		4.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	15-20m/min		The speed is adjustable

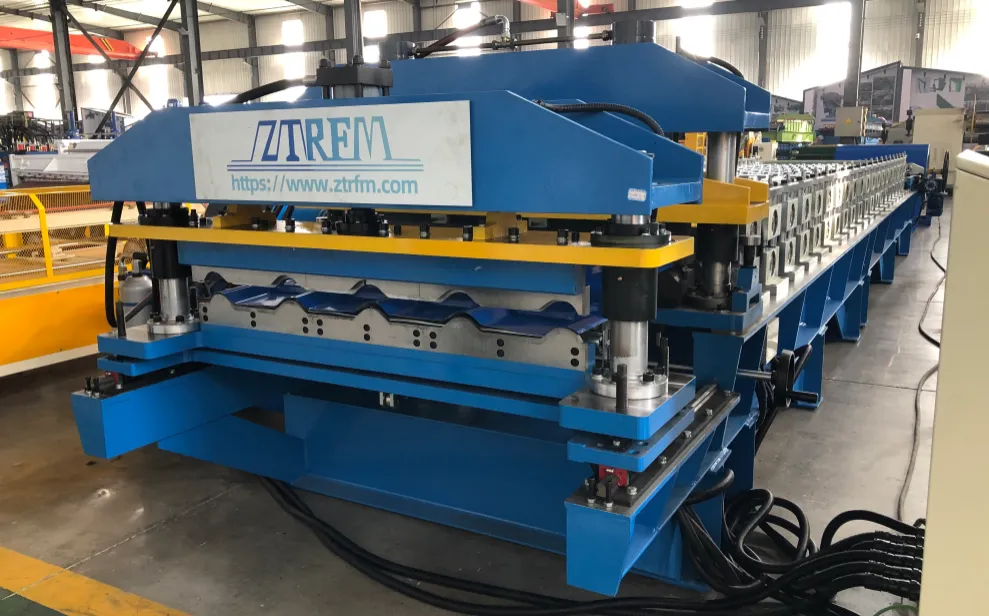

Products Display

5T Manual Decolier For Free

Capacity:5 tons

Coil inner diameter:450-550mm Feeding width: max 1220mm Structure: welded by the steel plates and profiled bar.
The shrink and expand of core is manually, with manual brake,The coil moving forward or reverse is pulled by roll forming machine

Feeding Device

1.Hand wheels on both sides can be used to adjust the feeding width. 2.Four stainless rollers can make the material go into the
machine smoothly and prevent the scratch on the material surface. 3.There are three rows of orange plastic rollers can make the
steel coil go into the machine smoothly.

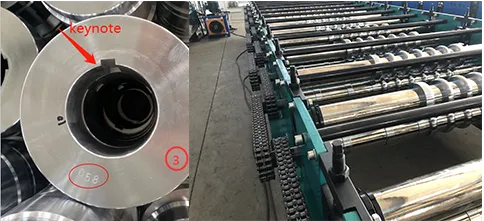

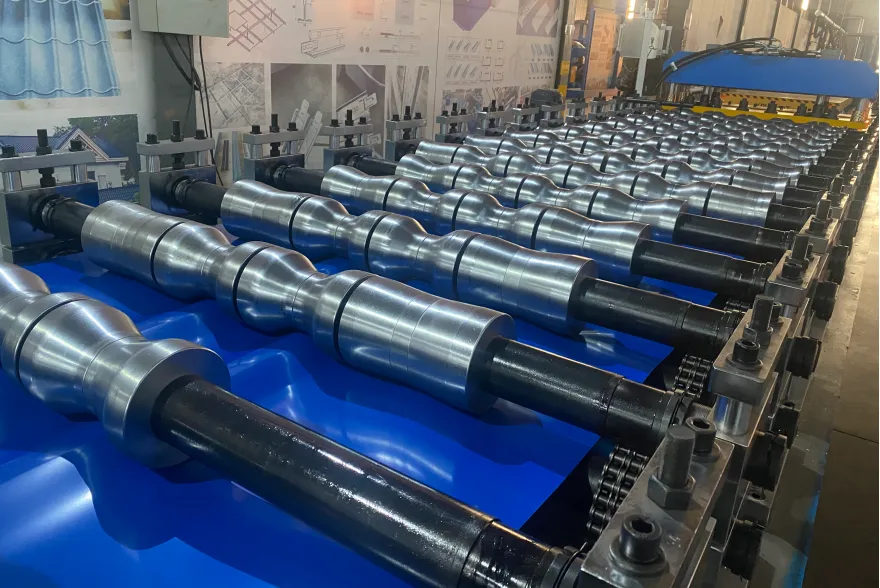

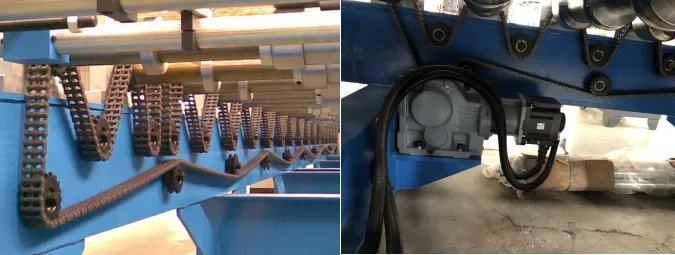

Roll Forming And Transmission Device

1.rollers thick chromed good hardness for long service time.

2. Each roller has number and with keynotes, it can fix on the shaft

stablely

3.gear and double chain,stable

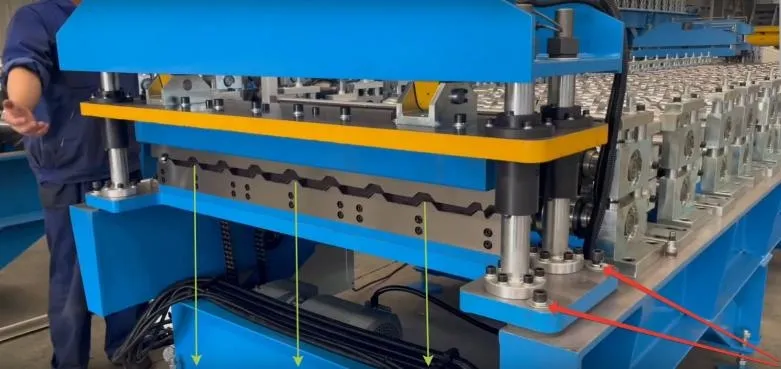

Hydraulic Cutting Device

We use four pillars cutting system structure, it can make sure the cutting stable

PLC control system

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen

● Encoder brand:Omron

● Electrical components:Schneider ●Operating language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is

really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

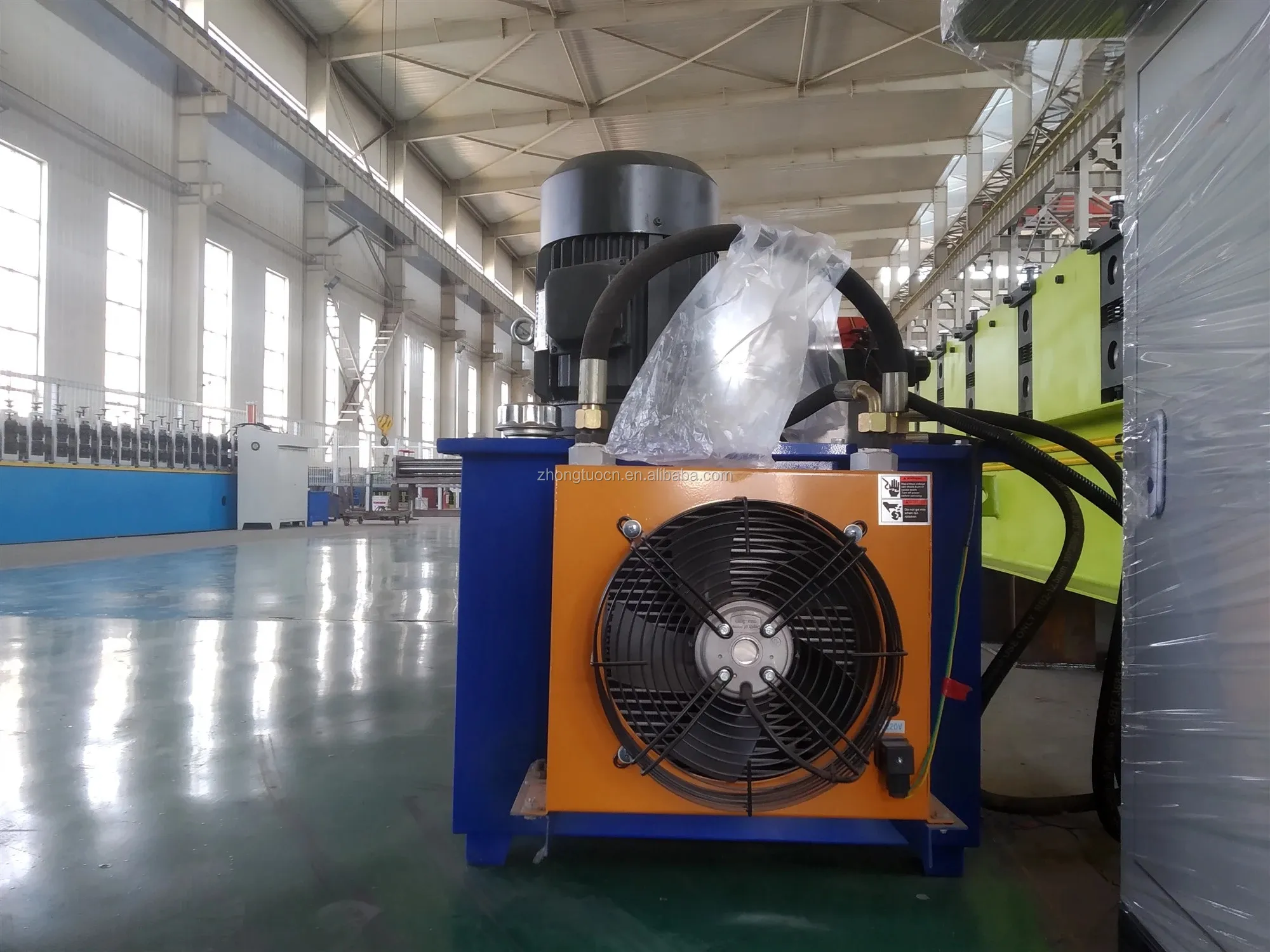

Hydraulic station

● Hydraulic station motor: 5.5 KW

● Hydraulic oil:46# hydraulic oil

● Main components:Include a set of hydraulic tank, a set of

hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve
