Color Coated Steel System > Production Equipment > Glazed Tile Roll Forming Machine

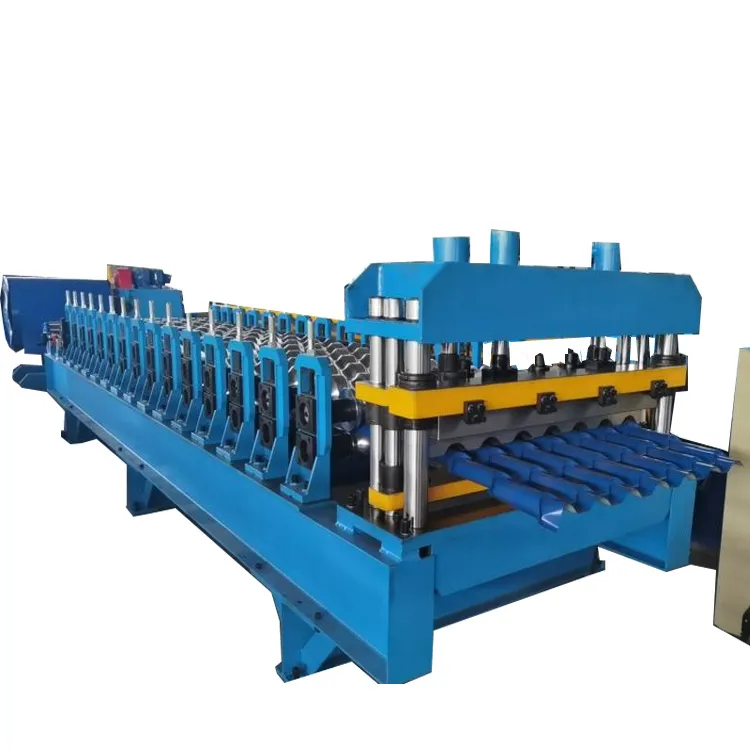

High Speed High Accurate Full Automatic Glazed Roof Sheet Roll Forming Machine Tile Making Machinery ZTRFM-G02+11kw

Cangzhou Zhongtuo International Trade Co., Ltd

High Speed High Accurate Full Automatic Glazed Roof Sheet Roll Forming Machine Tile Making Machinery ZTRFM-G02+11kw

Name: High Speed High Accurate Full Automatic Glazed Roof Sheet Roll Forming Machine Tile Making Machinery ZTRFM-G02+11kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT80906353

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTRFM-G02

Power(W):

11kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
roll forming machine
Tile Type
Steel
Use
roof and wall
Voltage
380V or as required
Rolling Thinckness
0.3-0.8mm
Feeding Width
914-1450mm

Product Description

High Speed High Accurate Full Automatic Glazed Roof Sheet Roll Forming Machine Tile Making Machinery

High Speed High Accurate Full Automatic Glazed Roof Sheet Roll Forming Machine Tile Making Machinery is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.

It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

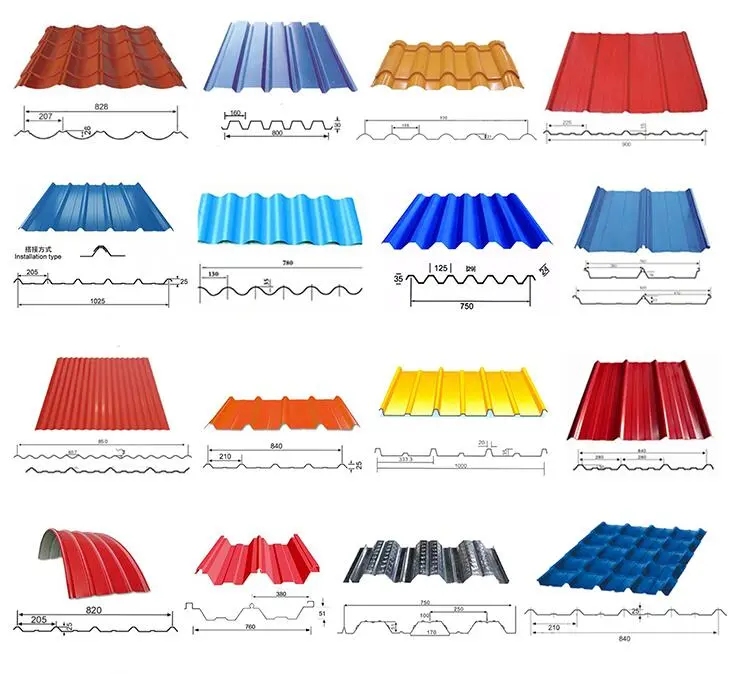

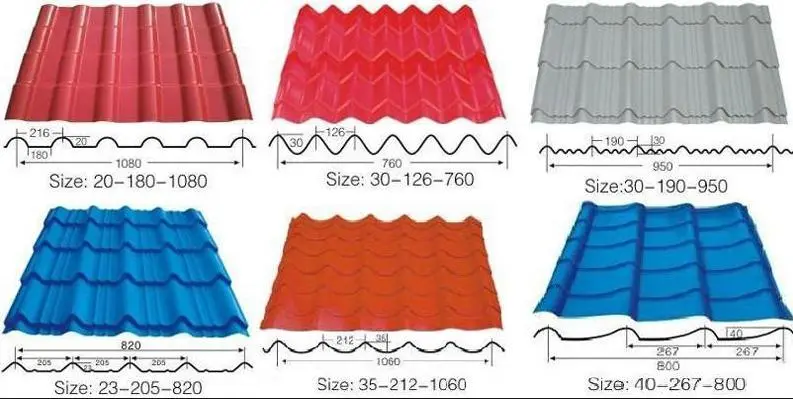

Hot sale glazed roof tile profile drawing

for different models based on different designs or customer's samples .

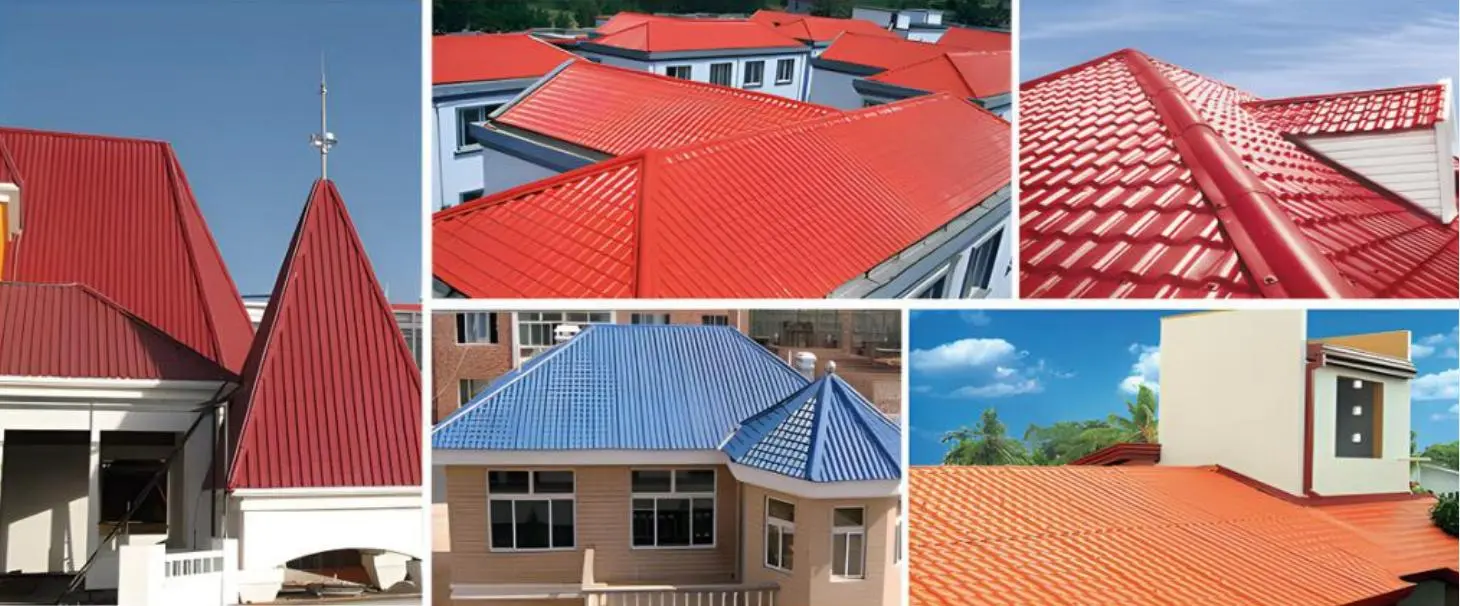

Metal roof sheet usage

Products Display

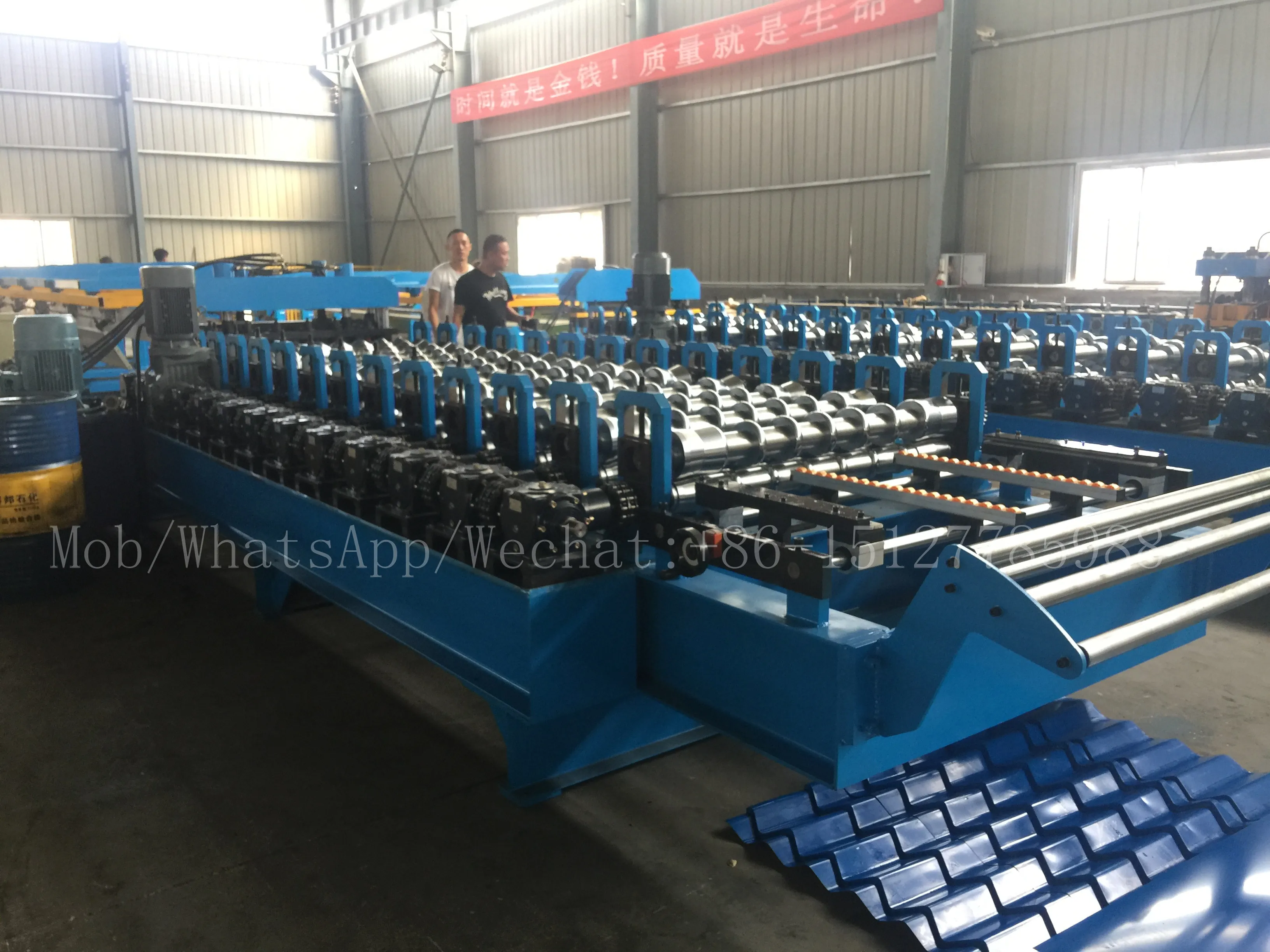

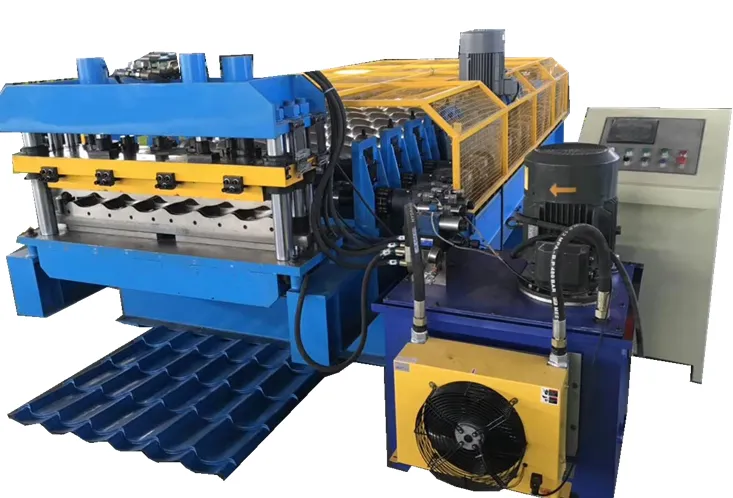

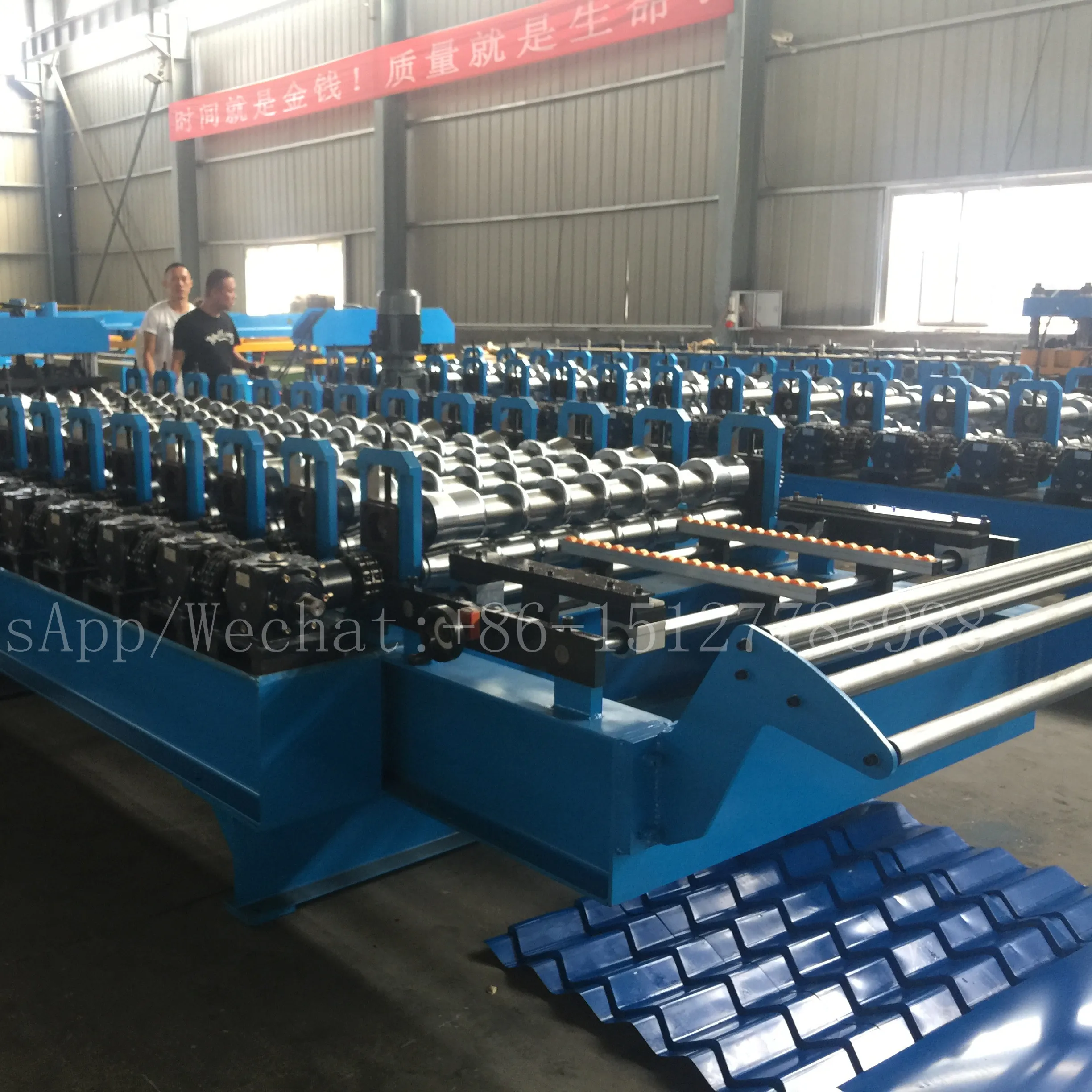

High Speed High Accurate Full Automatic Glazed Roof Sheet Roll Forming Machine Tile Making Machine
1.Formed Material	PPGI,GI,AI		Thickness:0.3-1.0mm Width:1000mm/1250mm(customized)
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		26 rows(As your requirement)

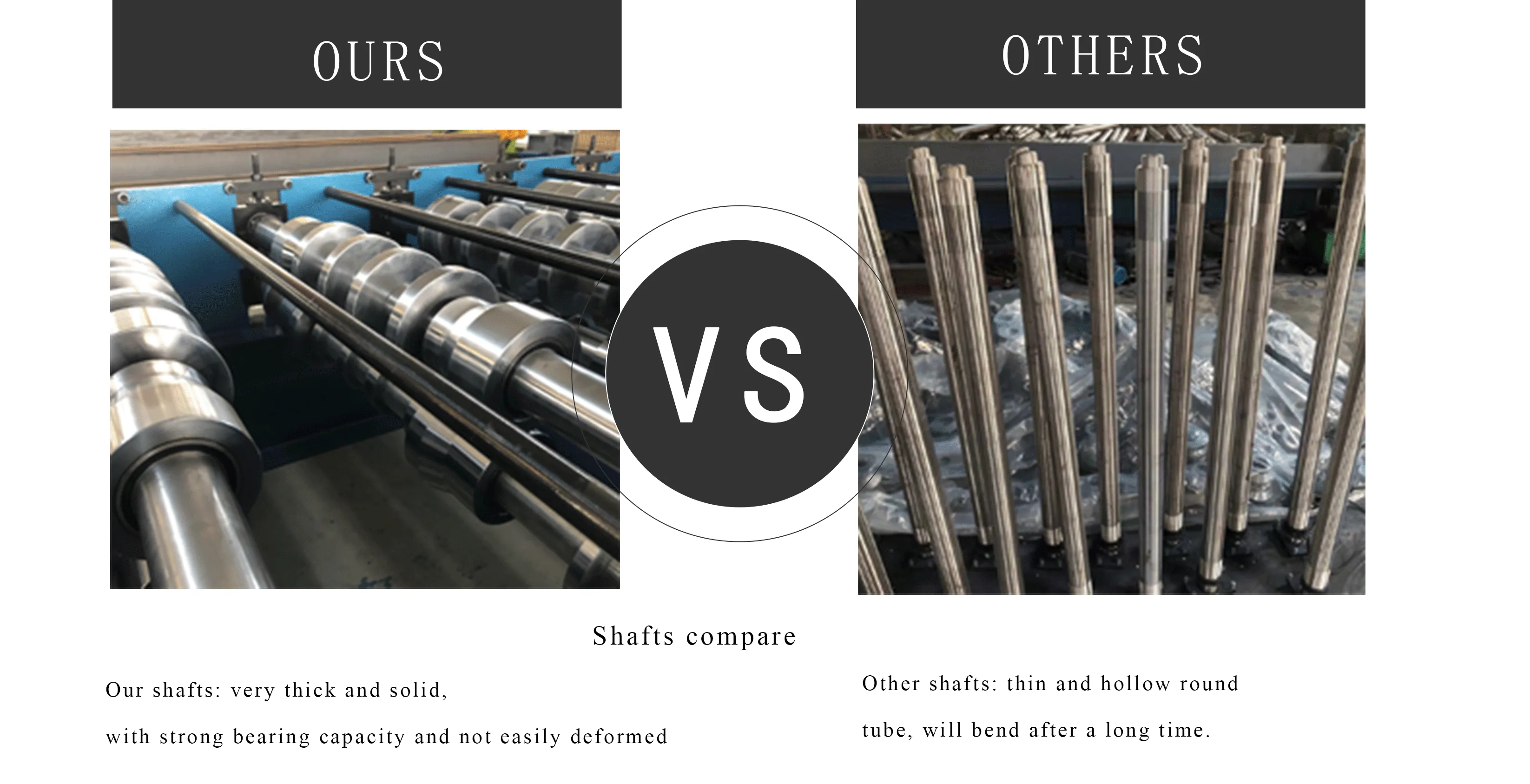

		Diameter of shaft		80mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		400 H steel
		Drive		Gearbox transmission
		Dimension(LWH)		1500018001600(customize)
		Weight		18T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5KW*2 sets,Siemens brand
		Hydraulic system power		7.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	30-40m/min		The speed is adjustable

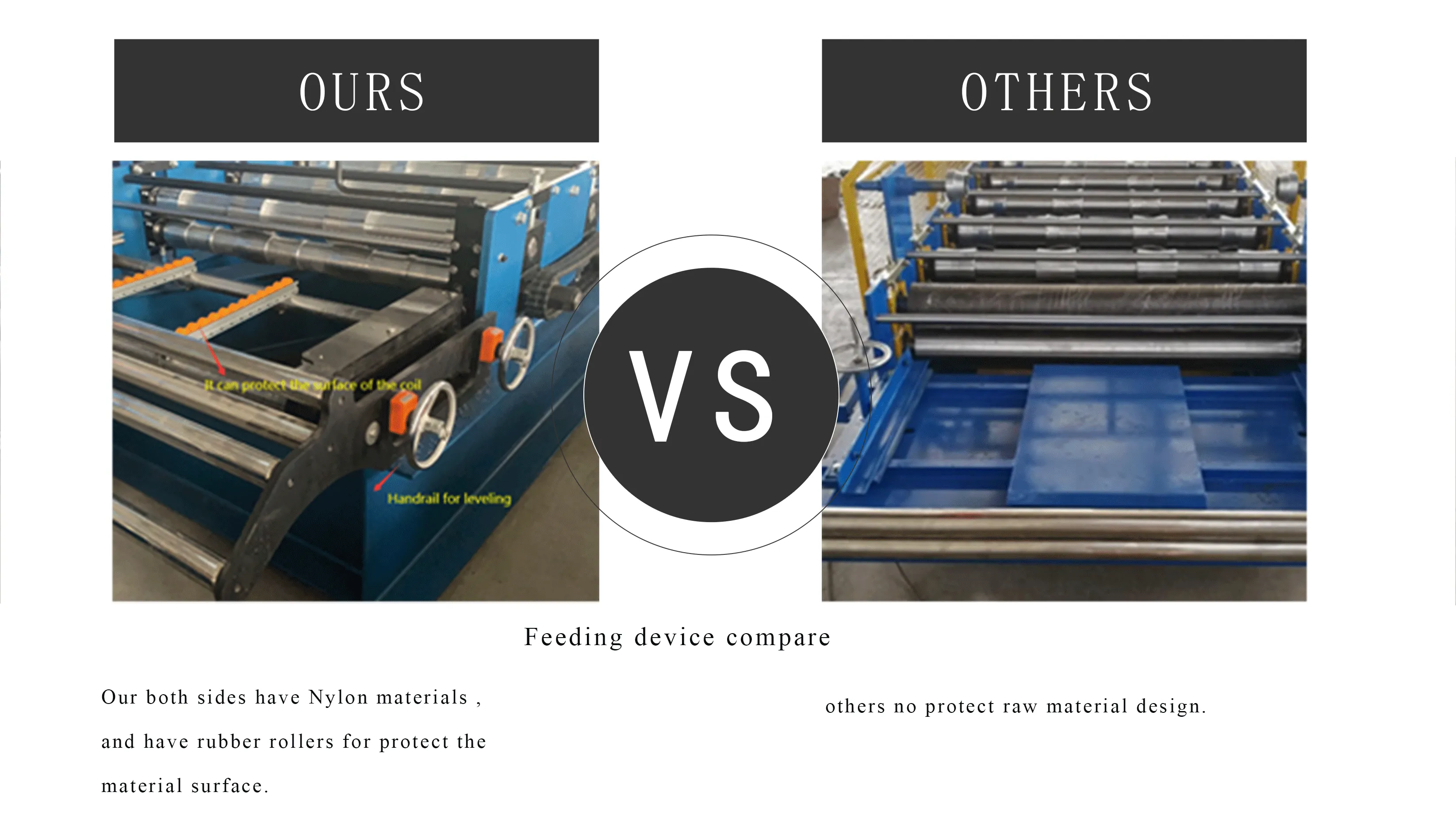

feeding device

WIth rubbers for keep feeding smoothly and protect material surface

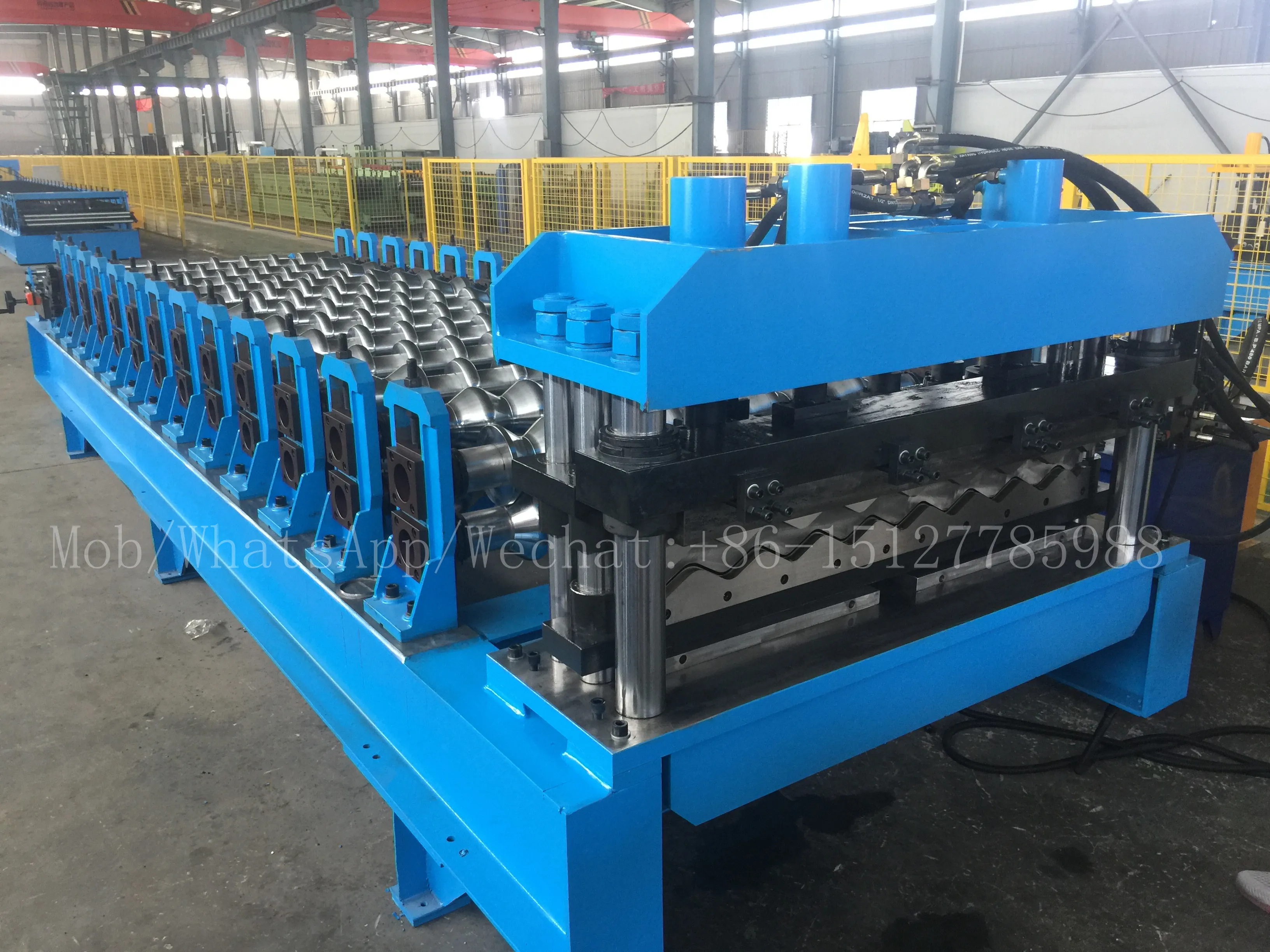

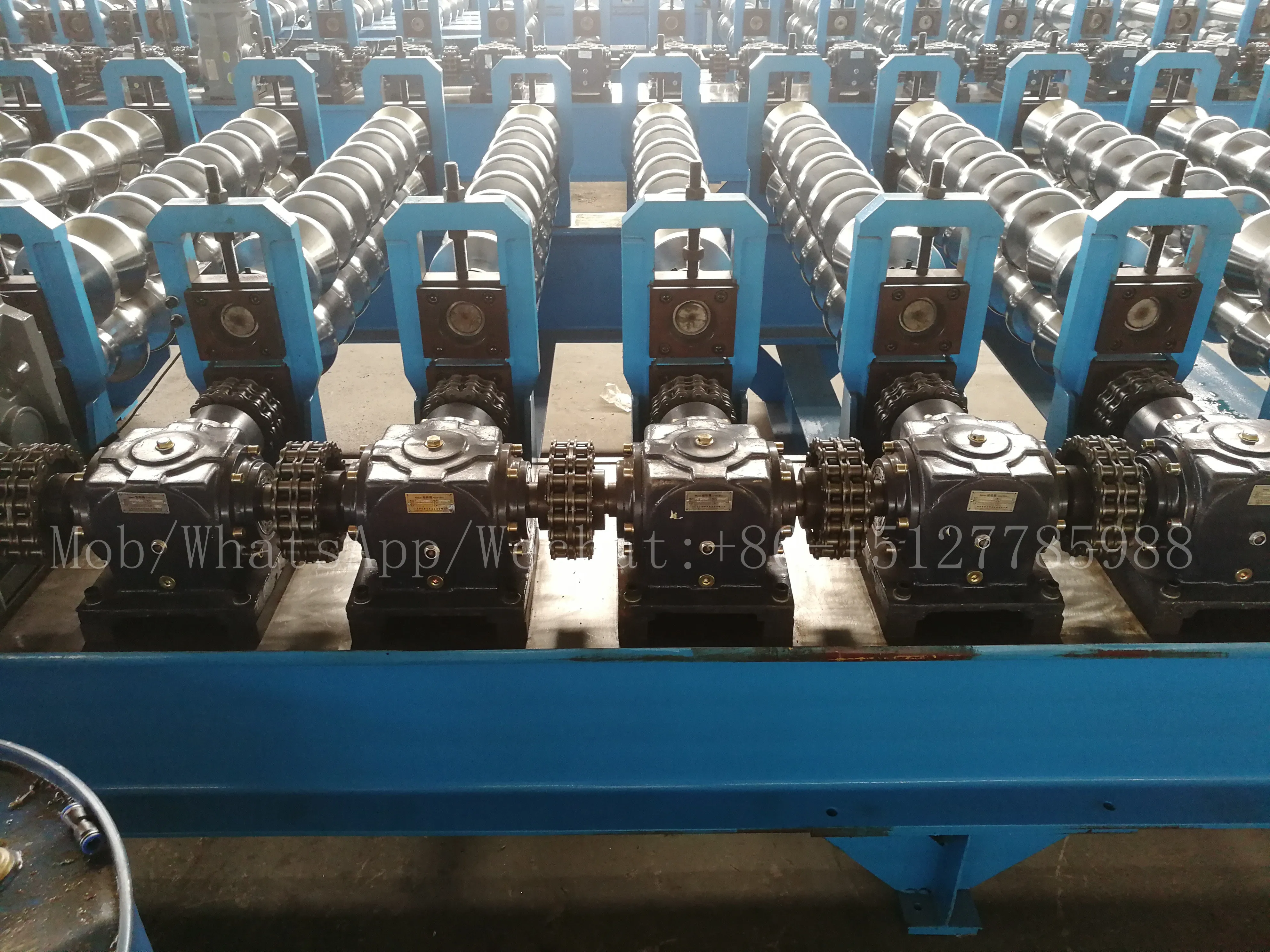

Molding frame and gearbox transmission

Stable machine frame design.

Gearbox transmission support high speed,non-loosen,will more stable compared to normal gear and chain structure.

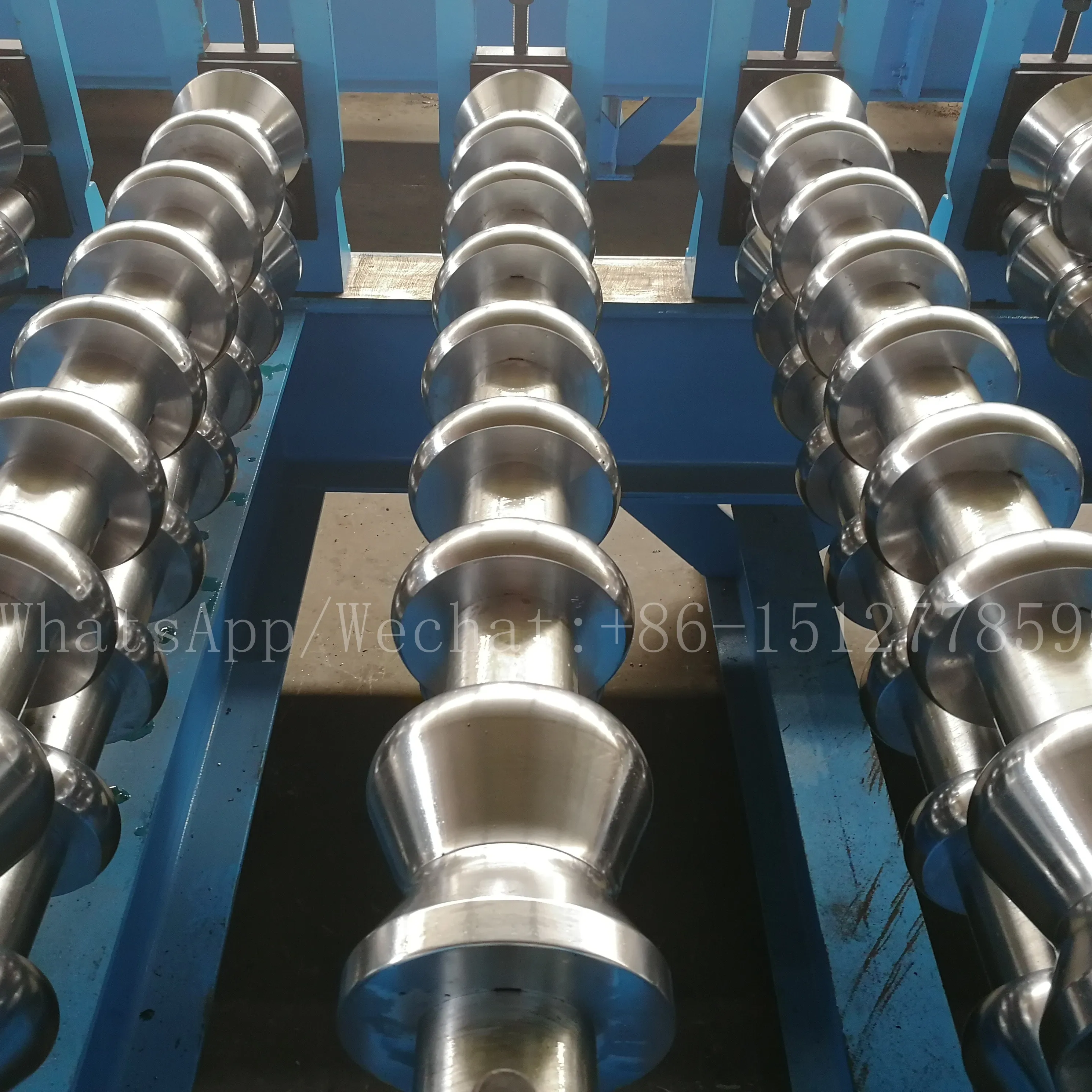

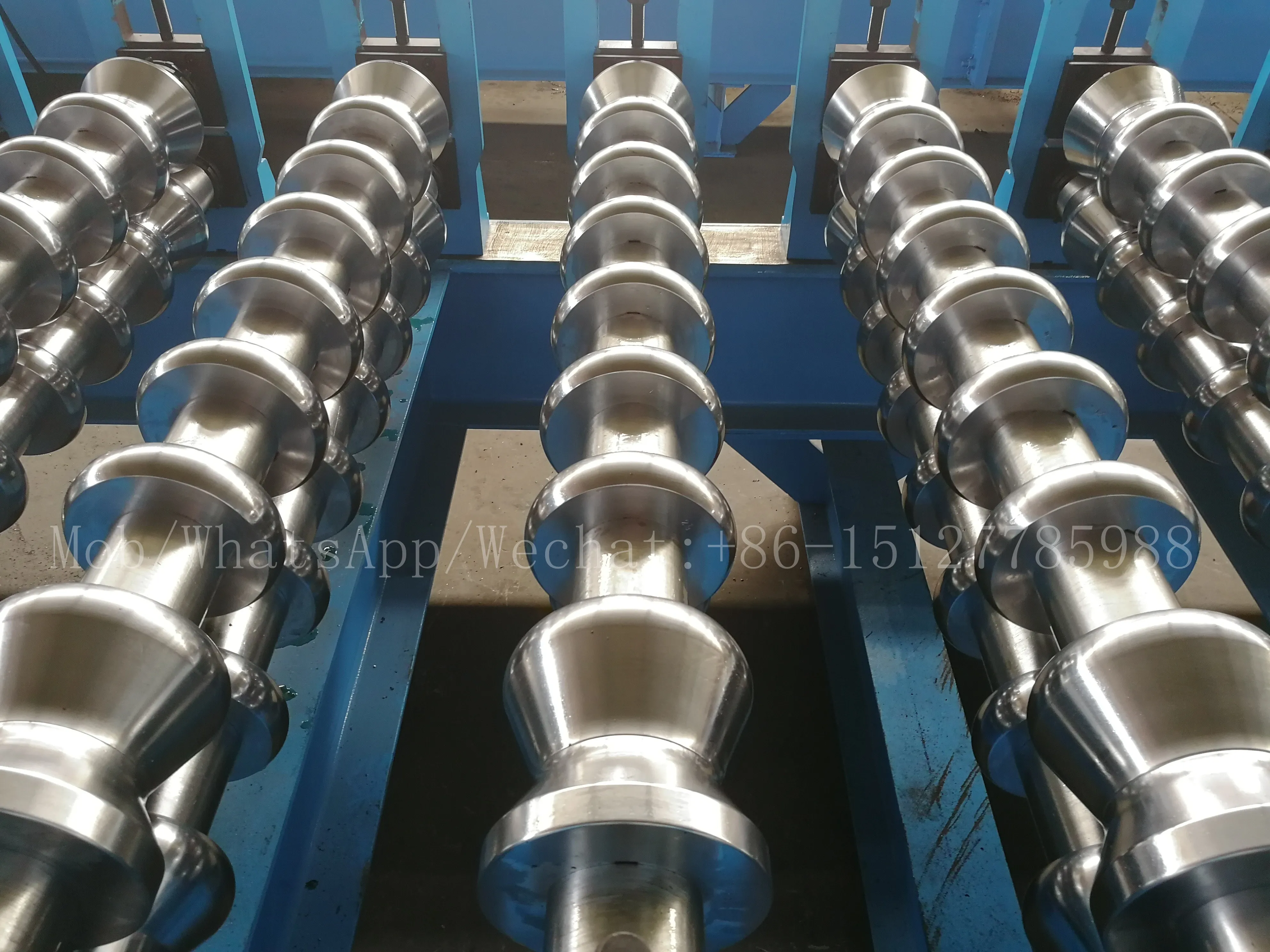

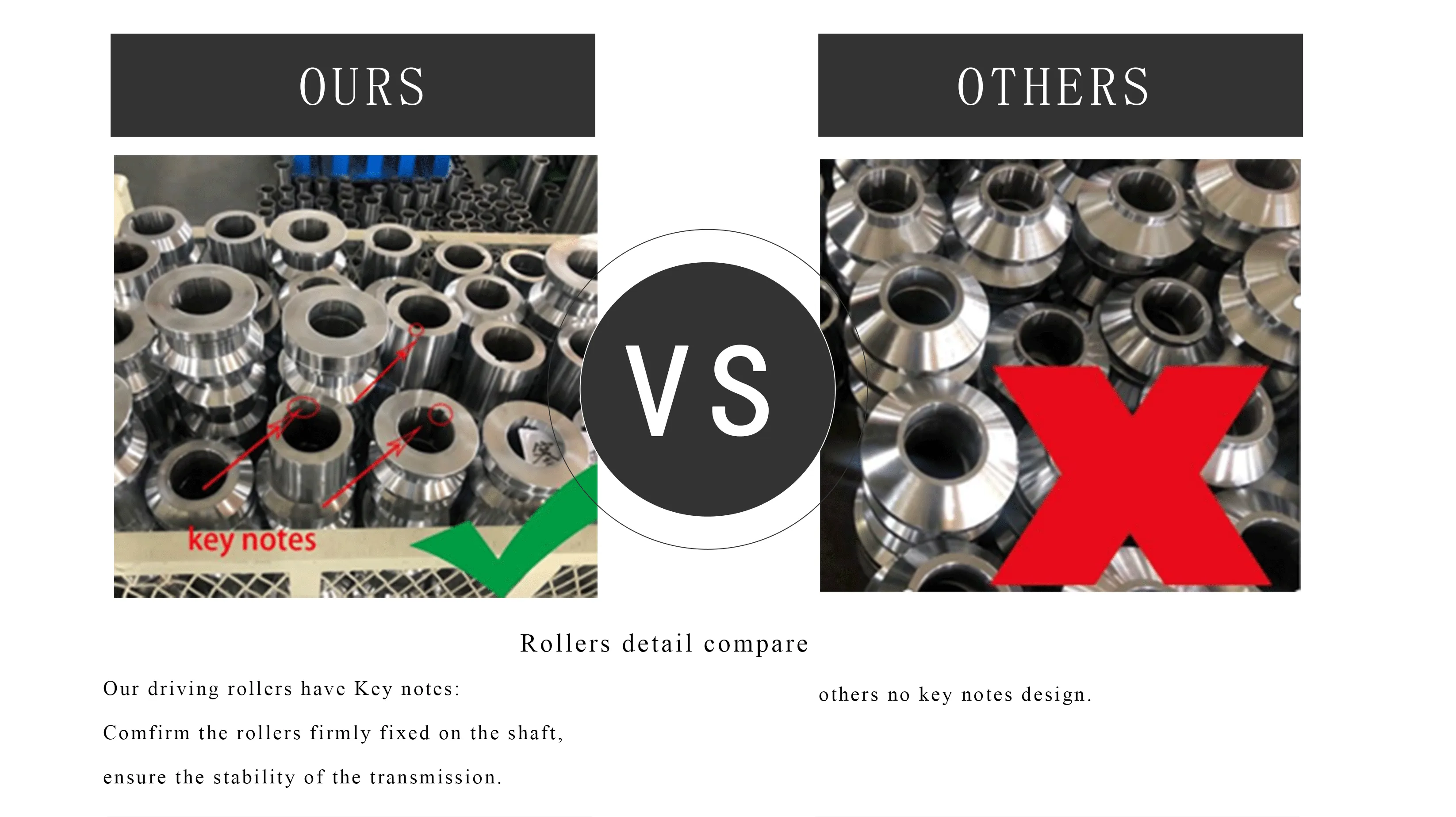

rollers detail showing

high hardness for long service time.

the thickness 2 times than other factory chrome plating.Need more cost.

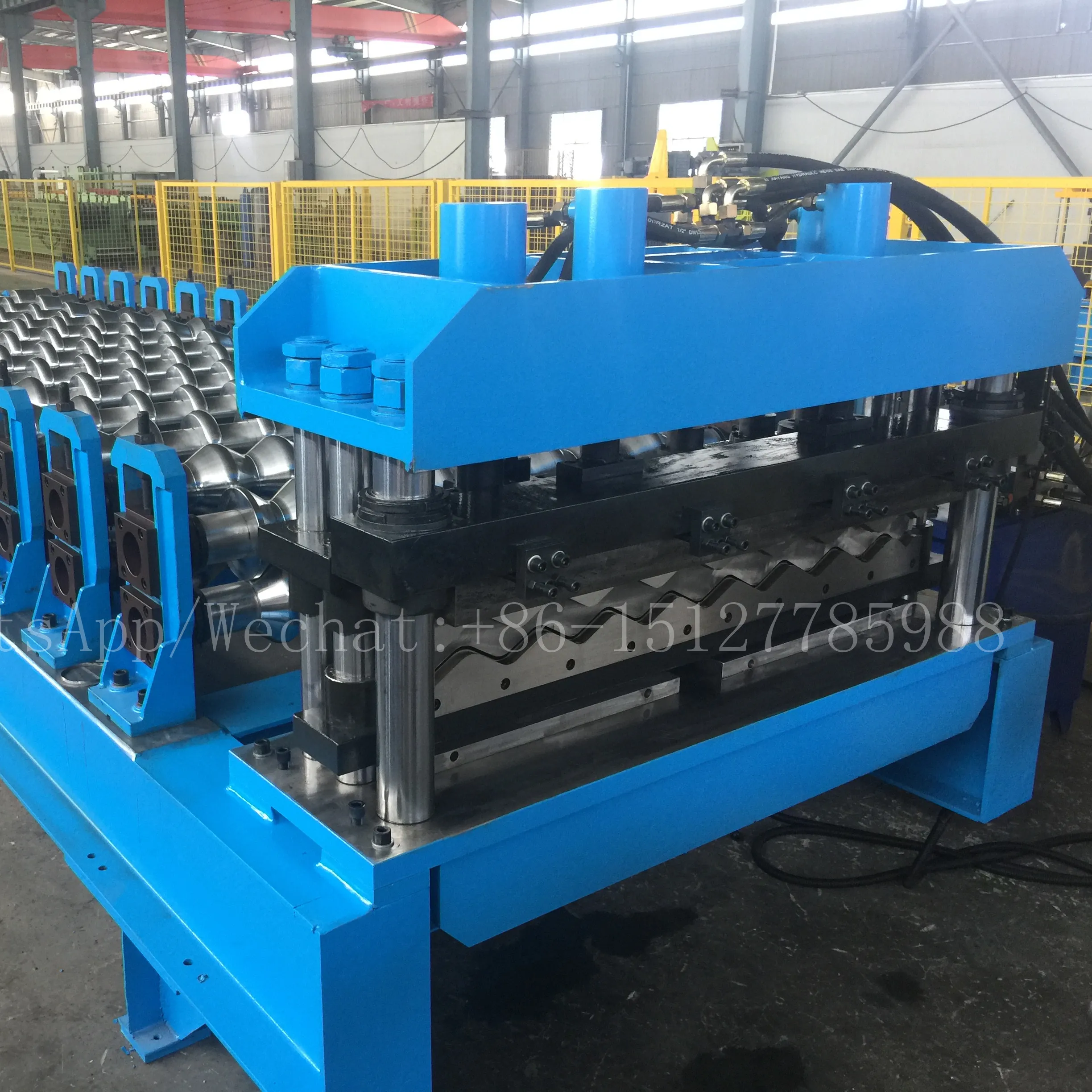

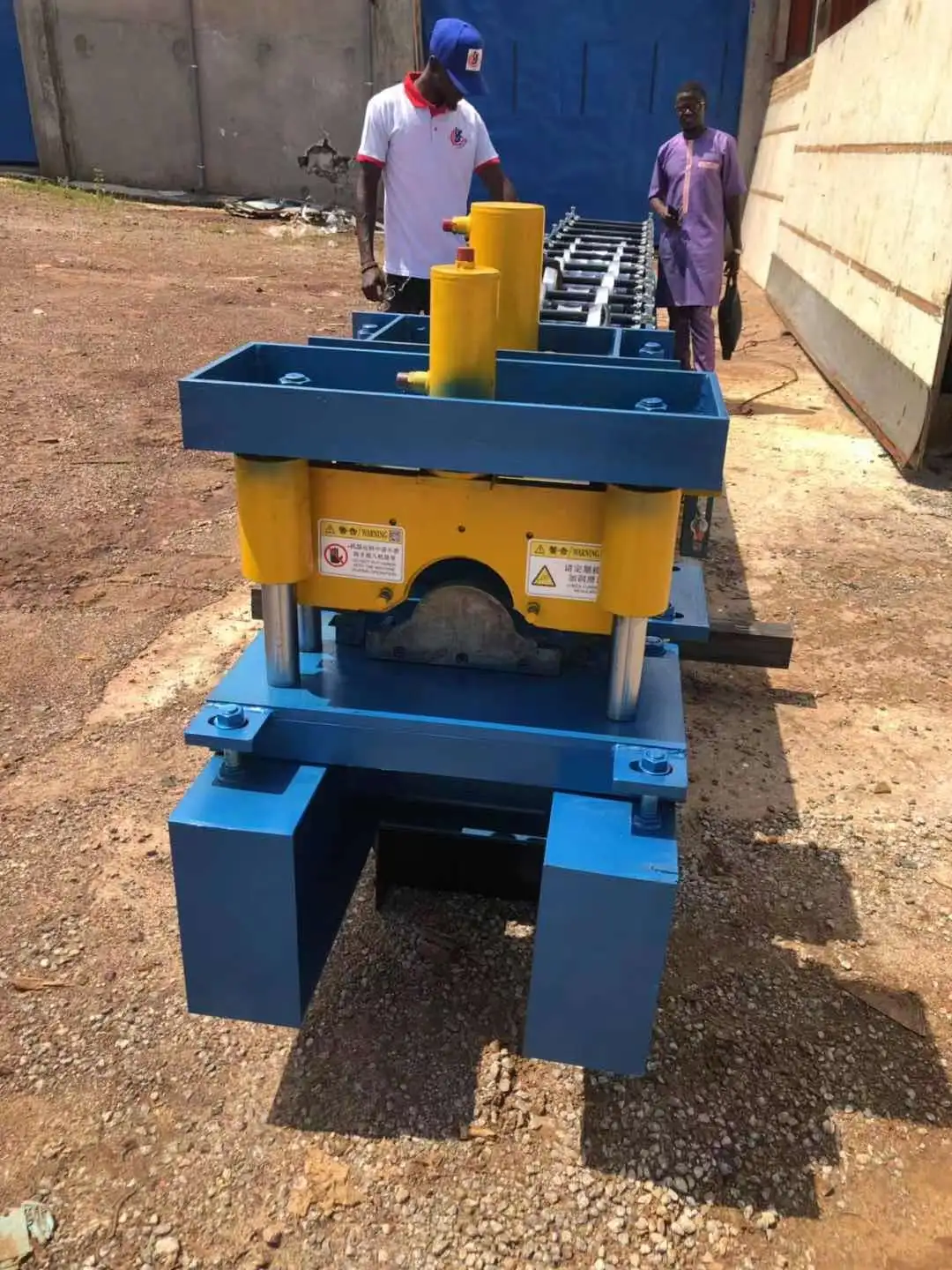

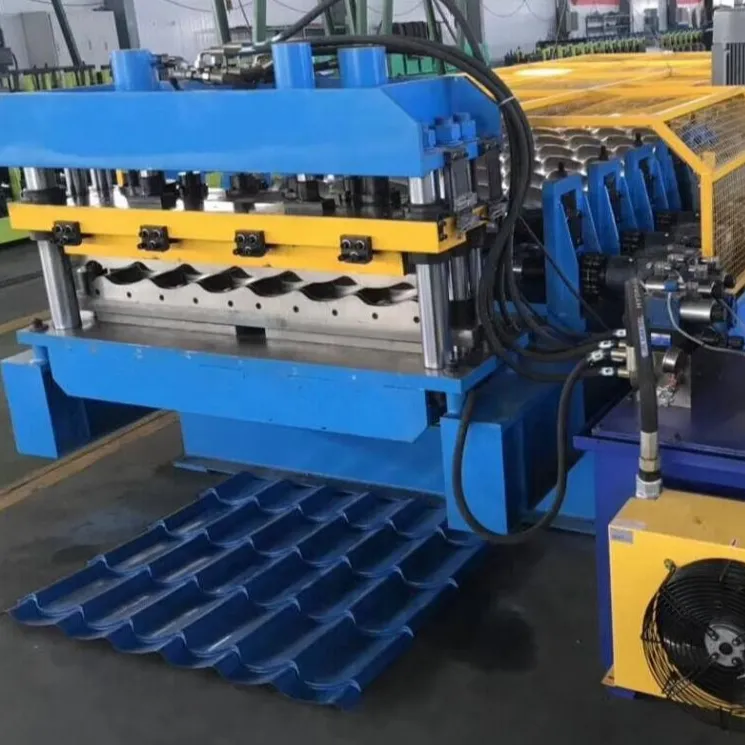

pressing and cutting device

Pressing depth customized.

Cutting length can adjustable on PLC control cabinet.

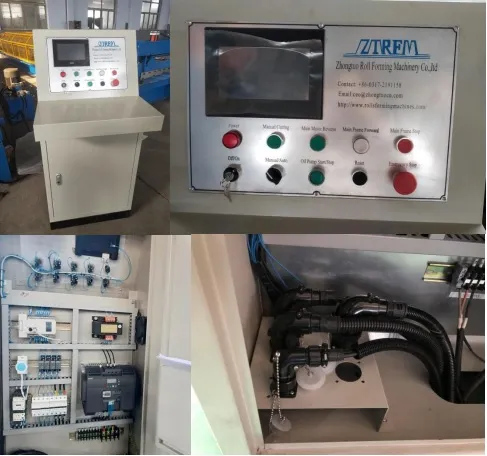

PLC control cabinet

Good brand-Delta or Simens.

Aviation plug for easy installation.

touch screen for easy operation.

control system language customized can set for yours.

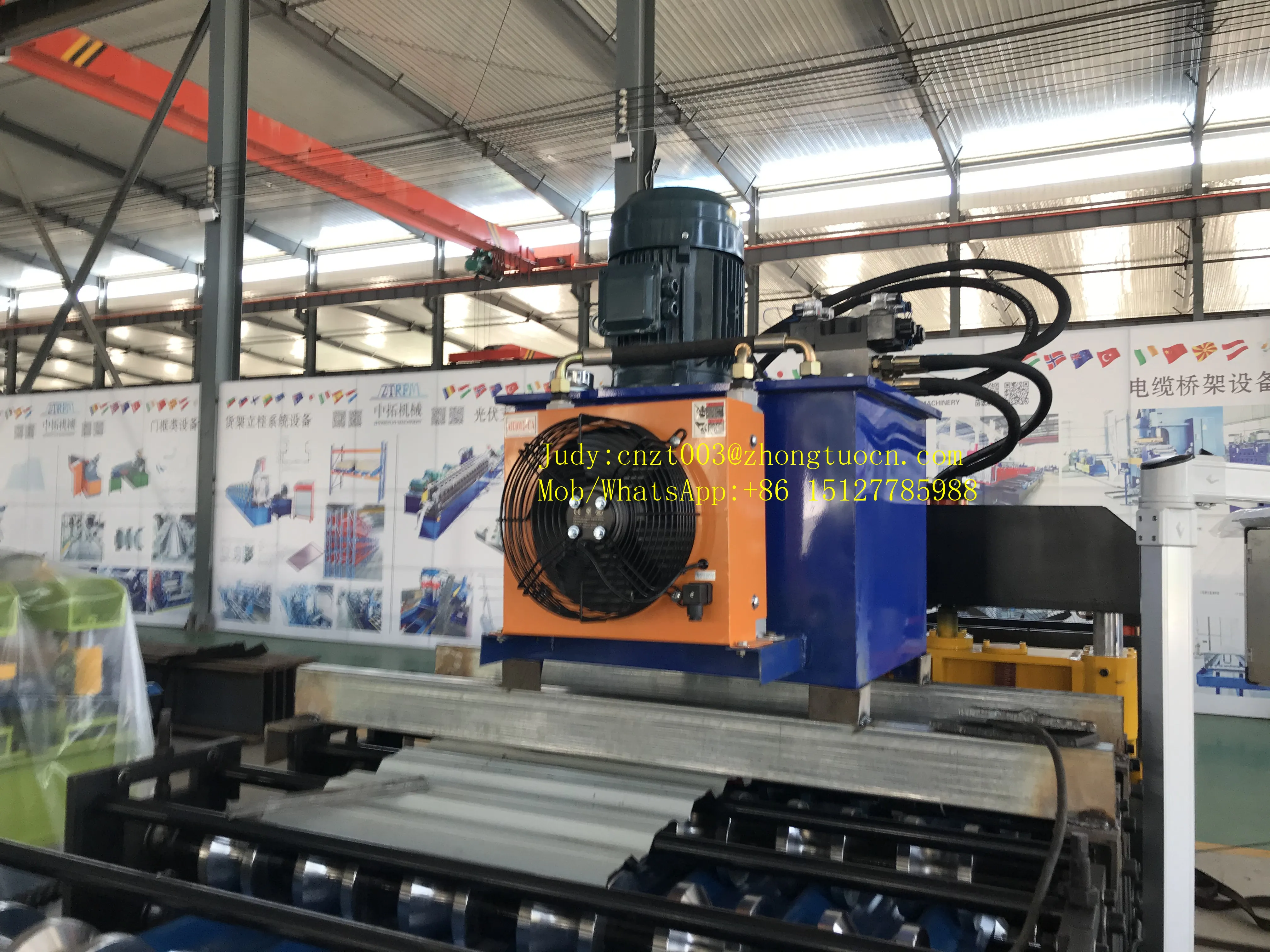

Hydraulic station

All-in-one design easy installation，fixed on the machine and connected all wires before delivery.

With cooling fun for heat dissipation，good for long time working.

New design less noise than other manufacturers

Machines are customized as your drawing,here hot sale drawing profiles for your reference.

Why Choose Us

Company Profile

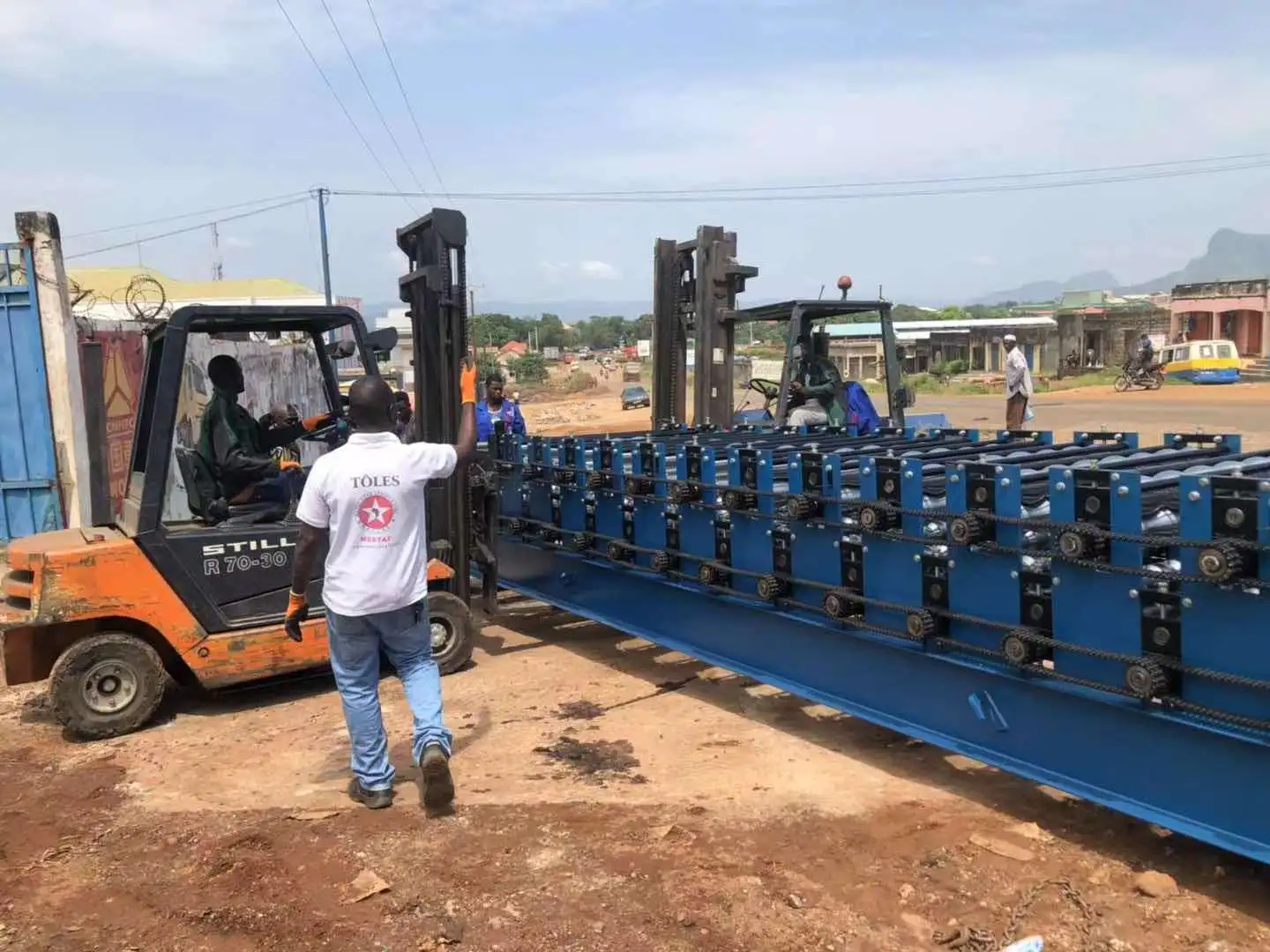

Customer Photos

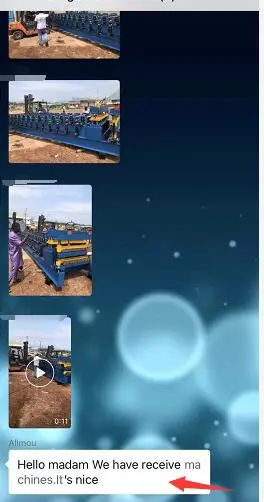

customer good feedback of our machines:

Product packaging
