High Speed Corrugated Roof Sheet Making Machine High Speed Corrugated Roof Sheet Machine

General Industry Tech Hebei Developing Co.,Ltd

High Speed Corrugated Roof Sheet Making Machine High Speed Corrugated Roof Sheet Machine

Name: High Speed Corrugated Roof Sheet Making Machine High Speed Corrugated Roof Sheet Machine
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT120797337

Machine TypeRoof panel making machine (corrugated roof sheet)

Tile TypeGalvanized steel

UseCorrugated roof sheet

Key Selling PointsFully automatic; high producing speed

Weight8000 kg

WarrantyMore than 5 years

Metal Protect CoverSupport customized

ColorClient's request

Core ComponentsMotor, bearing, gear, gearbox, engine, PLC

After-Sales ServiceMachinery test report and video outgoing inspection provided

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Type:

High Speed Corrugated Roof Sheet Machine

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Machine Type
Roof panel making machine (corrugated roof sheet)
Tile Type
Galvanized steel
Use
Corrugated roof sheet
Key Selling Points
Fully automatic; high producing speed
Weight
8000 kg
Warranty
More than 5 years
Metal Protect Cover
Support customized
Color
Client's request
Core Components
Motor, bearing, gear, gearbox, engine, PLC
After-Sales Service
Machinery test report and video outgoing inspection provided
Forming Speed
40 m/min (131 ft/min)
Rolling Thickness
0.4-0.7 mm
Feeding Width
1200 mm
Roller Material
45# steel chrome plated
Shaft Material
High grade No.45 forged
Cutting Blade Material
Cr12MoV
Pre-Cutting System
Hydraulic pre-cutter
Post-Cutting System
4-pillar automatic servo tracking cutter
Control System
PLC (imported brand SIEMENS / DELTA)
Main Frame
400H steel
Power
7.5 kW
Voltage
220 V / 380 V / 440 V

High speed corrugated roof sheet machine with galvanized corrugated sheet sample

Product Overview

This high speed corrugated roof sheet making machine forms galvanized steel coils into corrugated roof sheets at up to 40 m/min (131 ft/min). Fully automatic with a hydraulic pre-cutting system and a 4-pillar automatic servo tracking cutter, it delivers smooth surfaces and beautiful profiles for roof panel production.

High speed production: forming speed up to 40 m/min (131 ft/min)
Rolling thickness 0.4-0.7 mm, feeding width 1200 mm
45# steel chrome plated rollers, high grade No.45 forged shafts, Cr12MoV cutting blades
400H steel main frame for stability
PLC control (imported brand SIEMENS / DELTA); hydraulic pre-cutter + 4-pillar automatic servo tracking cutter
Voltage 220 V / 380 V / 440 V; fully automatic, high producing speed

Product Highlights

High Precision Roll Forming: Produces smooth surfaces and beautiful shapes.
Stable Performance: Ensures consistent quality across production runs.
High Speed Production: Operates at up to 40m/min for efficient output.
Customizable Options: Supports tailored solutions to meet specific needs.
Proven Durability: Built with high-grade materials for long-lasting performance.

Key Features

High Speed Forming Line - Up to 40 m/min (131 ft/min) with 7.5 kW drive, motor and gearbox transmission for efficient corrugated roof sheet output.
Precision Roll Tooling - 45# steel chrome plated rollers with high grade No.45 forged shafts form smooth, beautiful corrugated profiles without surface damage.
Dual Cutting System - Hydraulic pre-cutter for pre-cut notching plus a 4-pillar automatic servo tracking cutter for accurate, clean final cuts at full line speed.
Heavy-Duty Build - 400H steel main frame; Cr12MoV cutting blades for long service life; metal protect cover customizable; machine color per client's request.
Intelligent Control - PLC control system (imported brand SIEMENS / DELTA) for fully automatic operation.

Technical Specifications

Item	Specification
Machine type	Corrugated roof panel making machine
Tile type	Galvanized steel
Use	Corrugated roof sheet
Forming speed	40 m/min (131 ft/min)
Rolling thickness	0.4-0.7 mm
Feeding width	1200 mm
Roller material	45# steel chrome plated
Shaft material	High grade No.45 forged
Cutting blade material	Cr12MoV
Pre-cutting system	Hydraulic pre-cutter
Post-cutting system	4-pillar automatic servo tracking cutter
Control system	PLC (imported brand SIEMENS / DELTA)
Main frame	400H steel
Power	7.5 kW
Voltage	220 V / 380 V / 440 V
Weight	8000 kg
Warranty	More than 5 years
Metal protect cover	Support customized
Color	Client's request
Place of origin	China

Machine Scenes

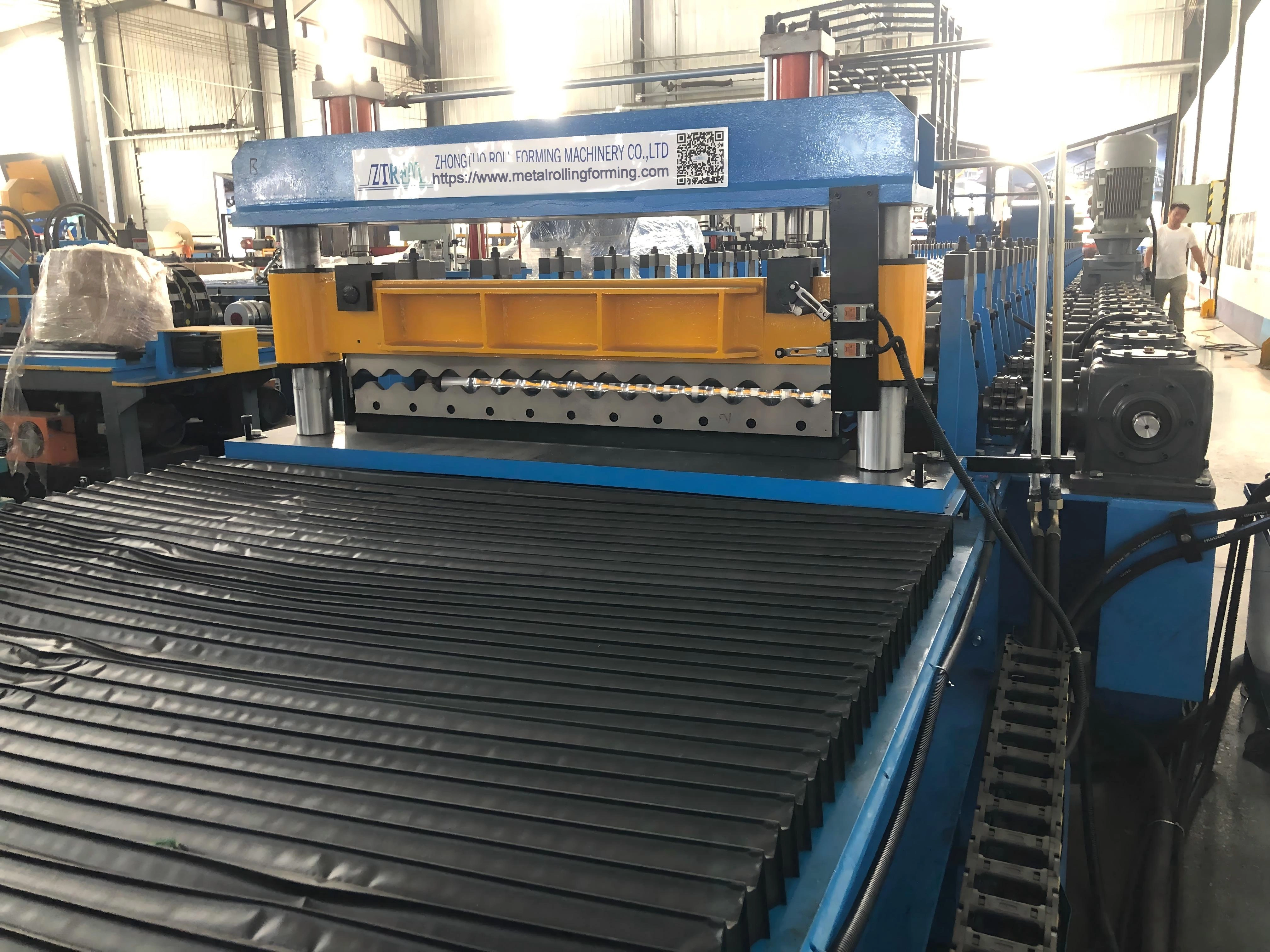

Corrugated roof sheet machine cutting section in workshop

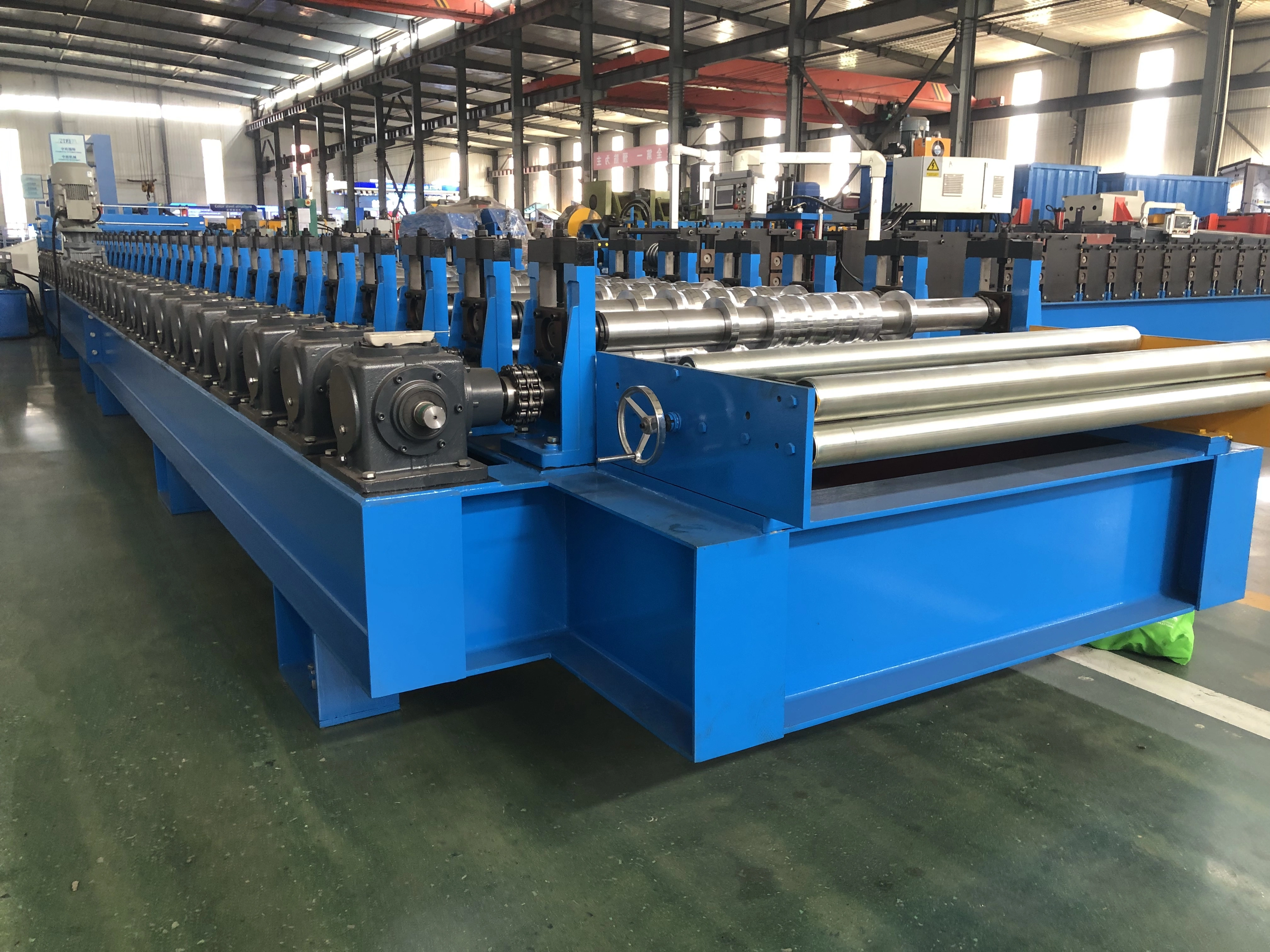

Forming line with gearboxes and chain drive

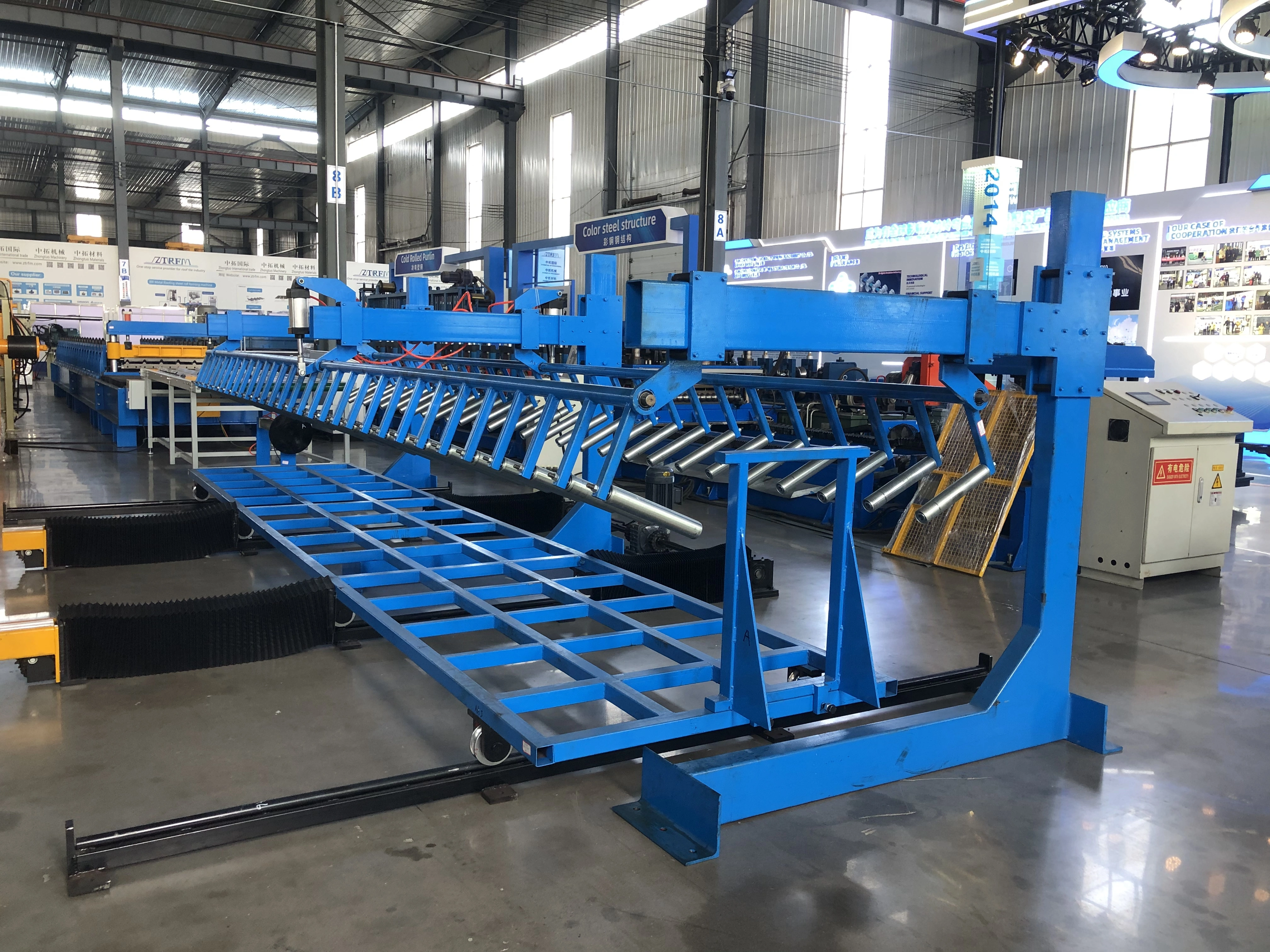

High speed line in showroom with servo tracking cutter

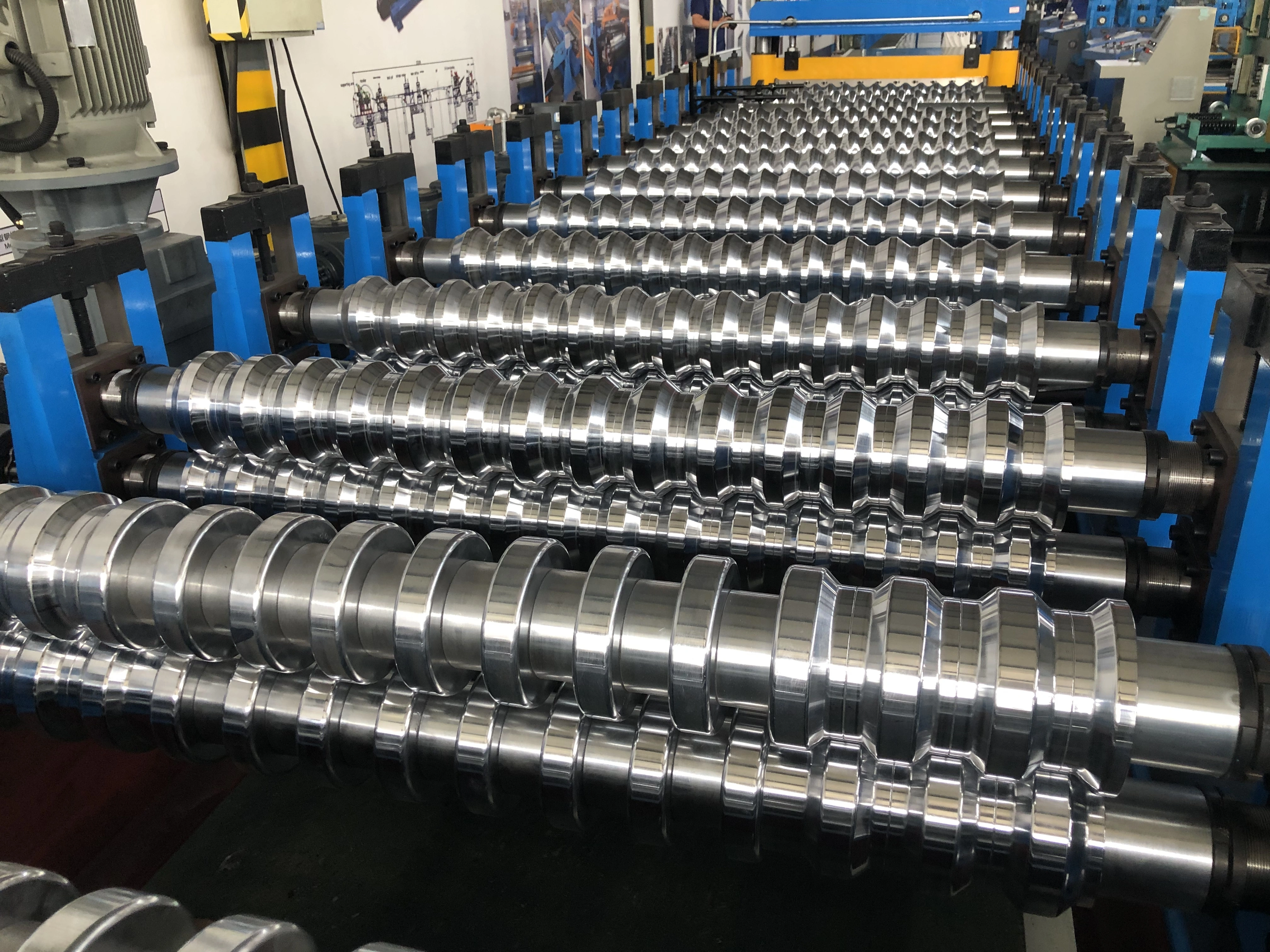

Precision chrome rollers forming corrugated profile

Applications

Modern shed clad with blue corrugated roof sheets

Corrugated roof sheets produced by this line are widely used for sheds, warehouses and house roofing applications.

Company Profile

Packing & Shipping

Package size: 880 x 160 x 190 cm; machine weight: 8000 kg; general cargo
Lead time: 55 days for 1 set, 66 days for 2 sets
Machinery test report and video outgoing inspection provided
