Cable Tray Roll Forming Machine > Production Equipment > Cable Tray Roll Forming Machine
You can log in to view more discounted prices.Login Now
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
Our Cable Tray Roll Forming Machine is designed as an integrated production line for efficient cable tray manufacturing. The complete system combines decoiling, servo feeding, punching, leveling, roll forming and hydraulic cutting processes to provide a smooth and reliable production workflow.
Roll Forming Stations
Decoiler Capacity
Forming Speed Without Punching
Working Speed With Punching
5T Decoiler
Servo Feeder
Punching Machine
Leveling Machine
Roll Forming System
Hydraulic Cut-Off
The 5-ton decoiler provides stable material handling and supports continuous feeding of raw material into the production line.
The servo feeder is integrated into the production line to provide controlled and accurate material feeding before punching and forming.
The punching machine performs the required punching process before the material enters the roll forming system.
The leveling machine helps prepare the material for stable and consistent roll forming.
The roll forming system uses 18 forming stations to progressively shape the metal sheet into the required cable tray profile.

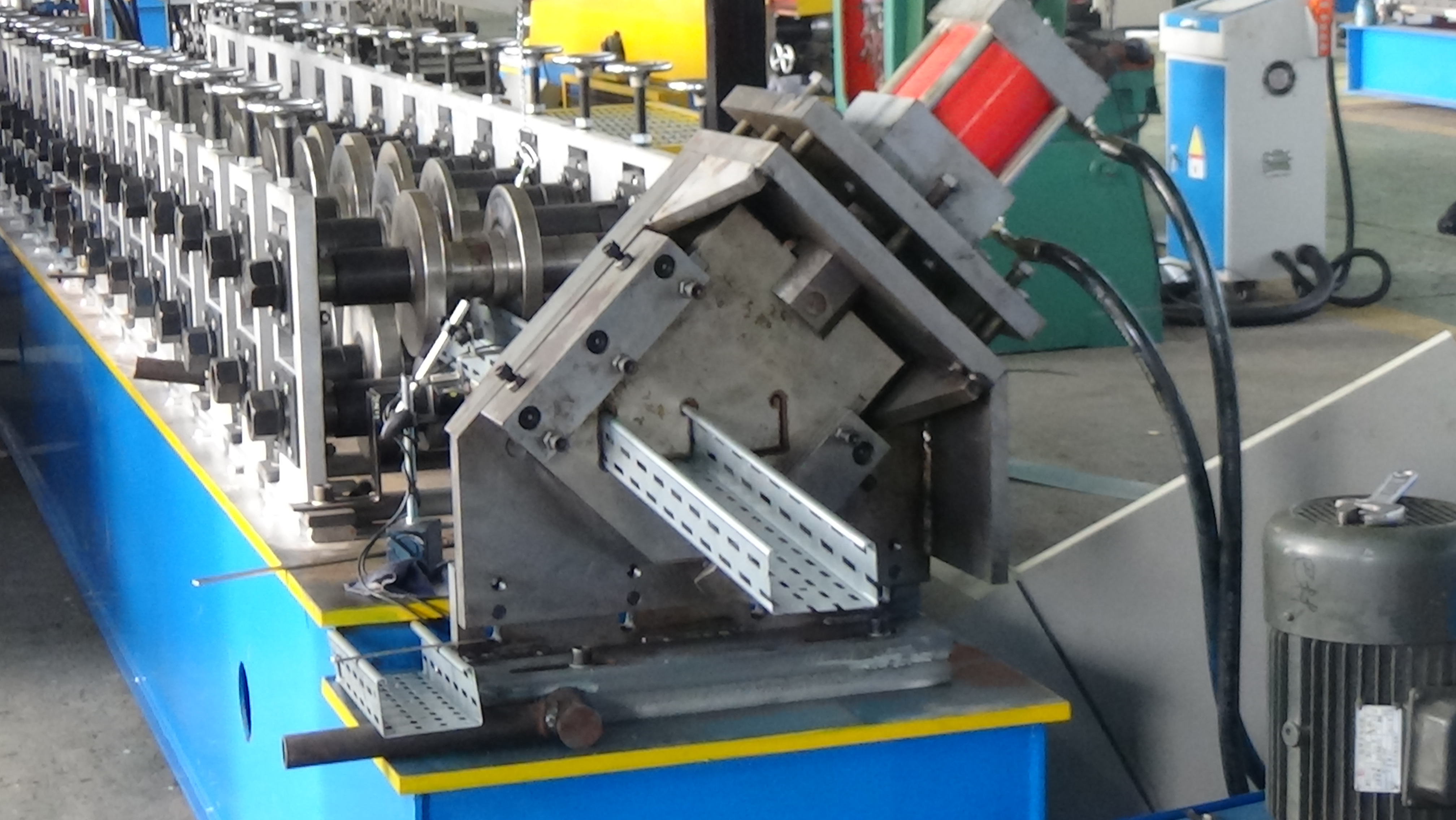

The hydraulic cut-off system completes the cutting process after roll forming for efficient production.
Without Hole Punching
Including Hole Punching
Production speed may vary according to the punching and forming process.
| Item | Configuration |
|---|---|
| Decoiler | 5 Ton |
| Feeding System | Servo Feeder |
| Punching | Punching Machine |
| Leveling | Leveling Machine |
| Roll Forming | 18 Stations |
| Hydraulic System | Hydraulic Cut-Off |
| Working Speed | 0–20 m/min without punching 2–4 m/min including punching |
This production line provides an integrated solution for cable tray manufacturing, combining material handling, feeding, punching, leveling, roll forming and hydraulic cutting in one continuous system.
This Cable Tray Roll Forming Machine production line has been prepared for export to Algeria, demonstrating its suitability for international industrial manufacturing projects.
Looking for an efficient cable tray roll forming solution? Contact us to discuss your required production line and machine configuration.
