High Speed AG Panel Trapezoidal Roll Forming Machine 50m/min

Name: High Speed AG Panel Trapezoidal Roll Forming Machine 50m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT117573654

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Forming Speed:

50m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Material Thickness
0.3-0.8mm
Roller Station
Due to your requirement profile
Material Of Rollers
High Grade 45# Forged Steel
Drive
gearbox transmission
Motor Power
7.5KW(normally)
Hydraulic System Power
5.5KW
Forming Speed
0-30m/min
Control System
PLC

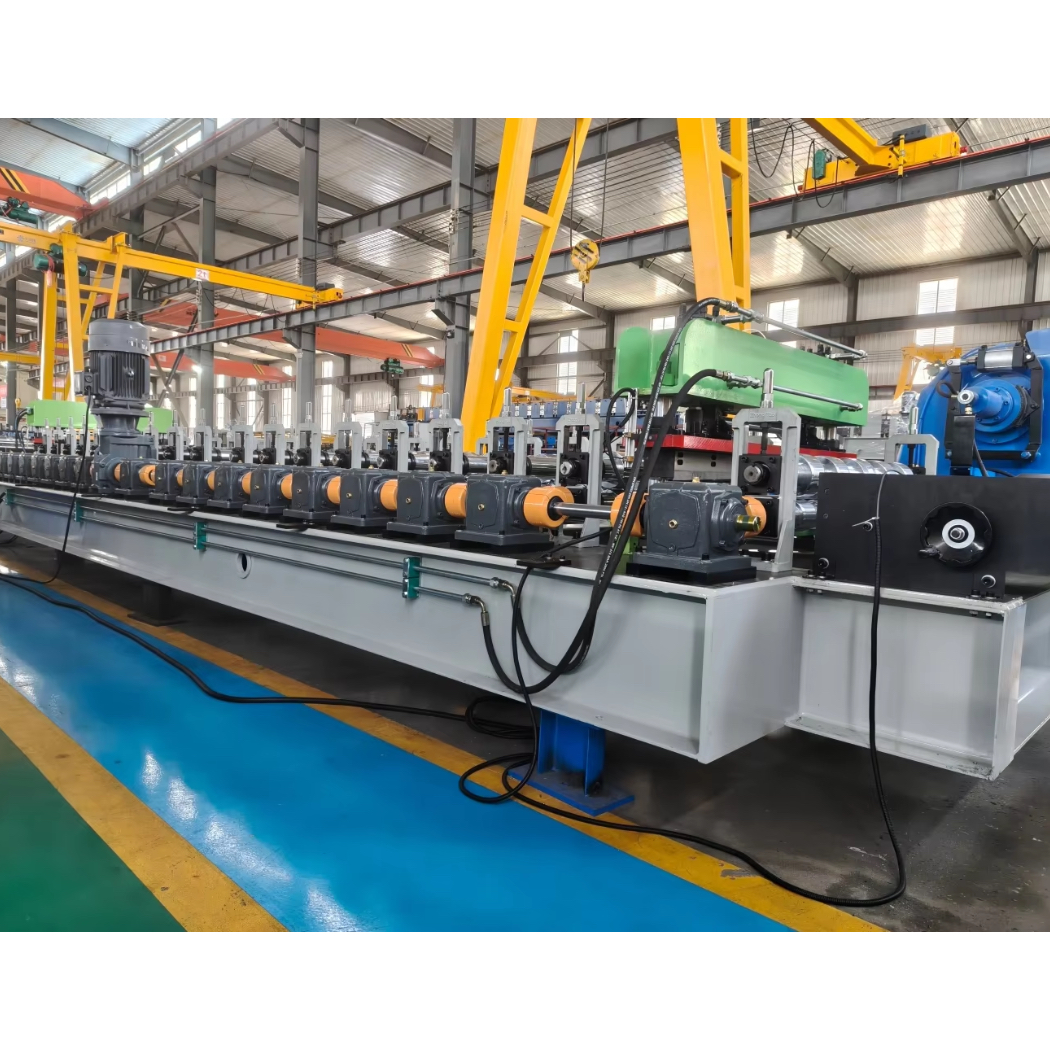

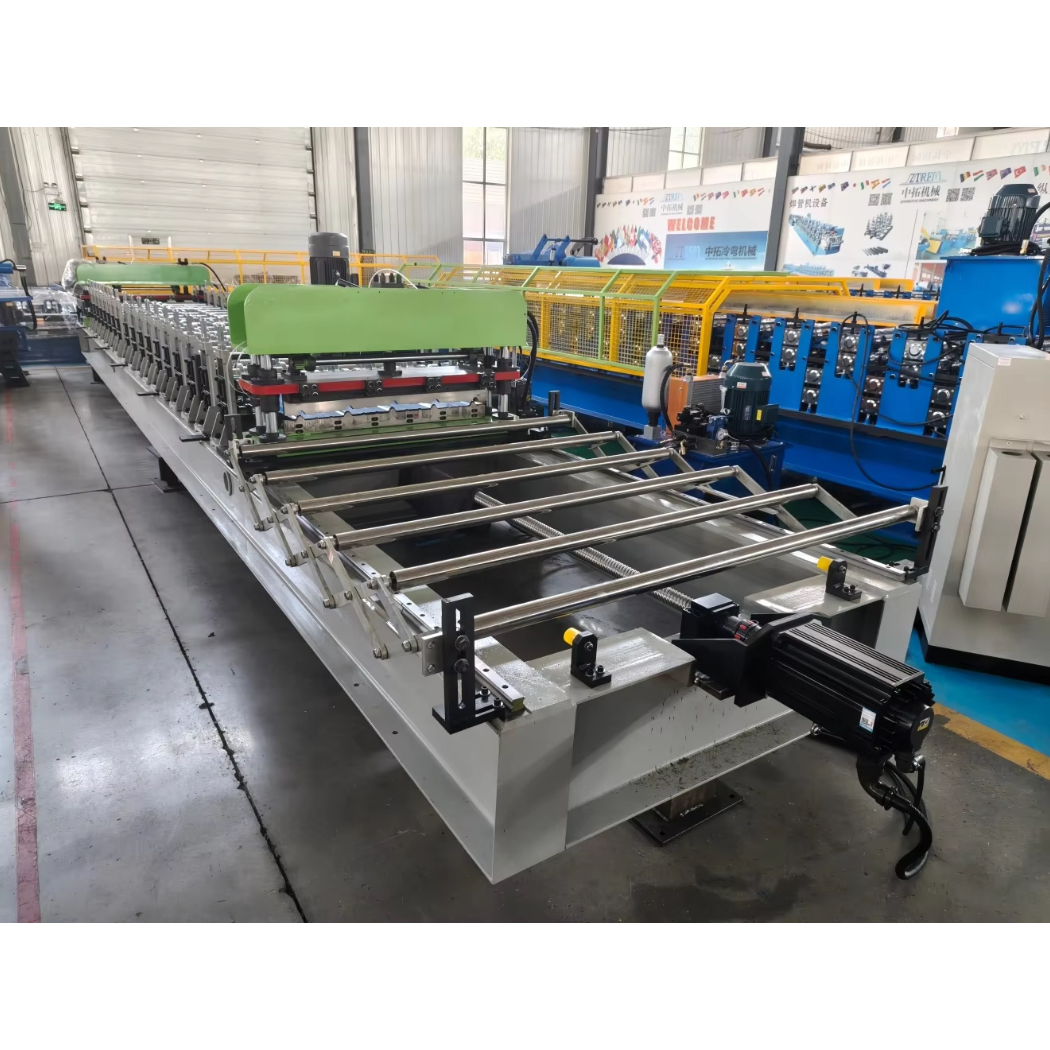

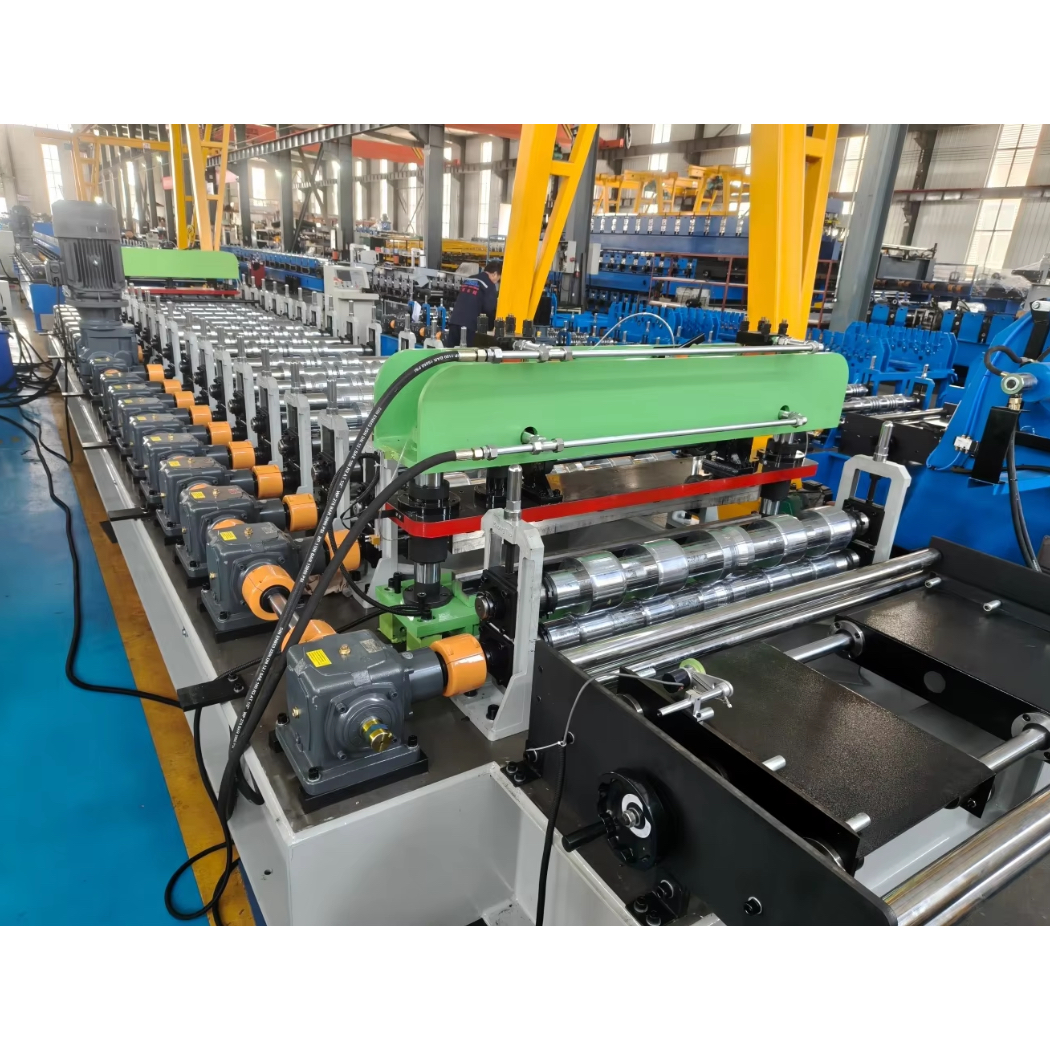

The High Speed 50m/min AG Panel Trapezoidal Roll Forming Machine is a highly integrated automated cold bending forming equipment. It uses galvanized steel coils, color coated steel coils, or aluminum coils as raw materials, and through processes such as unwinding, guided feeding, continuous cold bending roll pressing, and precise length cutting, produces roof tiles with standard trapezoidal corrugated cross-sections in one go.

Application scenario: Crossing geographical and functional boundaries

• Industrial large-span factory buildings and logistics parks

• Modern public buildings and sports venues

• High standard agriculture and animal husbandry

Product Attributes :

1.Formed Material	PPGI,PPGL,AI,Etc.	Material Thickness:0.3-0.8mm
2.Decoiler	Hydraulic decoiler(optional)	Manual decoiler(will give you as free）
3.Main body	Roller station	Due to your requirement profile
	Diameter of shaft	Due to your requirement profile
	Material of rollers	High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
	Machine body frame	Due to your requirement profile
	Drive	gearbox transmission
	Dimension(LWH)	Due to design
	Weight	Due to design
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	7.5KW(normally)
	Hydraulic system power	5.5KW
6.Voltage	As your requirement	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	Support multiple languages
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	0-30m/min	Provide customized

Pattern diagram：

Core feature: Why Choose AG Panel Trapezoidal Roll Forming Machine?

1. Ultimate efficiency, overturning traditional project timelines

2. Multi functional and flexible production with one machine

3. Craftsmanship in structure creates an ultra long lifespan

4. Intelligent control, at your fingertips

5. Win win situation between economy and environmental protection

Contact Us：

The trapezoidal roof tile forming machine is not only a production tool, but also an innovation in architectural thinking. It allows the roof to no longer be limited by the weight, length, and form of materials, paying tribute to every inch of space that needs to be guarded with a solution that integrates structural safety and industrial aesthetics.
