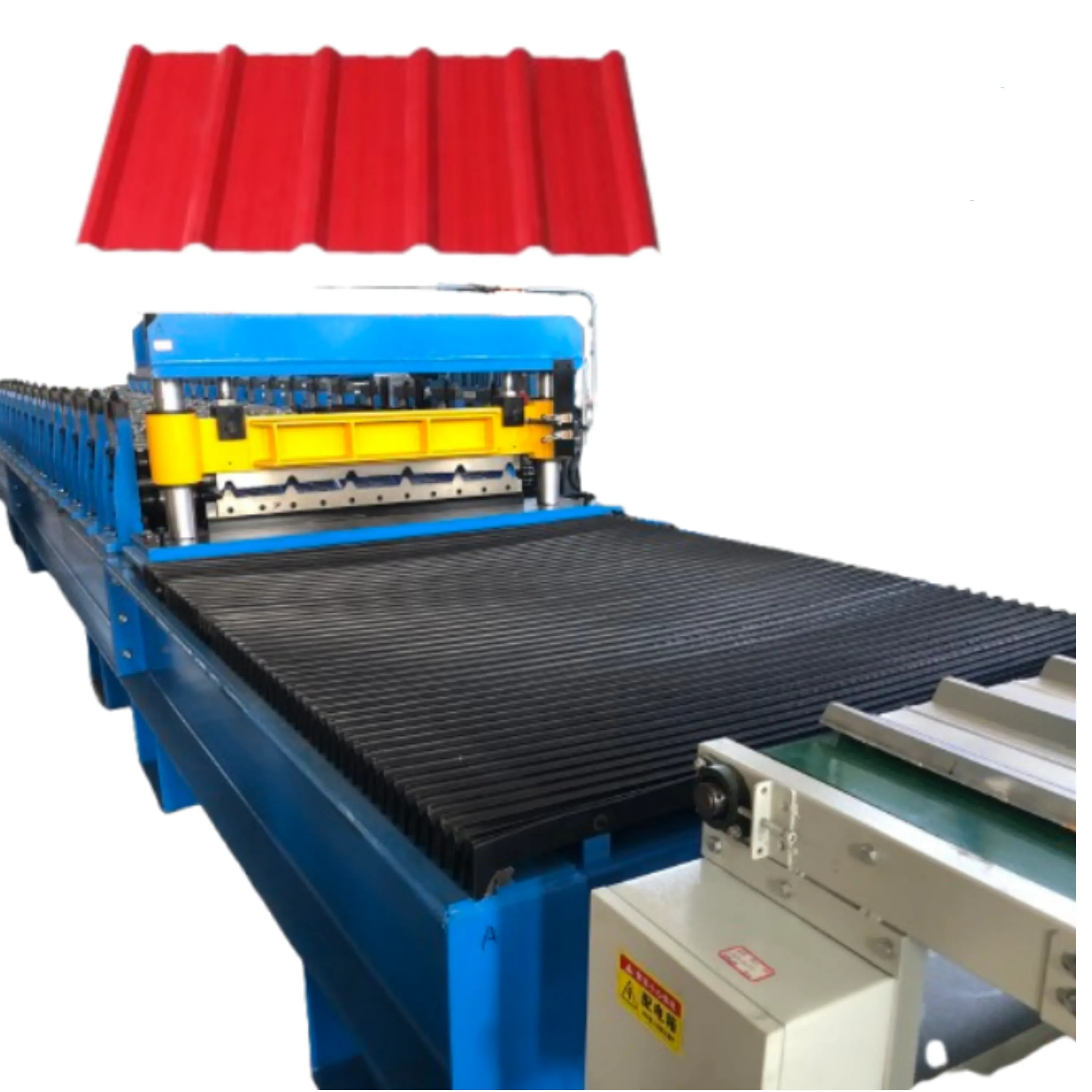

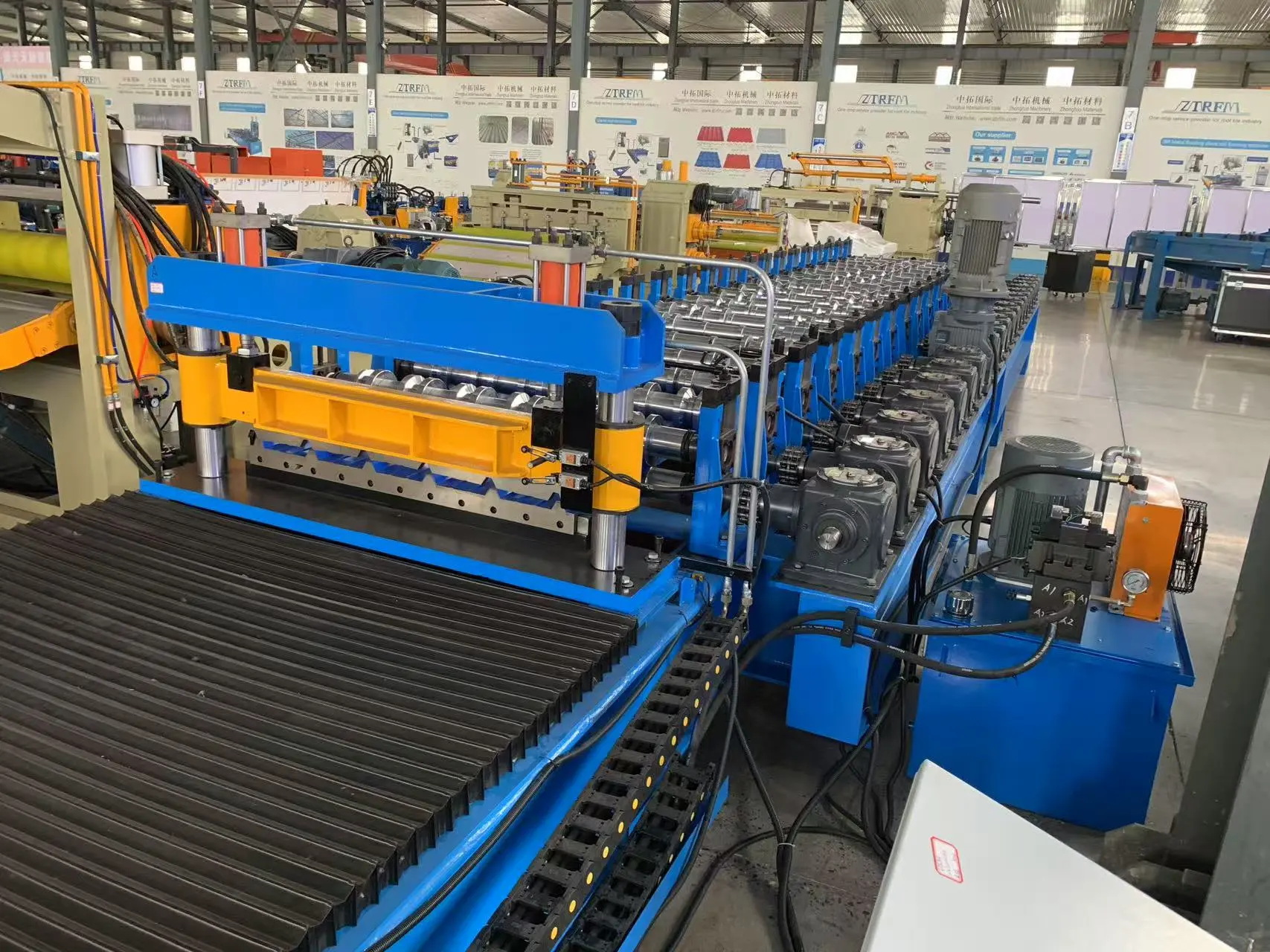

High Speed 30m/min IBR Metal Roofing Machine

High Speed 30m/min IBR Metal Roofing Machine is for making the roofing sheet. The machine can achieve a high-speed production of 30-40m/min, equipped with a gearbox transmission, the entire production line is highly automated, with high production efficiency, stable machine operation and simple operation. It is popular in various countries.

Machines' advantages 1. Saving cost: two types of roofing sheets can be produced on one machine. (Note: two layers cannot be produced at the

same time)

2. Wide applicability: Suitable for the requirements of producing different panels (roofing panel profile drawing can
be customized).

3. Strong and durable: our machine materials are well treated for long term use.

4. Space-saving: one machine:produces two types, saving factory space.

5. Fully automatic and easy to operate.

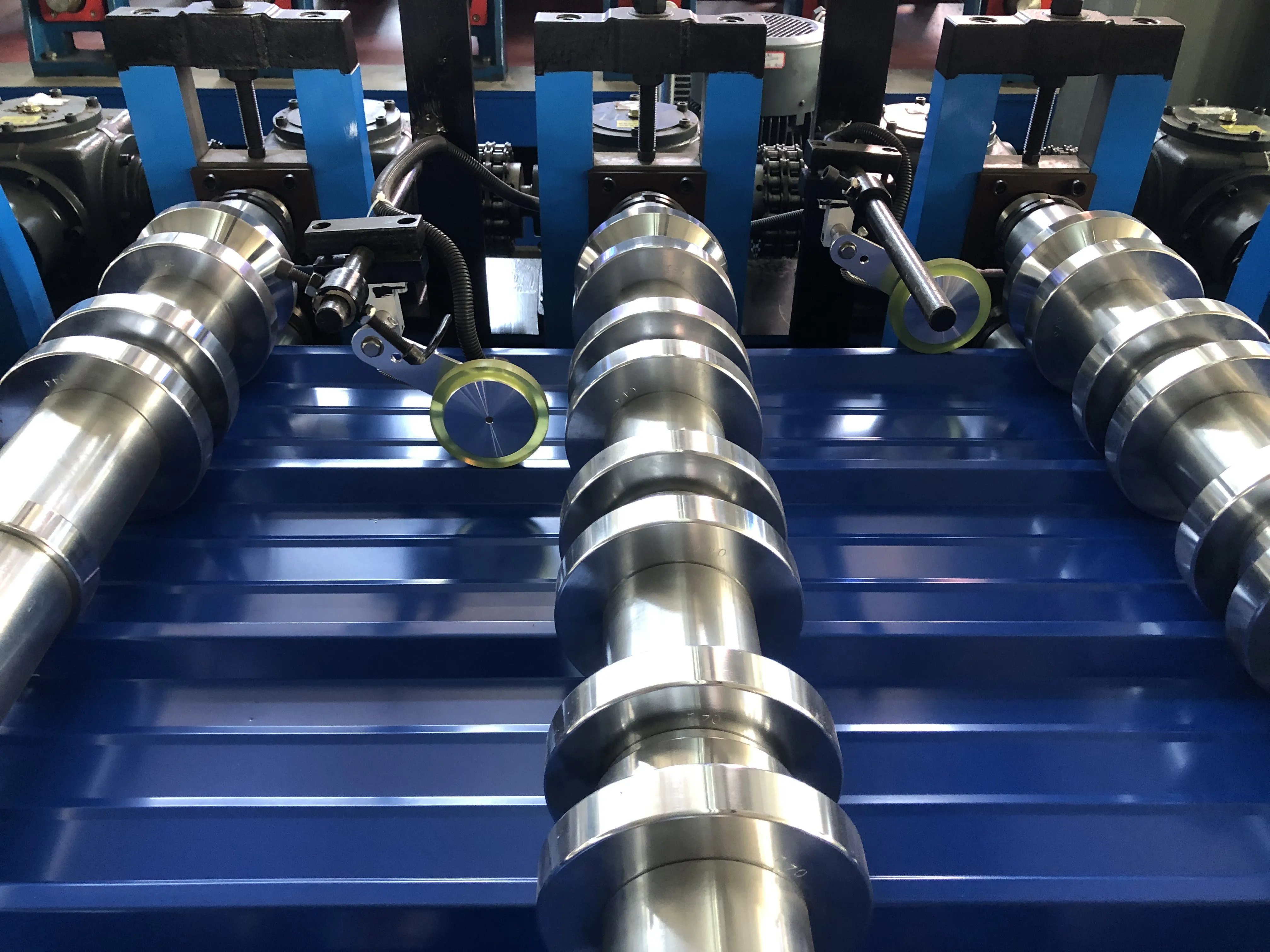

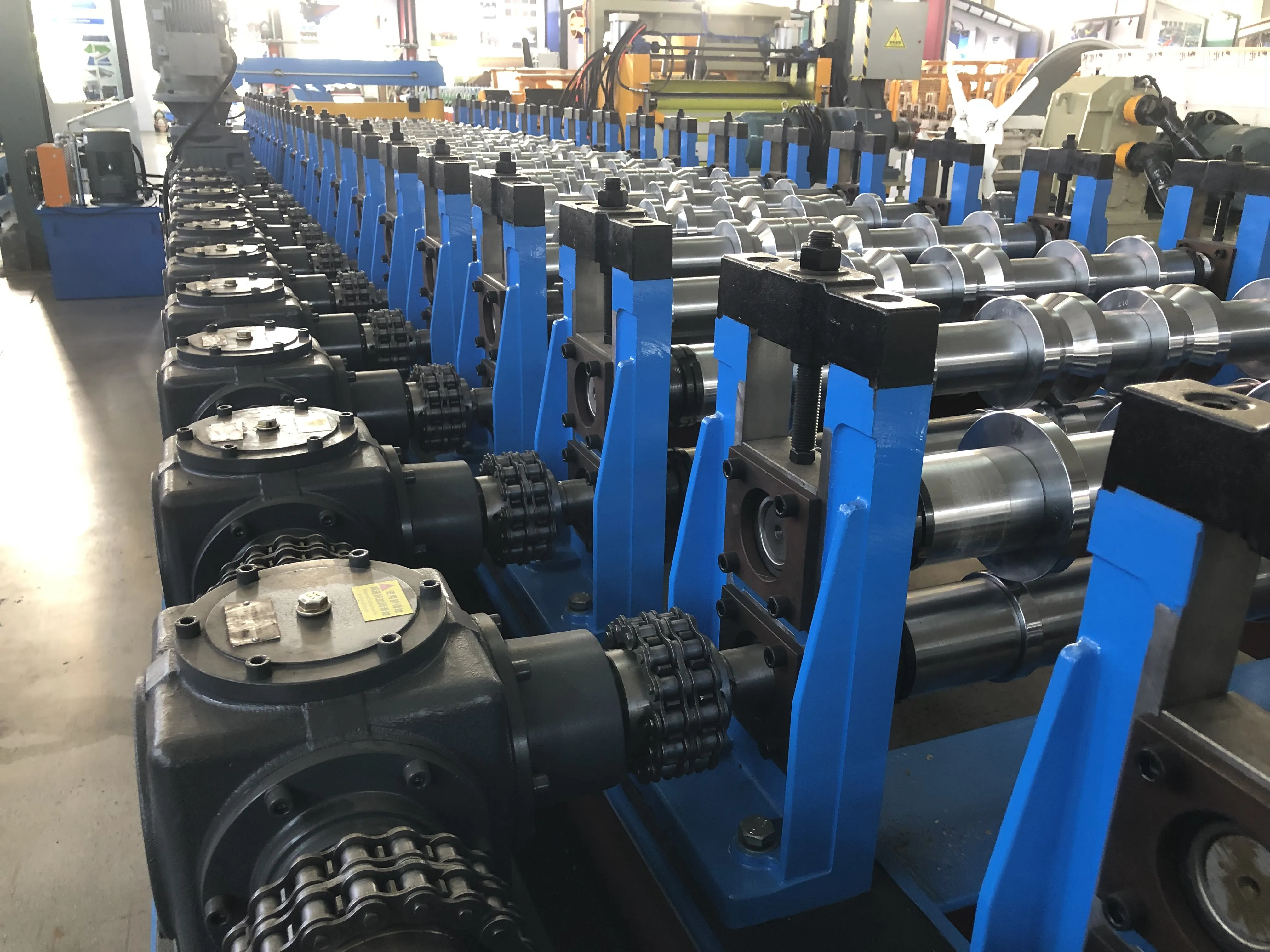

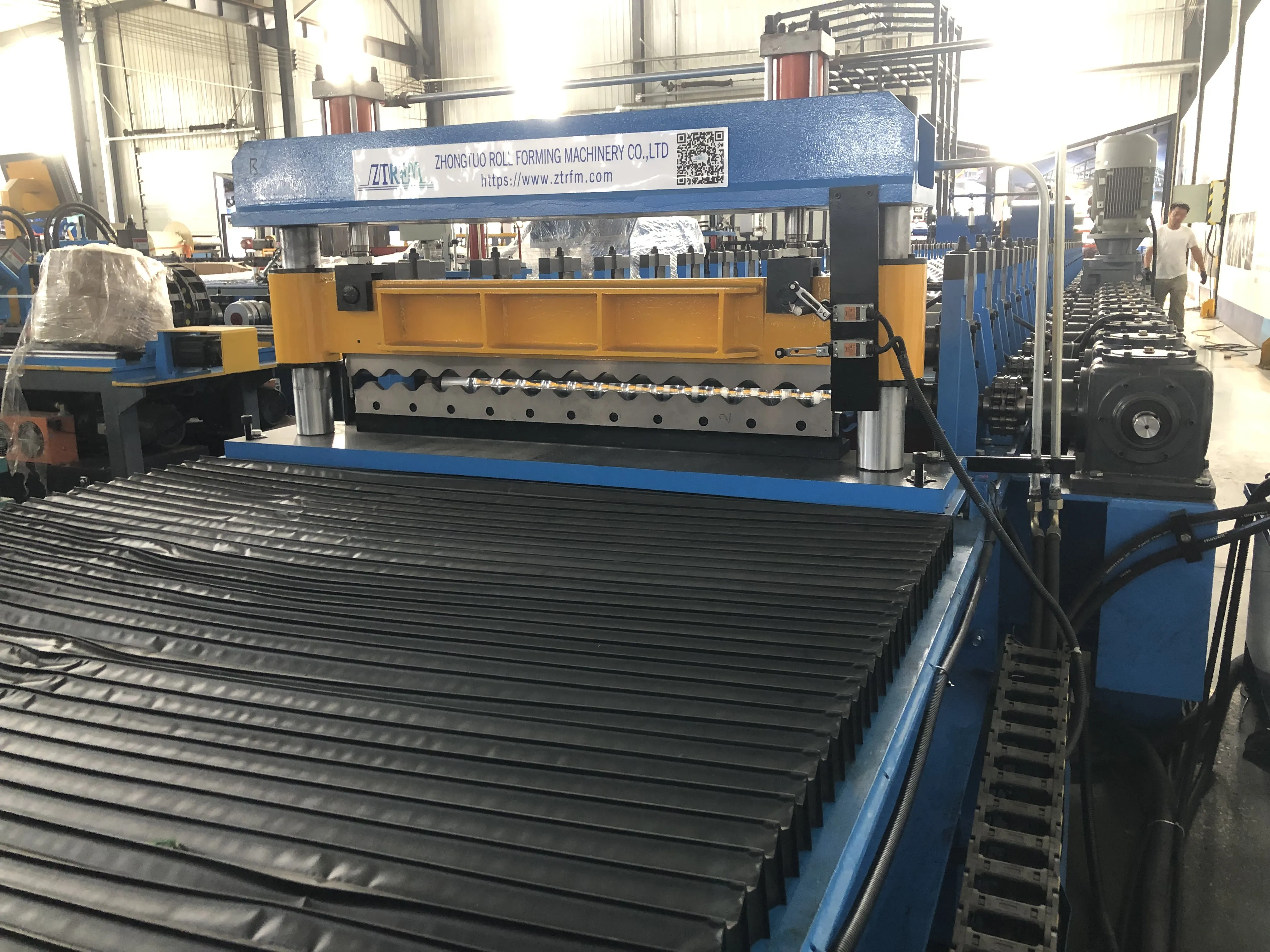

Main roll forming machine
Machine frame	400mm H beam structure, with 18mm welded steel middle support plate.
Material of rollers	High grade 45# forged steel
Material of rollers		Chromed treatment (Chrome thickness:0.05 mm), make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life
Forming stations	Upper layer 16 -24 rows
Forming stations		Rolling type: separate rolling design concept, it can release internal stress from the sheets, then the sheet will be in good shape and high precision.
Diameter of shafts	Φ80mm solid
Material of shafts	High grade 45#,with heat treatment
Forming speed	30-40m/min
voltage	380V/50HZ/3P (as requested)
Transmission way	Gearbox transmission
Main motor	5.5kw
Cutting blade material	Gcr12 quenched treatment
Cutting type	hydraulic post cutting
Driving method	By pillar type Cylinder

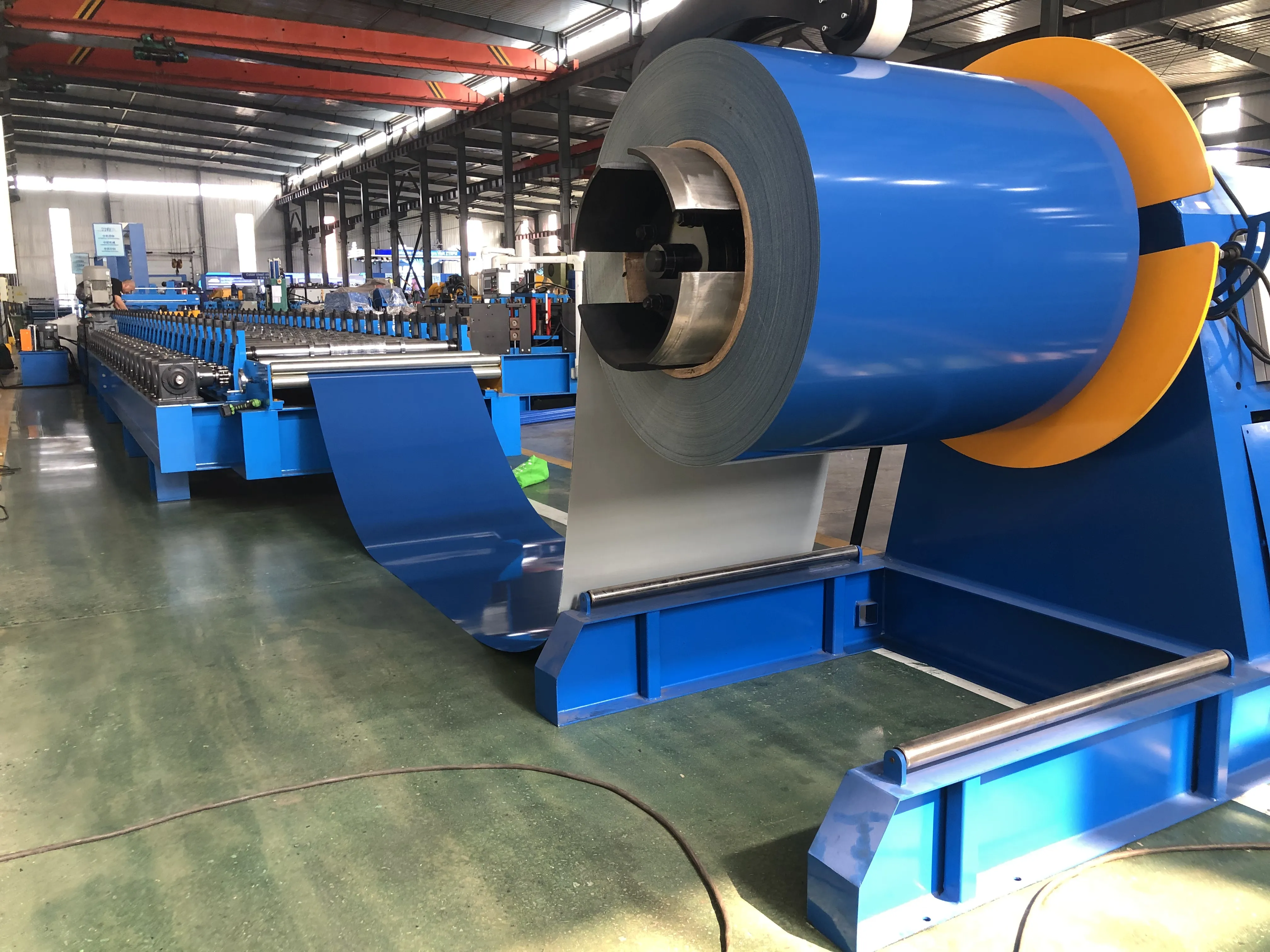

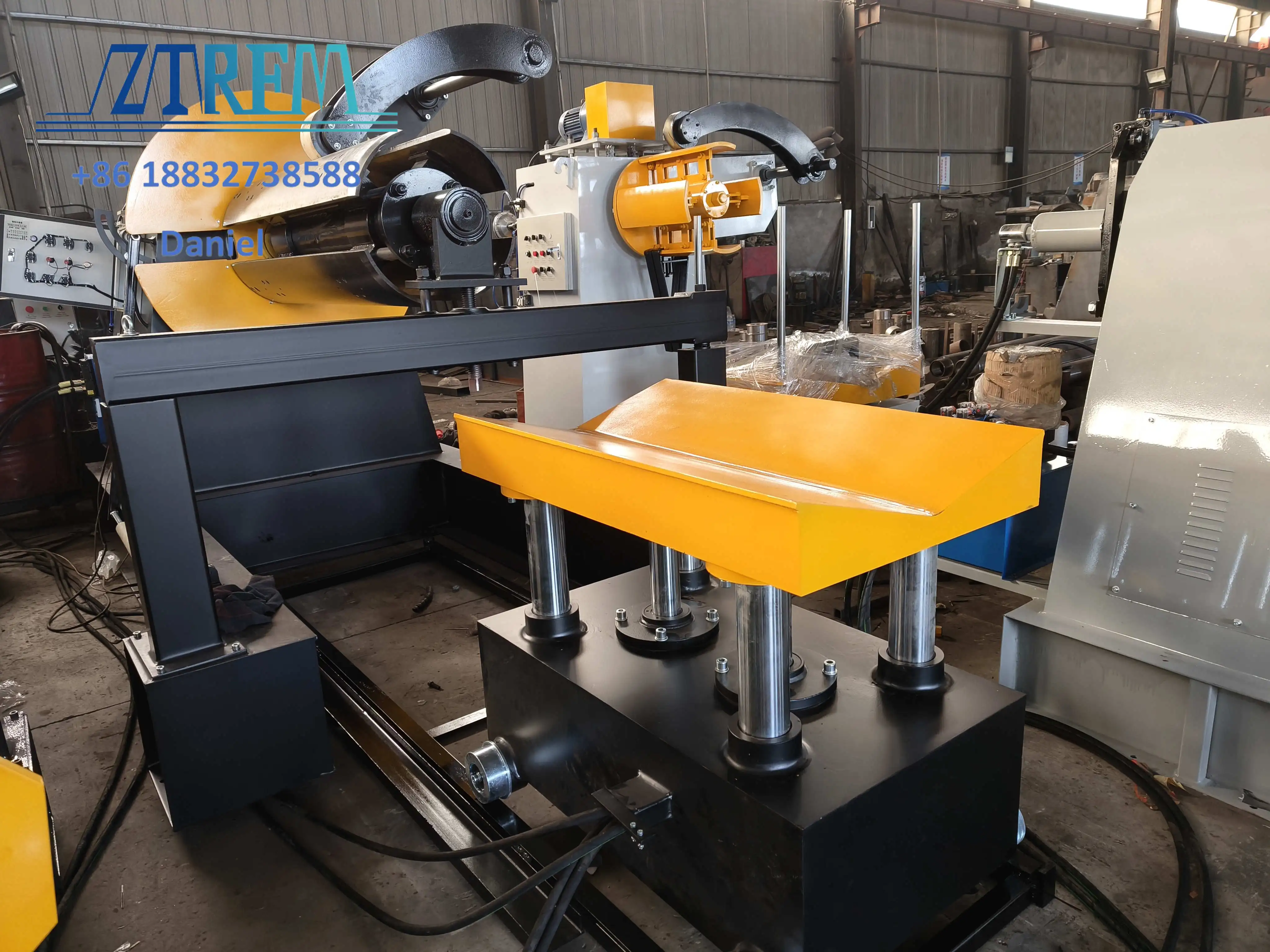

Hydraulic Decoiler

1. Our decoiler have pneumatic press arm can prevent open coils power to damage workers!

2. Through hydraulic station provide power to open coils. Save labors

3. Opening coils can reach 35m/min

4. Loading car can help put coils , through the romate control to up and down, come and back.

Feeding Device

1. Feeding rollers: reduce friction force between materials and machine , protect materials surface.

2.Hand wheels: Can adjust feeding materials coils width, keep feeding accuracy.

3.Stainless rollers: Support and press materials, keep materials in right position , convenient to feeding

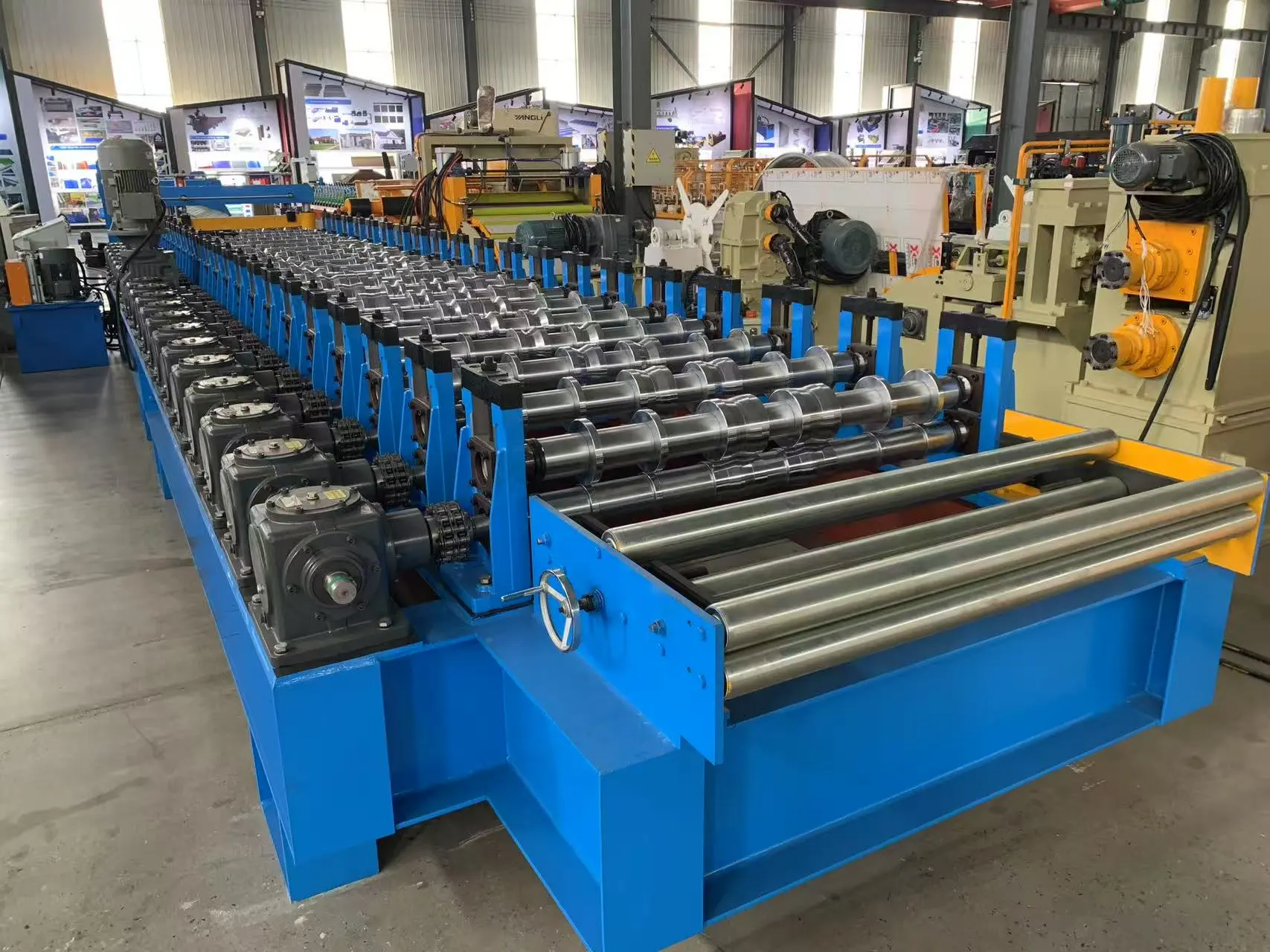

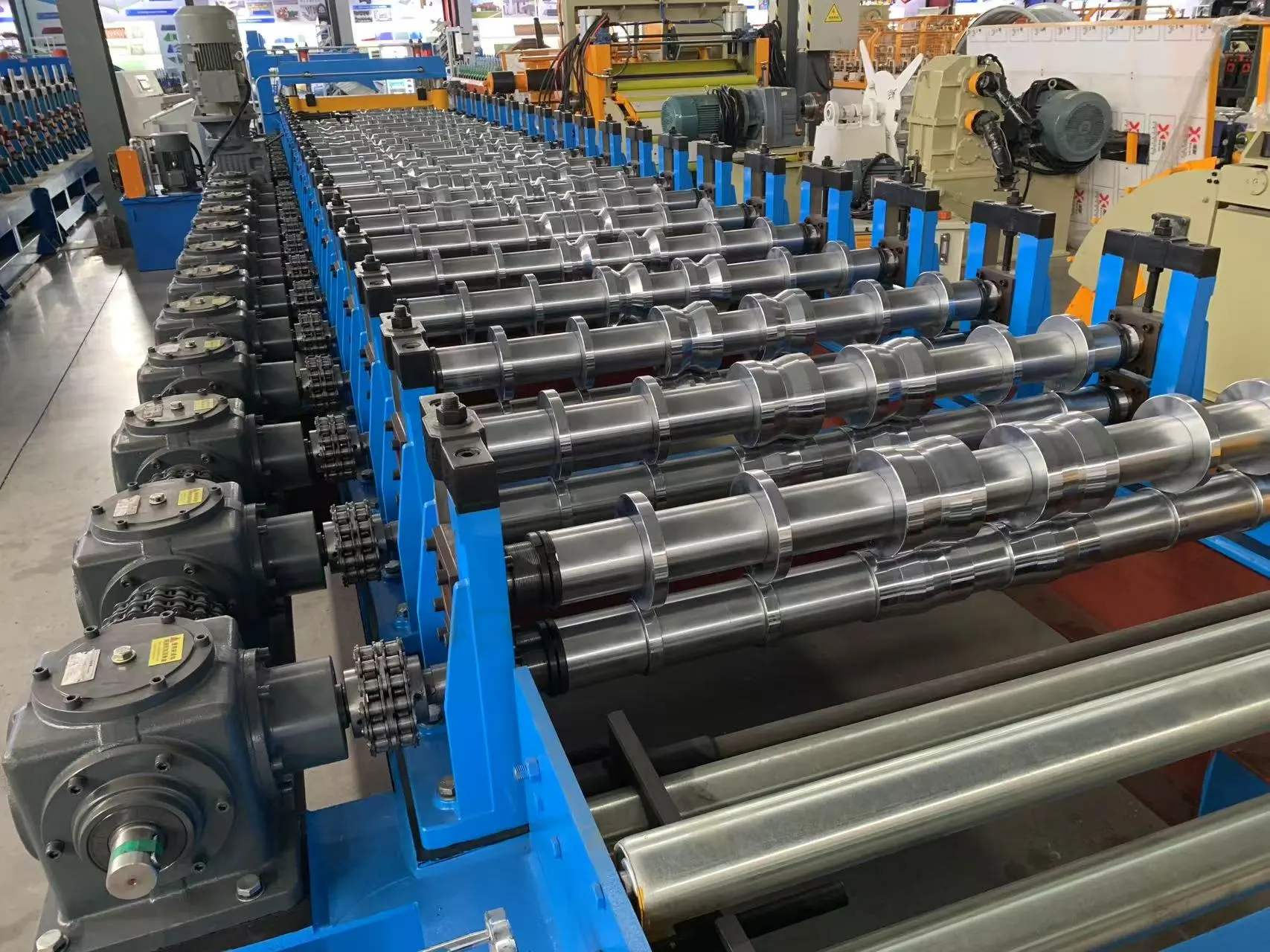

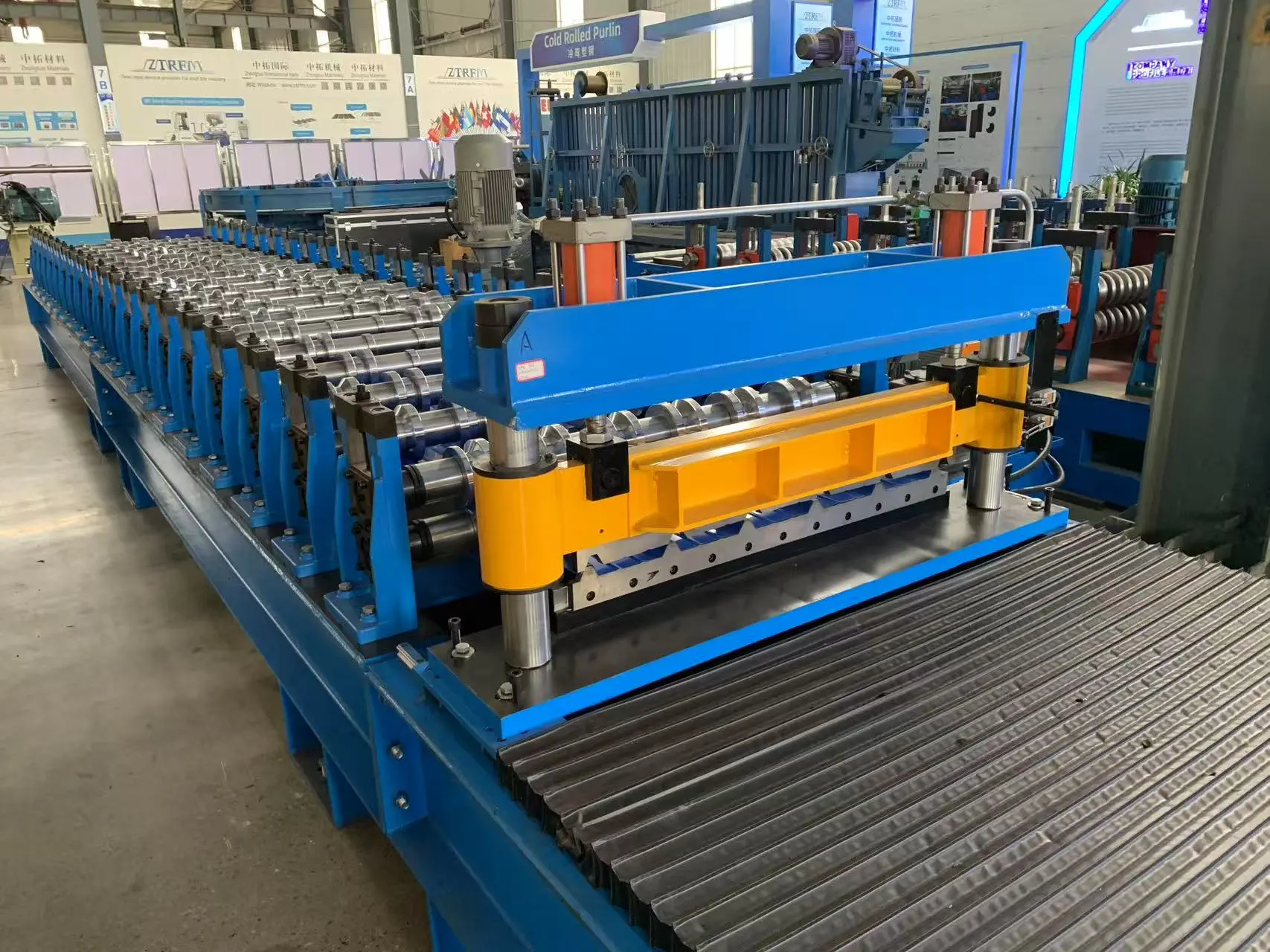

Main forming machine

1.Rollers: High grade 45# forged steel

2. Shaft: Φ80mm solid
High grade 45#,with heat treatment

3. Roller station: corrugated 16-24 rows

4. Forming speed: 30-40m/min

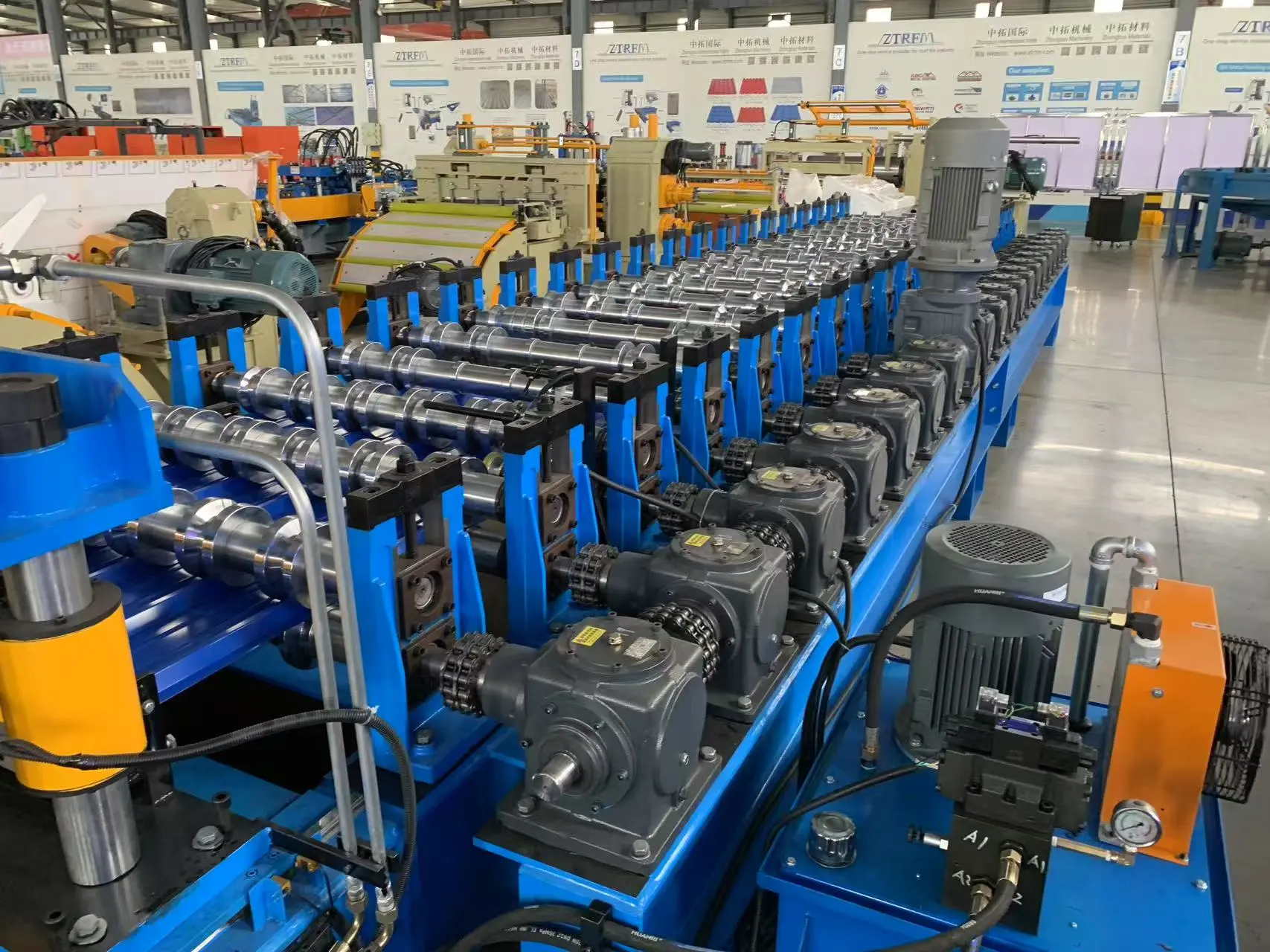

Transmission

1.Type: Gearbox transmission; have more stronge power

The gear ratio is 1:1. After the PLC switch is adjusted, the machine can start production quickly. Equipped with servo shearing, the overall production speed has been greatly improved.

Shearing system

1.Cutting blade material: Gcr12 quenched treatment
2.Cutting type: hydraulic post cutting
3.Driving method:By pillar type Cylinder

4.Automatic filler: can automatic add oil on cutter, delay the cutting using life and save labor

5.Galvanized steelhydraulic oil pipe：We upgraded the hydraulic oil pipe to galvanized steel pipe, which is more beautiful, stronger and more durable than the rubber oil pipe used by other factories.

Hydraulic station

1.Hydraulic station motor:5.5KW
2. Hydraulic oil:46# hydraulic oil
3. Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, twohydraulic pipes. And one of electromagnetism valve
4. The air-cooling system of the hydraulic station can be customized according to the customer, and it is equipped with an automatic thermometer, which is convenient for workers to monitor the working temperature of the hydraulic station at any time.

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation
4.Languages can be customized

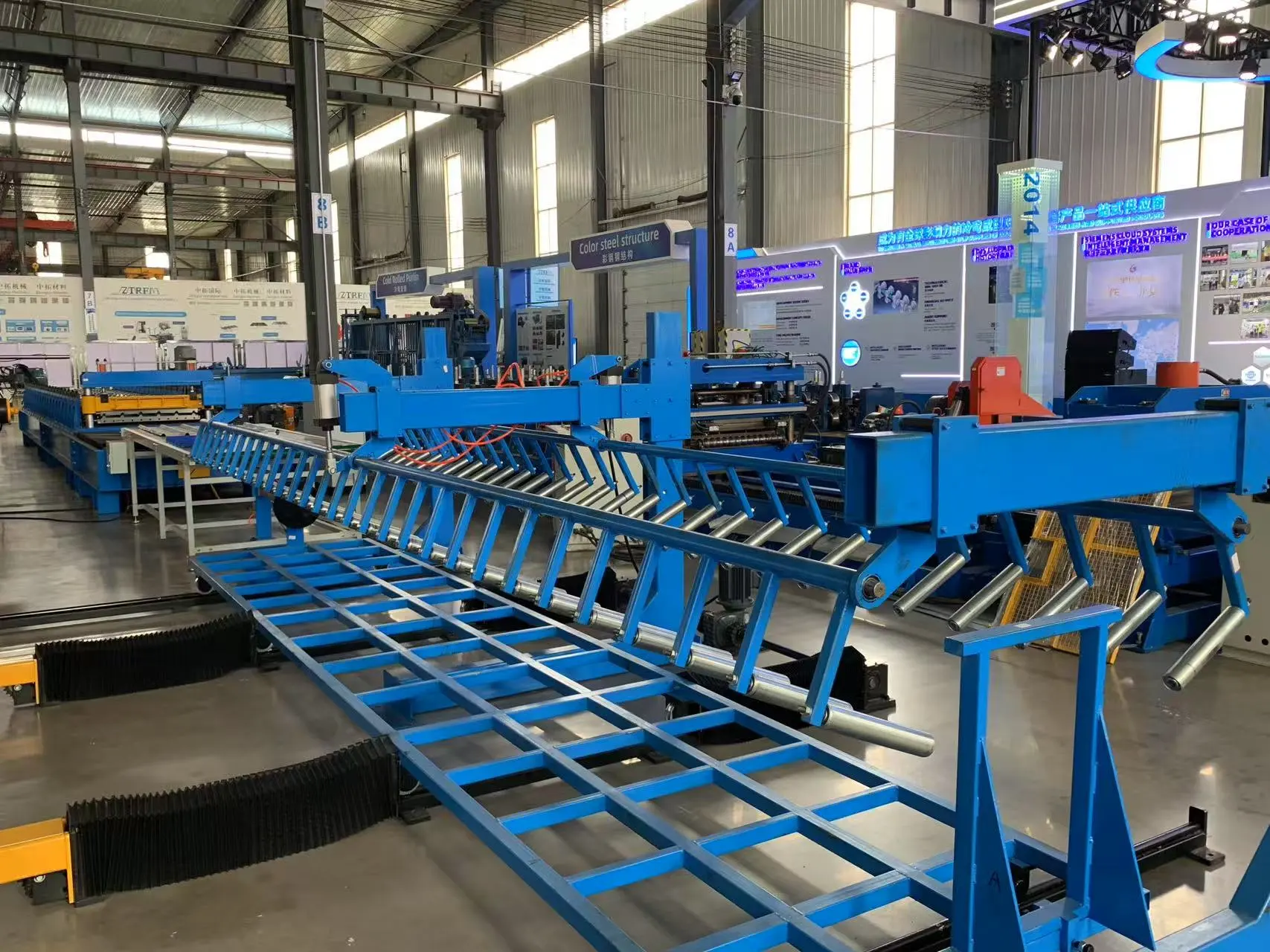

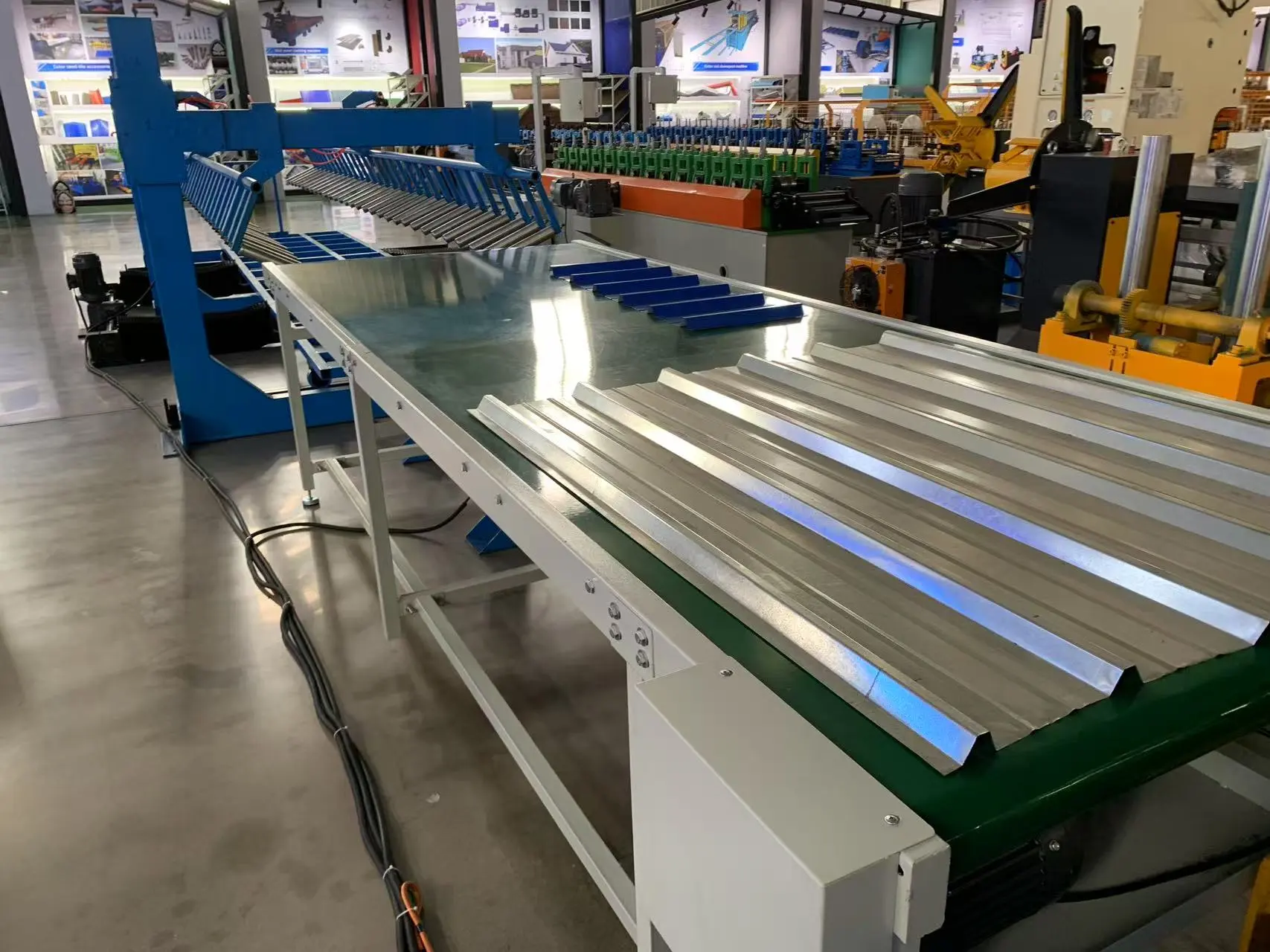

Automatic Stacker

1. Saving manpower

2. Can improve productivity

3. Equipped with rubber wheels and nylon pads to better protect the finished product.

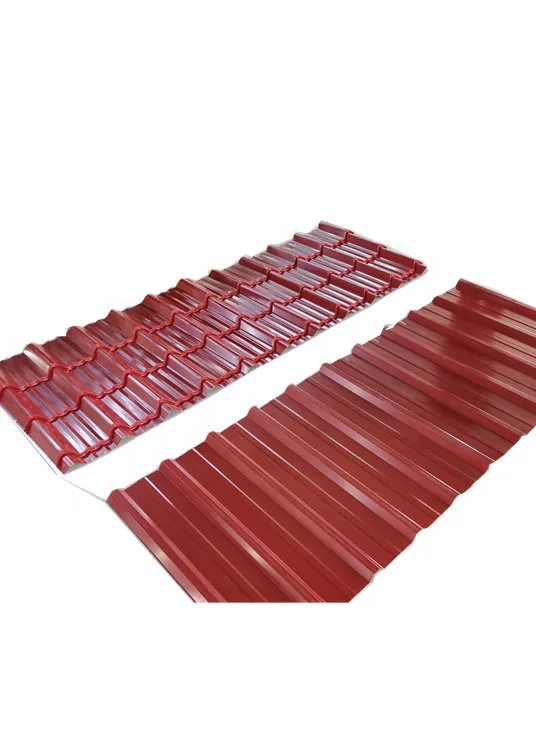

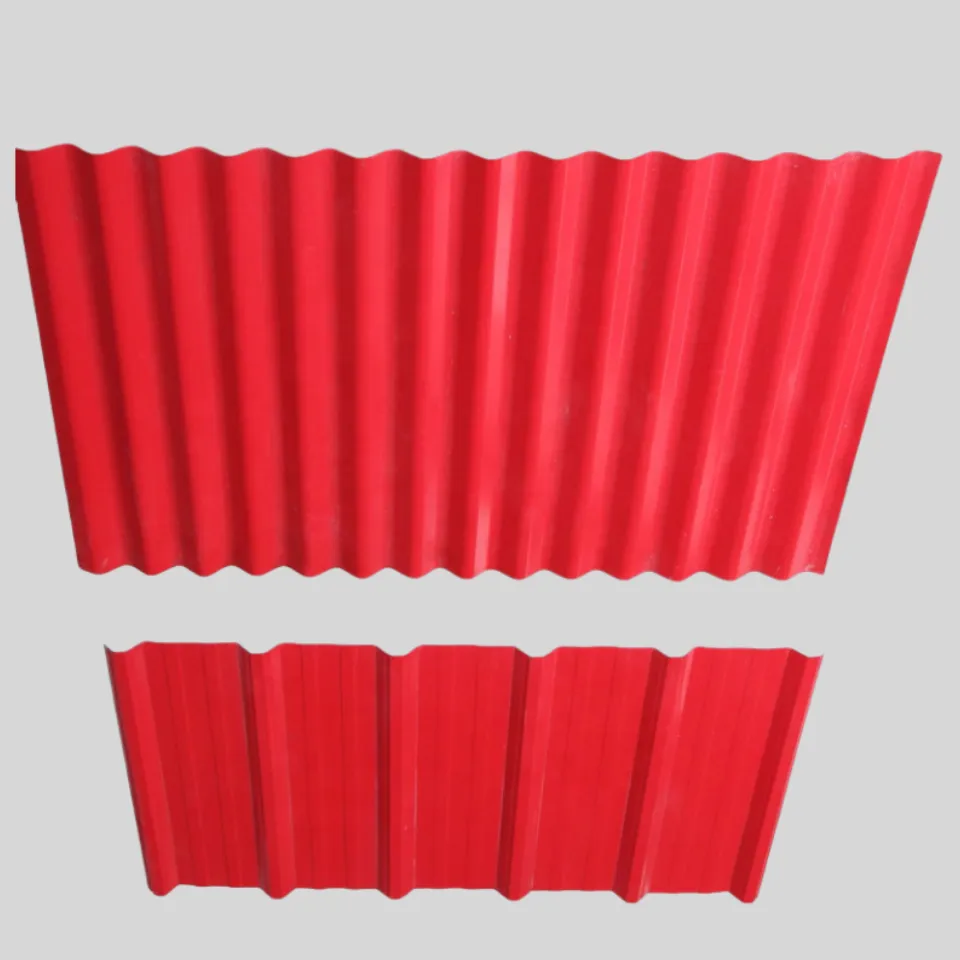

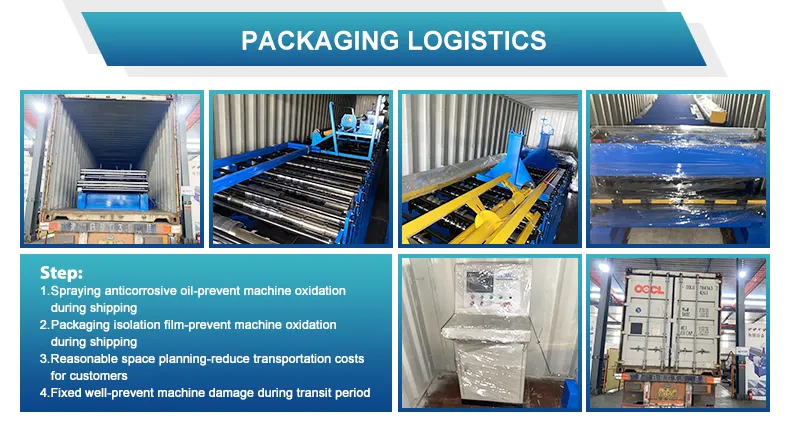

Product display

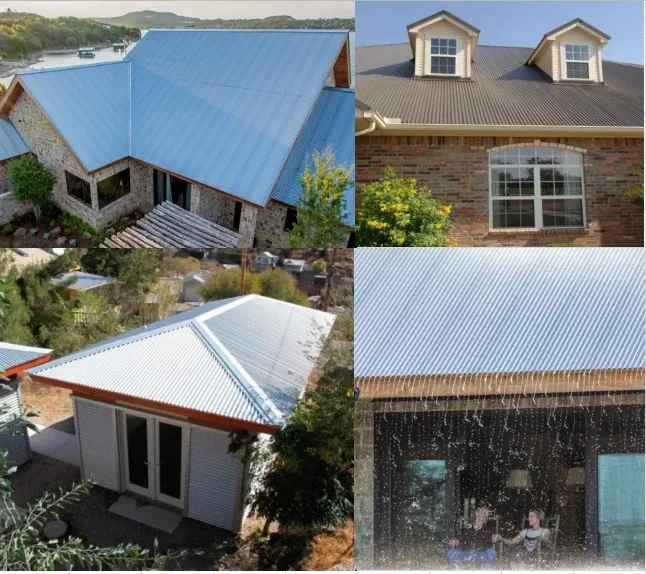

Application

Exhibition

Certification

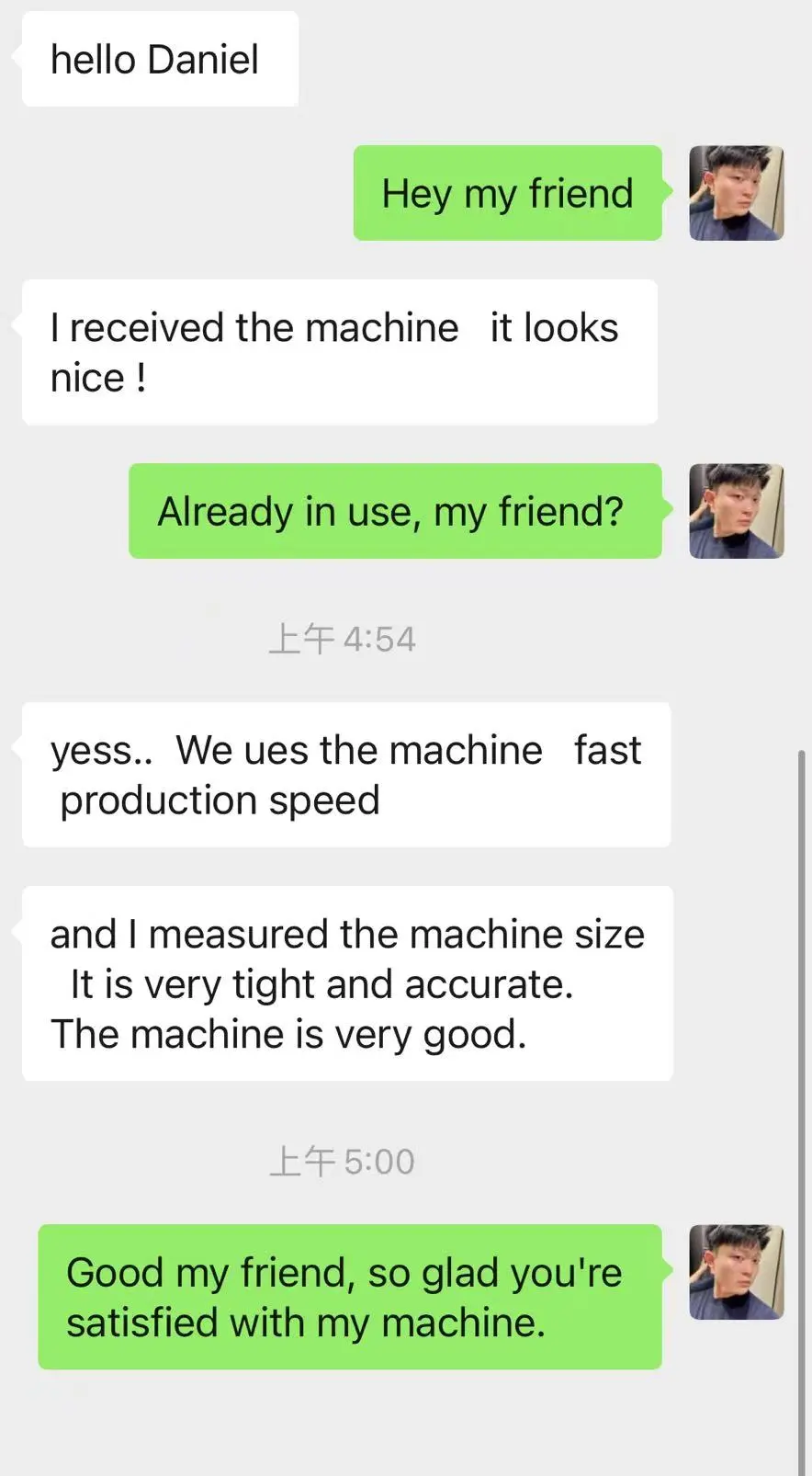

Customer Photos
