High Quality R101 Trapezoidal Roof Roll Forming Machine

Product Overview

The R101 trapezoidal roof roll forming machine is a fully automatic cold bending line designed to produce R101 trapezoidal metal roof panels from color coated, galvanized or aluminum magnesium manganese steel coils in one continuous pass. The standard process flow is: hydraulic or manual decoiling, multi-pass progressive roll forming, servo fixed-length tracking cutting, then automatic discharge and stacking. The whole forming process runs at room temperature without heating.

• 21 roller stations for a consistent R101 trapezoidal profile
• 80 mm solid shafts and 45# steel hard chrome plated rollers
• Forming speed of 15-20 m/min, variable frequency drive for continuous production
• PLC touch screen control; batch, length and quantity settings
• Automatic cutting with Cr12MoV blades, no scratches, no deformation
• CE and ISO9001 certified

Key Features

• High Precision Forming - Tight tolerances on wave peaks, wave spacing and panel length ensure close panel overlapping and effective leak prevention.
• Efficient Stable Production - Variable frequency speed regulation allows continuous 24-hour operation; selected models reach 60-80 m/min for fast delivery of large orders.
• Durable Heavy-Duty Structure - 350 H steel machine frame and wear-resistant rolling mill with low vibration and low failure rate in long-term operation.
• Strong Material Adaptability - Compatible with color coated steel, galvanized steel and aluminum zinc coated sheet from 0.3-0.8 mm; the R101 profile uses a 1220 mm feed width to produce 8-wave panels.
• Easy Operation - PLC touch screen control system; batch, length and quantity can be set for fully automatic production, operated by one person.
• Energy Efficient - Low energy consumption per shift with a reduced waste rate compared to semi-automatic equipment.

Technical Specifications

Machine Structure

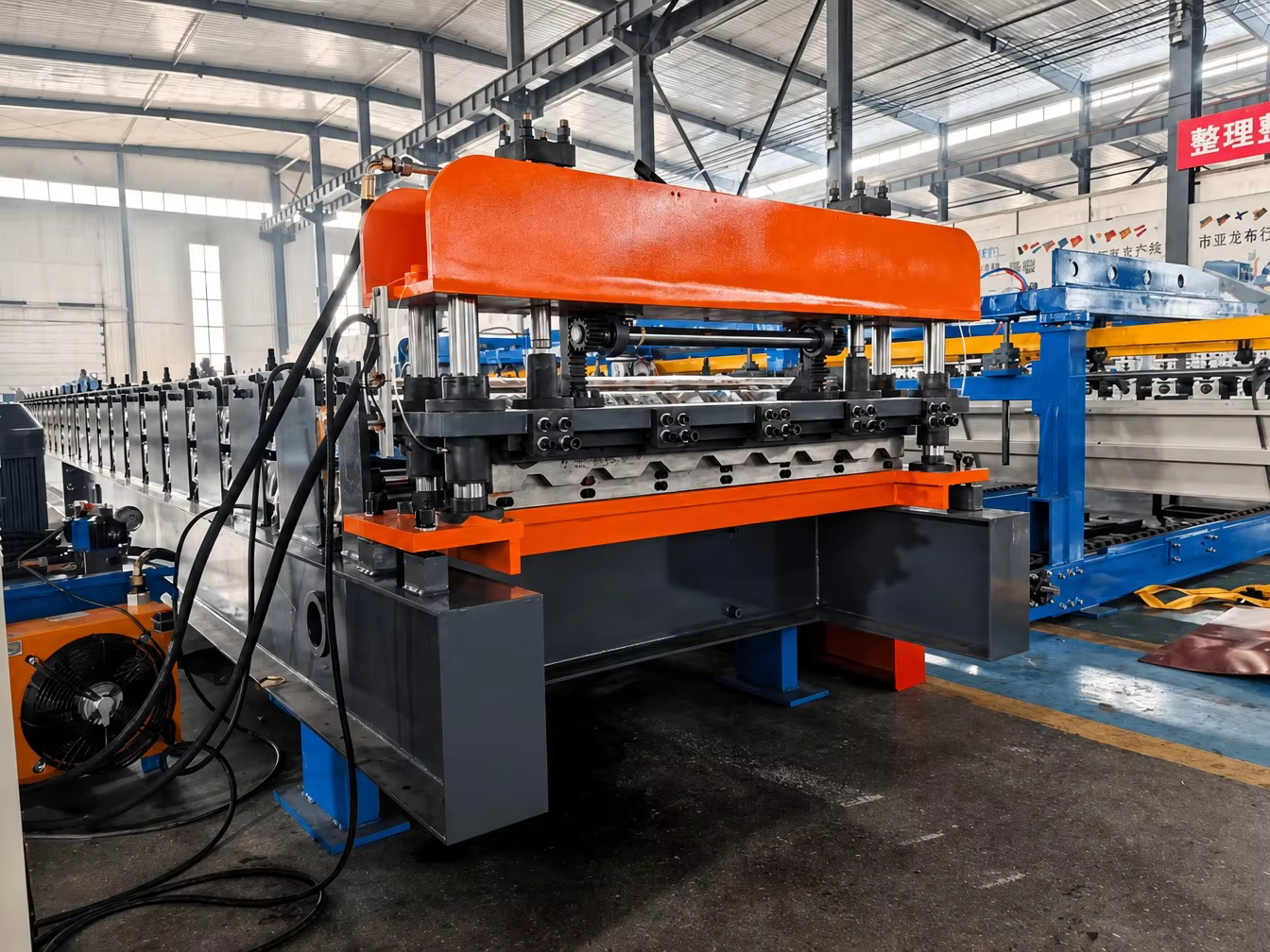

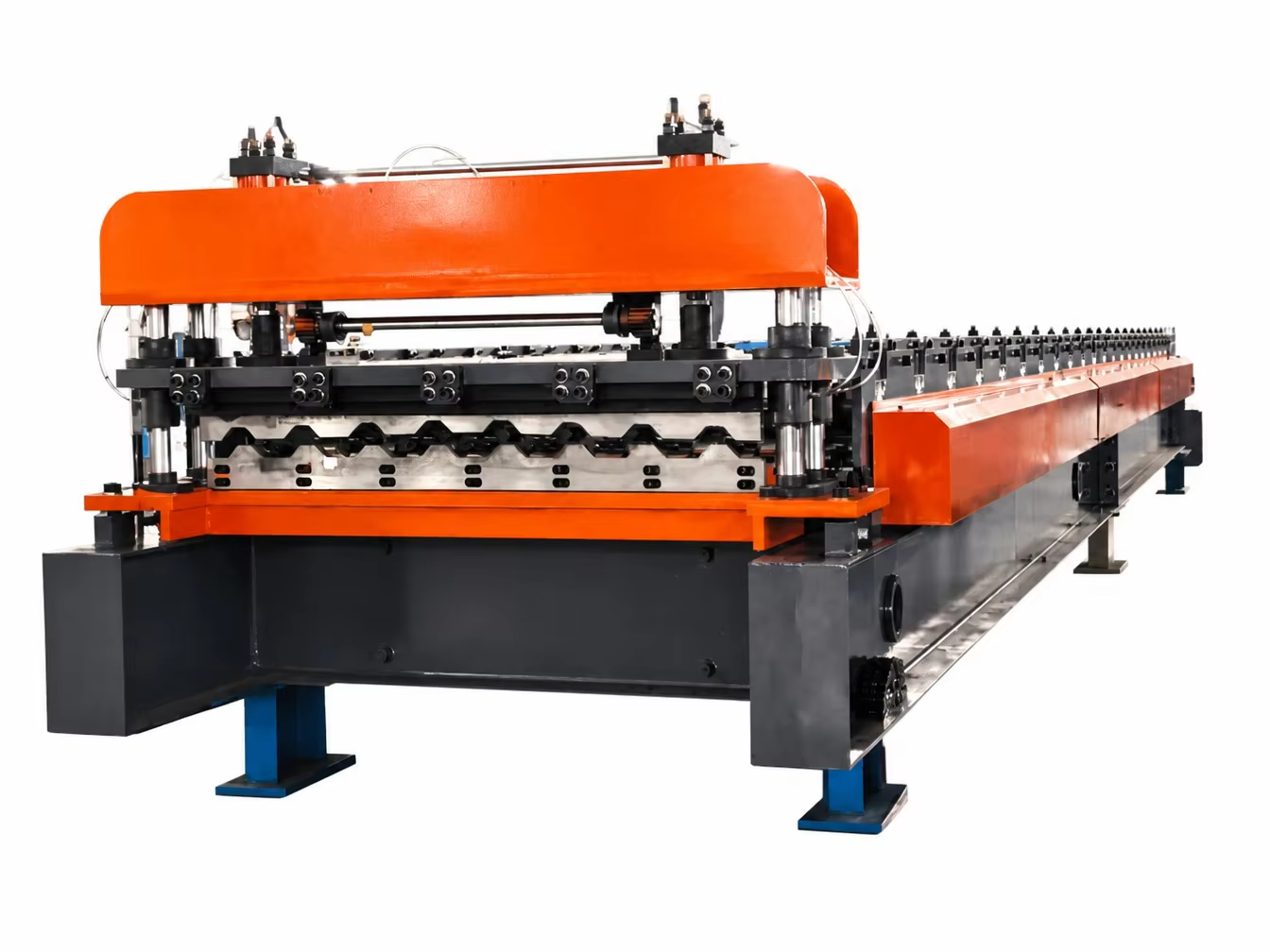

The line is built on a heavy-duty steel frame with a hydraulic automatic decoiler at the feed end, a long series of roller stations in the middle, and an automatic cutting head at the discharge end. The whole production line can be operated by one person.

Applications

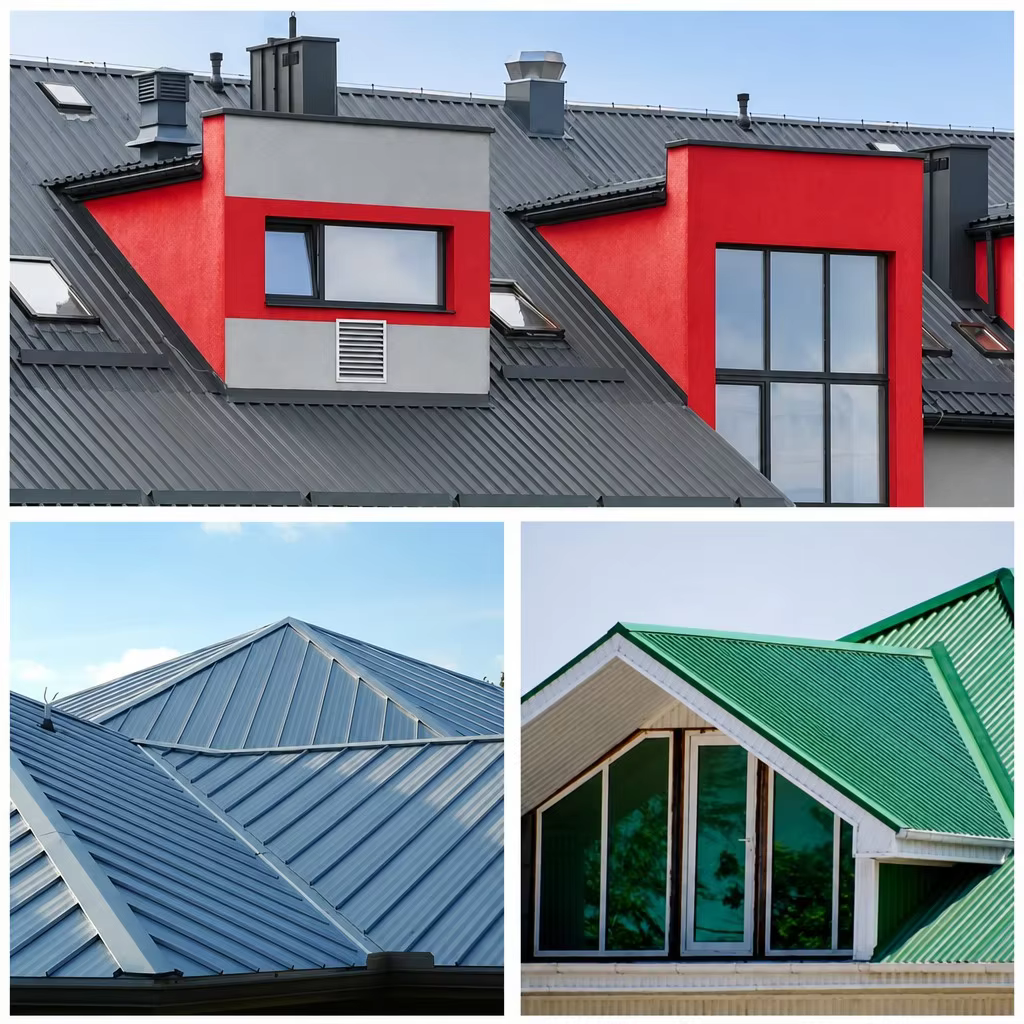

Trapezoidal roof panels produced by the R101 machine combine high strength, light weight, fast installation, waterproof and fireproof performance. They are widely used for roofs and walls of industrial and civil buildings, commercial and public facilities, prefabricated buildings, and as core production equipment for building material manufacturers. R101 panels are especially common in North and Central America for industrial buildings, commercial facilities and residential roofs.

FAQ

• What is the difference between R101 and R72? R101 uses a 1220 mm feed width and produces an 8-wave panel; R72 uses a 914 mm feed width and produces a 6-wave panel. Some machines support quick switching between the two profiles on the same production line.
• What materials can the machine process? Color coated steel (PPGI), galvanized steel (GI), aluminum zinc coated plate (PPGL) and aluminum magnesium manganese plate, usually 0.3-0.8 mm thick.
• How many people are needed to operate the machine? One person. The PLC control system completes the whole process from forming to cutting automatically.
• What is the forming speed? Conventional production speed is 15-30 m/min; selected models can reach 60-80 m/min.
• What certifications does the equipment have? CE certification and ISO9001 quality system certification.
