High Quality Light Steel Frame CU Channel Roll Forming Machine 0-20m/min

High Quality Light Steel Frame CU Channel Roll Forming Machine

The High Quality Light Steel Frame CU Channel Roll Forming Machine is an automated production line specifically designed for producing high-precision CU-type seismic-resistant keels in cold bending forming equipment.

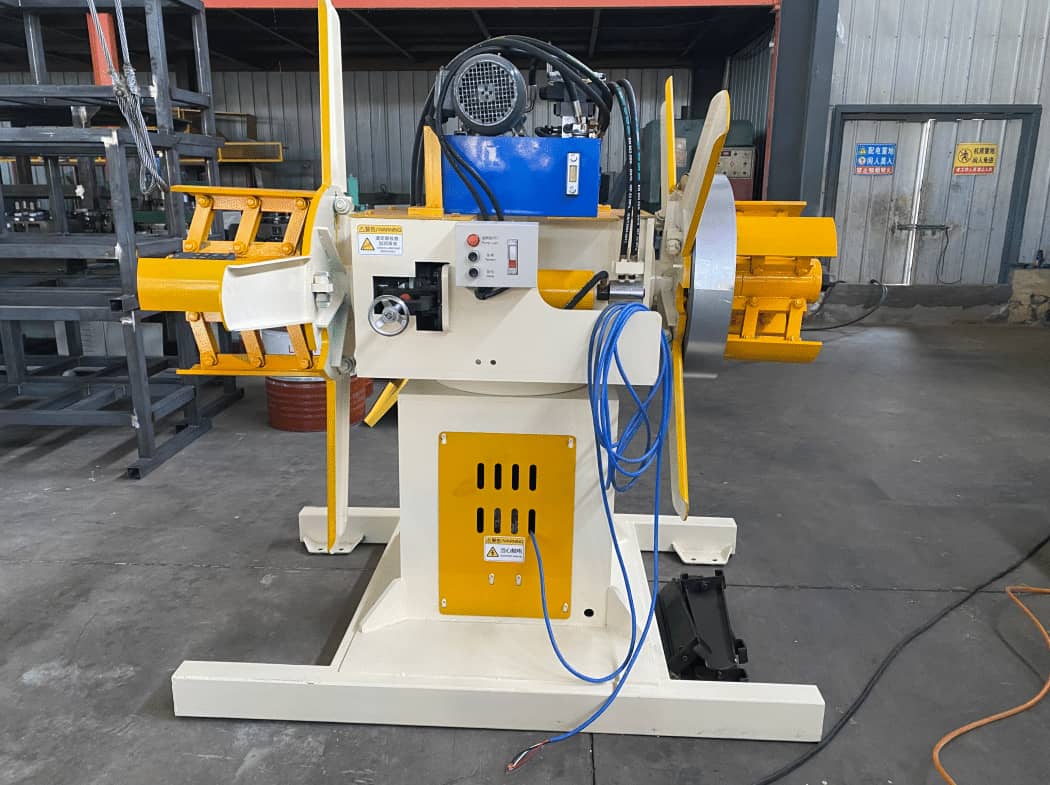

This equipment uses a multi-pass continuous cold bending rolling process to process galvanized steel strip coils into CU Channels with a specific cross-sectional shape in one pass. Compared to traditional C-type Channels, it has a larger moment of inertia and superior mechanical properties. The entire line typically consists of a hydraulic uncoiler, servo feeding, a high-precision roll forming machine, a hydraulic/servo tracking cutting system, and a PLC electrical control system. It can achieve fully automated production from coil to finished product and is widely used in high-end construction, seismic bracing, and modular prefabricated decoration fields.


Application Scenarios：

• Seismic Bracing System for Buildings:
C-channel steel and matching bases used for fabricating seismic bracing systems for electromechanical systems. Utilizing its unique toothed shear design, it provides effective lateral and longitudinal support for water, electricity, and ventilation pipelines during earthquakes, preventing secondary disasters.

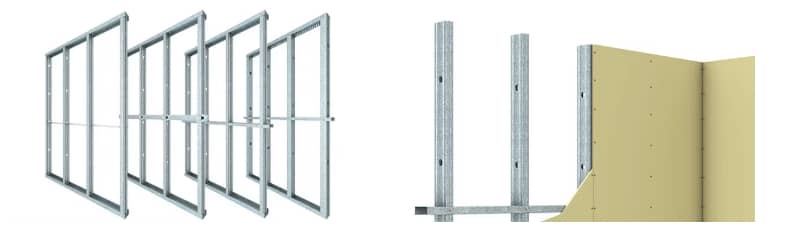

• Prefabricated Light Steel Walls and Floors:
CU keels are used as load-bearing wall columns or floor beams. Their special rolled-edge stiffening design provides stronger load-bearing capacity than ordinary C-shaped steel, meeting the needs of larger spans in unsupported spaces.


Pattern Diagram:



Key Features:
1.High-precision cross-section forming
2.Intelligent servo tracking cutting
3.Flexible dual-specification compatibility
4.High-reliability PLC control system
5.Stable and low-noise operation


Product Attributes :

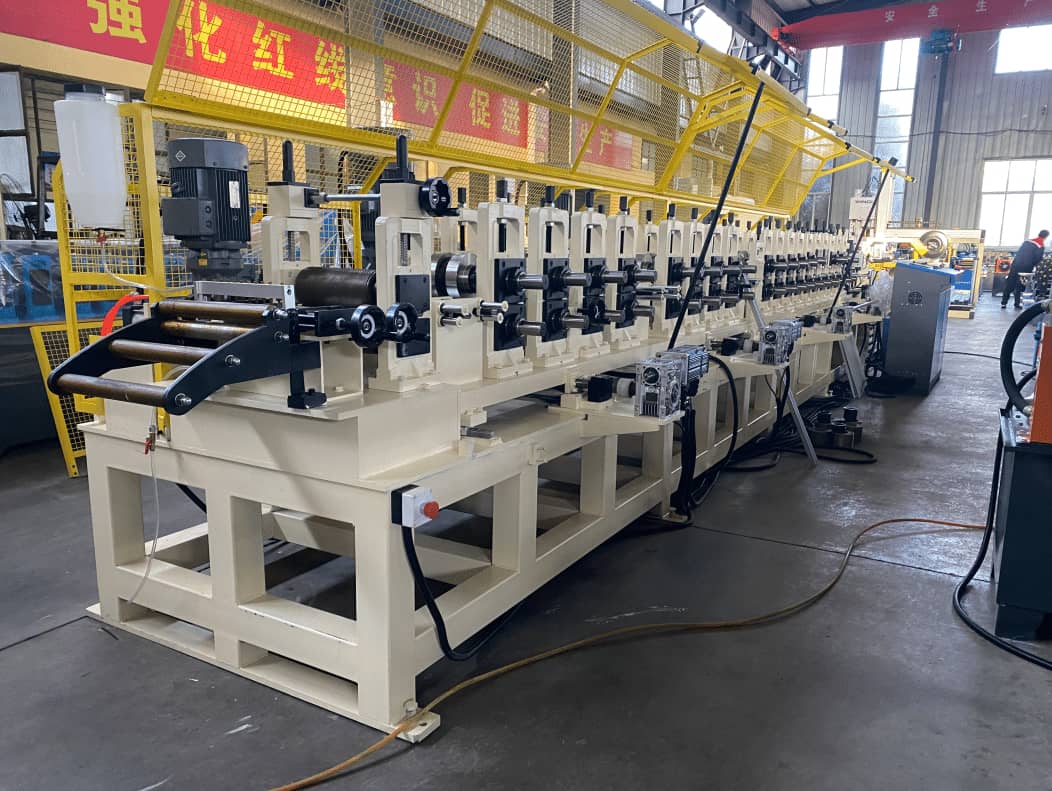

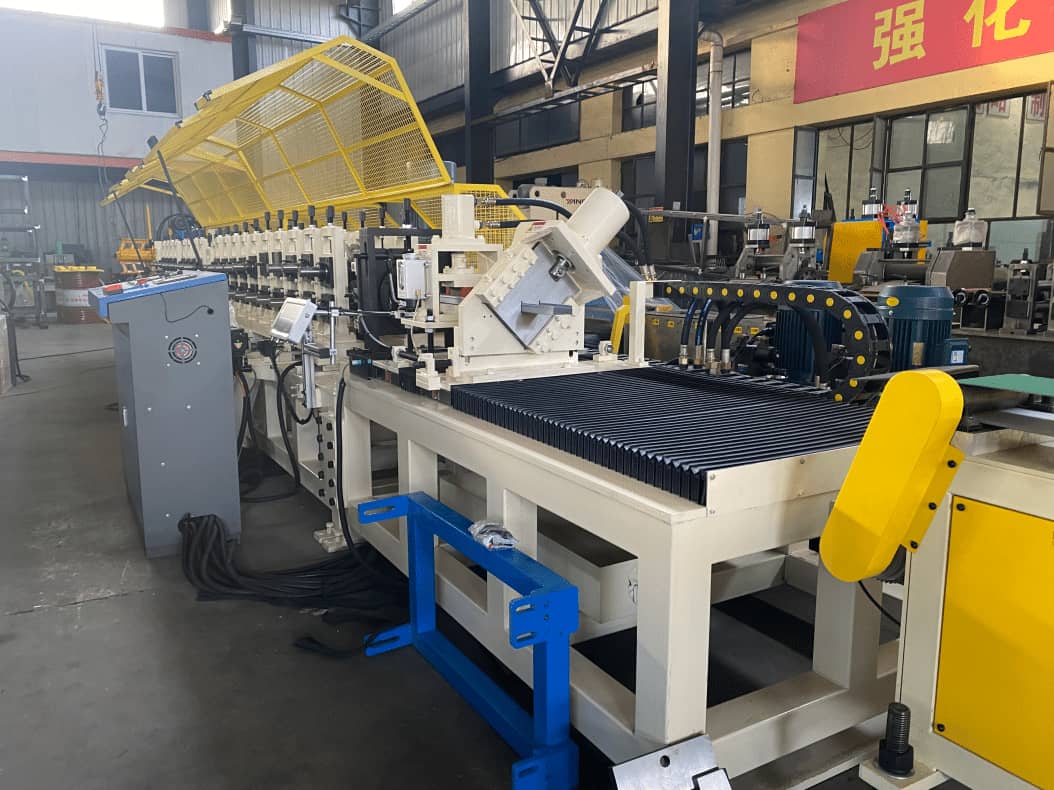

Machine image:

Contact Us:

Choosing us means more than just selecting equipment; it means obtaining a complete solution for light steel keel manufacturing.

We provide full-cycle services, from process planning, equipment customization, installation and commissioning, operator training to after-sales maintenance. Using precision cold bending technology, we infuse your keel manufacturing with rigidity and toughness, giving you a competitive edge in the wave of industrialized construction.

Contact us now for your customized U-shaped keel forming solution and a real-time quote!
