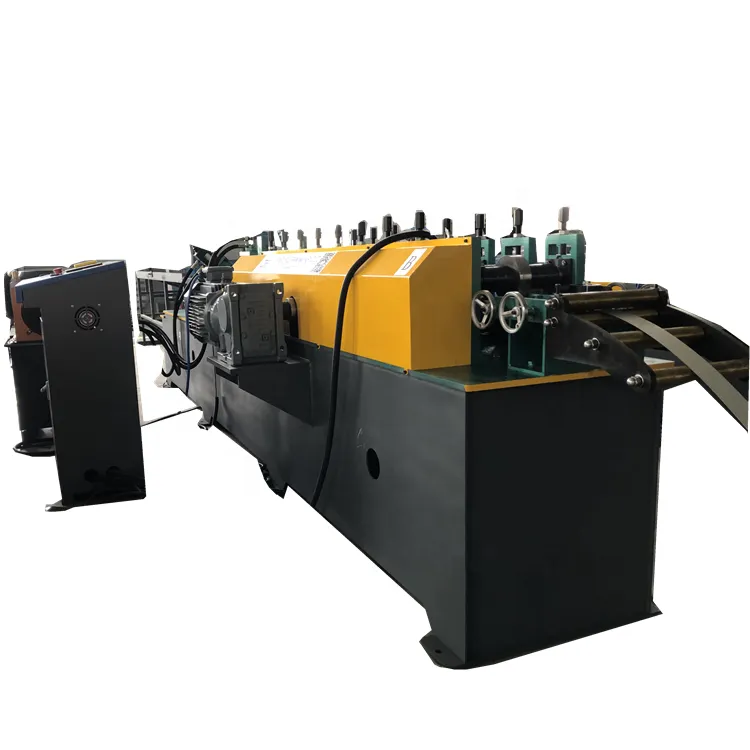

High quality light gauge steel metal C stud profile framing roll forming machine

The C stud profile framing roll forming machine is to produce C shape channel. One set complete machine include manual decoiler, roll forming machine, PLC system, Hydraulic oil pump station, product collect table. Per minute can produce 45 meters. The machine use casting iron frame structure, working very stable.

C stud profile framing machine processing flow

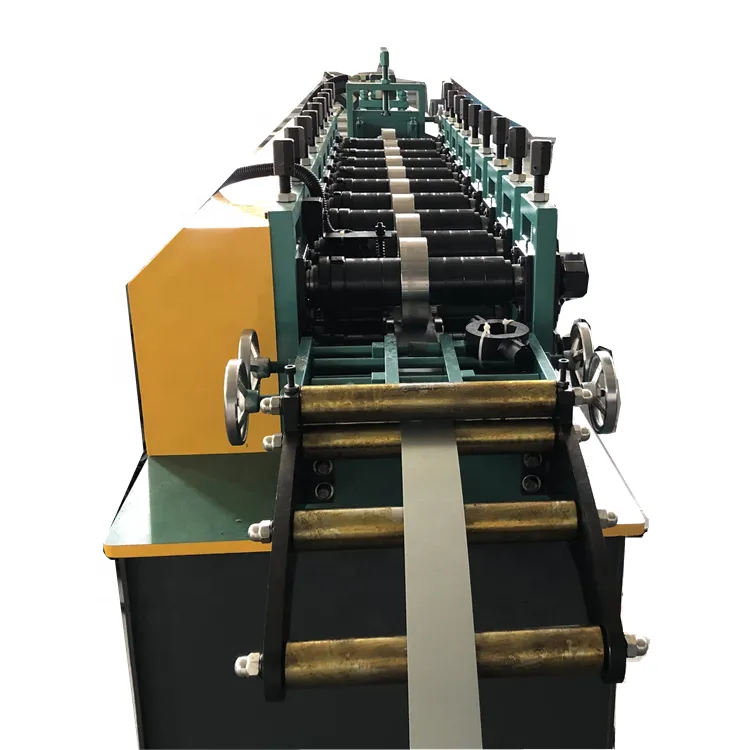

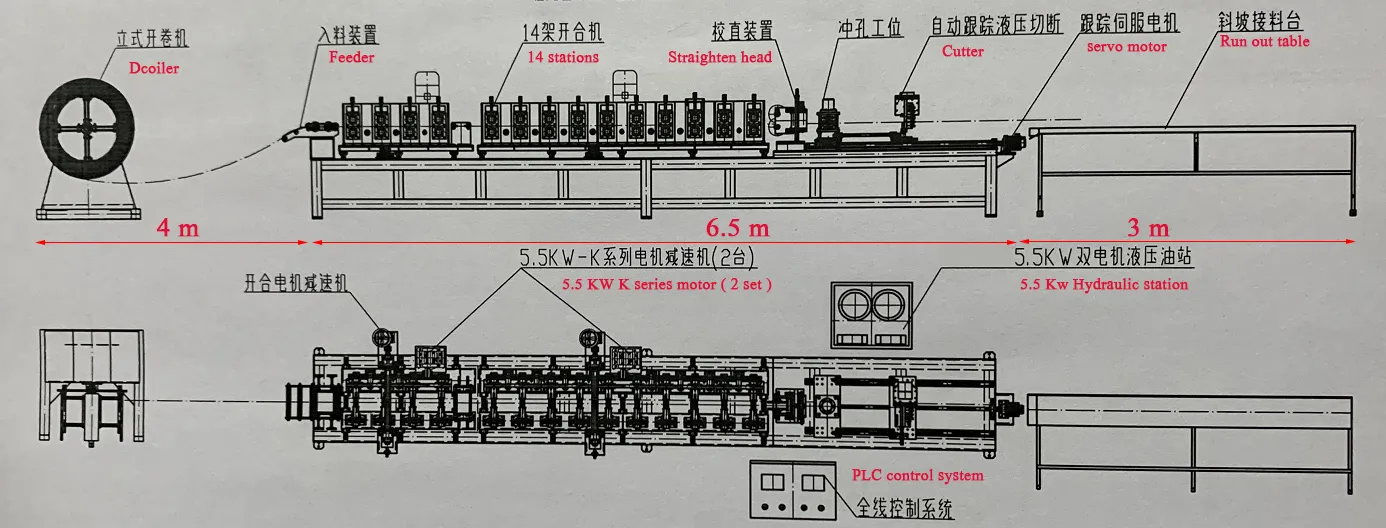

Uncoiling---feeding material into machine---roll forming---straighten---tracking cutting---product collect

About Material
Raw material
Galvanized steel & H.R
Material thickness
20-25 gauge
Cutting length
Adjustable

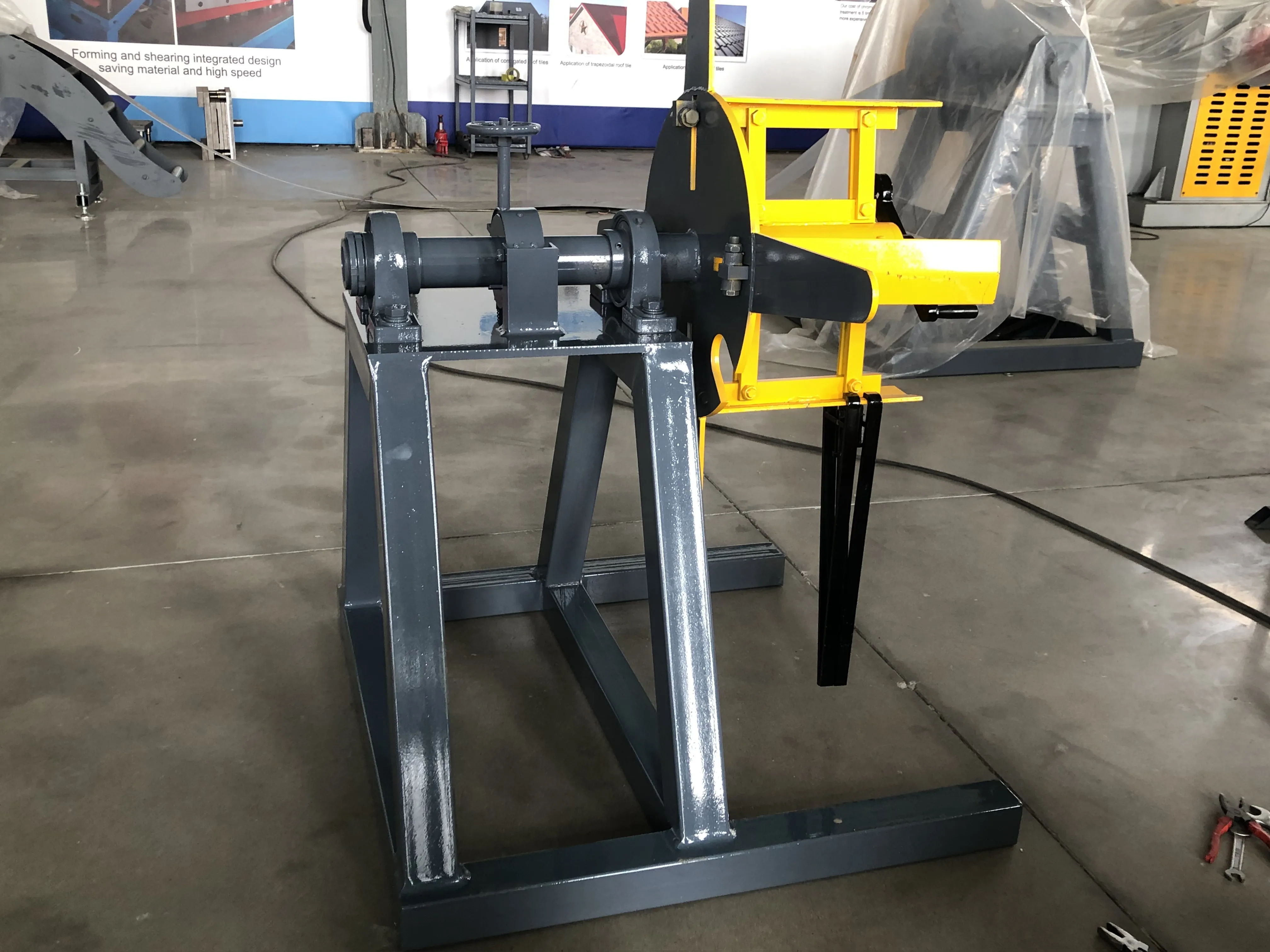

Manual Decoiler
Loading capacity：3 T
Working type: Passive type
Coil inner diameter：450-550 mm
Decoiler frame: metal steel welded structure

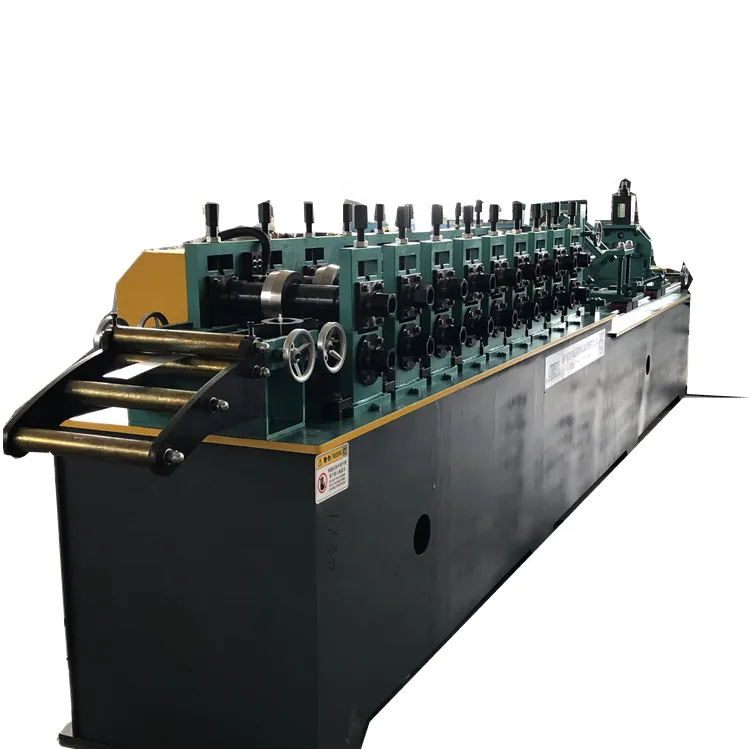

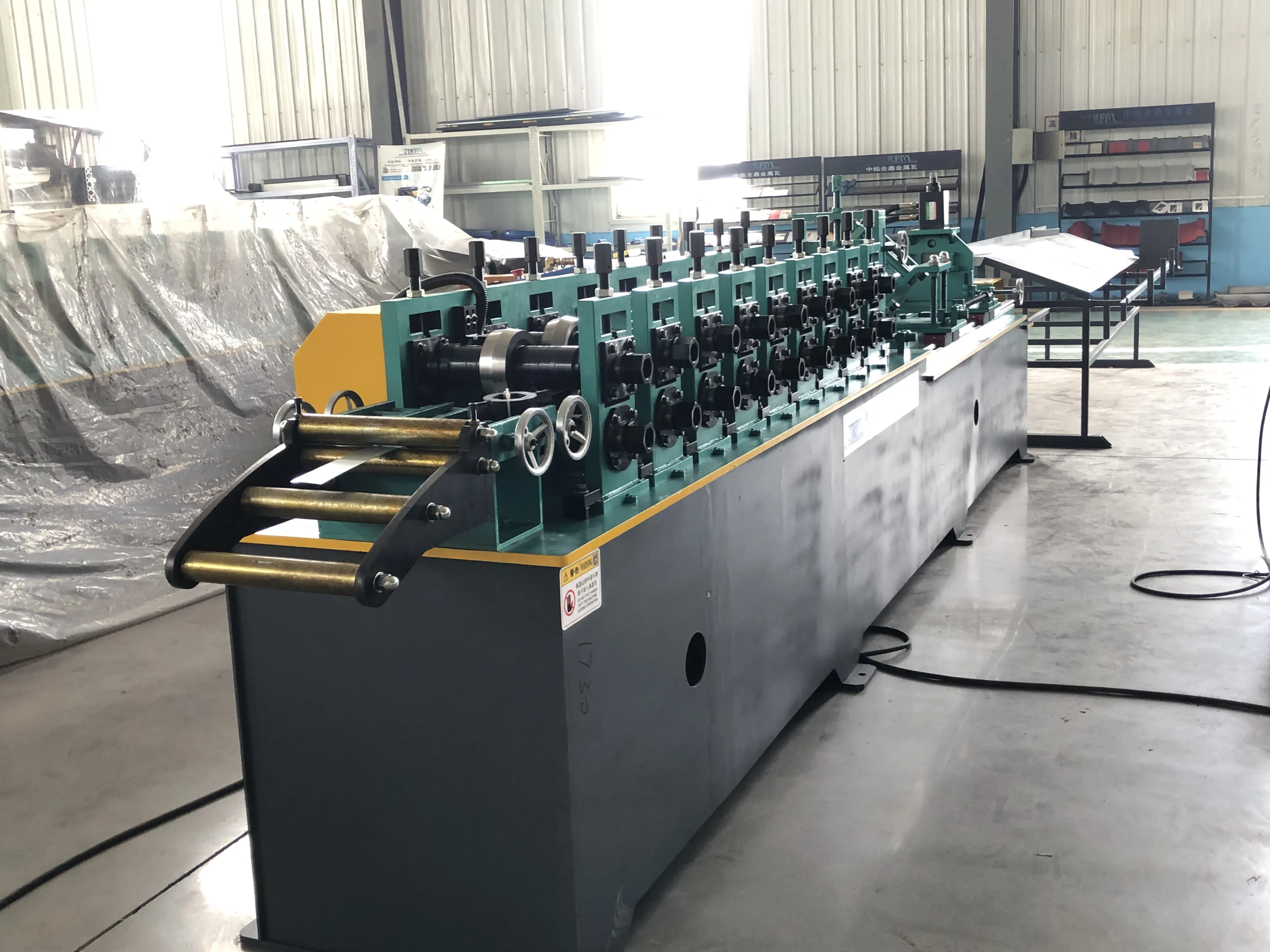

Leveling & Roll Forming System
Rolling shaft:
Shaft material: 45# steel Shaft diameter: 50 mm Tempering treatment
Roller:
Roller material: Cr12 Quenched treatment
Rolling station number:14 stations
Work speed:0-45 m/min, if punching, 30m/min
Machine frame:Vertical iron arch casting frame structure
Bearing:Chinese famous brand Harbin Work power:5.5 kw
Transmission:By chains

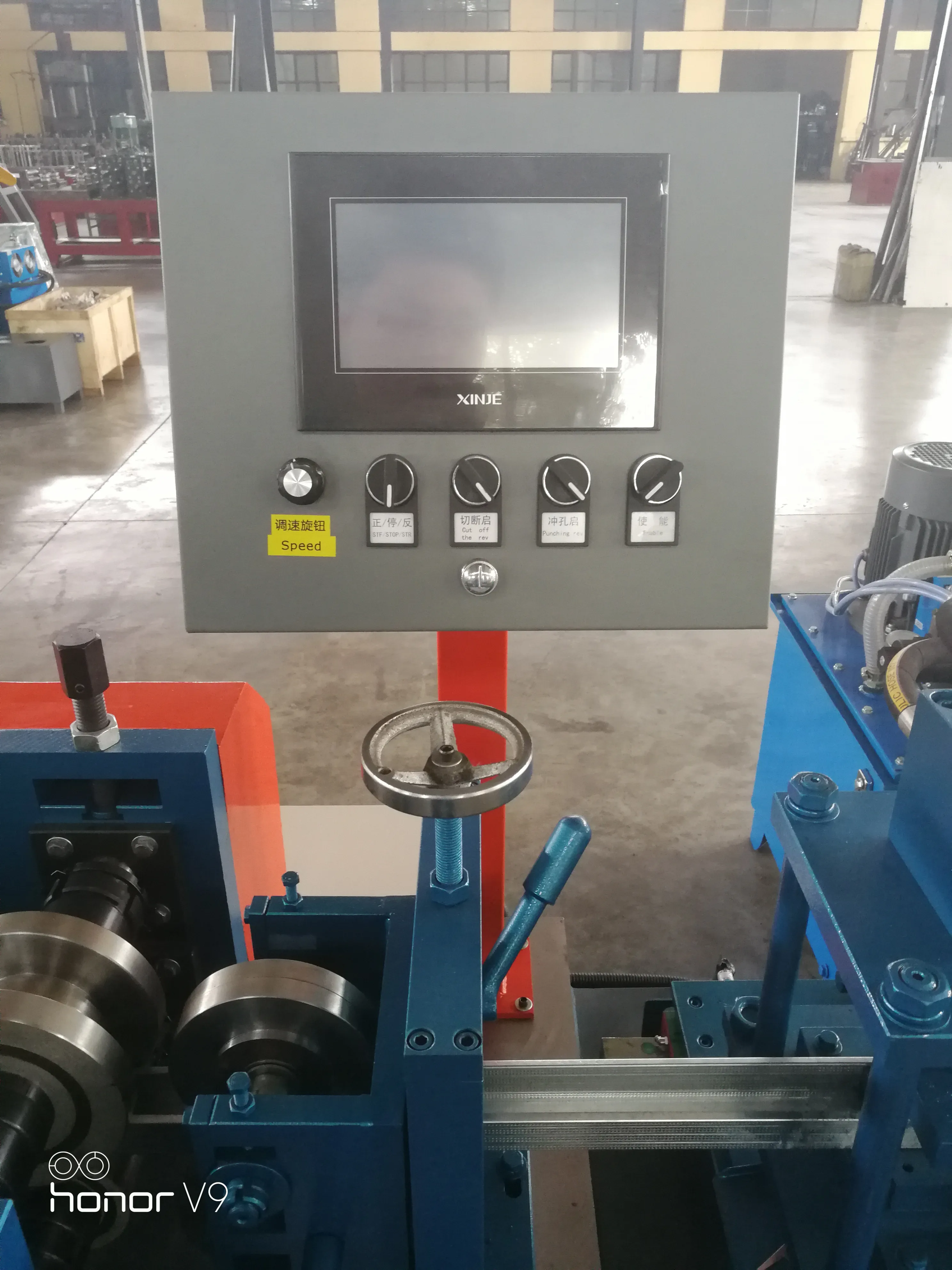

PLC Control System
Frequency brand：Delta (original) PLC & Screen brand：Xinjie, China Screen type：Touch screen & buttons Screen language：English/Chinese or other language according to your request. Encoder：Omron Low pressure electrical part brand：Schneider Function：1.Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved; 2.Length inaccuracy can be amended easily

Hydraulic System

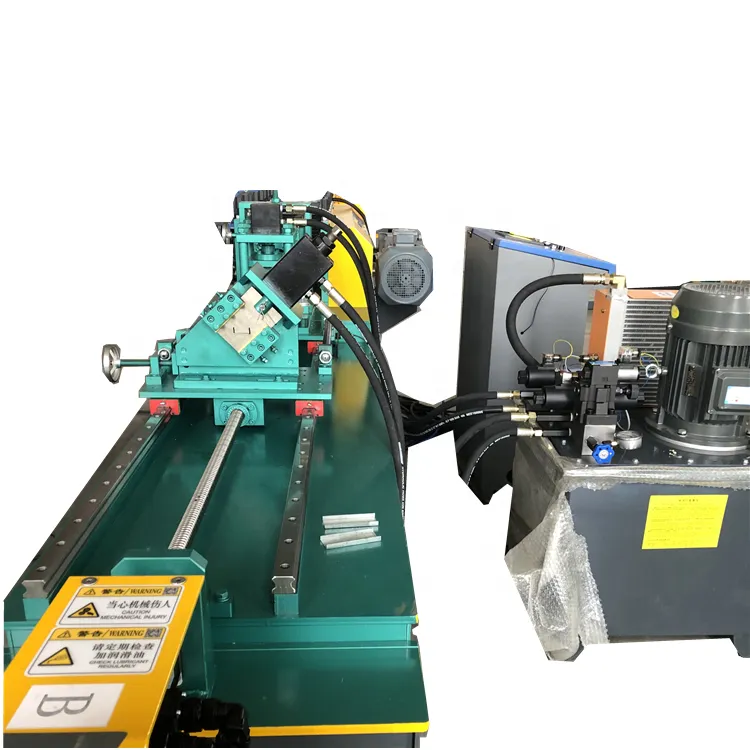

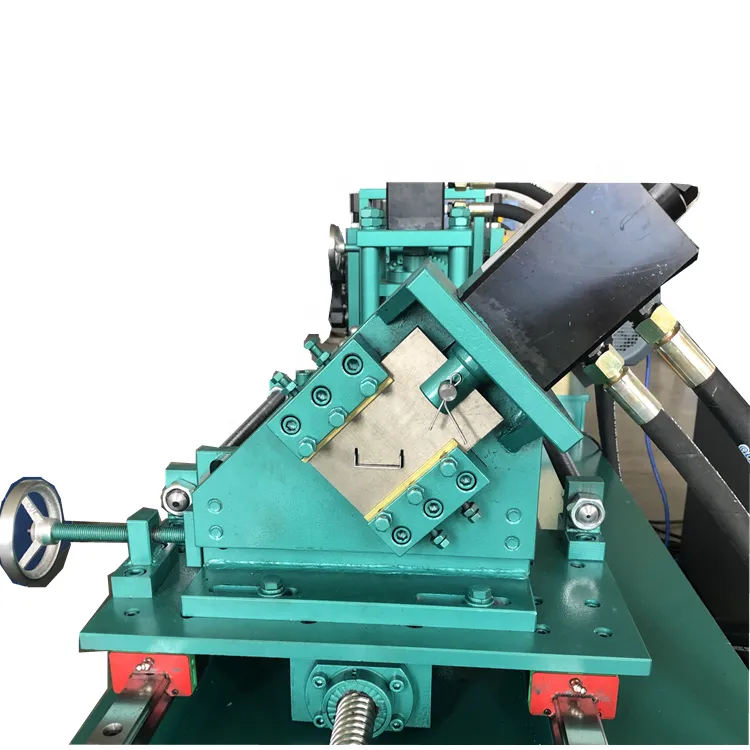

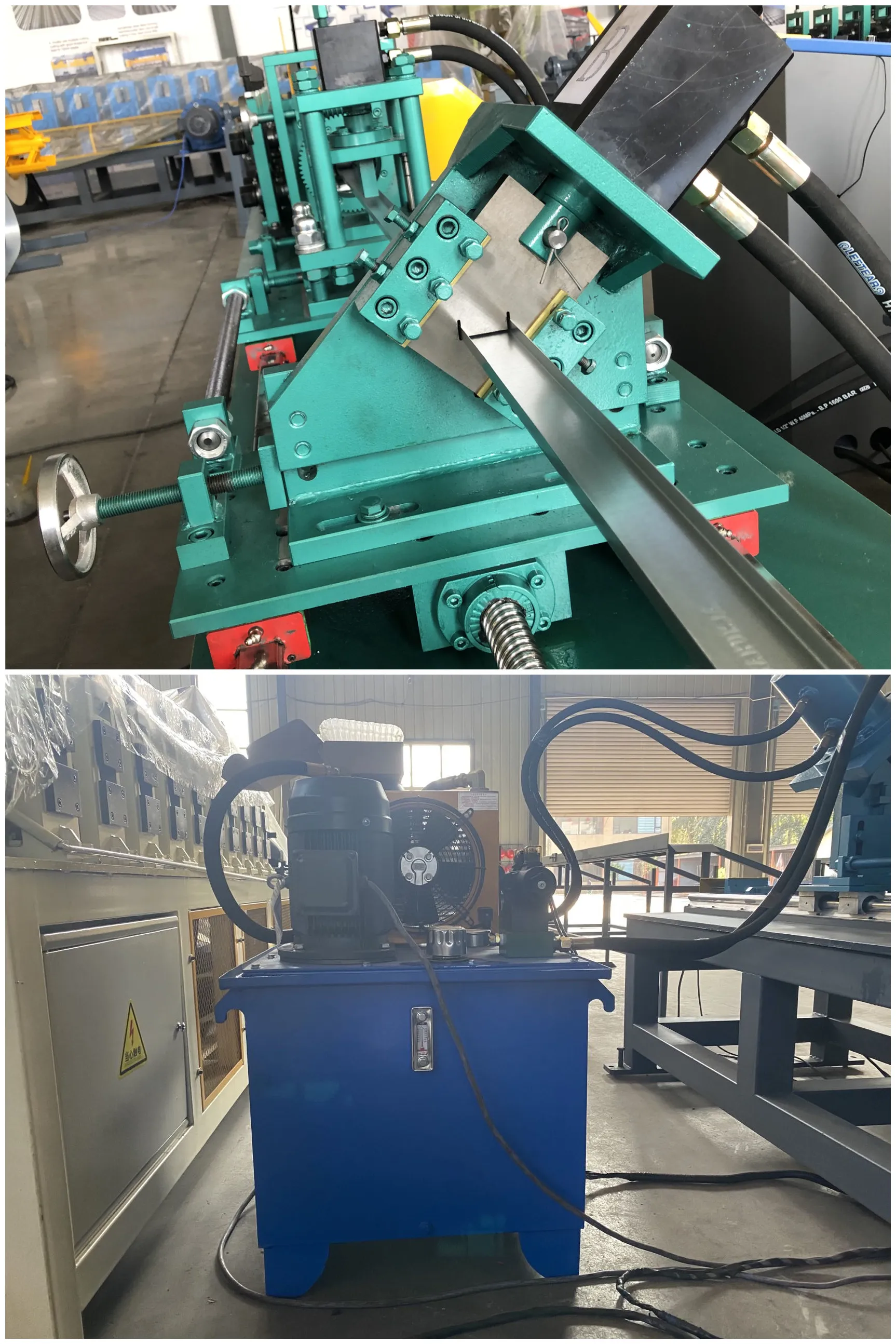

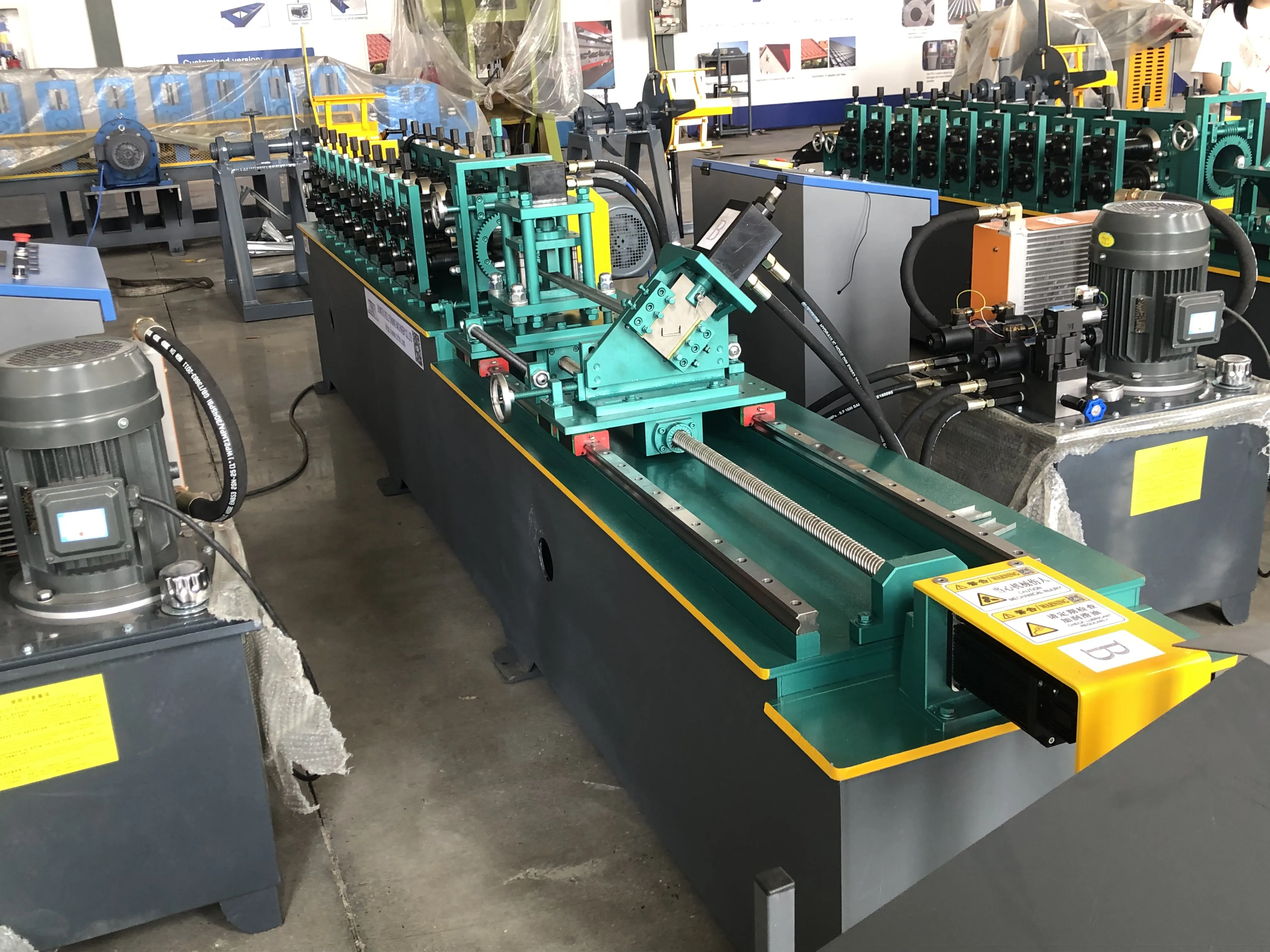

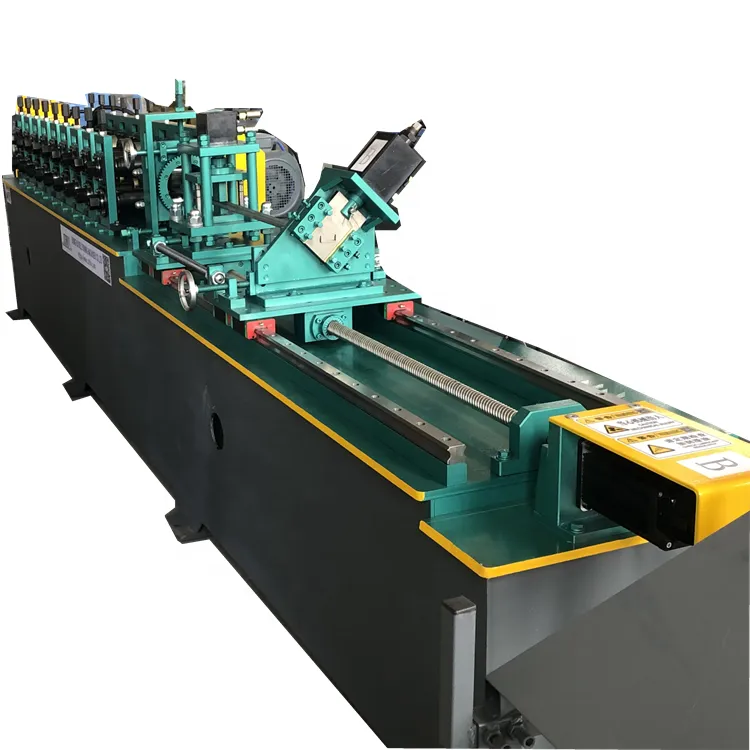

Feature: Above photo is cutting device, it use 45° diagonal cutting design, no burr no deformation.
Below photo is hydraulic oil pump station, with cooling system. Oil pump station provide power to the cutting part.
Work type: Servo flying Hydraulic cutting system Servo flying Punching system Servo motor power：YASKAWA 2.3 kw Hydraulic power：5.5 kw Driving method：By pillar type Cylinder Cutter material：GB-Cr12 Cutting length tolerance：±1 mm/3 m Cutting feature：Flying cutting. When the machine cutting it will not stop

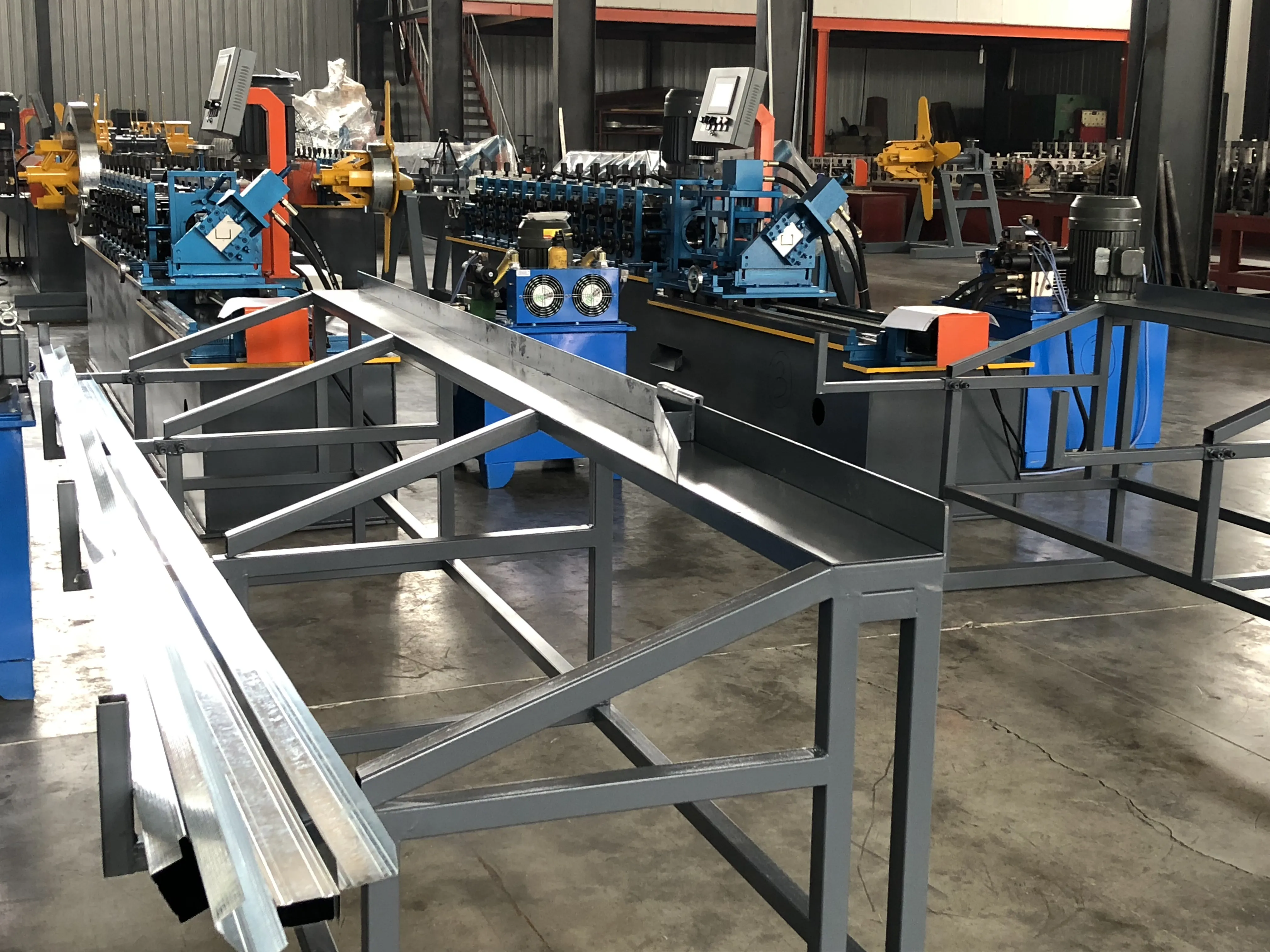

Product collect table
Table quantity：1 set Profile length：Within 4 m per piece

Spare Parts
Maintain tools：1 set Spare glove：3 pieces Spare fuse：3 pieces Spare encoder：2 pieces Instruction manual：1 book Spare oil pipe：4 pieces Solenoid valve：2 pieces Spare blade：1 full set

Afer-Sale Service
1.Payment: 30%T/T in advance and 70%balance after testing and before shipment. 2.Delivery: 70 working days after the deposit. 3.After-sales service A: Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available. B: Training and service: the buyer should charge of visa, round-trip ticket, food and accommodation overseas and USD 100/person/day for salary. C.We have a team of skilled engineers and one team for after-sale service, when you meet any problem, contact us freely, we will help you solve that We will provide you the manual for installation, operation and maintenance in English. And all connection parts, we will mark labels for you before delivery, easy for installation.
