High Quality Glazed Tile Roofing Former Machine Glazed Roof Tile Forming Machine 10-15m/min+7.5kw

Name: High Quality Glazed Tile Roofing Former Machine Glazed Roof Tile Forming Machine 10-15m/min+7.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT52780307

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

10-15m/min

Power(W):

7.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
380V 50Hz 3phases or as your requirement
Rolling Thinckness
0.3-0.8mm
Feeding Width
1220 mm

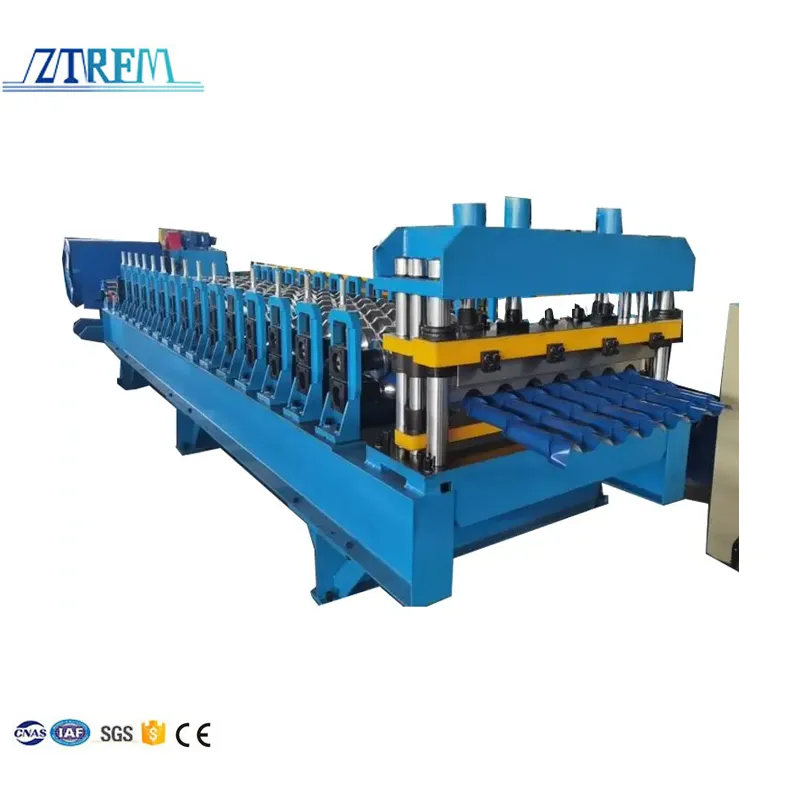

ZTRFM Galvanized Steel Roofing Sheet press Machine Metal Sheet Machine

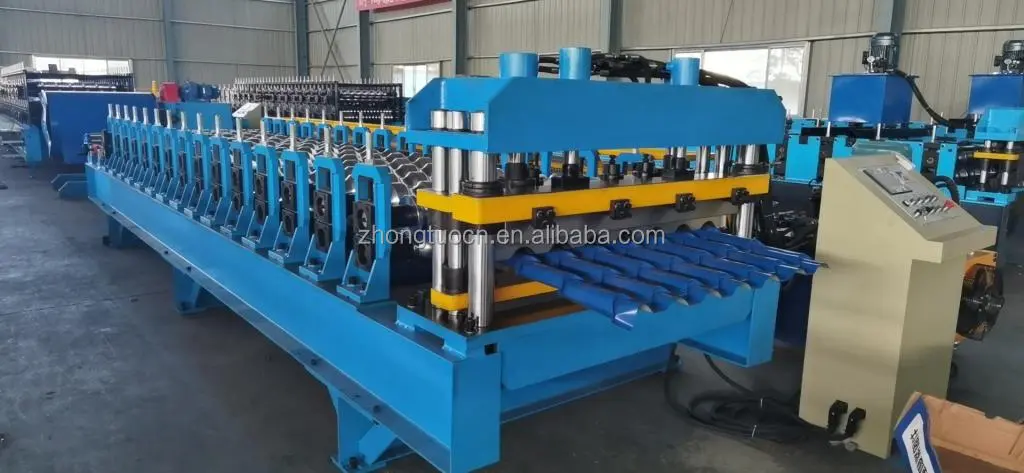

ZTRFM Galvanized Steel Roofing Sheet press Machine Metal Sheet Machin is designed to produced the metal step tiles or glaze tiles, which are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found here. Our roofing sheet roll forming machine have muti-function, not only can produce normal PPGI and color steel material,also can use for composite material.

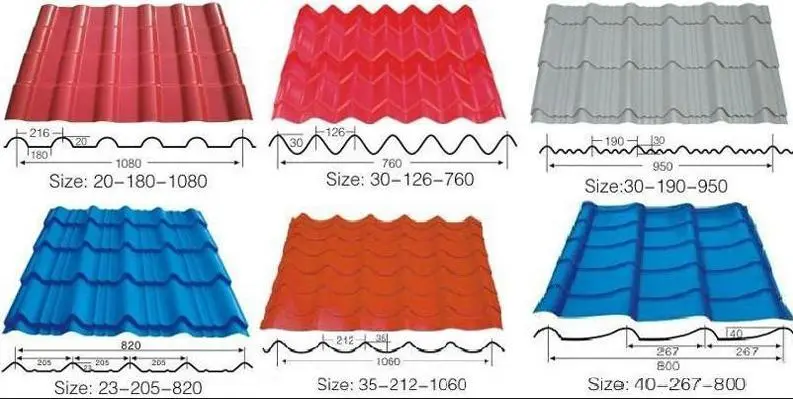

Take the following drawing profile for example:

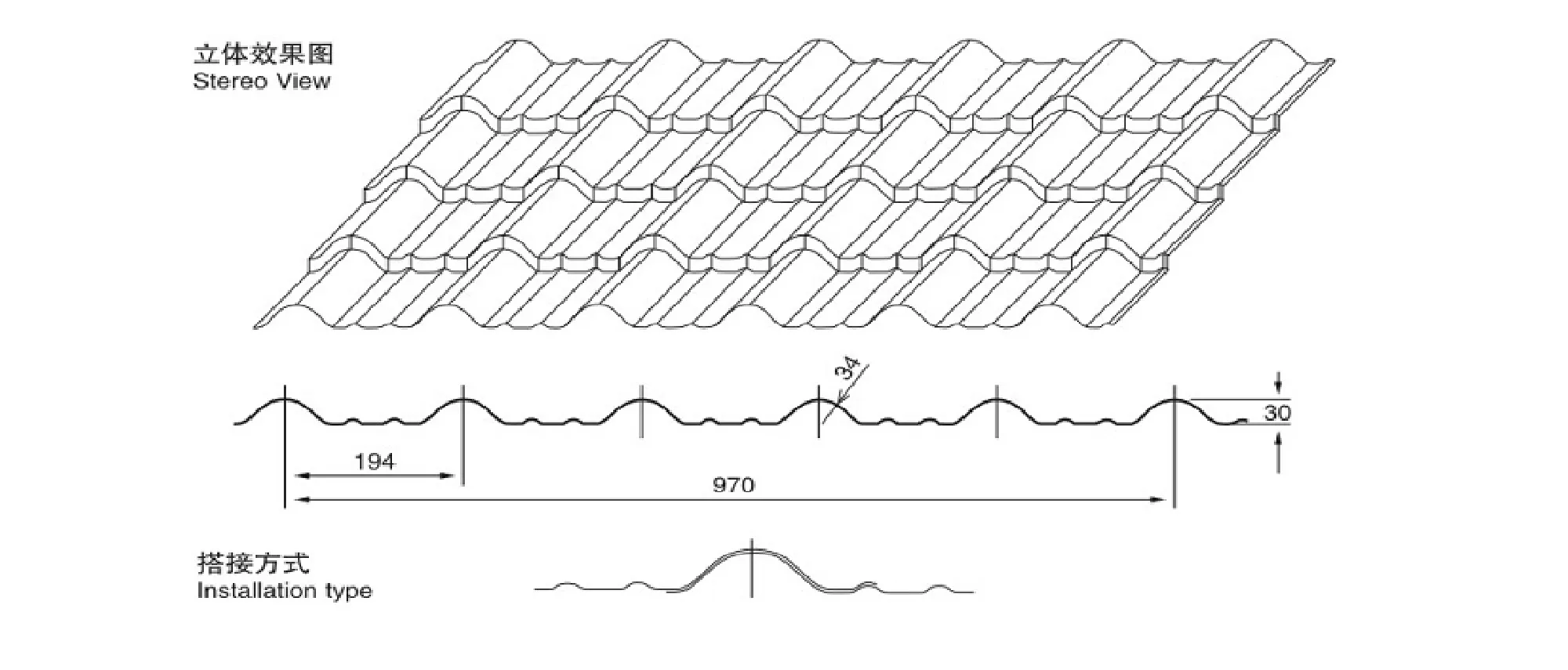

Stereo View for reference:

ZTRFM Galvanized Steel Roofing Sheet press Machine Metal Sheet Machine
Formed Material	PPGI,GI,AI,ZTRFM composite material
Thickness	0.3-1.0mm
Roller station	14 rows(As your requirement of profile)
Roller material	45# steel, hard chrome plated on the surface
Shaft diameter	80mm solid shaft
Machine body frame	400 H steel
Drive	Gearbox transmission
Motor power	7.5kw
Machine frame	350H steel welded
Cutting type	Hydraulic cutting
Hydraulic power	7.5kw
Cutting blade material	Cr12 with quenched treatment
Cutting tolerance	+/-1mm
Control system	PLC

Hydraulic Decoiler

1. Has power, it can work automatically
2. Automatically adjust the decoiler to fit into the coil accorind to the coil diameter
3. With Pneumatic braking system
4. With press arm to keep coil from loosing
5. With speed sensor to match with whole line’s speed

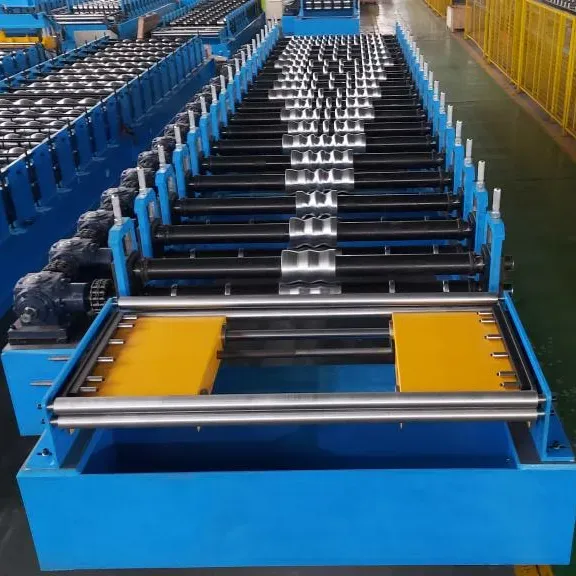

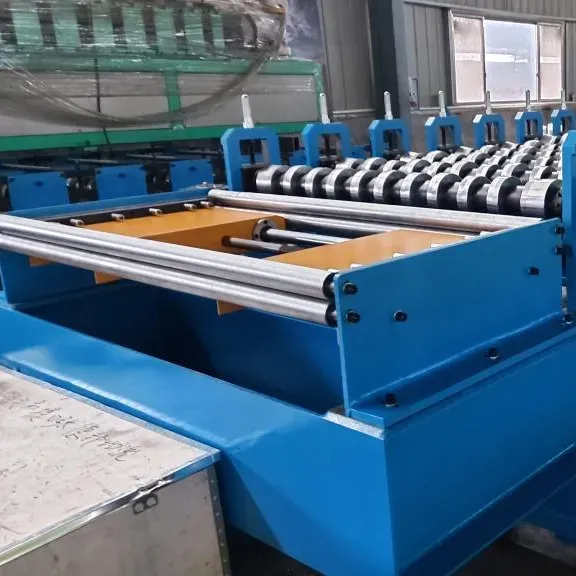

Feeding Part

The feeding rollers which we use is stainless steel.
And the ball bearing roller is inside the feeding rollers which is very convenient to feed the steel coil into it.

Pressure roller material: Stainless steel
Feeding width adjustment: Manual

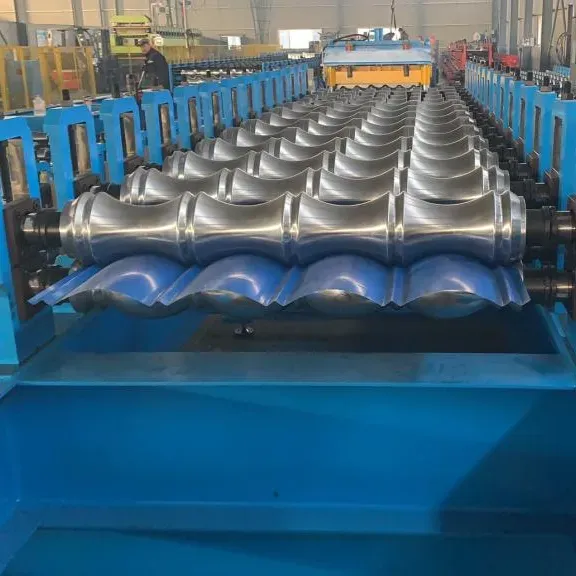

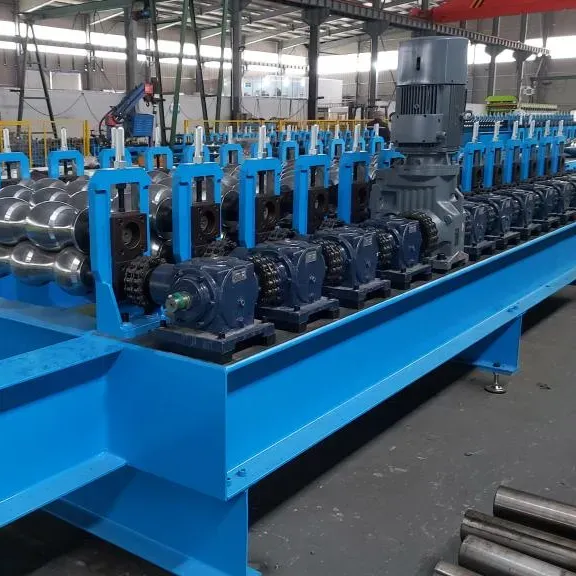

Roll Forming System

Feature: Ensure stability , precision and lifetime.

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Shearing Mechanism

1. Material of blades: Cr12 quenched
2. Power supply: hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.

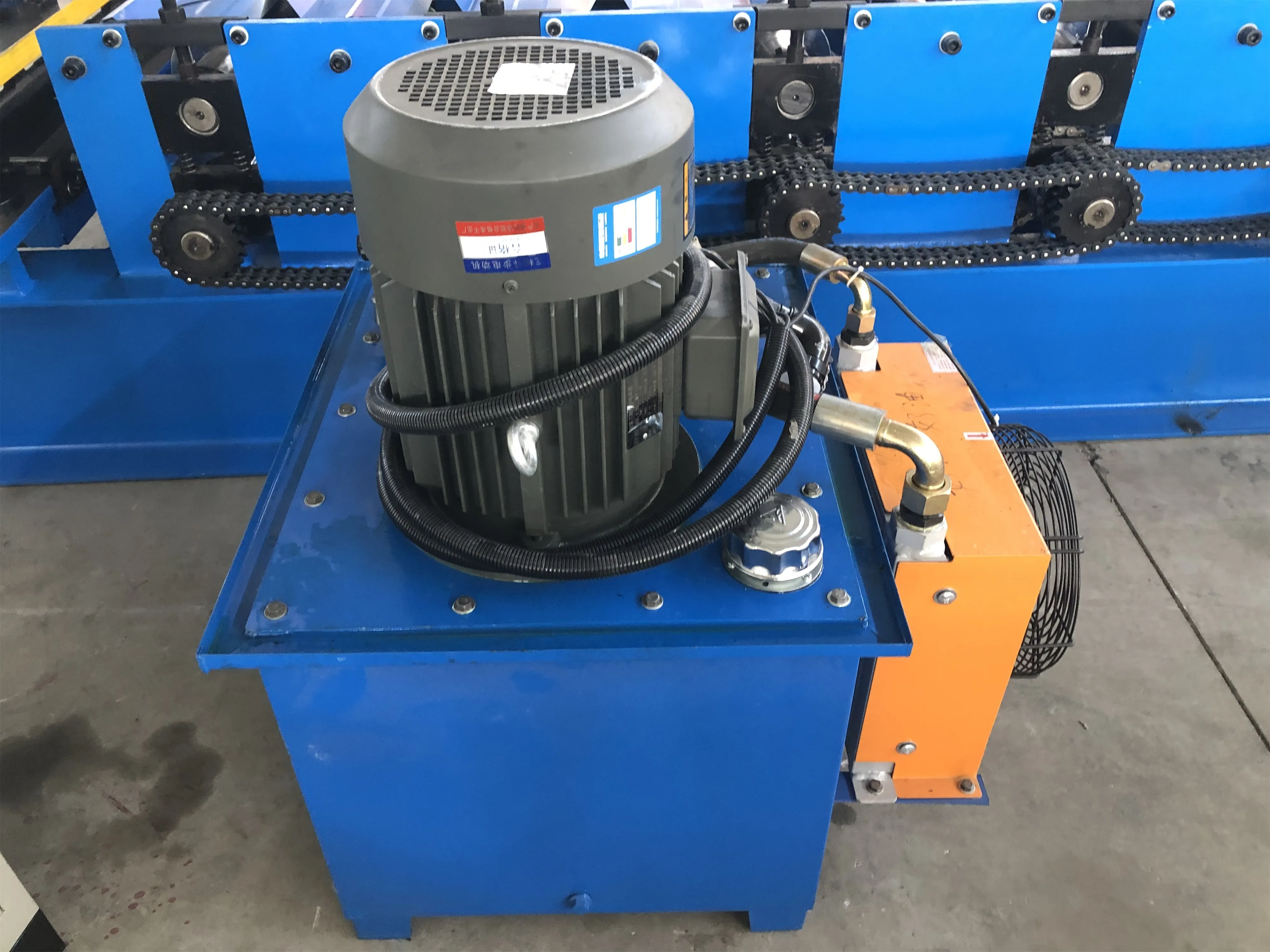

Hydraulic system

Hydraulic motor Power: 5.5kw

Hydraulic oil: 46# hydraulic oil

1. We weld the hydraulic station with the machine, so you do not need to connect lots of pipes and wires. So it is easy for installation.

2. With cooling system, it can make sure shearing powerful even if in hot weather.

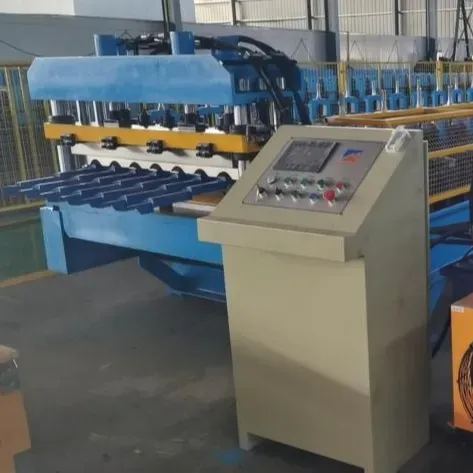

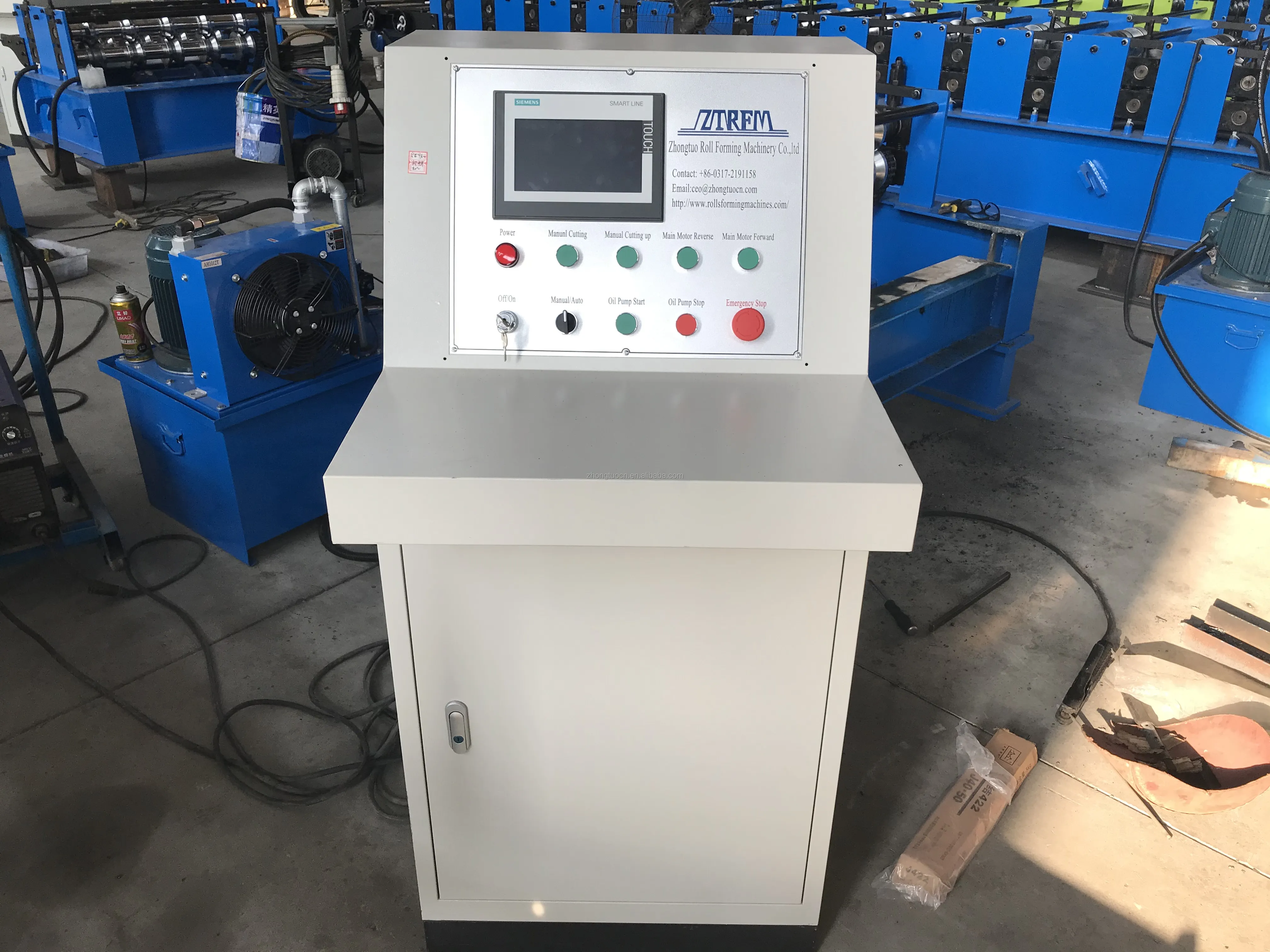

PLC control system

1. Delta or Simens brand

2. Schneider buttons

3. touch screen easy operation
4. languages can be customized

Advantage

Use aviation plug for customer to easy connection power.

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
