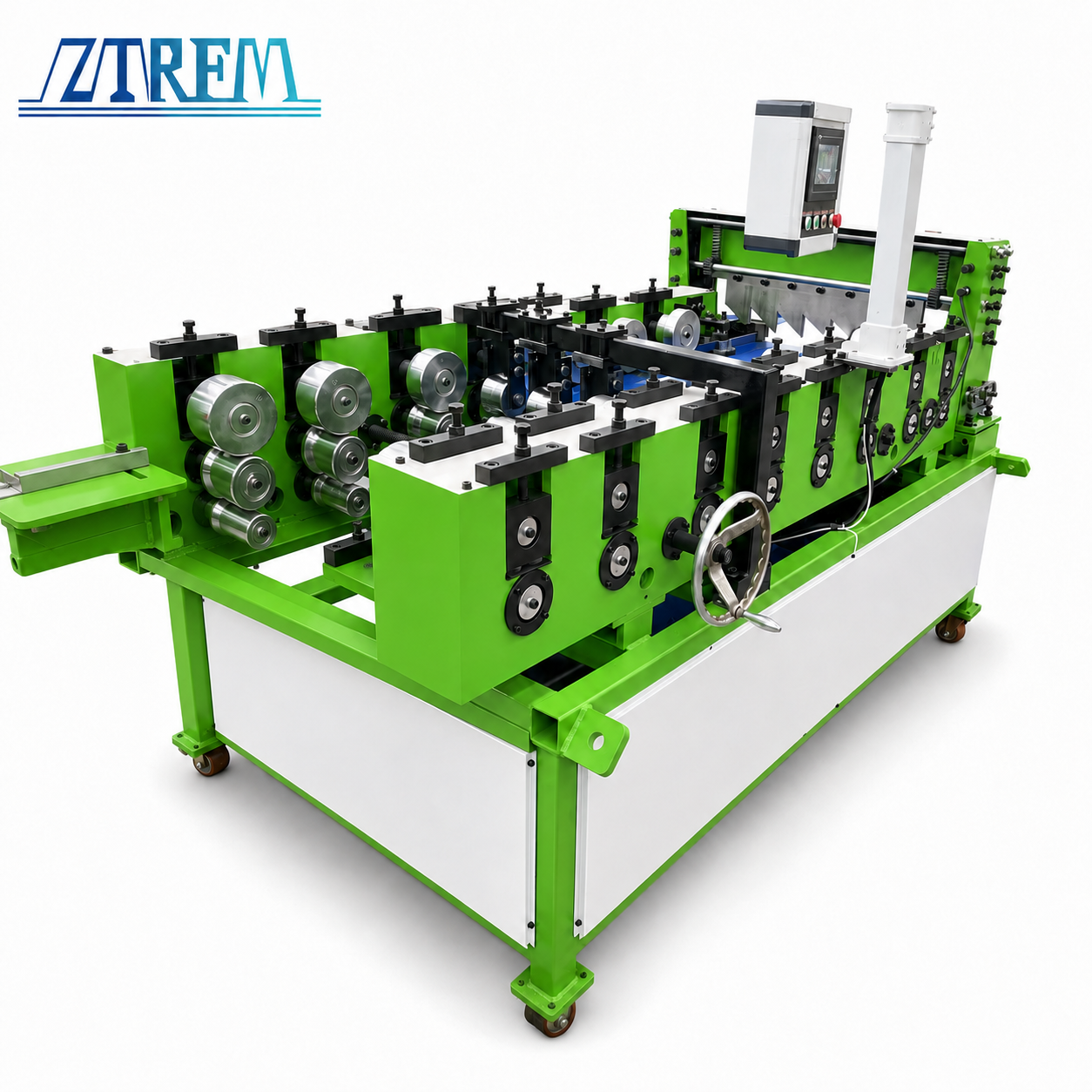

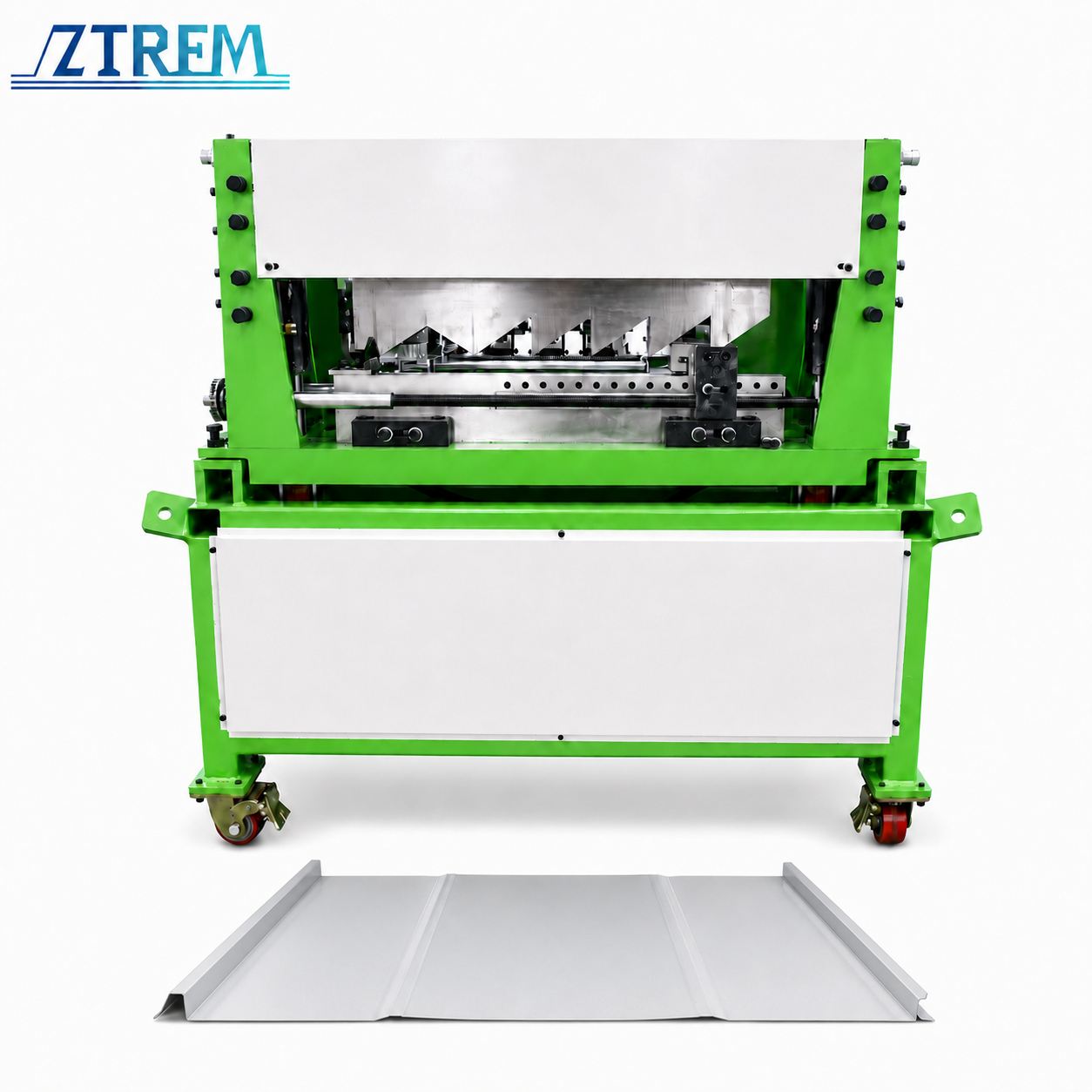

High Precision Standing Seam Roof Sheet Roll Forming Machine with Hydraulic Cutting Two years

The Standing Seam Roofing Roll Forming Machine is designed for continuous cold roll forming of metal roofing panels. The standard feeding width is approximately 406 mm, and the machine is suitable for steel coils with a material thickness of approximately 0.48–1.00 mm. The maximum production speed can reach approximately 75 ft/min, or about 23 m/min.

The machine operates with a standard 380V power supply and is equipped with a PLC automatic control system. Main components include the motor, hydraulic pump, PLC control system, multi-stage forming rollers, guiding system, and cutting unit. The total machine weight is approximately 5000 kg, providing a solid mechanical foundation for stable roll forming and cutting during continuous production. Machine dimensions can be adjusted according to the customer's production requirements and project specifications.

This machine is mainly used to produce Standing Seam Roofing Panels / Metal Roofing Panels for industrial buildings, warehouses, steel structure projects, commercial buildings, and other metal roofing applications.

Stable Roll Forming System

The machine adopts a multi-stage continuous cold roll forming structure. The metal sheet passes through several sets of forming rollers and is gradually shaped into the required profile.

This progressive forming process helps reduce material deformation during production and improves the consistency and stability of the finished roofing panels.

With a production speed of up to approximately 23 m/min, the machine provides a good balance between forming quality and production efficiency, making it suitable for continuous roofing panel production and various construction projects.

The compact forming structure also makes feeding adjustment, machine inspection, and routine maintenance more convenient for operators.

PLC Automatic Control System

The complete machine is equipped with a PLC centralized control system, working together with the motor and hydraulic system to control machine operation.

Operators can conveniently manage machine start, stop, and other production functions through the control system. The straightforward operating logic helps reduce manual errors and improves production consistency.

The standard voltage is 380V. Electrical configurations can also be customized according to the voltage and frequency requirements of different countries and regions.

Reliable Machine Configuration

The main machine configuration includes:

• Industrial motor drive system
• PLC automatic control system
• Hydraulic power system
• Multi-stage cold roll forming rollers
• Precision feeding and guiding system
• Post-forming cutting unit
• Heavy-duty steel machine frame

With an overall weight of approximately 5000 kg, the robust machine structure helps reduce vibration during forming and cutting, providing a more stable foundation for long-term continuous production.

The arrangement of the main components is also designed with operation, inspection, and maintenance in mind, making routine servicing and component replacement more convenient.

Applications

The machine is mainly designed for producing Standing Seam Roofing Panels and can be used in a wide range of metal roofing projects, including:

• Industrial factory roofing
• Steel structure buildings
• Warehouses and logistics facilities
• Commercial buildings
• Large public buildings
• Metal roofing projects
• On-site roofing panel production

The compact structure and flexible configuration allow the machine to be adapted to different project requirements and roofing applications.

Quality Inspection and Delivery

After production is completed, the machine will undergo complete commissioning and running tests before shipment.

The forming result, machine operating condition, control system, cutting function, and other major functions will be checked to ensure that the equipment is ready for delivery.

According to customer requirements, we can provide:

• Machine testing videos
• Video inspection before shipment
• Machinery test report

Customers can check the actual machine operation and finished panel profile before shipment, helping them confirm the production result in advance.

After-Sales Service

We provide not only machine manufacturing but also technical support covering commissioning, operation, maintenance, and long-term equipment use.

The machine comes with a 1-year warranty. During the warranty period, if problems related to machine manufacturing or relevant components occur, our technical team will assist with troubleshooting and provide suitable solutions.

Our after-sales support includes:

• Remote installation and commissioning guidance
• PLC and electrical system technical support
• Operator training
• Machine maintenance guidance
• Remote video troubleshooting
• Spare parts and wear parts supply
• Long-term technical consultation

For customers who require additional support, further installation, commissioning, and on-site training services can also be arranged according to the specific project.

From machine production and factory testing to later operation and maintenance, we are committed to helping customers put the equipment into production smoothly and maintain stable long-term operation.
