High Precision Standing Seam Roll Forming Machine with Hydraulic Cutting PPGI GI GL

Product Overview

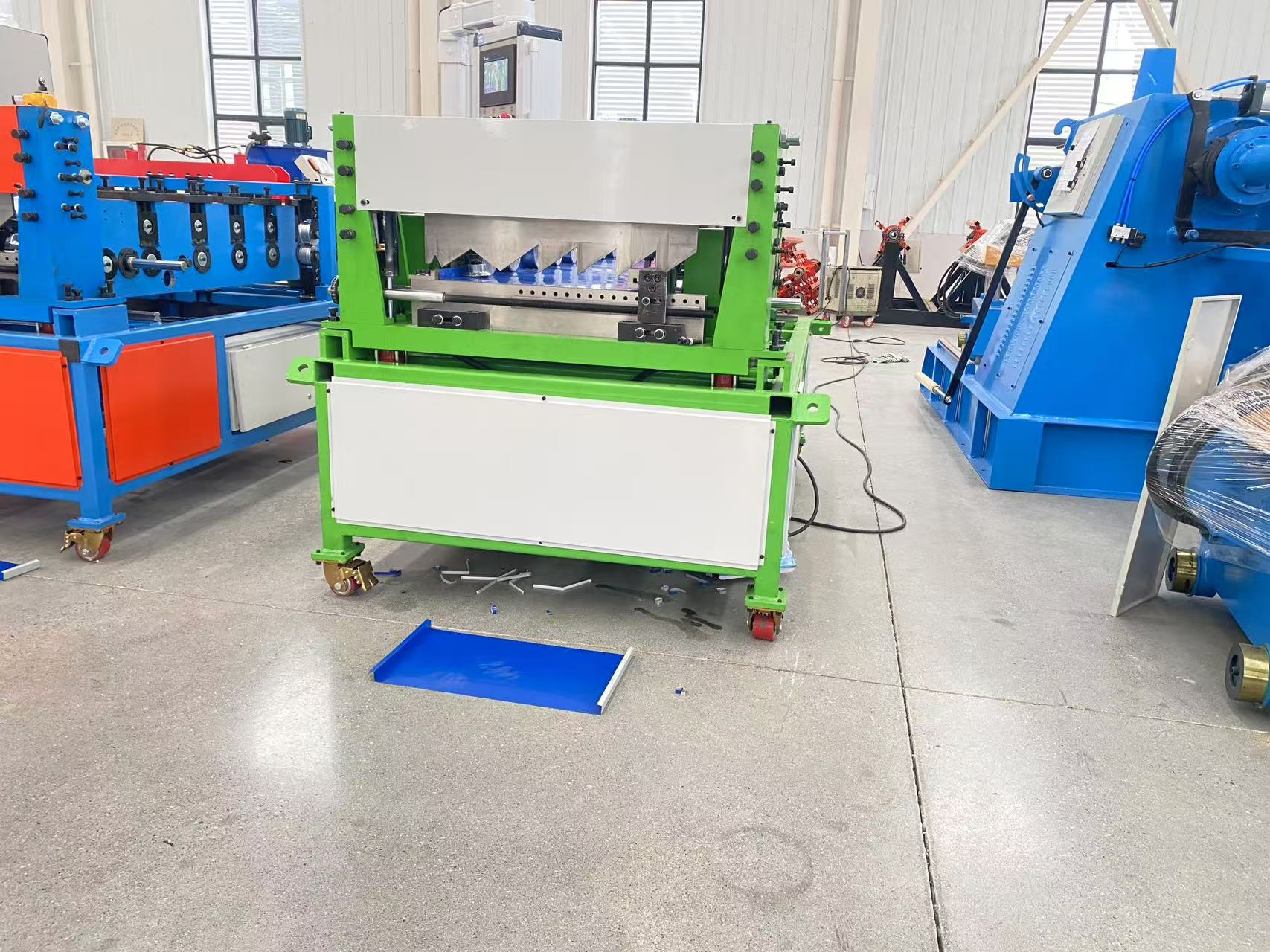

The Standing Seam Roll Forming Machine is designed to produce metal standing seam roofing panels. Through continuous cold roll forming, the machine processes color-coated steel, galvanized steel, galvalume steel, or aluminum sheets into roof panels with raised seams on both sides and reinforcing ribs in the center.

The machine features an adjustable-width forming design, allowing operators to change the panel width according to different roofing project requirements. One machine can therefore produce several standing seam panel sizes. The exact adjustment range can be designed according to the customer’s profile drawing, feeding width, and finished effective width.

The standard machine is equipped with 7 forming stations, supports a production speed of 0–15 m/min, and processes materials with a thickness of 0.3–0.8 mm. A PLC control system manages the production length and quantity, making operation simple and suitable for continuous production.

The finished panels have a flat surface and stable standing seam structure. They are widely used for industrial buildings, warehouses, airports, railway stations, stadiums, exhibition centers, and commercial roofing projects.

---

Main Features

1. Adjustable Panel Width

The adjustable forming structure allows the machine to produce standing seam panels in different widths. This improves production flexibility and helps customers handle various roofing projects with one machine.

2. Standard 7 Forming Stations

The standard configuration includes 7 forming stations. The material is formed gradually through several steps, helping maintain stable seam dimensions, reduce panel deformation, and improve finished-product consistency.

3. PLC Automatic Control

Operators can set the required panel length, production quantity, and operating parameters through the touch screen. The system automatically controls feeding, roll forming, length measurement, and cutting.

4. Production Speed up to 15 m/min

The working speed is adjustable from 0 to 15 m/min. It can be set according to material thickness, panel design, and production requirements to balance forming quality and productivity.

5. Suitable for Different Metal Materials

The machine can process color-coated steel, galvanized steel, galvalume steel, and aluminum sheets with a thickness of 0.3–0.8 mm. The final material range should be confirmed according to the material strength and panel profile.

6. Reduced Surface Damage

The forming rollers are precision-machined and designed according to the required panel profile. This helps reduce scratches, pressure marks, and unwanted deformation on the sheet surface.

7. Compact and Easy to Maintain

The machine uses an integrated frame structure for stable operation. Its compact design saves factory space and makes transportation, installation, operation, and maintenance more convenient.

Parameter	Standard Specification	Parameter	Standard Specification
Machine Name	Standing Seam Roll Forming Machine	Production Speed	0–15 m/min
Material Thickness	0.3–0.8 mm	Standard Forming Stations	7 stations
Width Adjustment	Adjustable	Control System	PLC automatic control
Suitable Materials	PPGI, GI, GL and aluminum sheets	Forming Method	Continuous cold roll forming
Finished Profile	Side standing seams with center ribs	Length Measurement	Encoder measuring
Cutting Method	Hydraulic length cutting	Quantity Setting	Touch-screen preset
Standard Voltage	380V / 50Hz / 3 Phase	Customized Voltage	Available
Machine Color	Green, white or customized	Finished Width	Adjustable according to profile design

The effective panel width, feeding width, standing seam height, reinforcing-rib dimensions, and specific adjustment range should be confirmed according to the customer’s drawing or physical sample.

Production Process

Decoiling → Guiding and Feeding → 7-Station Roll Forming → PLC Length Measurement → Hydraulic Cutting → Finished Panel Output

After entering the forming machine, the material passes through 7 forming stations. The standing seams and reinforcing ribs are formed gradually. The PLC system controls the required length and production quantity, and the hydraulic cutting unit cuts the panel automatically when the preset length is reached.

---

Applications

The Standing Seam Roll Forming Machine is suitable for producing metal roofing panels used in:

• Industrial workshops and steel buildings
• Warehouses and logistics centers
• Airports and railway stations
• Stadiums and exhibition centers
• Commercial and public buildings
• Large-span metal roofing projects

---

Customization Options

Zhongtuo can customize the machine according to the customer’s profile drawing, material specifications, and local production requirements. Customizable items include the effective panel width, width adjustment range, standing seam height, rib quantity and shape, feeding width, forming-station design, machine voltage, electrical component brands, cutting system, output direction, and machine color.

Customers may provide a finished panel sample, profile drawing, or detailed dimensions for technical confirmation.

---

After-Sales Service

Before delivery, the machine can be installed, adjusted, and tested with the required material to check the finished dimensions and forming quality. Zhongtuo provides operating manuals, video guidance, remote technical support, and spare-parts service. When required, technicians can also travel to the customer’s factory to assist with installation, commissioning, and operator training.
