Product Overview

The High Precision Snap Lock Standing Seam Roll Forming Machine is engineered for modern commercial complexes, high-end residential villas, airports, stadiums, and industrial hangars requiring sleek architectural rooflines and watertight integrity. The concealed-fastener profile eliminates through-fastener penetrations, preventing roof corrosion and water ingress over decades of service.

Designed to process prepainted galvanized steel (PPGI), galvalume (PPGL), aluminum-magnesium-manganese alloy (Al-Mg-Mn), and copper coils with feeding widths of 610mm and sheet thicknesses from 0.4mm to 0.8mm. The formed panel features a 300-500mm effective coverage, 45mm seam height, and integrated locking clips for rapid, tool-free field installation.

1: Snap Lock Standing Seam Machine Overview & CAD Profile

Key Technical Features

• Self-Locking Snap Seam Mechanism: Features an interlocking male rib (41mm with 30° hook) and female seam (45mm with internal locking barb) that click securely into place without requiring mechanical seaming hand tools.
• Mirror Hard Chrome Plated Rollers: Roller dies are CNC machined from high-grade 45# forged steel, vacuum quenched, and finished with 0.05mm hard chrome plating to preserve pre-painted coatings.
• Heavy Structural Steel Bed Frame: 350-400 H-beam welded chassis stress-relieved for lifetime dimensional stability and vibration dampening during high-speed rolling.
• High Precision Infeed Guide: Hardened dual guide rollers with calibrated handwheel lead-screws ensure exact coil centering without lateral drift.
• Swivel Touchscreen Operating Arm: Ergonomic operator console mounted on a multi-angle articulating arm allows convenient operation from either side of the machine.

2: Hydraulic Profile Cutting Station & Contoured Die Shearing Red Panel

Technical Specifications

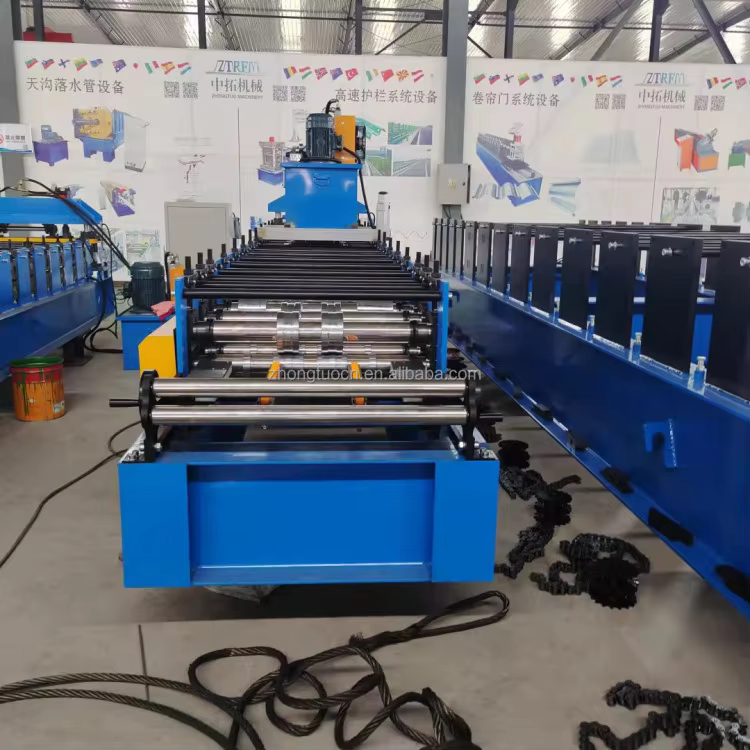

3: Workshop Production Line with Infeed Roller Table & Width Adjustment

Multi-Station Progressive Forming Stands

The roll forming stands adopt a progressive multi-station design calibrated specifically for forming crisp vertical ribs and positive locking snaps without material thinning or edge wrinkling.

• Gradual Bending Stations: Multiple sequential passes gently bend the 45mm standing seam ribs to prevent paint micro-cracking on color-coated sheets.
• Dual Heavy-Duty Chain Drive: Double-row industrial roller chains ensure synchronized rotation of upper and lower roller shafts.
• Protective Guard Shields: Full-length yellow side safety guards protect operators from moving chains and gears while preventing foreign objects from entering the forming line.

4: Full Machine Bed Perspective View with Protective Side Guards

Snap Lock Profile Geometry & Blueprint

The concealed fastener standing seam profile is engineered according to international architectural cladding standards, providing an ultra-clean appearance and robust mechanical locking:

• Cover Width: 300 - 500 mm (12" - 16" adjustable)
• Male Rib Height: 41 mm (1-5/8") with a 30° reverse lock hook
• Female Seam Height: 45 mm (1-25/32") with an internal snap retention catch
• Concealed Fastening Lip: 9.5 mm (3/8") slotted flange for thermal expansion clips or direct screw fixing
• Seam Width: 12.7 mm (1/2") crisp architectural vertical line

5: Snap Lock CAD Blueprint & Crimson Red Finished Panel Sample

Architectural Applications

Snap-lock standing seam panels deliver exceptional aesthetics and weatherproofing performance across a broad spectrum of premium architectural structures:

• High-End Residential Villas: Provides contemporary clean vertical lines that enhance modern minimalist and classic architectural roofs.
• Commercial & Civic Buildings: Widely installed on airports, high-speed rail stations, convention centers, and museums requiring leak-free performance.
• Low-Slope Industrial Roofs: Can be safely applied on low-slope roofs (as low as 2° to 3°) without water backflow concerns.

Supply Scope & Ocean Packaging

Complete turnkey scope includes 5-ton passive/hydraulic decoiler, automatic roll forming main machine with adjustable infeed guides, Cr12MoV hydraulic profile shear unit, standalone hydraulic pump station, Siemens PLC touchscreen electrical console, and finished product runout tables.

All bare precision metal surfaces are thoroughly sprayed with anti-corrosion protective grease. The entire roll forming machine bed is firmly lashed into a 40ft HQ container using high-strength steel wire cables and timber chocks. The electrical control console and hydraulic station are hermetically wrapped in moisture-proof plastic film and encased in heavy export-grade plywood crates.

Quality Standards & Certifications

All production units adhere strictly to ISO9001:2015 international quality management systems. The equipment is fully certified under the European Union Machinery Directive (2006/42/EC) and Low Voltage Directive (2014/35/EU), carrying official CE conformity marks for global industrial deployment.

6: CE Certification & ISO9001 Quality Management Verification
