High Precision Light Steel Frame Roll Forming Machine for Hat Channel High Percision

Hat Keel Forming Machine：High Precision Hat Channel Roll Forming Equipment

Description:Hat Keel Forming Machine is a professional cold roll forming equipment specially designed for mass production of hat-shaped steel keels. Widely applied in ceiling decoration, wall partition, light steel structure construction and building material processing industries, this machine can automatically complete feeding, leveling, roll forming, punching, cutting and discharging in one continuous process. It solves the pain points of low efficiency, unstable product size and high labor cost in traditional hat channel production, becoming the core processing equipment for global building material manufacturers.

Manufactured with standard industrial configuration and rigorous quality control, our hat keel forming machine features stable operation, high molding precision and flexible parameter adjustment. It can produce various specifications of hat-shaped furring channels to meet customized processing needs of different construction and decoration projects, bringing high-efficiency and low-cost production solutions for overseas processing enterprises.

Core Advantages of Hat Keel Forming Machine

Compared with ordinary roll forming equipment on the market, our hat channel forming machine has obvious competitive advantages in structural design, production performance and service life, fully adapting to long-term continuous industrial production:

High-precision Molding, Stable Size

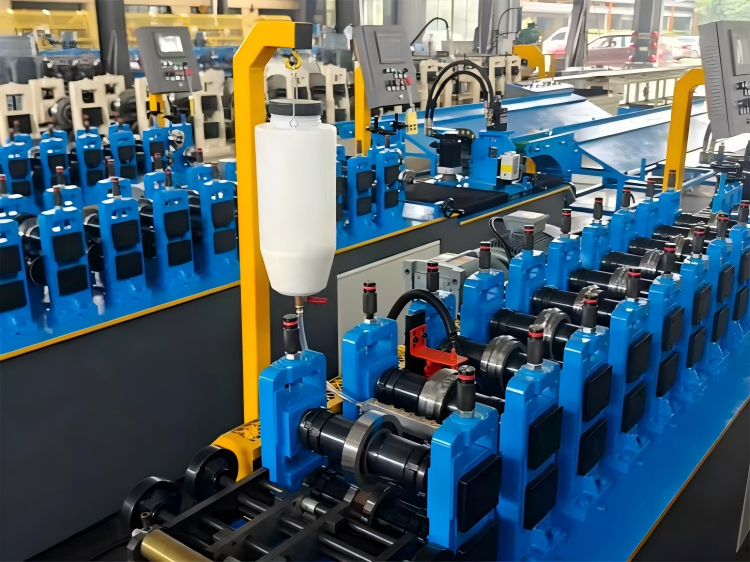

The equipment adopts multi-group precise roll forming groups and integrated calibration technology. All roller parts are made of high-quality alloy steel with quenching treatment, which effectively ensures the flatness and dimensional accuracy of finished hat keels. The finished products have no deformation, no scratch and uniform specification, fully meeting the standard requirements of European, American, Southeast Asian and other international building materials.

Fully Automatic Operation, Save Labor Cost

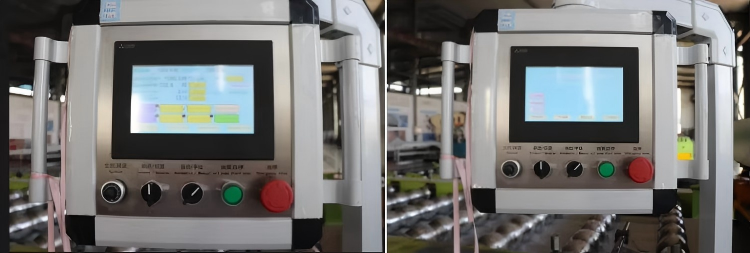

Equipped with intelligent PLC control system and touch screen operation panel, the machine supports one-key parameter setting, automatic feeding, fixed-length punching and automatic cutting. The whole production line only requires 1-2 workers for auxiliary operation, which greatly reduces manual intervention and labor costs. The production speed is adjustable, effectively improving daily output and production efficiency.

Durable Structure, Low Failure Rate

The main frame adopts thickened steel plate welding structure, with strong bearing capacity and not easy to deform after long-term operation. The transmission system uses high-precision gearbox and chain drive, with stable power output and low noise. Key electrical components adopt international famous brands, which effectively reduces equipment failure rate and extends the service life of the whole machine.

Strong Customization Compatibility

We can customize the roll forming mold, punching position, processing width and thickness according to customers' local keel standards and product drawings. It supports processing galvanized steel strip, color steel strip and other raw materials, with wide processing range, meeting the diversified production needs of different overseas markets.

Energy-saving and Efficient, Low Production Cost

The equipment is optimized with energy-saving circuit design, which reduces power consumption during continuous operation. The one-time molding process avoids material waste caused by secondary processing, improves material utilization rate, and effectively reduces the overall production cost of enterprises.



Working Principle & Production Process

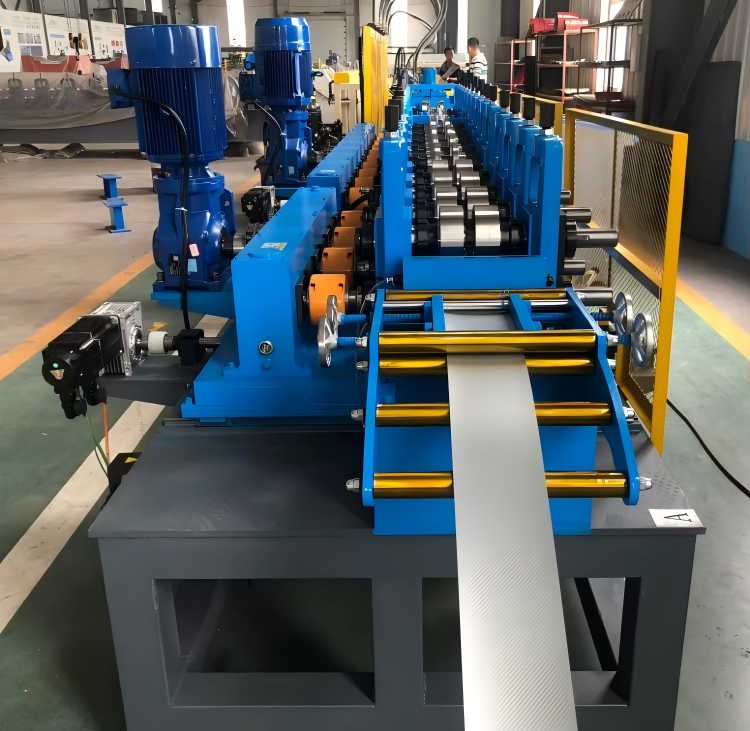

The hat keel forming machine adopts cold roll forming technology, which uses multiple groups of profiling rollers to gradually bend and deform the steel strip, and finally form standardized hat-shaped keels. The whole process is continuous and automated with stable rhythm. The complete production process is as follows:

Raw material feeding → sheet leveling → roll forming calibration → automatic punching → fixed-length cutting → finished product discharging → automatic stacking

The whole production process does not need manual repeated adjustment. After setting parameters, the equipment can run stably for a long time, with consistent finished product quality and high production consistency, which is very suitable for large-scale batch production of building material factories.



Main Technical Parameters

We provide standard and customized models of hat keel forming machines. The core parameters of standard equipment are as follows for customer reference:

Processing raw materials: Galvanized steel strip, color coated steel strip

Material thickness: 0.3mm - 1.0mm (customizable)

Forming speed: 15 - 30m/min (adjustable)

Control system: PLC intelligent automatic control

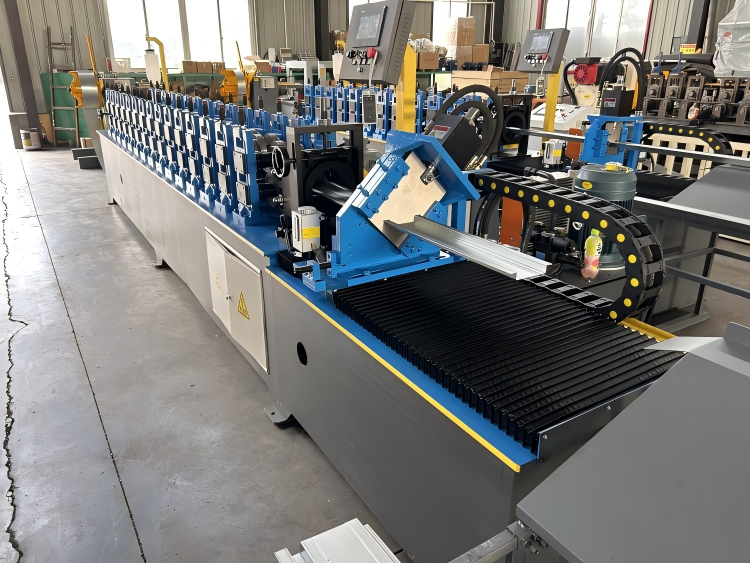

Cutting mode: Hydraulic automatic fixed-length cutting

Total power: About 18KW - 25KW

Dimension of whole machine: About 6500mm*1200mm*1500mm

Finished product standard: Meet international building keel specifications



Application Scope

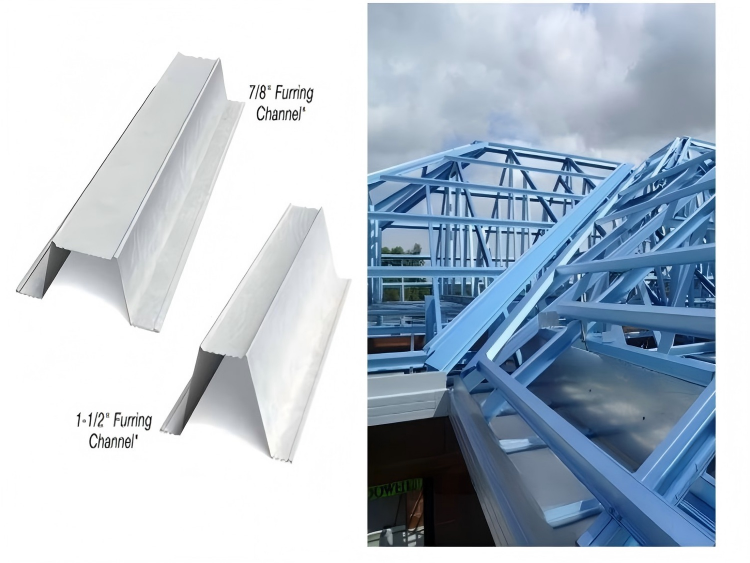

Hat-shaped keels produced by this equipment are widely used in various building decoration and light steel structure projects, including commercial building ceiling systems, office space partition walls, residential interior decoration, factory building ceiling and wall support structures, temporary building keel components and other scenarios. The products are sold well in Southeast Asia, Europe, America, Middle East and other regions, and are deeply recognized by overseas building material processing manufacturers.

Our Service Advantages for Global Customers

As a professional roll forming equipment manufacturer, we focus on providing high-quality equipment and one-stop overseas services for global customers, helping customers solve various procurement and production problems:

Professional Customization Service: According to customer's local market keel size standards and production needs, provide personalized equipment customization solutions to ensure the equipment is highly matched with customer's production needs.

Strict Quality Inspection:All equipment will undergo multiple tests such as no-load operation test and load production test before delivery, with complete factory inspection reports to ensure stable equipment performance.

Complete After-sales System: Provide overseas remote technical guidance, equipment installation and debugging tutorials, long-term after-sales maintenance and spare parts supply services, effectively solve customer's equipment operation problems.

Flexible Trading & Shipping: Support a variety of international trading methods, cooperate with professional international logistics teams, ensure safe and fast delivery of equipment, and provide complete customs clearance documents.



FAQ

Q1: Can this machine produce different sizes of hat keels?

A1: Yes. We can customize molds and adjust production parameters according to your required keel width, height and hole spacing to meet multi-specification production needs.

Q2: Is the equipment easy to operate for new workers?

A2: The machine adopts intelligent PLC touch screen operation, with simple and intuitive operation steps. We will provide detailed English operation manuals and video tutorials, and new workers can master the operation quickly.

Q3: What is the delivery cycle of the equipment?

A3: The standard model has sufficient stock and can be delivered quickly. The customized model takes about 15-25 working days, and we will arrange production and delivery efficiently.

Q4: How about the after-sales guarantee?

A4: We provide one-year warranty for the whole machine and lifelong technical support. For equipment problems, we will provide remote solutions within 24 hours to ensure normal production of customers.
