High Precision Floor Deck Roll Forming Machine Metal Floor Deck Making Machine 25 M/min+High Speed floor Deck Rolling Machine+11KW*3

Cangzhou Zhongtuo International Trade Co., Ltd

High Precision Floor Deck Roll Forming Machine Metal Floor Deck Making Machine 25 M/min+High Speed floor Deck Rolling Machine+11KW*3

Name: High Precision Floor Deck Roll Forming Machine Metal Floor Deck Making Machine 25 M/min+High Speed floor Deck Rolling Machine+11KW*3
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT68451547

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

25 M/min

Model Number:

High Speed floor Deck Rolling Machine

Power(W):

11KW*3

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Floor decking machine
Tile Type
Galvanized Steel
Use
Floor
Voltage
380 V
Rolling Thinckness
0.8 mm ~ 1.2 mm
Feeding Width
1200mm

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

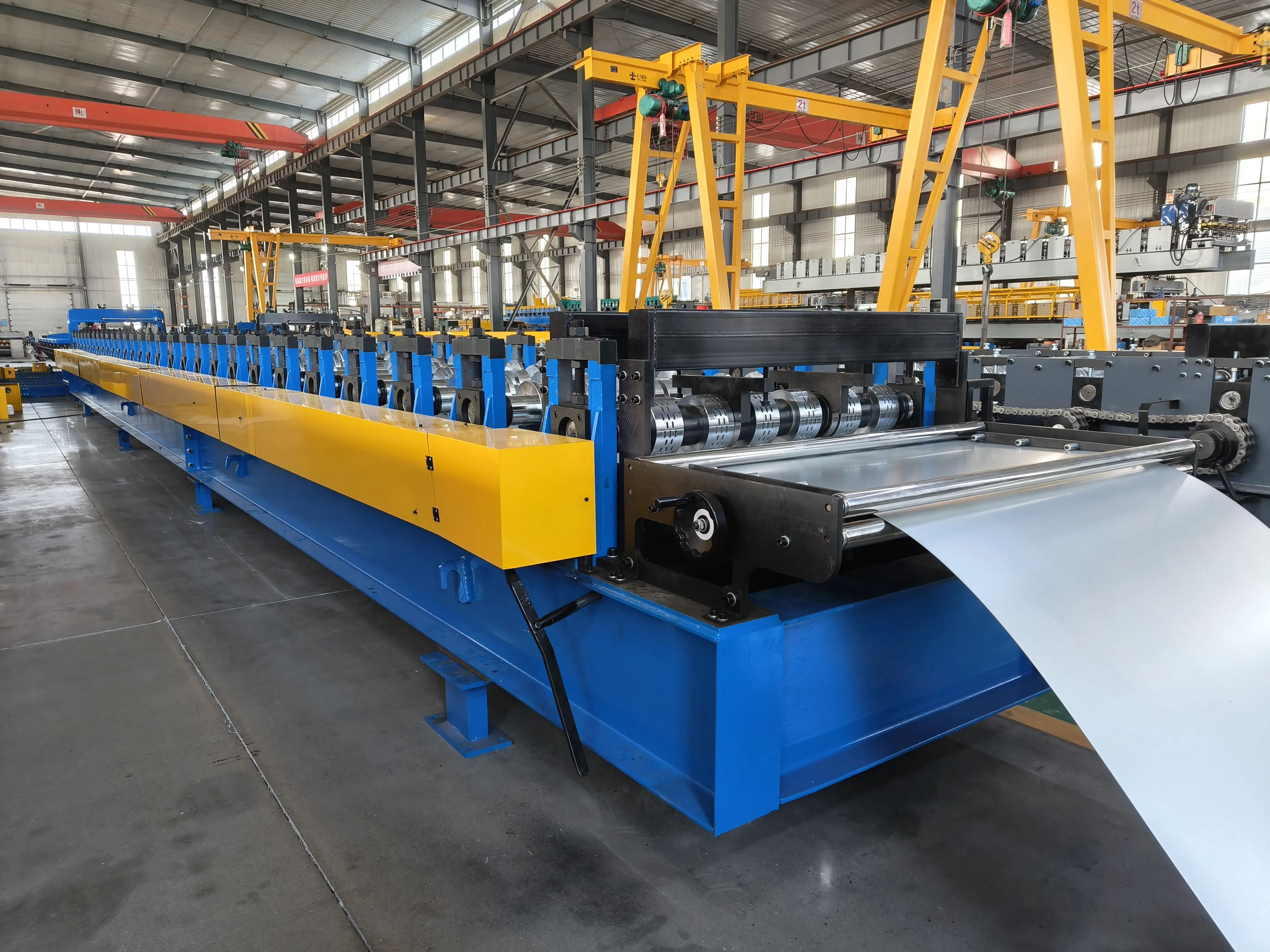

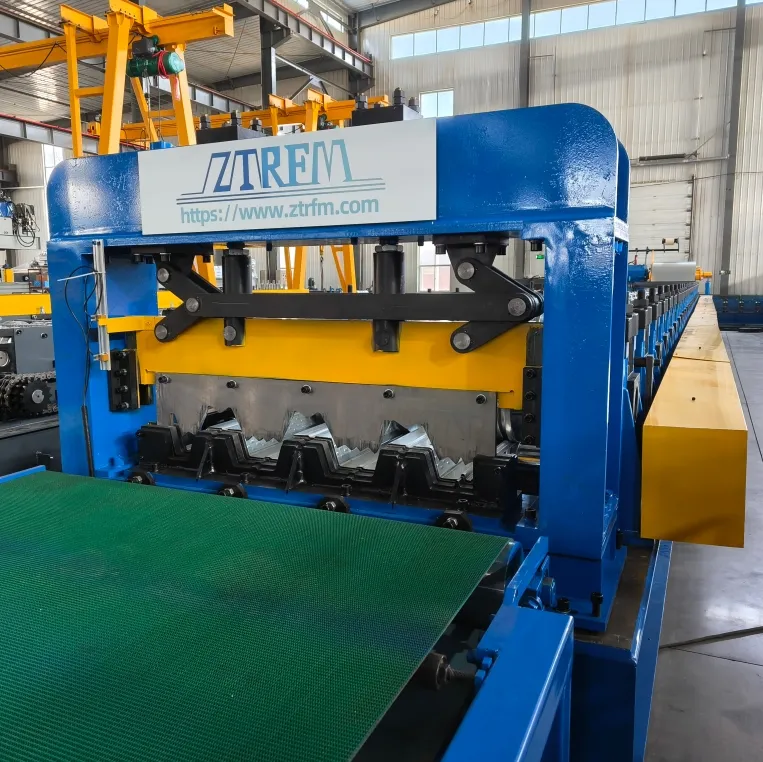

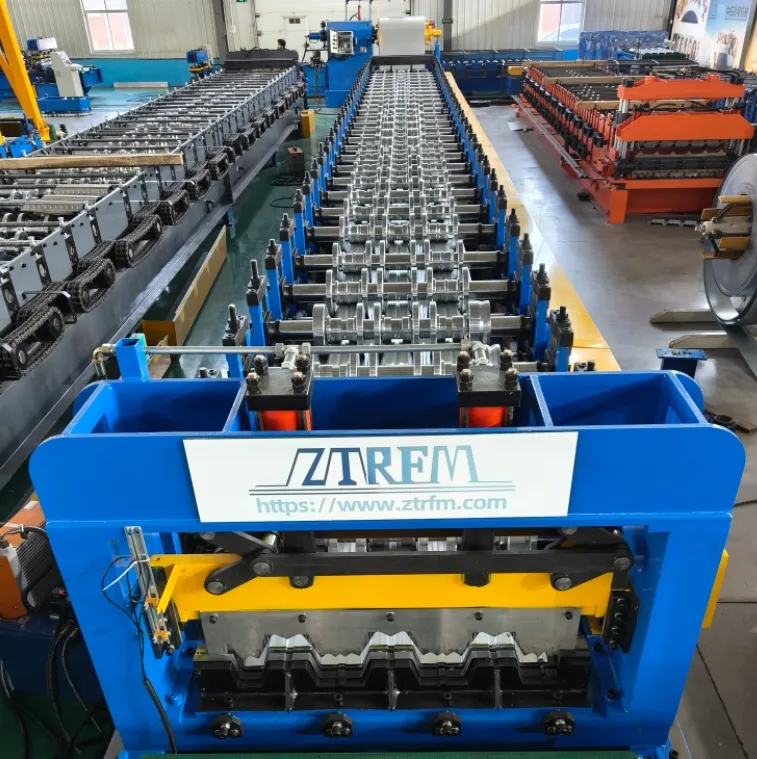

Floor decking roll forming machine

Metal deck roll forming machine is designed to make the floor decking in batch automatically in a high speed. For the metal deck rolling forming machine, we supply the following types:
1. Customize profile according to customer needs and drawing.
2. Cassette Quick Change Deck Roll Forming Machinefor different profiles if your factory space is limited.
3. For the popular profiles we made like B deck roll forming machine, composite Metal Decking Roll Forming Machine, metal deck machine.

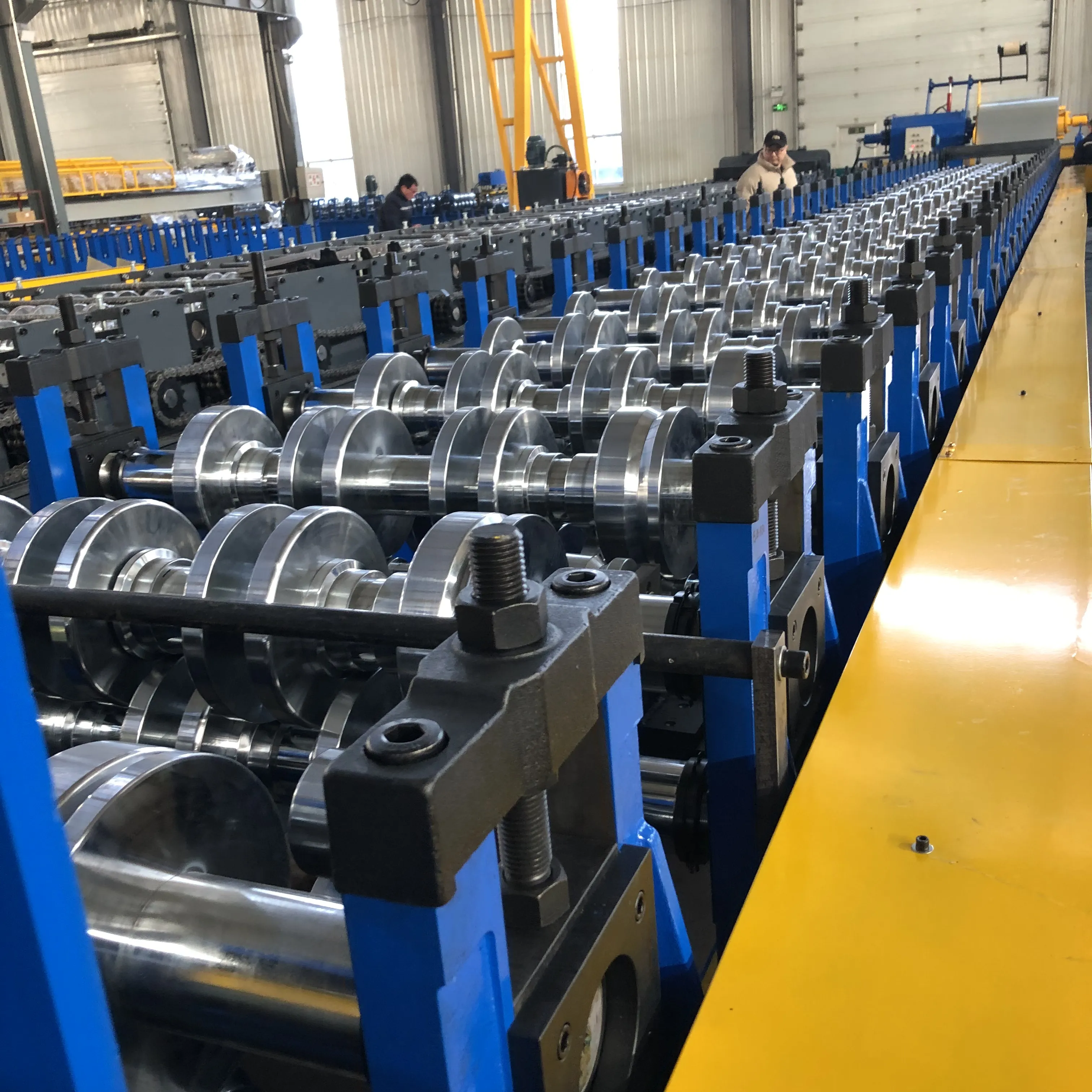

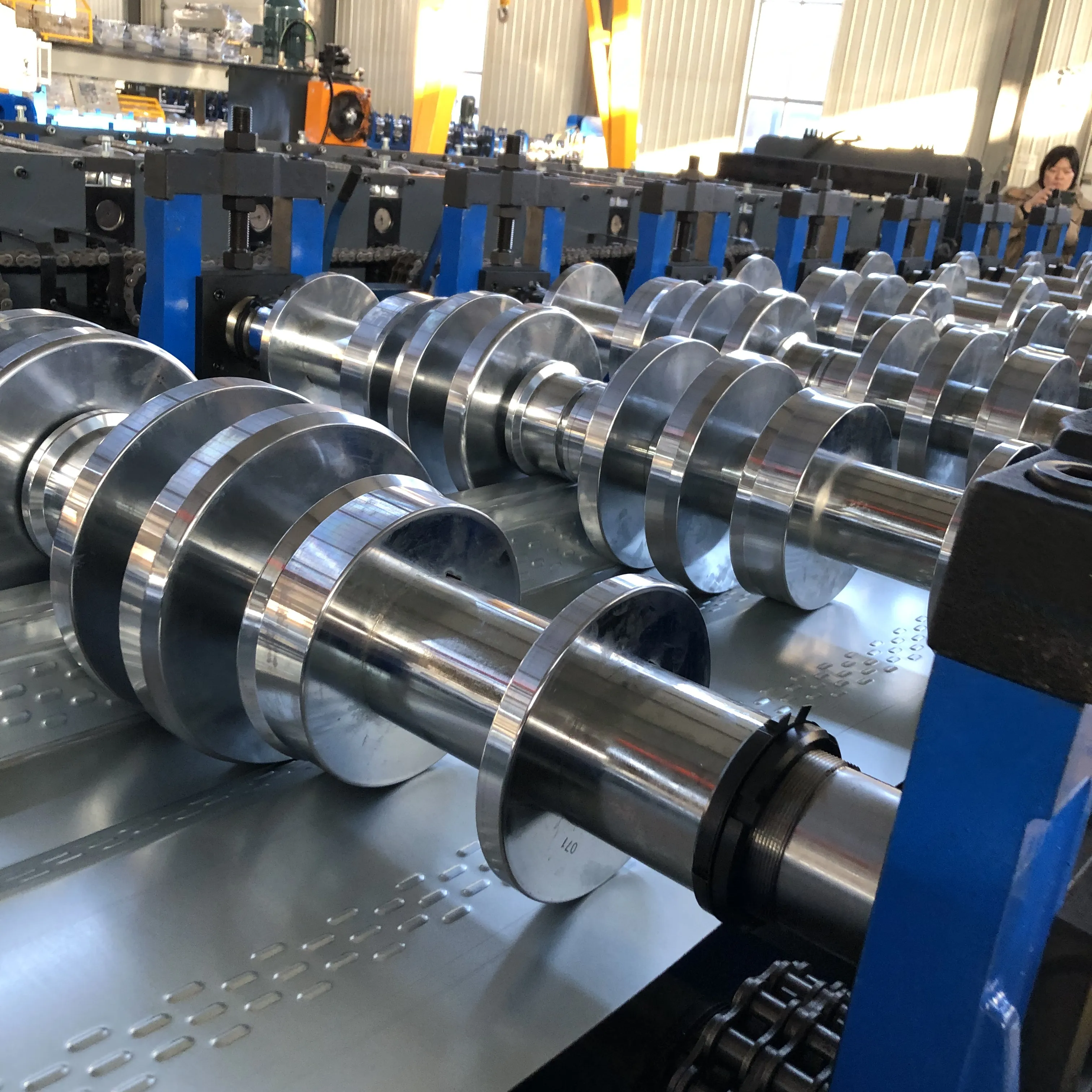

Rolling shaft material	45# STEEL
Shaft diameter	115mm
Roller material	45# steel
Rolling station	32 roller station
Work speed	15 t m/min
Machine structure	Molding frame	45mm thickness
Machine basic frame	500# H steel welded
Bearing	Roller bearing	Famous brand of Harbin
Work power	18.5kw x 2 two motors
Transmission	By Chains	With cover
Motor brand	Siemens Beide

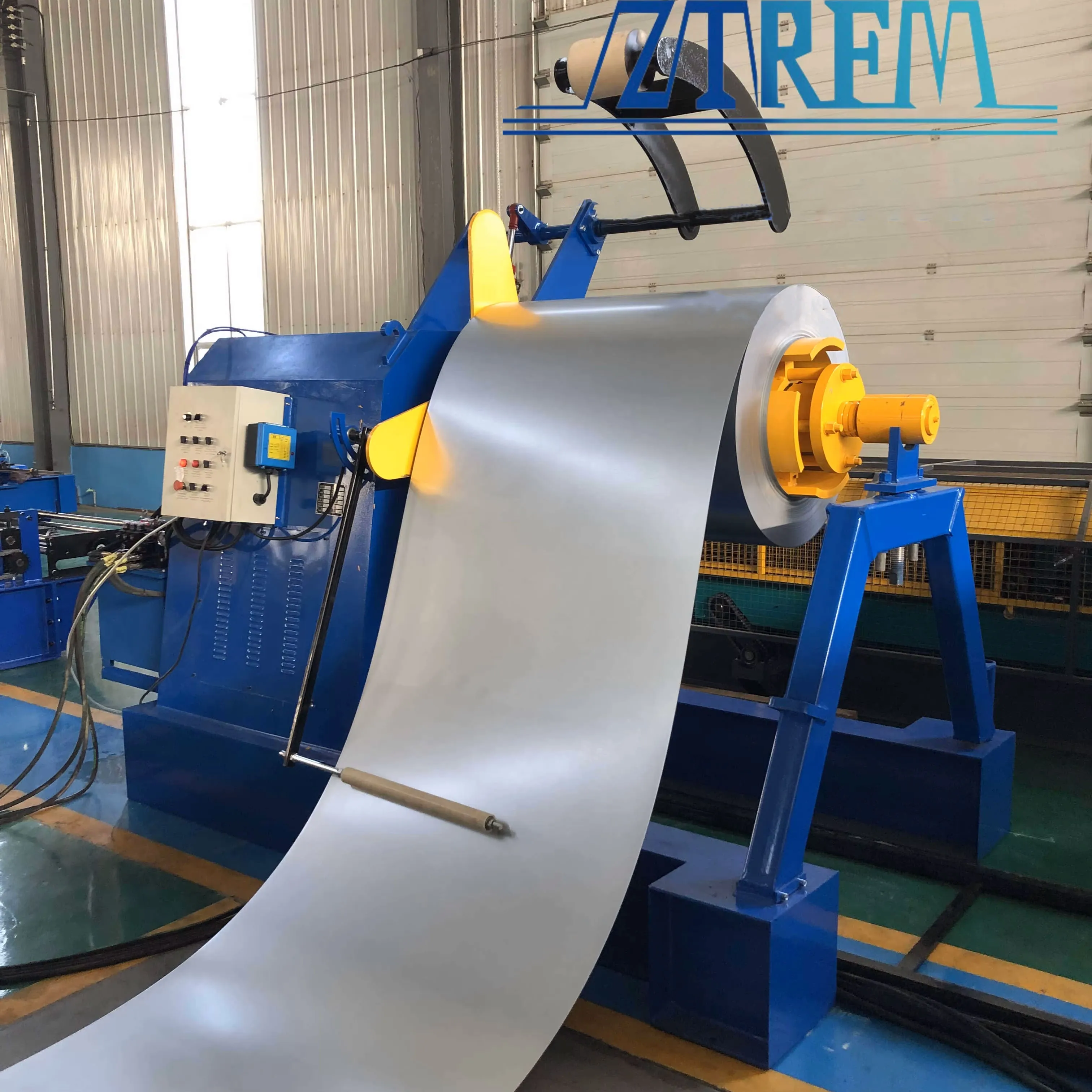

Hydraulic Decoiler

Decoiler type:Motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.
Carrying capacity:15 tons
Loading car capacity:15 tons
Max coil width:1300 mm
Expand coil range:Φ508-φ600 mm
Feeding speed:0-45 m/min (adjustable)
Driving motor power:7.5 kw
Hydraulic motor power:4 kw
Structure:welding by the steel plates and profiled bar.

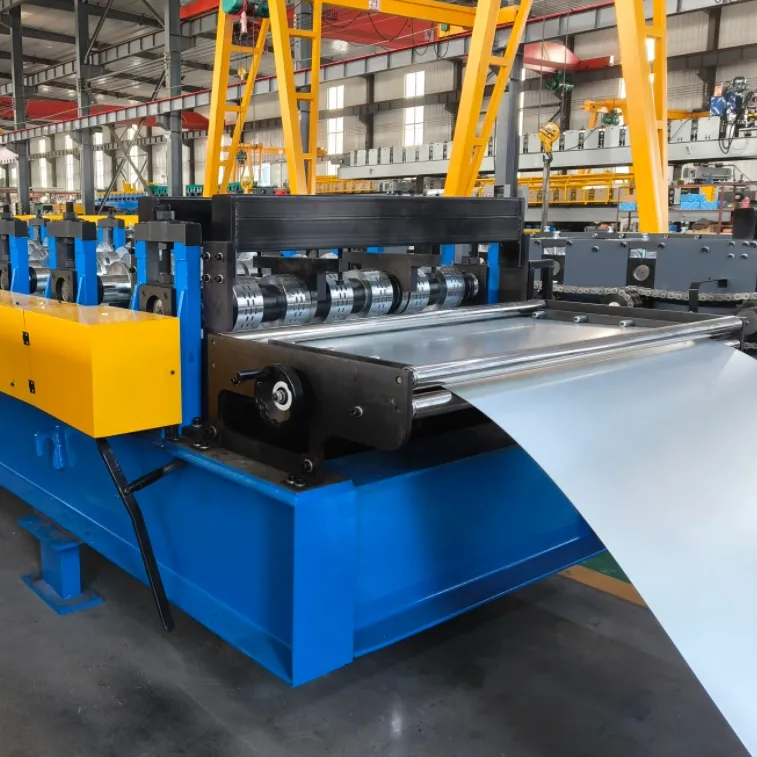

Feeding device and embossing rollers

1.Feeding device has stainless rollers can protect coil material

2.With handwheels for easy adjustable.

3.Embossing rollers: with oiling system in case of zine coating peal off and also it can cool the machine during the working. For the metal decking machine, this is super common problem, with oiling system we can reduce problem chance of happening.

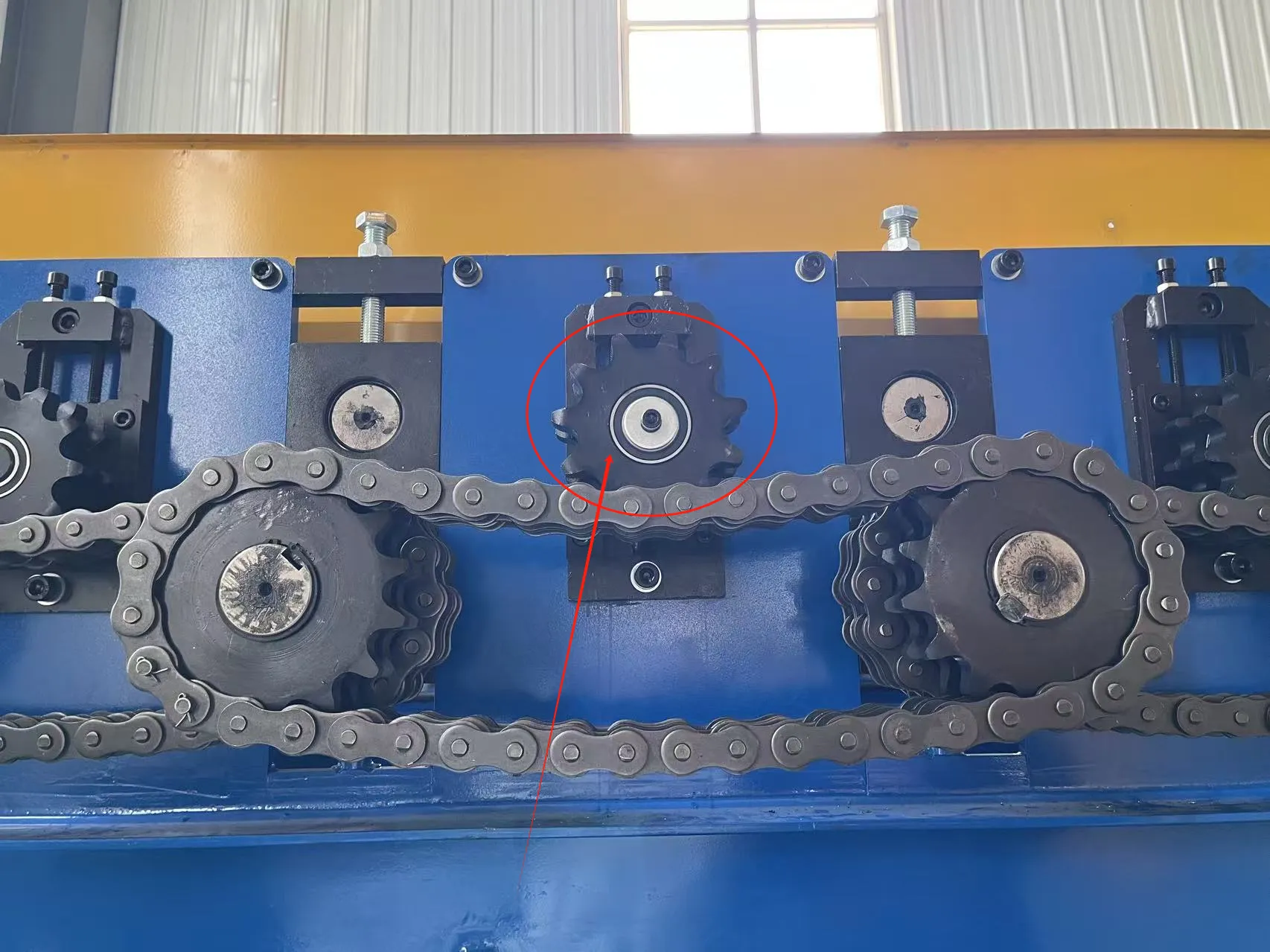

Chain Ttighten system

1. Double chains, has morebigger transmission power

2. we design with double chain also with chain tighten system.

Cutting system

1. Cutting blade material:Gcr12 quenched treatment
2.Cutting type：Stop cutting
3.Cutting Driving method：By pillar type Cylinder

4. Automatic lubrication for the cutter,reduce machine maintenance time and cost

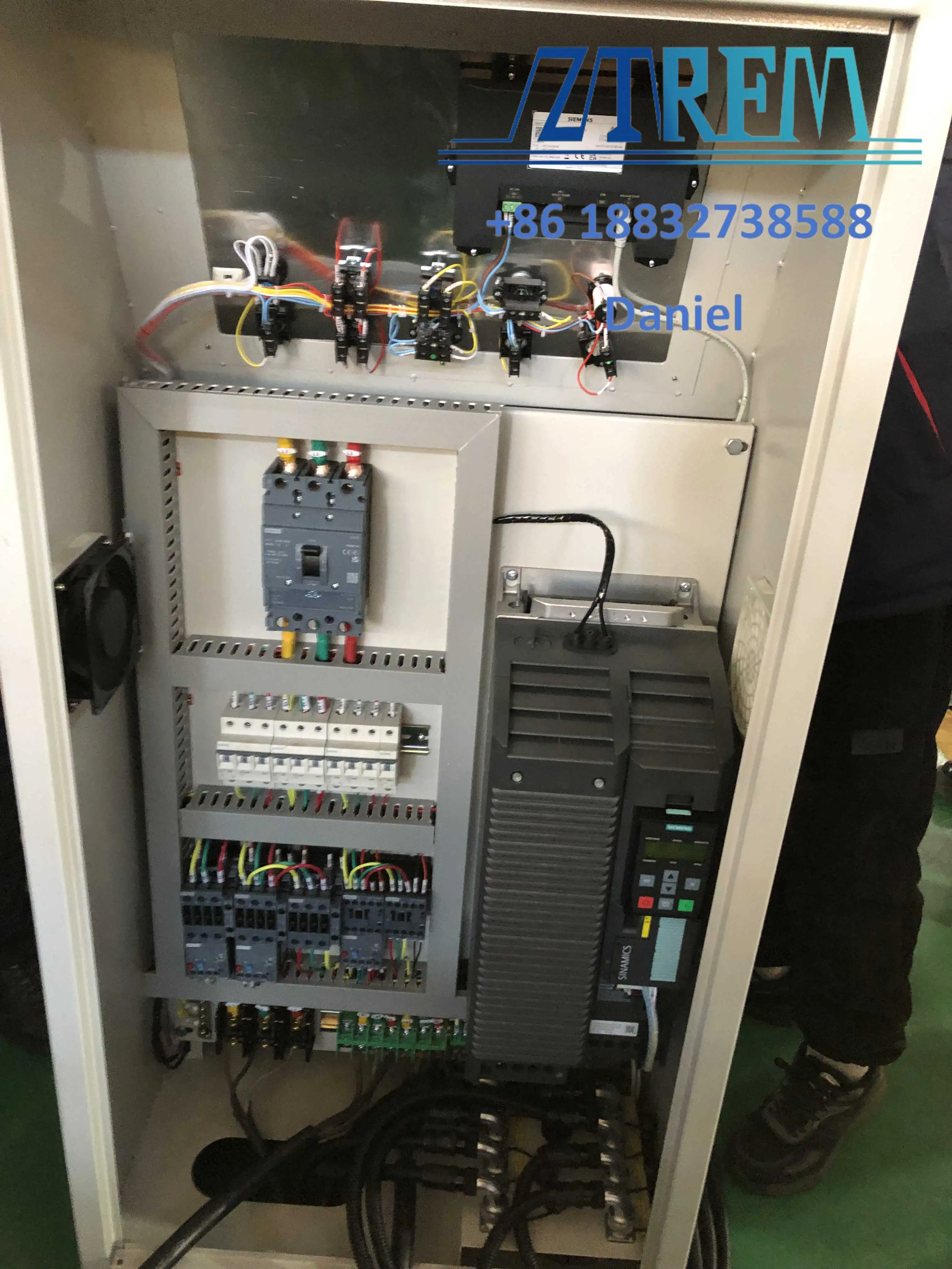

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation

4.Languages can be customized

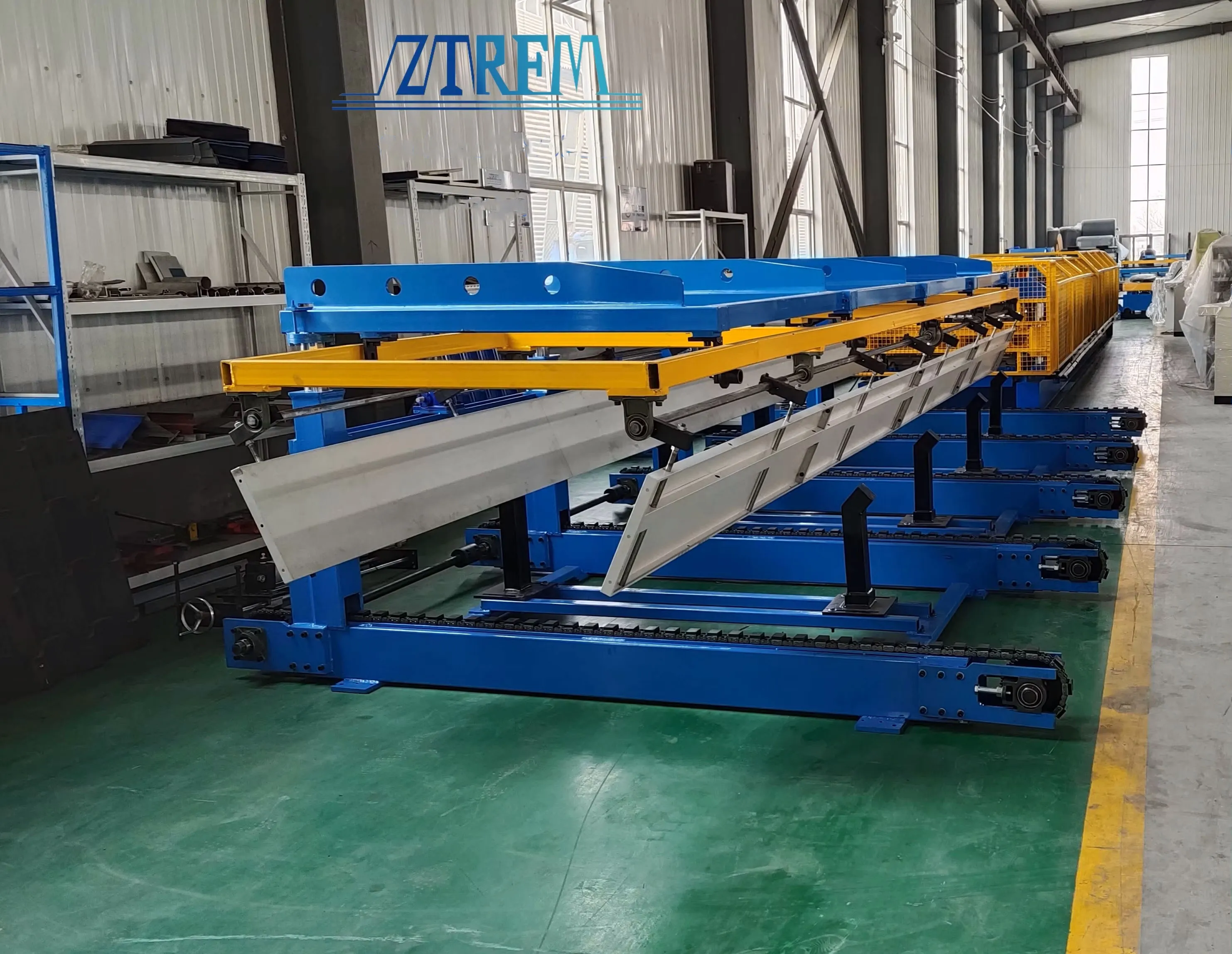

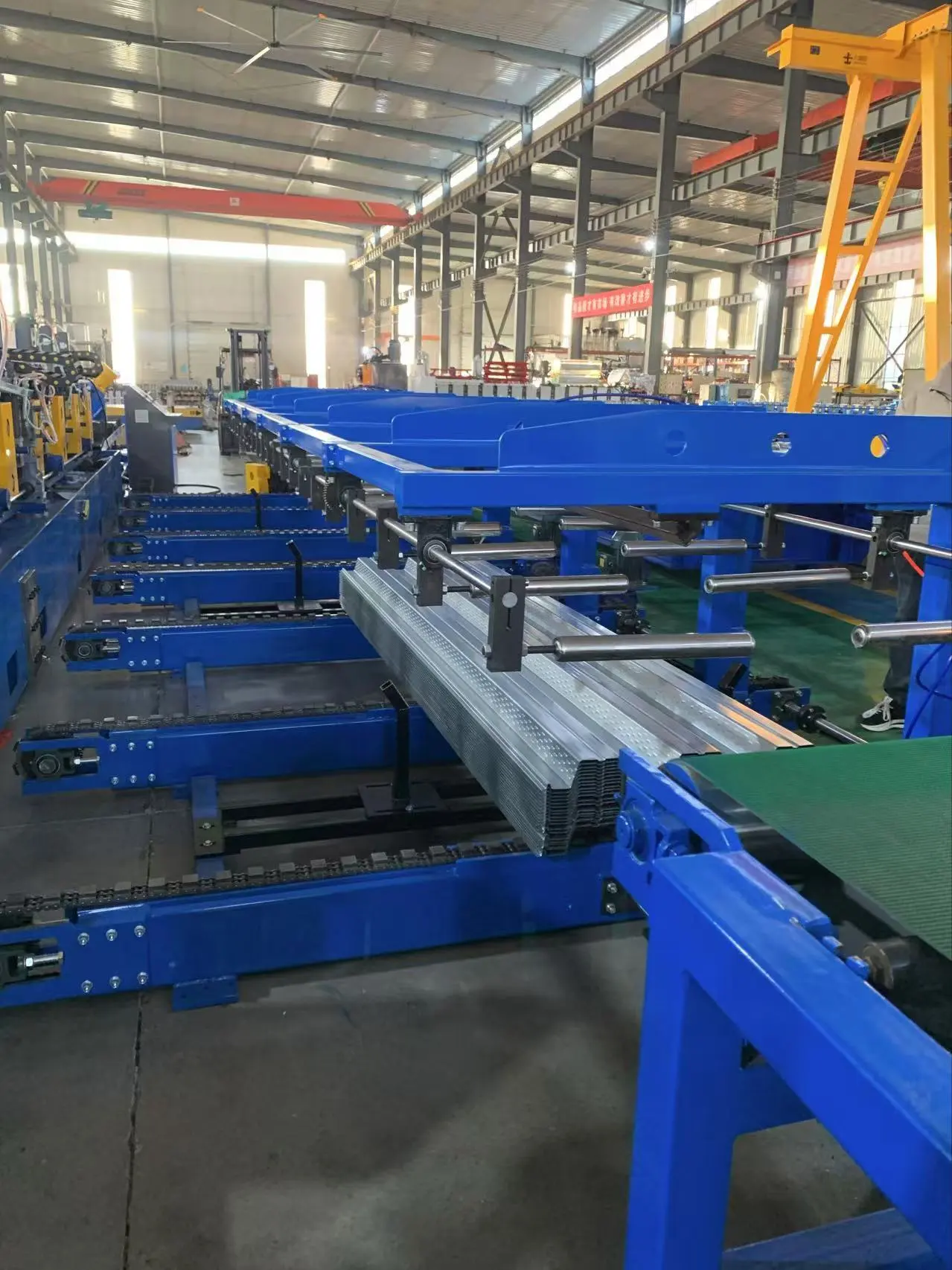

Automatic Stacker

1. Saving manpower 2. Can improve productivity 3. Equipped with rubber wheels and nylon pads to better protect the finished product.

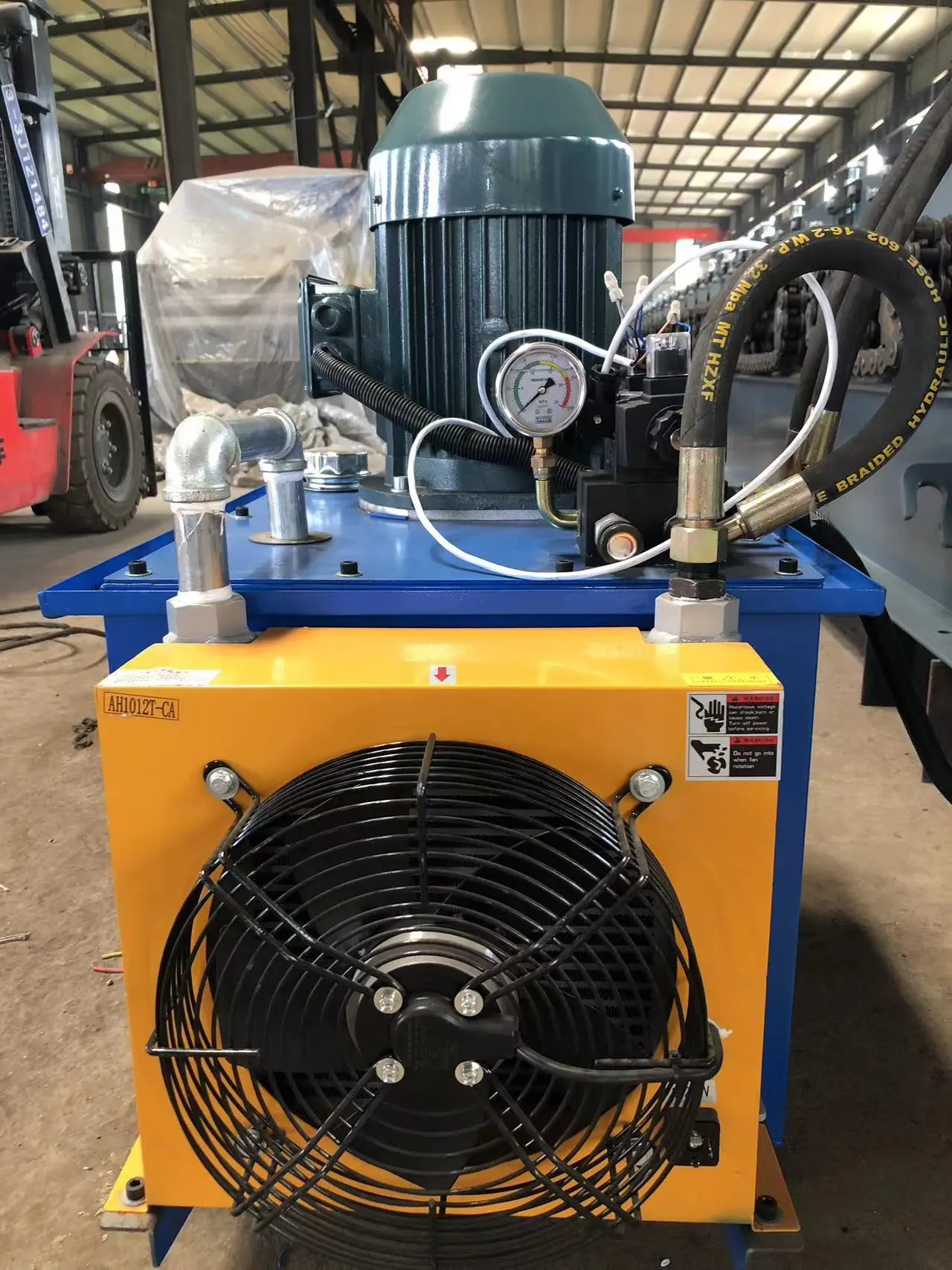

Hydraulic station

1. Hydraulic station motor:15KW + Accumulator
2. Hydraulic oil:46# hydraulic oil
Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism
valve

3. The temperature of the hydraulic station can be measured in real time, more convenient and faster

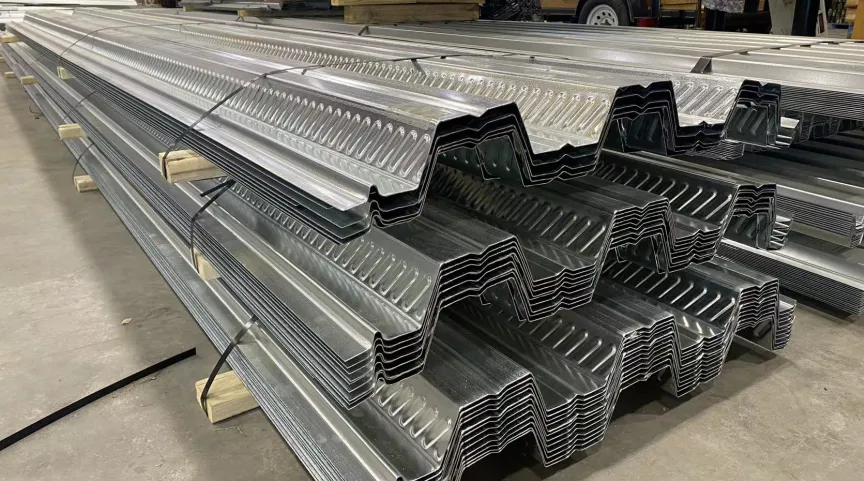

Product display

Products' Advantages

1.Convenient construction: The floor bearing plate can be prefabricated in the factory and installed directly on site, which reduces the complex links in the construction process and improves the construction efficiency. 2.Strong bearing capacity: The floor bearing plate has a high load capacity and can withstand large construction loads and various loads in the later construction process.

3.Good stability: The floor bearing plate has good stability and can effectively resist the influence of external forces such as wind load and earthquake.

4.Fire insulation: The material of the floor bearing plate usually has good fire resistance, is not easy to burn, and has a low conductivity. It is an ideal insulation material. 5.Strong weather resistance: The floor bearing plate can resist the erosion of natural environments such as wind and rain, sun, acid rain, etc., and has good aging resistance. 6.Anti-corrosion and mothproof: The material of the floor bearing plate is not easy to be affected by corrosion and moths, and has a long service life. 7.Waterproof and moisture-proof: The floor bearing plate has good waterproof and moisture-proof performance, and is not easy to deform even in a humid environment. 8.Save materials: The use of floor slabs can reduce the amount of concrete poured on site and save material costs. 9.Reduce noise and vibration: The structural design of the floor bearing plate helps to reduce noise and vibration and improve the comfort of living and use. 10.Wide range of applications: building boards are suitable for a variety of building types, including commercial buildings, industrial plants, residential buildings, public facilities, etc. 11.Fast installation speed: The rapid installation of the floor bearing plate can shorten the construction cycle, which is conducive to the early put into use of the project. 12.Easy to maintain: The surface of the floor slab is flat, which is easy to clean and maintain.

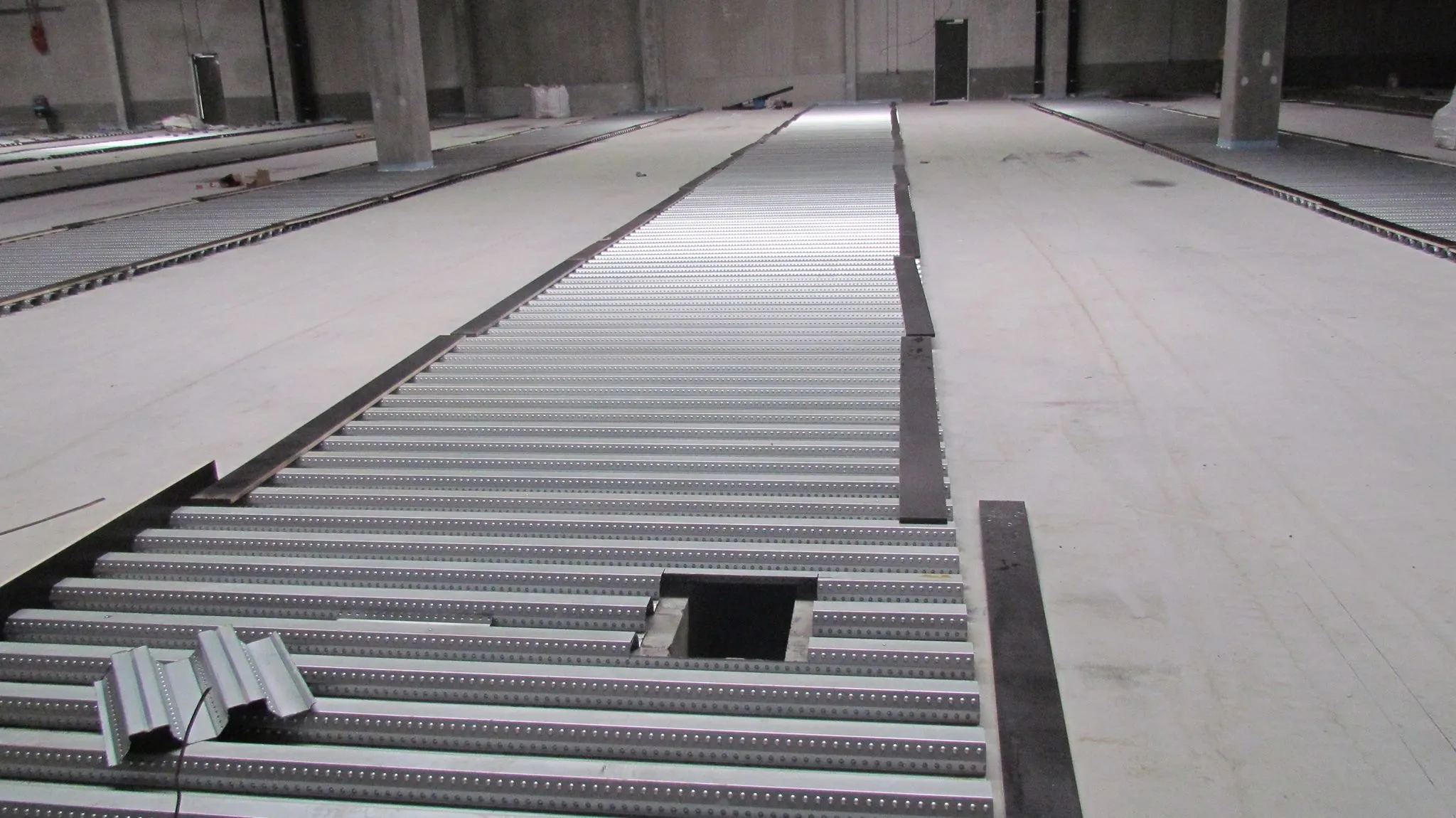

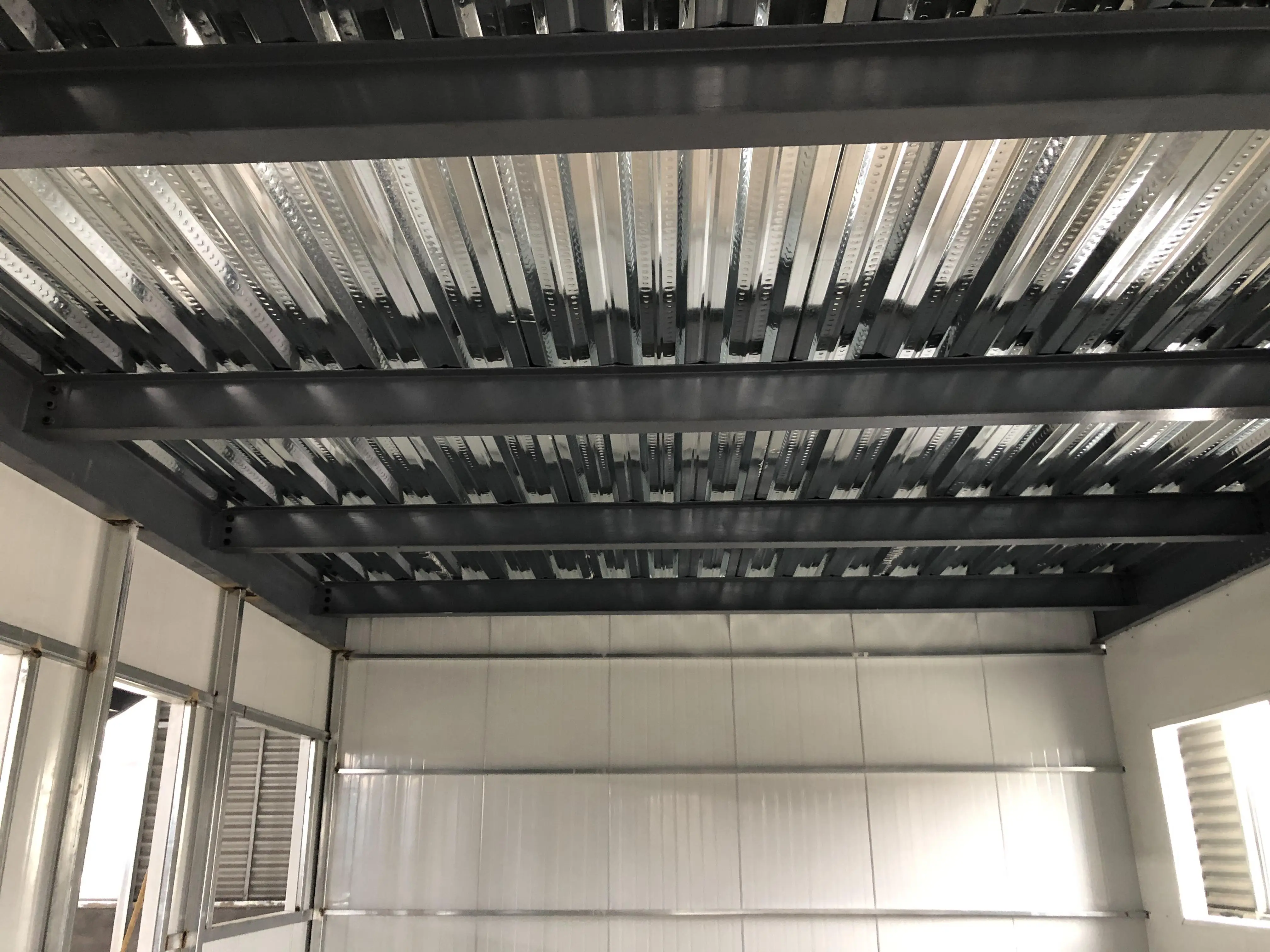

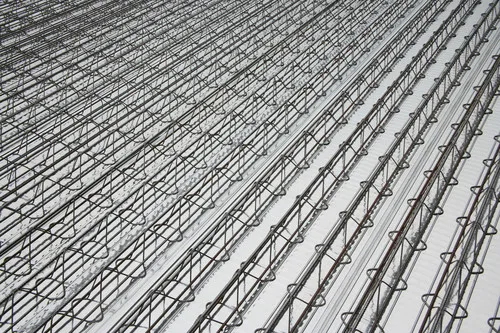

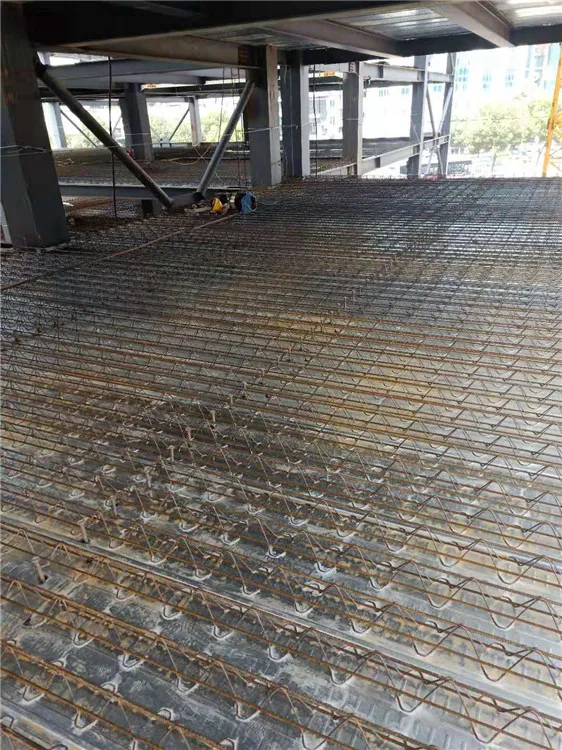

Application
