High Precision Cable Tray Roll Forming Machine with Customizable Dimensions 0-20m/min

High Precision Cable Tray Roll Forming Machine with Customizable Dimensions

Equipment introduction: Intelligent manufacturing assembly line from steel coils to finished products

The High Precision Cable Tray Roll Forming Machine with Customizable Dimensions is a highly automated production line. Its standard process flow typically includes: uncoiling → leveling → servo feeding/punching → roll forming → cutting to length → material collection. The equipment mainly consists of core components such as an uncoiler, leveler, punching device, forming machine, cutting system, and PLC electrical control system. The entire line adopts PLC program control and a touch operation interface. Operators only need to set parameters, and the equipment can automatically complete the complex processing flow, greatly reducing the dependence on skilled technical workers.

Application scenario: The cornerstone supporting key areas

With its efficient, precise, and flexible production capabilities, cable tray forming machines are widely used in multiple key areas related to the national economy and people's livelihood.

• New energy sector:
In photovoltaic power stations and wind power projects, a large number of corrosion-resistant and high-strength brackets are required to cope with harsh outdoor environments. The forming machine can process weather-resistant materials such as galvanized sheets and aluminum-zinc-magnesium sheets, providing reliable bracket products for photovoltaic power stations in high salt spray areas in the northwest.

• New infrastructure and data center:
The internal wiring of data centers is dense, demanding high precision and load-bearing capacity from the trays. The processing accuracy of ±0.1mm of the molding machine perfectly meets the wiring requirements of high-density cabinets.

• Rail transit and infrastructure:
High-speed rail and subway projects have stringent standards for the safety and consistency of cable trays. For instance, domestically produced equipment has been successfully applied to the cable tray production lines of national key projects such as the Beijing-Shanghai high-speed rail, breaking through high-speed forming technology for thick plates, and maintaining a leading market share.

• Industrial and commercial buildings:
In fields such as petroleum, chemical, and commercial complexes, molding machines can flexibly switch to produce fireproof and anti-corrosion cable trays of different specifications, meeting the complex power and signal distribution needs within buildings.


Product Attributes :

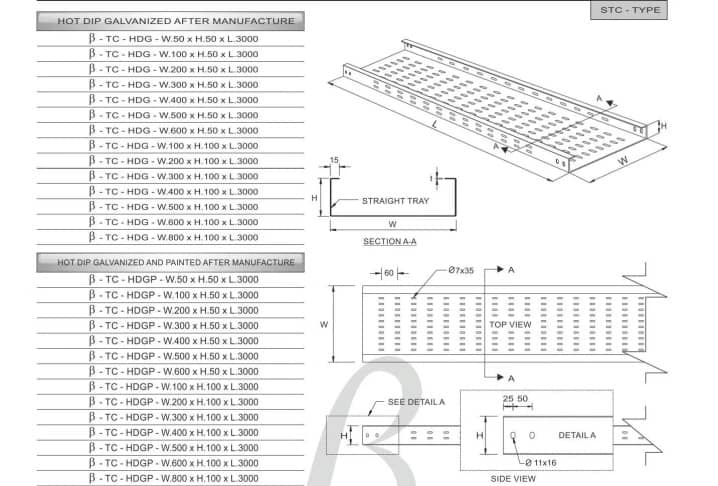

Pattern Diagram:

Core features: high precision, high flexibility, high efficiency

1. Precision control and stability
The equipment utilizes high-precision CNC machining for roll forming and multi-level roll compensation technology to ensure that the perpendicularity of the side edges of the bridge and the flatness of the base plate meet standards, with the forming error strictly controlled within ±0.1mm. The body and frame are mostly integrally welded and tempered to effectively eliminate internal stress, ensuring the rigidity, durability, and stability of the equipment under long-term high-intensity operation.

2. Flexible and modular design
To meet the diverse market demands, modern forming machines often adopt combined adjustable roll bending machines and modular mold designs. By quickly changing or automatically adjusting the rollers, a single set of equipment can produce various specifications of cable trays (including trough, tray, ladder, etc.) with widths ranging from 100mm to 1200mm and thicknesses from 0.5-2.0mm. This flexible production capacity enables manufacturers to respond flexibly to small-batch, multi-variety customized orders, and the changeover time for some advanced equipment has been shortened to less than 20 minutes.

3. High efficiency, energy saving and automation
The equipment integrates the entire process, including automatic uncoiling, leveling, servo feeding, precise punching, roll forming, and cut-to-length, reducing intermediate transfer links. The continuous forming speed can reach 0-20 meters per minute, and the overall production efficiency is improved by more than 40% compared to traditional segmented processing. At the same time, the new equipment, through intelligent temperature control and energy consumption monitoring systems, can reduce energy consumption by about 35% compared to traditional equipment, aligning with the current "dual carbon" goals of green manufacturing.

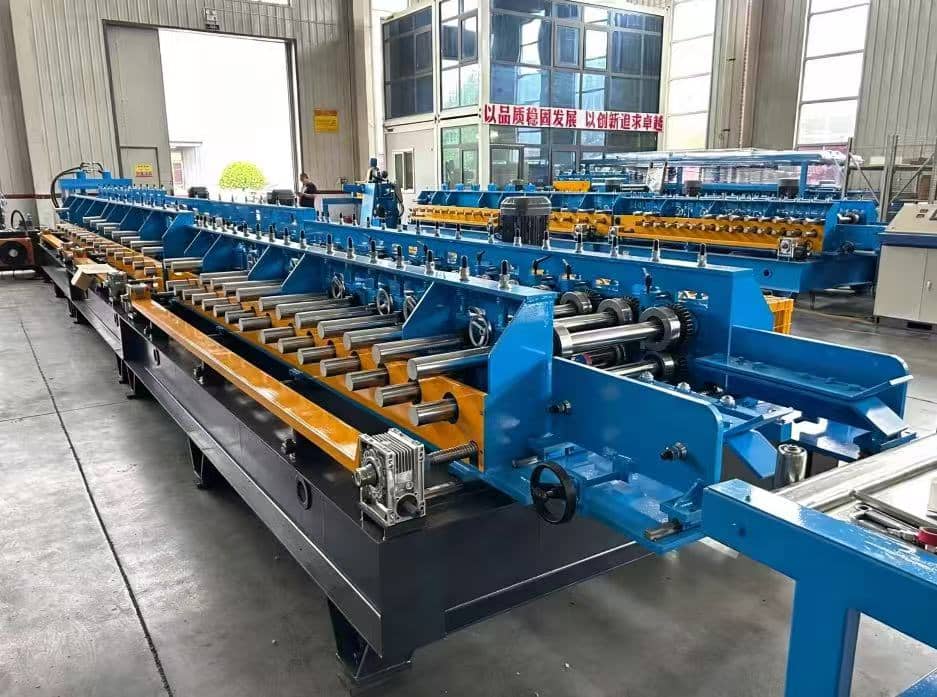

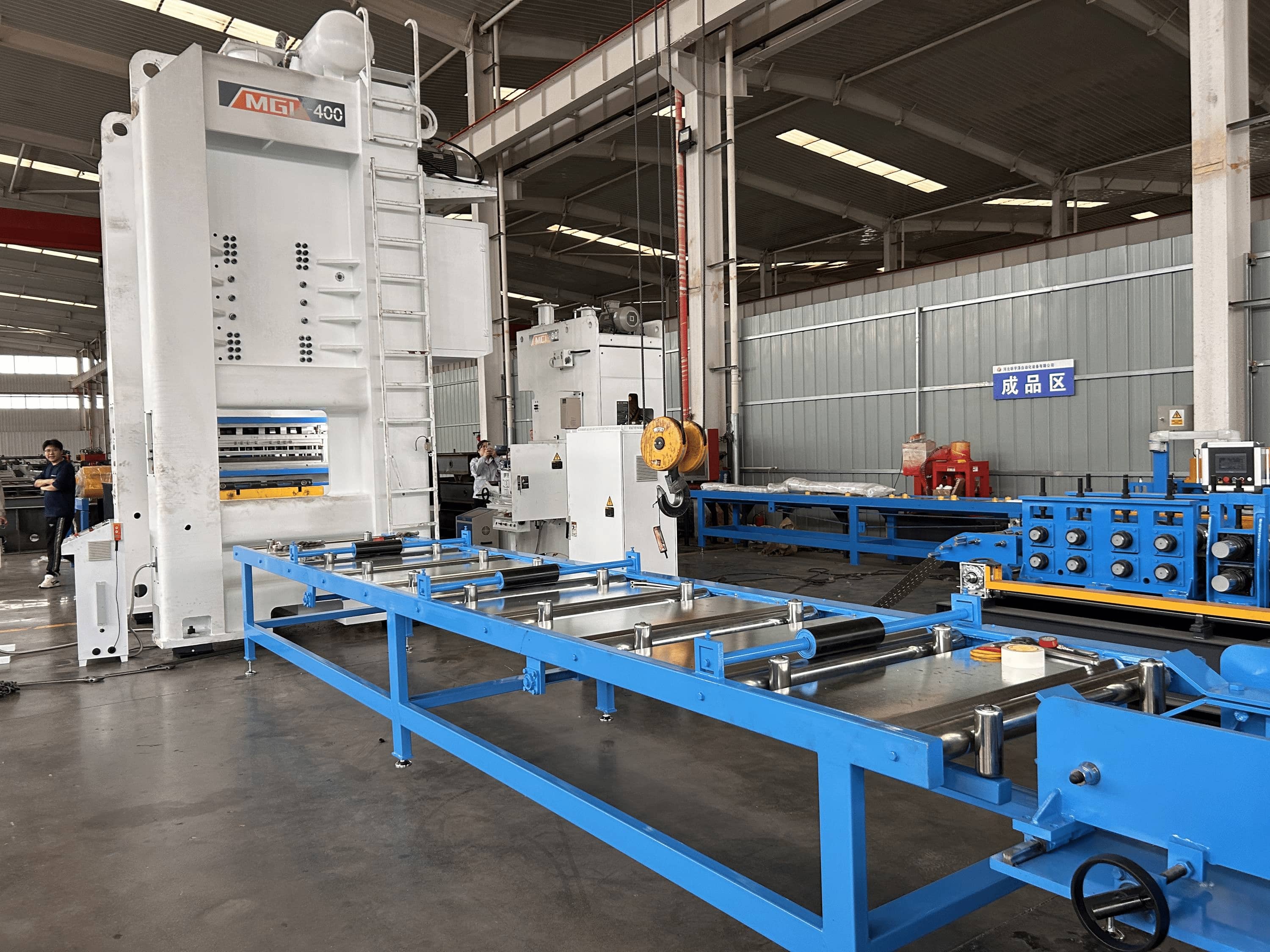

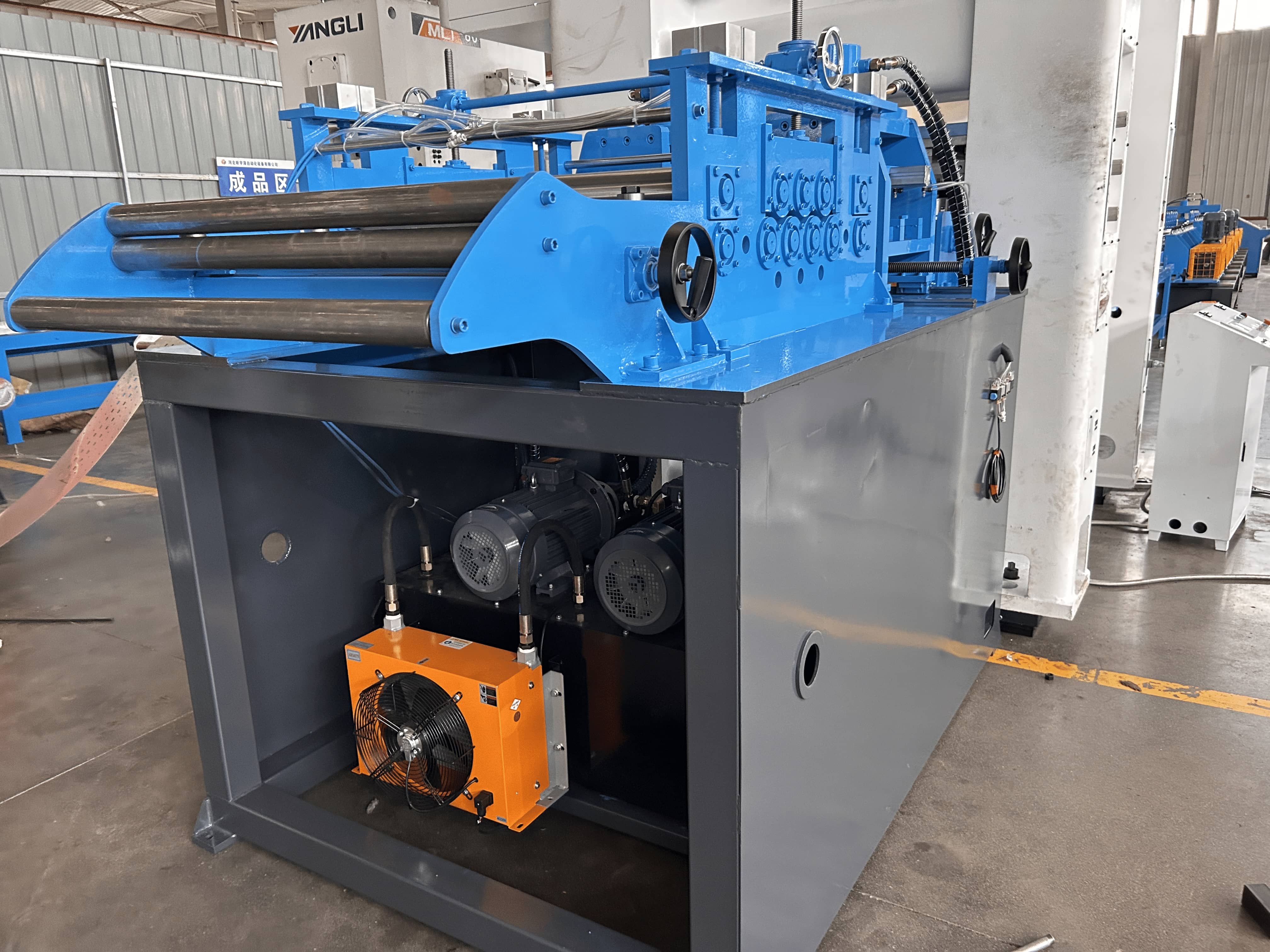

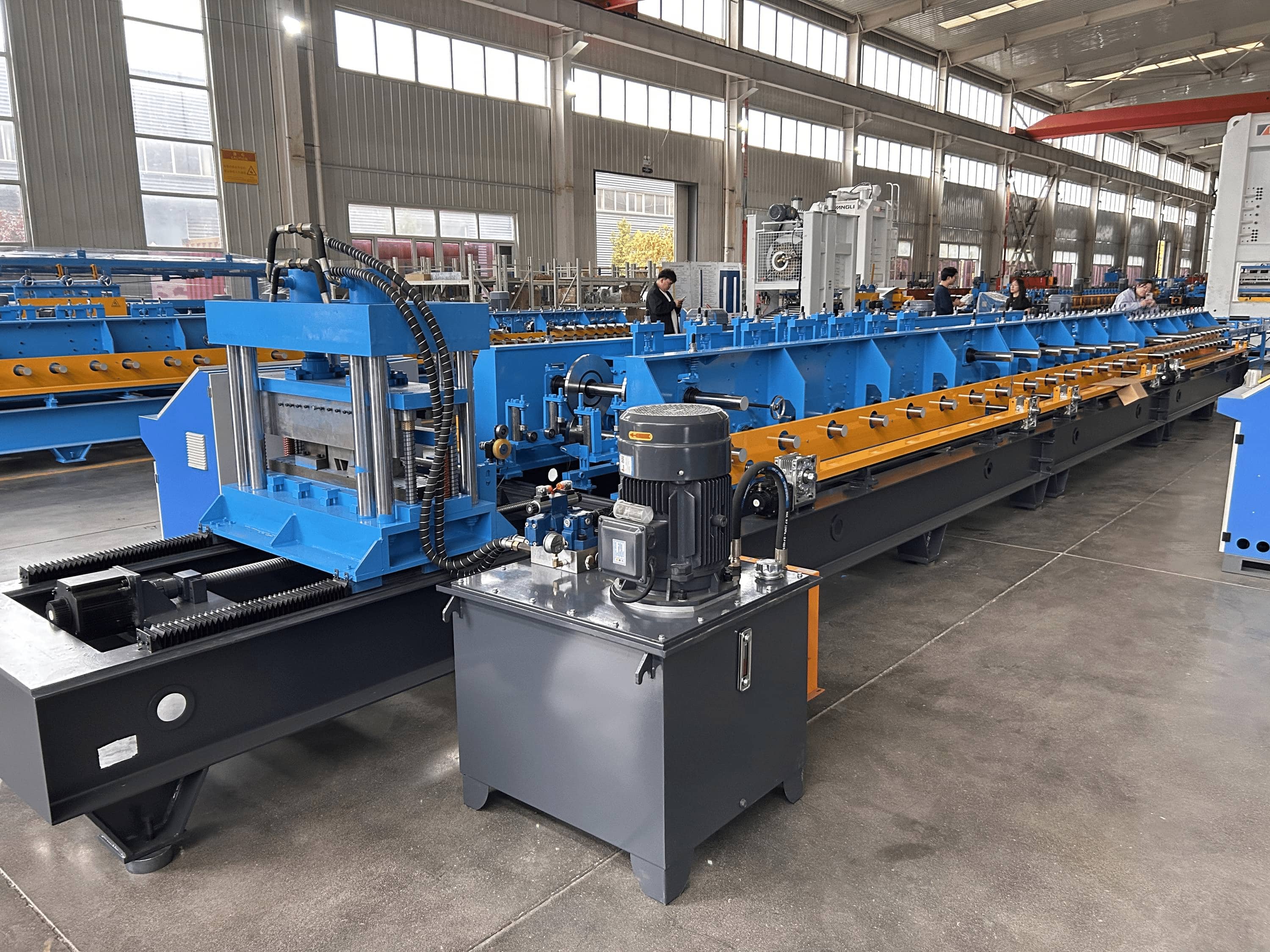

Machine image:

contact us：

Now, the time for decision has arrived. Should we continue to relinquish our profits and fret in passive waiting, or should we decisively invest in the future and firmly grasp our core productivity in our own hands? Choosing Zhongtuo Automatic Steel Metal Cable Tray Ladder Making Cold Roll Forming Machine is choosing a production method that takes control of our destiny and wins at the starting line. Contact us immediately, and let our experts tailor-make a plan for you, ushering in a worry-free era of independent and intelligent metal frame manufacturing.
