Automatic T Bar Forming Machine 3 Production Lines Reliable Ceiling Output

If you are planning a ceiling for a long mall corridor or working on a hotel interior, you may already be thinking about the main tee size. The 38x24x3600mm Main Tee is often the starting point because it plays a key role in the ceiling frame. But a complete ceiling system needs more than one main tee. It needs a full set of T Bar components. The Automatic T Bar Forming Machine is built to handle exactly that.

Why Mall Corridors and Hotel Ceilings Both Focus on Main Tee 38x24

Mall corridors and hotel ceilings look like two different projects. But they share a common concern for the T Bar system.

A mall corridor runs long and continuous. Main Tee profiles line up one after another along the corridor. This puts more demand on straightness and joint fit. If the main tee bends or the joints do not line up over a long run, the whole ceiling surface shows waves. That is why mall projects pay close attention to the main tee section size and forming quality.

Hotel ceilings have a different focus. Guest room ceilings are not large, but visual completeness matters. The wall edge gets close attention. The Wall Angle meets the wall and the ceiling grid at the perimeter. Its section size and straightness affect how clean that final line looks. The confirmed Wall Angle size for this machine is 22x22x3000mm. This size can be evaluated against the edge detail and grid layout, but it should not be treated as the only correct choice for every hotel project.

Both scenarios point to the same fact. A project needs a complete T Bar system. Main Tee forms the frame. Cross Tee divides the grid. Wall Angle finishes the edge. Without any one of them, the ceiling system is not complete.

Where These Components Are Used

• Mall corridors: Main Tee runs along the corridor, Cross Tee crosses at standard spacing, Wall Angle finishes both wall sides

• Hotel guest rooms: Main Tee and Cross Tee form the inner grid, Wall Angle works with the wall to finish the edge

Different projects use different ratios of the three components, but they all require consistent dimensions.

A Complete T Bar System Needs Three Components

A complete T Bar ceiling system has three components. Each does a different job and has a different section size.

Main Tee is the frame of the ceiling. The confirmed size is 38x24x3600mm. It runs parallel along the room length and hangs from the slab by suspension wires.

Cross Tee runs perpendicular to the main tee. It divides the large space into standard grid units. There are two confirmed sizes: Long Cross Tee at 26x24x1200mm and Short Cross Tee at 26x24x600mm. In a ceiling system, cross tees are usually needed in much larger quantities than main tees.

Wall Angle mounts on the walls around the room. The confirmed size is 22x22x3000mm. It supports the ceiling edge and covers the gap between wall and ceiling.

The three components have different section sizes and different production needs. Main Tee has a larger section. Cross Tee is smaller but used in the highest volume. Wall Angle has an L shaped section and needs tighter straightness. That is why an Automatic T Bar Forming Machine usually comes as multiple independent production lines instead of one single machine.

Machine Advantages of the Automatic T Bar Forming Machine

This equipment is designed to produce more than one T Bar component. It covers the full set of profiles needed for a complete ceiling system through independent production lines.

1. Multiple independent lines for different components

The equipment includes a Main Tee line, a Cross Tee line, and a Wall Angle line. Each line runs on its own, so you can schedule production based on orders.

2. Local production for a complete system

A project needs a complete system, not a single component. Multiple lines let a supplier produce Main Tee, Cross Tee, and Wall Angle locally. This can reduce the need to source each component separately.

3. Coordinated production of related profiles

The main tee section size needs to match the cross tee clip structure. Producing related profiles on lines supplied as one package can give a manufacturer more control over production scheduling.

4. Continuous roll forming for batch consistency

Each line uses continuous roll forming. The steel strip passes through multiple rollers and bends step by step into the target section.

For manufacturers already producing wall framing profiles, adding ceiling T Bar lines can extend the product range. An lgs framing roll forming machine uses similar roll forming principles for wall framing, and a drywall keel making machine serves related drywall profile production.

Main Tee 38x24: Size, Cost, and Strength Analysis

Back to the first question: why does Main Tee 38x24 become a focus in project discussions?

38x24 is the main tee section size: 38mm height, 24mm width. This size is not random. The section size directly affects the steel usage and structural properties of the profile. A larger section usually means more material per meter. A smaller section uses less material, but the section stiffness changes accordingly.

When choosing a main tee size, a project needs to match several factors:

• Ceiling span requirements: main tee spacing and hanger spacing affect the need for section size

• Ceiling load: panel weight, lights, and maintenance loads all affect what the main tee needs to handle

• Material usage: a larger section usually means more steel per meter, which changes raw material cost

• Fit with other parts: the main tee section size needs to match the cross tee clip structure

Section size is only one factor. Material thickness, section shape, hanger spacing, connection method, and installation method all affect how the ceiling system performs. You cannot judge the load capacity of a system from the 38x24 size alone.

From a cost and strength view, 38x24 is a size that needs to be evaluated against actual project needs. If a project has higher load and span requirements, a larger section may be needed. If the load is lighter, a more economical size may work. That is why projects need to match the size to the job, rather than assuming bigger is always better or smaller always saves more.

The value of local production for 38x24 is that you can adjust the production plan to project needs without waiting for long lead times on imported finished goods. Whether the final cost is lower depends on material prices, labor cost, order volume, and purchase prices.

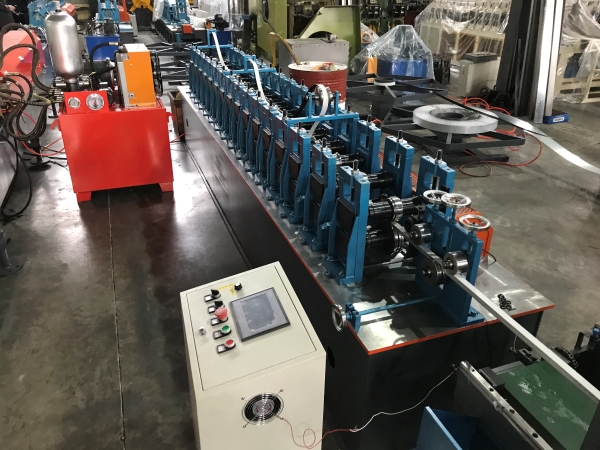

Production Flow from Steel Coil to a Complete T Bar System

Each production line follows a similar flow. The difference is in the roller setup and the number of forming steps.

After the steel coil enters the line, it goes through these steps:

• Decoiling: the manual decoiler releases the strip, pulled by the main machine

• Entry guiding: the strip enters the first forming roller straight

• Continuous forming: multiple rollers cold form the strip into the target section

• Punching and cutting: holes and cut to length based on the actual configuration

• Output: finished profiles slide onto the receiving table

The Main Tee line and Cross Tee line use different numbers of forming steps. The Wall Angle line uses fewer forming steps. Each line makes its own component, and together they form a complete T Bar ceiling system.

Technical Parameters

Real Value of Local Production for a Complete T Bar System

Mall corridors and hotel ceilings look like different projects, but their buying logic is the same. Both need a complete T Bar system, not a single component.

When buying imported finished goods, Main Tee, Cross Tee, and Wall Angle often come from different suppliers. You have to coordinate sizes, color consistency, and delivery times separately. If any one link is delayed, the whole project is affected.

Local production for a complete system can give a manufacturer more control over scheduling. Once raw material arrives, you can plan each line based on project progress. Main Tee, Cross Tee, and Wall Angle are made on separate lines supplied as one package, so the fit between them is easier to manage.

This control matters most when project orders change. If a mall project adjusts the corridor length, or a hotel project changes the guest room ceiling layout, local production can adjust the schedule without going back to overseas suppliers for production and shipping. The equipment gives a business the ability to produce on its own and can reduce dependence on imported finished goods. Whether the final cost is lower depends on material, labor, order volume, and import or purchase prices.
