High Precision Automatic Metal Cut To Length Machine for Steel Coil 7.5kw

The Cut To Length Machine is designed for processing metal coils into flat sheets of specified lengths. It can be used for galvanized steel, color-coated steel, stainless steel, carbon steel, aluminum, and other metal coil materials. The production line integrates decoiling, feeding, leveling, length measuring, cutting, conveying, and optional stacking into one continuous production process.

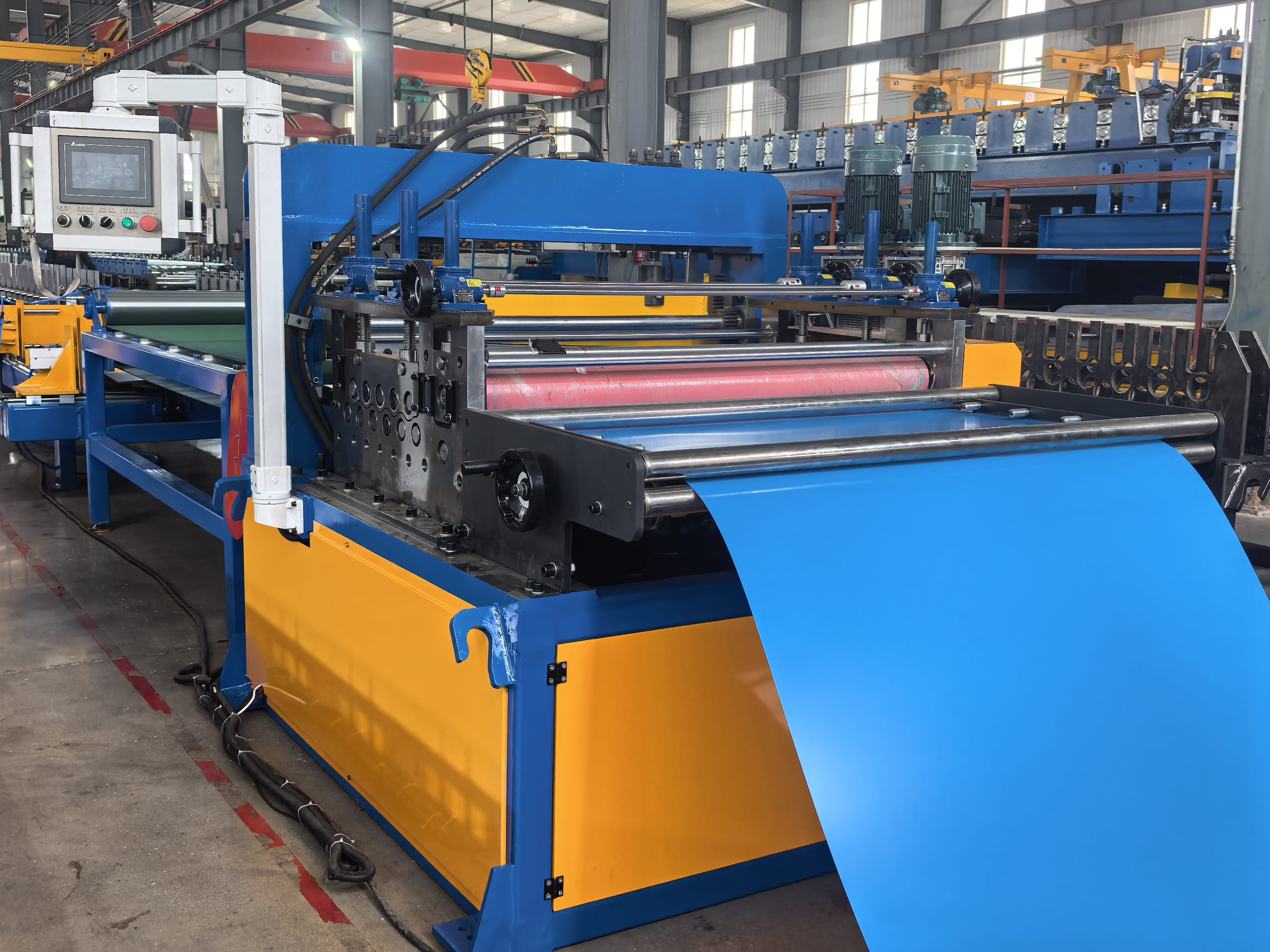

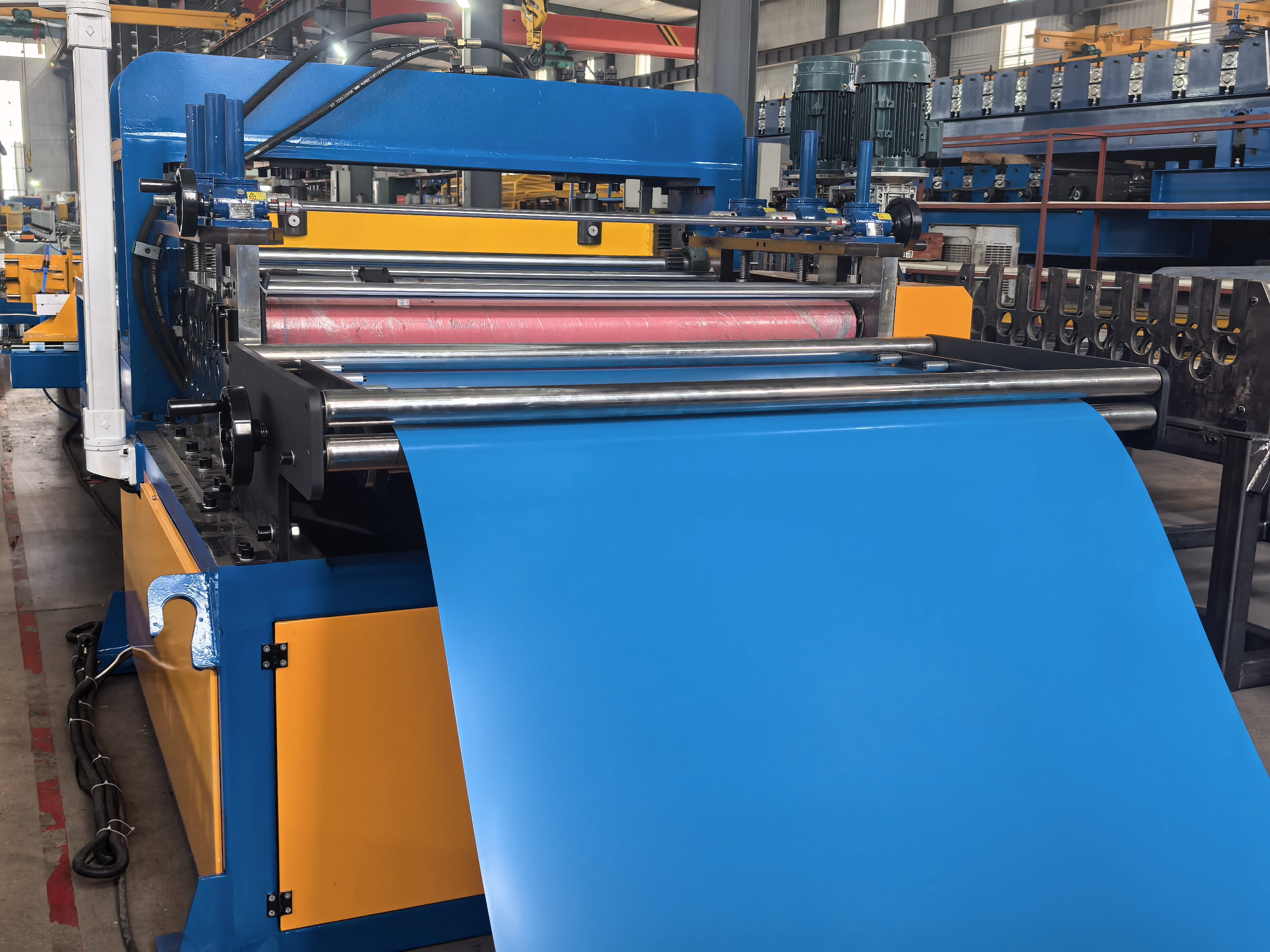

The machine is built with a strong and stable frame structure to support long-term industrial operation. Reinforced key components help maintain stable performance during continuous production. The leveling section uses multiple leveling rollers to reduce coil curvature and improve sheet flatness before cutting, providing better conditions for accurate length control and consistent finished products.

The feeding and measuring system can work together with a PLC control system and encoder. Operators can set the required sheet length and production quantity directly through the touch screen. After the parameters are entered, the machine automatically performs feeding, measuring, and cutting, helping improve production consistency while reducing manual measurement and repetitive operation.

The cutting section is designed for stable sheet metal processing and can be configured according to different materials, thicknesses, widths, and production requirements. The machine can also be integrated with a decoiler, leveling unit, feeding device, conveying table, and automatic stacking system to form a complete Steel Coil Cut To Length Line.

Main Features

• Automatic Length Cutting
  Sheet length and production quantity can be set through the PLC control system for convenient operation.
• Stable Material Feeding
  The feeding system helps ensure smooth and continuous sheet movement during production.
• Multi-Roller Leveling System
  Multiple leveling rollers improve sheet flatness and reduce deformation caused by coil storage.
• Precise Length Control
  The measuring and feeding system is suitable for continuous production of sheets with consistent dimensions.
• Strong Machine Structure
  A reinforced machine frame helps improve operational stability and durability.
• Wide Material Compatibility
  Suitable for galvanized steel, color-coated steel, stainless steel, carbon steel, aluminum sheet, and other coil materials.
• Customizable Configuration
  Machine specifications can be customized according to coil width, material thickness, cutting length, production speed, and automation requirements.
• Optional Automatic Functions

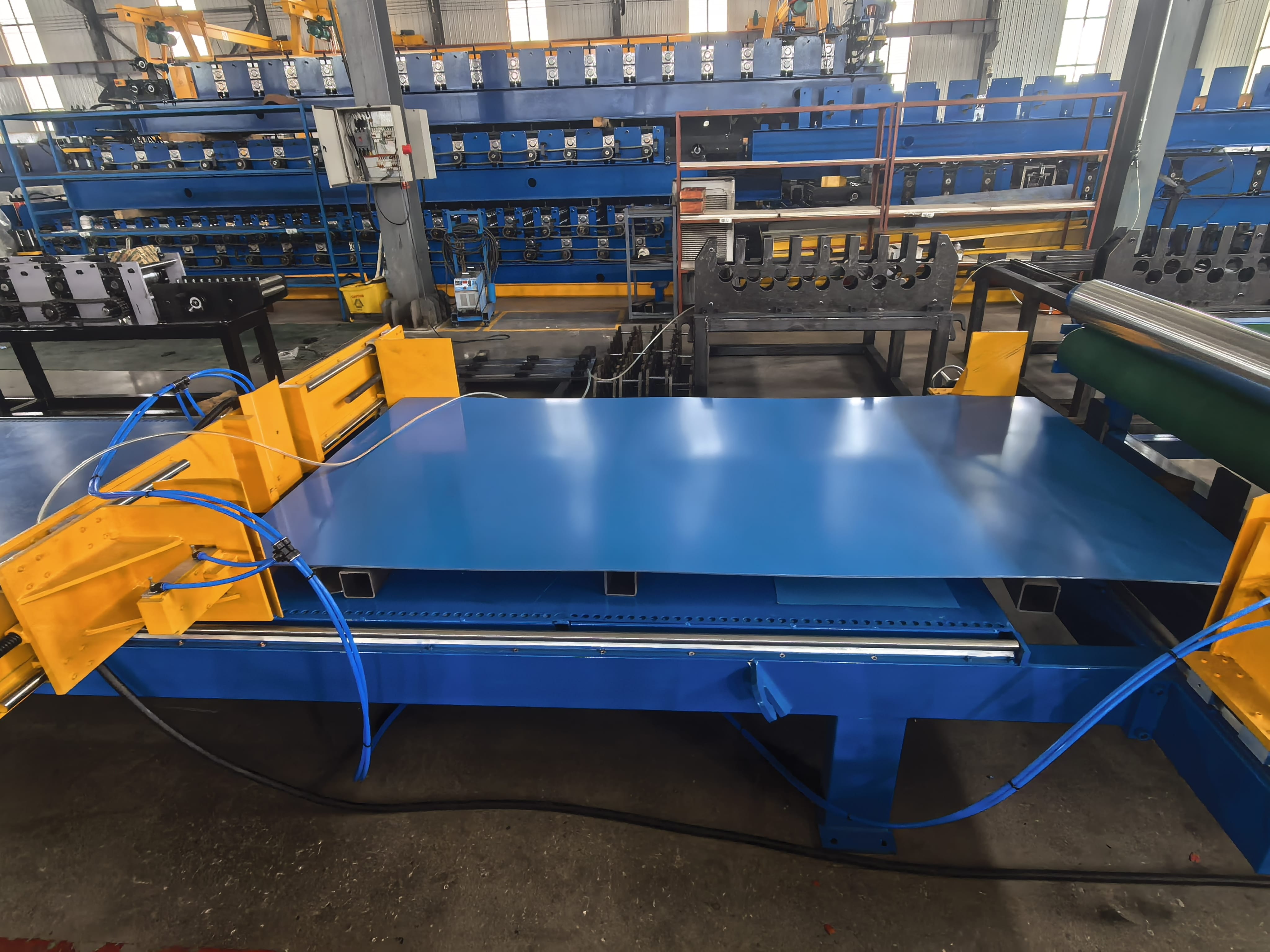

  Automatic feeding, conveying, collecting, and stacking systems can be added according to the production requirement.

Typical Production Process

A complete Cut To Length Line can be configured as:

Decoiler → Feeding Guide → Leveling System → Length Measuring & Feeding → Cutting Unit → Conveying Table → Sheet Collection / Automatic Stacking

The different sections work together through centralized control to provide a continuous and stable coil processing process.

Applicable Materials

The machine can be used for processing:

Galvanized Steel, Color Coated Steel, Cold Rolled Steel, Stainless Steel, Carbon Steel, Aluminum Sheet, Galvalume Steel, and other metal coil materials.

Application Fields

The Metal Cut To Length Machine is suitable for:

Steel service centers, sheet metal processing factories, steel structure manufacturers, construction material factories, metal fabrication companies, roofing material producers, and other businesses that need to convert metal coils into fixed-length sheets.

Customized Solution & After-Sales Service

We can design the Cut To Length Line according to the customer's specific production requirements, including:

Material Type, Sheet Thickness, Coil Width, Finished Sheet Length, Production Speed, Coil Weight, and Automation Level.

Before delivery, the equipment can be assembled, adjusted, and tested to verify its operating condition. Technical guidance, operator training, remote support, spare parts support, and installation assistance can also be provided according to the customer's project requirements.

With flexible configuration and automatic control, the Cut To Length Machine provides an efficient solution for converting metal coils into accurately sized flat sheets for different industrial applications.
