Arc Roof Tile Forming Machine: Precision Curved Roofing Solution for Global Construction

Introduction: Why Choose an Arc Roof Tile Forming Machine?

In modern architectural design, curved and arched roof structures are increasingly popular for their aesthetic appeal and superior load-bearing performance. Our Arc Roof Tile Forming Machine​ is engineered to produce high-quality, uniform curved roof panels at high speed, helping overseas building material manufacturers and contractors reduce labor costs while improving project delivery efficiency.

Whether you are supplying materials for industrial plants, logistic warehouses, resort villas, or agricultural steel structures, this roll forming line offers a reliable, energy-efficient, and fully automated production solution tailored to your market needs.

Key Features & Competitive Advantages

High-Precision Molding with Servo Technology

The equipment adopts an advanced PLC automatic control system combined with imported servo positioning, ensuring molding precision within ±0.5mm. Every arc roof tile delivers consistent curvature, neat edges, and uniform thickness—eliminating common defects like uneven arcs or size deviations found in semi-automatic alternatives.

Heavy-Duty & Stable Structure

Machine frame: Thick steel plate welded base with high rigidity, no deformation under high-speed continuous operation.

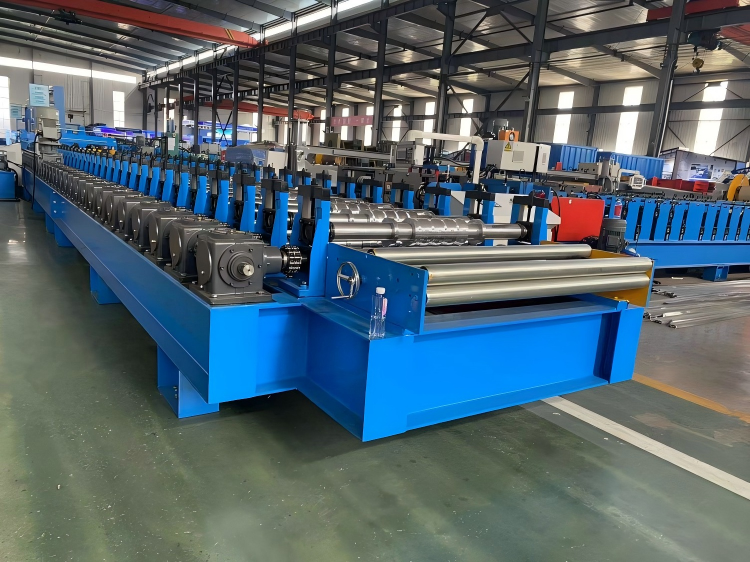

Roller material: 45# steel with chrome plating, quenched surface treatment to prevent wear and protect coil coating.

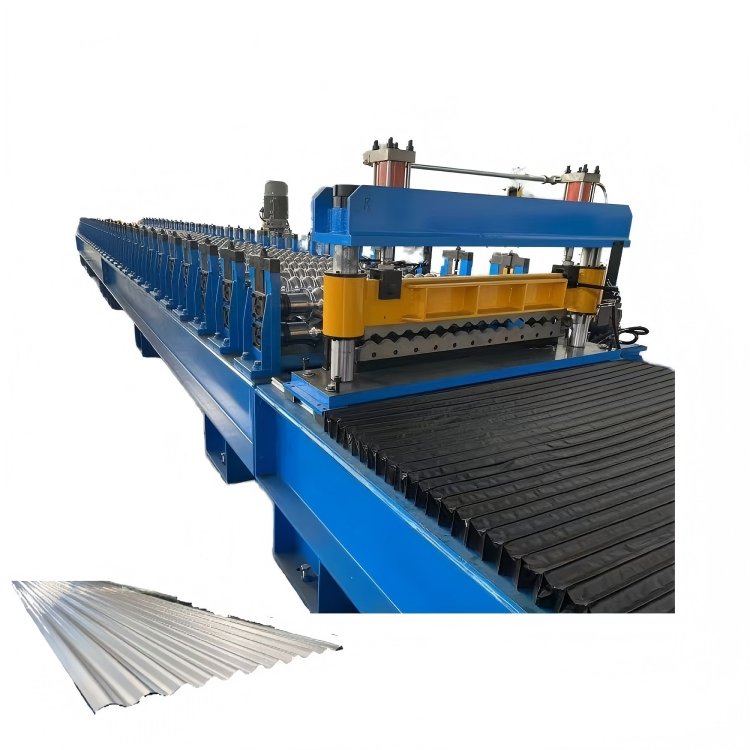

Hydraulic cutting: Double oil cylinder shear with synchronized tracking cutting (fly cut), smooth edge without burrs, main machine never stops during cutting, increasing output to 25–40 meters per minute.

Multi-Material Compatibility

This arc roof tile roll forming machine supports various metal coils, including:

Color coated steel sheet (PPGI)

Galvanized steel coil

Aluminum-zinc alloy coil

Aluminum-magnesium-manganese alloy sheet

Coil thickness range: 0.3–0.8mm​ (customizable up to 1.2mm depending on profile).

User-Friendly Automation

Equipped with a touch-screen HMI and automatic length/quantity counting system, even operators without prior roll forming experience can master the machine after short training. Remote fault diagnosis and custom profile development are available for overseas clients.

Technical Specifications (Example Model)

Parameter	Specification
Machine Type​	Arc / Curved Roof Tile Roll Forming Machine
Raw Material​	PPGI, GI, Aluminum coil
Coil Width​	914 / 1000 / 1200 / 1250 mm (custom)
Material Thickness​	0.3–0.8 mm (optional 1.0 mm)
Roller Station​	14–20 stations (depends on arc radius)
Main Motor Power​	7.5–11 kW
Hydraulic Power​	4–5.5 kW
Forming Speed​	8–15 m/min (standard), up to 40 m/min (servo fly cut)
Control System​	PLC + Touch Screen (Delta / Siemens optional)
Cutting Type​	Hydraulic punching & cutting, heat treated mold steel
Machine Weight​	Approx. 6–9 Tons
Dimensions​	9000 × 1500 × 1400 mm (L×W×H)

Specifications can be adjusted based on your target profile drawing and local building codes.

Application Scenarios

Industrial factories and warehouse roofing systems

Large-span arched sheds and logistics centers

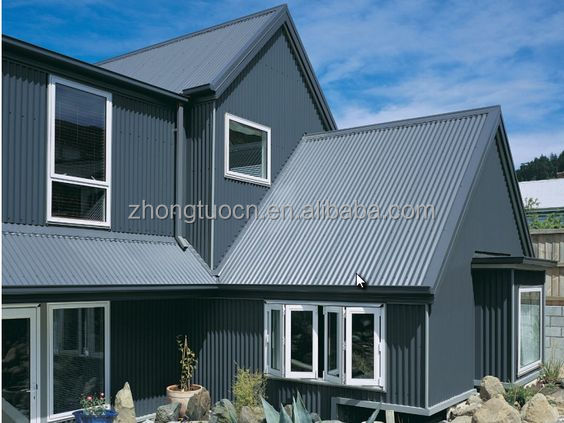

Villa roofs, garden pavilions, and resort buildings

Agricultural steel structures requiring wind/snow resistance

Why Source From Us?

As a specialized roll forming machinery manufacturer in Cangzhou, China, we have supplied arc roof tile forming machines, C/Z purlin machines, and metal roof panel lines to clients in Southeast Asia, Middle East, South America, and Europe. Our in-house R&D team ensures every machine meets international standards while maintaining cost-effective pricing for SMEs and large construction groups alike.

Request a Quote

Looking for a reliable arc roof tile forming machine supplier for your next project?

Send us your profile drawing, required thickness, and estimated monthly output. Our sales engineer will reply within 24 hours with a tailored technical proposal and FOB / CIF quotation.
