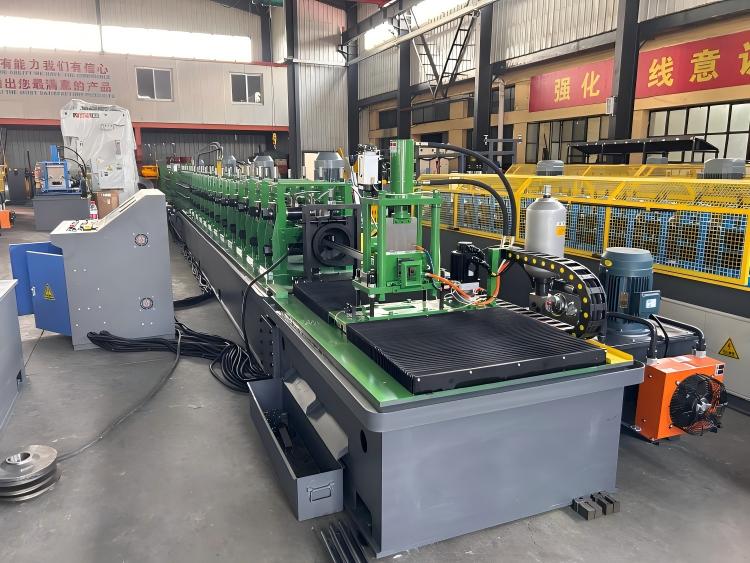

High-Efficiency Solar PV Mounting Structure Roll Forming Machine High Percision

Description:As the global demand for renewable energy surges, the solar industry is experiencing unprecedented growth. At the heart of every solar farm and rooftop installation lies a robust support system. Our High-Efficiency Photovoltaic (PV) Mounting Structure Roll Forming Machine​ is engineered to meet this demand, providing a fully automated solution for manufacturing high-precision solar panel brackets, purlins, and racking systems.

Designed for durability and speed, this machine transforms raw metal coils into perfectly shaped profiles essential for ground-mounted solar plants and commercial rooftops. By investing in our equipment, you are not just buying a machine; you are securing a competitive edge in the booming green energy market.

Key Features & Advantages

Precision Engineering for Maximum Stability

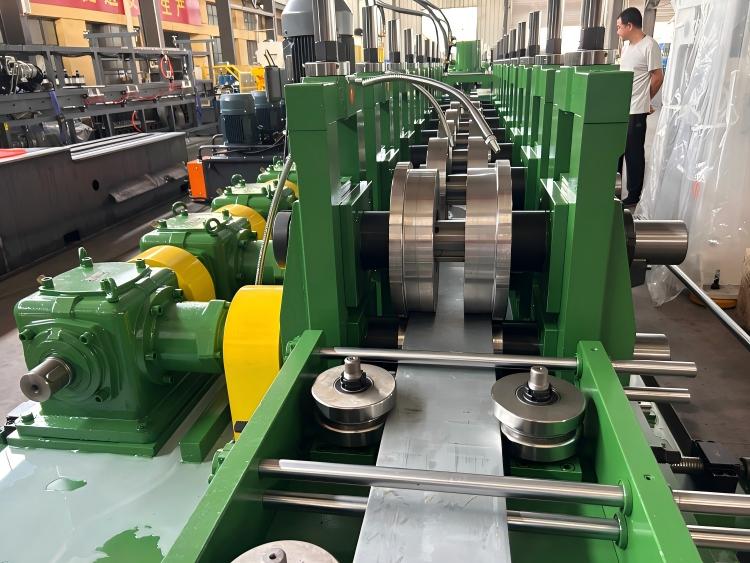

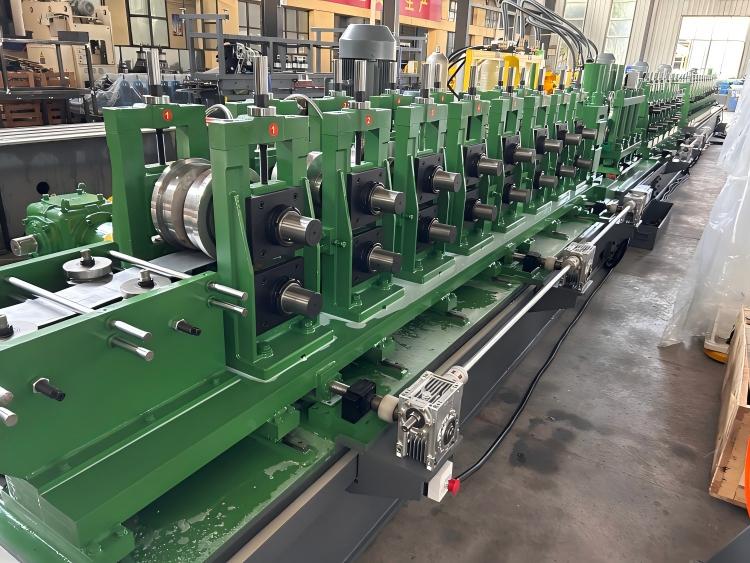

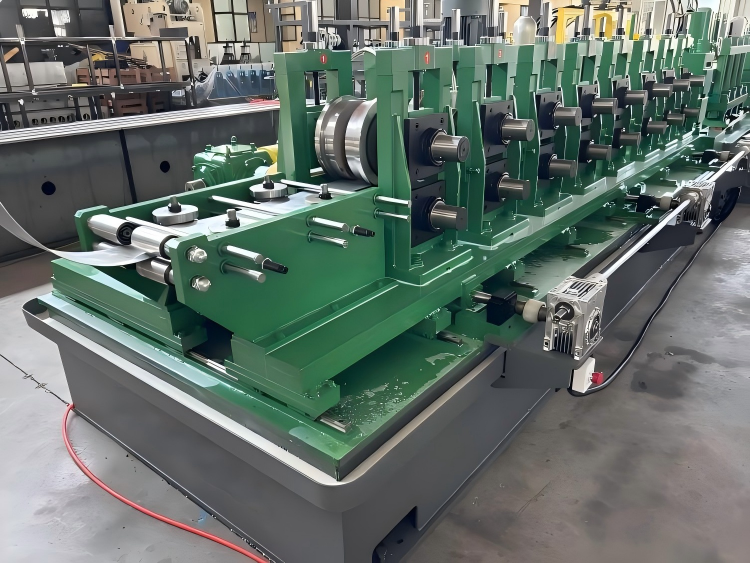

Solar panels require stable foundations to withstand harsh weather conditions, including heavy snow loads and high winds. Our roll forming machine utilizes high-grade Cr12mov rollers and a precise cutting system to ensure every bracket has a tight tolerance. This precision guarantees that your final products offer maximum structural integrity.

High-Speed Production & Efficiency

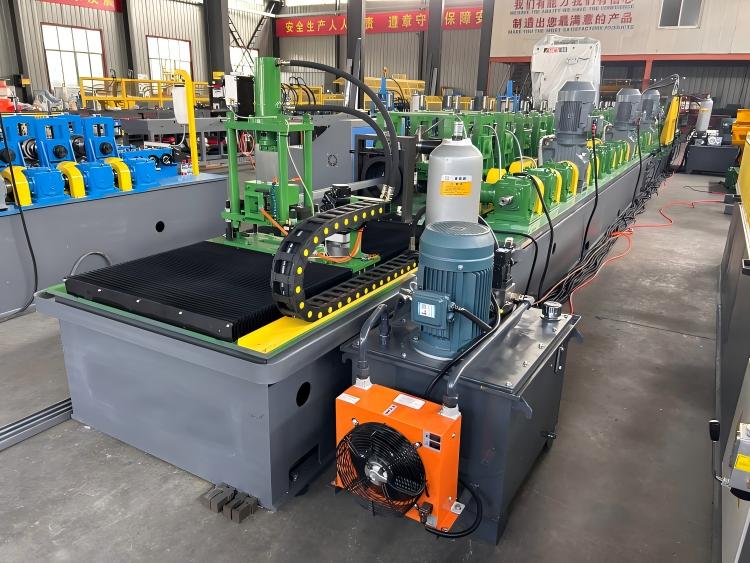

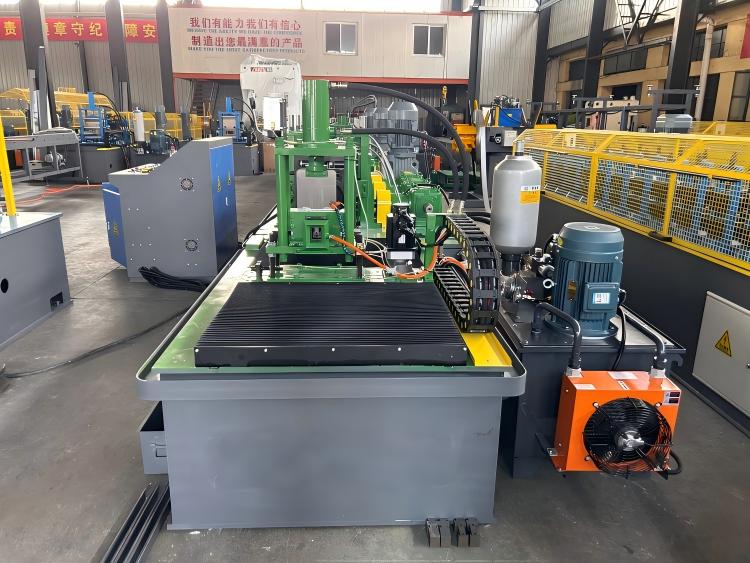

Time is money in the construction industry. Our PV bracket machine operates at speeds of up to 15-20 meters per minute. With an automatic decoiler and hydraulic cutting station, it minimizes manual labor and maximizes output, allowing you to fulfill large-scale orders quickly.

Versatile Profile Compatibility

We understand that different solar projects require different solutions. Our machines can be customized to produce various profiles, including:

C-Shaped Purlins

U-Shaped Channels

Omega Profiles

Customized Solar Tracker Brackets

(Note: Quick-change systems are available to switch between sizes within minutes.)

Durable Material Handling

The machine is capable of processing Galvanized Steel (GI)​ and Aluminum (AL)​ coils with thicknesses ranging from 1.5mm to 3.0mm, ensuring compatibility with standard industry materials that resist corrosion and extend the lifespan of solar installations.

Smart PLC Control System

Equipped with a user-friendly PLC (Programmable Logic Controller)​ interface, operators can easily set parameters, adjust lengths, and monitor production status. The touch-screen operation reduces the learning curve and improves overall operational safety.

Technical Specifications

Parameter	Specification
Material Thickness​	1.5 mm - 3.0 mm
Applicable Material​	Galvanized Steel (GI), Aluminum (AL)
Forming Speed​	15 - 20 m/min
Roller Material​	High-Grade 45# Steel / Cr12mov
Shaft Diameter​	80 mm - 100 mm (Solid)
Main Motor Power​	11 kW - 18.5 kW (Depending on configuration)
Cutting Type​	Hydraulic Punching & Cutting
Control System​	PLC (Delta/Siemens Brand)

(Specifications can be adjusted based on specific customer requirements.)

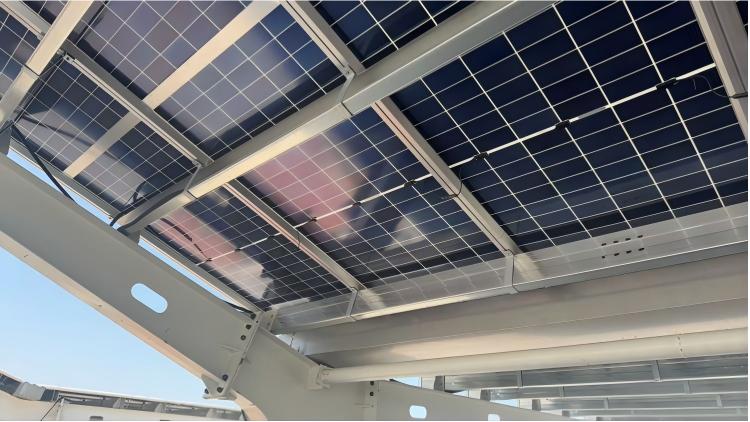

Application Scenarios

Our Photovoltaic Mounting Structure Machines are widely used in the manufacturing of components for:

Utility-Scale Solar Farms:​ Producing heavy-duty ground screw piles and rail supports.

Commercial Rooftop Systems:​ Manufacturing lightweight yet strong aluminum brackets.

Residential Solar Projects:​ Creating standardized mounting rails for home installations.

Solar Tracking Systems:​ Forming complex brackets for single-axis and dual-axis trackers.



Why Choose Us?

Customization: We don't believe in one-size-fits-all. We design machines tailored to your specific profile drawings and local voltage standards (380V/50Hz, 440V/60Hz, etc.).

Global Support: We provide comprehensive after-sales service, including online technical support, spare parts supply, and on-site installation guidance if required.

Quality Assurance: Every machine undergoes rigorous testing before shipment to ensure zero-defect delivery.
