High-Efficiency Exterior Wall Siding Panel Roll Forming Machine High Precision

Wall Cladding Panel Roll Forming Machine：Full Automatic Exterior Wall Hanging Board Making Machine

Description:Wall Cladding Panel Roll Forming Machine is a high-efficiency, fully automatic cold roll forming system specially designed for producing exterior wall hanging panels used in modern building exterior decoration. This exterior wall board forming machine can continuously process various metal coils into standardized, interlocking wall cladding panels with precise dimensions, smooth surface and strong weather resistance. It is widely applied in industrial factories, commercial buildings, villas, stadiums and other architectural exterior wall projects, serving global metal building material manufacturers and construction engineering companies.

Different from traditional discrete panel processing methods, our exterior wall hanging board forming machine realizes one-step feeding, forming, leveling, cutting and outputting, effectively reducing material waste and labor costs. With stable mechanical structure and intelligent PLC control system, the whole production line runs continuously with low failure rate, helping customers achieve large-scale, standardized production of building exterior wall panels.



Applicable Raw Materials & Production Range

This wall cladding roll former supports multiple mainstream building metal materials, meeting diverse exterior decoration design and environmental adaptation requirements:

Compatible Materials: PPGI prepainted steel, GI galvanized steel, GL galvalume steel, aluminum alloy sheet

Material Thickness: 0.3mm–0.8mm (customizable for special thickness requirements)

Feeding Coil Width: 600mm–1250mm (adjustable according to finished panel width)

Finished Panel Features: Interlocking seamless structure, vertical rib / horizontal hanging board profiles, customizable panel patterns and sizes

The produced exterior wall panels have excellent waterproof, windproof, anti-corrosion and heat insulation performance, with neat splicing and no gaps, which greatly improves the overall aesthetics and durability of building exterior walls.

Core Technical Specifications

We adopt industrial-grade configuration and precise processing technology to ensure long-term stable operation and high-precision molding of the equipment. All core parameters meet international building material machinery production standards:

Item	Technical Parameters
Forming Speed	0–30m/min (VFD stepless speed regulation)
Cutting Precision	±1mm length tolerance
Forming Stations	20–26 rows (customizable based on panel profile)
Main Shaft Diameter	65mm/75mm solid high-strength shaft
Roller Material	45# steel with hard chrome plating & heat treatment
Cutter Material	CR12MOV alloy steel, wear-resistant and non-deformable
Main Motor Power	5.5KW–7.5KW
Hydraulic System Power	4KW–4.5KW
Working Voltage	380V/415V/480V 50/60Hz 3-phase (customizable)
Machine Dimension	9500*1600*1600mm (standard model)
Machine Weight	About 7.5 tons

Complete Production Line Configuration

The full-automatic exterior wall hanging panel production line adopts an integrated modular design, with complete supporting equipment to realize unmanned continuous production:

Decoiler System

Equipped with 3–10 tons hydraulic automatic decoiler (manual decoiler is provided as a free gift), which supports stable feeding of large-volume steel coils, avoids material deviation, and improves production continuity.

Main Roll Forming Host

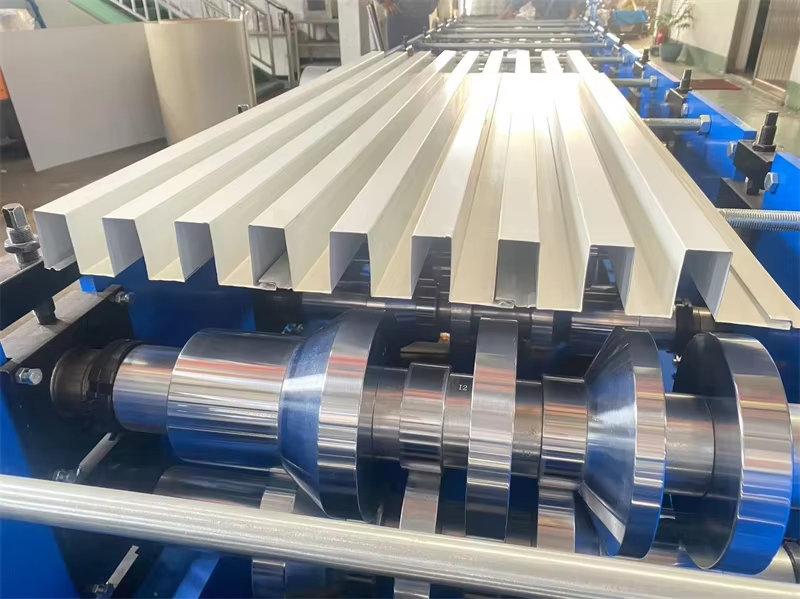

Adopts chain transmission and multi-station gradual forming technology. The high-hardness plated rollers ensure no scratches on the panel surface after long-term operation, and the formed panels have uniform texture and stable size, effectively avoiding deformation and warping.

Hydraulic Cutting System

Flying cutting design realizes automatic fixed-length cutting without stopping the machine. The alloy steel cutter ensures smooth cutting section without burrs, meeting the high-precision size requirements of exterior wall decoration panels.

Intelligent PLC Control System

Equipped with IP54 industrial electrical cabinet and touch screen HMI operation panel. It supports one-key parameter setting, automatic counting, fault self-diagnosis and data storage. The operation is simple and intelligent, and workers can master the operation quickly without professional training.



Product Advantages & Competitive Strength

High Production Efficiency: One-time molding and continuous production greatly improve output capacity, suitable for mass order production and large factory batch processing.

Low Operating Cost: High-precision molding reduces raw material loss, automatic operation saves manual labor, and low failure rate reduces later maintenance costs.

Stable & Durable: All core mechanical parts are made of high-quality steel with heat treatment and anti-rust treatment, with long service life and strong adaptability to harsh production environments.

Strong Customization: We can customize forming stations, panel profiles, sizes and voltage standards according to customer’s local market demand and project requirements.

Wide Application: The produced wall panels are suitable for various building exterior wall renovation and new construction projects, with high market applicability and economic value.



After-sales Service & Global Support

As a professional manufacturer of roll forming machines, we provide one-stop full-cycle service for all global customers:

7*24-hour online technical consultation and pre-sales solution customization

Free equipment installation guidance, operation training and debugging service

1-year full machine warranty and lifelong paid maintenance service

Complete spare parts supply system to ensure rapid after-sales response

Support customized machine parameters and exclusive production line solutions for different regional standards



Application Scenarios

Our wall cladding panel roll forming machine is widely used for producing exterior wall decorative panels for industrial plants, warehouse buildings, commercial office buildings, residential villas, scenic pavilions, stadiums and other buildings. The finished panels are lightweight, high-strength, beautiful and durable, and are the preferred materials for modern energy-saving and decorative building exterior walls.
