High Efficiency Double Layer Roof Sheet Making Machine High Percision

Double Layer Roofing Tile Forming Machine：High Efficiency & Low Cost

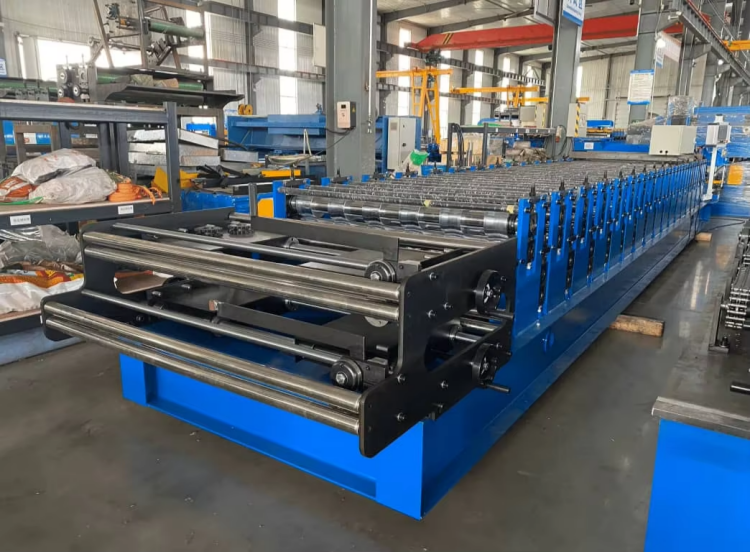

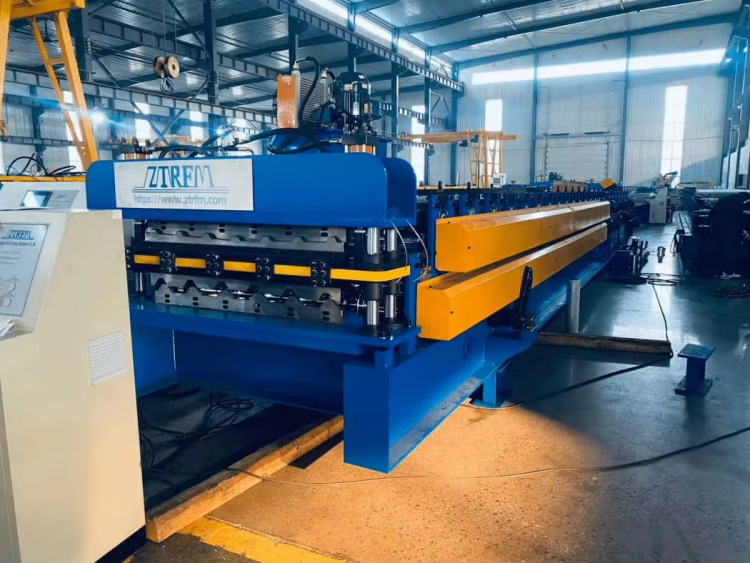

Description:The double layer roofing tile forming machine is a core automated cold roll forming equipment specially designed for the continuous production of two types of metal roof tiles. It integrates dual-layer rolling forming technology, enabling one machine to produce two different specifications of roofing panels, which greatly saves factory space, equipment investment and production costs for metal building material manufacturers. Widely applicable to residential, commercial, industrial plant roof construction and metal tile processing customization, this equipment has become the preferred production solution for medium and small building material factories worldwide due to its high cost performance and stable operation.



Core Advantages of Double Layer Roofing Tile Forming Machine

Different from single-layer tile forming machines, our double-layer roofing tile rolling machine adopts an integrated dual-station design, which perfectly solves the pain points of single-function equipment’s single production type and high equipment procurement cost. It has outstanding advantages in production efficiency, operational stability and economic benefits, fully meeting the diversified production needs of global building material processing enterprises.

Dual-Purpose Design, Save Production Cost

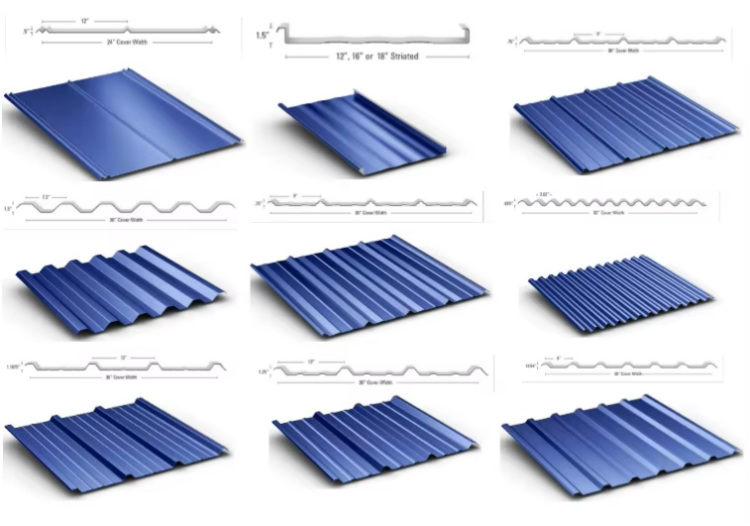

This machine supports one-time installation and dual-model switching production. It can simultaneously produce two common metal roof tiles such as corrugated tiles and glazed tiles without purchasing two separate devices. It effectively reduces equipment investment funds, factory placement area and later maintenance costs, and is extremely suitable for small and medium-sized processing factories with limited site and budget.

High-Speed Automatic Forming, Stable Output

Equipped with full-automatic PLC intelligent control system, the double layer roofing tile forming machine realizes automatic feeding, leveling, rolling forming, cutting and discharging. The production speed can reach 8-12 meters per minute, with stable and continuous output. The whole process requires only one worker to operate, which greatly improves production efficiency and reduces manual operation errors and labor costs.

Precise Forming, High Product Qualification Rate

The equipment adopts high-precision alloy steel rollers and customized rolling molds. The formed metal tiles have uniform texture, neat edges and consistent radian, with a product qualification rate of over 99%. The finished tiles have strong pressure resistance, good waterproof and windproof performance, and fully comply with international building material standards, meeting the high-quality procurement needs of European, American, Southeast Asian and Middle Eastern markets.

Durable Structure, Low Maintenance Rate

The main body of the machine adopts thickened steel plate welding structure, with strong shock resistance and deformation resistance. Key components such as bearings and motors adopt international well-known brands, with low failure rate and long service life. Daily maintenance is simple and convenient, which avoids long-term production shutdown losses for enterprises.



Working Principle & Production Process

The double layer roofing tile forming machine relies on cold roll forming technology, which uses the relative rotation of multiple groups of precision rollers to gradually bend and deform the metal color steel coil, and complete fixed-length cutting through the hydraulic cutting system to produce standard finished roof tiles. The whole production process is cold processing, which will not damage the metal material and coating, ensuring the service life of the finished tiles.

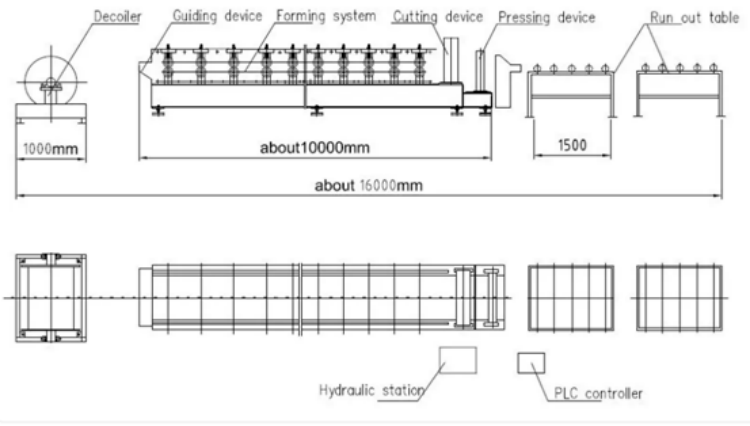

Standard production flow: Raw material feeding → Automatic leveling → Dual-layer rolling forming → Hydraulic fixed-length cutting → Automatic discharging → Finished product stacking



Main Technical Parameters

We support customized machine parameters according to customer’s tile size and production requirements. The conventional standard parameters are as follows for your reference:

Applicable raw materials: Color steel coil, galvanized steel coil, aluminum coil



Raw material thickness: 0.3-0.8mm



Production speed: 8-12m/min



Control system: PLC full automatic control + touch screen operation



Forming precision: Tolerance ±0.5mm



Motor power: 7.5KW-11KW (customizable)



Cutting system: Hydraulic automatic cutting



Machine weight: About 3.5-5 tons

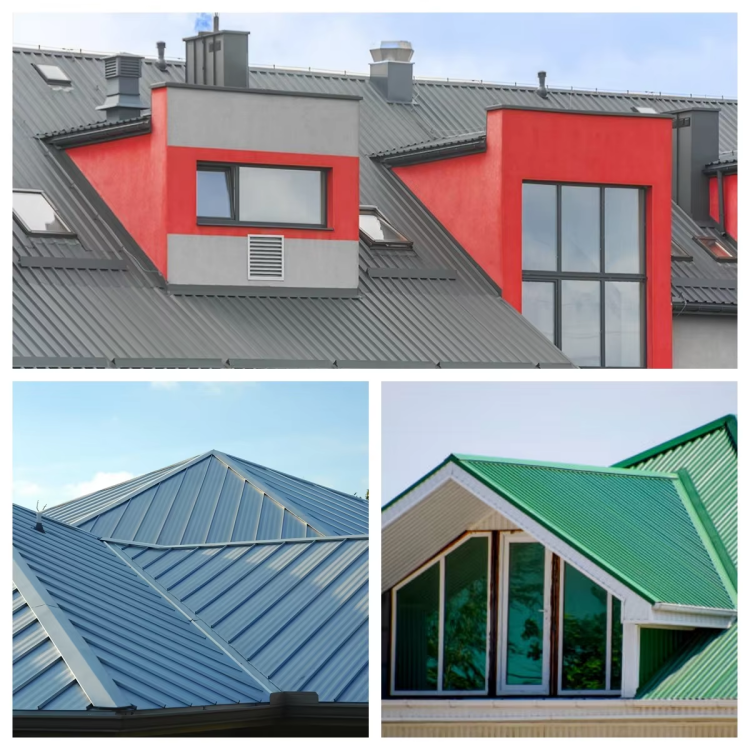

Wide Application Scenarios

The finished products of the double layer roofing tile forming machine are widely used in various building roof and wall enclosure projects, with strong market adaptability:

Residential building roof waterproof and decoration

Industrial plants, warehouses, workshop roof construction

Commercial buildings, shopping malls, exhibition halls roofing works

Rural prefab houses, container house roof tiles

Various customized metal building tile processing and OEM production
