Color Coated Steel System > Production Equipment > Light Steel Frame Roll Forming Machine

High Efficiency CU Light Steel Frame Machine 50 75 100 CU Keel Roll Forming Machine with Punch CU light steel frame machine+5.5kw-7.5kw+30 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

High Efficiency CU Light Steel Frame Machine 50 75 100 CU Keel Roll Forming Machine with Punch CU light steel frame machine+5.5kw-7.5kw+30 m/min

Name: High Efficiency CU Light Steel Frame Machine 50 75 100 CU Keel Roll Forming Machine with Punch CU light steel frame machine+5.5kw-7.5kw+30 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT75577774

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

CU light steel frame machine

Power(W):

5.5kw-7.5kw

Production Capacity:

30 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
light steel frame machine
Tile Type
Colored Glaze Steel
Use
Wall
Voltage
220V/380V/415V
Rolling Thinckness
0.3-0.8mm
Feeding Width
1220 mm

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

Light Steel Keel Roll Machine

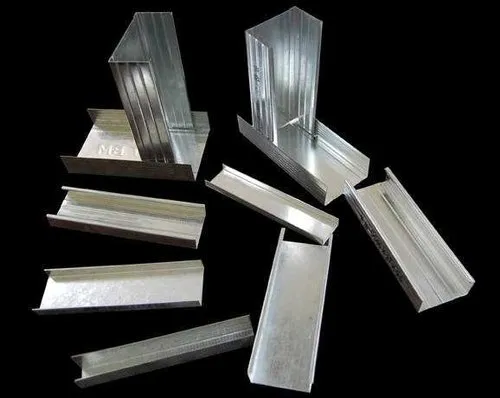

Light steel keel roll machine can continuously and efficiently produce different types and sections of light steel keel according to the design specifications and sizes, such as Z-type, C-type, T-type, L-type, U-type, etc. The machine is able to accurately control the size and shape of the keel to ensure that the product is dimensionally accurate and meets the standard requirements of the construction industry.The use of automatic control system to reduce manpower needs and improve production efficiency.

Machines' advantages 1.Efficient cutting : The equipment usually has an efficient cutting function and can quickly complete the keel cutting, drilling and other processes. 2. Surface treatment: Some equipment can surface the keel during the production process, such as zinc plating, to improve its corrosion resistance and durability. 3.Quality Testing: The advanced light steel keel machine also has online quality testing function, which can detect problems in time and make adjustments to ensure product quality. 4.Energy saving and environmental protection: Light steel keel machine is designed to take into account energy saving and environmental protection, reducing energy consumption and waste generation. 5.Flexibility : light steel keel roll machine has high flexibility and can quickly adjust the production line configuration according to different production needs. 6.Customized Production: Light steel keel machine can be customized to produce light steel keels of different specifications and performance according to the specific needs of customers.

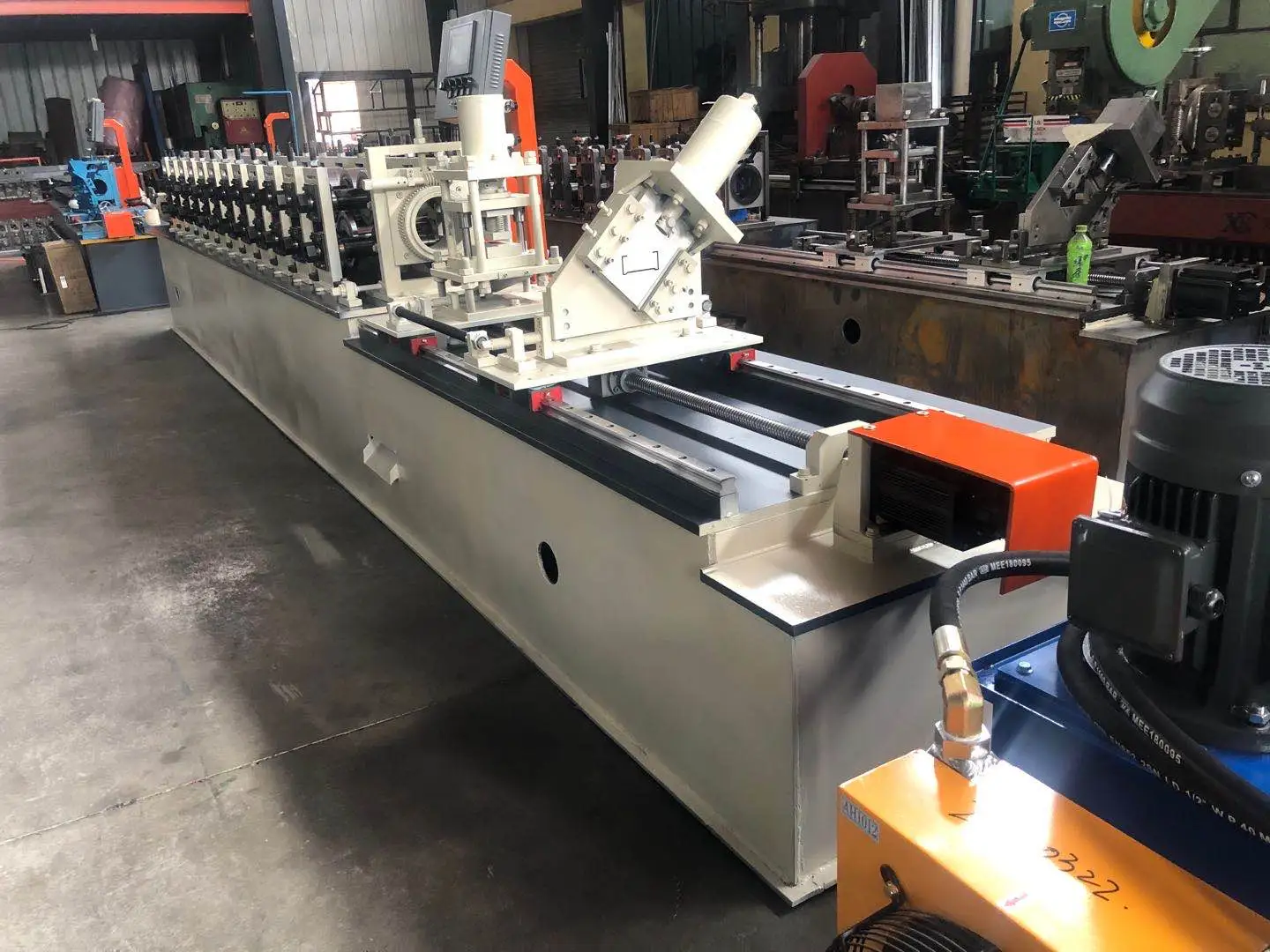

ZTRFM CU Channel Forming Machine With Punching Holes Grouting Keel Machine
Formed Material	PPGI,GI,AI
Thickness	0.5-1.2mm
Roller station	16 rows(As your requirement)
Diameter of shaft	50 mm solid shaft
Material of rollers	45# steel, hard chrome plated on the surface
Machine body frame	Metal steel welded
Drive	Gear transmission
Cutter	cr12mov material, no scratches, no deformation
Motor Power	7.5KW*2 sets
Hydraulic system power	5.5 KW
Voltage	380V 50Hz 3Phase(As your requirement)
Control system	PLC
Forming Speed	45-60m/min(customized)

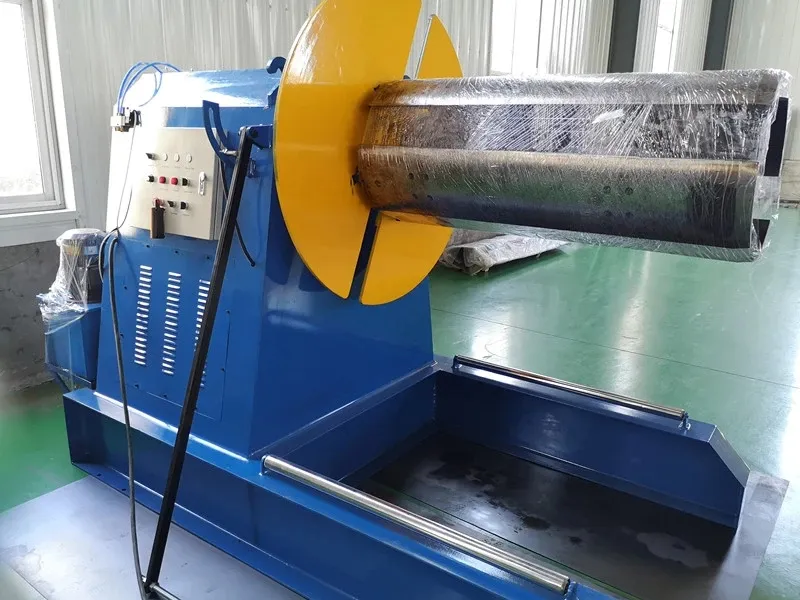

Hydraulic Decoiler

1.Automatic working

2.Hydraulic expansion
3.With press arm to keep the coil from loosing
4.With braking system and speed sensor to match the speed with other machines

5.Saving labor

Transportation

Gear transmission
Ensure the high speed of the machine

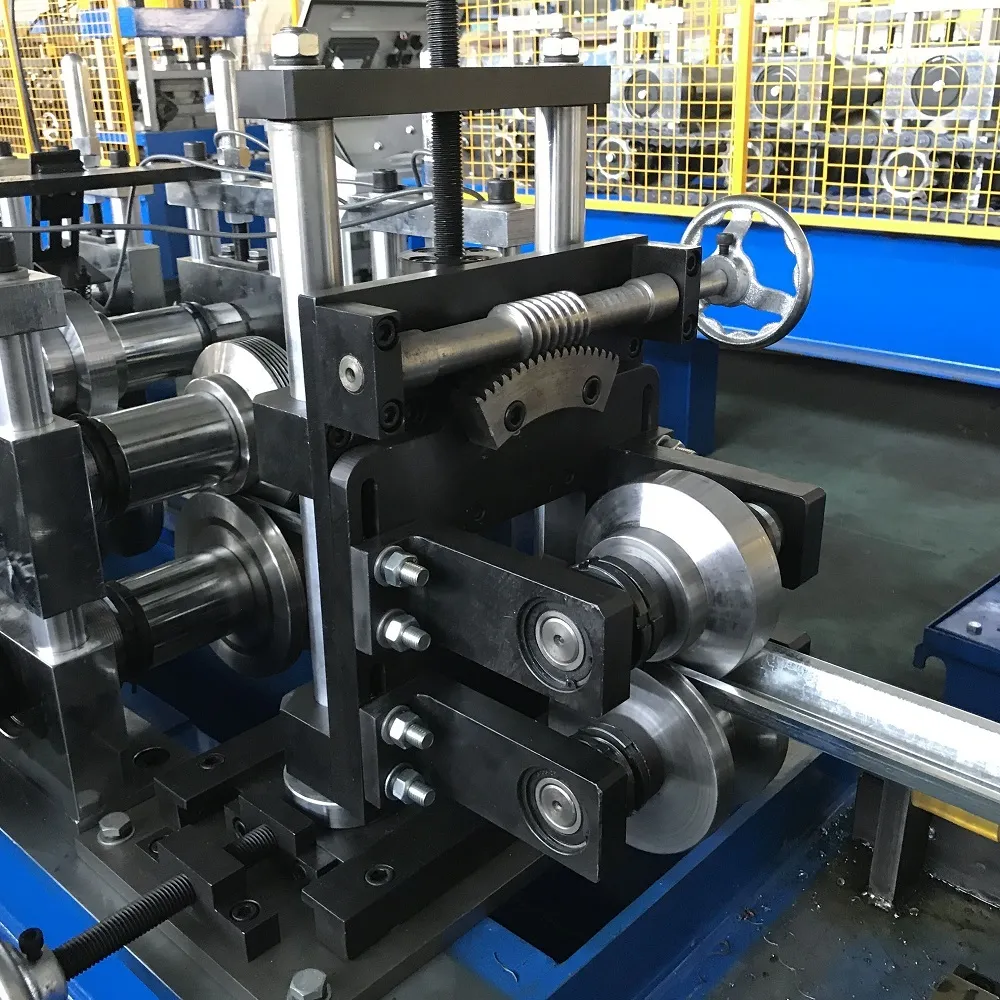

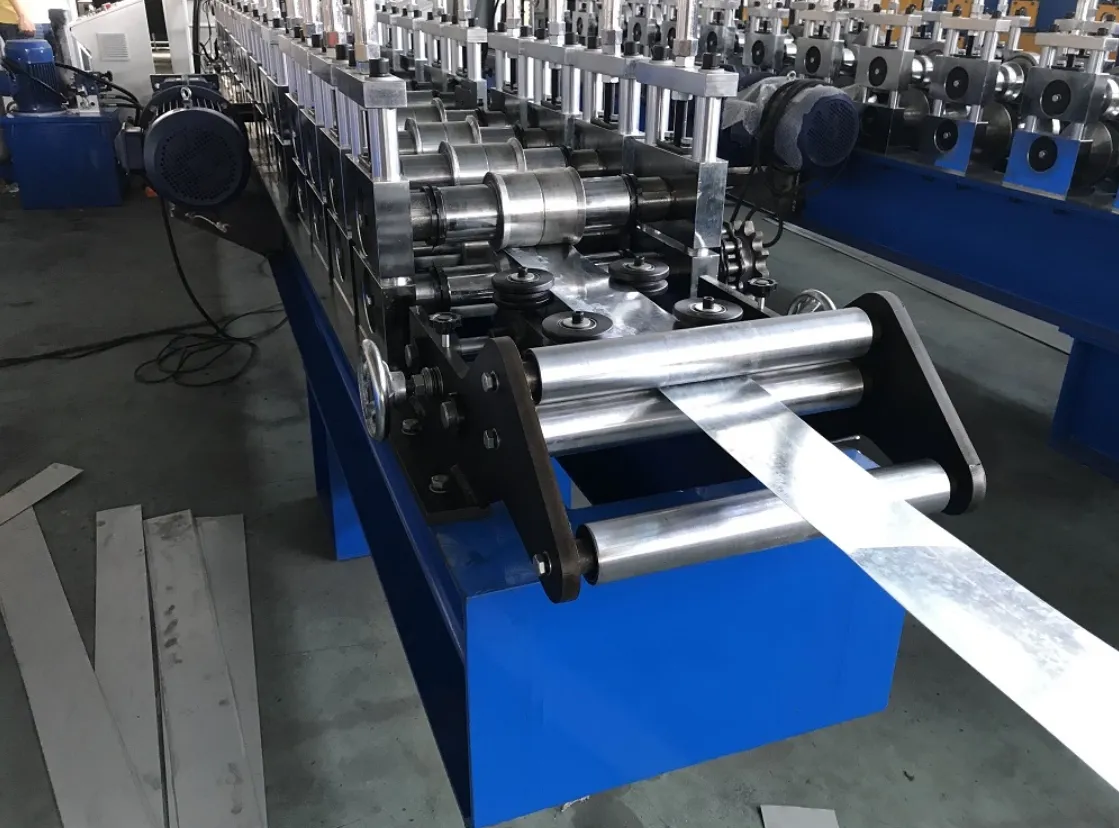

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

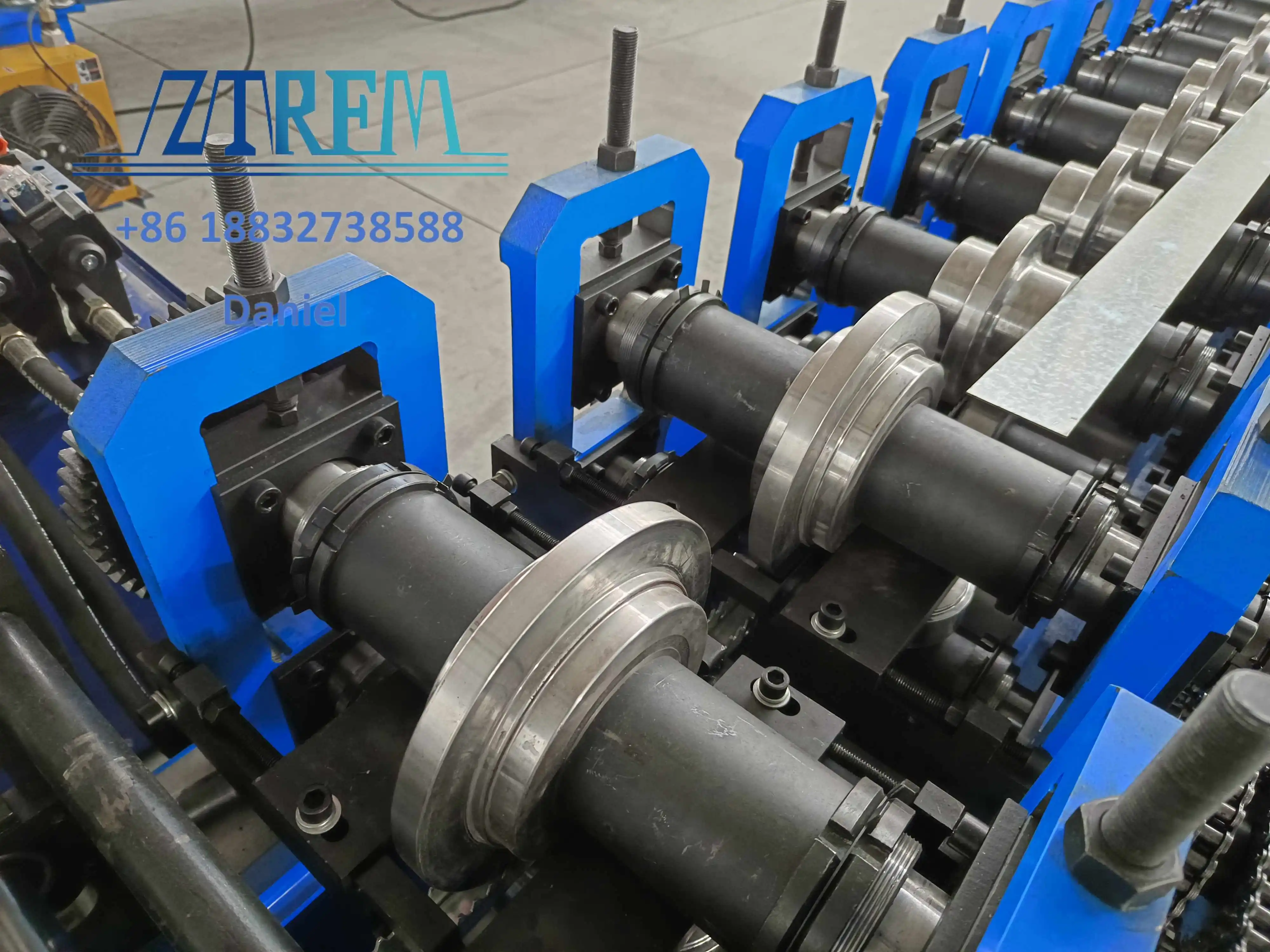

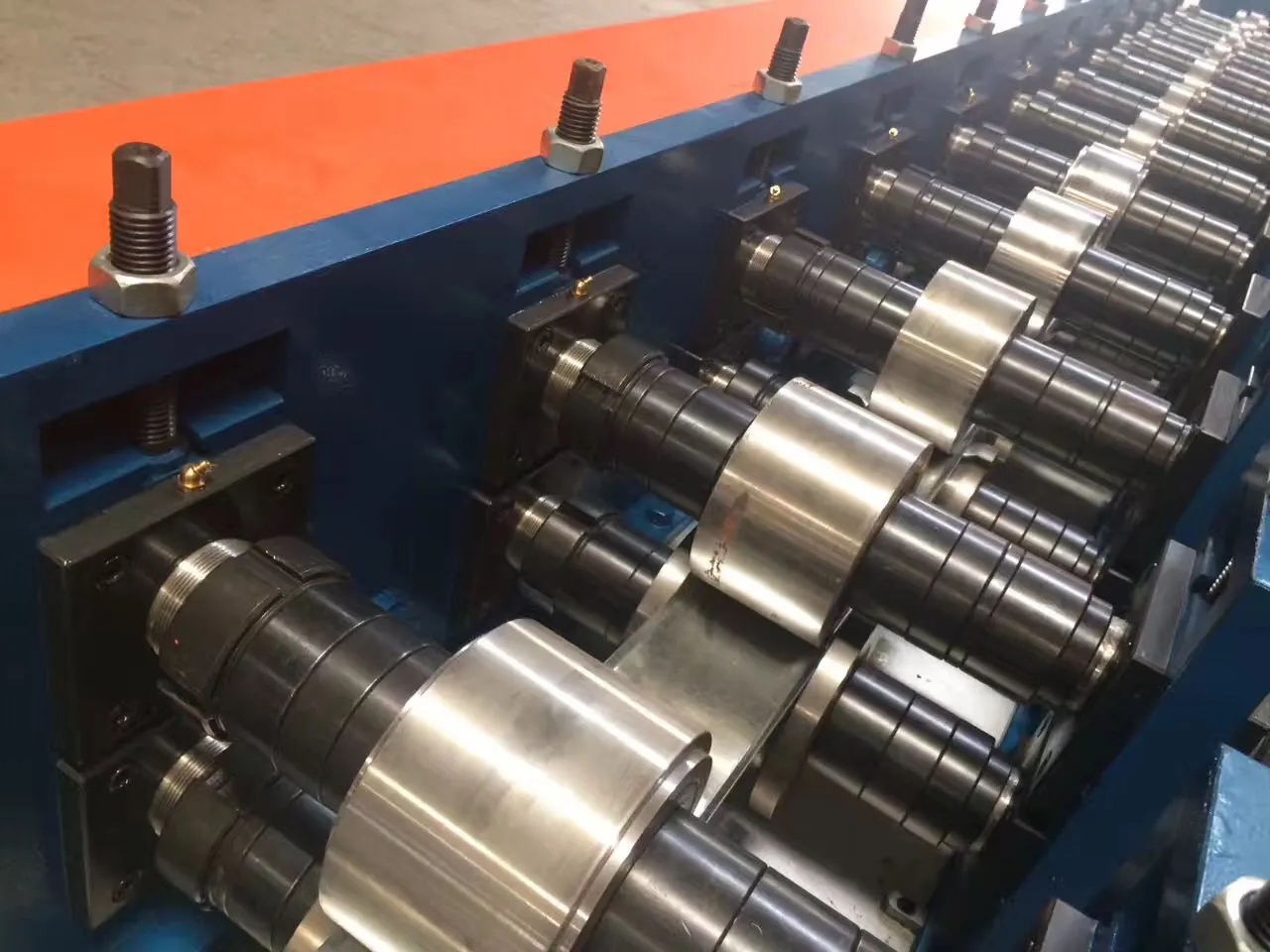

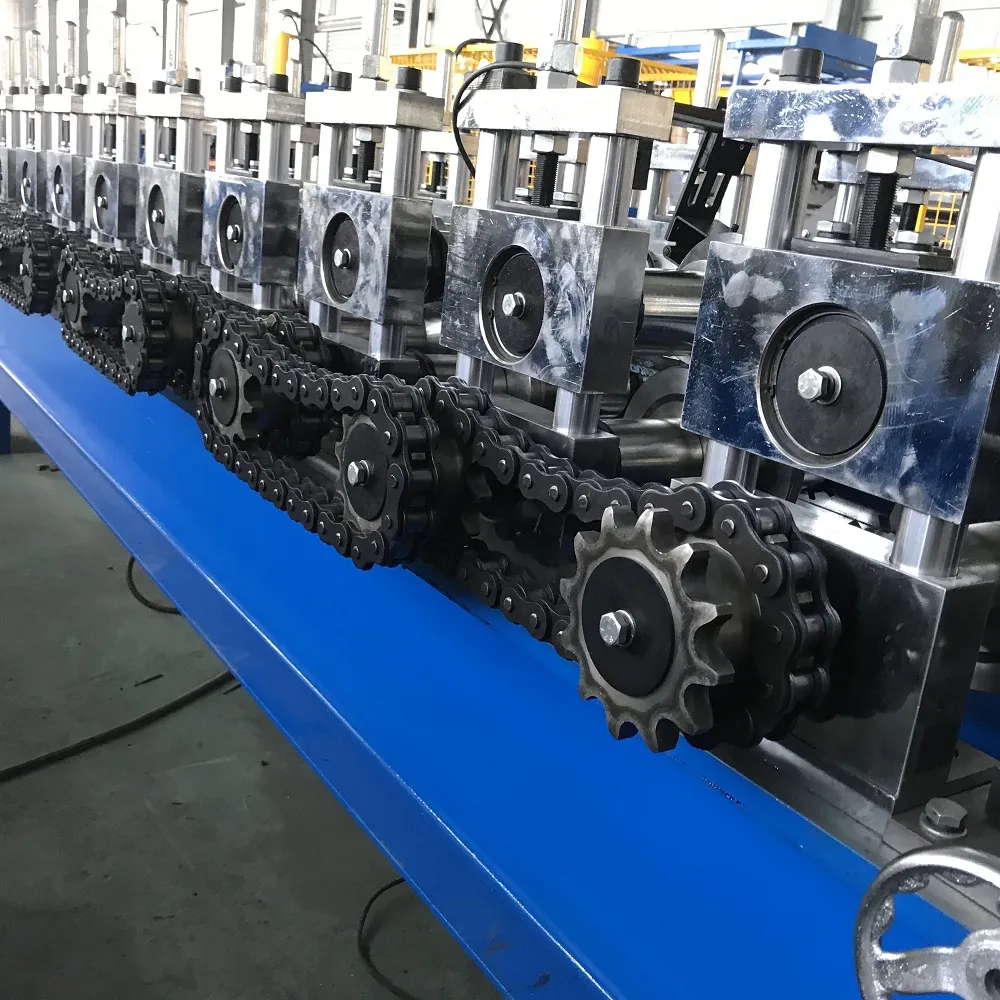

Rollers and shaft

1.Surface with chromed treatment
2.Material:45# steel

Cutting system

1.Fully automated knuckle pressing

2. Fully automated cut of products

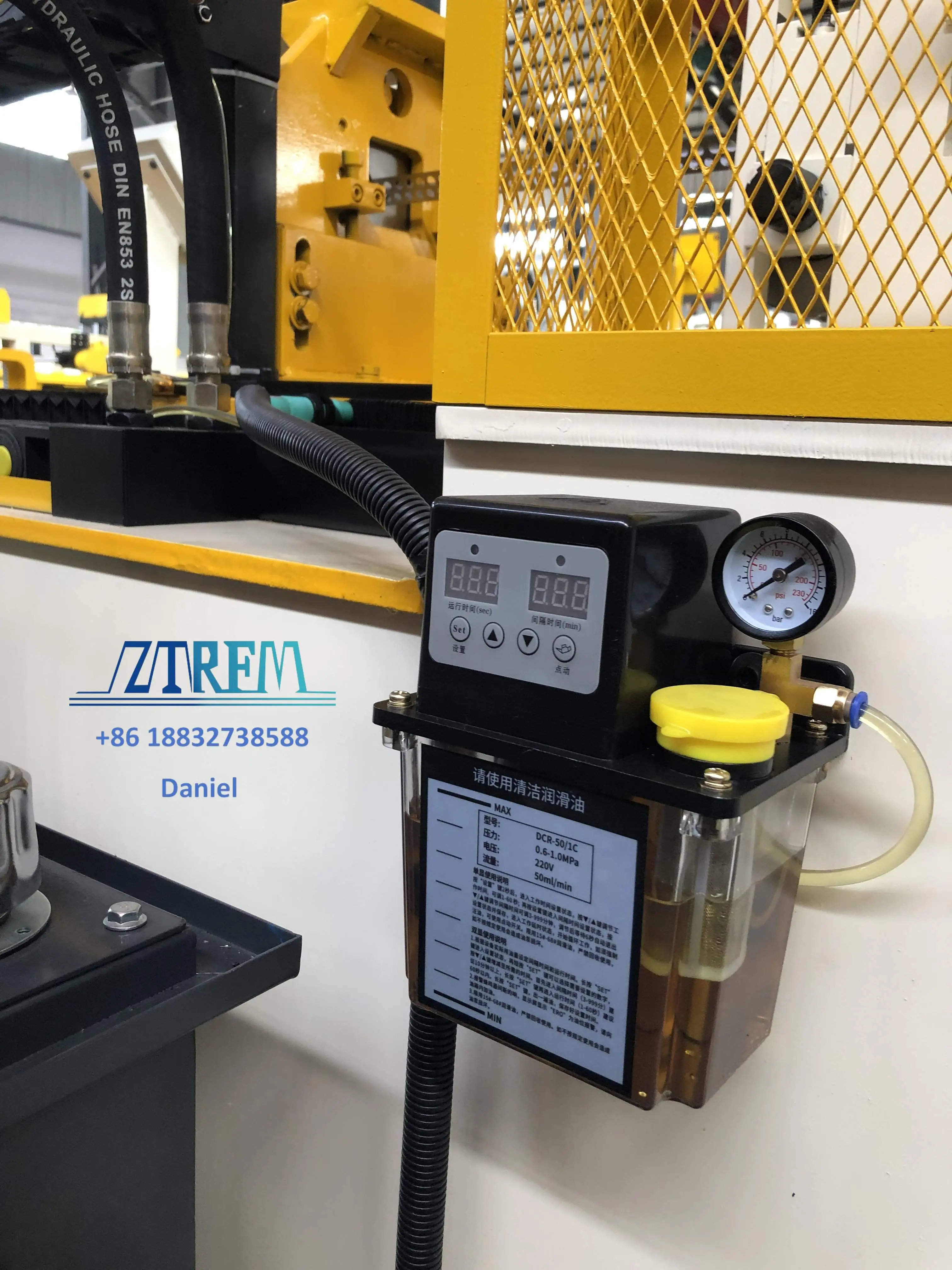

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

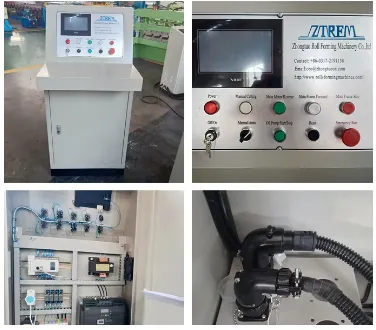

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation

4.Languages can be customized

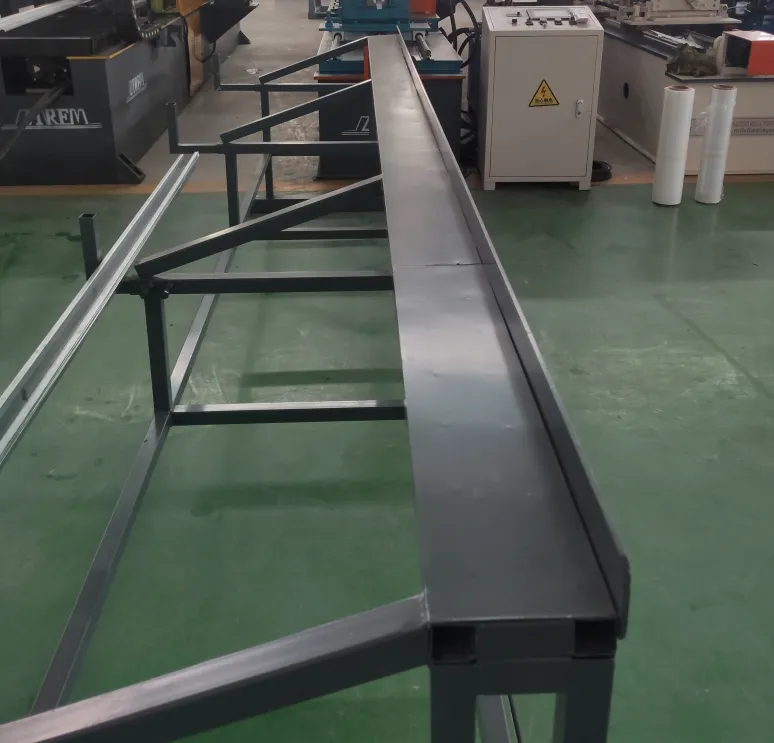

Automatic Stacker

1. Saving manpower 2. Can improve productivity 3. Equipped with rubber wheels and nylon pads to better protect the finished product.

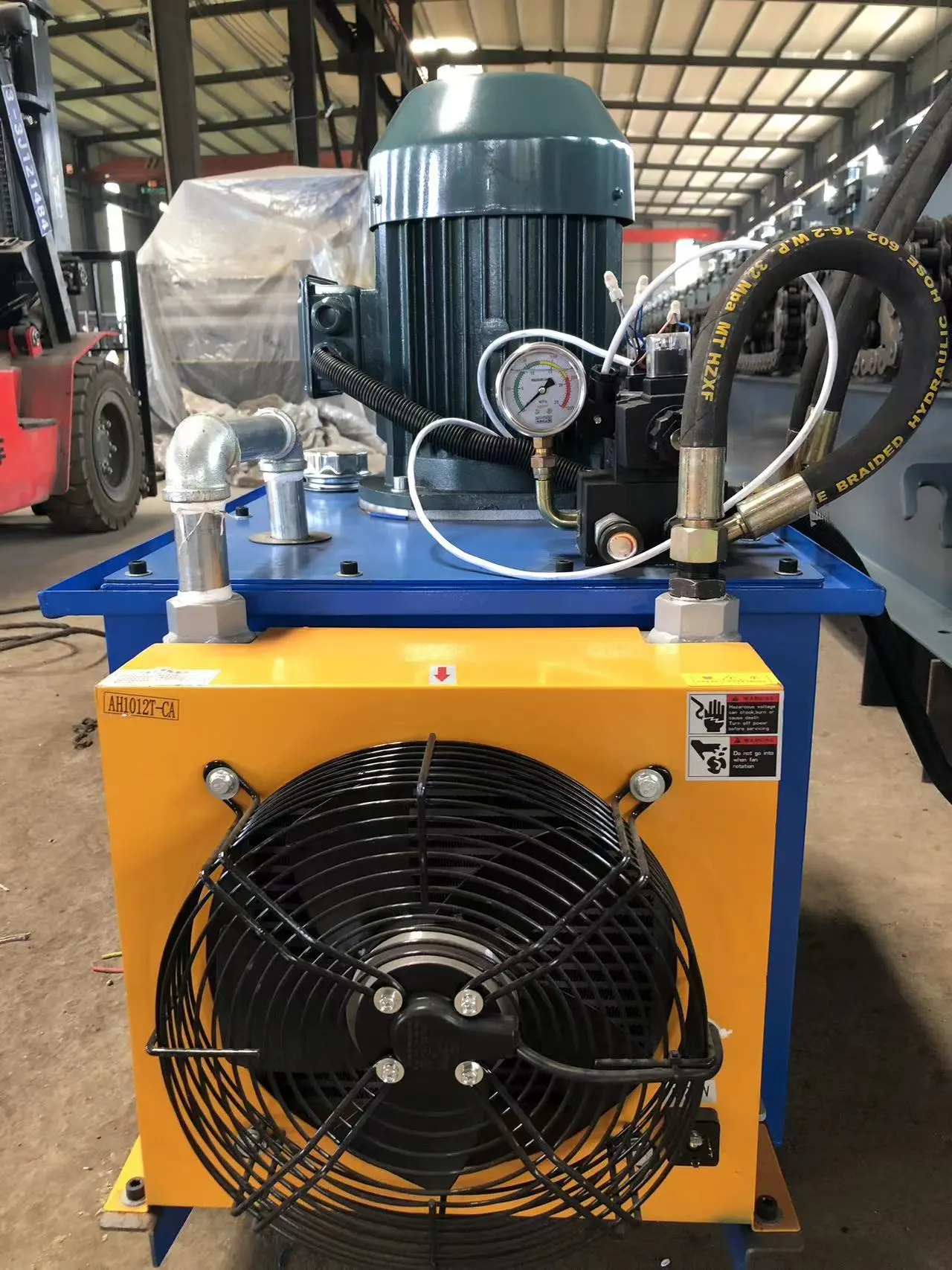

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

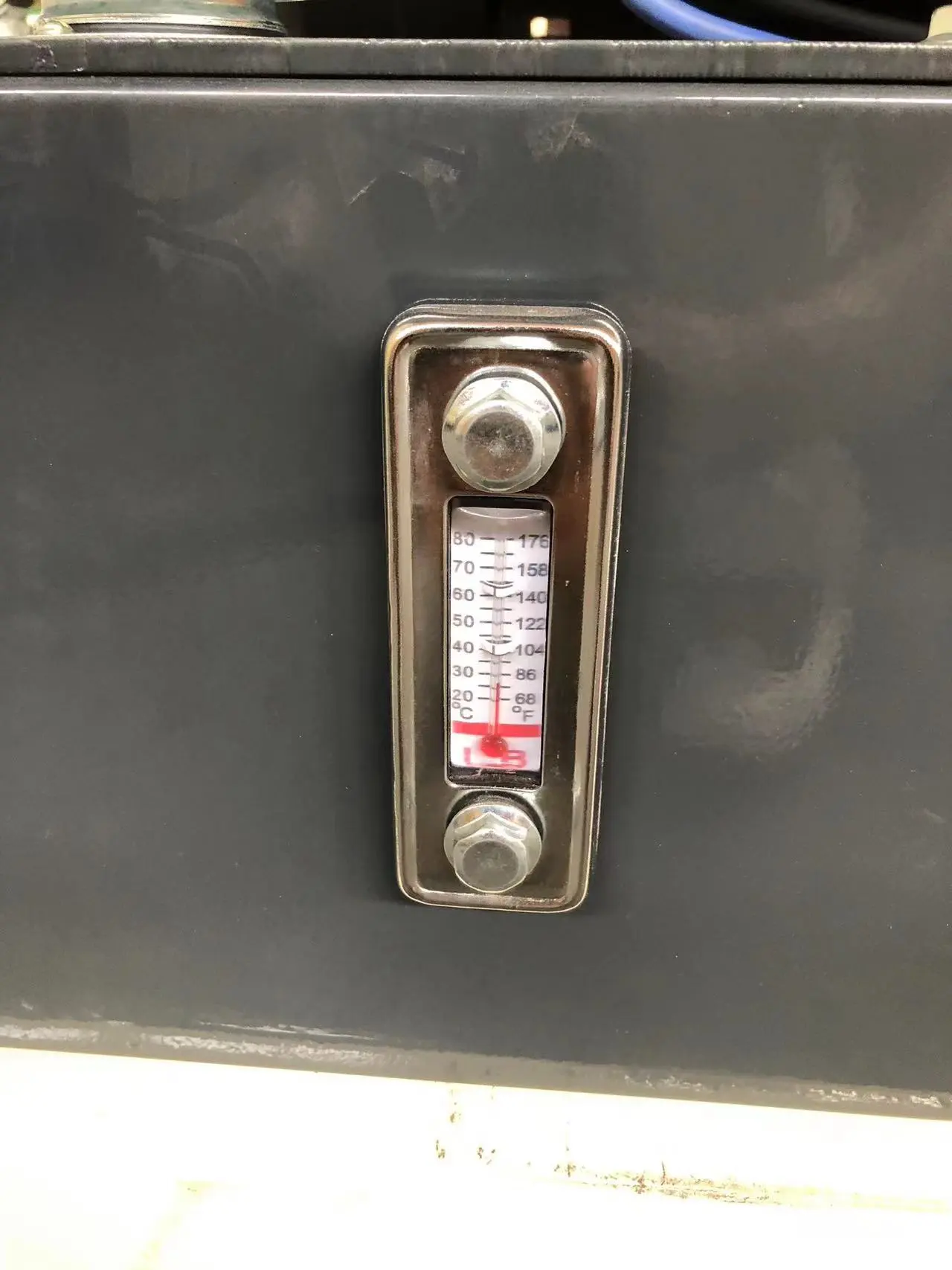

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster

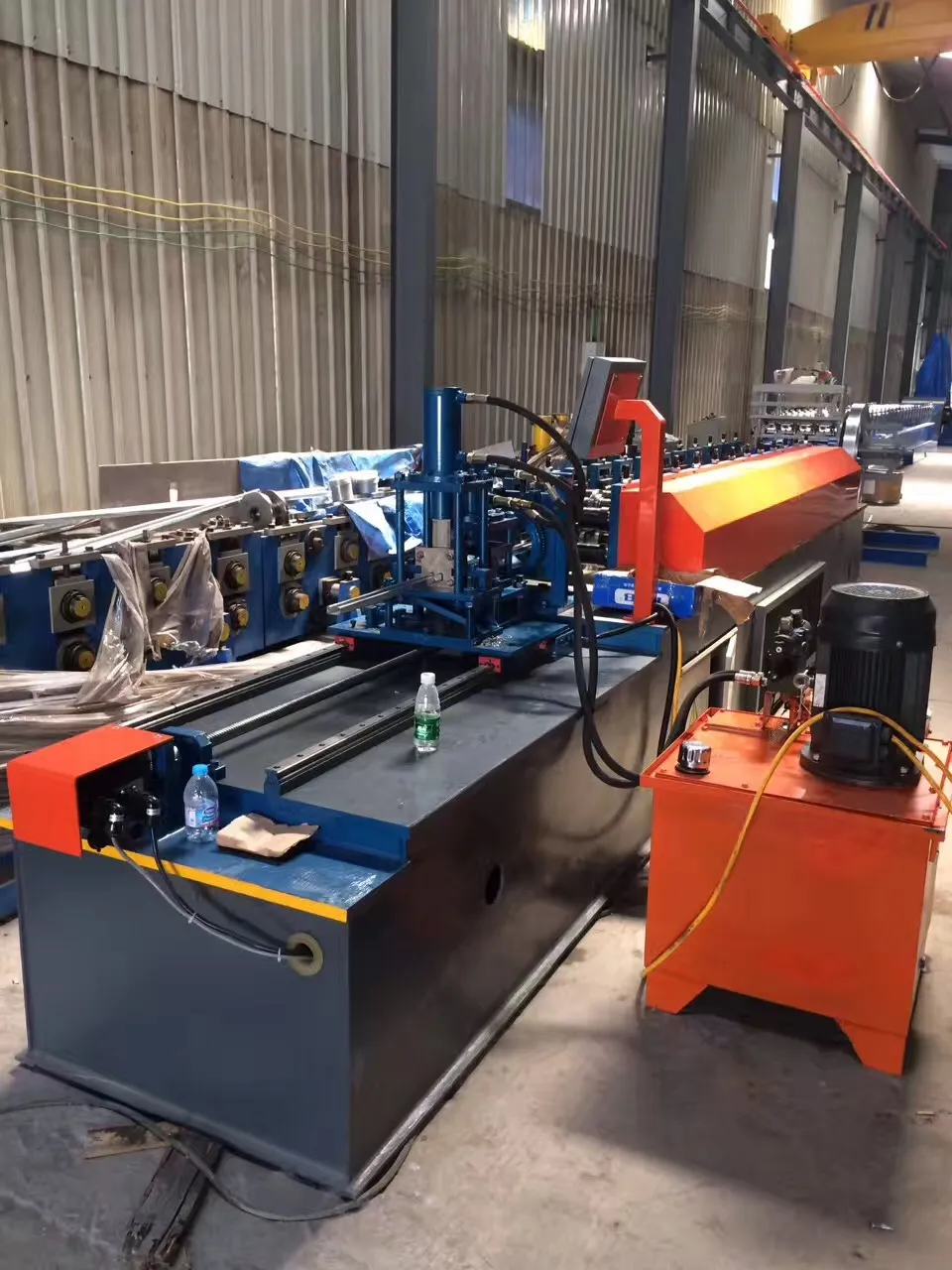

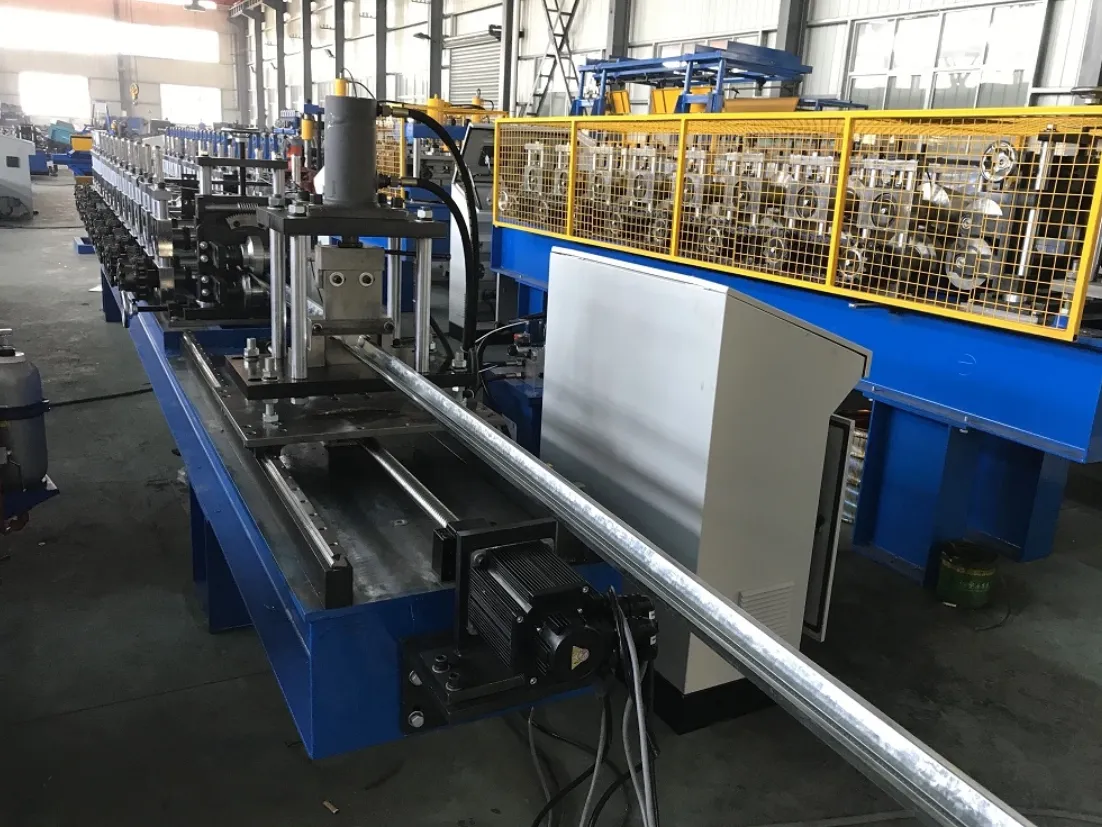

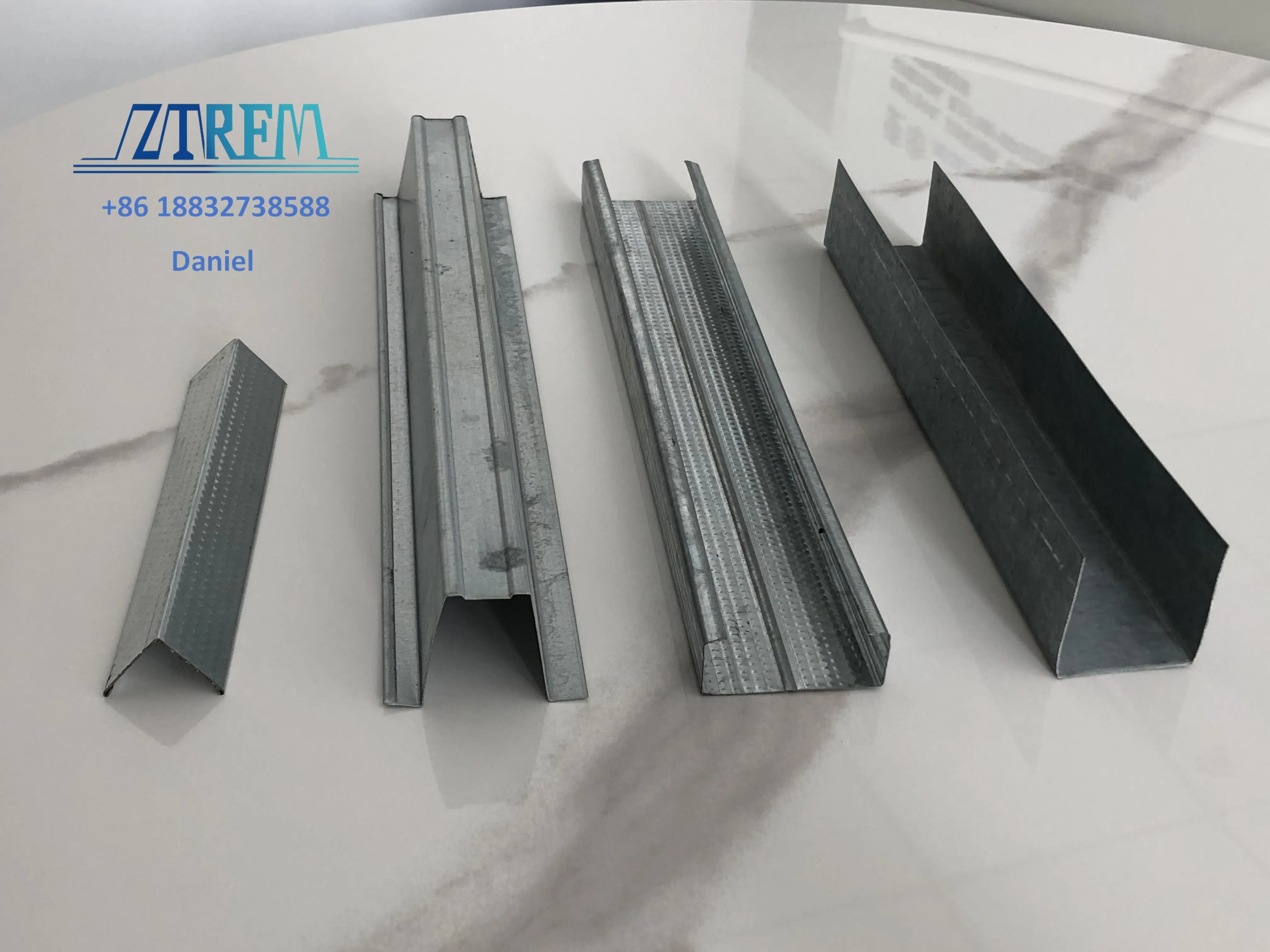

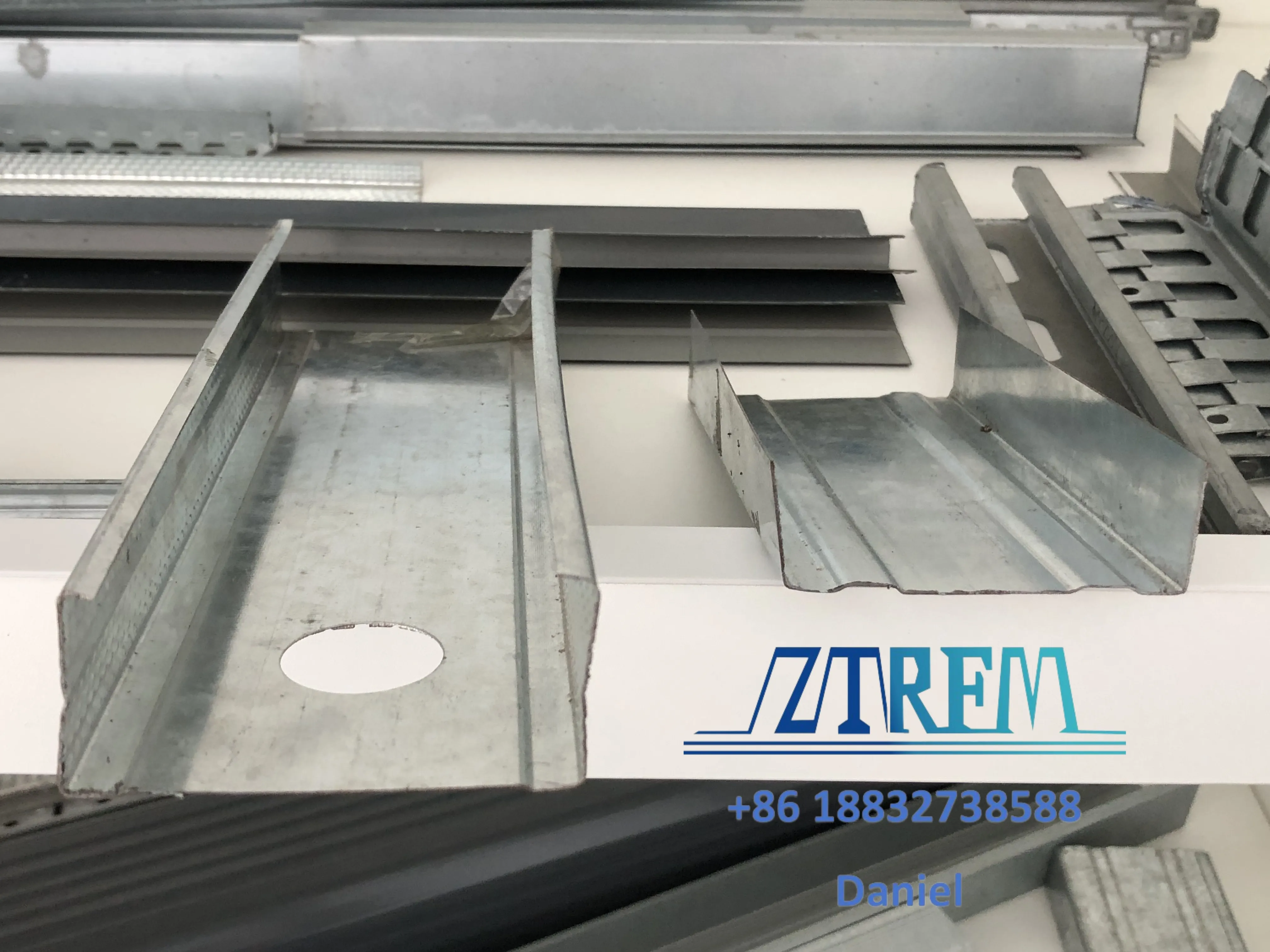

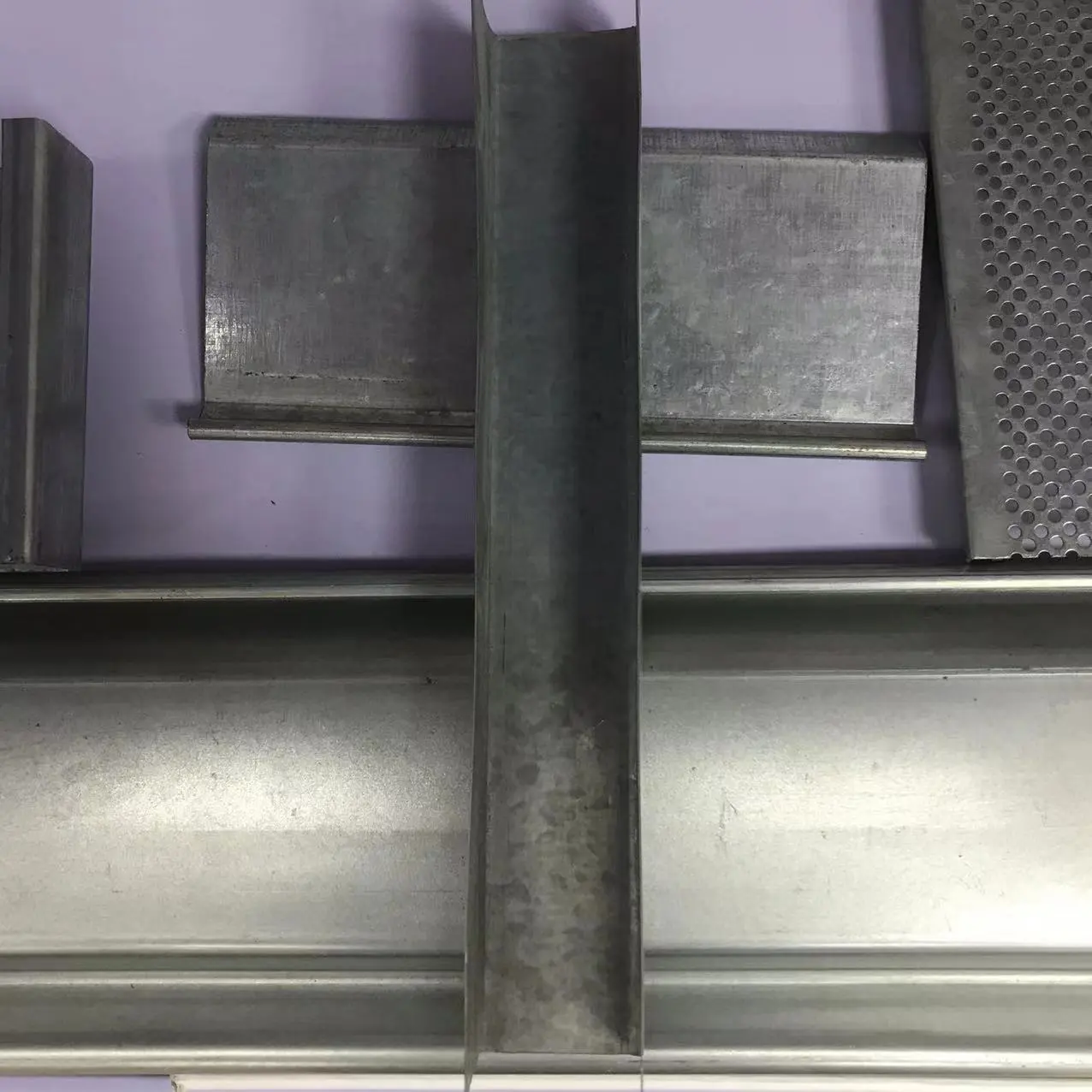

Product display

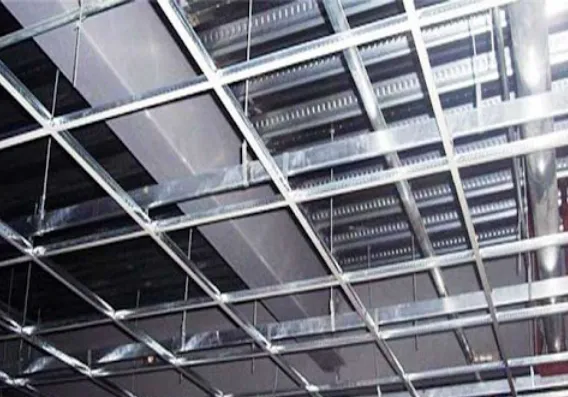

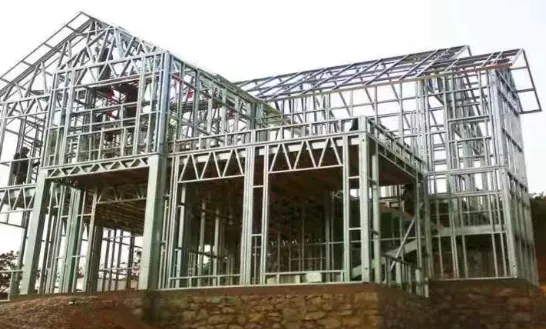

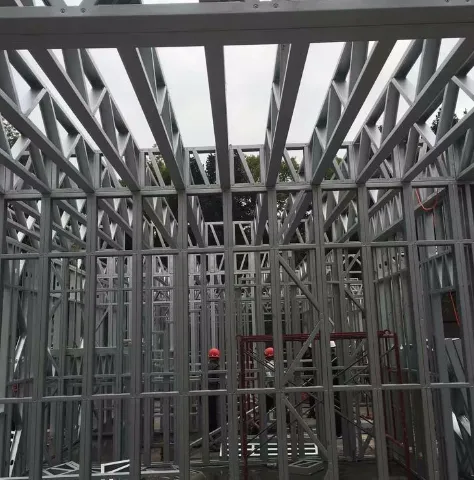

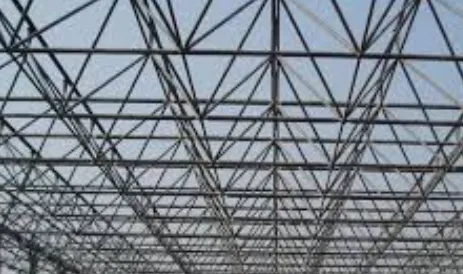

Application
