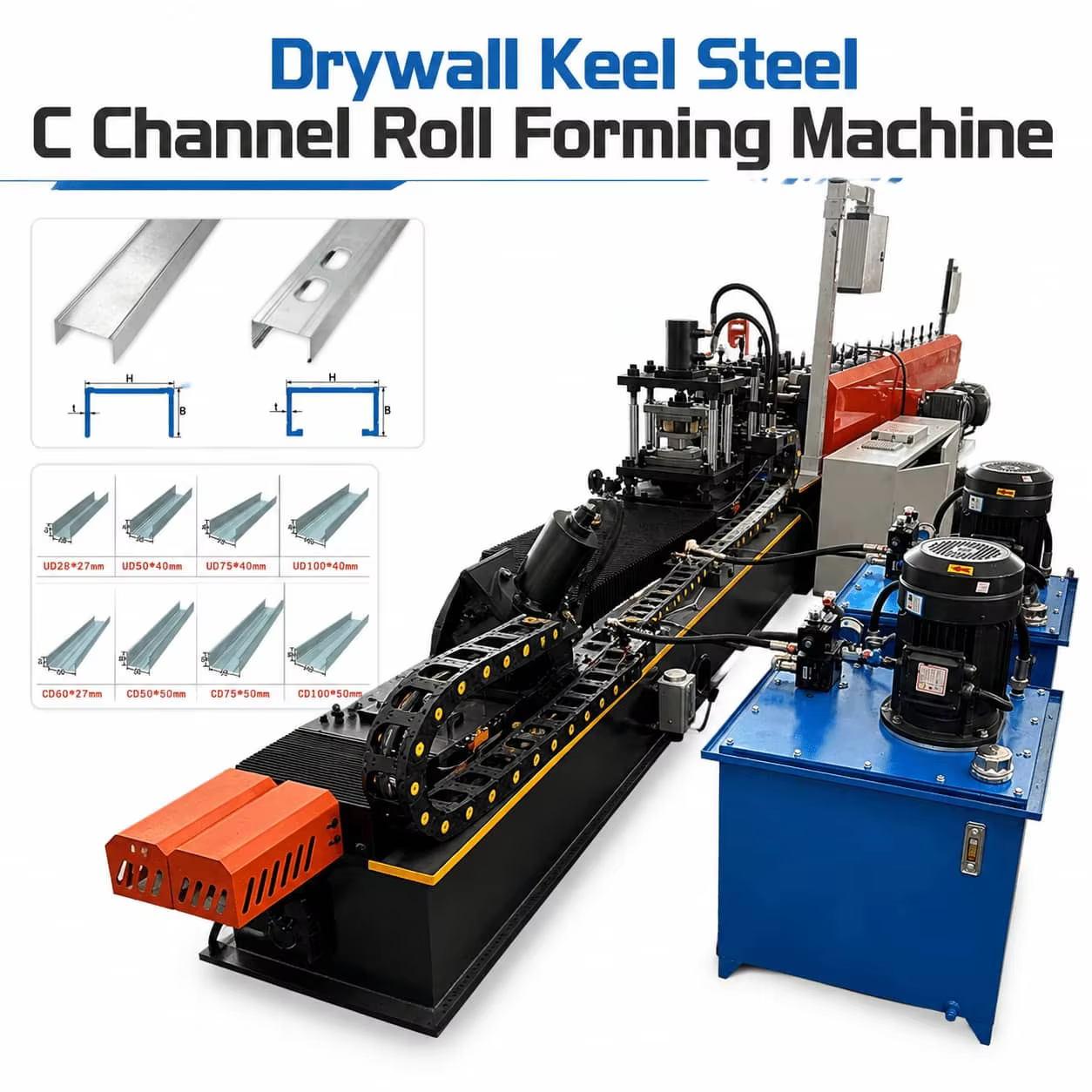

High-Accuracy PLC Controlled Automatic C Channel Roll Forming Machine 7.5kw

General Industry Tech Hebei Developing Co.,Ltd

High-Accuracy PLC Controlled Automatic C Channel Roll Forming Machine 7.5kw

Name: High-Accuracy PLC Controlled Automatic C Channel Roll Forming Machine 7.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT119024554

MoldeCZ purlin

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

C channel roll forming machine:

7.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications
- Molde
  CZ purlin
- Product Name
  C purlin roll forming machine,
- Certification
  ISO CE
- Moq
  1 Set
- Keywords
  Cz Purline Making Machine
- Control System
  PLC(imported Delta/ Siemens Brand)
- Warranty
  2 years
- Material
  GI PPGI GL PPGL
- Cutting Type
  Hydraulic flying cutting
High-Accuracy PLC Controlled Automatic C Channel Roll Forming Machine

Product Highlights
High Productivity, Easy to Operate: Forming speed up to 40 m/min with a PLC control system (imported Delta/Siemens). Simple touch operation lets one worker run the line, delivering steady high-volume output of C stud and drywall profiles.
Hydraulic Flying Cutting: The hydraulic flying saw follows the strip at line speed and cuts profiles to length on the move, so production never stops. Cr12 steel blades give clean, burr-free ends, and every piece fits standard steel framing without extra processing.
Durable Construction: Cr12 alloy rollers, Cr12 cutting blades and 45# steel shafts with tempering treatment are combined with a gear and chain transmission. The rigid structure holds profile accuracy through long runs and keeps maintenance low.
Material Versatility: Processes GI, PPGI, GL and PPGL coils, so you can choose plain galvanized or color-coded steel according to corrosion resistance and appearance requirements for different building projects.
Wide Application Scenarios: Produces C channel studs for drywall partitions, steel stud framing, ceiling systems, light steel frame buildings, prefab houses and container homes. Customized working width lets the machine match your profile size range. Flexible
Customization Service: Drawing-based, sample-based and full customization are available, with custom design completed within 3 days. The machine can be tailored to produce the exact C profile dimensions your market needs.
Reliable Factory Support: ISO and CE certified with a warranty of more than 5 years. Free replacement parts, online technical support, machinery test report and video outgoing inspection are provided, backed by a factory with 100% on-time dispatch.

Take the following drawing profile for example:

PARAMETERS：

The working flow as below:

Decoiling---feeding---Roll forming--- Cut to length---receiving---Final product

High-Accuracy PLC Controlled Automatic C Channel Roll Forming Machine

Formed Material	PPGI,GI,AI
Thickness	1.5-3mm
Roller station	12 rows(As your requirement of profile)
Roller material	45# steel with quenched treatment
Shaft diameter	80mm solid shaft
Shaft material	45# steel with tempered
Transmission	By chain
Motor power	15KW
Machine frame	350H steel welded
Cutting type	Hydraulic cutting
Hydraulic power	5.5kw
Cutting blade material	Cr12 with quenched treatment
Control system	PLC

PRODUCT DISPLAY:

Double head 3 Tons hydraulic Decoiler

Usage: The double-head hydraulic uncoiler can reduce the time required to change steel coils during operation, saving time and improving efficiency.

Active uncoil by hydraulic station

Loading capacity: 3 T

Uncoiling width: 300mm

Inner diameter: 450-550mm

ZTRFM U Channel & Drywall Profile Making Machine Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

ZTRFM U channel making machineadded an automatic lubrication system that applies lubricant as the material is fed in, protecting the rollers and preserving the zinc coating on the surface of the steel coils.

Stud machine Main roll forming part

Roller fixer : Guide column

Frame : middle plate welded, Memorial arch frame type

Frame thickness:20mm

Drive mode: gear and Chains

Material of rollers: GCr12MoV

Material of shafts: 45# steel with tempering

Diameter of shafts: 40mm

Number of rollers : 12rollers Main power: 11 kw+11kw

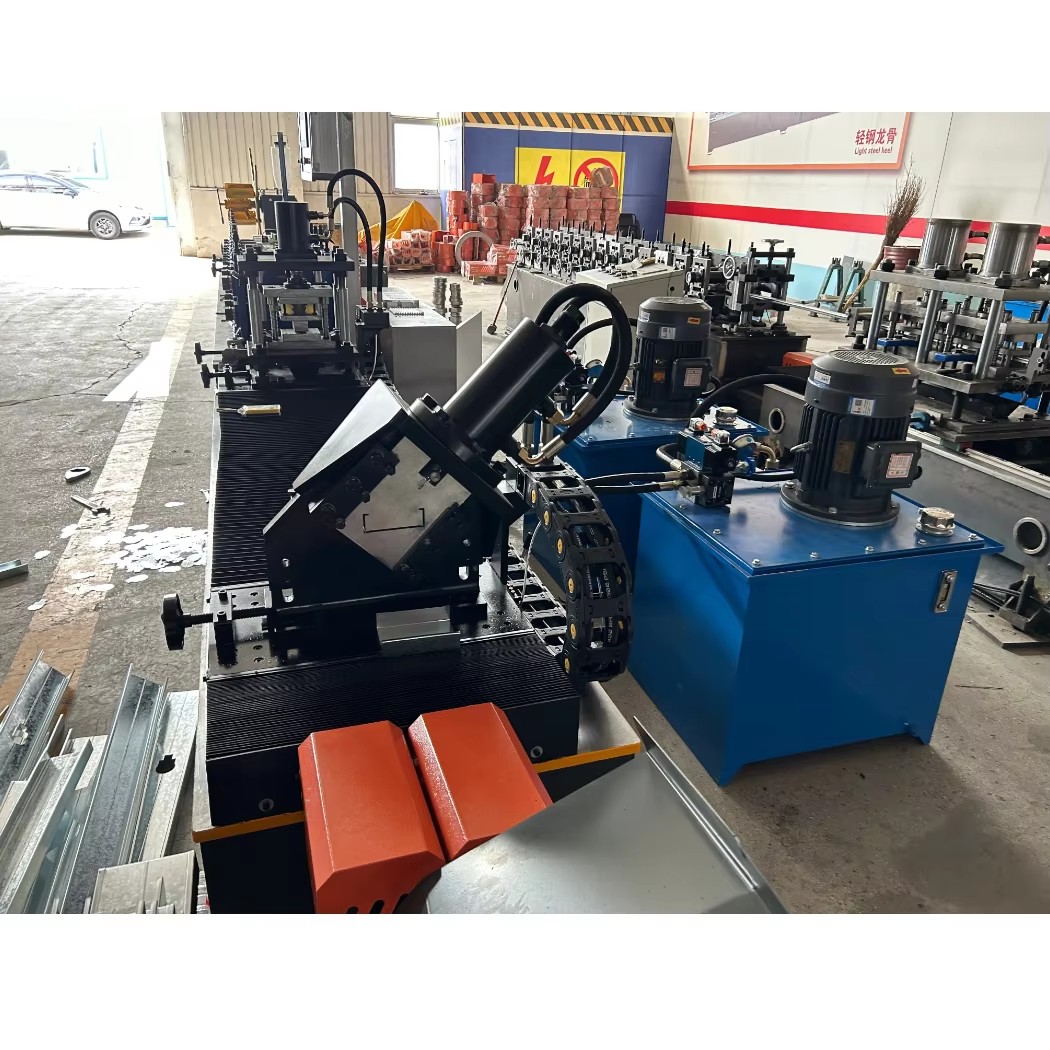

C Stud & Drywall Profile Making Machine Fly Cutting system

Material of blades: Gcr12MoV quenched

Power supply : hydraulic power

Frame : Pillar style with rack & pinion system

Stroke switch : non-contact photoelectric switch

Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.

The different sizes can be produced on this machine by adjusting the feeding width.

Semi-Automatic Pneumatic Receiving Table for Keel

The semi-automatic pneumatic receiving table is installed at the end of the roll forming line (behind the cutting unit) to receive, organize and stack finished profiles after cutting. It is the key finishing station of the production process: forming - cutting - receiving - packing.

COMPANY CERTIFICATE:

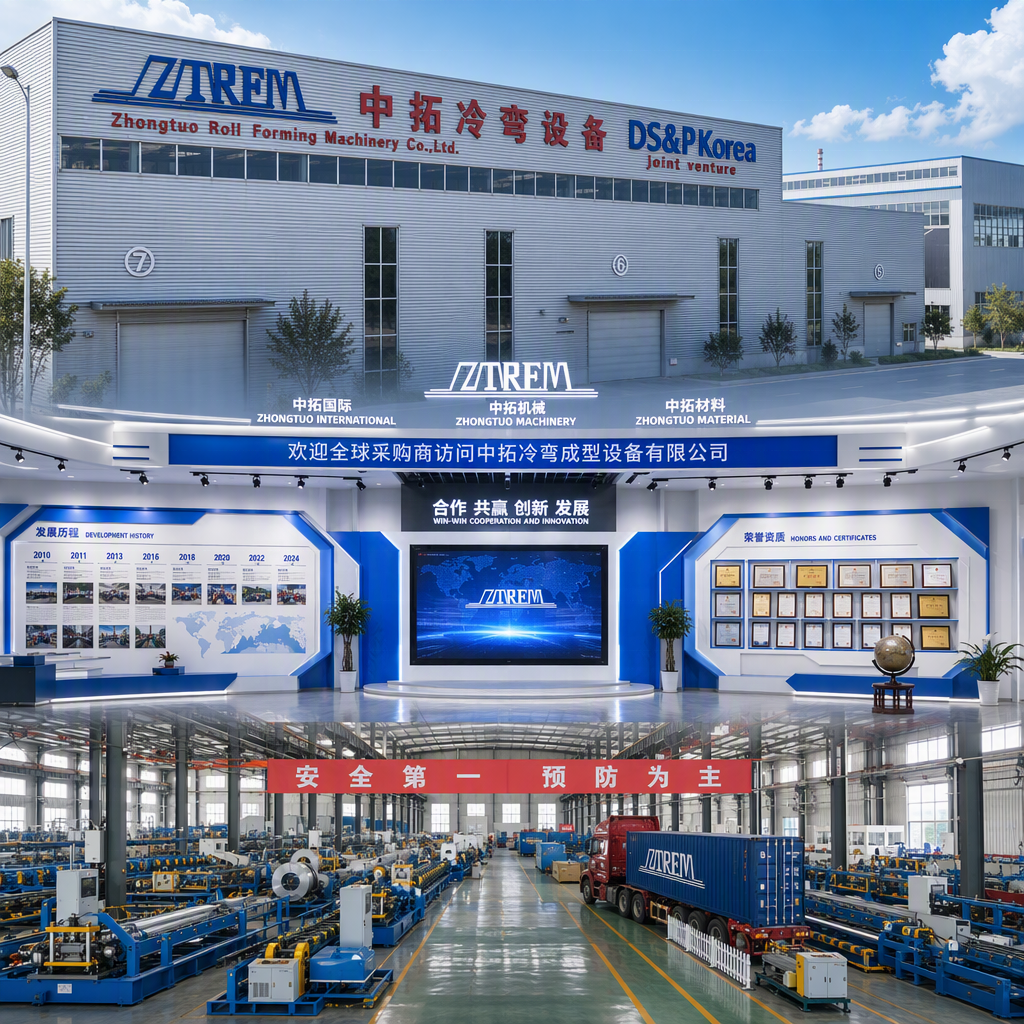

COMPANY PROFILE:

Cangzhou Zhongtuo Roll Forming Machinery Co.,ltd.. is a professional manufacturer of large and medium-sized machinery and equipment.

We are new high-tech enterprise, is the master research base of YANSHAN university, get more than 20 patents certificates until 2024 year.

Professional sales team,experienced technical engineers and skilled production mechanics are the greatest factor in our success.

Mr Cary Xu, the founder of the factory, is a professional sales engineer, who has been engaged in the design and manufacture of cold forming machines since 2006.

Our machines exported to over 170 countires, achieving good fame. 60% order from repeat clients, it due to our machine good quality and after sales service .

We have 1 display workshop use to put the ready machines. The workshop is big, tidy, and clean. Clients feel good after visiting our factory and workshop.

Our factory adopt digital simulation technology to test whether machine could be runned smoothly.
