High Accuracy M Channel Machine Sigma Purlin Roll Forming Machine M purlin

General Industry Tech Hebei Developing Co.,Ltd

High Accuracy M Channel Machine Sigma Purlin Roll Forming Machine M purlin

Name: High Accuracy M Channel Machine Sigma Purlin Roll Forming Machine M purlin
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT119496174

Speed25m/min

Warranty1 year

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

type:

M purlin

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Speed
25m/min
Warranty
1 year
Product Name
M Purlin Roll Forming Machine
Shaft Material
45# High Grade Steel
Roller Material
GCr 15
Raw Material
PPGI PPGL GI GL
Decoiler
5T Hydraulic/manual Decoiler
Material Thickness
2mm- 3mm
Punching
Hydraulic Punching
Cutter Material
HRC 58-62

High Accuracy M Channel Machine: Precision Sigma Section Purlin Roll Forming Solutions

The global demand for high-strength structural steel frames has increased the requirement for advanced manufacturing equipment. A High Accuracy M Channel Machine (also known as a Sigma Section Purlin Machine) is the essential tool for producing complex structural profiles used in modern industrial buildings, warehouse racking, and solar mounting systems.

Unlike standard C or Z purlins, the M channel and Sigma section profiles offer superior load-bearing capacity and structural rigidity. Our high-precision roll forming technology ensures that each profile is produced with exact dimensions, meeting the strict tolerances required for heavy-duty structural applications. With a production capacity of 25m/min, this machine significantly improves factory throughput while maintaining consistent quality.

As a leading Sigma section purlin roll forming machine manufacturer, Zhongtuo (ZTRFM) focuses on technical excellence. Our ZTRFM-CUM series machines are engineered to handle high-strength steel coils with thicknesses ranging from 2mm to 3mm, providing a robust solution for the most demanding construction environments.

High Accuracy M Channel Sigma Purlin Roll Forming Machine

Precision Engineering for Complex Steel Profiles

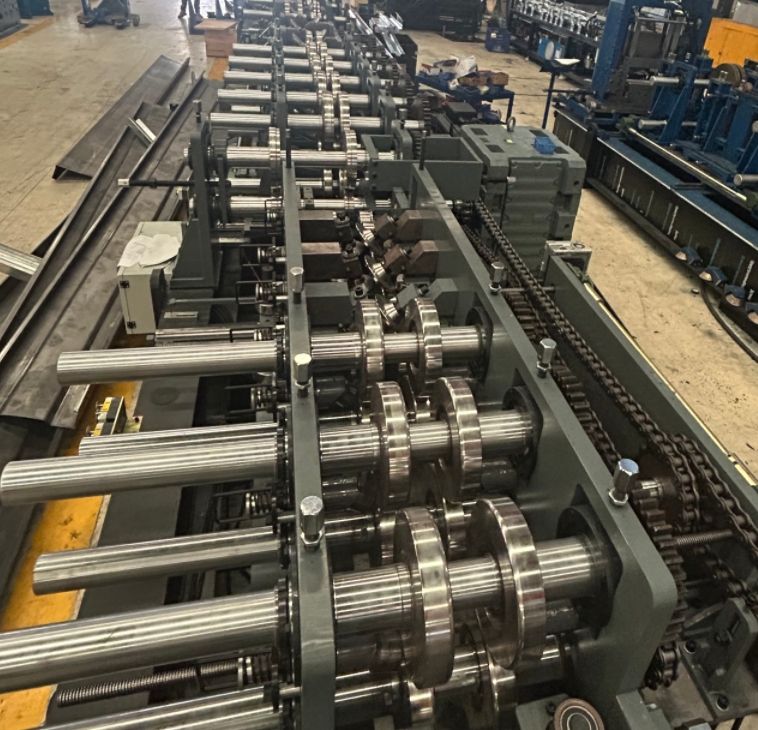

Manufacturing M-channel and Sigma-section purlins requires a multi-station forming process to ensure that each bend is accurate and free from stress cracks. The Sigma Purlin Machine utilizes a high-grade PLC control system (Delta or Siemens) to manage the entire process, from hydraulic decoiling to precision punching and post-cutting.

The machine frame is constructed from heavy-duty H-beam steel to provide a stable foundation, minimizing vibration during the high-pressure forming process. The rollers are crafted from GCr15 bearing steel, heat-treated to HRC 58-62 and chrome-plated, ensuring excellent wear resistance even when processing 3mm thick materials.

Furthermore, the integrated hydraulic punching system allows for flexible hole patterns, which is critical for the easy assembly of structural steel frames on-site.

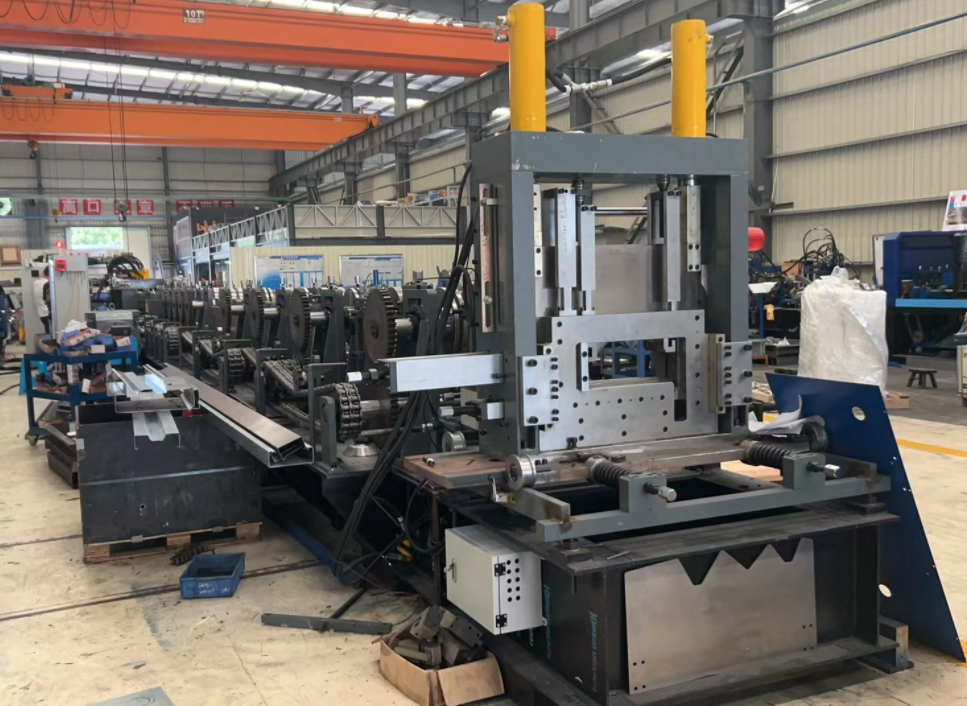

Purlin Roll Forming Machine

Key Selling Points of ZTRFM M-Channel Machine:

High Forming Accuracy: Precise dimensions for structural integrity
Sigma & M Profile Capability: Advanced multi-station roll forming
Heavy Duty Materials: Handles up to 3mm thick high-strength steel
25m/min Speed: Efficient production for large-scale projects
Delta PLC Control: User-friendly interface for easy operation
Durable Components: GCr15 rollers and HRC 58-62 cutters

Technical Specifications: M Channel & Sigma Purlin Machine

Choosing a Sigma Section Purlin Machine requires a focus on load capacity and material thickness. The ZTRFM model is designed for industrial durability and high-precision output.

Technical Item	Specification Detail
Machine Type	High Accuracy M/Sigma Purlin Roll Forming Machine
Production Capacity	25 m/min (Standard)
Material Thickness	2.0 mm – 3.0 mm (Heavy Duty)
Work Pressure	195 Mpa — 350 Mpa
Raw Material	PPGI, PPGL, GI, GL (High Strength)
Roller Material	GCr 15 Bearing Steel (Heat Treated)
Shaft Material	45# High Grade Forged Steel (Ф 80mm+)
Punching & Cutting	Integrated Hydraulic System
Total Weight	Approx. 7,000 kg
Control System	PLC with Touch Screen (Delta/Customized)

Structural Applications: Where Sigma Purlins Excel

The Sigma Section Purlin is the industry standard for projects that require a high strength-to-weight ratio. By using an M Channel Making Machine, you can produce the specific components needed for modern structural engineering.

Typical applications include:

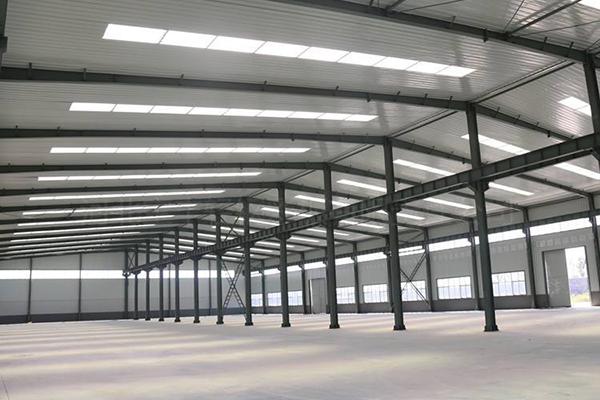

Industrial warehouse steel framing
Heavy-duty racking systems for logistics
Photovoltaic (PV) solar panel mounting brackets
Large-span commercial building structures
Mezzanine floor support systems
Agricultural steel frame buildings

In addition, the high accuracy of the ZTRFM machine ensures that the holes align perfectly during assembly, reducing labor costs and improving building safety.

Zhongtuo: Your Global Partner in Purlin Manufacturing

Investing in a ZTRFM M Purlin Roll Forming Machine means choosing technical reliability and professional support. With over 13 years of experience and CE certification, we understand the complexities of structural steel production.

We provide comprehensive solutions including custom design within 3 days, pre-shipment testing, and overseas engineer support. Our high-precision machines are trusted by manufacturers globally for their durability and "Easy to Operate" interface.

Contact Zhongtuo today to discuss your Sigma or M-profile production requirements and receive a detailed technical proposal.
