Product Overview

The Heavy-Duty Floor Deck Roll Forming Machine is engineered for pre-engineered steel building manufacturers, commercial high-rise contractors, and structural decking fabricators. Floor decking panels act as permanent formwork during concrete pouring and combine with cured concrete to serve as structural tensile reinforcement, significantly accelerating multi-story building erection.

Accommodating high-tensile galvanized steel (GI) and galvalume (GL) coils with feeding widths up to 1250mm and heavy thicknesses from 0.7mm to 1.2mm. The line outputs market-standard structural profiles including 1.5" B-deck (38mm deep), open-trough decking (51mm to 76mm deep), and closed-necking composite floor decks with cover widths from 590mm to 1000mm.

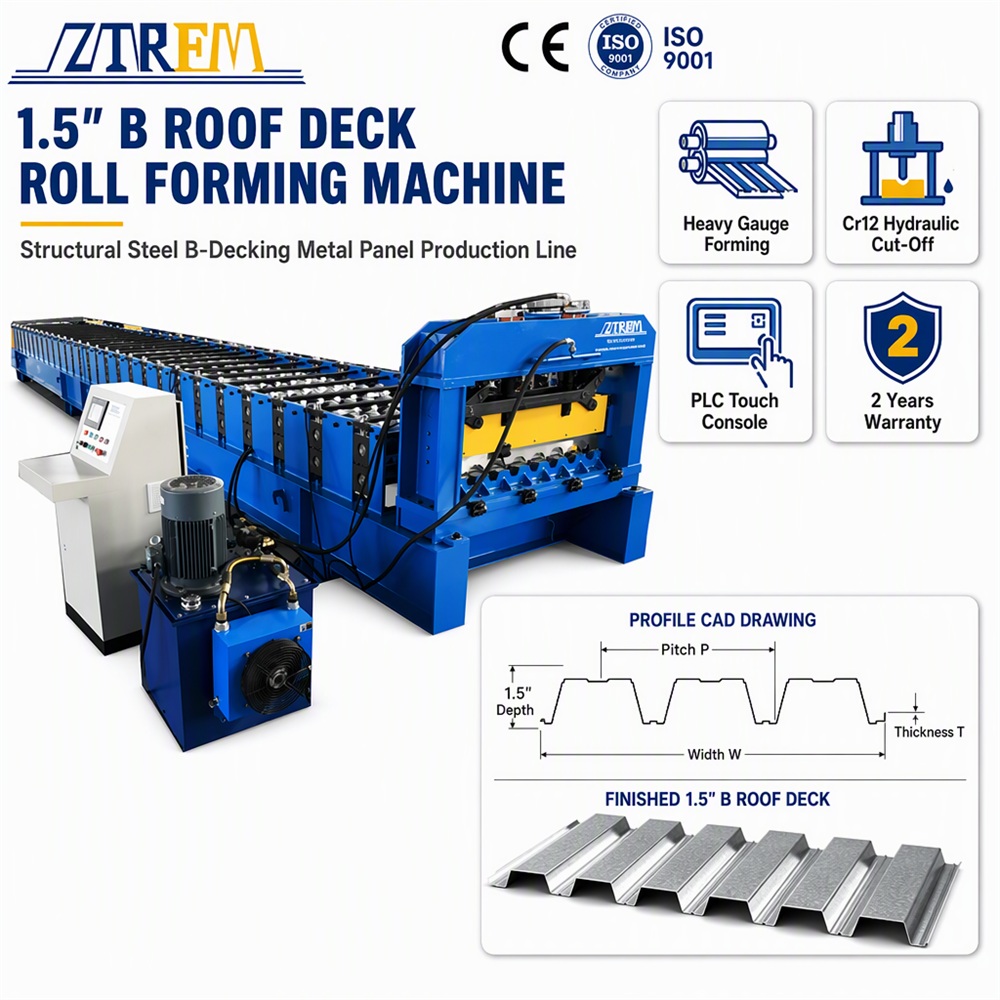

1: 1.5" B Roof Deck Roll Forming Machine Overview & CAD Profile

Key Technical Features

• Integrated Knurling Embossment: Intermediate roller stands incorporate CNC-machined anti-slip embossing patterns, providing robust interlock between the steel sheet and poured concrete slab.
• 40Cr High-Strength Forming Rollers: Roller dies are precision CNC-turned from 40Cr forged structural alloy, heat-treated, and hard-chrome plated (0.05mm) to withstand high contact pressure without wear.
• Massive 400H Steel Chassis: Rigid structural H-beam foundation normalized to eliminate residual welding stresses, providing absolute station alignment for high-tonnage forming.
• Solid Ø70-80mm Heat-Treated Shafts: Solid 45# quenched shafts supported by heavy-duty self-aligning spherical roller bearings prevent center deflection during 1.2mm coil processing.
• High-Tonnage Hydraulic Shearing: Guided hydraulic cutting head with Cr12MoV vacuum-quenched blades cuts through multi-rib high-gauge sections without blade chipping.

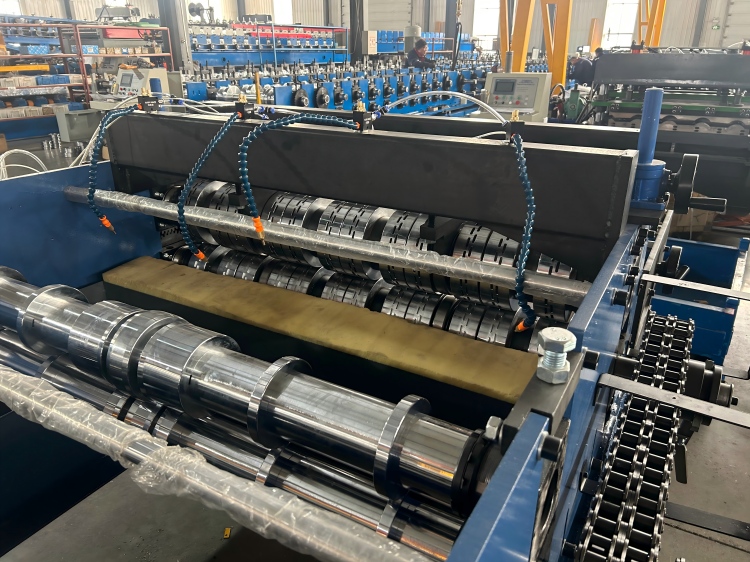

2: Infeed Embossing Rollers & Heavy-Duty Stand Assembly

Technical Specifications

Parameter / Item	Standard Specification
Equipment Model	Heavy Duty Steel Floor Decking Sheet Roll Forming Machine
Profile Type	1.5" B-Deck / Composite Floor Decking / Closed-Necking Deck
Effective Cover Width	590 mm - 1000 mm (Design standard based on profile drawing)
Rib Height / Depth	38 mm (1.5" B-Deck) / 51 mm / 76 mm structural deep ribs
Applicable Raw Material	Galvanized Steel Sheet (GI), Galvalume (GL), High-Tensile Structural Steel
Material Thickness Range	0.7 mm - 1.2 mm (Heavy Gauge Structural Steel)
Coil Feeding Width	1250 mm (Accommodates 1000mm - 1250mm wide coils)
Forming Roller Stations	20 - 24 Progressive Stations (Multi-stage heavy bending)
Production Speed	Approx. 15 m/min
Main Drive Motor Power	22 kW Heavy Industrial Electric Motor with Cycloidal Reducer
Roller Material & Treatment	40Cr Structural Alloy Steel, Quenched & Hard Chrome Plated (0.05 mm)
Shaft Material & Diameter	45# Steel with High-Frequency Heat Treatment, Solid Ø70-80 mm
Hydraulic Shearing Unit	High-pressure hydraulic station, Cr12MoV vacuum quenched blades (HRC 58-62)
Bed Frame Structure	350-400 H-Beam High-Grade Welded Structural Steel Chassis
Control System	Siemens / Delta Industrial PLC Touchscreen Automation with Remote Monitoring
Length Cutting Accuracy	±1.0 mm (Rotary Optical Encoder)
Operating Voltage	380V / 220V / 440V, 50Hz/60Hz, 3 Phase (Customizable)
Total Machine Weight	Approx. 18,000 kg (18 Tons Heavy Construction)
Warranty & Support	More Than 5 Years warranty with lifelong engineering technical support
Quality Certification	CE Certified (Directives: 2006/42/EC & 2014/35/EU), BV, STV, ISO9001

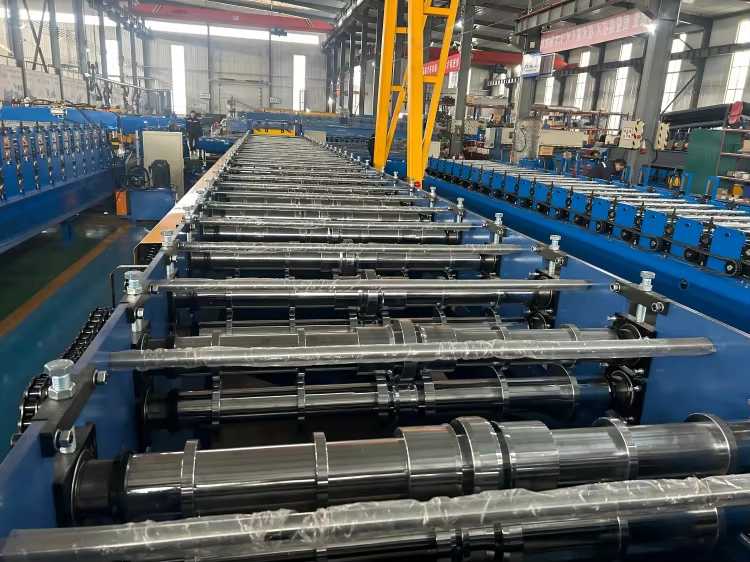

3: High-Density Floor Deck Roll Forming Stands & Heavy Drive Shafts

Multi-Pass Heavy Roll Forming Stands

Forming heavy 0.7-1.2mm structural steel into deep structural ribs requires high roll-force distribution. The machine features 20-24 sequential bending stands to shape deep trapezoidal ribs and locking laps without material stretch or edge camber.

• Heavy Double-Row Roller Chain: High-tensile drive chains synchronized with precision sprockets deliver steady rotational torque across all stands.
• Embossment Tooling Stations: Dedicated intermediate embossing rollers create uniform interlocking dimples across the panel web.
• Heavy Cast-Steel Stand Blocks: Independent structural stands securely bolted to the bed withstand massive radial forming loads.

4: Precision Embossing Knurling Rollers Close-Up

Composite Floor Decking Profiles & CAD Blueprints

Floor decking panels meet international composite slab building design standards (SDI, Eurocode 4, ASTM):

• 1.5" B-Deck Profile: Standard 38mm rib depth, 150-200mm rib pitch, 914-1000mm cover width for commercial roof/floor assemblies.
• Close-Necking Composite Deck: 51-54mm rib depth, dove-tail or re-entrant shape providing mechanical lock for suspended ceiling services and piping.
• Open-Trough Decking: 75-76mm deep trapezoidal ribs delivering long unsupported spans for industrial mezzanine floors.

5: CAD Cross-Section Engineering Blueprints for Floor Decking

Structural Applications in Steel Frame Buildings

Floor decking sheets are indispensable in modern steel structure design:

• Commercial High-Rise Towers: Serves as working platforms during construction and tensile reinforcement in composite floor slabs.
• Multi-Story Logistics Centers & Warehouses: Provides high load-bearing capacity for heavy shelving and forklift operations.
• Multi-Tier Parking Structures: Excellent corrosion resistance and rigid floor diaphragms under seismic and dynamic vehicle loads.

Supply Scope & Ocean Shipping

Turnkey supply scope includes 5-ton / 10-ton hydraulic uncoiler with coil car (optional), heavy-duty roll forming main machine on 400H frame with safety guards, hydraulic profile cut-off station, air-cooled hydraulic pump station, Siemens PLC touchscreen console, and finished deck stacker runout tables.

All bare precision 40Cr rollers and shafts are coated with anti-rust protective oil. The 18-ton heavy machine bed is securely lashed inside a 40ft HQ container with heavy steel wire ropes and timber chocks. The electrical control console and hydraulic power unit are sealed in waterproof barrier wrapping and crated in export plywood cases.

Quality Standards & Certifications

Manufactured in compliance with ISO9001 quality management benchmarks, Bureau Veritas (BV), and STV standards. The production line holds official CE compliance certification under Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU.

6: CE Certification & ISO9001 Quality Management Verification
